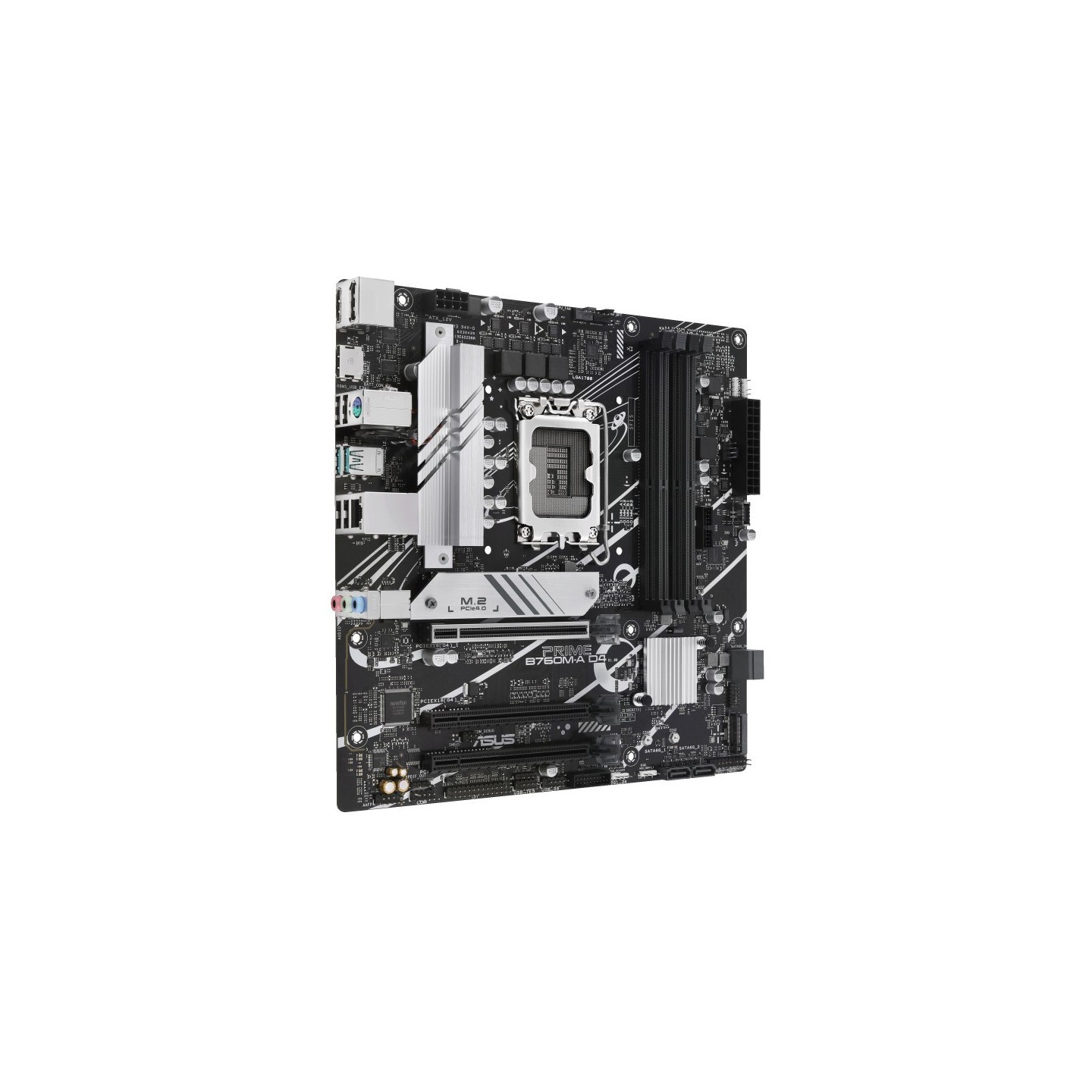

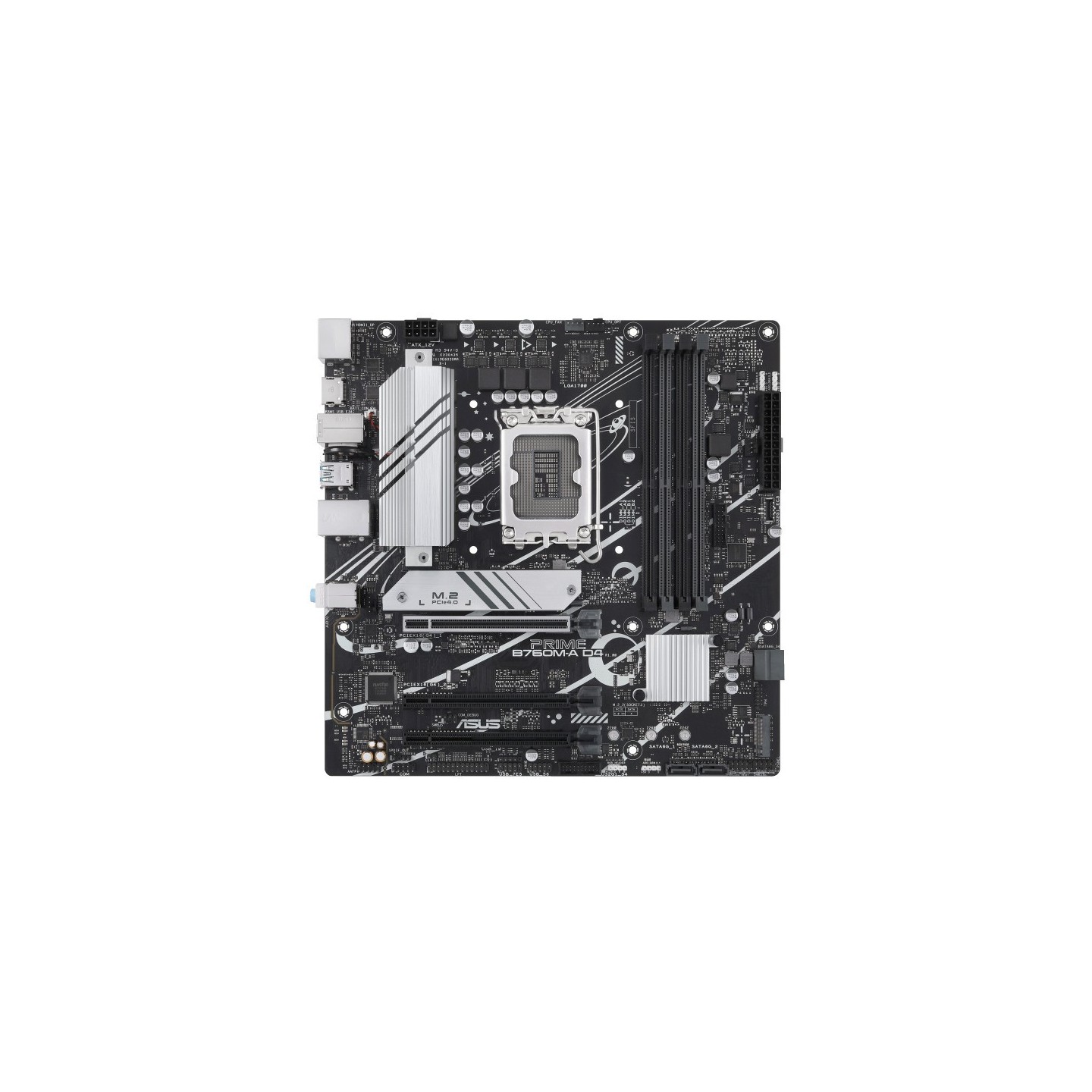

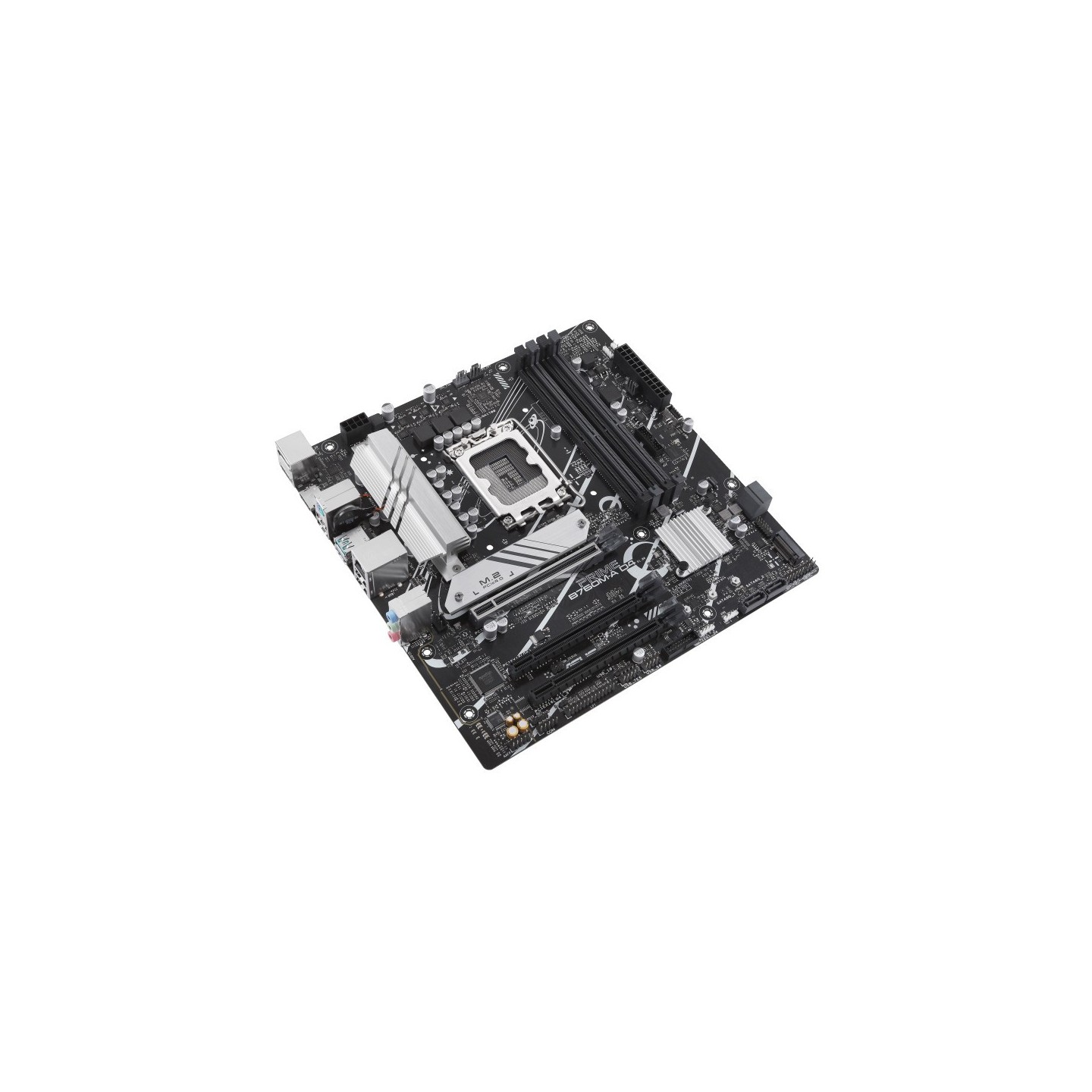

ASUS PRIME B760M-A D4-CSM LGA1700 mATX B760 DDR4 MB 128GB 2xM.2 2.5Gb (Boxed)
ASUS PRIME B760M-A D4-CSM: LGA1700 mATX Intel B760 DDR4 board (128GB/4xDIMM). PCIe 4.0 x16, 2xM.2 PCIe4.0, 4xSATA, 2.5Gb LAN, 2xHDMI 2.1, DP1.4, front USB-C, Aura Sync RGB.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - Color | Black |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header None |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | None |
The ASUS PRIME B760M-A D4-CSM is a micro-ATX motherboard designed for Intel LGA1700 socket processors including 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron CPUs. Built on the Intel B760 chipset, it supports DDR4 memory up to 128GB across 4 DIMM slots with speeds up to 5333MHz (OC) via OptiMem II and XMP profiles for enhanced stability and overclocking.

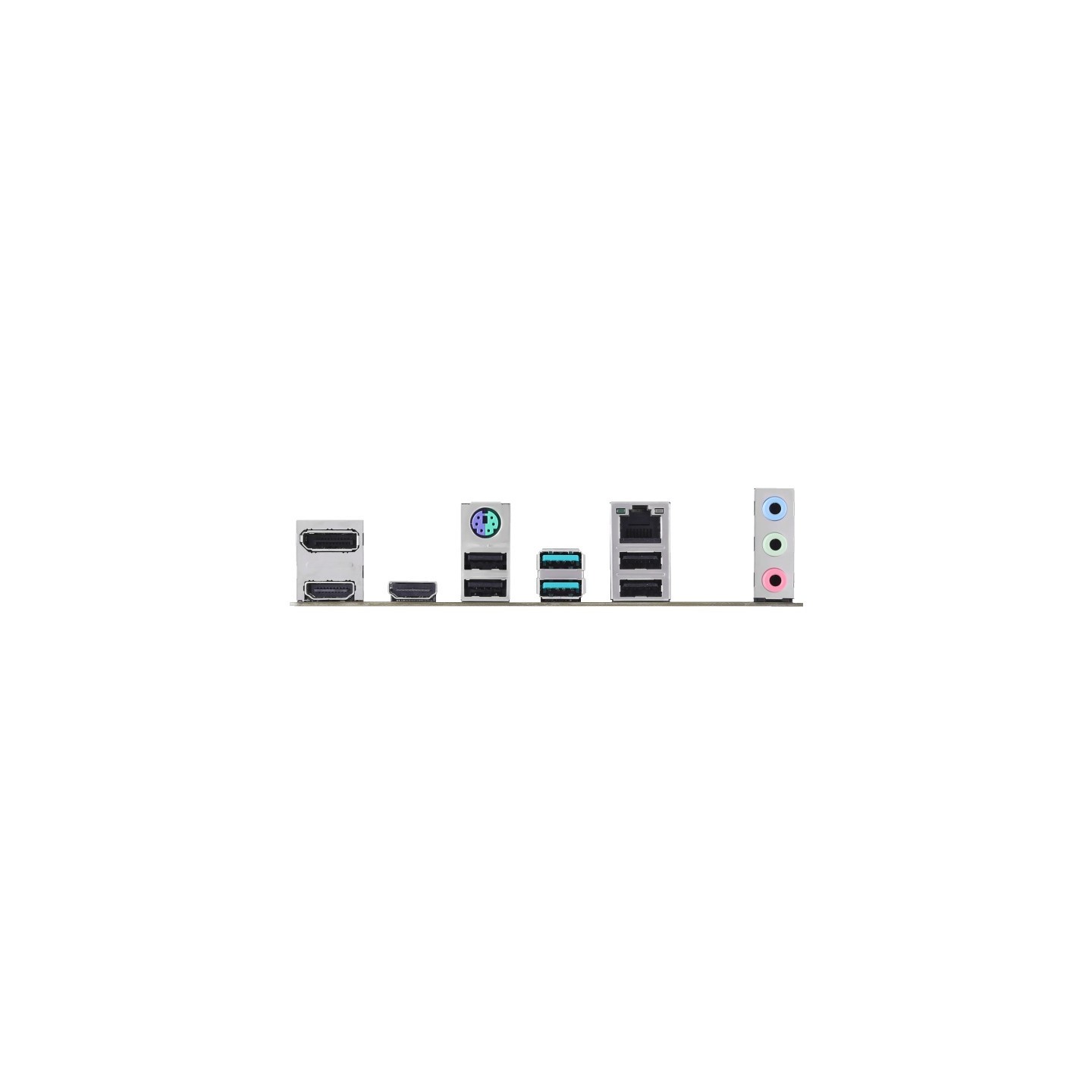

Key features include comprehensive connectivity with PCIe 4.0 x16 slot for GPUs, two M.2 slots (PCIe 4.0 x4 up to 64Gbps), 4x SATA 6Gb/s ports with RAID 0/1/5/10 support, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2 (2x Type-A), front USB 3.2 Gen 1 Type-C header, 2x HDMI 2.1, 1x DisplayPort 1.4, and PS/2 combo port. Cooling solutions feature VRM, M.2, and PCH heatsinks plus hybrid fan headers with Fan Xpert 2+ control. Audio is Realtek 7.1-channel with shielding and premium capacitors.
Aura Sync RGB lighting with 2x Addressable Gen 2 headers allows synchronization with compatible components. Ideal for productivity builds, compact gaming PCs, or AI workloads with robust power delivery and intuitive BIOS tuning.
- ✅ LGA1700 for latest Intel CPUs
- ✅ DDR4-5333+(OC) up to 128GB
- ✅ 2x M.2 PCIe 4.0 + 4x SATA RAID
- ✅ 2.5Gb LAN + USB 3.2 Gen2/Front-C
- ✅ PCIe 4.0 x16 + Aura Sync RGB
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Core™ (14th/13th/12th Gen), Pentium® Gold, Celeron® |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 2133/2400/2666/2800/2933/3000/3200/3333/3400/3466/3600/3733/4000/4266/4400/4600/4800/5000/5066/5333 MHz (OC) |
| Memory channels | Dual-channel |
| Number of M.2 (M) slots | 2 (PCIe 4.0 x4) |
| Number of SATA III connectors | 4 |
| RAID levels | 0, 1, 5, 10 |
| PCI Express x16 (Gen 4.x) slots | 1 (CPU) + 1 (x4 mode, chipset) |
| PCI Express x1 (Gen 3.x) slots | 1 |
| USB 3.2 Gen 2 ports quantity | 2 (Type-A, rear) |
| USB 3.2 Gen 1 connectors | Front Type-C header |
| USB 2.0 ports quantity | 4 (rear) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Audio output channels | 7.1 channels |
| RGB Headers | 2x Addressable Gen 2 (Aura Sync) |
| Cooling Features | VRM/M.2/PCH Heatsinks, Fan Xpert 2+ |
| BIOS type | UEFI AMI |
| Width | 244 mm |
| Depth | 244 mm |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
