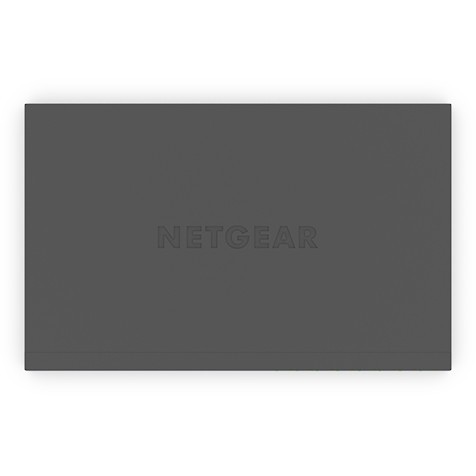

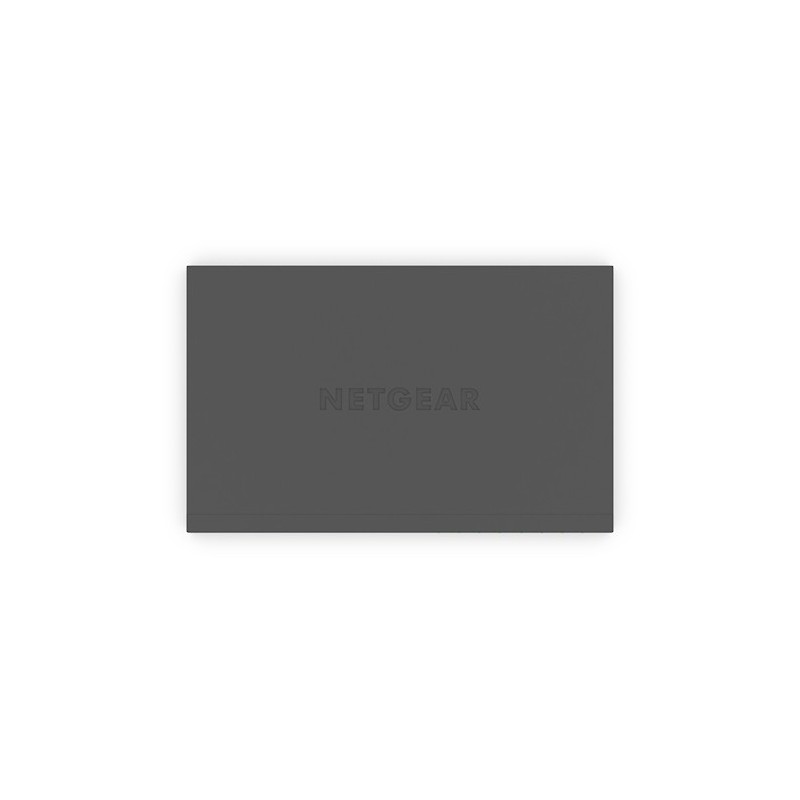

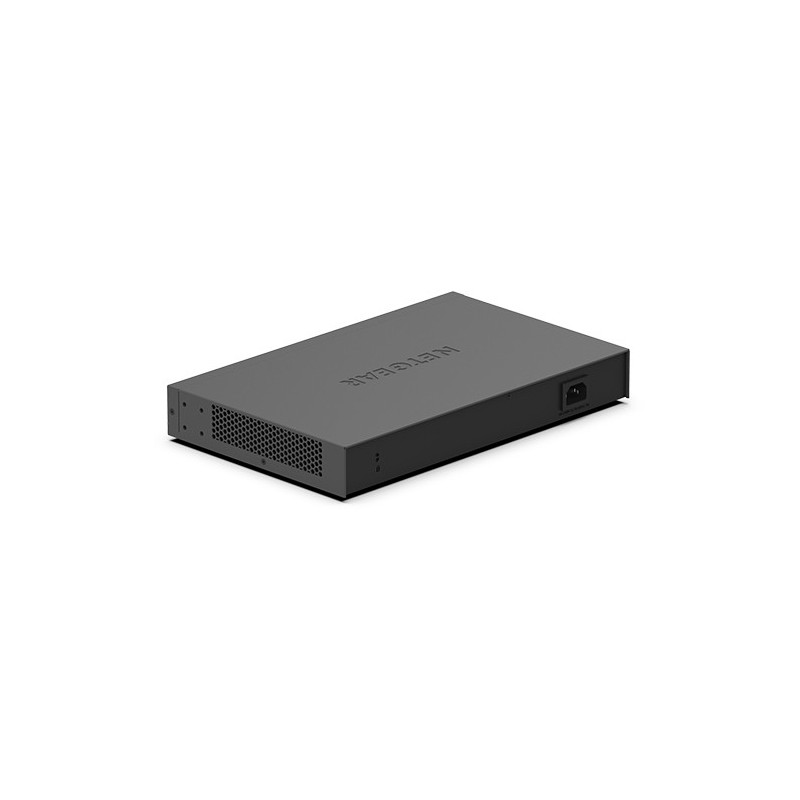

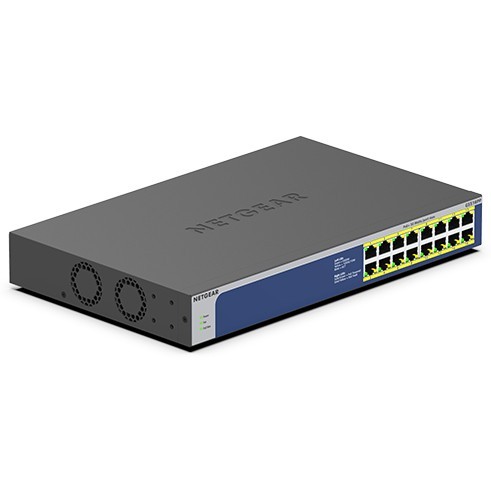

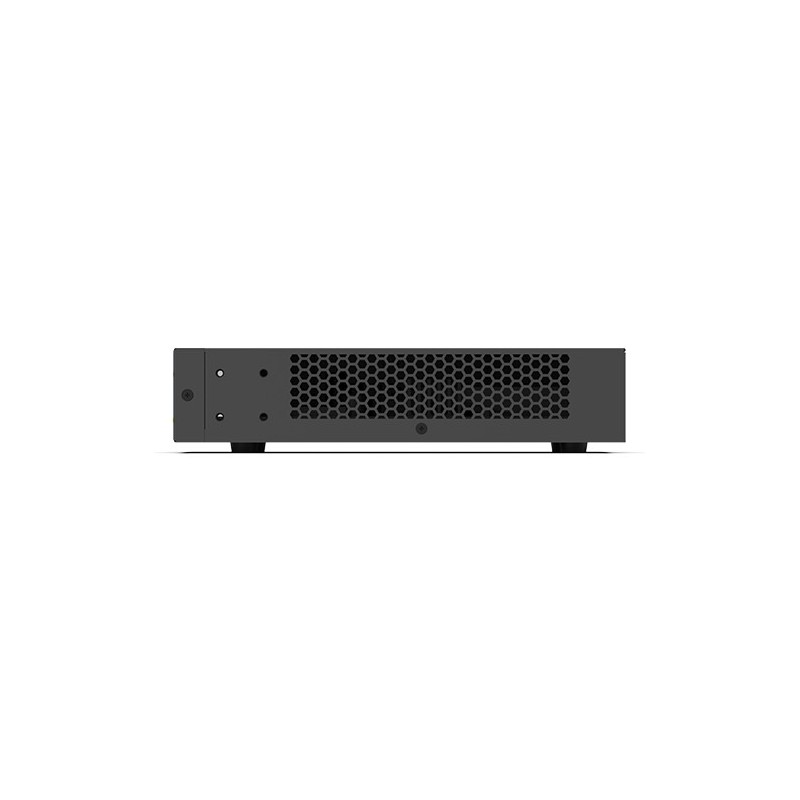

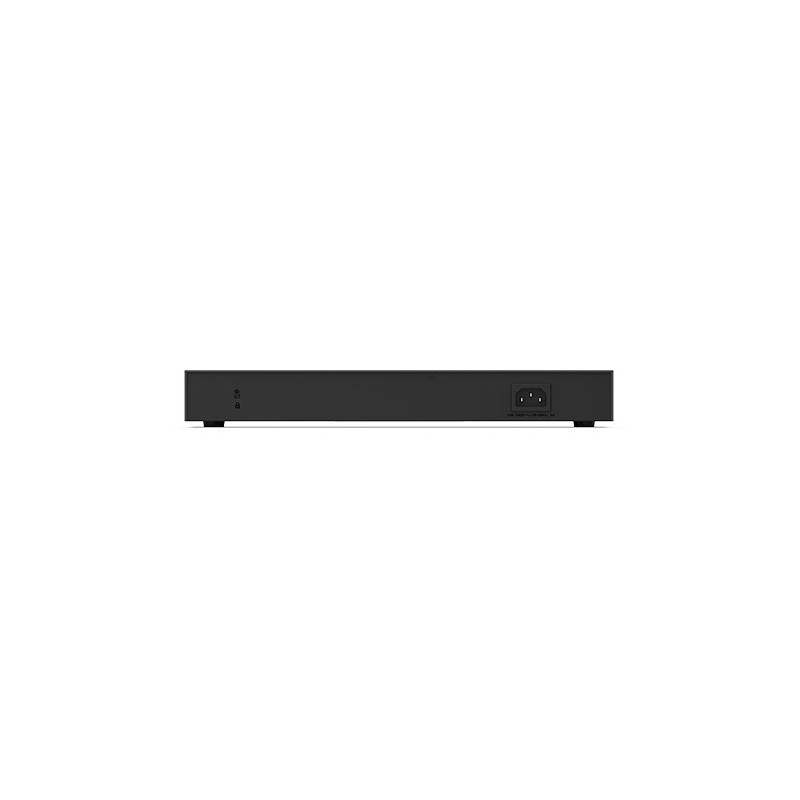

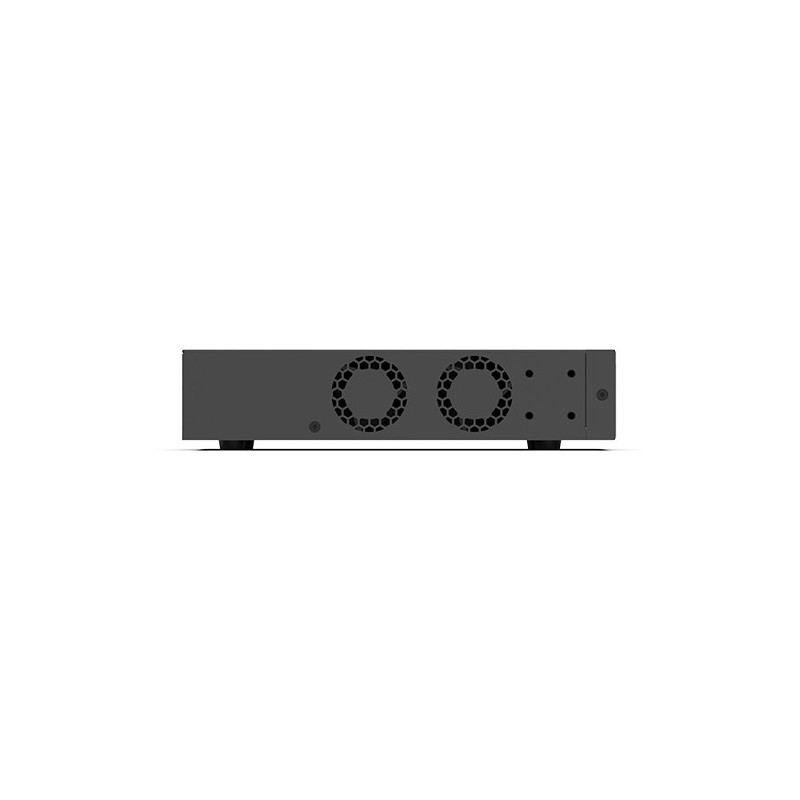

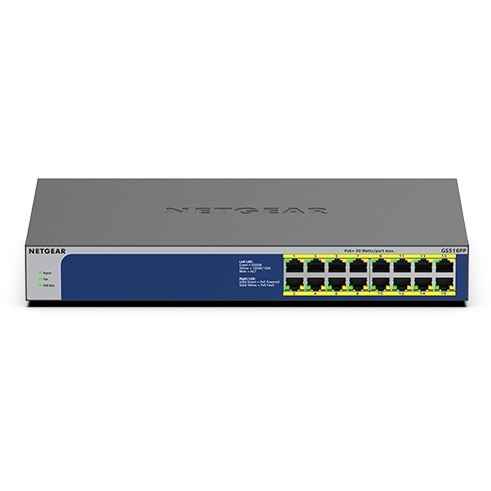

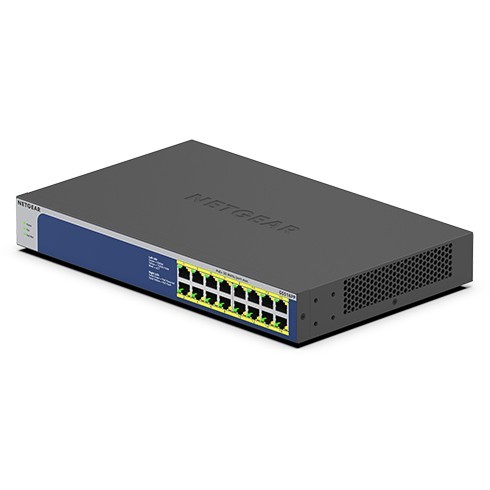

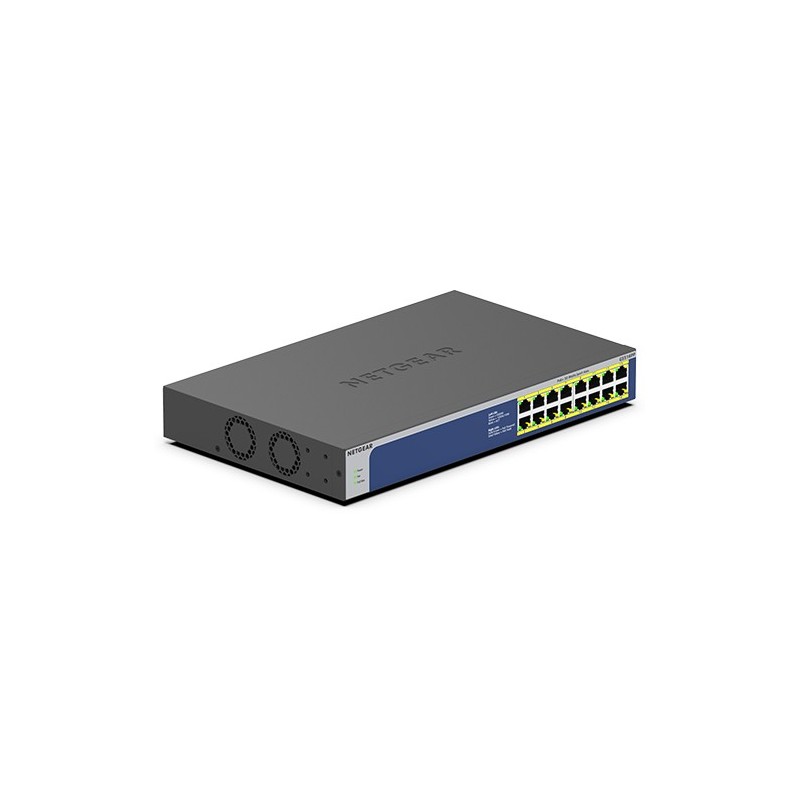

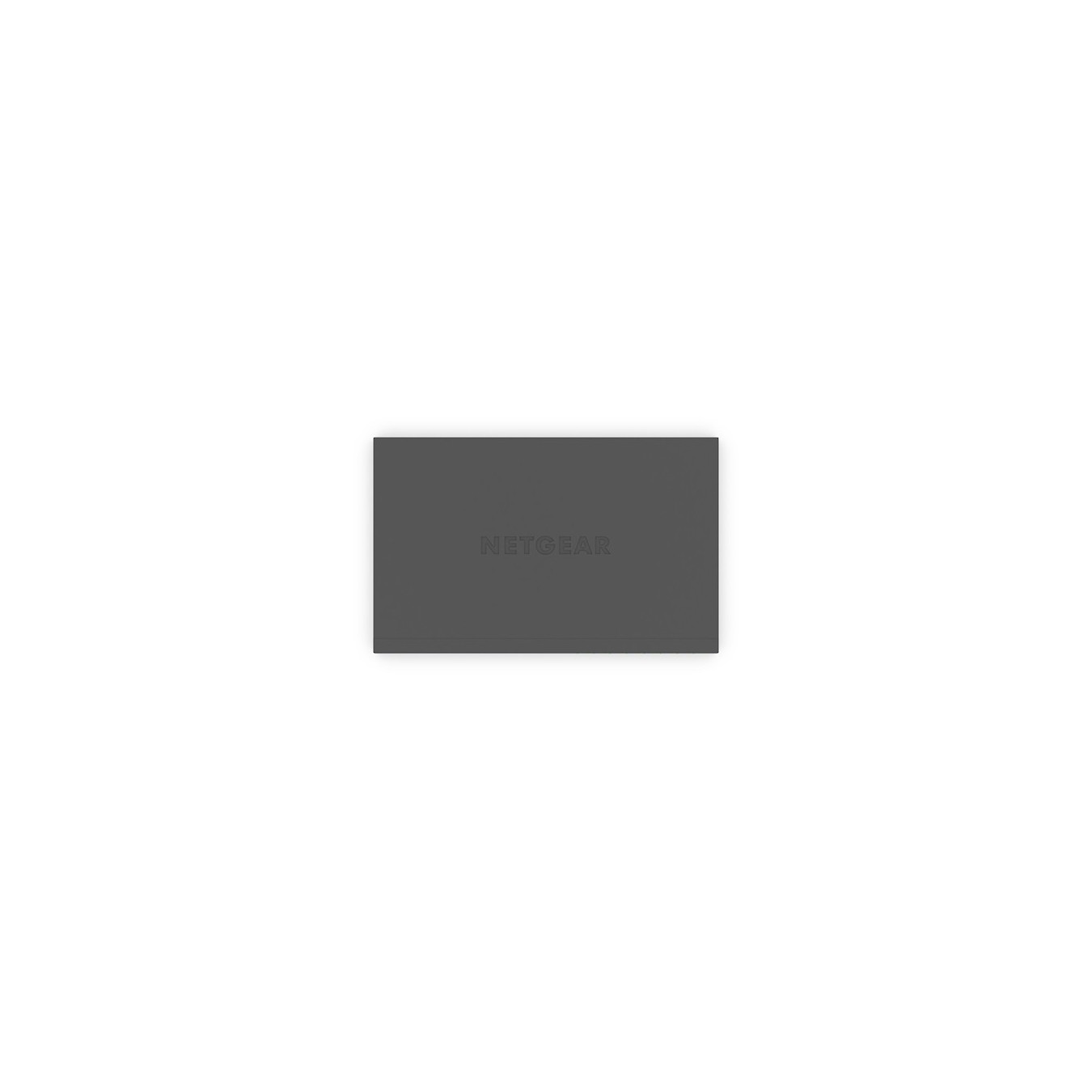

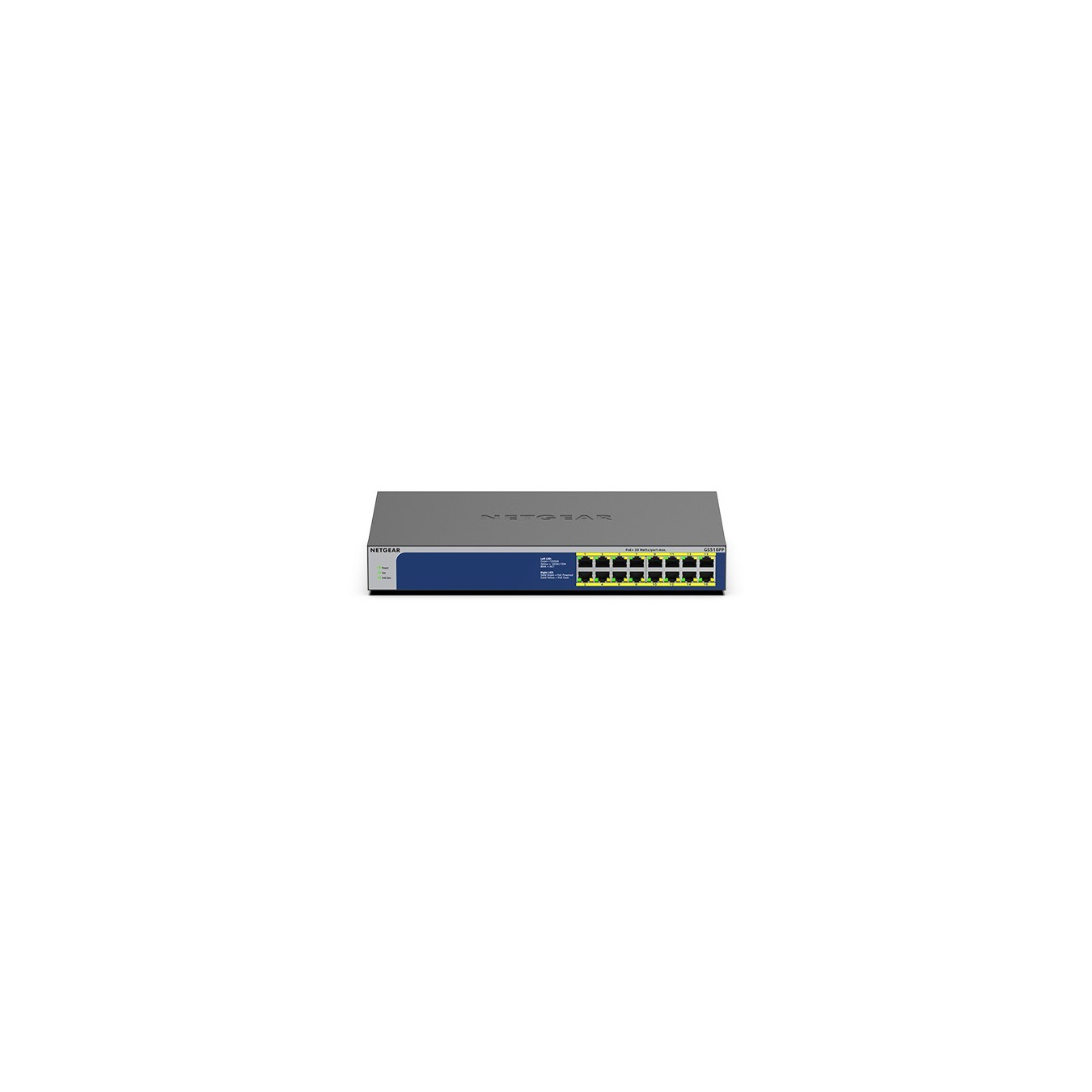

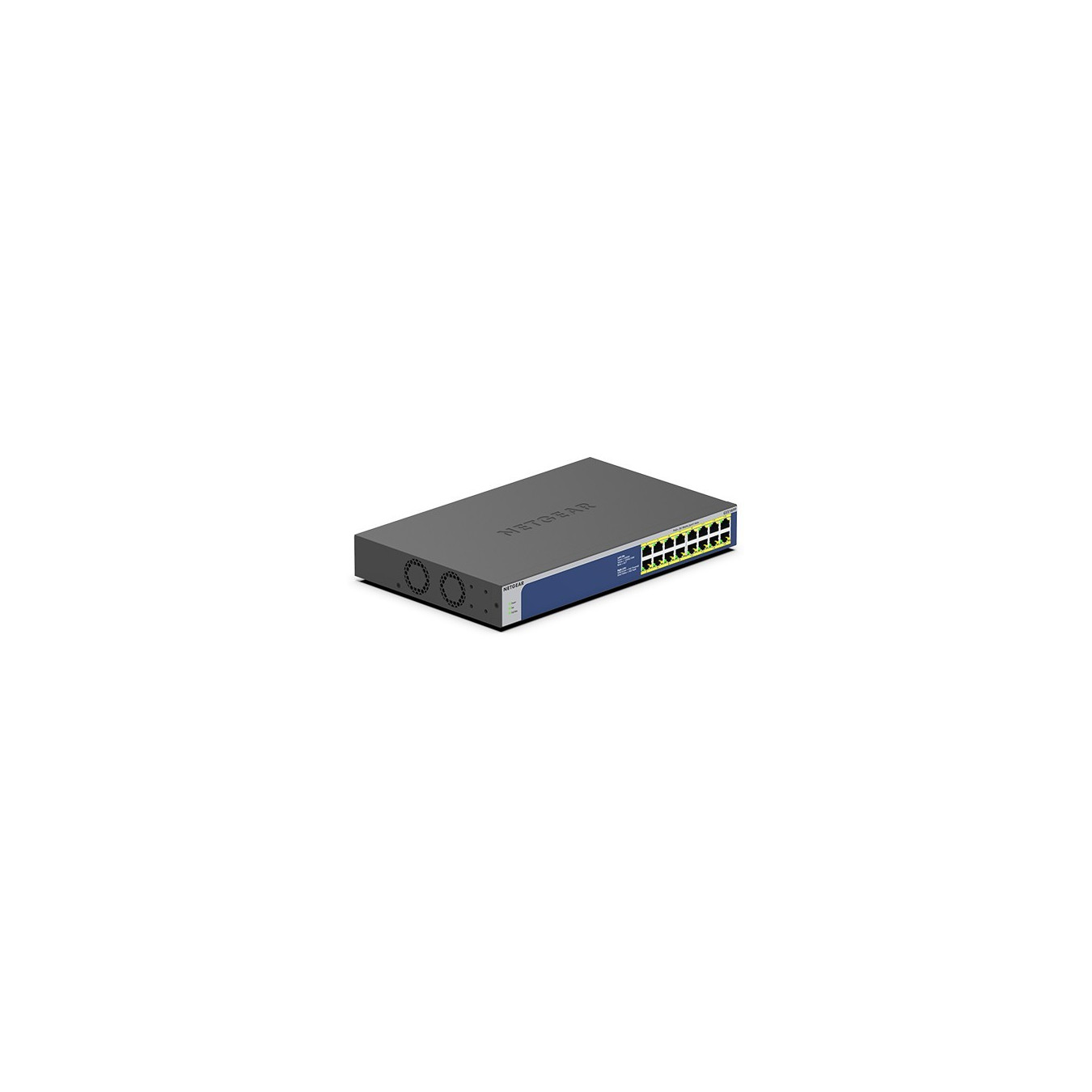

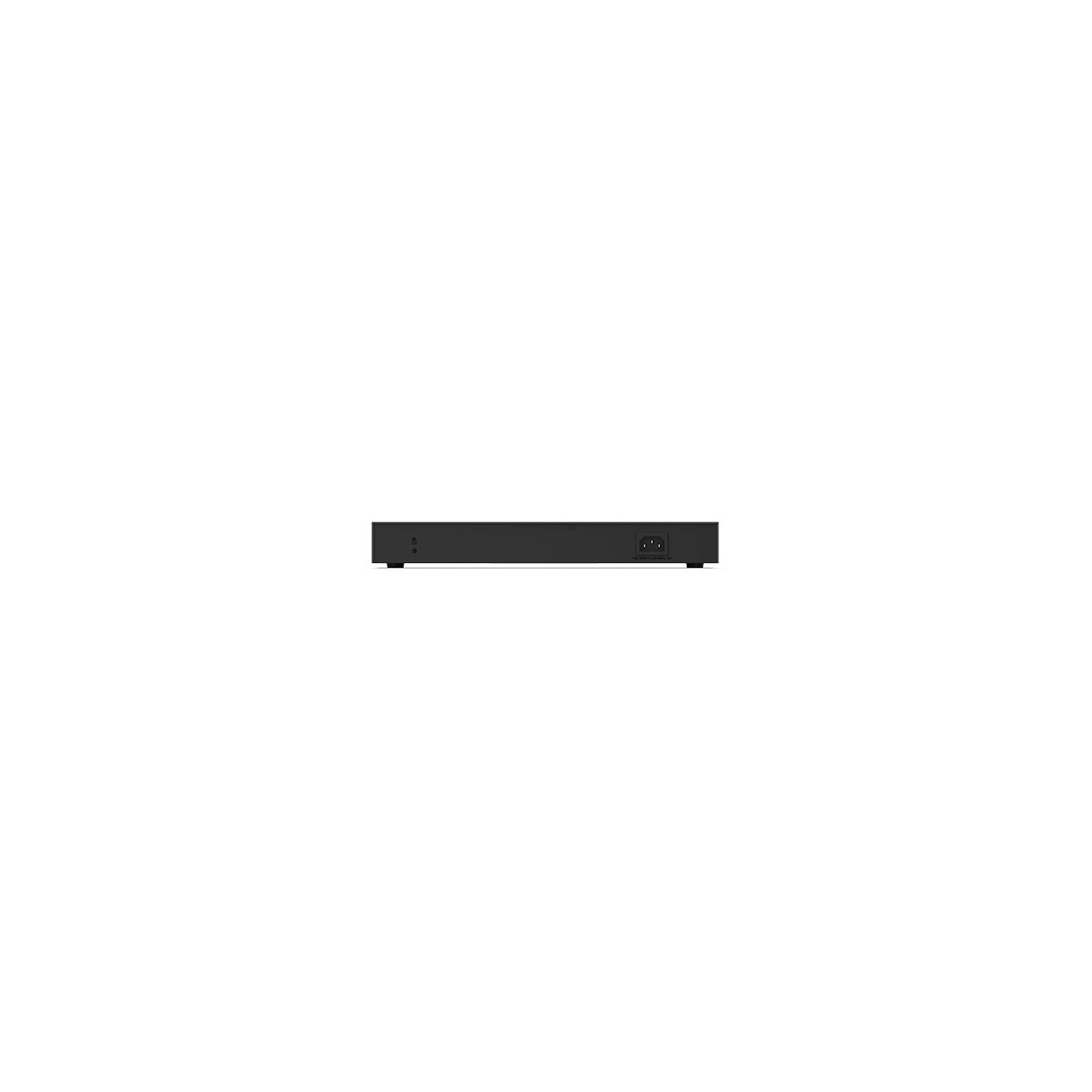

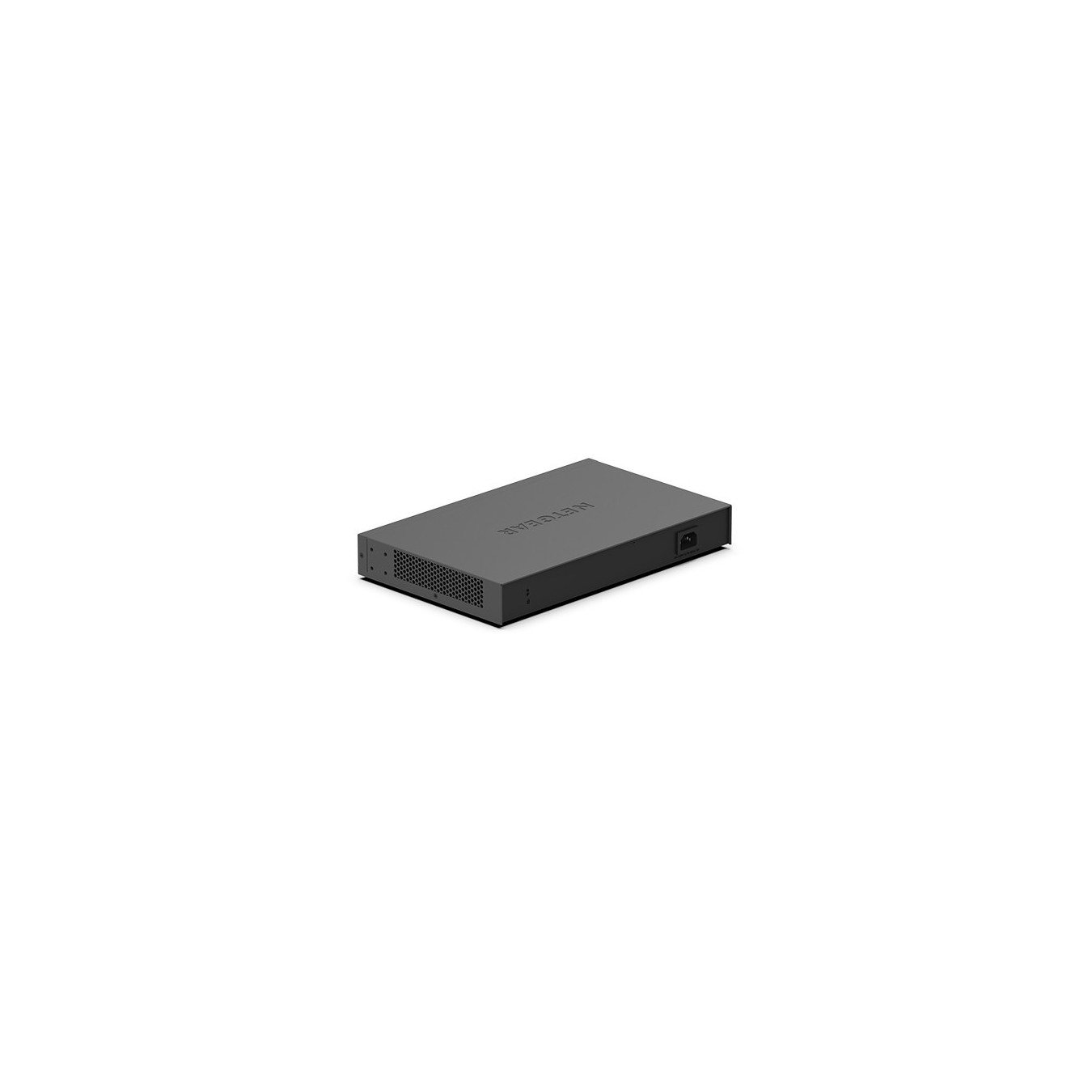

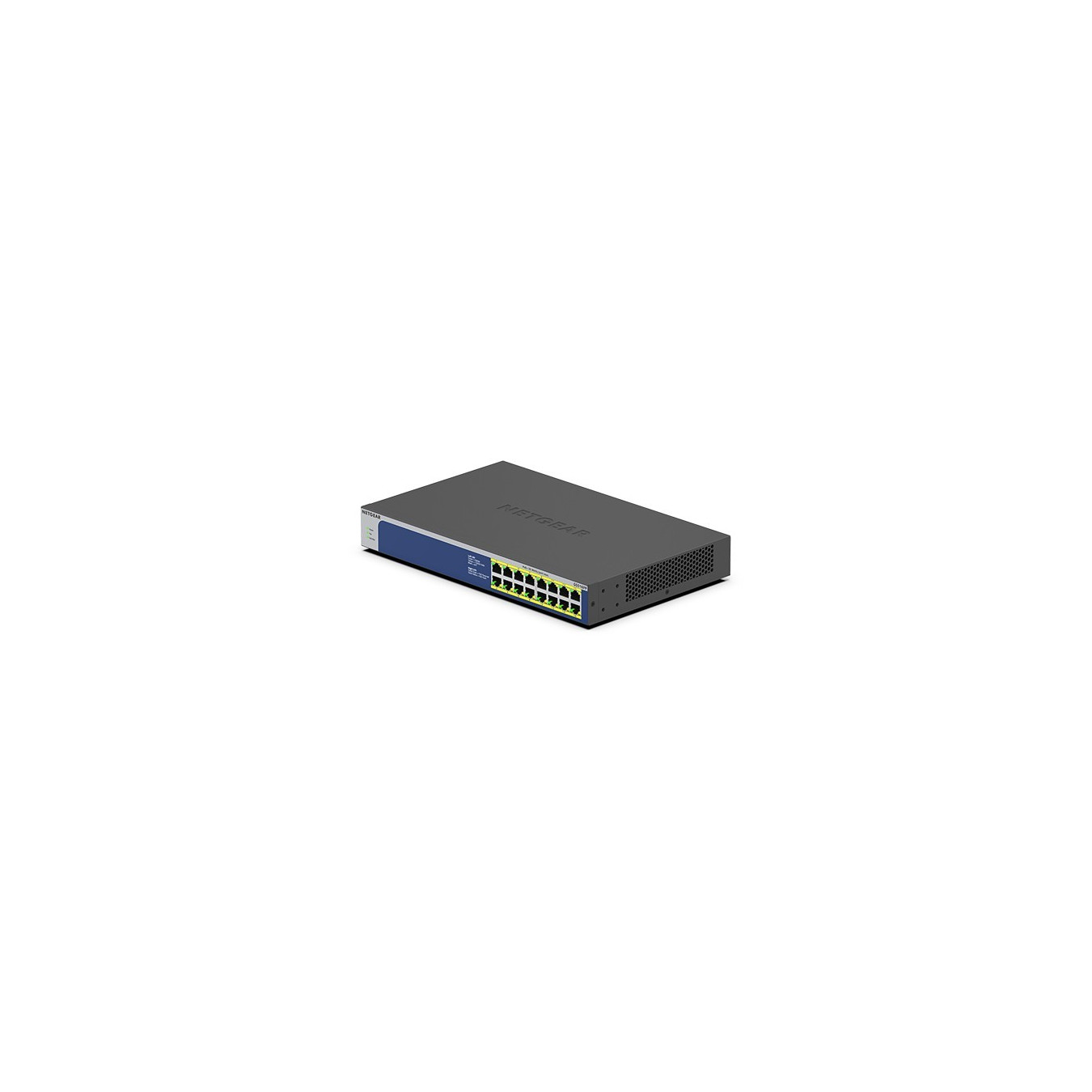

NETGEAR GS516PP-100EUS - 16-Port Gigabit Unmanaged PoE+ Switch, 260W Budget, Rackmount, Blue/Grey
16x Gigabit RJ-45 ports unmanaged switch with 16 PoE+ ports (up to 30W/port), 260W total budget, 2 fans, rackmountable, 100-240V AC
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
NETGEAR GS516PP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3ab. IEEE 802.3az. IEEE 802.3i. IEEE 802.3u. Power over Ethernet (PoE). Rack mounting
| Switch type | Unmanaged |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3ab. IEEE 802.3az. IEEE 802.3i. IEEE 802.3u |
| Copper ethernet cabling technology | 10GBASE-T. 100BASE-T. 1000BASE-T |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Latency (1 Gbps) | 12 µs |
| Jumbo frames | 9216 |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| Product colour | Blue. Grey |
| Housing material | Metal |
| LED indicators | Activity. Fan fail. Link. PoE. Power. Speed |

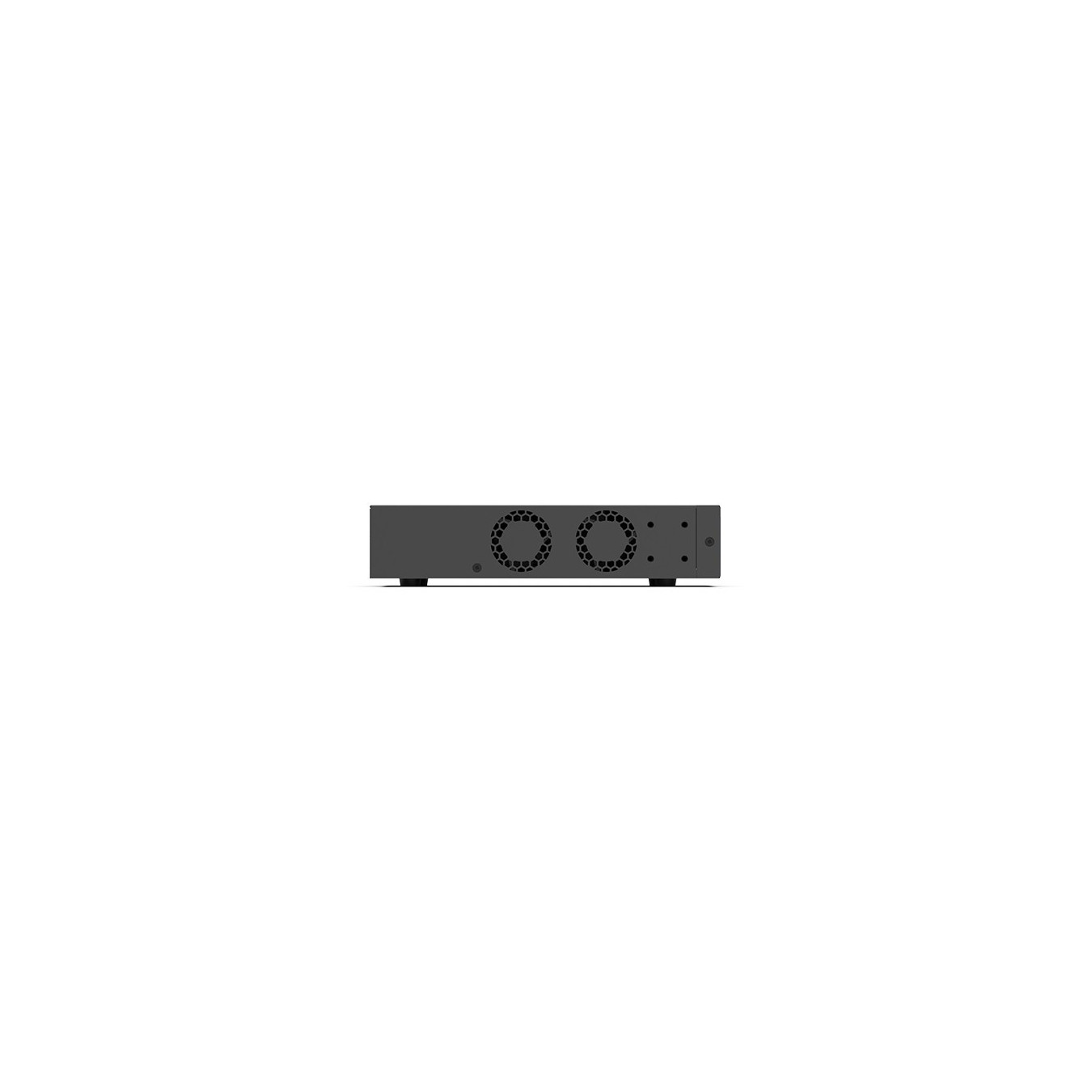

| Number of fans | 2 fan(s) |
| Mean time between failures (MTBF) | 2415333.9 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (max) | 316.1 W |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 260 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 95% |
| Operating altitude | 0 - 3000 m |
| Width | 330 mm |
| Depth | 207 mm |
| Height | 43 mm |
| Weight | 2.3 kg |
| Harmonized System (HS) code | 85176990 |
