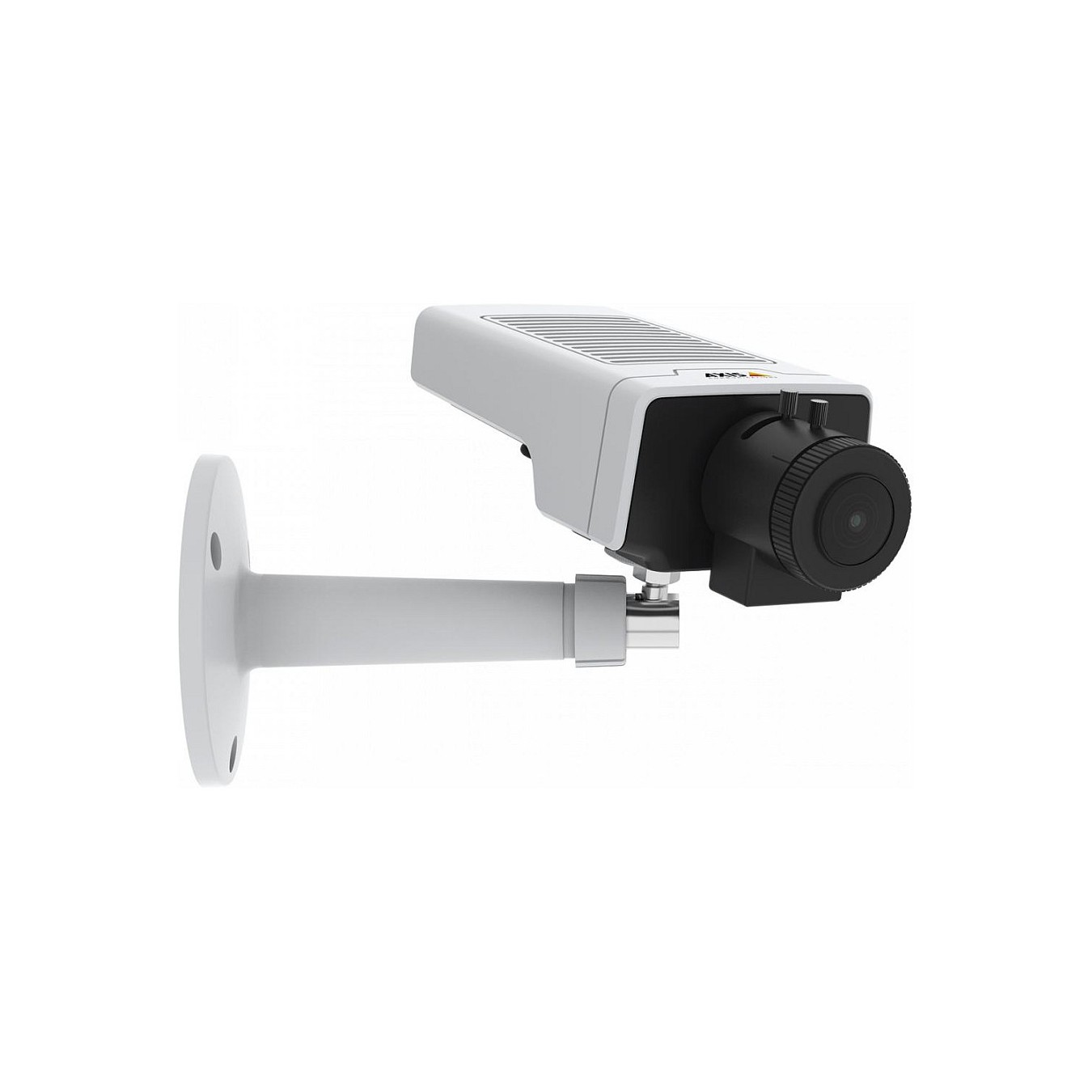

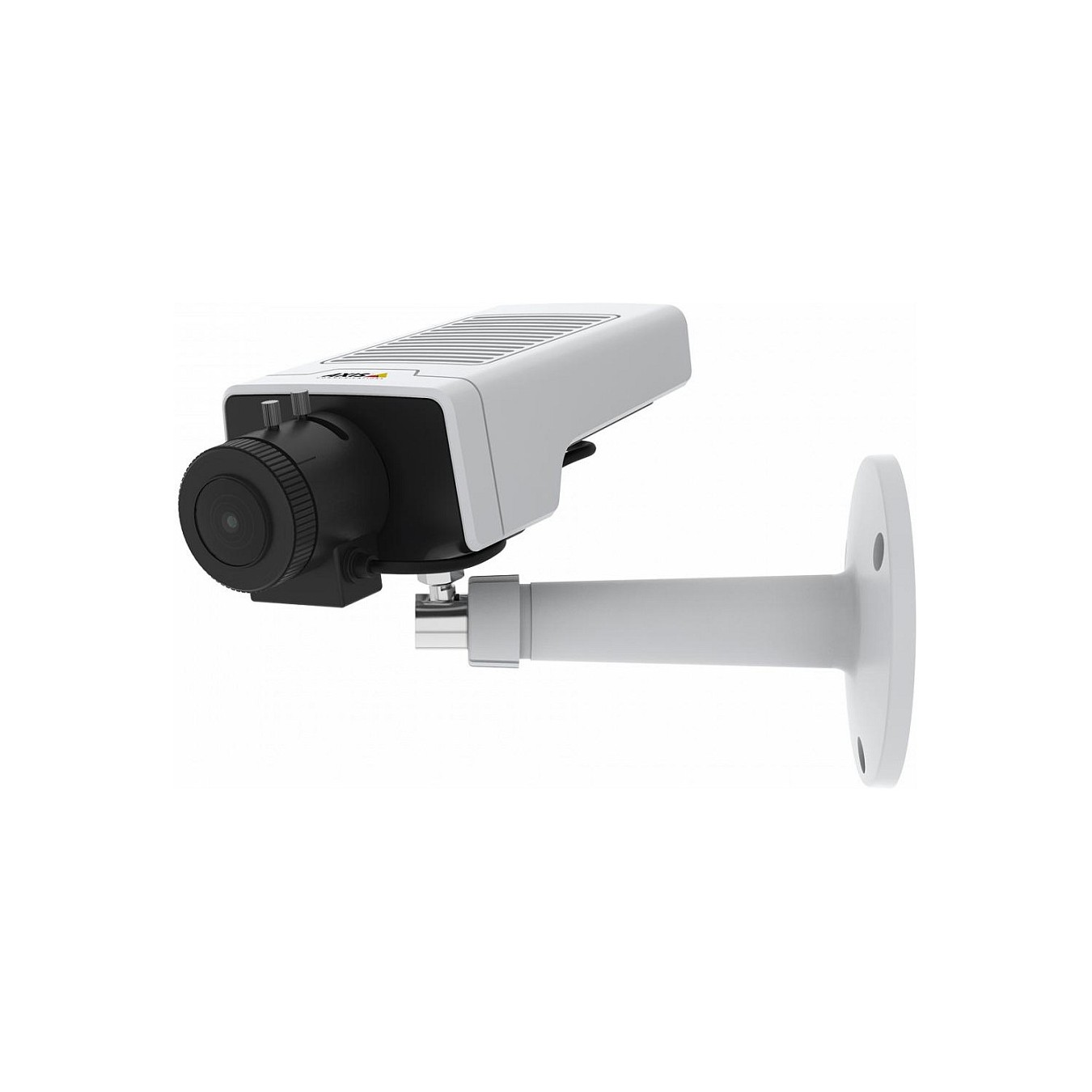

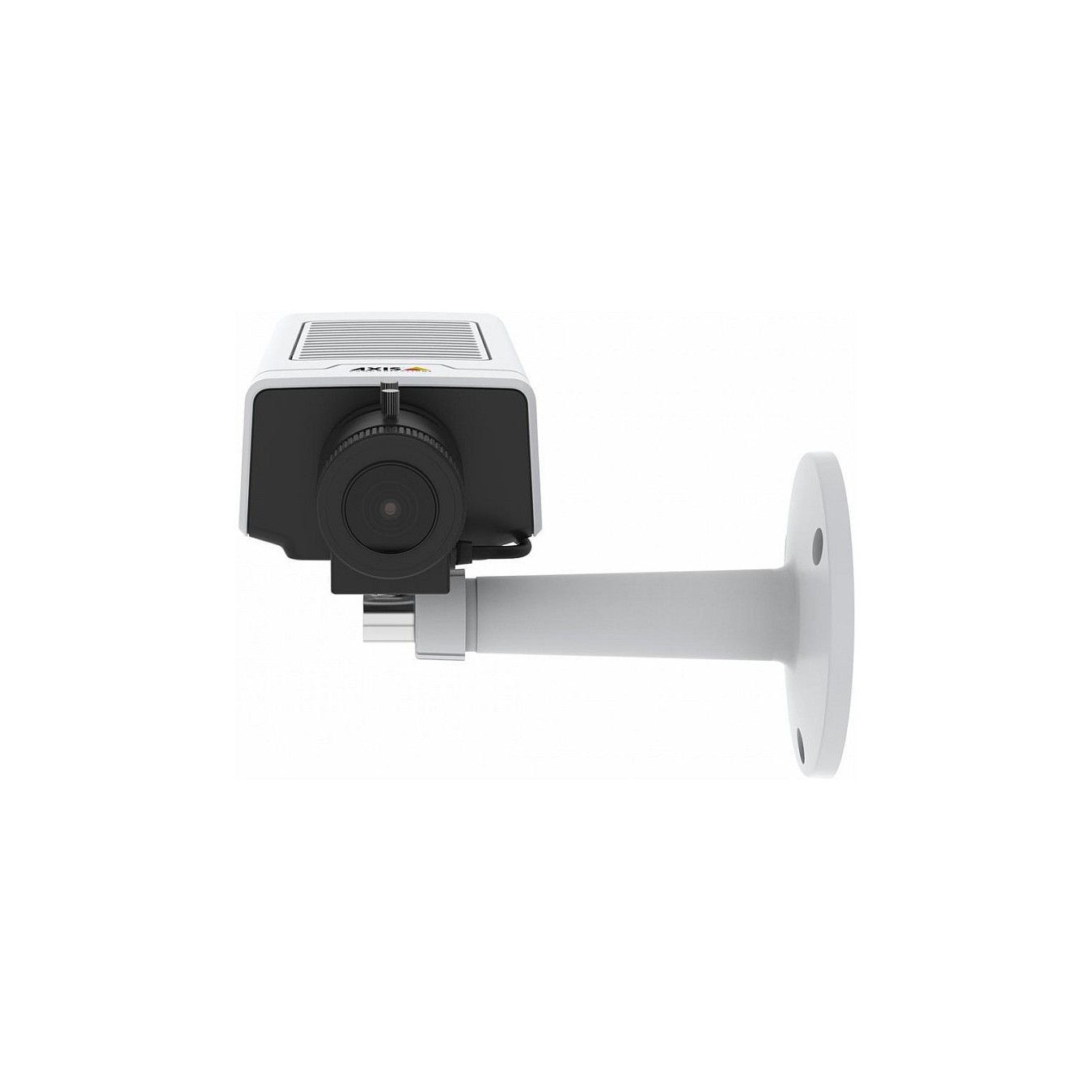

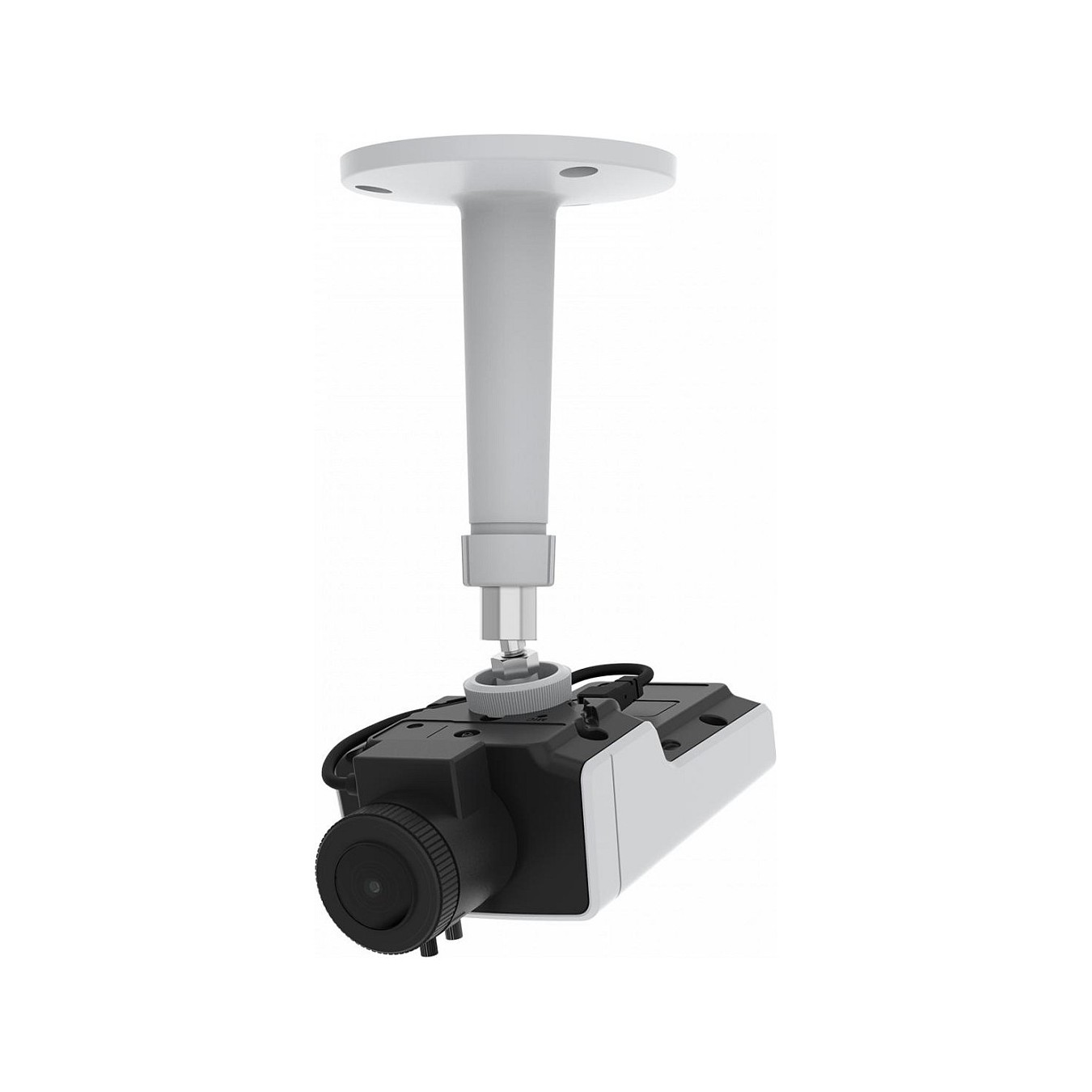

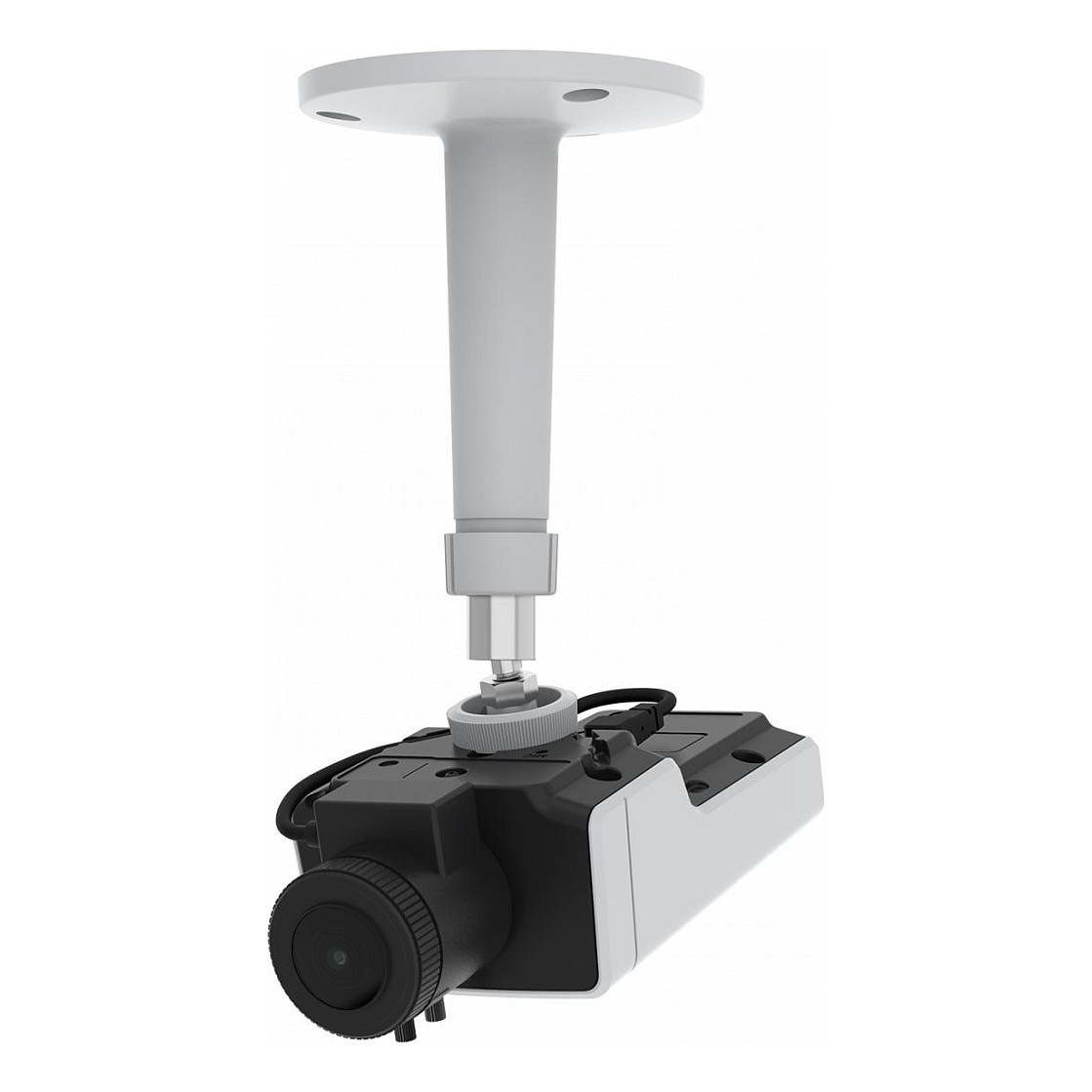

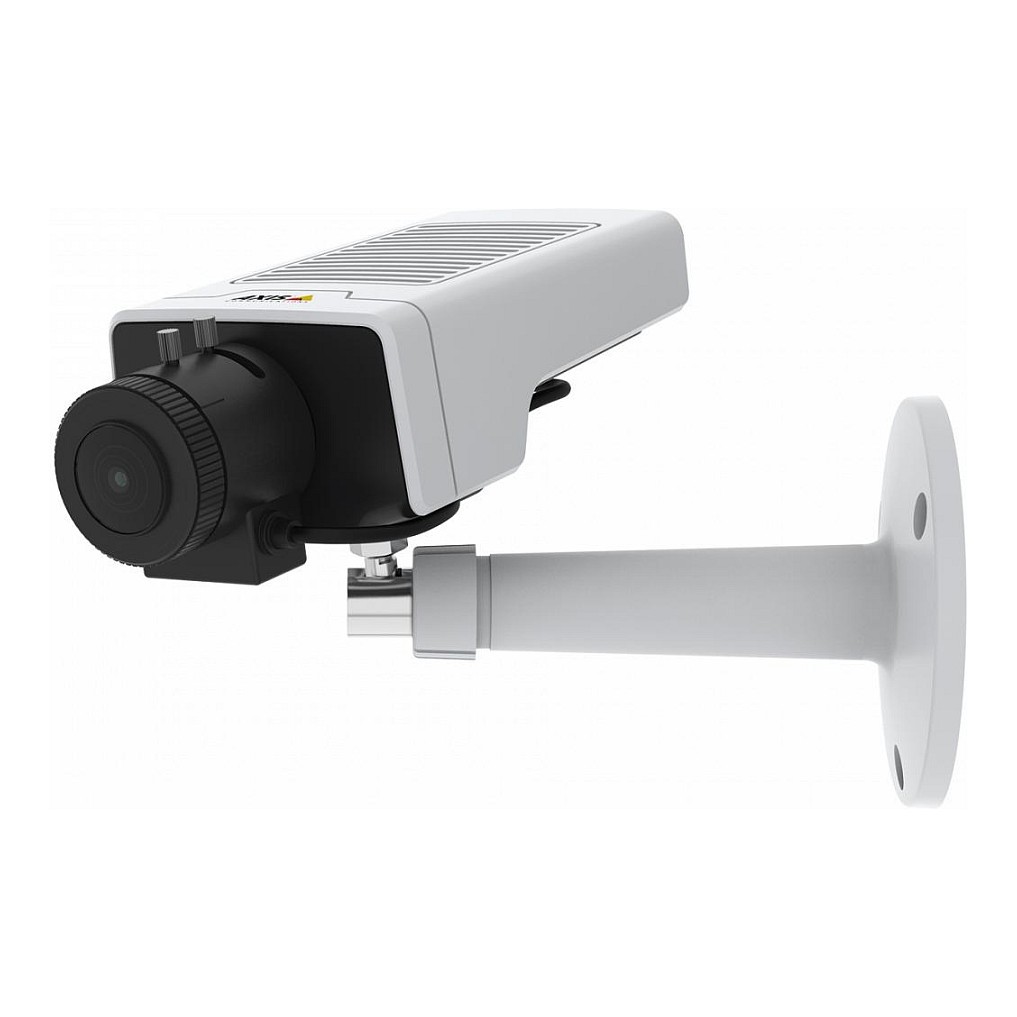

Axis Netzwerkkamera Box-Typ Mini M1135 MKII i-CS 1080p
Axis 02580-001, IP-Sicherheitskamera, Drinnen, Kabelgebunden, Digitale PTZ, Vereinfachtes Chinesisch, Traditionelles Chinesisch, Deutsch, Englisch, Spanisch, Französisch,..., EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A,...
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis 02580-001. Typ: IP-Sicherheitskamera, Unterstützte Positionierung: Drinnen, Übertragungstechnik: Kabelgebunden. Befestigungstyp: Decke/Wand, Produktfarbe: Schwarz, Formfaktor: Box. Mindestbeleuchtung: 0,02 Lux, Betrachtungswinkel (horizontal): 90°, Betrachtungswinkel (vertikal): 49°. Sensor-Typ: CMOS, Größe des Bildsensors: 25,4 / 3 mm (1 / 3"). Brennweitenbereich: 3 - 10.5 mm
| Typ | IP-Sicherheitskamera |
| Unterstützte Positionierung | Drinnen |
| Übertragungstechnik | Kabelgebunden |
| PTZ Kontrolle | Ja |
| PTZ-Modi | Digitale PTZ |
| Wide Dynamic Range (WDR) | Ja |
| Tag/ Nachtmodus | Ja |
| Infrarot (IR)-Abschaltfilter | Ja |
| Anzahl der Sprachen | 12 |
| Unterstützte Sprachen | Vereinfachtes Chinesisch, Traditionelles Chinesisch, Deutsch, Englisch, Spanisch, Französisch, Italienisch, Japanisch, Koreanisch, Polnisch, Portugiesisch, Russisch |
| Zertifizierung | EN 55032 A, EN 61000-3-2, EN 61000-3-3, EN 55024, EN 61000-6-1, EN 61000-6-2, FCC 15 B A, ICES-3(A)/NMB-3(A), VCCI A, RCM AS/NZS CISPR 32 A, KC KN32 A, KC KN35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1EN 50581, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78NIST SP500-267 |
| Formfaktor | Box |
| Befestigungstyp | Decke/Wand |
| Produktfarbe | Schwarz |
| LED-Anzeigen | Ja |
| Gehäusematerial | Polycarbonat (PC) |
| Mindestbeleuchtung | 0,02 Lux |
| Betrachtungswinkel (horizontal) | 90° |
| Betrachtungswinkel (vertikal) | 49° |
| Kamera Verschlusszeit | 1/33500 - 2 s |
| Anzahl der Sensoren | 1 |
| Größe des Bildsensors | 25,4 / 3 mm (1 / 3") |
| Vollbildverfahren | Ja |
| Sensor-Typ | CMOS |
| Anzahl der Linsen | 1 |
| Brennweitenbereich | 3 - 10.5 mm |
| Nachtsicht | Ja |
| Maximale Auflösung | 1920 x 1080 Pixel |
| Megapixel insgesamt | 2 MP |
| Videokompressionsformate | AVC, H.264, H.265, HEVC, M-JPEG |
| Unterstützte Grafik-Auflösungen | 160 x 90, 1920 x 1080 (HD 1080) |
| Unterstützte Video-Modi | 1080p |
| Bis zu 30 Frames pro Sekunde | 30 fps |
| Videointelligenz-Analyse | Ja |
| Videostreaming | Ja |
| Verstärkungssteuerungstyp | Auto |
| Bildqualitätsanpassung | Helligkeit, Farbtiefe, Kontrast, Schärfe |
| Bitratenkontrolle | Variable Bitrate (VBR) |
| Audio-System | 1-Weg |
| Audio input Kanäle | 1.0 Kanäle |
| Unterstützte Audioformate | AAC-LC, ADPCM, LPCM, PCM |
| Samplerate | 48 kHz |
| Eingebautes Mikrofon | Ja |
| Sprachcodec | G.711, G.726, OPUS |
| Audio-Entdeckung | Ja |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Schnelles Ethernet |
| Netzstandard | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Unterstützte Netzwerkprotokolle | IPv4, IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3 (MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SRTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP |
| WLAN | Nein |
| Bluetooth | Nein |
| Quality of Service (QoS) Support | Ja |
| Streaming-Verfahren | Multicasting, Unicast |
| Eingebaute HDD | Nein |
| Integrierter Kartenleser | Ja |
| Kompatible Speicherkarten | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Flash-Speicher | 512 MB |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Mikrofon-Eingang | Ja |
| Gleichstrom-Anschluss (DC) | Ja |
| Passwortschutz | Ja |
| Passwortschutz-Art | Benutzer |
| Video-Bewegungsmelder | Ja |
| Aktiver Fälschungsalarm | Ja |
| IP-Adressen Filter | Ja |
| Unterstützte Sicherheitsalgorithmen | EAP-TLS |
| HTTPS-Verschlüsselung | Ja |
| Energiequelle | Gleichstrom, PoE |
| Stromverbrauch (Standardbetrieb) | 3,8 W |
| Stromverbrauch (max.) | 6,49 W |
| Stromverbrauch (Power over Ethernet (PoE)) | 6,49 W |
| DC-Ausgang Volt | 8, 28 |
| Betriebstemperatur | -20 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 85% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 70 mm |
| Tiefe | 148 mm |
| Höhe | 46 mm |
| Anzahl der Kameras | 1 |
| Montageset | Ja |
| Betriebsanleitung | Ja |
