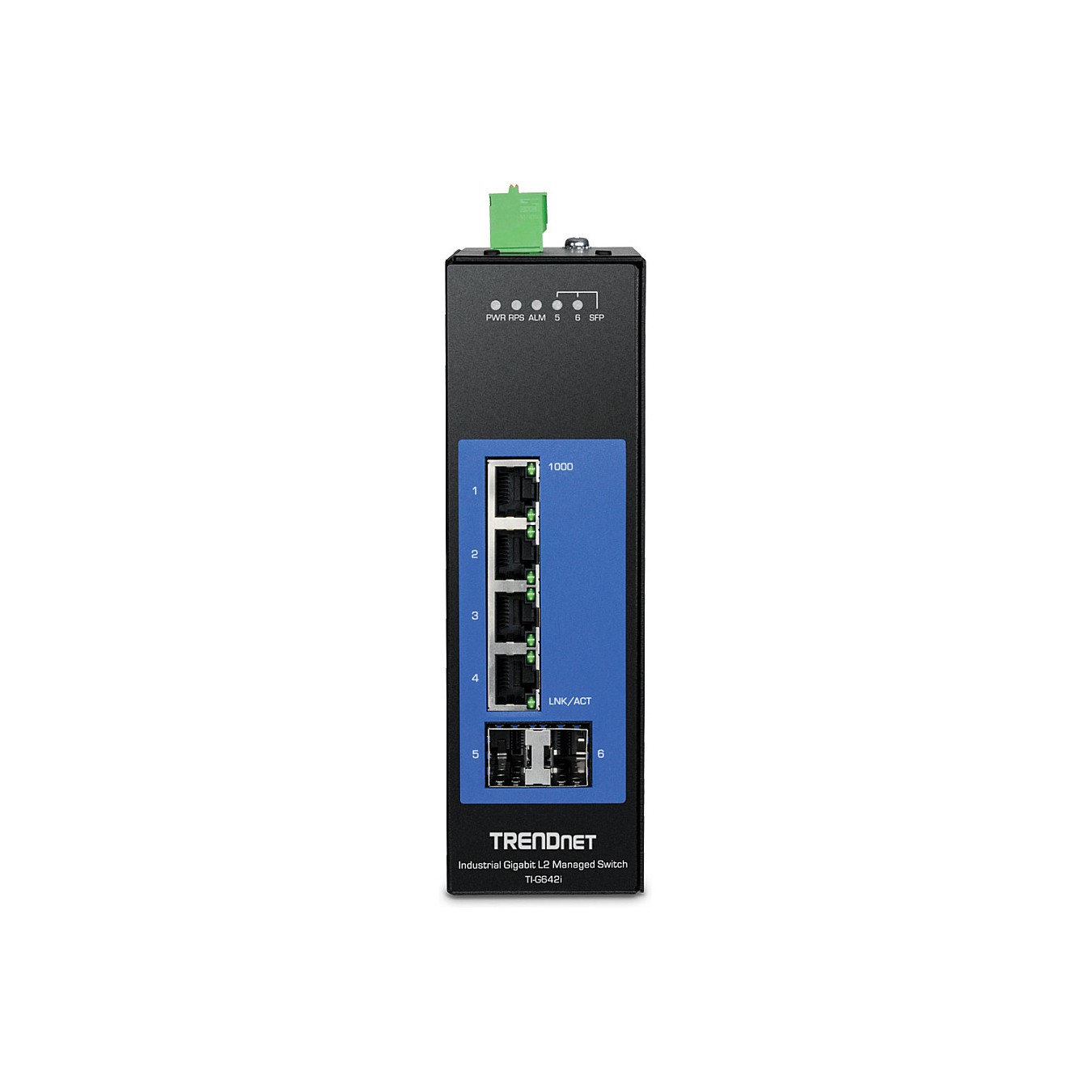

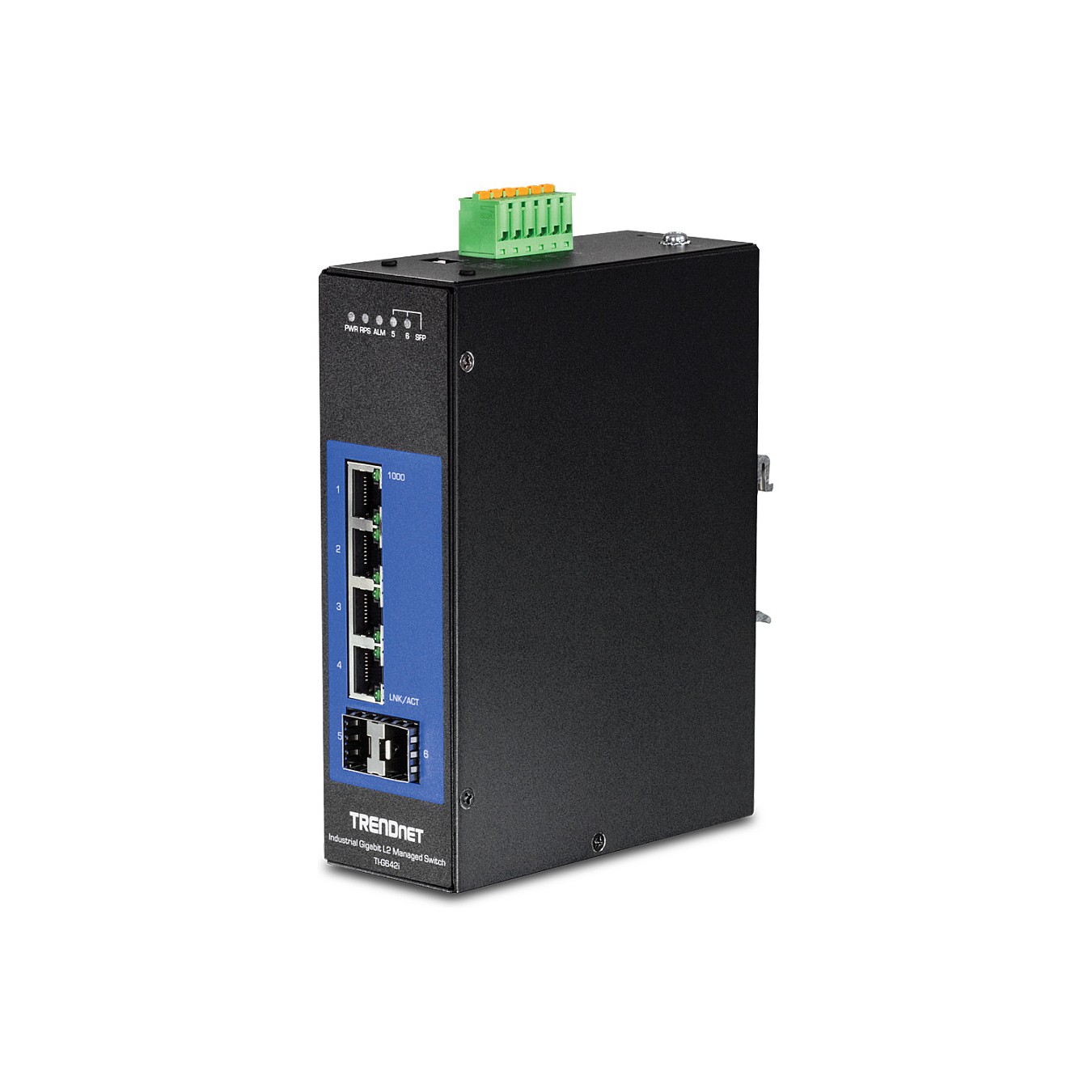

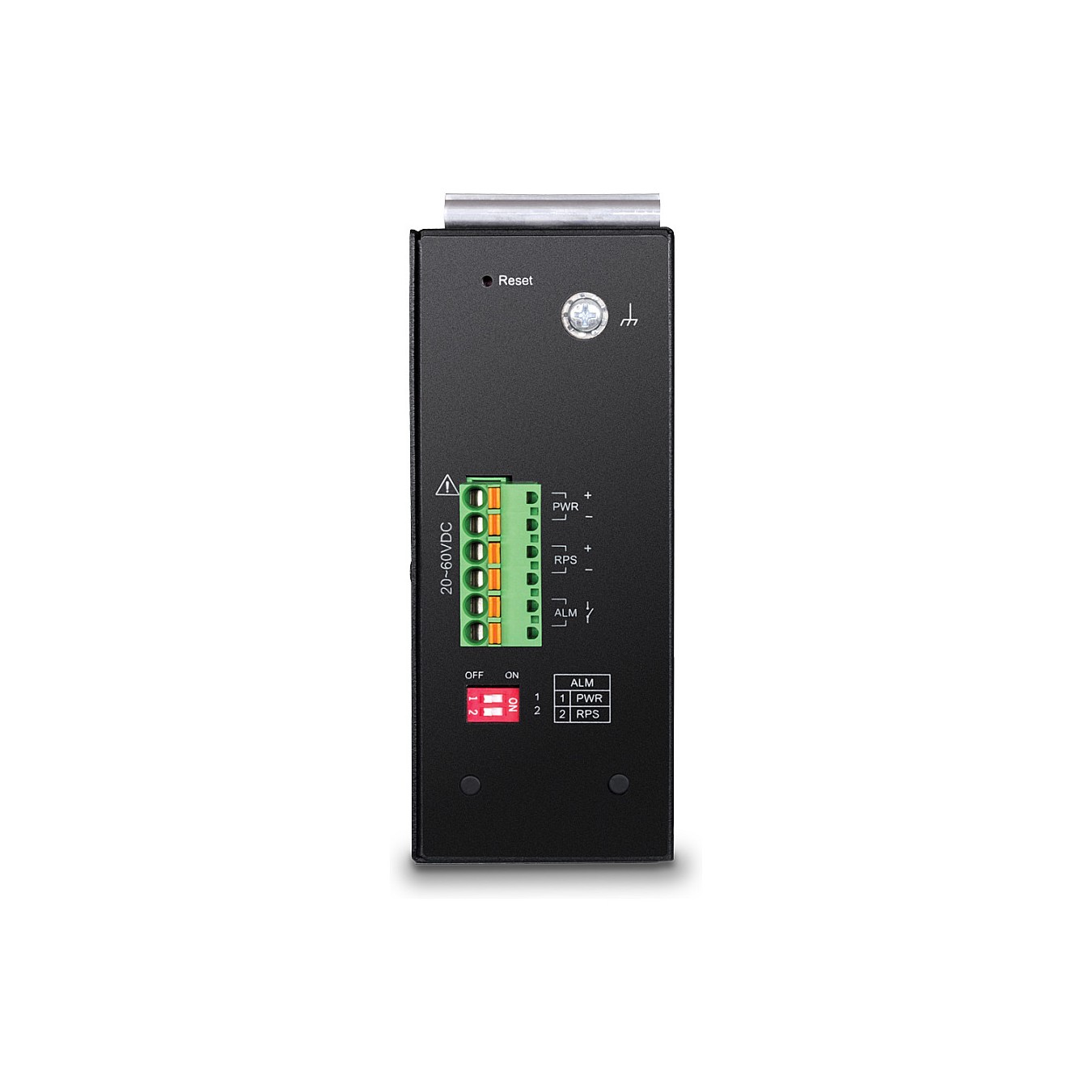

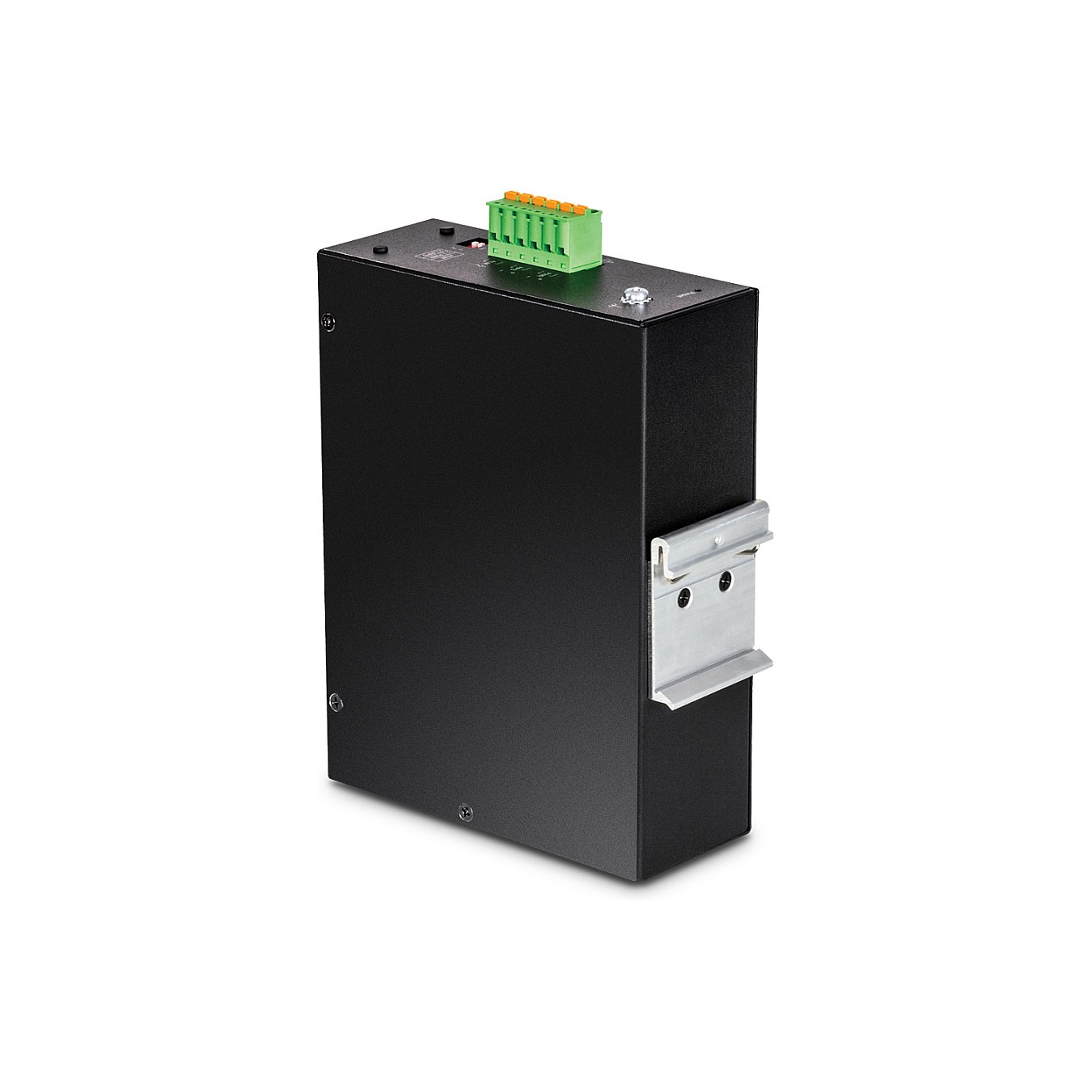

TRENDnet TI-G642i DIN-Rail Switch 6-Port Industrial Gigabit L2
Trendnet TI-G642i, Managed, L2, Gigabit Ethernet (10/100/1000), Vollduplex
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Trendnet TI-G642i. Switch-Typ: Managed, Switch-Ebene: L2. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 4. Vollduplex. MAC-Adressentabelle: 8192 Eintragungen, Routing-/Switching-Kapazität: 12 Gbit/s. Netzstandard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE...
| Switch-Typ | Managed |
| Switch-Ebene | L2 |
| Quality of Service (QoS) Support | Ja |
| Systemereignisprotokoll | Ja |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 4 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge SFP-Modul-Steckplätze | 2 |
| Netzstandard | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Nein |
| Vollduplex | Ja |
| Broadcast-Sturmkontrolle | Ja |
| Spannbaum-Protokoll | Ja |
| Selbstlernen von MAC-Adressen unterstützt | Ja |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | MAC address-based VLAN, Tagged VLAN |
| Anzahl der VLANs | 256 |
| Routing-/Switching-Kapazität | 12 Gbit/s |
| Transferrate | 18,9 Mpps |
| MAC-Adressentabelle | 8192 Eintragungen |
| Store-and-Forward | Ja |
| Jumbo Frames Unterstützung | Ja |
| Jumbo-Frames | 10240 |
| DHCP-Funktionen | DHCP relay, DHCP snooping |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| Multicast Unterstützung | Ja |
| Anzahl der gefilterten Multicast-Gruppen | 256 |
| Management-Protokolle | SNMP v1, v2c, v3 |
| Rack-Einbau | Nein |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Reset-Knopf | Ja |
| LED-Anzeigen | Ja |
| DIN-Schienen-Montage | Ja |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 996299 h |
| Unterstützung für redundantes Netzteil | Ja |
| Stromverbrauch (max.) | 12 W |
| Power over Ethernet (PoE) | Nein |
| Betriebstemperatur | -40 - 75 °C |
| Breite | 160 mm |
| Tiefe | 120 mm |
| Höhe | 50 mm |
| Gewicht | 720 g |
| Schnellstartübersicht | Ja |
| Zertifizierung | CE, FCC |
| Warentarifnummer (HS) | 85176990 |
