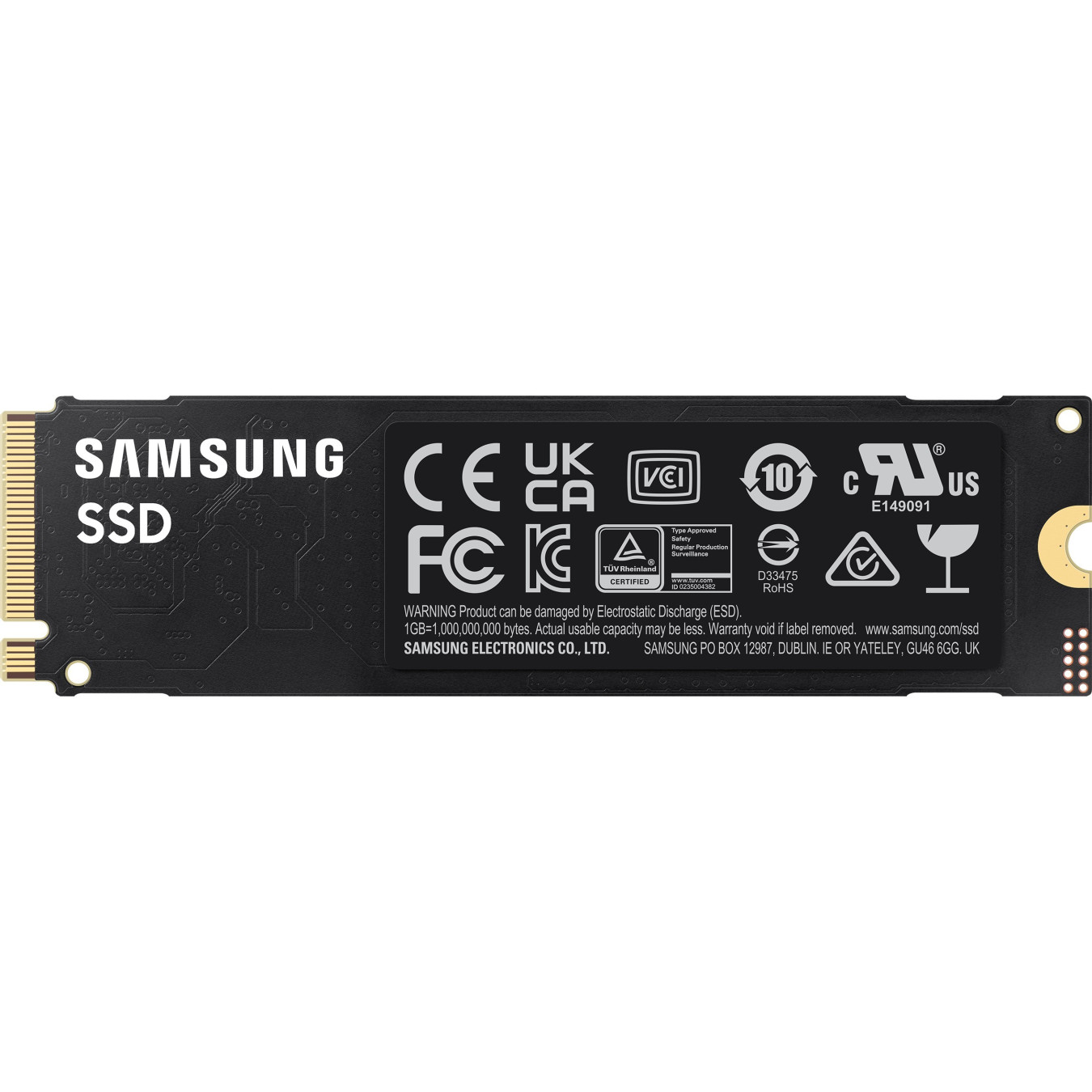

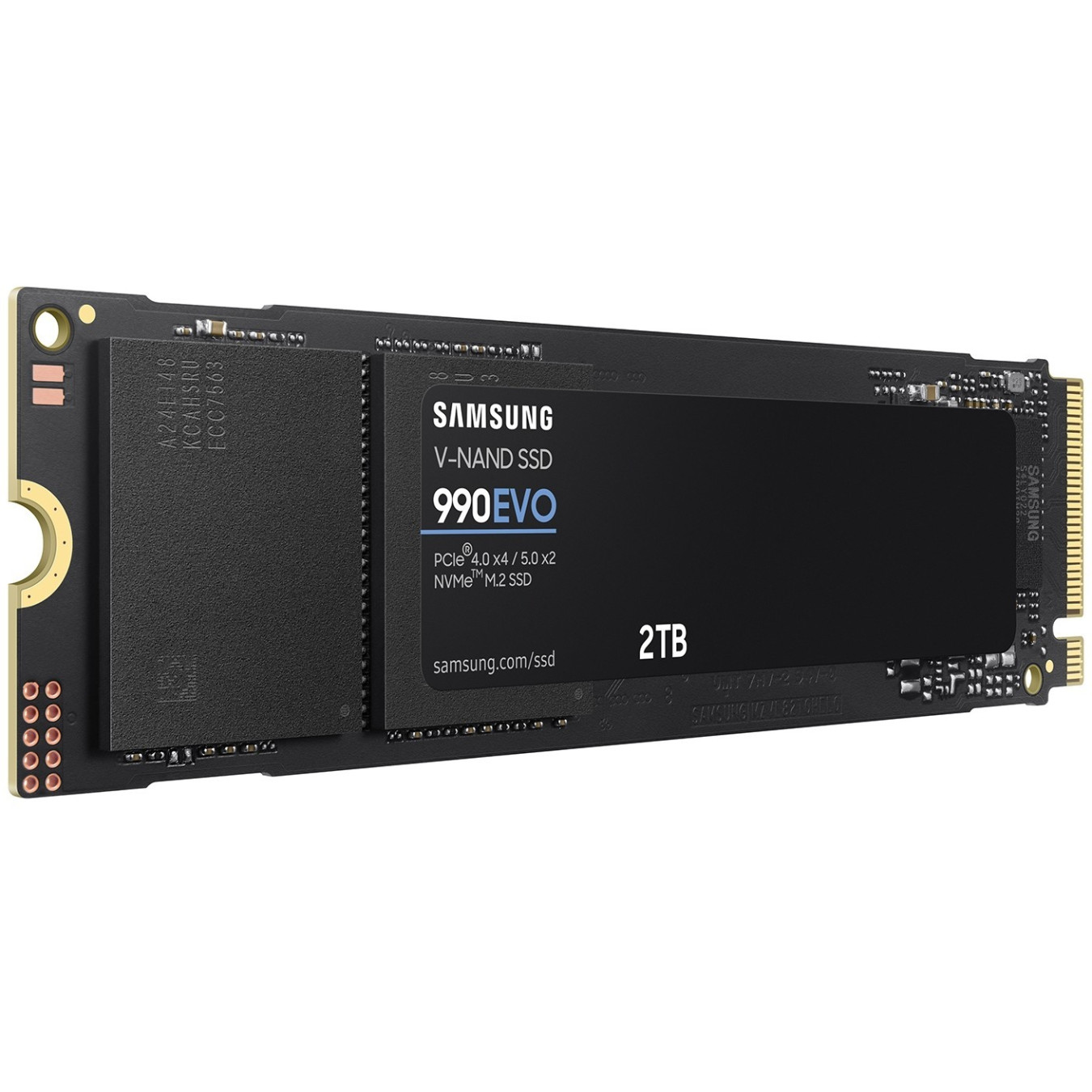

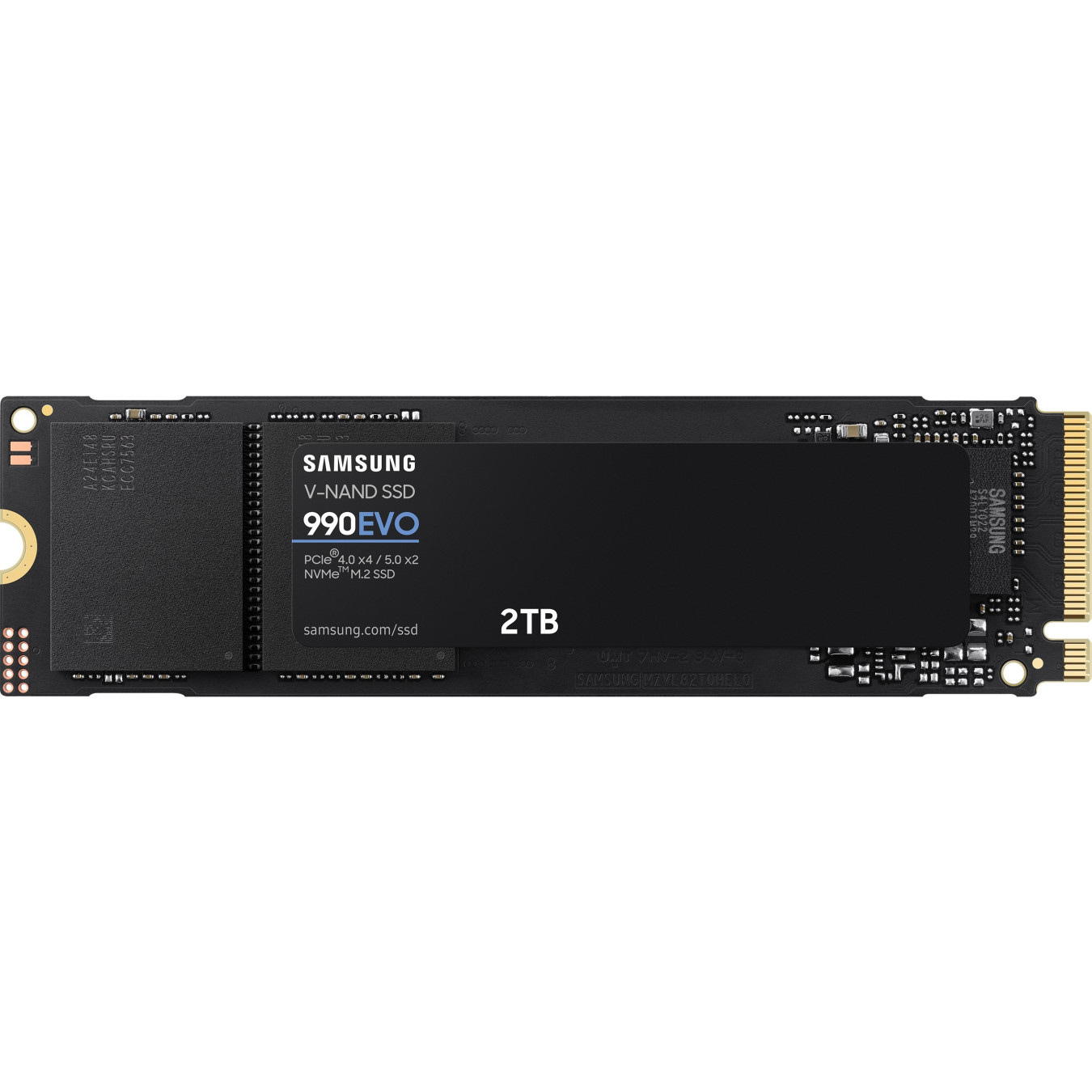

Samsung 990 EVO M.2 2280 NVMe SSD - 2TB - PCIe Gen4 x4, 5000 MB/s Read, V-NAND TLC, Retail
Samsung 990 EVO 2TB M.2 2280 NVMe SSD (PCIe Gen4 x4) — up to 5000 MB/s read, 4200 MB/s write, 256-bit AES, TRIM support, V‑NAND TLC, 5-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
|---|
Samsung 990 EVO. SSD capacity: 2 TB. SSD form factor: M.2. Read speed: 5000 MB/s. Write speed: 4200 MB/s. Component for: Universal
| NVMe version | 2.0 |
| Security algorithms | 256-bit AES |
| SSD capacity | 2 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| Feature | TRIM support |
| Memory type | V-NAND TLC |
| Component for | Universal |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 5000 MB/s |
| Write speed | 4200 MB/s |
| PCI Express interface data lanes | x4 |
| PCI Express CEM revision | 4.0 |
| Mean time between failures (MTBF) | 1500000 h |
| TBW rating | 1200 |
| Operating voltage | 3.3 V |
| Power consumption (read) | 5.5 W |
| Power consumption (write) | 4.7 W |
| Power consumption (sleep) | 0.005 W |
| Power consumption (idle) | 0.06 W |
| Width | 80.2 mm |
| Depth | 22.1 mm |
| Height | 2.38 mm |
| Weight | 9 g |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 20 G |
| Non-operating shock | 1500 G |
| Warranty period | 5 year(s) |
