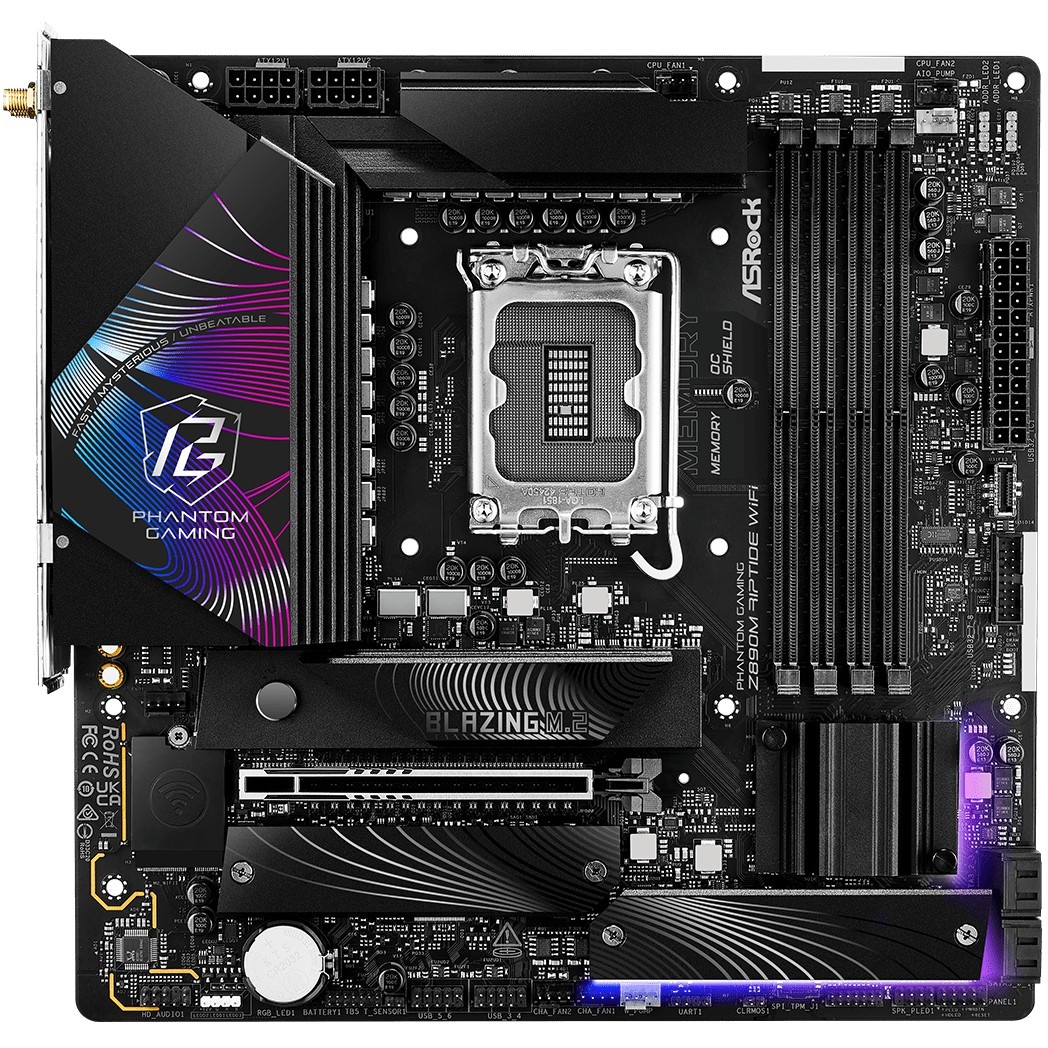

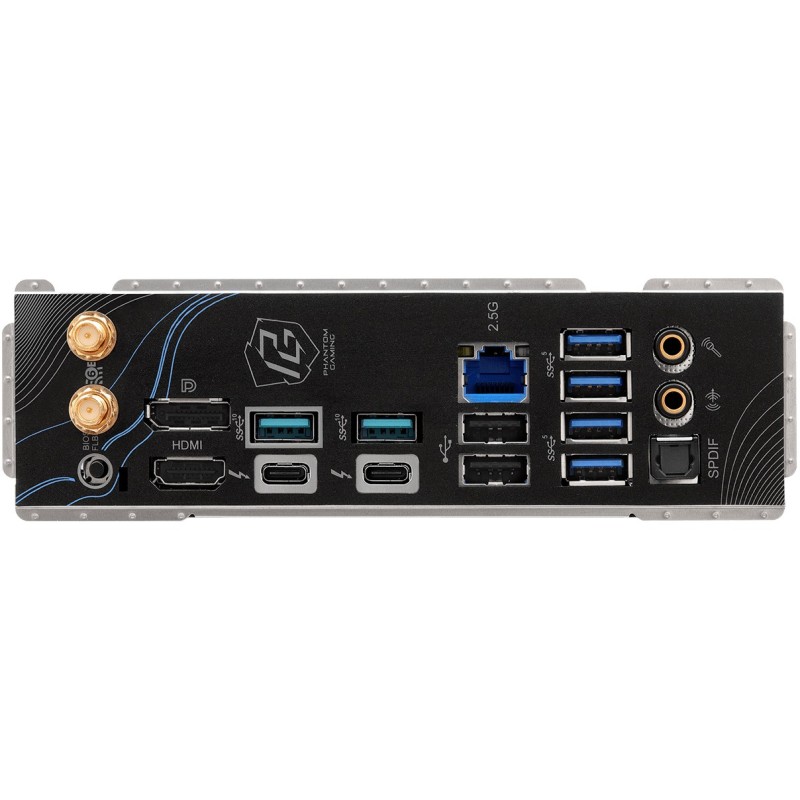

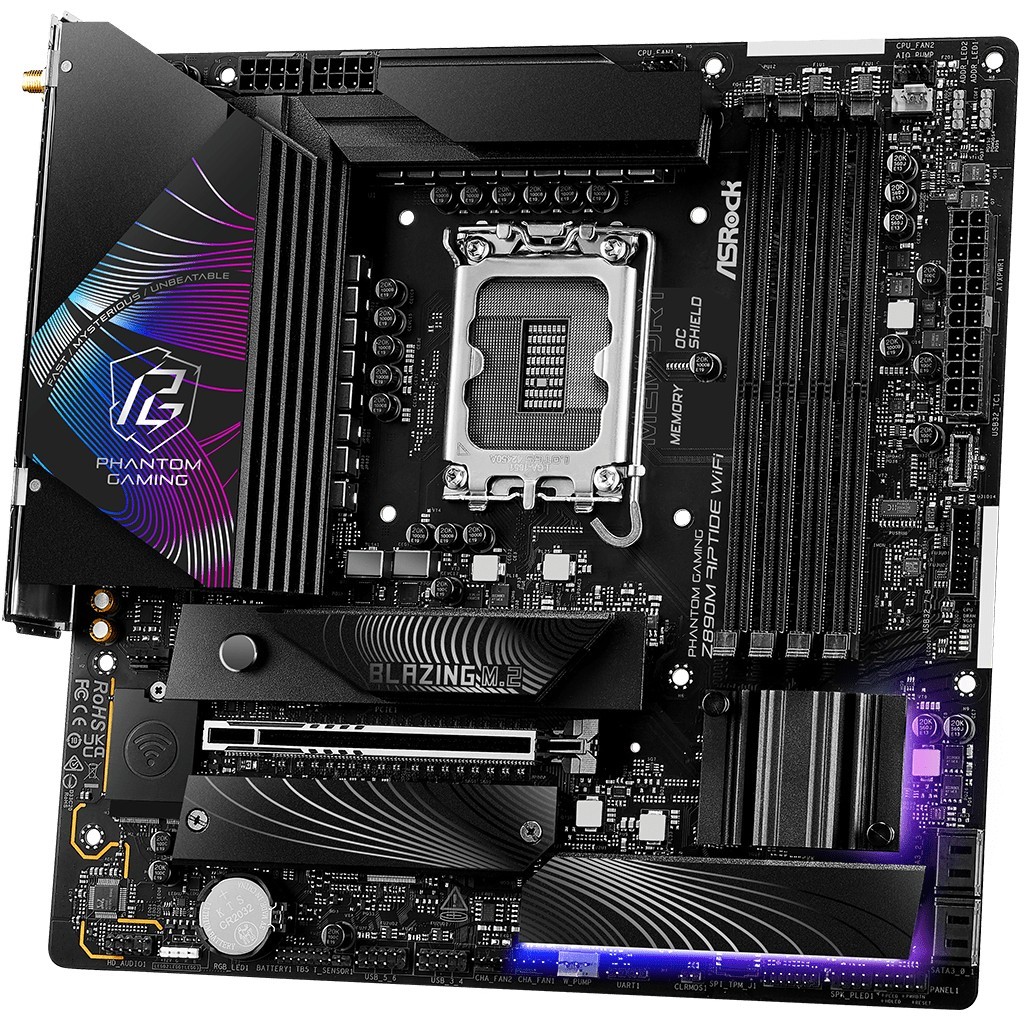

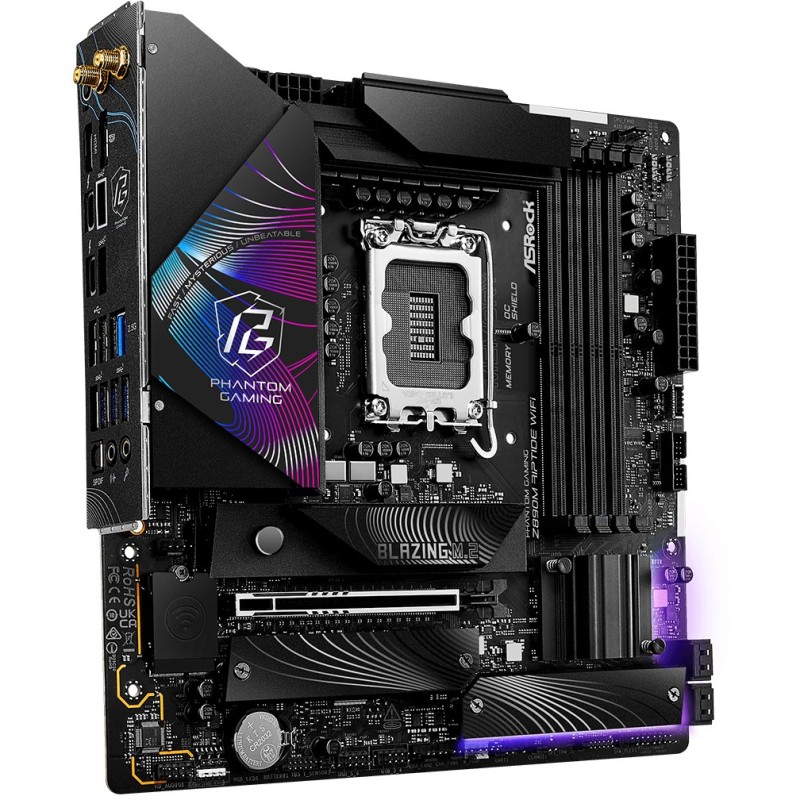

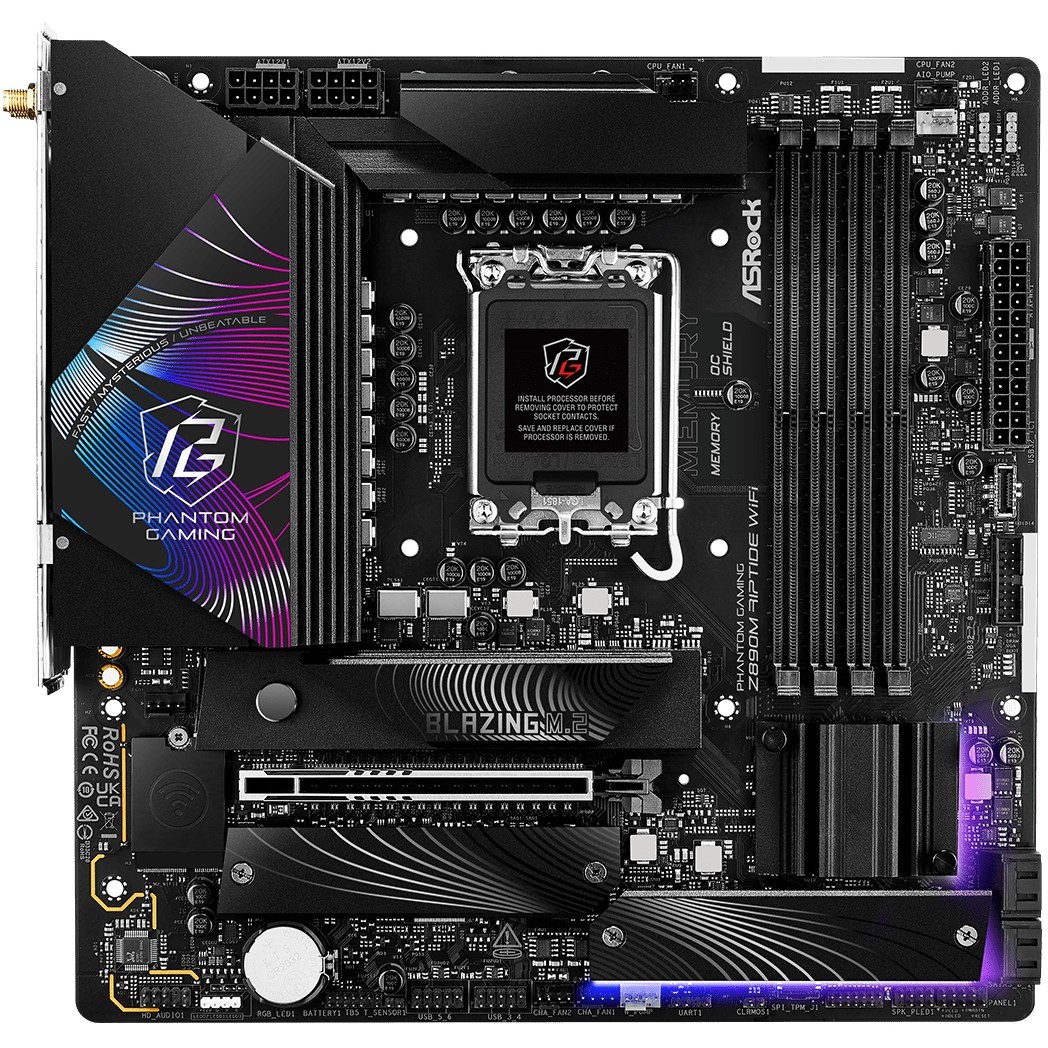

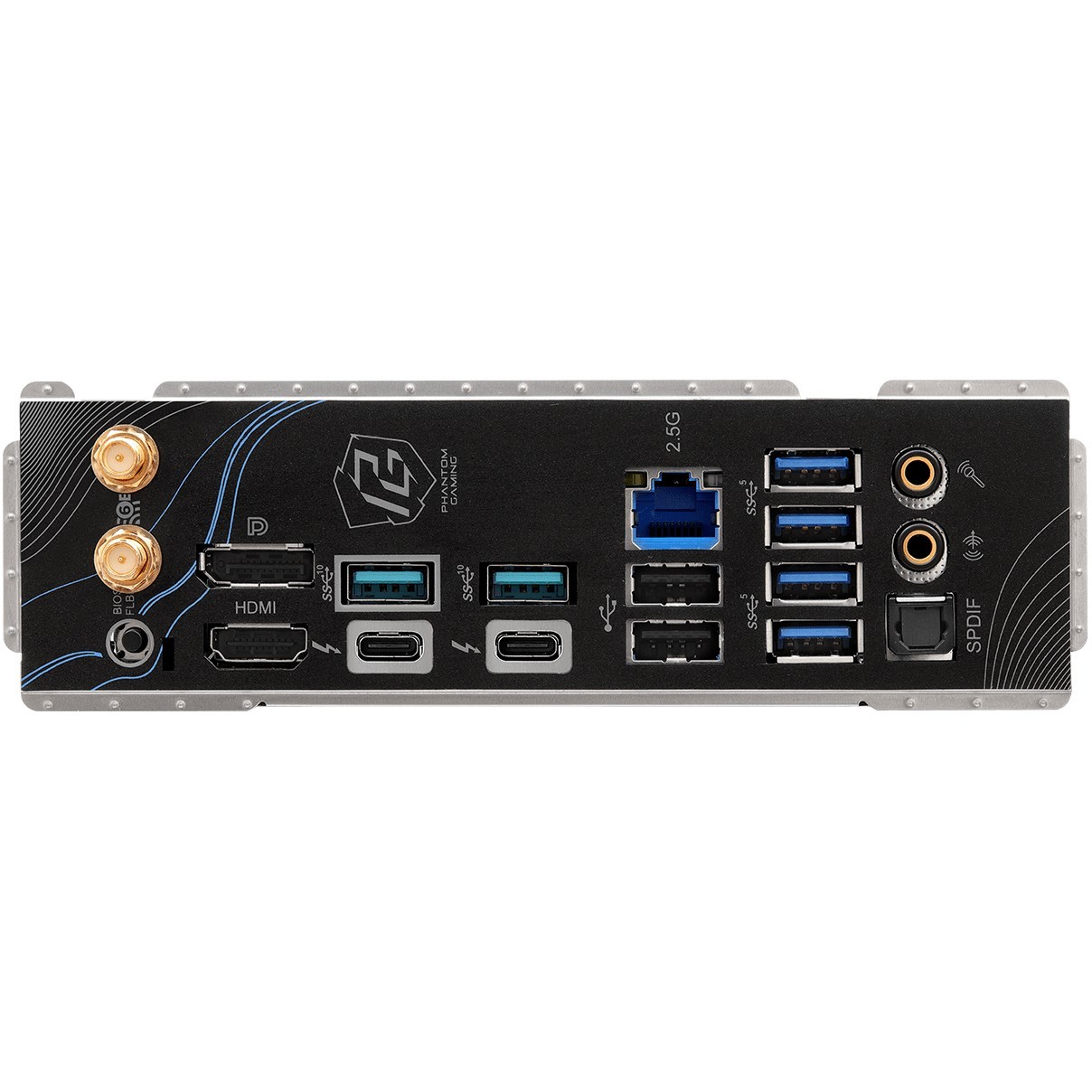

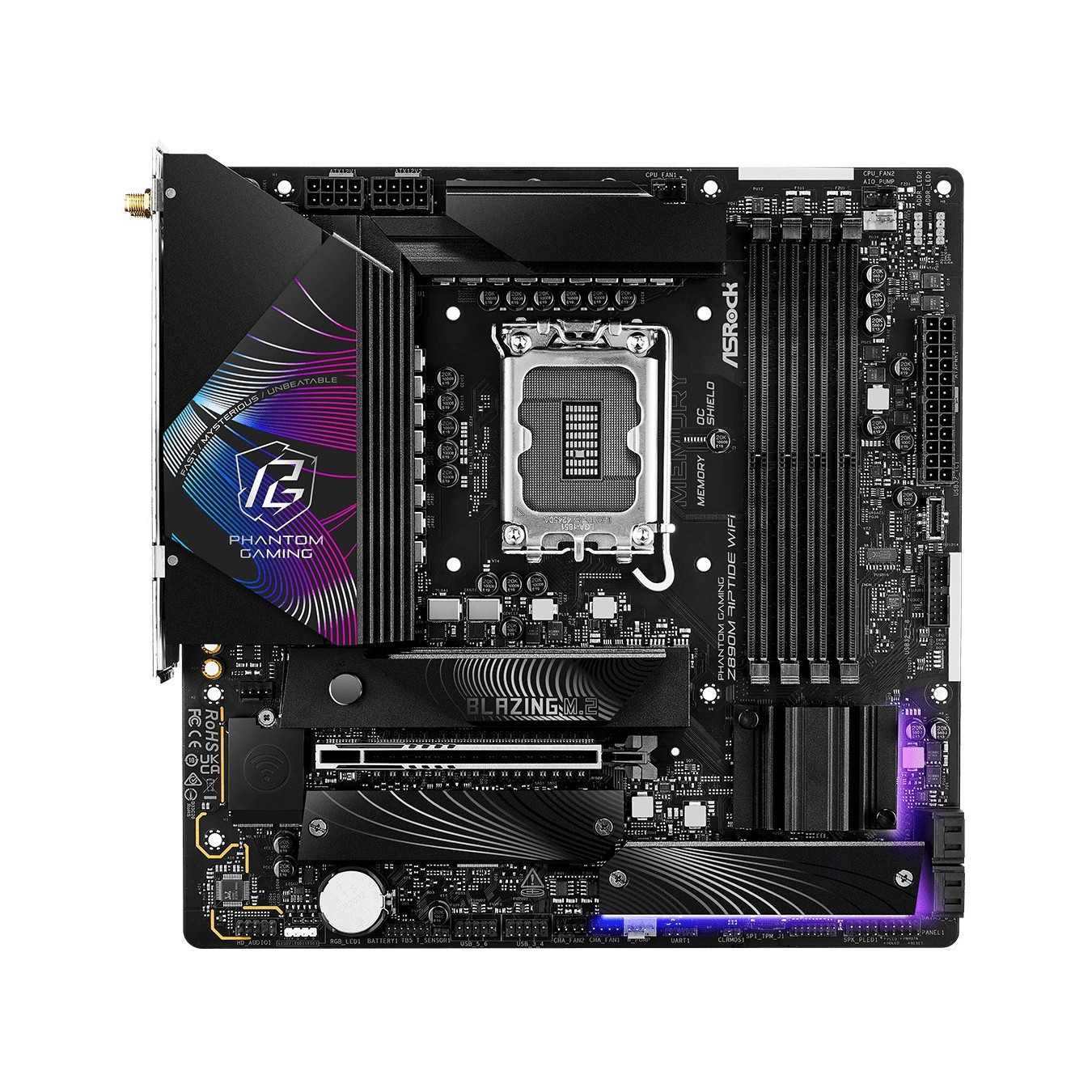

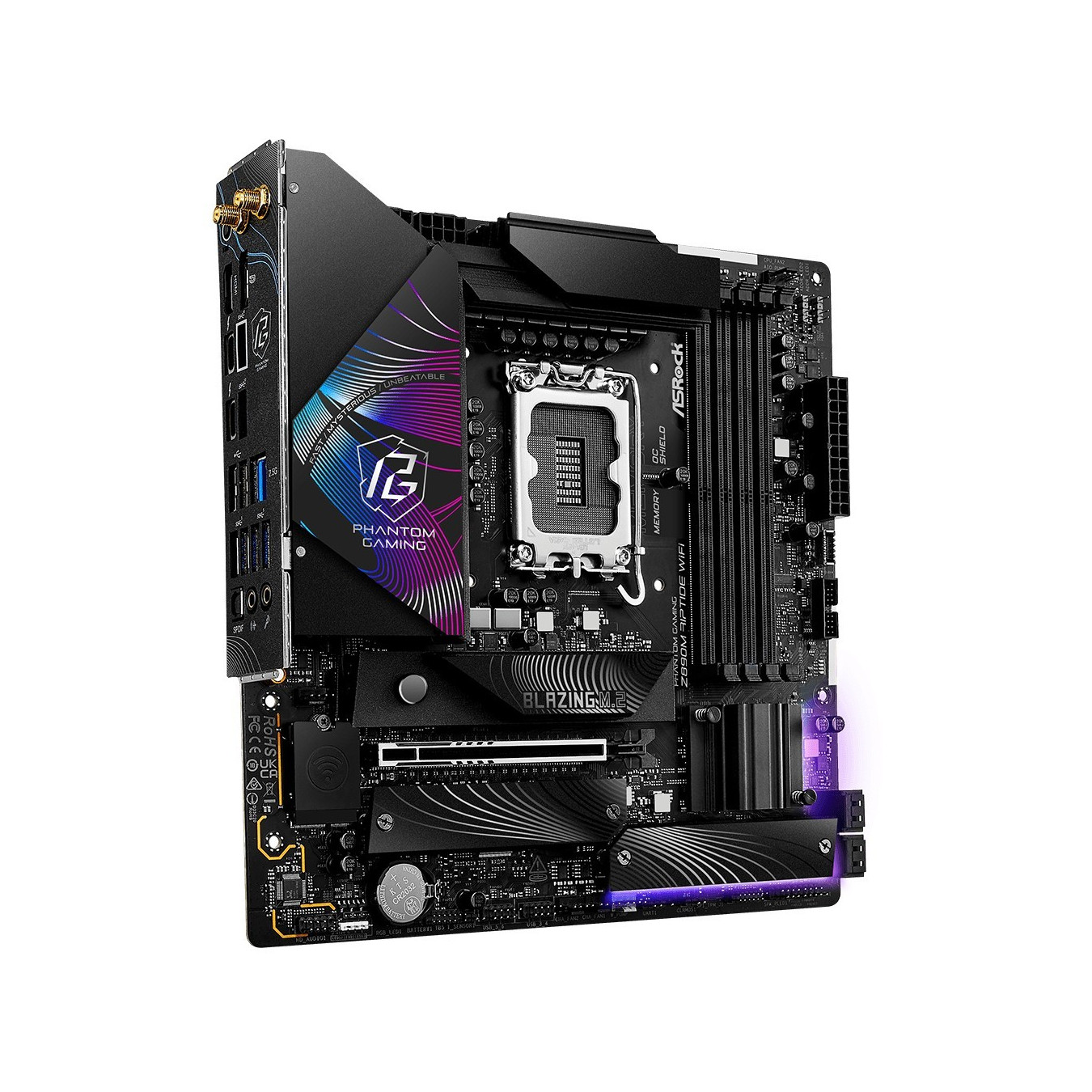

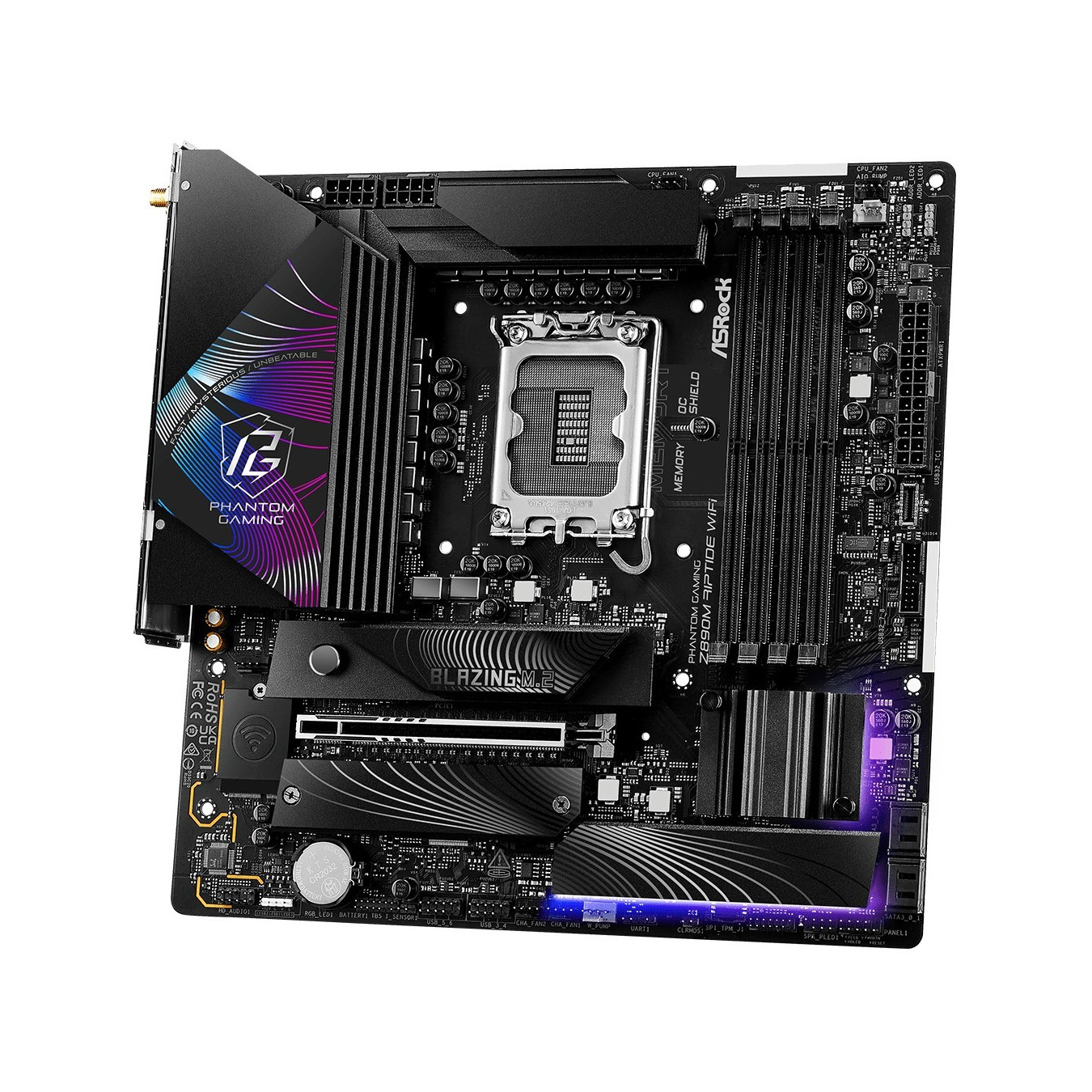

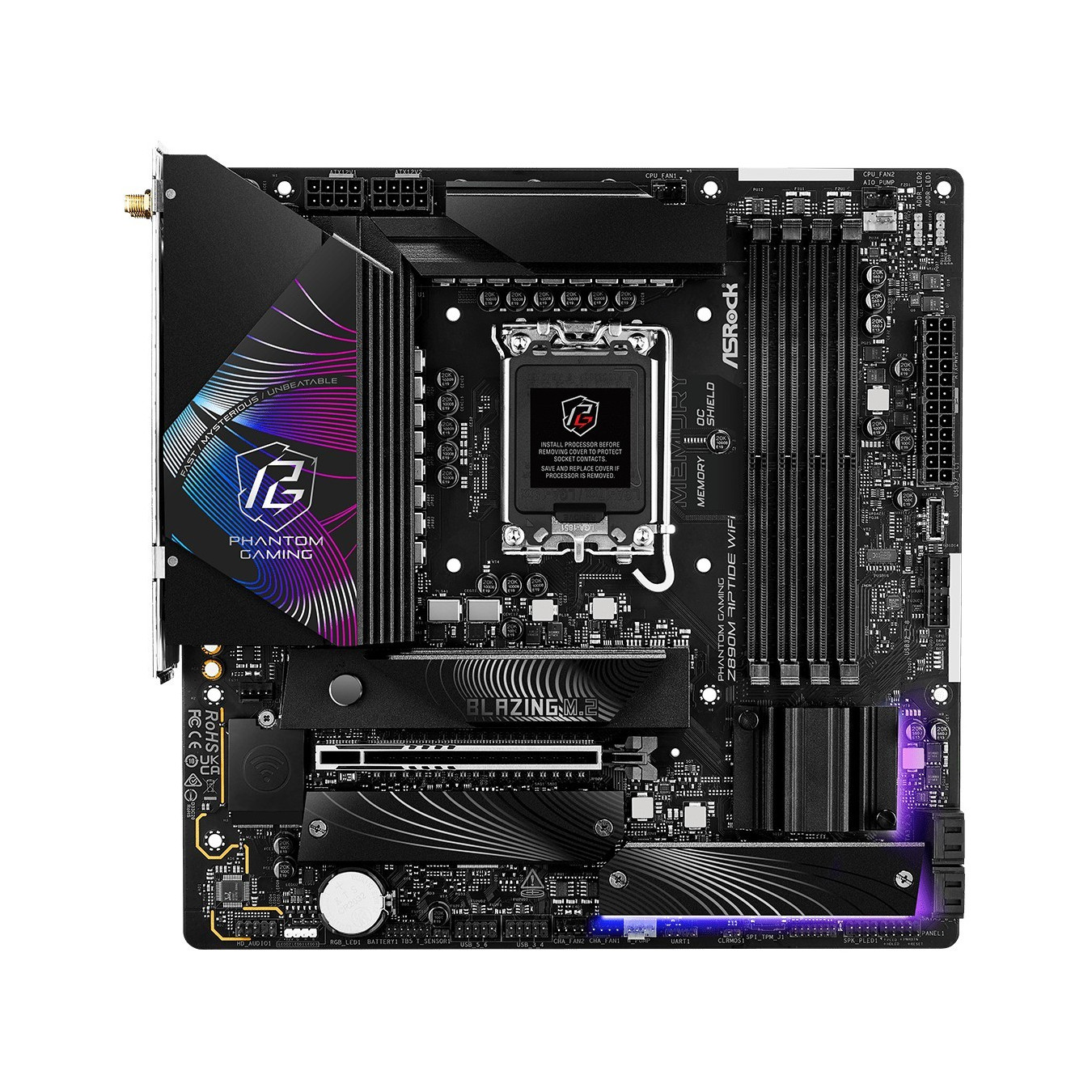

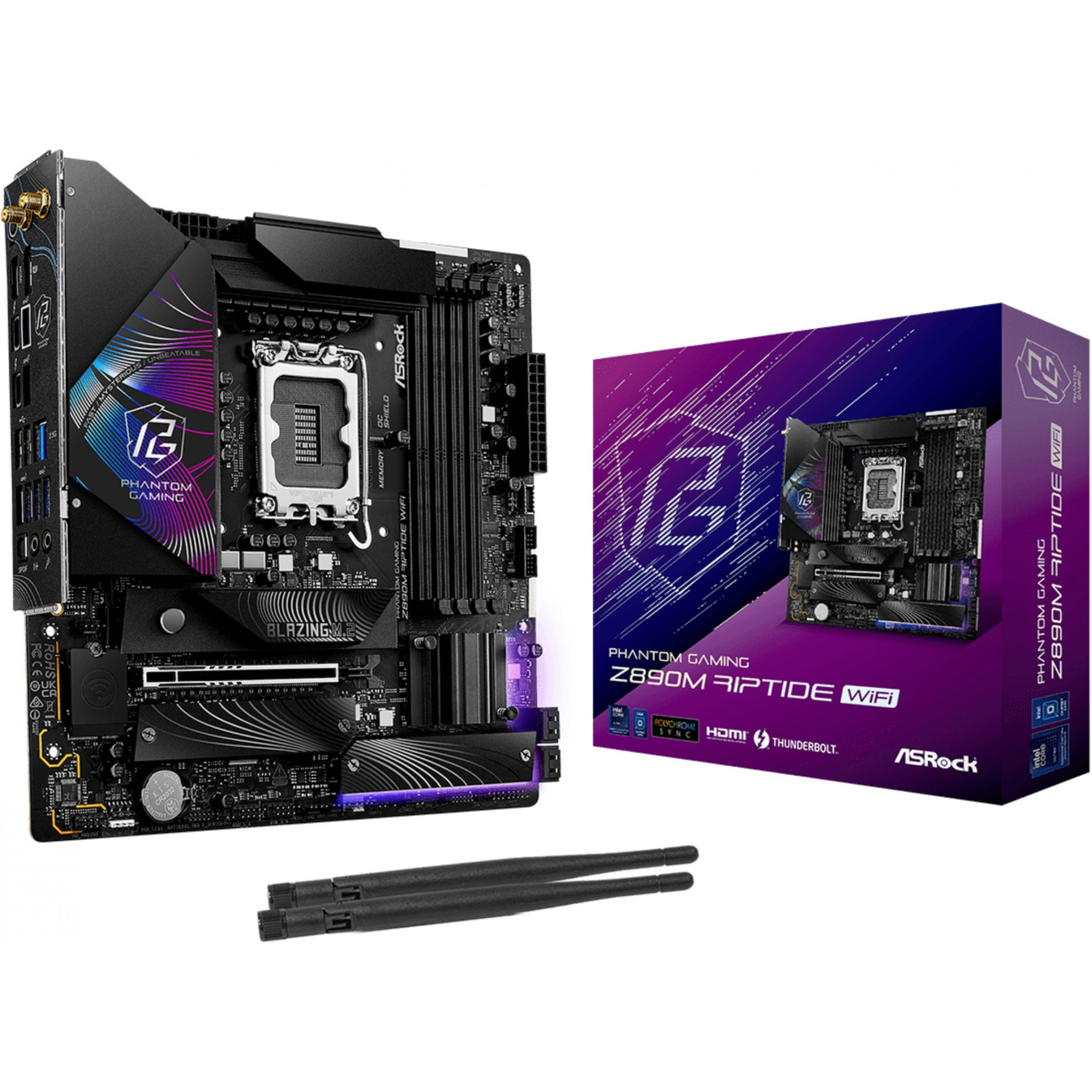

ASRock Z890M Phantom Gaming Riptide WiFi - microATX, LGA1851, DDR5, Wi‑Fi 6E, PCIe 5.0, 256GB, Black
microATX Z890M board for LGA1851 Intel Core Ultra (Gen2). DDR5 up to 256GB, PCIe 5.0 x16, 3x M.2 (one Gen5), Wi‑Fi 6E, Bluetooth 5.3, 2.5Gb LAN, 7.1 audio.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA 1851 (Socket V1) |
|---|---|
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 256 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
Asrock Phantom Gaming Z890M Riptide WiFi. Processor manufacturer: Intel. Processor socket: LGA 1851 (Socket V1). Compatible processor series: Intel Core Ultra (Series 2). Supported memory types: DDR5-SDRAM. Maximum internal memory: 256 GB. Memory slots type: DIMM. Supported storage drive interfaces: PCI Express 4.0. PCI Express 5.0. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. Maximum resolution: 7680 x 4320 pixels. USB connector type: USB Type-A. USB Type-C
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Maximum internal memory | 256 GB |
| Feature | Antenna included |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | PCI Express 4.0. PCI Express 5.0. SATA III |
| Number of storage drives supported | 7 |
| RAID levels | 0. 1. 5. 10 |
| Parallel processing technology support | Not supported |
| Maximum resolution | 7680 x 4320 pixels |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 3 |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 1 |

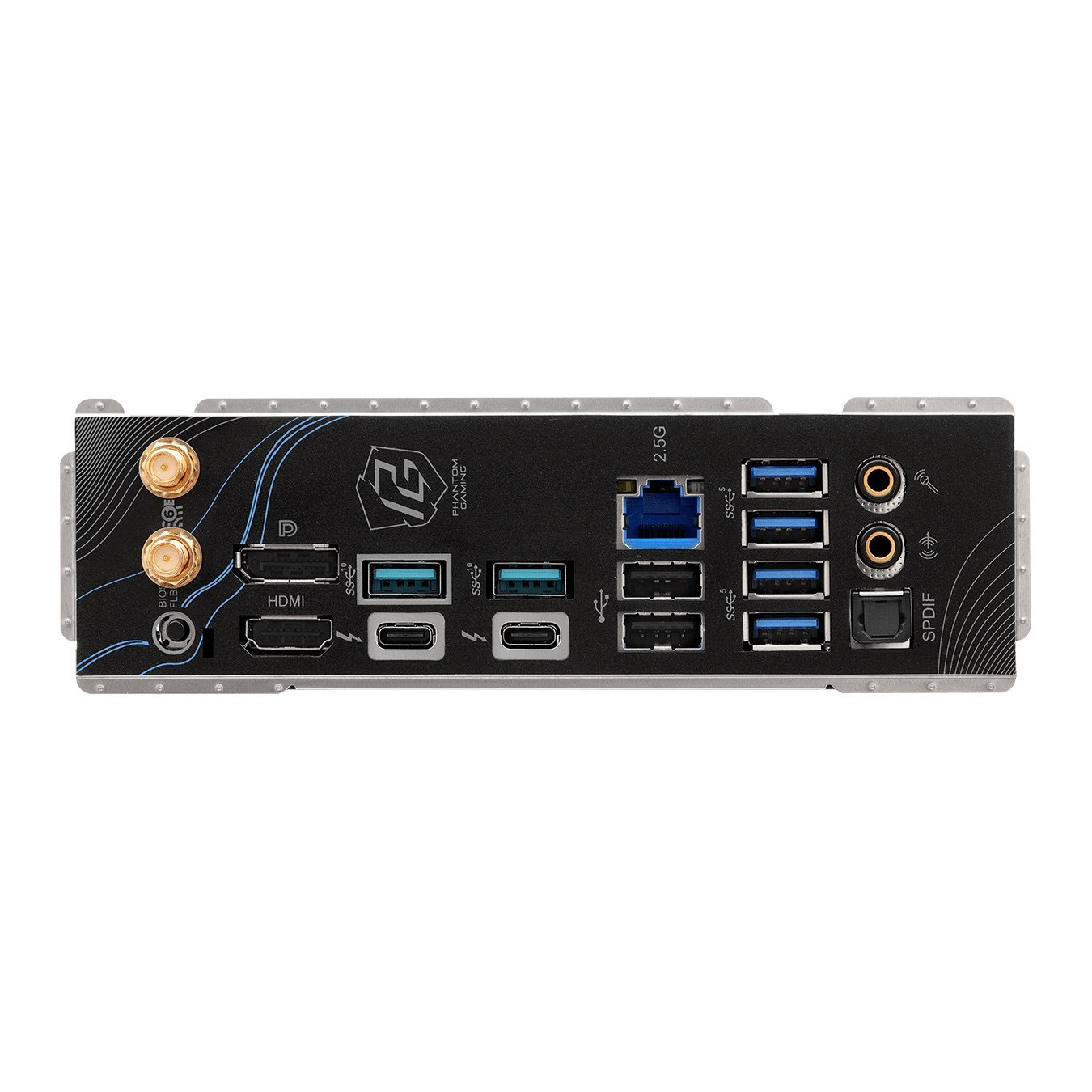

| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 1 |
| Thunderbolt ports quantity | 2 |
| WiFi-AP antenna jack | 2 |
| USB connector type | USB Type-A. USB Type-C |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Killer E3100G |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 11 x64 |
| Certification | FCC. CE. ErP/EuP |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
