APC Smart-UPS SMC1000I-2UC 1000VA/600W Rack 2U UPS LCD Black (Boxed)
Line-Interactive 1000VA/600W 2U rackmount UPS. Features SmartConnect, 4x IEC C13 outlets + 2 jumpers, AVR, LCD display, USB/RS232. Sealed lead-acid battery, 9min runtime at full load, 230V.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 1000 - 1999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Rackmount |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 4 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation LCD Display Pure Sine Wave Output Smart App Control |

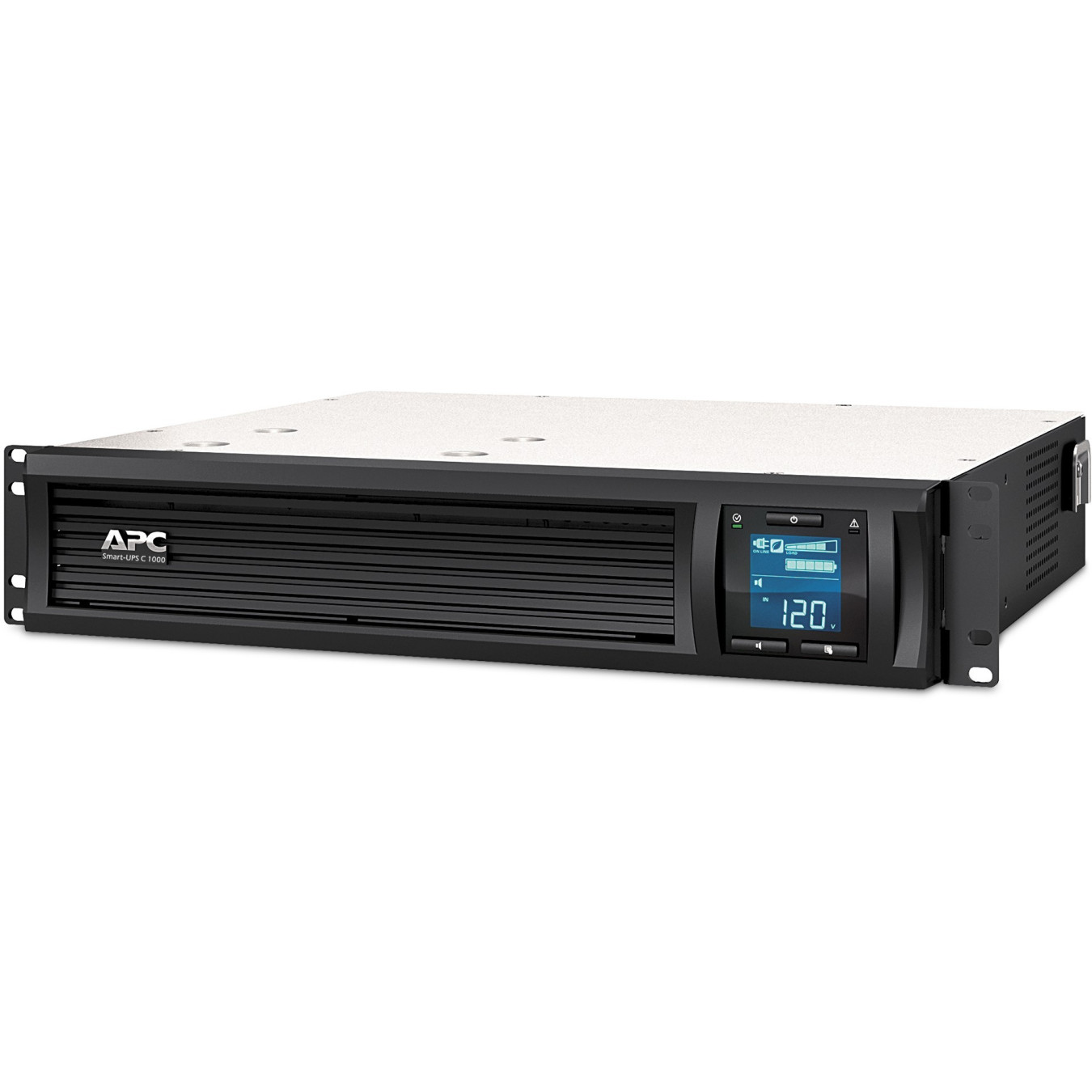

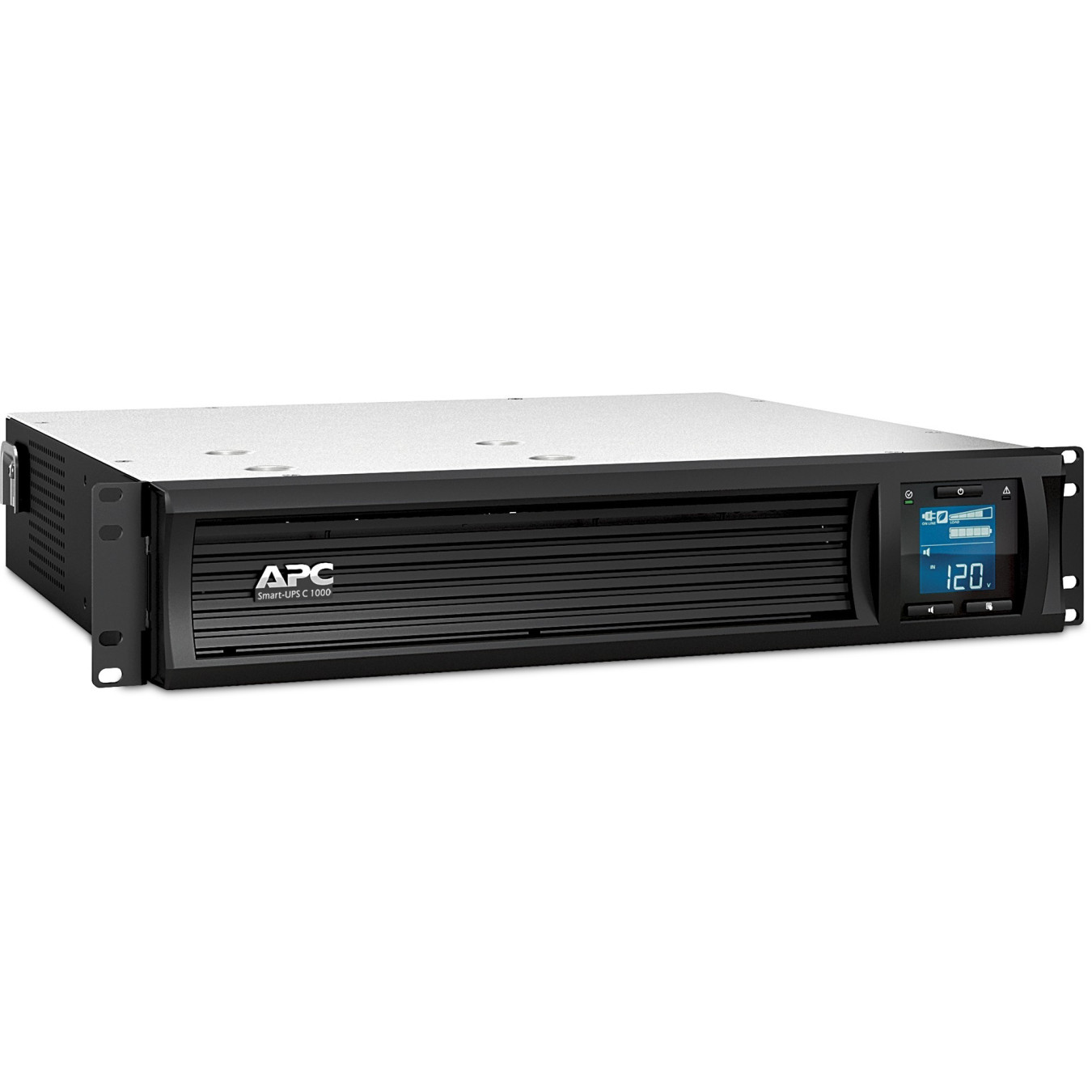

The APC Smart-UPS SMC1000I-2UC is a reliable line-interactive UPS designed for small to medium businesses, providing 1000VA/600W power protection in a compact 2U rackmount form factor. It delivers pure sine wave output to safeguard sensitive electronics like servers and networking gear during outages, with a runtime of approximately 9 minutes at full 600W load.

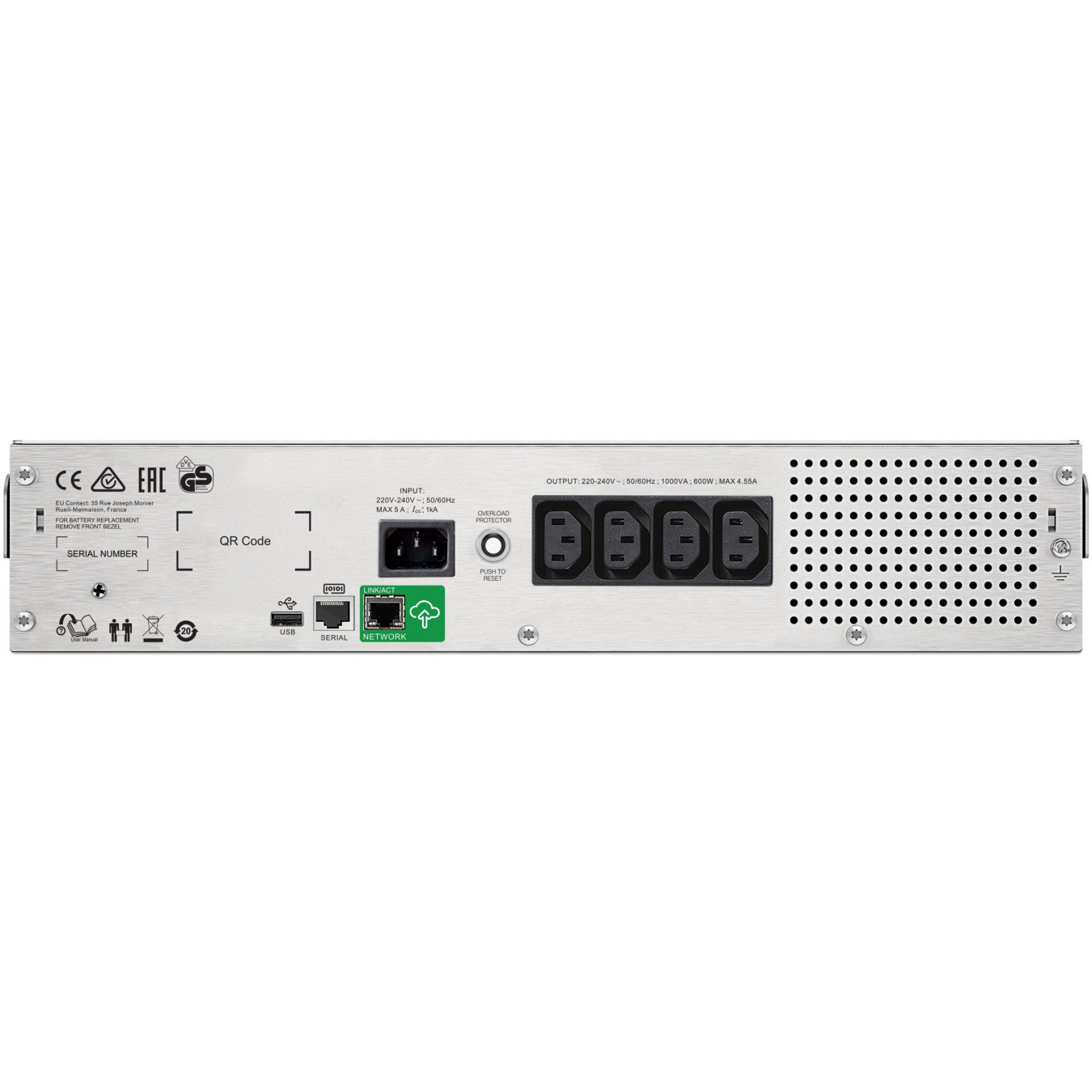

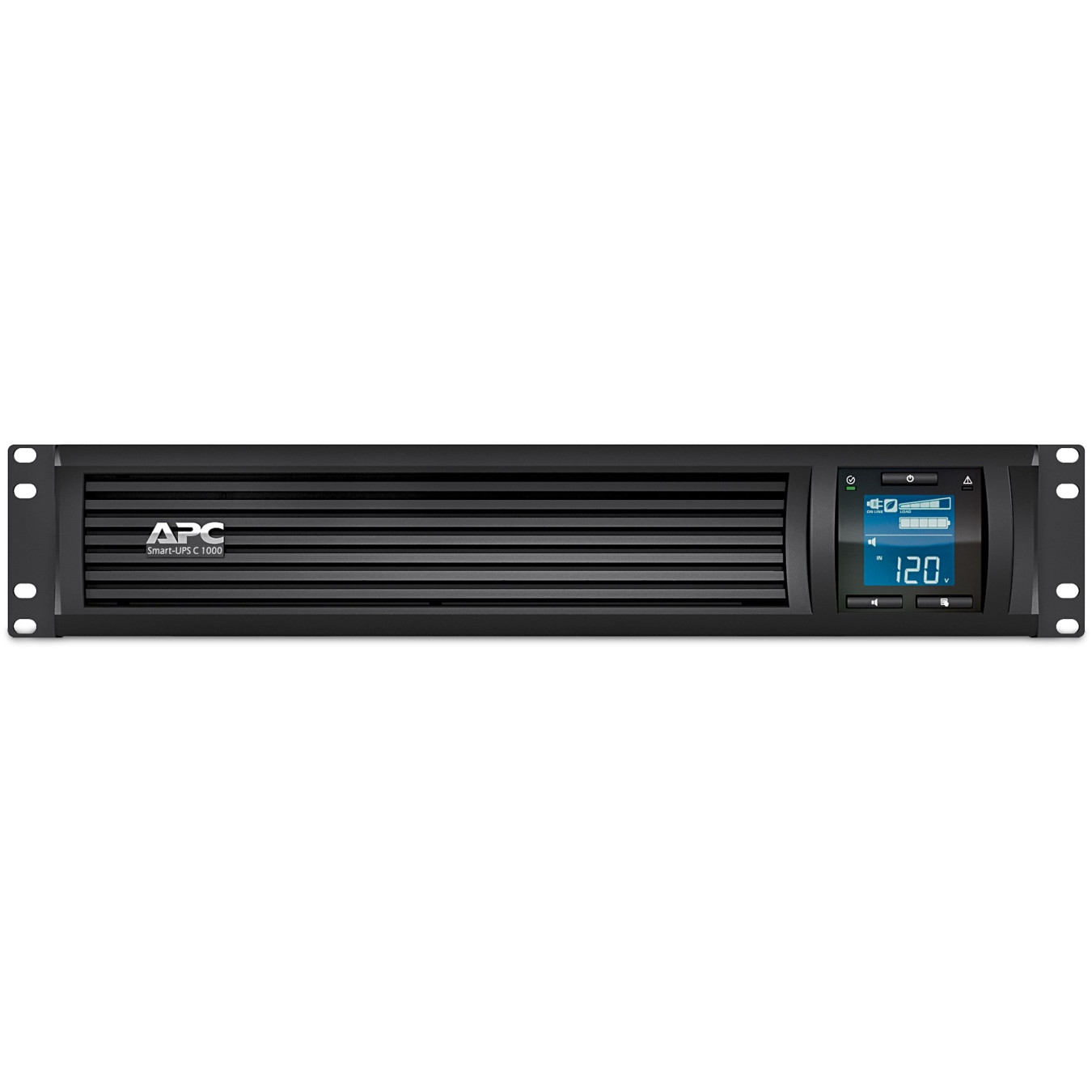

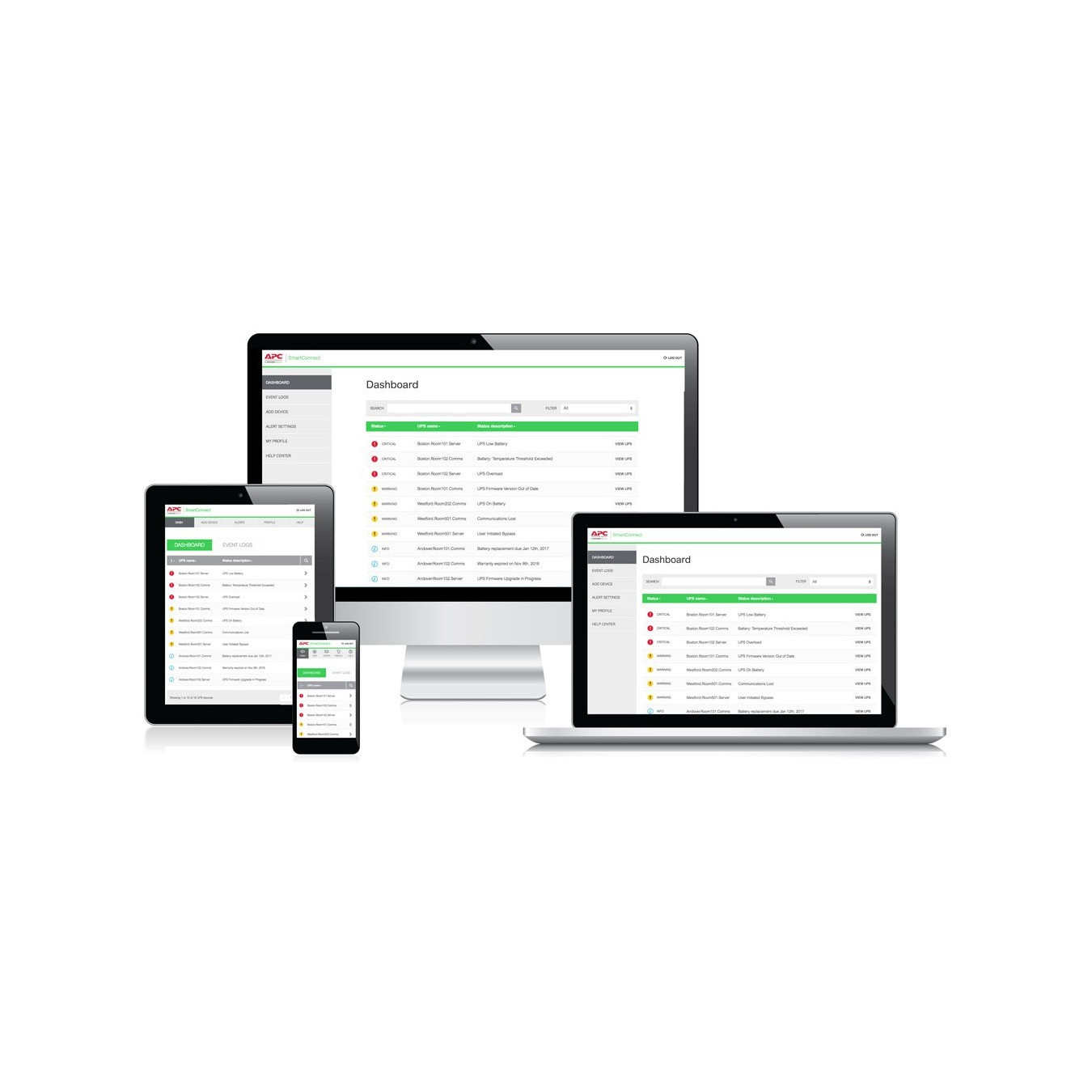

Key features include Automatic Voltage Regulation (AVR) to correct brownouts and surges without battery use, a graphic LCD for real-time status monitoring, and SmartConnect for cloud-based management. Connectivity options comprise USB, RS-232 serial, and Ethernet ports, plus 4x IEC C13 outlets and 2x IEC jumpers for flexible power distribution. The sealed lead-acid battery recharges in 3 hours and has a typical lifespan of 6 years.
- Topology: Line-Interactive with pure sine wave
- Input: 230V IEC C14 (170-300V range)
- Output: 230V, 4x C13 + 2 jumpers
- Certifications: UL 1778, FCC Class B, RoHS, ENERGY STAR
- Dimensions (unit): 432x86x406mm, 20.5kg
| UPS topology | Line-Interactive |
| Output power capacity | 1 kVA |
| Output power | 600 W |
| Waveform | Sine |
| Main Input Voltage | 230 V |
| Input operation voltage (min) | 170 V |
| Input operation voltage (max) | 300 V |
| Main Output Voltage | 230 V |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Input frequency | 50/60 Hz |
| Output frequency | 50/60 Hz |
| Surge energy rating | 680 J |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 41 dB |
| Audible alarm modes | Alarm when on battery. Low battery alarm. Overload alarm |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 4 AC outlet(s) |
| Output Connections | 4x IEC 320 C13 / 2 IEC Jumpers |
| USB 2.0 ports quantity | 1 |
| Serial interface type | RS-232 |

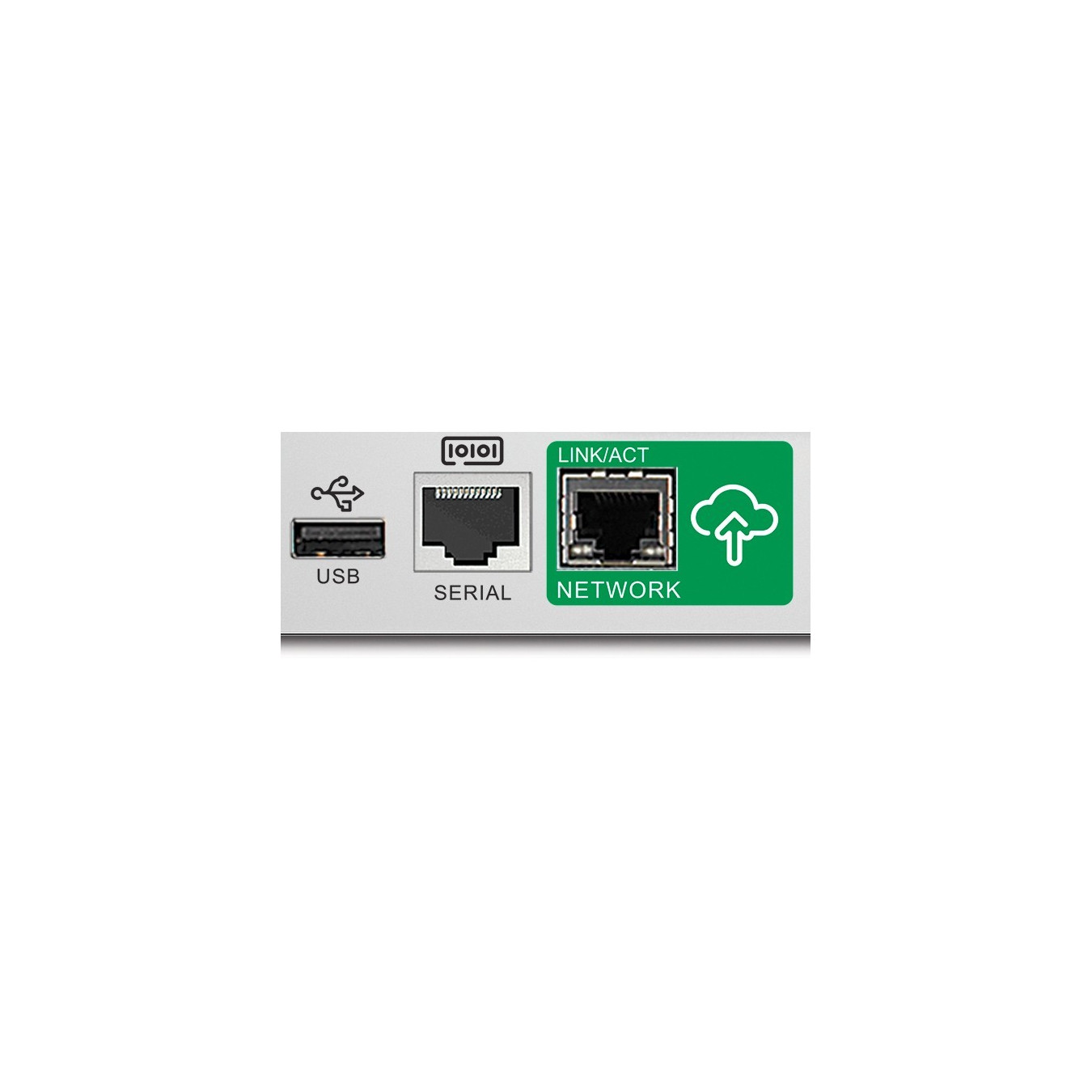

| Ethernet LAN (RJ-45) ports | 1 |
| SmartConnect port | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Number of batteries supported | 1 |
| Battery life (max) | 6 year(s) |
| Battery recharge time | 3 h |
| Replacement battery cartridge | APCRBC124 |

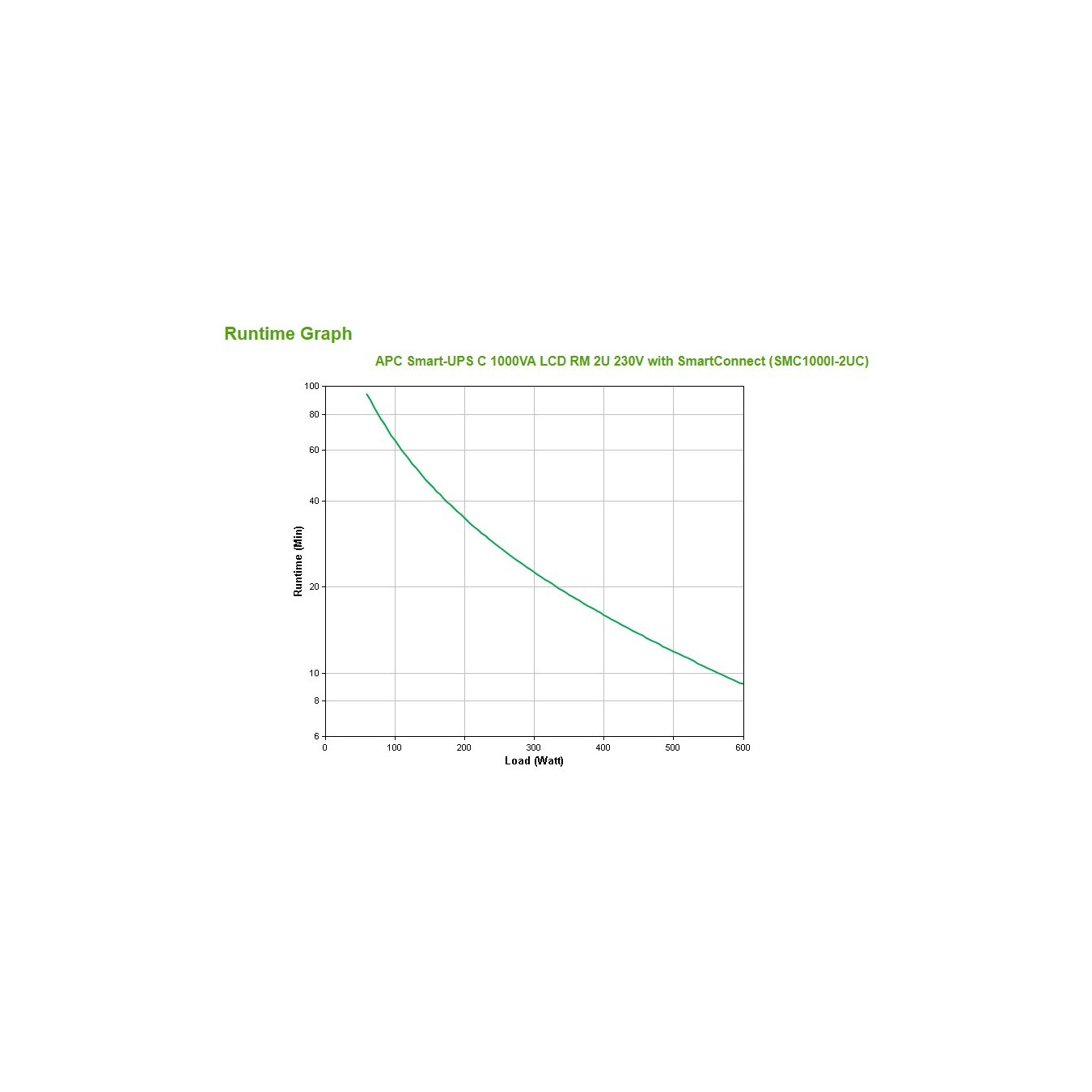

| Run time for load 600 W | 9min 9s |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 m |
| Product colour | Black |
| Display type | LCD |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
| Certification | CSA. CSA C22.2 No. 107.1. FCC Part 15 Class B. ICES-003. UL 1778. REACH |
| Sustainability certificates | ENERGY STAR. Green Premium |
| Cables included | RJ-45. RS-232. USB cable. Rack mounting brackets |
| Width | 432 mm |
| Depth | 406 mm |
| Height | 86 mm |
| Weight | 20.5 kg |
| Package width | 535 mm |
| Package depth | 570 mm |
| Package height | 235 mm |
| Package weight | 20.7 kg |
| Products per pallet | 16 pc(s) |
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 945.86 |
