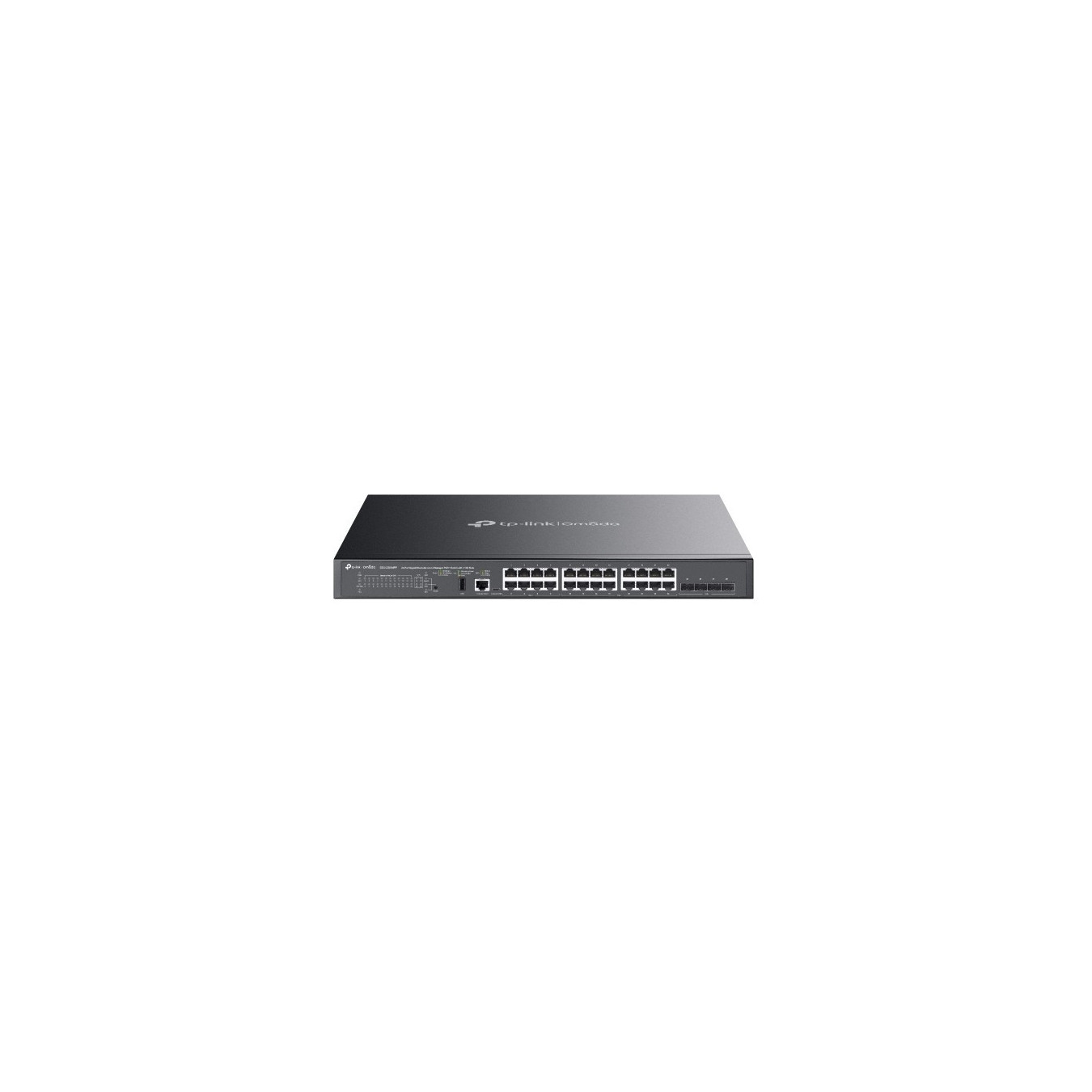

TP-Link Omada SG5428XMPP - 24-Port L3 Managed PoE++ Switch, 4x10G SFP+, 500W PoE, 2GB RAM, 1.2GHz, Black
L3 managed rackmount switch: 24x Gigabit RJ45, 4x 10G SFP+, 16 PoE+ ports + 8 PoE++ (4PPoE) ports, 500W PoE budget, 2GB DRAM, 1.2GHz CPU.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
TP-Link SG5428XMPP. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. USB 2.0 ports quantity: 1. Console port: RJ-45. MAC address table: 16000 entries. Switching capacity: 128 Gbit/s. Networking standards: IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. Power over Ethernet (PoE). Rack mounting
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP+ module slots quantity | 4 |
| USB Type-C ports quantity | 1 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 1 |
| Networking standards | IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt |
| Virtual LAN features | Voice VLAN. MAC address-based VLAN. Private VLAN. Protocol-based VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 128 Gbit/s |
| Forwarding rate | 95.23 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP relay. DHCP server |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Physical stacking (units) | 4 |
| Processor manufacturer | ARM |
| Processor frequency | 1200 MHz |
| Memory type | DRAM |
| Internal memory | 2000 MB |
| Flash memory | 512 MB |
| Mean time between failures (MTBF) | 292.83 h |
| Power source | AC/PoE |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 587.7 W |
| Surge protection voltage | 6 kV |
| Power over Ethernet (PoE) type supported | PoE+. PoE++ (4PPoE) |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 90 W |
| Total Power over Ethernet (PoE) budget | 500 W |
| Management level | 4 |
| Bandwidth | 64 Gbit/s |
| Operating temperature (T-T) | -5 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Cables included | AC |
| Compliance certificates | Federal Communications Commission (FCC). RoHS. CE |
