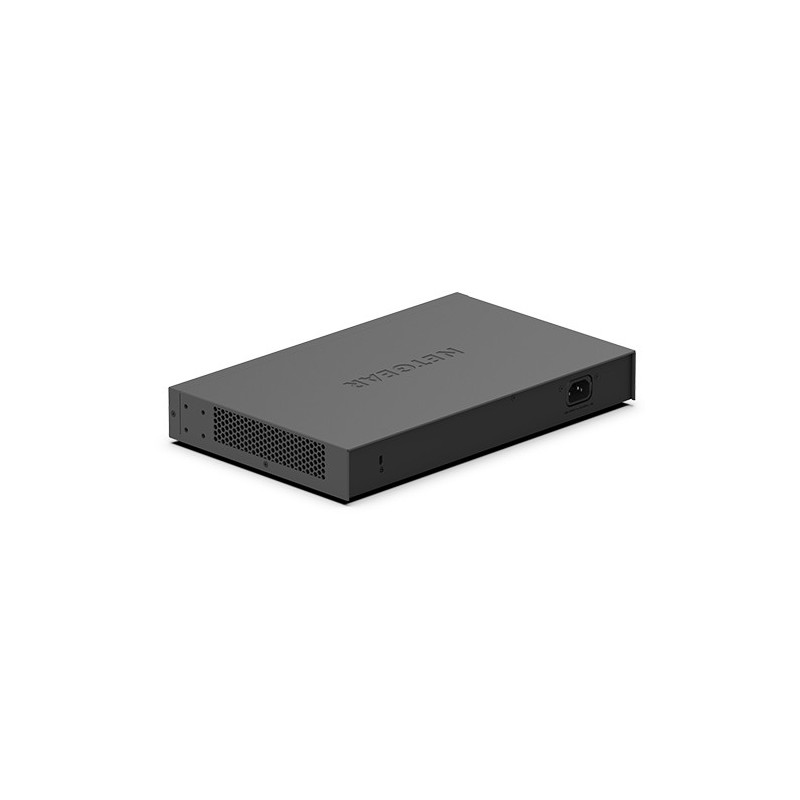

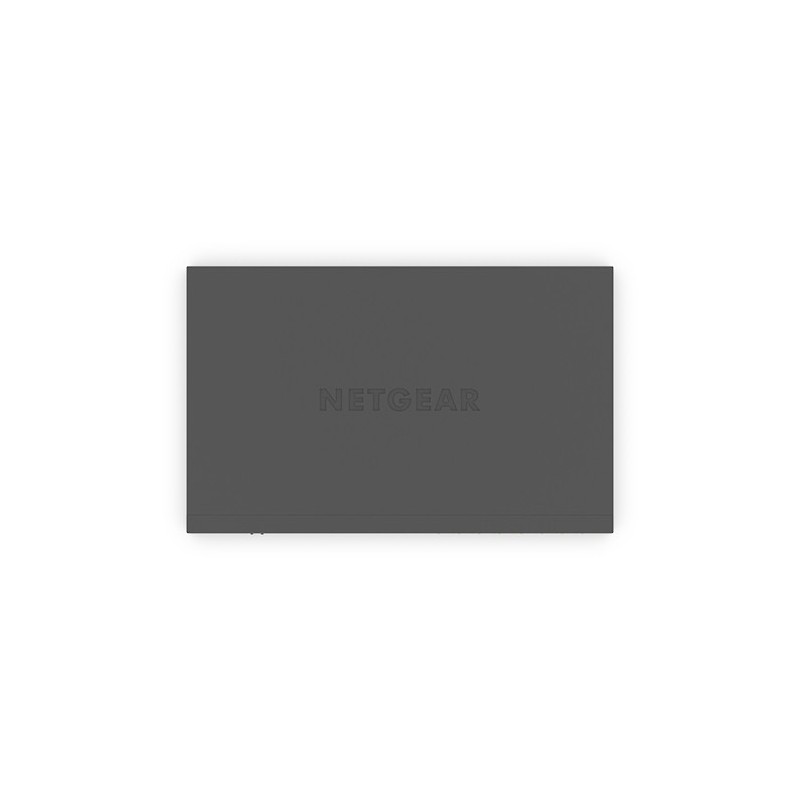

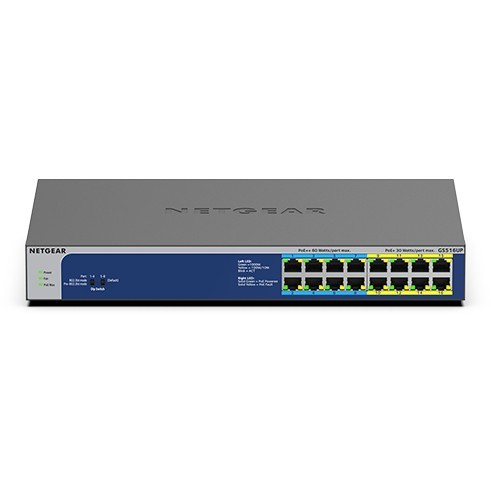

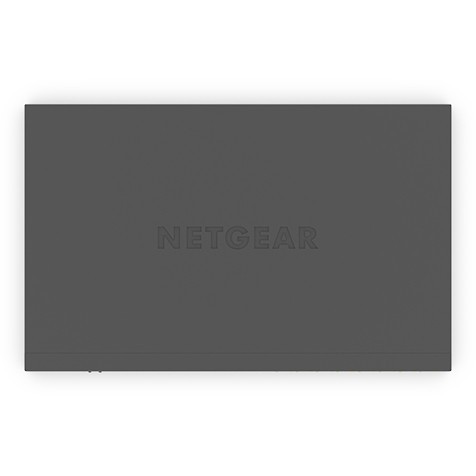

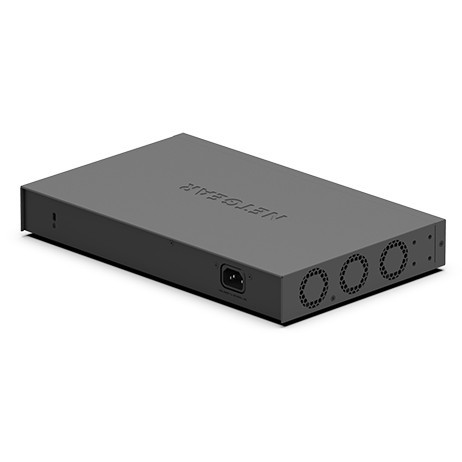

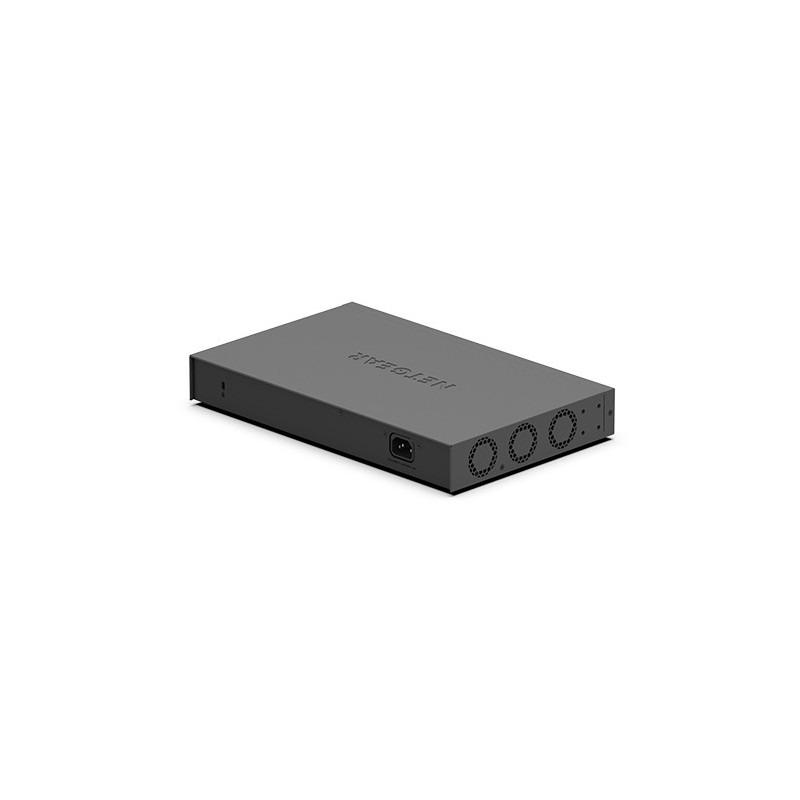

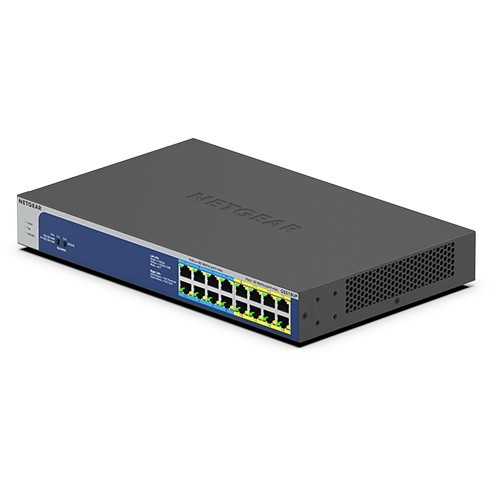

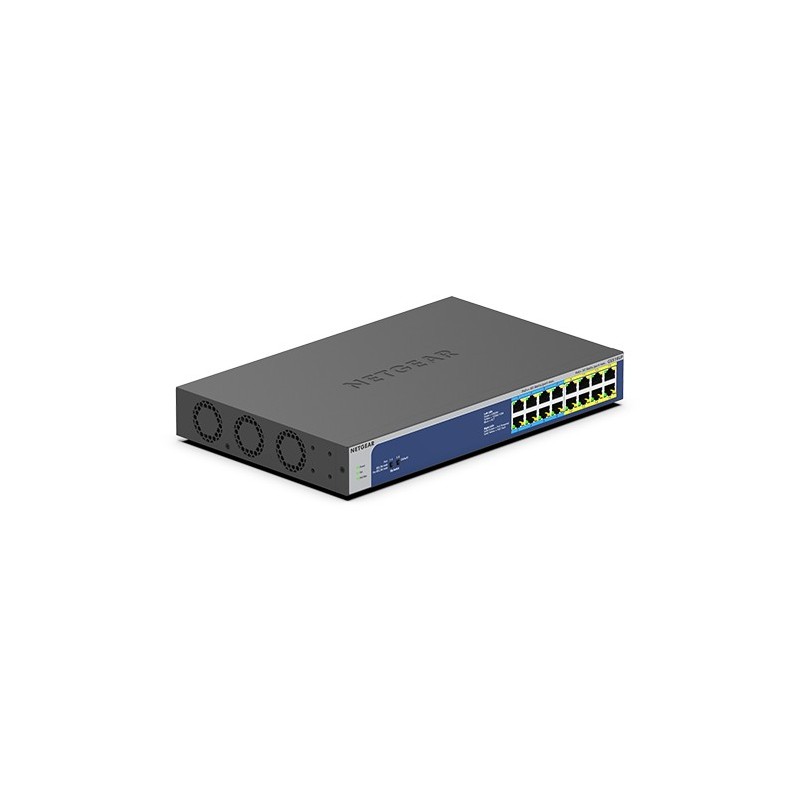

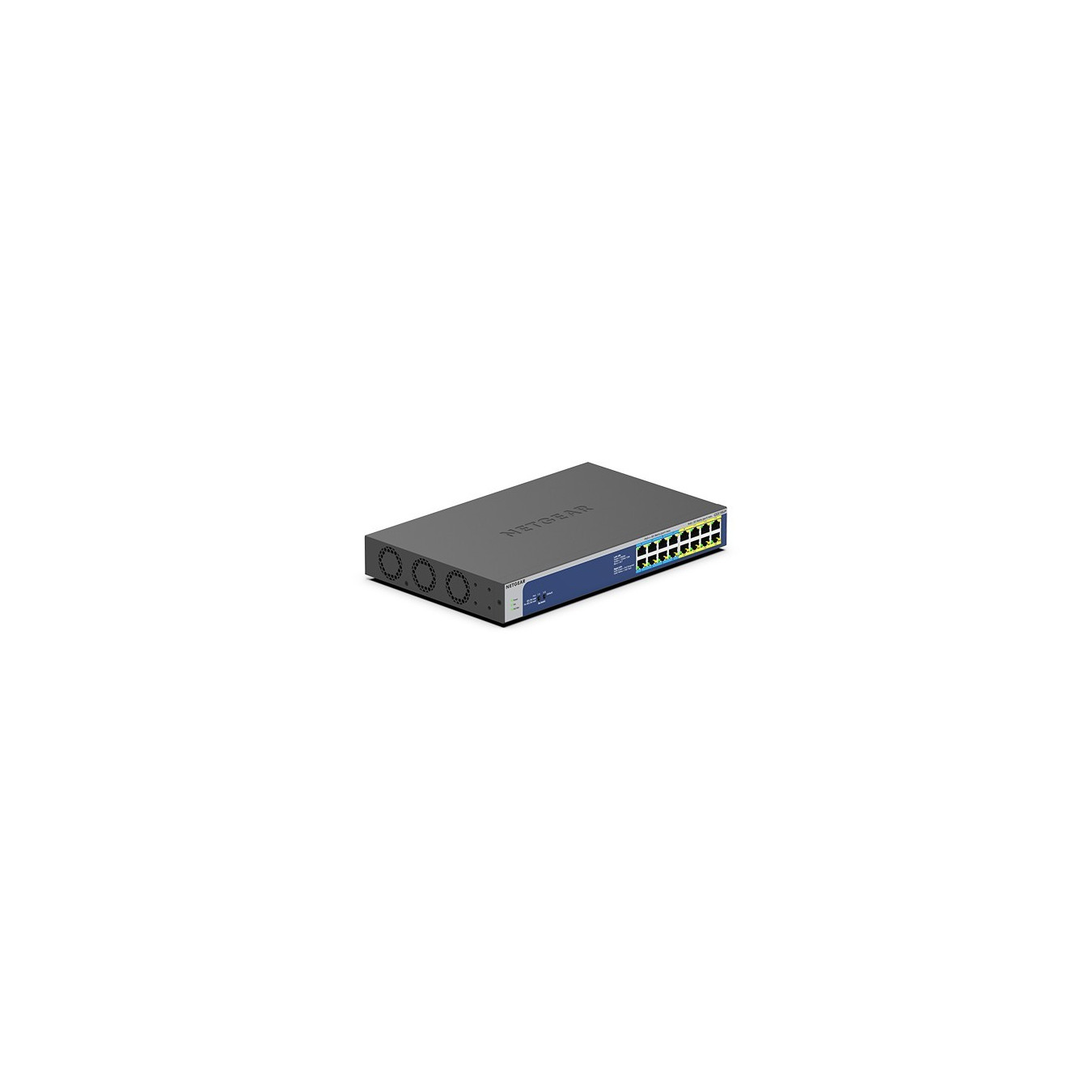

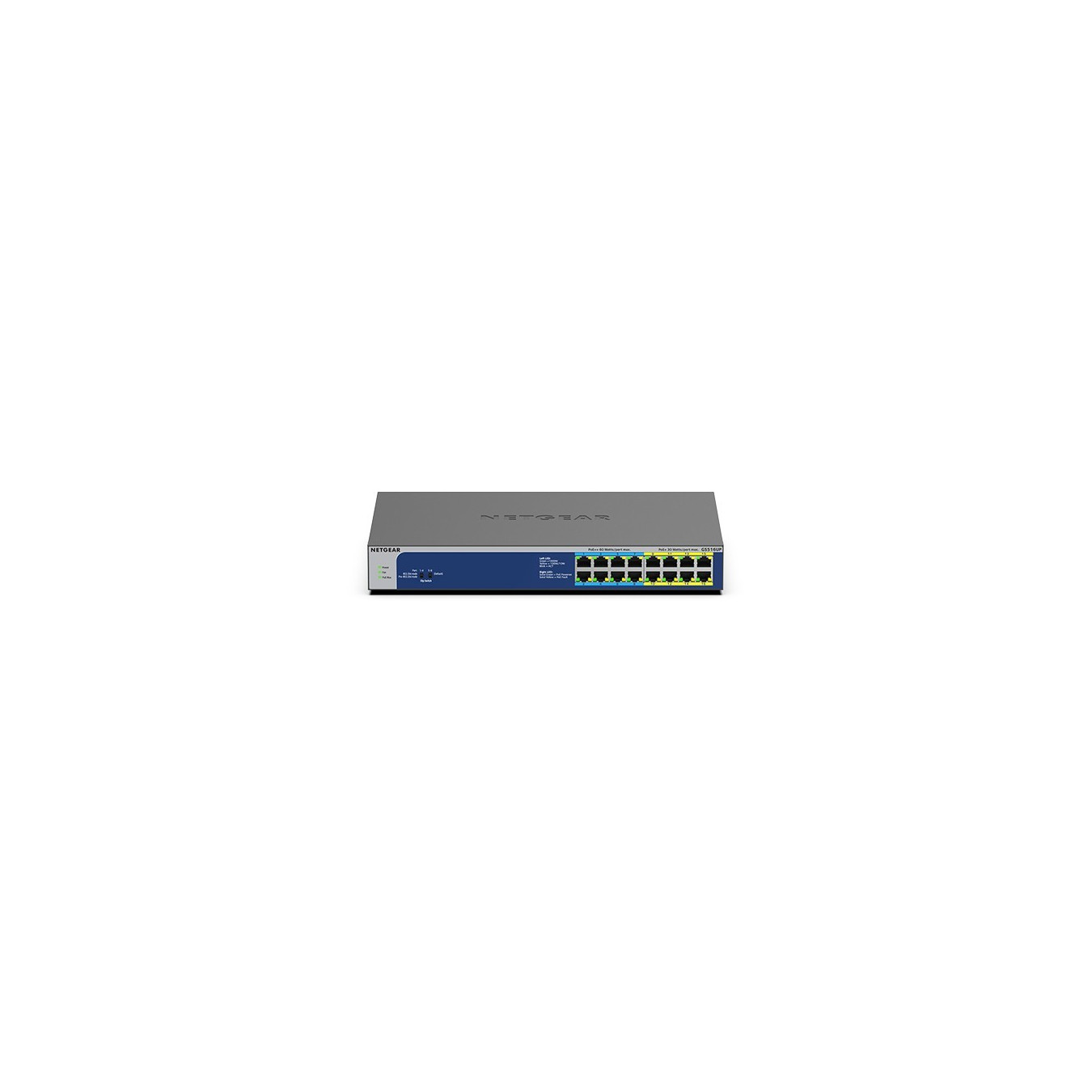

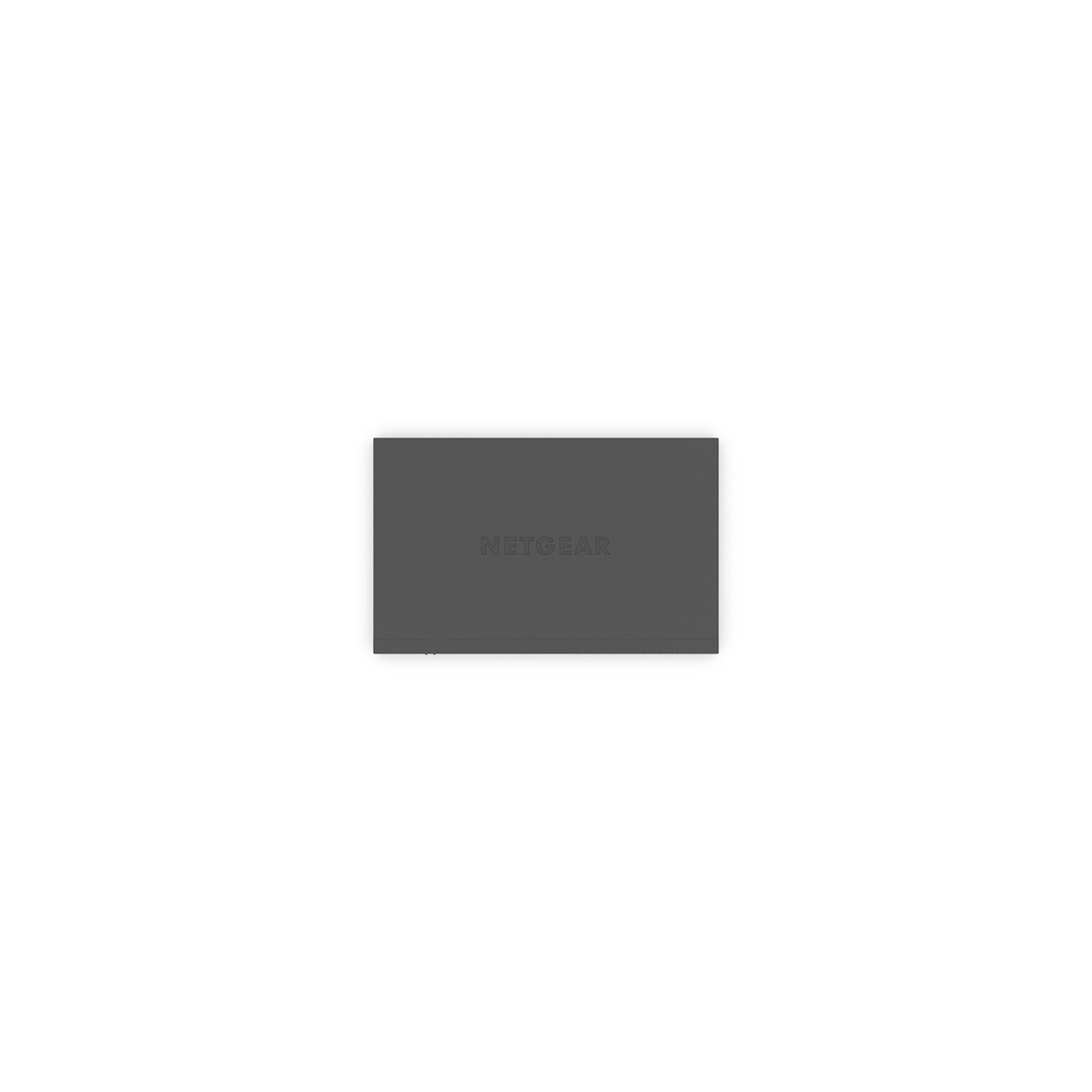

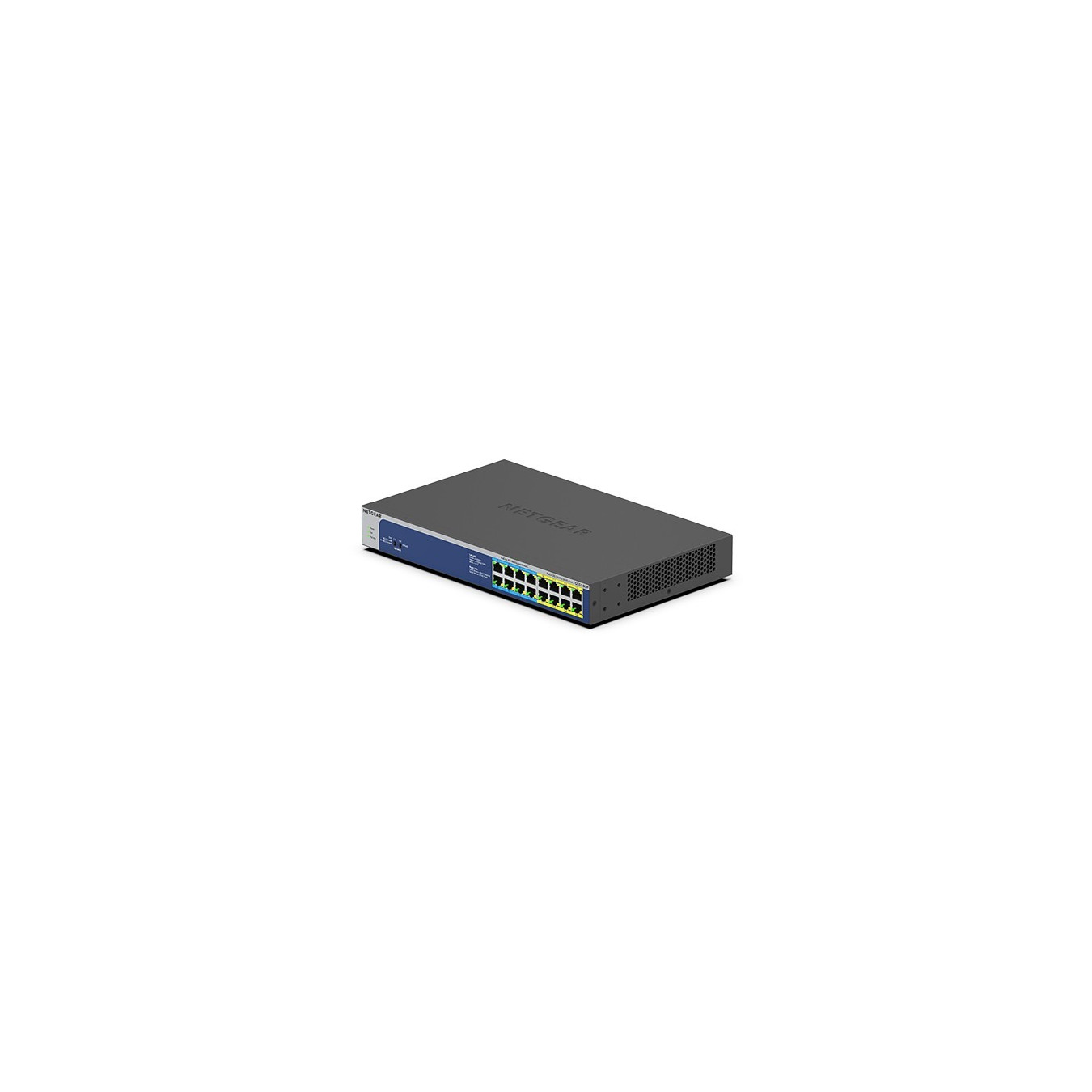

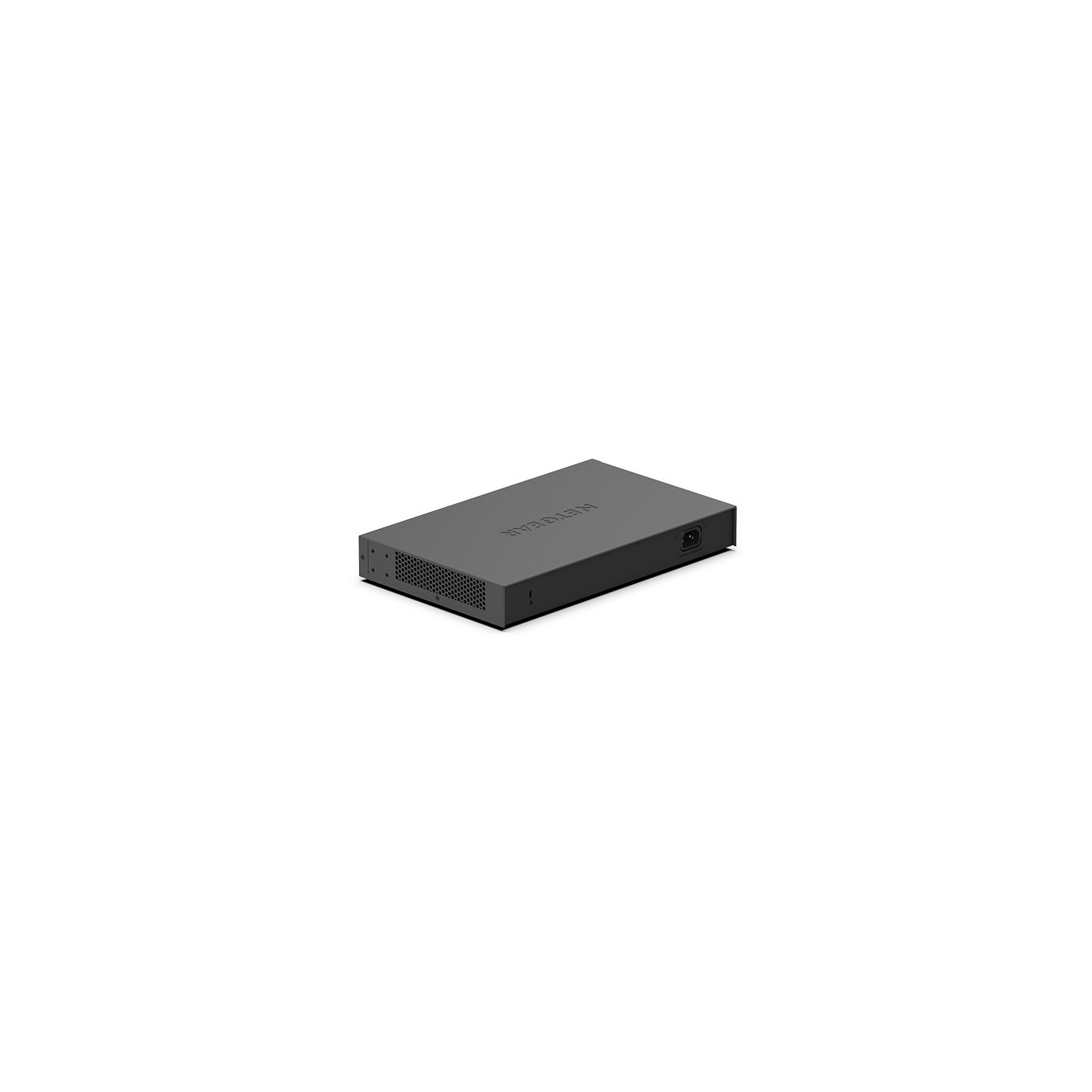

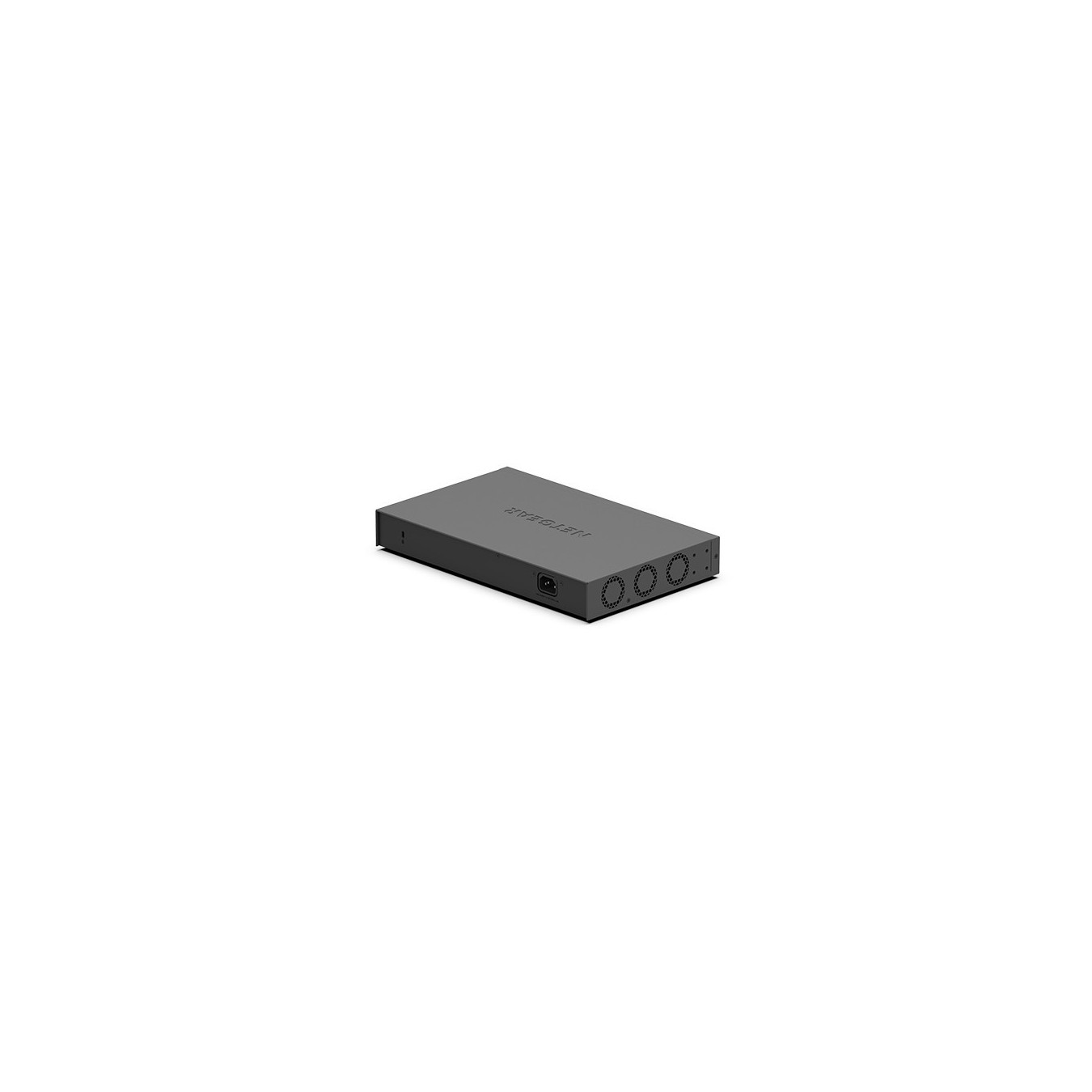

NETGEAR GS516UP-100EUS - 16-Port Gigabit Unmanaged PoE Ultra60 Switch, 380W Budget, Grey Metal Rackmount
16-port unmanaged Gigabit switch with Ultra60 PoE (up to 60W/port), 380W total budget, fan-cooled, rack-mountable, 100-240V AC, metal housing.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
NETGEAR GS516UP. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries. Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3i. IEEE 802.3p. IEEE.... Power over Ethernet (PoE). Rack mounting
| Switch type | Unmanaged |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Networking standards | IEEE 802.3. IEEE 802.3af. IEEE 802.3at. IEEE 802.3az. IEEE 802.3bt. IEEE 802.3i. IEEE 802.3p. IEEE 802.3u |
| Switching capacity | 32 Gbit/s |
| MAC address table | 8000 entries |
| Latency (1 Gbps) | 12 µs |
| Packet forwarding rate (1 Gbps) | 1448000 pps |
| Packet buffer memory | 0.192 MB |
| Product colour | Grey |
| Housing material | Metal |
| LED indicators | Activity. Link. PoE. Power. Speed |
| Number of fans | 3 fan(s) |
| Mean time between failures (MTBF) | 1213791 h |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 8 - 4 A |
| Power consumption (max) | 456.8 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 60 W |
| Total Power over Ethernet (PoE) budget | 380 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 1559.5152 BTU/h |
| Width | 390 mm |
| Depth | 220 mm |
| Height | 43 mm |
| Weight | 2.6 kg |
| Harmonized System (HS) code | 85176990 |
