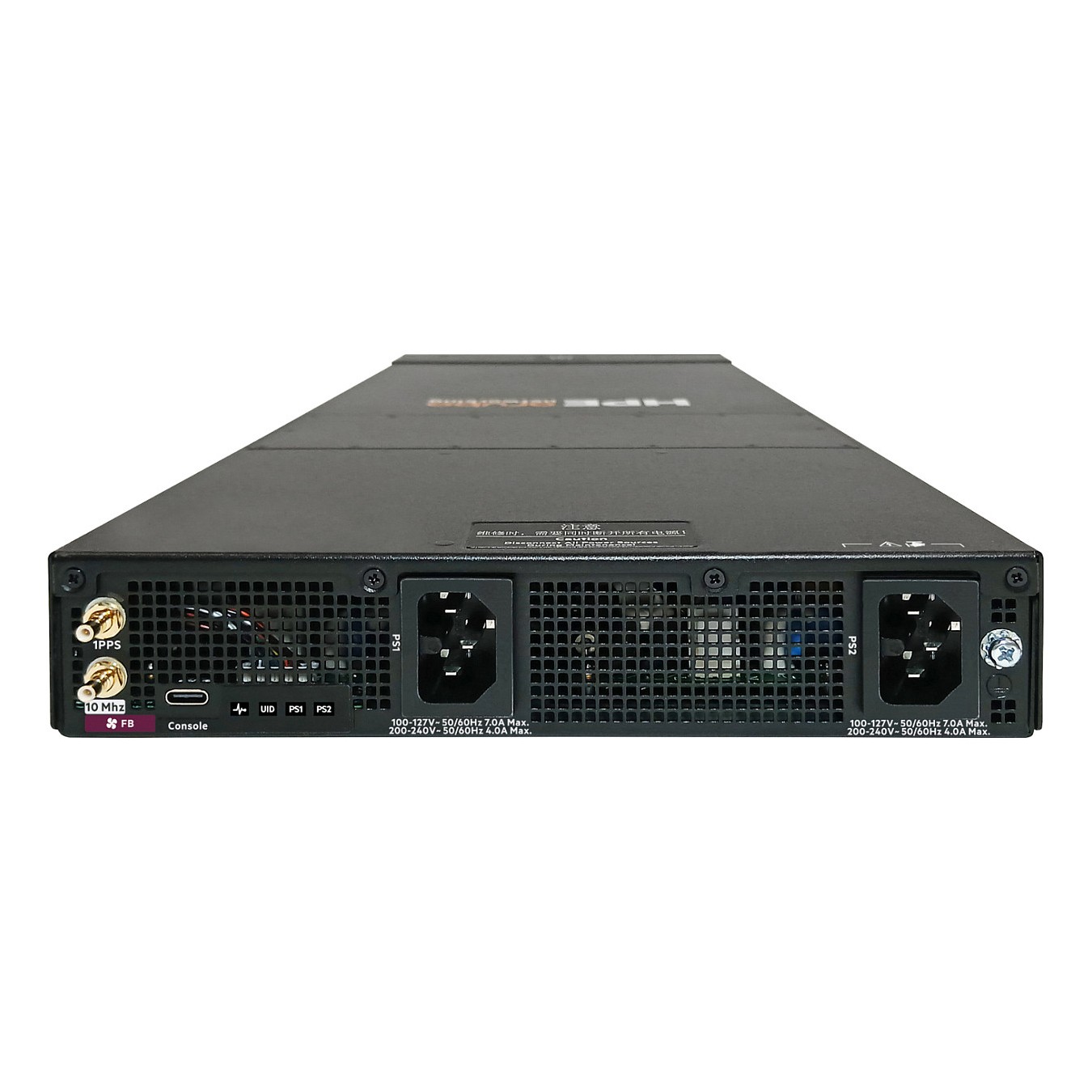

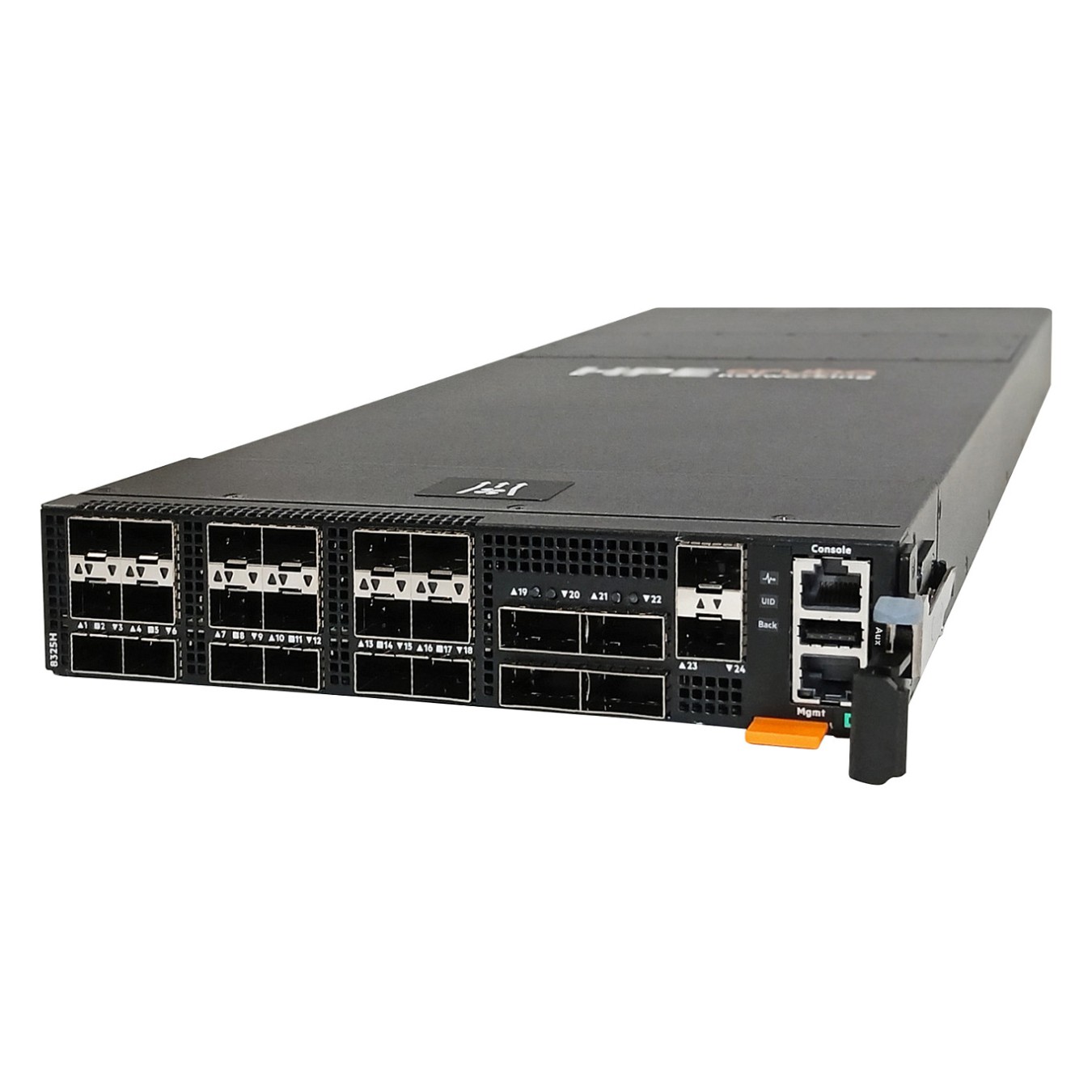

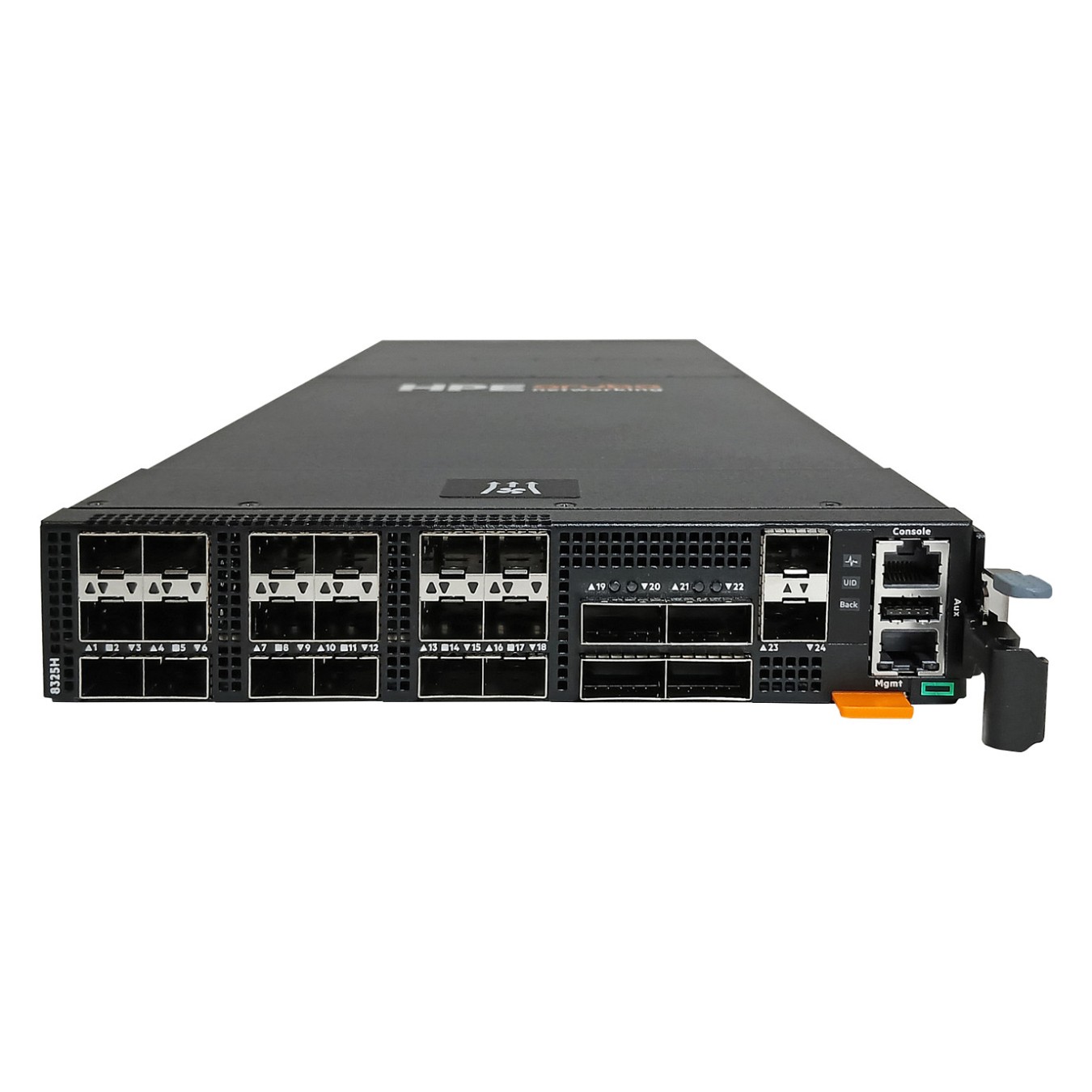

HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front-to-Back 4xFan 2xPSU Switch EU
HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front‑to‑Back 4xFan 2xPSU, Managed, L3, Rack-Einbau, 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
HPE Aruba Networking CX 8325H 18p SFP28 25G 4p QSFP28 100G Front‑to‑Back 4xFan 2xPSU. Switch-Typ: Managed, Switch-Ebene: L3. Routing-/Switching-Kapazität: 2160 Gbit/s. Netzstandard: IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE.... Rack-Einbau, Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Quality of Service (QoS) Support | Ja |
| Cloud-verwaltet | Ja |
| Basic Switching RJ-45 Ethernet Ports-Typ | Nein |
| Menge Modul-Steckplätze SFP+ | 2 |
| Anzahl Faseranschlüsse | 24 |
| Optischer Kabelverbinder | QSFP28, SFP+, SFP28 |
| Anzahl QSFP28-Ports | 4 |
| Anzahl SFP28-Ports | 18 |
| Netzstandard | IEEE 802.1AX, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1ak, IEEE 802.1p, IEEE 802.1s, IEEE 802.1t, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3ba, IEEE 802.3by, IEEE 802.3x, IEEE 802.3z |
| 10G-Unterstützung | Ja |
| Port-Spiegelung | Ja |
| Unterstützung Datenflusssteuerung | Ja |
| Link Aggregation | Ja |
| Spannbaum-Protokoll | Ja |
| Ethernet LAN Datentransferraten | 1000,10000,25000,40000,100000 Mbit/s |
| VLAN-Unterstützung | Ja |
| Virtuelle LAN-Funktionen | Private VLAN |
| Anzahl der VLANs | 4040 |
| Routing-/Switching-Kapazität | 2160 Gbit/s |
| Durchgang | 1000 Mpps |
| Jumbo Frames Unterstützung | Ja |
| Datenpaket-Pufferspeicher | 32 MB |
| DHCP-Funktionen | DHCP relay, DHCP server |
| Zugriffkontrollliste | Ja |
| IGMP-Snooping | Ja |
| SSH-/SSL-Unterstützung | Ja |
| Autentifizierungstyp | RADIUS, TACACS+ |
| Multicast Unterstützung | Ja |
| Management-Protokolle | SNMP v2c, SNMP v3, RMON |
| Router Protokoll | BGP, BGP4, OSPF, OSPFv2, OSPFv3, RIPng, VRRP |
| Rack-Einbau | Ja |
| Stapelbar | Ja |
| Formfaktor | 1U |
| Luftstromrichtung | Luftstrom von vorne nach hinten |
| Anzahl Lüfter | 4 Lüfter |
| Eingebauter Prozessor | Ja |
| Speicherkapazität | 32768 MB |
| Energiequelle | AC |
| Netzteil enthalten | Ja |
| Anzahl von Stromversorgungseinheiten | 2 |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50/60 Hz |
| Stromverbrauch (max.) | 500 W |
| Power over Ethernet (PoE) | Nein |
| Wärmeableitung | 1705 BTU/h |
