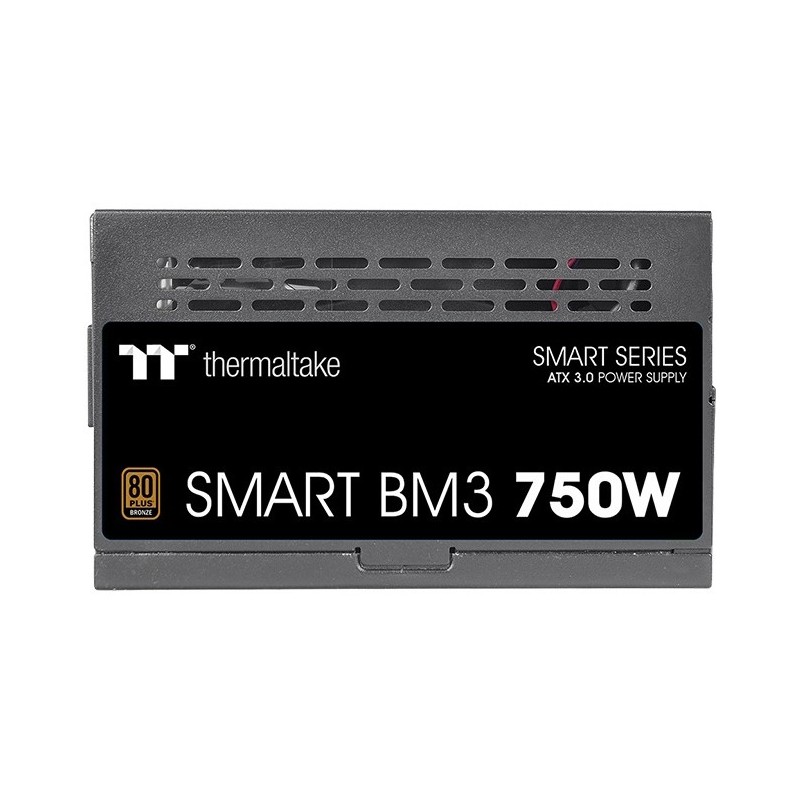

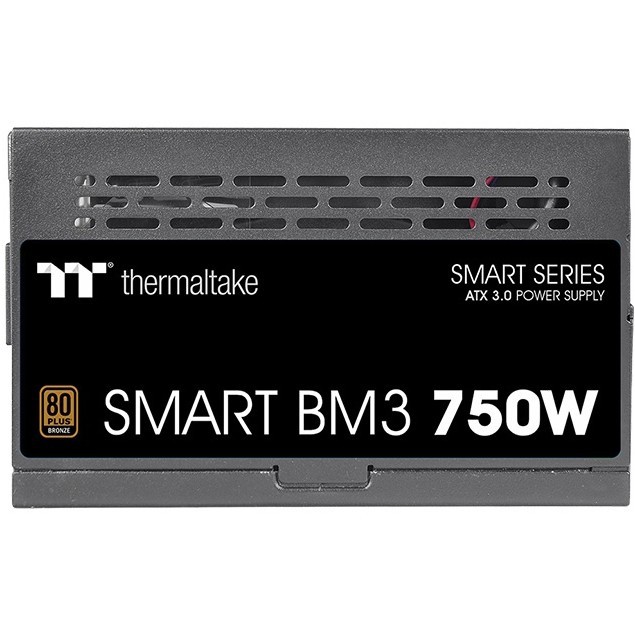

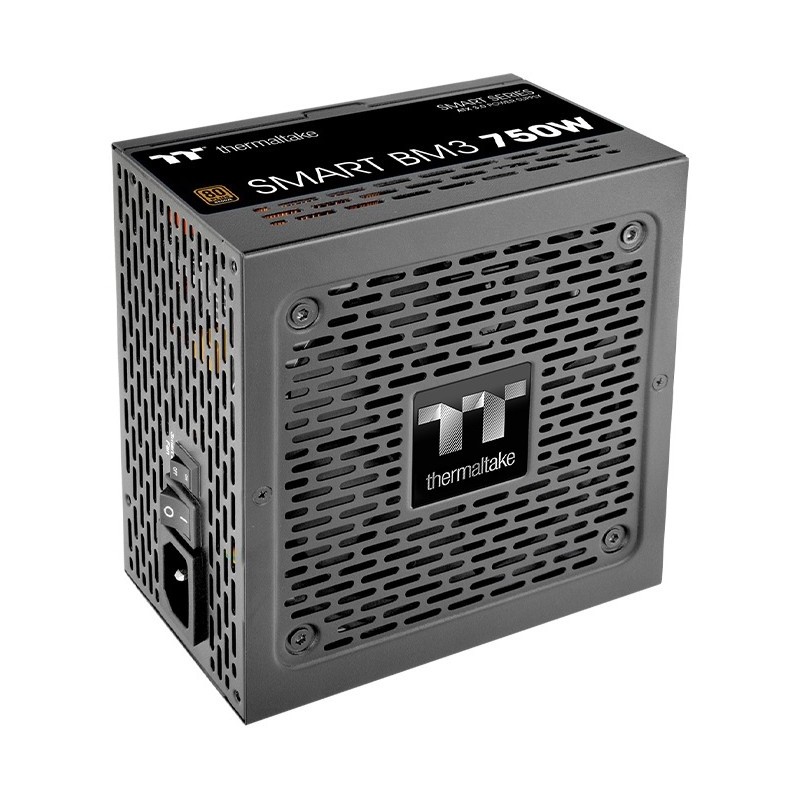

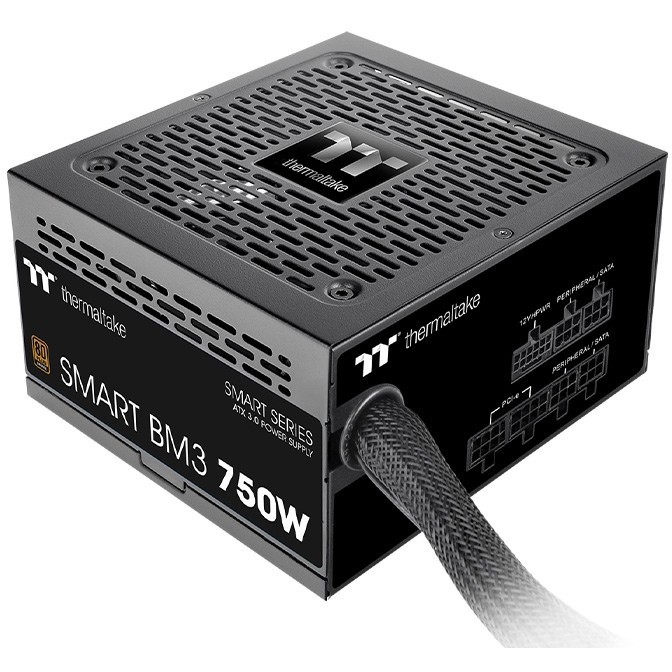

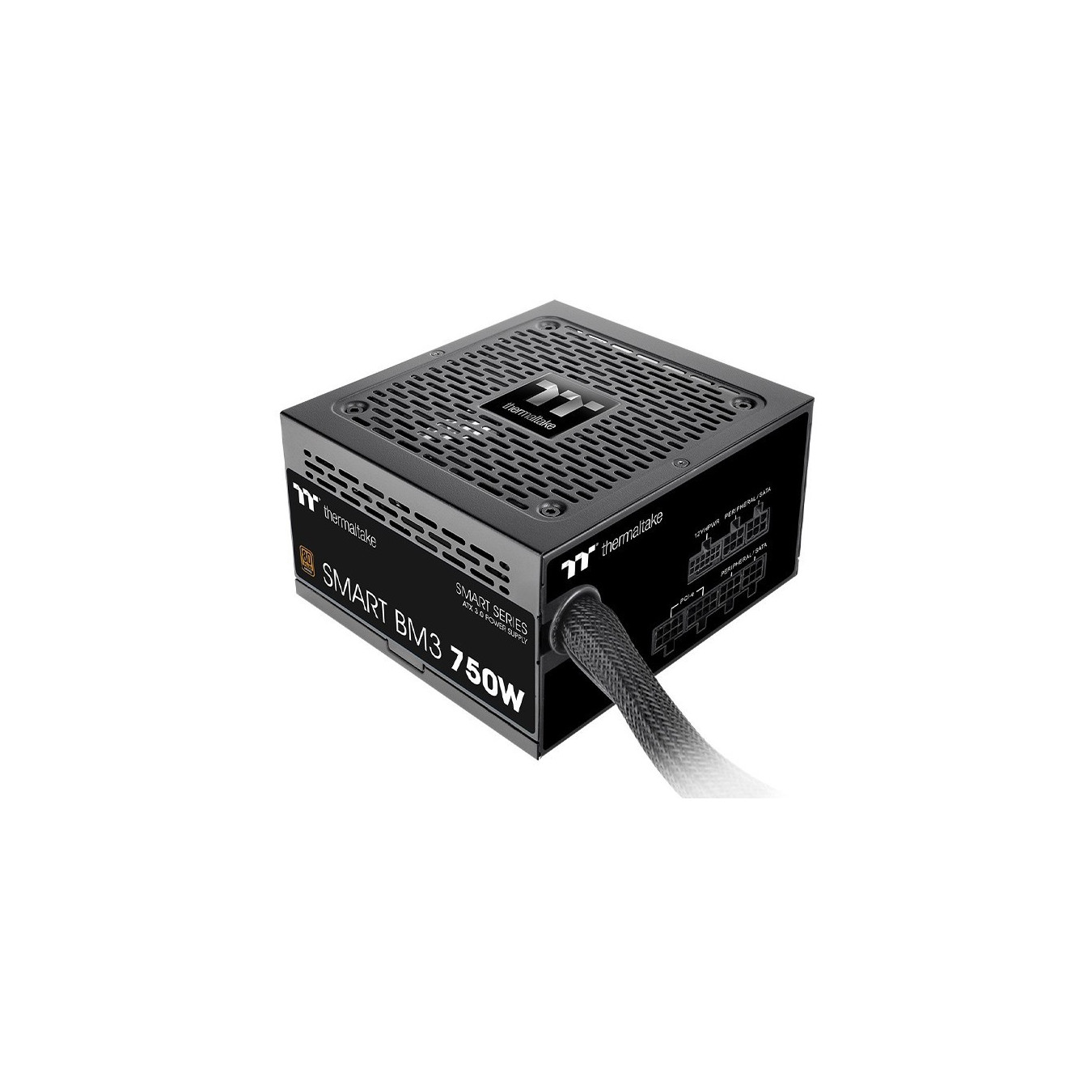

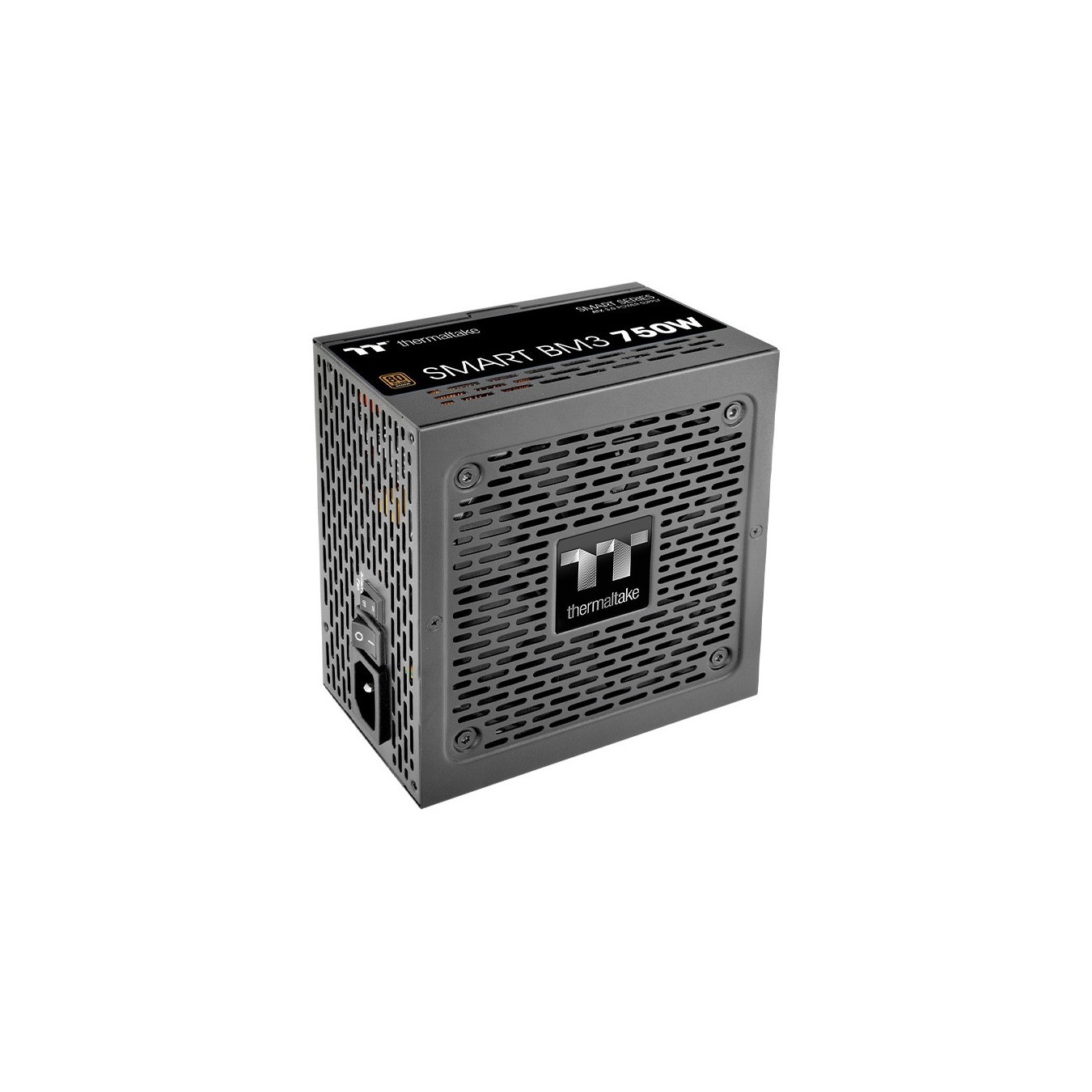

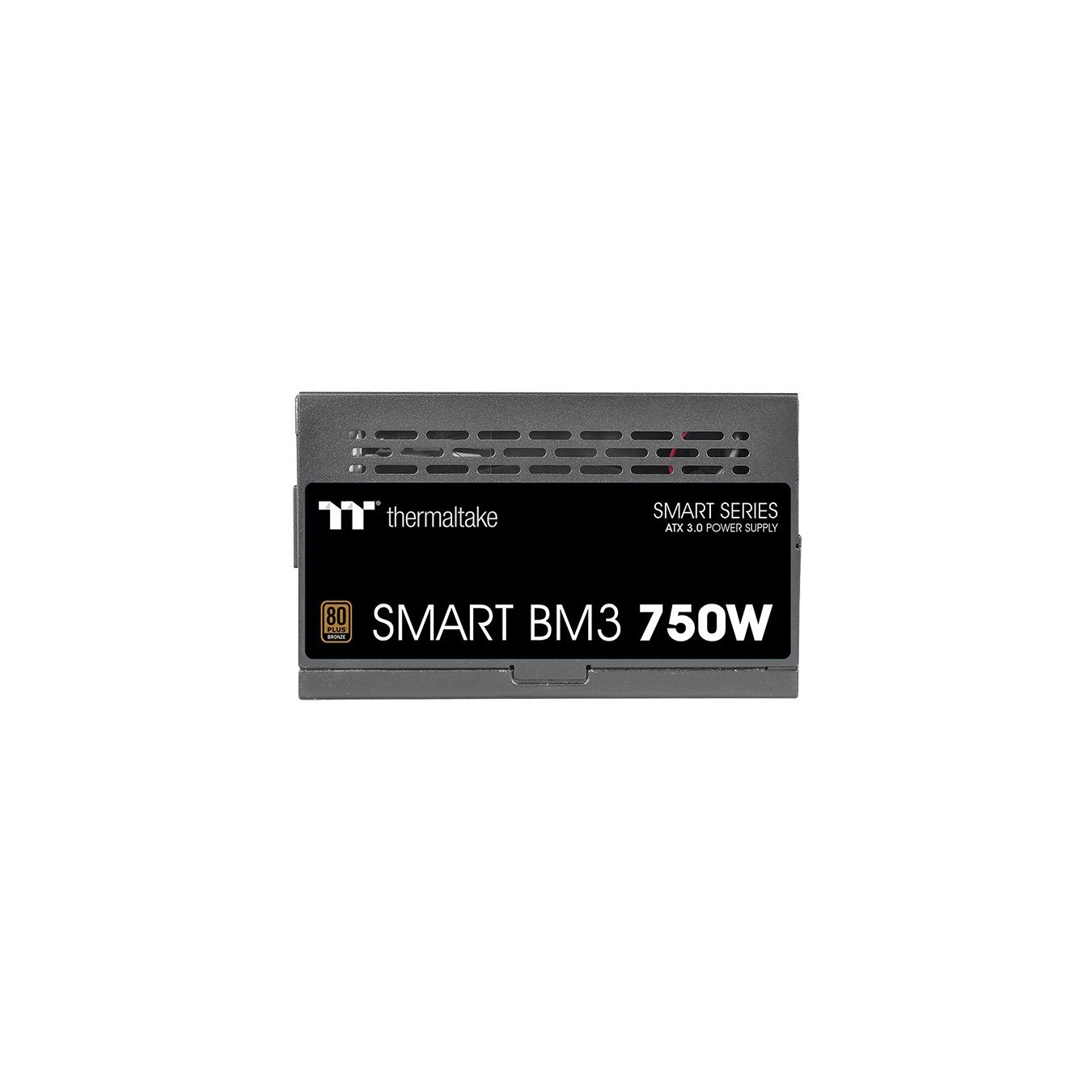

Thermaltake Smart BM3 750W - PS-SPD-0750MNFABE-3 - 80+ Bronze Semi-Modular ATX 3.0, Black
Thermaltake Smart BM3 750W (PS-SPD-0750MNFABE-3) — 80+ Bronze, ATX 3.0 semi-modular PSU; single +12V rail (62.5A), 120mm fan, multiple PCIe/SATA connectors. Dimensions 150×140×86 mm.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Bronze |
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Semi-modular |
| PSU (Power Supplies) - Fan Size | 120 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Thermaltake PS-SPD-0750MNFABE-3. Total power: 750 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz. Motherboard power connector: 24-pin ATX. Motherboard power cable length: 60 cm. SATA power cable length: 150.500 mm. Purpose: PC. Power supply unit (PSU) form factor: ATX. 80 PLUS certification: 80 PLUS Bronze. Product colour: Black. Cooling type: Active. Fan diameter: 12 cm. Certification: CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 15 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 110 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 18 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 18 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Hold time | 17 ms |
| Power protection features | Over current. Over power. Over voltage. Overheating. Short circuit. Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 60 cm |

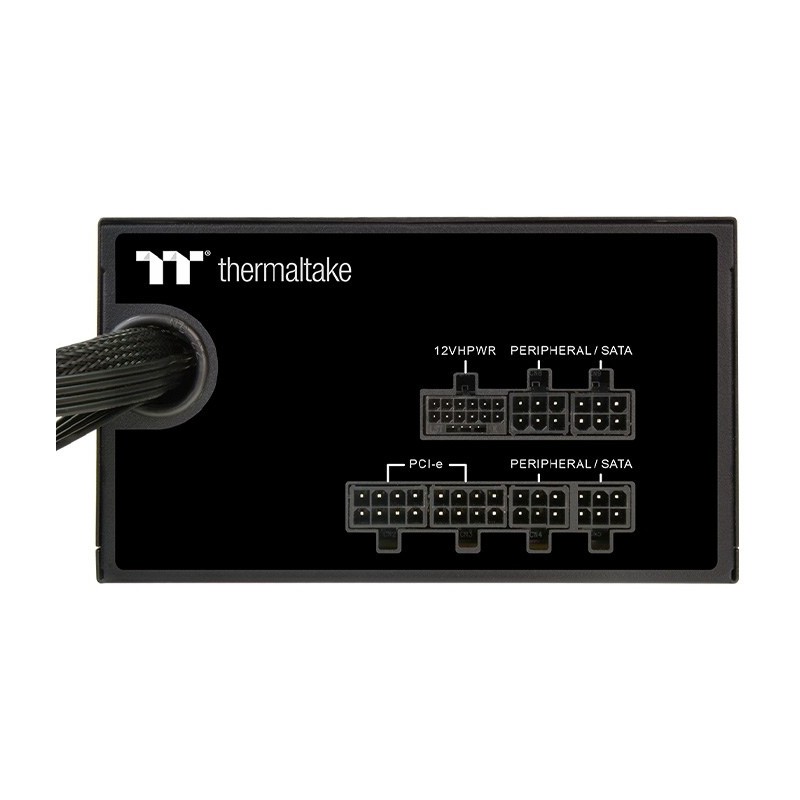

| Number of SATA power connectors | 6 |
| SATA power cable length | 150.500 mm |
| Peripheral (Molex) power connectors (4-pin) | 7 |
| Peripheral (Molex) power cable length | 150.500 mm |

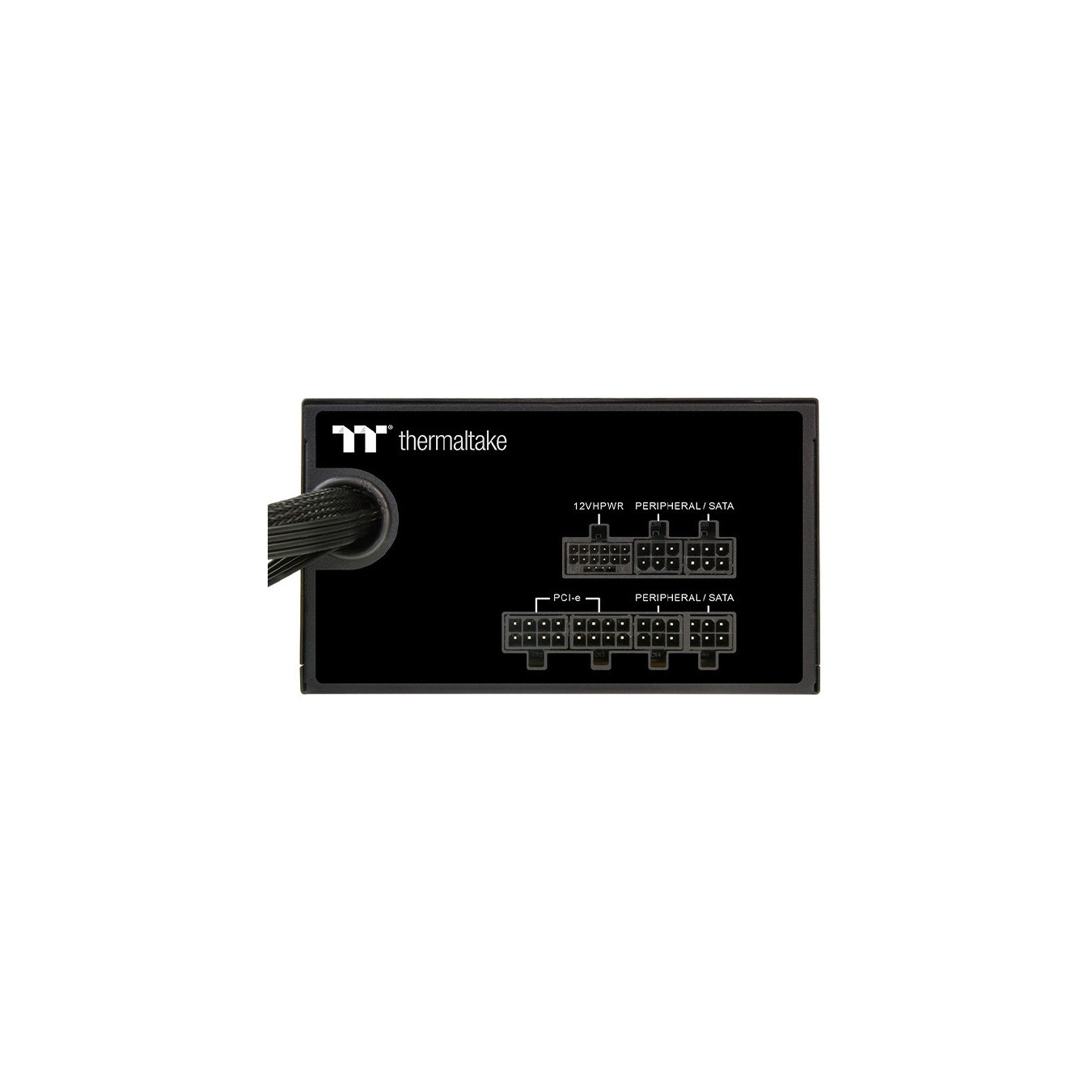

| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (12+4 pin) | 1 |
| PCI Express power connectors (12+4 pin) cable length | 600 mm |

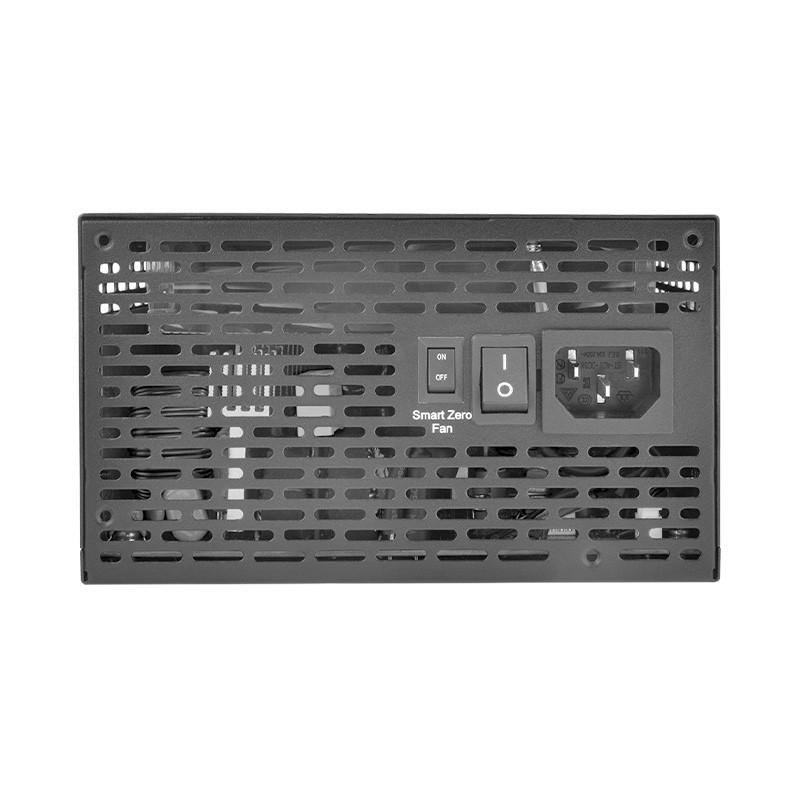

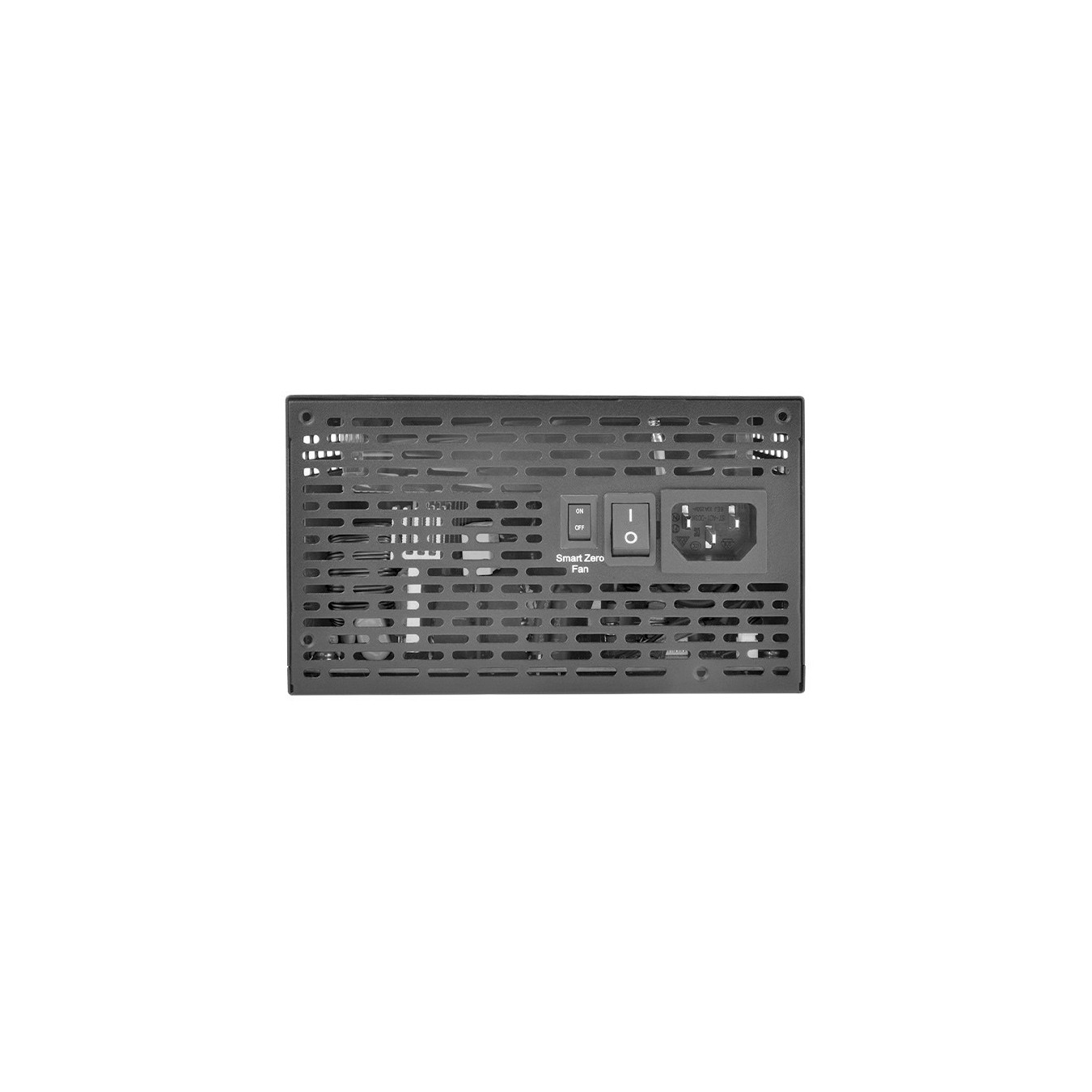

| Feature | On/off switch |
| Cabling type | Semi-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |

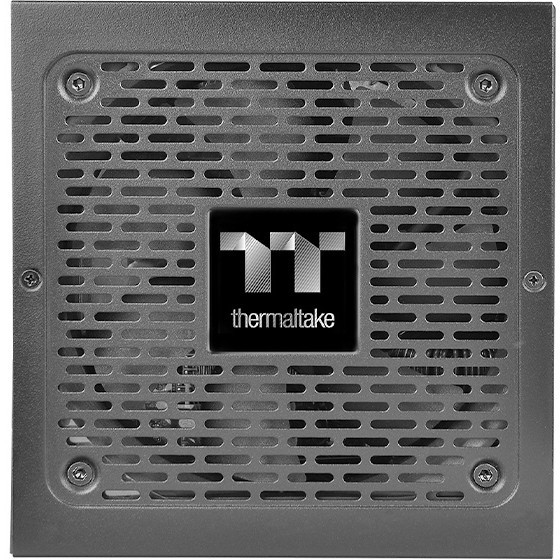

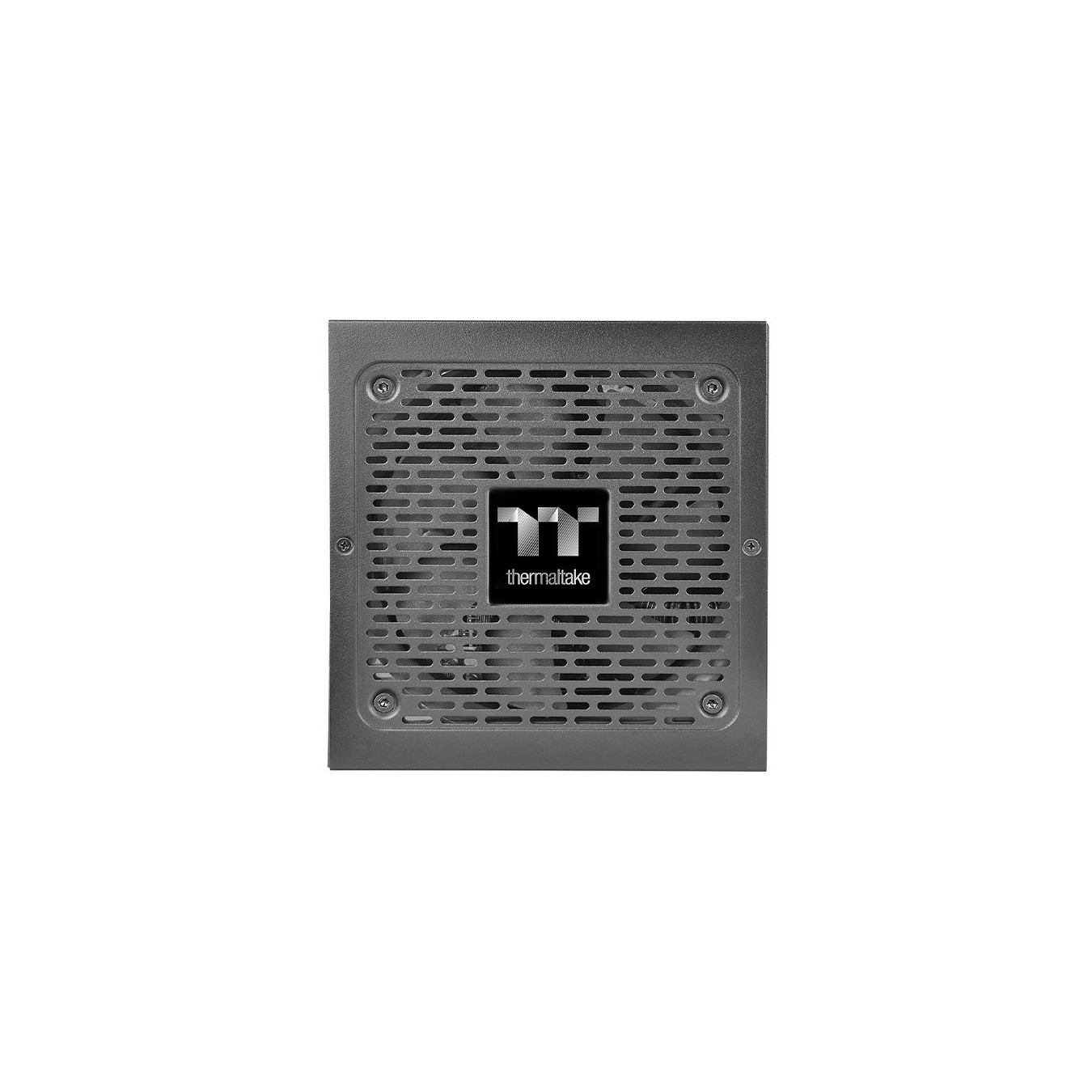

| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Operating temperature (T-T) | 5 - 45 °C |
| Storage temperature (T-T) | -40 - 55 °C |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage relative humidity (H-H) | 10 - 95% |
| Certification | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
