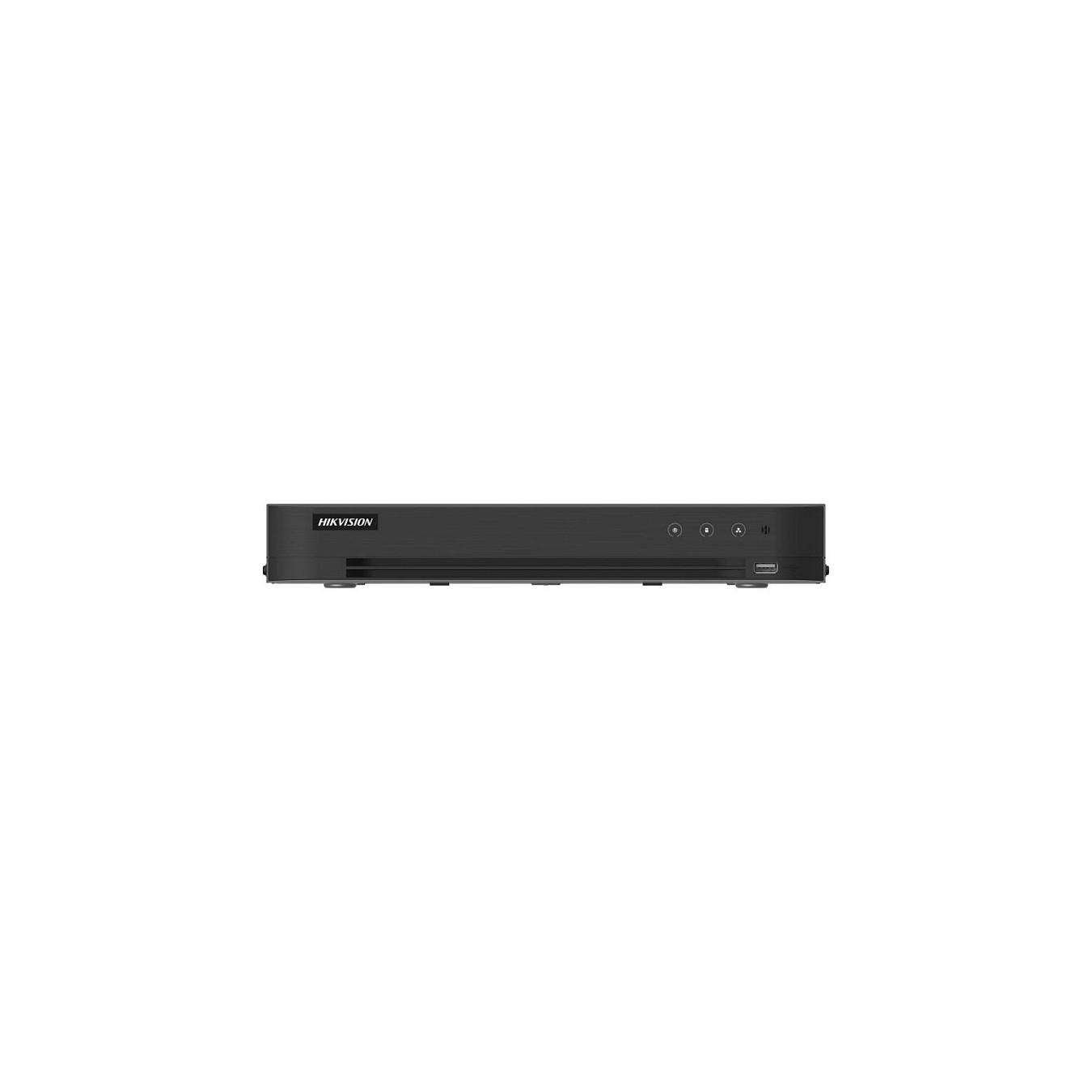

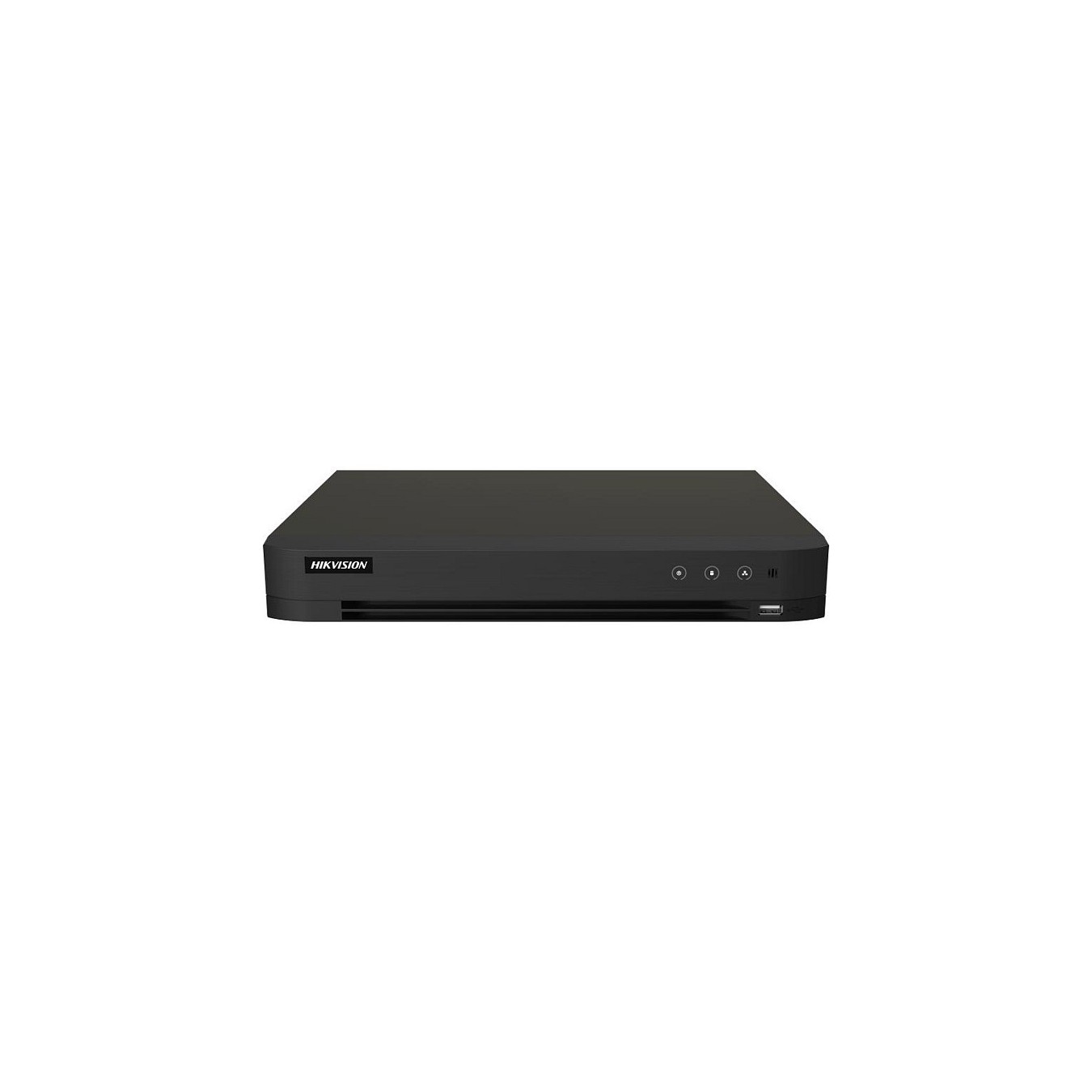

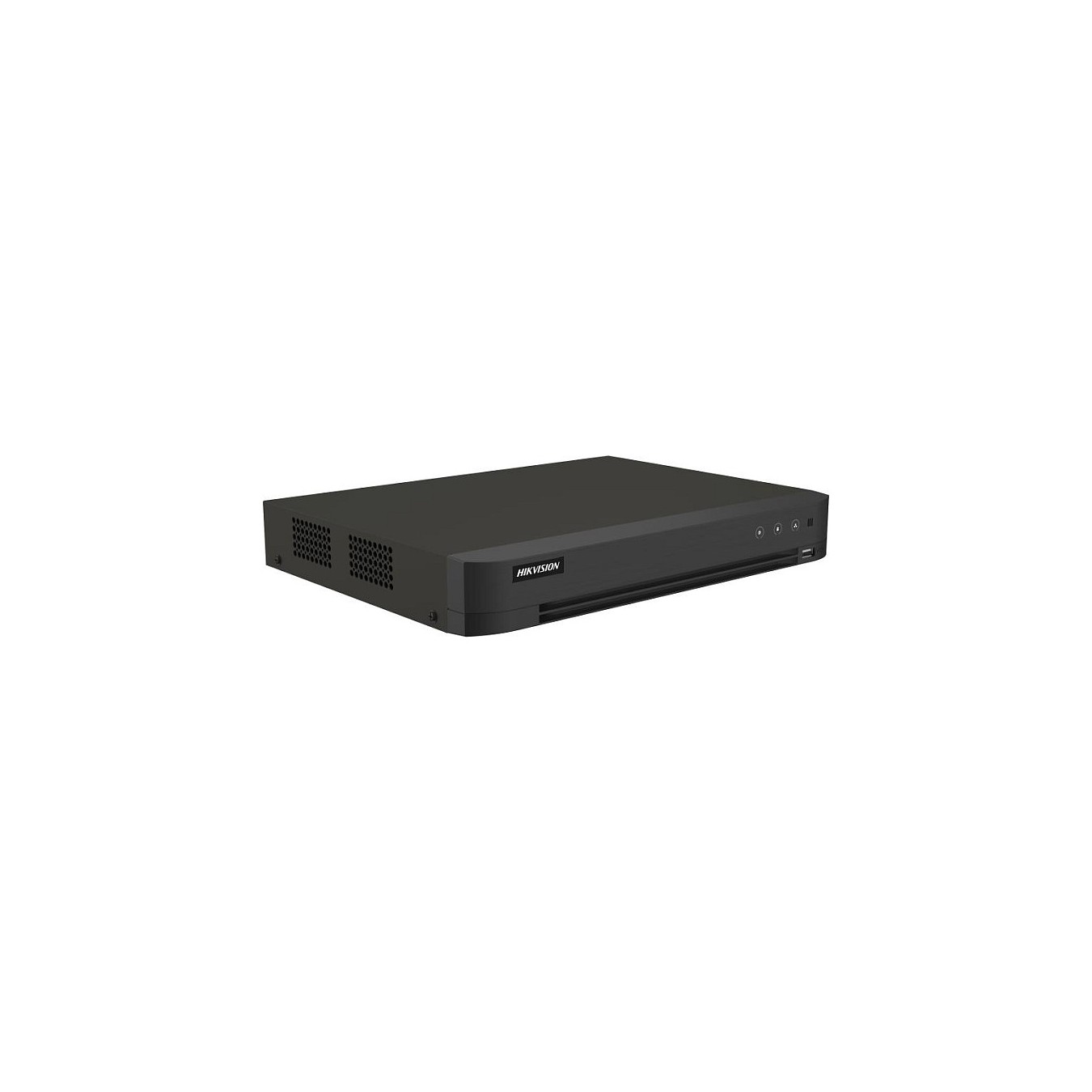

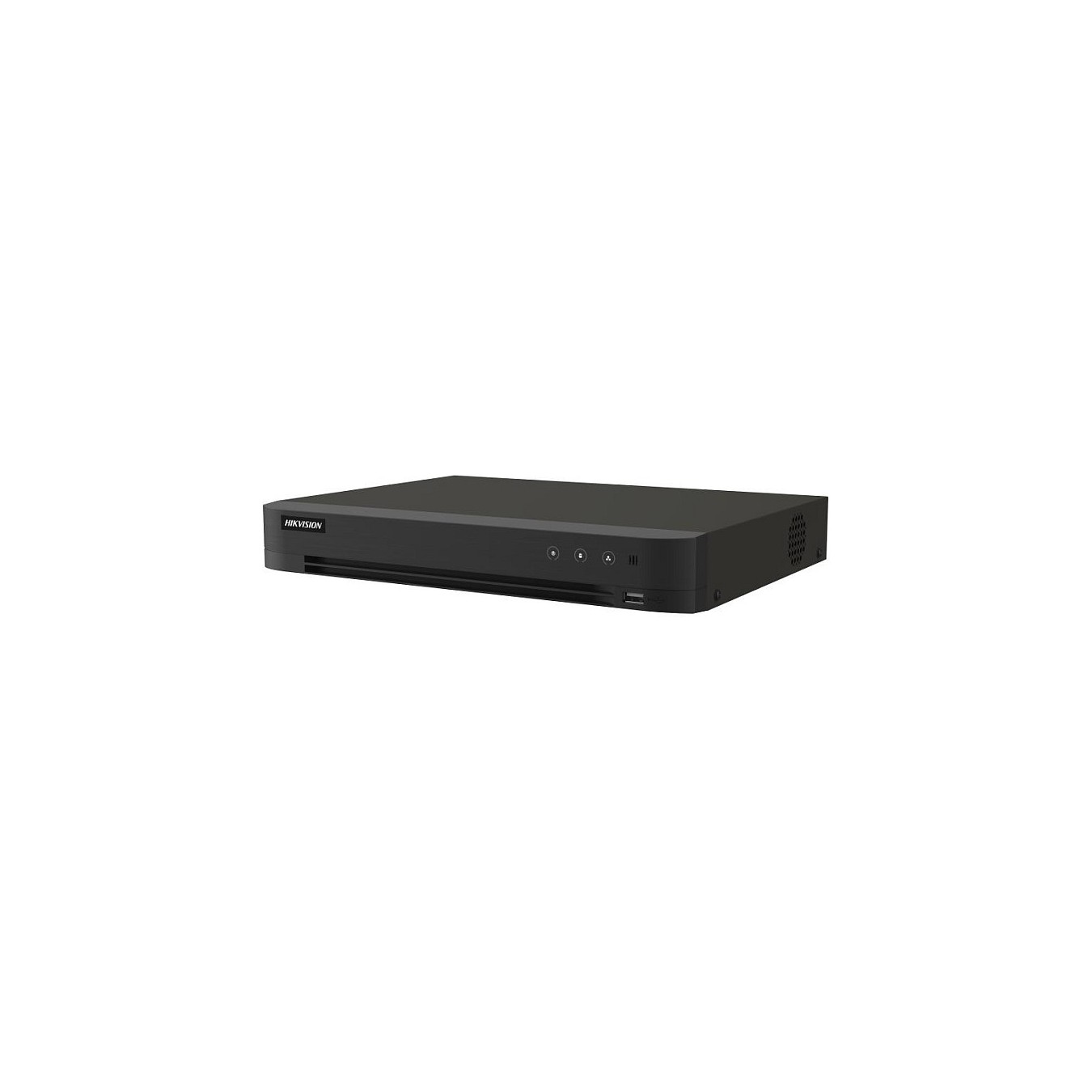

CAMIP Hikvision Recorder iDS-7216HQHI-M1 XT 16Chn.
Hikvision Pro Series iDS-7216HQHI-M1/XT, Schwarz, 3840 x 2160 Pixel, H.264, H.264+, H.265, H.265 Pro, H.265 Pro+, G.711u, NTSC, PAL, 2-Wege
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision Pro Series iDS-7216HQHI-M1/XT. Produktfarbe: Schwarz, Maximale Video-Auflösung: 3840 x 2160 Pixel, Videokompressionsformate: H.264, H.264+, H.265, H.265 Pro, H.265 Pro+. Video-Eingangskanäle: 16 Kanäle. Ethernet Schnittstellen Typ: Schnelles Ethernet, Gigabit Ethernet, Unterstützte Netzwerkprotokolle: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP, Zahl der Benutzer: 128 Benutzer. Maximaler HDD Speicher: 12 TB, HDD Schnittstellen: SATA. DC-Spannung: 12 V, Stromverbrauch (Standardbetrieb): 24 W, Gleichstrom (max.): 2 A
| Maximale Video-Auflösung | 3840 x 2160 Pixel |
| Videokompressionsformate | H.264, H.264+, H.265, H.265 Pro, H.265 Pro+ |
| Unterstützte Audioformate | G.711u |
| Eingebaut | Nein |
| Video-Bewegungsmelder | Ja |
| Produktfarbe | Schwarz |
| Analoges Signalformatsystem | NTSC, PAL |
| Audio-System | 2-Wege |
| Audio input Kanäle | 16 Kanäle |
| Audio Kanäle | 1.0 Kanäle |
| Videostreaming | Ja |
| Audiostreaming | Ja |
| Dual-Stream-Unterstützung | Ja |
| Bitrate | 6000 Kbit/s |
| Anzahl der gleichzeitig abgespielten Kanäle | 16 Kanäle |
| Gesamte Bandbreite | 256 Mbit/s |
| Audio-Bitrate | 64 Kbit/s |
| Video-Eingangskanäle | 16 Kanäle |

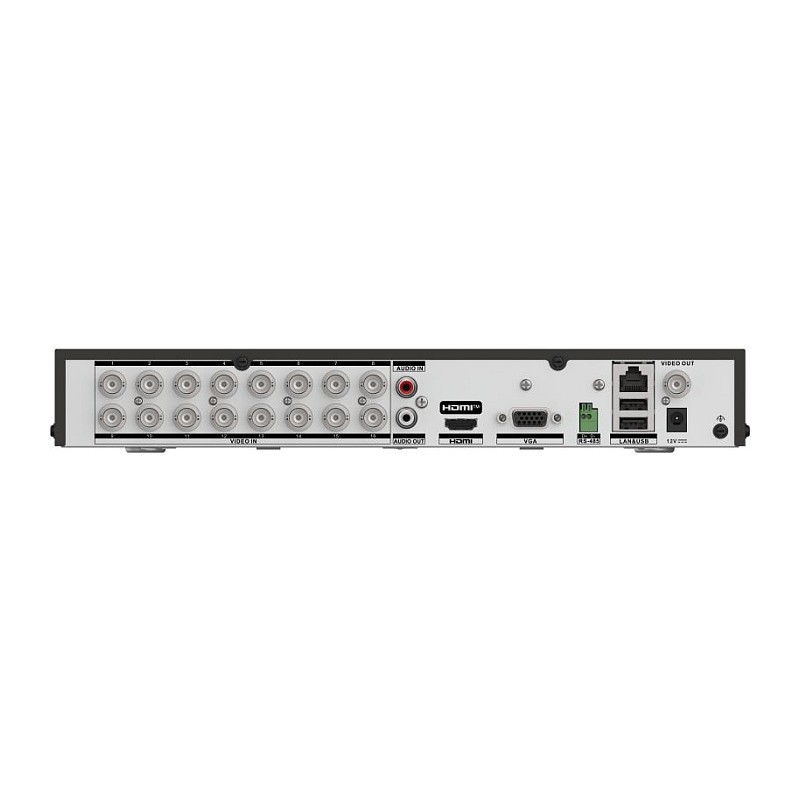

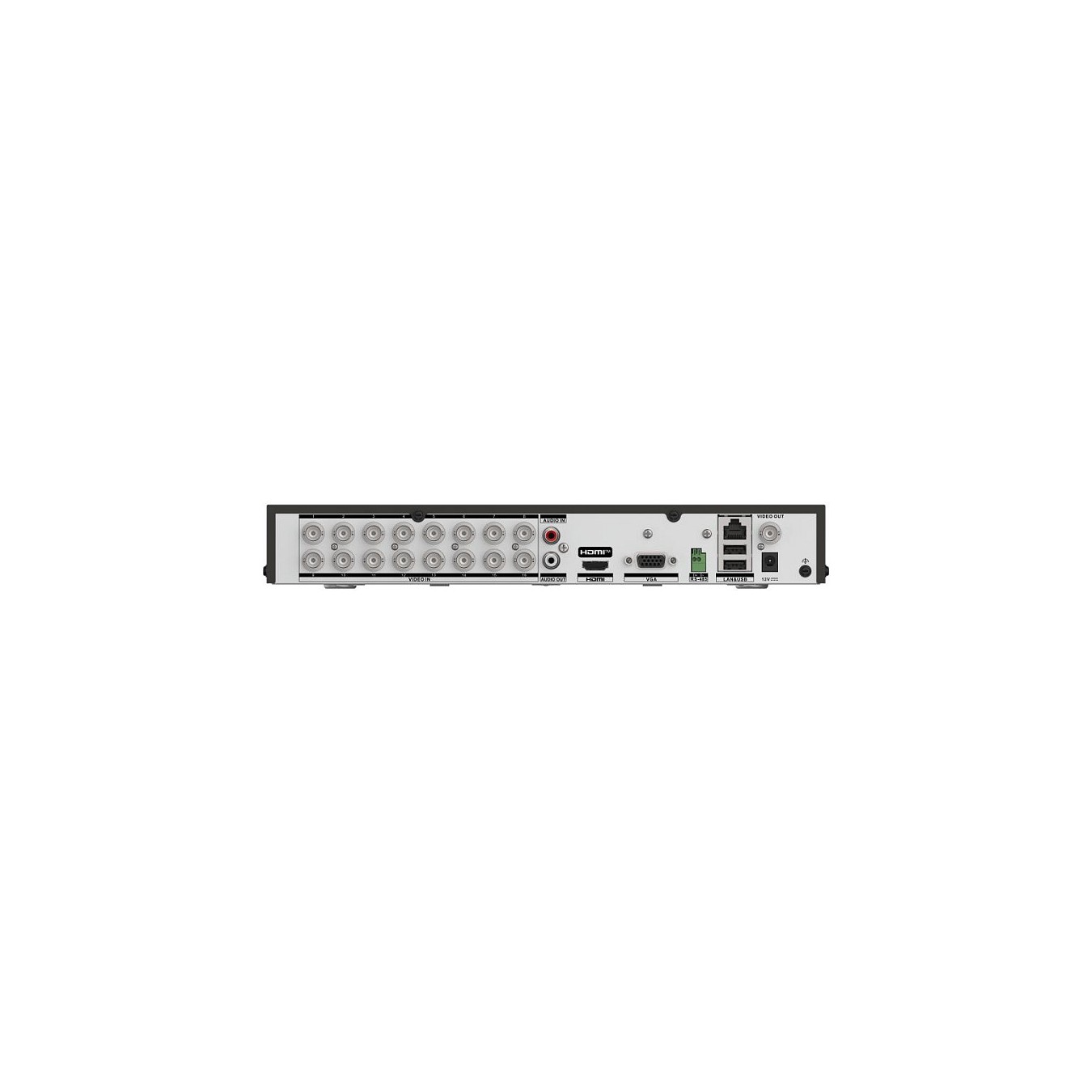

| BNC Eingänge | 16 |
| BNC Ausgänge | 1 |
| VGA (D-Sub)-Ausgangsanschlüsse | 1 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 2 |
| RS-485-Anschlüsse | 1 |
| Line-Eingänge (RCA) | 1 |
| Line-Ausgänge (RCA) | 1 |
| Anzahl der HDMI-Ausgänge | 1 |
| Ethernet/LAN | Ja |
| Ethernet Schnittstellen Typ | Schnelles Ethernet, Gigabit Ethernet |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| Unterstützte Netzwerkprotokolle | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF, ISUP |
| Zahl der Benutzer | 128 Benutzer |
| Ethernet LAN Datentransferraten | 10,100,1000 Mbit/s |
| Maximale unterstützte Anzahl der HDD | 1 |
| Maximaler HDD Speicher | 12 TB |
| HDD Schnittstellen | SATA |
| DC-Spannung | 12 V |
| Stromverbrauch (Standardbetrieb) | 24 W |
| Gleichstrom (max.) | 2 A |
| Breite | 320 mm |
| Tiefe | 240 mm |
| Höhe | 48 mm |
| Gewicht | 2 kg |
| Betriebstemperatur | -10 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
