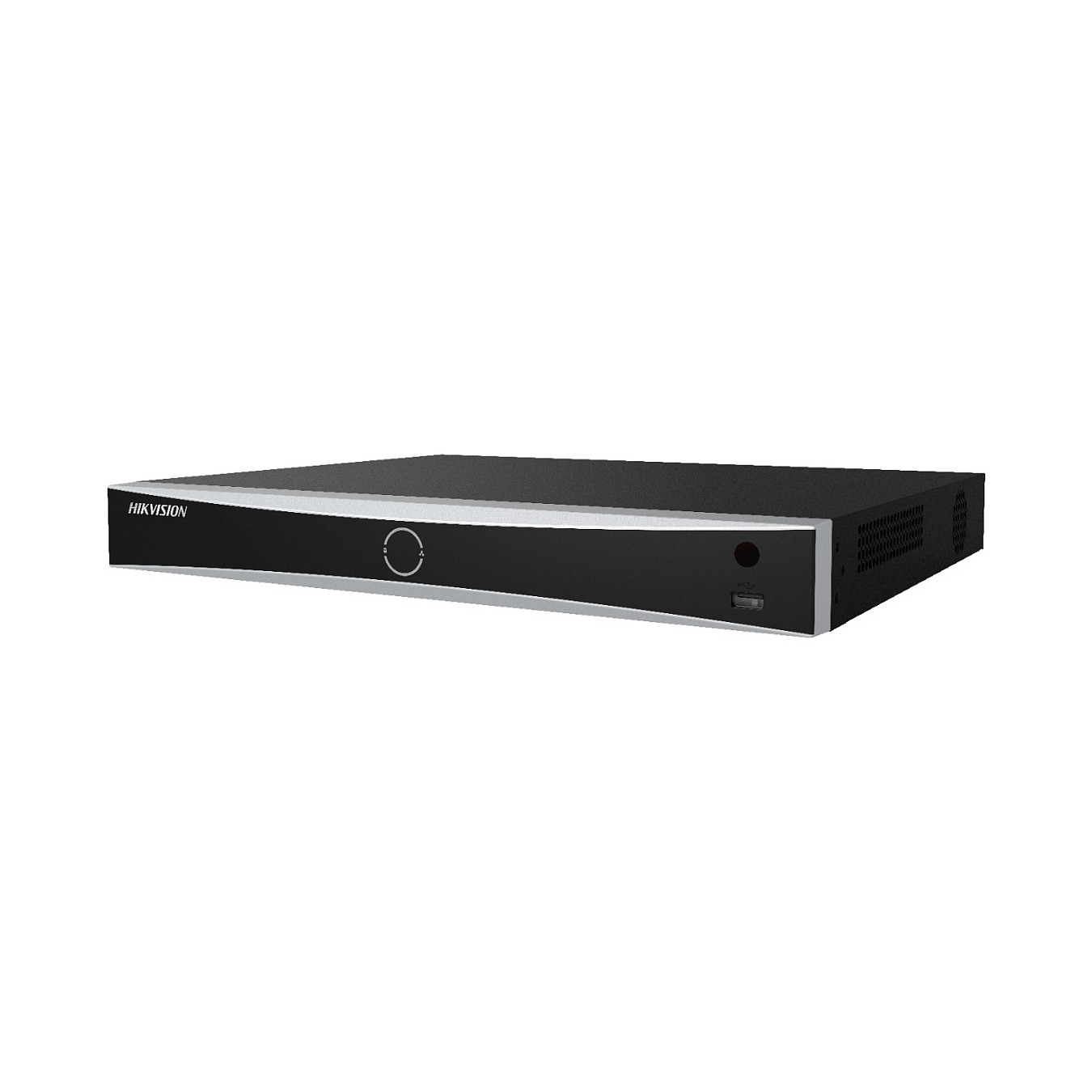

Netzwerk-Recorder Hikvision DS-7616NXI-I2 S(STD)(E) 16 Chan.
Hikvision DS-7616NXI-I2/S(E), 16 Kanäle, 3840 x 2160 Pixel, 16 Kanäle, 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768, NTSC, PAL, H.265+/H.265/H.264+/H.264/MPEG4
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision DS-7616NXI-I2/S(E). Video-Eingangskanäle: 16 Kanäle, Maximale Auflösung: 3840 x 2160 Pixel, Anzahl der gleichzeitig abgespielten Kanäle: 16 Kanäle. Max. Speicherkapazität: 14 TB, HDD Schnittstelle: SATA, SATA II, SATA III. Ethernet LAN Datentransferraten: 10,100,1000 Mbit/s. Rack-Kapazität: 1U, Produktfarbe: Schwarz, Zertifizierung: FCC 15 B, ANSI C63.4-2014 CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4. Stromverbrauch (max.): 30 W, AC Eingangsspannung: 100-240 V, AC Eingangsfrequenz: 50-60 Hz
| Video-Eingangskanäle | 16 Kanäle |
| Alarm-Eingangskanäle | 4 |
| Alarm-Ausgangskanäle | 1 |
| Anzahl der gleichzeitig abgespielten Kanäle | 16 Kanäle |
| Maximale Auflösung | 3840 x 2160 Pixel |
| Unterstütze Auflösung | 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768 |
| Analoges Signalformatsystem | NTSC, PAL |
| Video-Codec | H.265+/H.265/H.264+/H.264/MPEG4 |
| Audio-Codec | G.711ulaw/G.711alaw/G.722/G.726/MP2L2 |
| Eingangsbandbreite | 160 Mbit/s |
| Ausgangsbandbreite | 256 Mbit/s |
| Gesichtserkennung | Ja |
| Audio-System | 2-Wege |
| WLAN | Nein |
| HDD Kapazität | 0 GB |
| Maximale unterstützte Anzahl der HDD | 2 |
| Max. Speicherkapazität | 14 TB |
| HDD Schnittstelle | SATA, SATA II, SATA III |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 2 |
| Ethernet LAN Datentransferraten | 10,100,1000 Mbit/s |
| BNC-Video-Ausgang | Ja |
| Anzahl HDMI-Anschlüsse | 1 |
| VGA (D-Sub)-Ausgangsanschlüsse | 1 |
| Anzahl USB 2.0 Anschlüsse | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Anzahl der Anschlüsse vom Typ A | 1 |
| Audio-RCA-Eingänge | 1 |
| Audio-RCA-Ausgänge | 1 |
| Gleichstrom-Anschluss (DC) | Ja |
| Rack-Einbau | Ja |
| Rack-Kapazität | 1U |
| Produktfarbe | Schwarz |
| Zertifizierung | FCC 15 B, ANSI C63.4-2014CE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Stromverbrauch (max.) | 30 W |
| AC Eingangsspannung | 100-240 V |
| AC Eingangsfrequenz | 50-60 Hz |
| Betriebstemperatur | -10 - 55 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Breite | 385 mm |
| Tiefe | 317 mm |
| Höhe | 52 mm |
| Gewicht | 2,5 kg |
