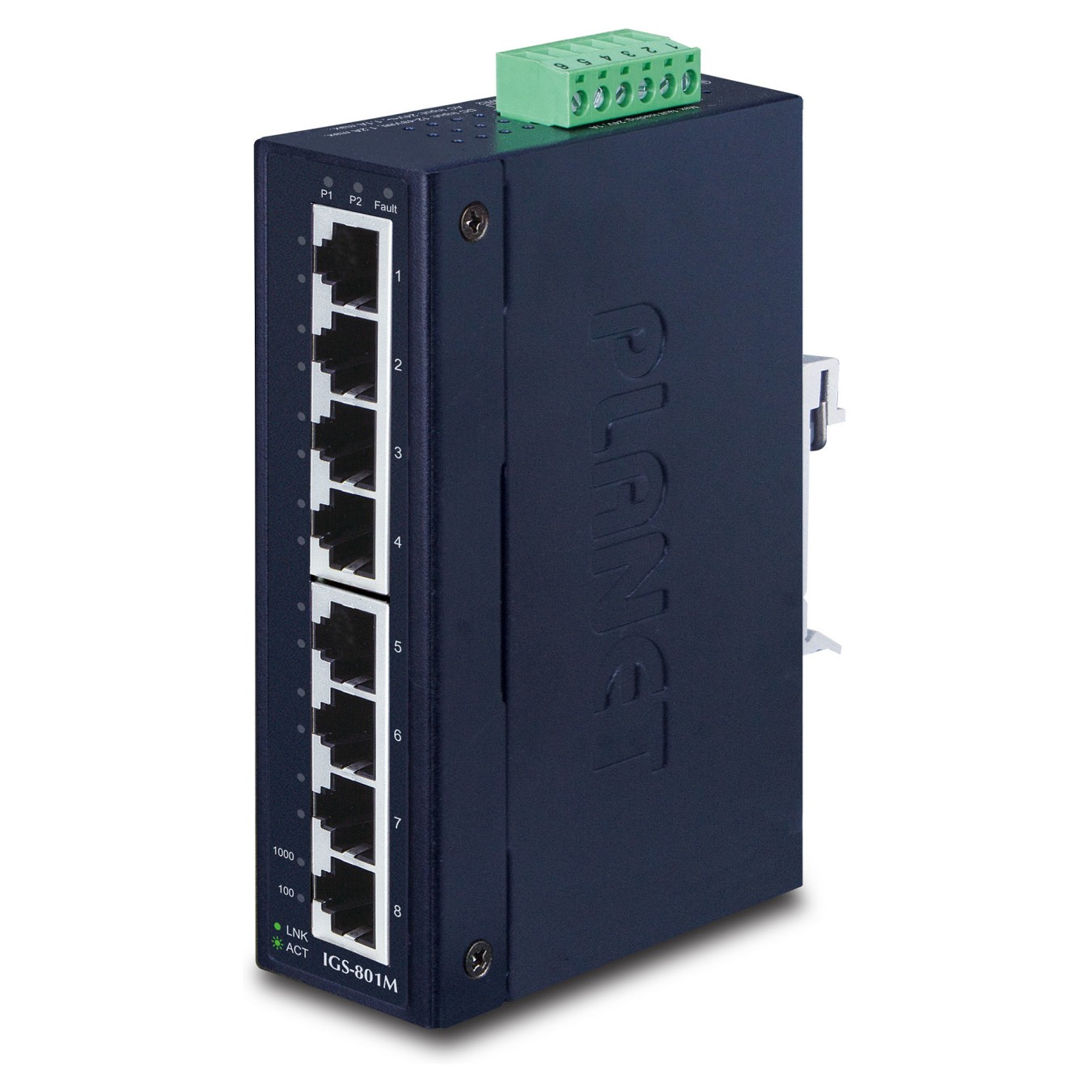

Planet IGS-801M 8-Port Managed Industrial Ethernet Switch
PLANET Managed Industrial Gigabit Switch 8-Port 10/100/1000 Mbps IP30 Slim Type. Managed. L2/L4. Gigabit Ethernet (10/100/1000). Rack-Einbau. 1U. Wandmontage
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
PLANET Managed Industrial Gigabit Switch 8-Port 10/100/1000 Mbps IP30 Slim Type. Switch-Typ: Managed. Switch-Ebene: L2/L4. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 8. Vollduplex. MAC-Adressentabelle: 8000 Eintragungen. Routing-/Switching-Kapazität: 16 Gbit/s. Netzstandard: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Wandmontage. Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L4 |
| Feature | Terminalblock-Anschluss |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 8 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Anzahl Gigabit Ethernet (Kupfer) Anschlüsse | 8 |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Virtuelle LAN-Funktionen | Stacked VLAN. Private VLAN. Tagged VLAN. Protocol-based VLAN |
| Anzahl der VLANs | 4094 |
| Routing-/Switching-Kapazität | 16 Gbit/s |
| Durchgang | 11.9 Mpps |
| MAC-Adressentabelle | 8000 Eintragungen |
| Anzahl Queues | 8 |
| Jumbo-Frames | 10000 |
| Unterstützte Sicherheitsalgorithmen | SSH. SSL/TLS |
| Authentifizierung | Port-basierte Authentifizierung |
| Anzahl der gefilterten Multicast-Gruppen | 256 |
| Management-Protokolle | Telnet/SNMP |
| Unterstützte Netzwerkprotokolle | IPv4 / IPv6 |
| Formfaktor | 1U |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| Internationale Schutzart (IP-Code) | IP30 |
| Stromverbrauch (Standardbetrieb) | 4.5 W |
| Stromverbrauch (max.) | 10 W |
| Betriebstemperatur | -40 - 75 °C |
| Temperaturbereich bei Lagerung | -40 - 75 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Wärmeableitung | 15 BTU/h |
| Breite | 32 mm |
| Tiefe | 87 mm |
| Höhe | 135 mm |
| Gewicht | 472 g |
| Zertifizierung | FCC. CE |
| Warentarifnummer (HS) | 85176990 |
