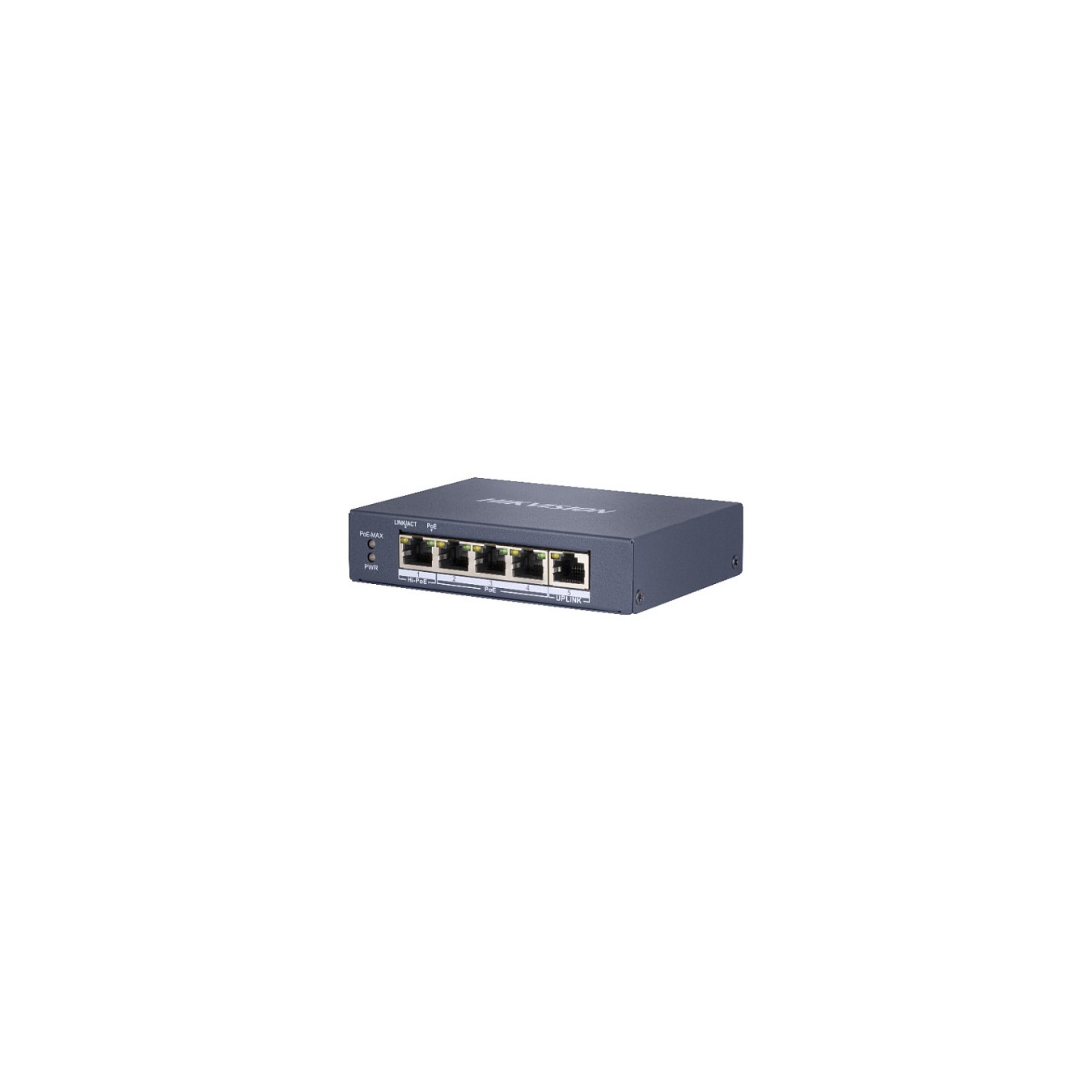

CAMIP Hikvision Switch PoE 4-port L2 unmanaged DS-3E0505HP-E
Hikvision DS-3E0505HP-E, Unmanaged, Gigabit Ethernet (10/100/1000), Vollduplex, Power over Ethernet (PoE)
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Hikvision DS-3E0505HP-E. Switch-Typ: Unmanaged. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000), Anzahl der basisschaltenden RJ-45 Ethernet Ports: 5. Vollduplex. MAC-Adressentabelle: 2000 Eintragungen, Routing-/Switching-Kapazität: 10 Gbit/s. Netzstandard: IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x. DC input Spannung: 48 V. Power over Ethernet (PoE)
| Switch-Typ | Unmanaged |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 5 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Netzstandard | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x |
| 10G-Unterstützung | Nein |
| Vollduplex | Ja |
| Auto MDI/MDI-X | Ja |
| Routing-/Switching-Kapazität | 10 Gbit/s |
| Transferrate | 7,44 Mpps |
| MAC-Adressentabelle | 2000 Eintragungen |
| Store-and-Forward | Ja |
| Rack-Einbau | Nein |
| Produktfarbe | Blau |
| Gehäusematerial | Metall |
| DC input Spannung | 48 V |
| Eingangsstrom | 1.35 A |
| Stromverbrauch (max.) | 65 W |
| Power over Ethernet (PoE) | Ja |
| Anzahl Power over Ethernet (PoE) Anschlüsse | 3 |
| Gesamtleistung Power over Ethernet (PoE) | 60 W |
| Betriebstemperatur | -10 - 55 °C |
| Temperaturbereich bei Lagerung | -40 - 85 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 95% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 121 mm |
| Tiefe | 88,1 mm |
| Höhe | 27,6 mm |
| Gewicht | 270 g |
| Zertifizierung | FCC (47 CFR 15, B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 55024: 2010 +A1: 2015); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: 6, 2016)UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CELVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013)CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach ((EC) 1907/2006) |
| Warentarifnummer (HS) | 85176990 |
