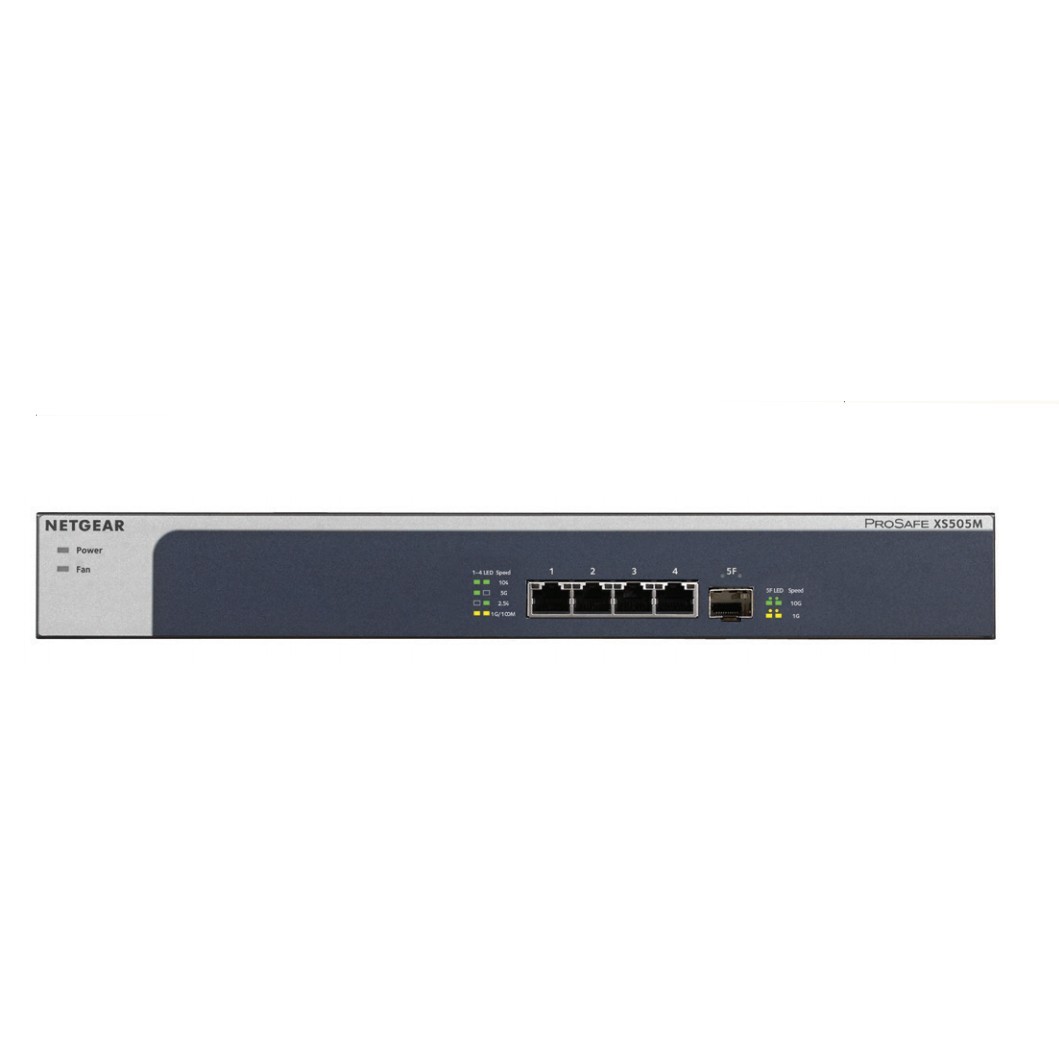

NETGEAR XS505M - 4x10G RJ45 + 1x SFP+ Unmanaged Desktop Switch, Grey/Silver
Unmanaged NETGEAR XS505M 5‑port 10G switch (4×10G RJ45 + 1×SFP+). AC powered with LED indicators, 9000 MTU, low power (~12.25W typical). Desktop with rack-mount option.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - Rackmount | Yes |
NETGEAR XS505M. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 4. Full duplex. MAC address table: 2000 entries. Switching capacity: 100 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3an. IEEE 802.3aq. IEEE 802.3az..... Power connector: DC-in jack. Rack mounting
| Switch type | Unmanaged |
| Feature | LED indicators |
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 1 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3an. IEEE 802.3aq. IEEE 802.3az. IEEE 802.3bz. IEEE 802.3u. IEEE 802.3x. IEEE 802.3z |
| Switching capacity | 100 Gbit/s |
| MAC address table | 2000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 128 MB |
| Product colour | Grey. Silver |
| Safety | CE: CB 60950-1. LVD 60950-1. AUS/NZ: AS/NZS 60950-1. USA: UL 60950-1. SNE VA. BSMI |
| Mean time between failures (MTBF) | 1093237 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 1.5 A |
| Power consumption (typical) | 12.25 W |
| Power consumption (max) | 22.5 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Heat dissipation | 85.3 BTU/h |
| Width | 328 mm |
| Depth | 169 mm |
| Height | 43.2 mm |
| Weight | 1.38 kg |
| Harmonized System (HS) code | 85176990 |
