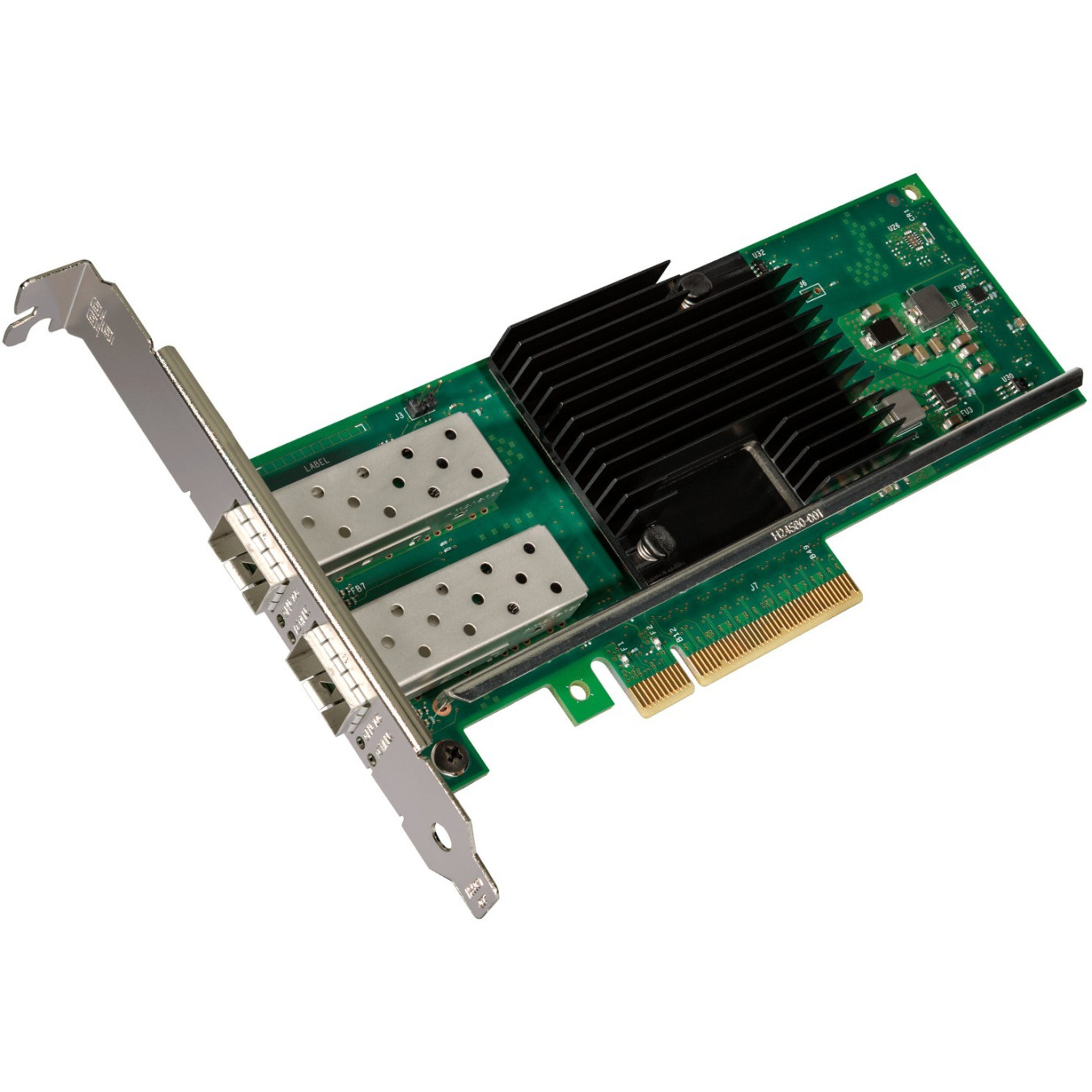

Intel X710-DA2 10GbE Dual-Port SFP+ Server Adapter - PCIe 3.0 x8 - Black, Low-Profile/Full-Height
Dual-port 10GbE Intel X710-DA2 server NIC with SFP+ (DAC/fiber), PCIe 3.0 x8, low-profile/full-height brackets, ideal for servers, HPC/AI; up to 10m DAC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PCIe Network Cards - Port Speed | 10GbE |
|---|---|
| PCIe Network Cards - Ports | 2xSFP+ |
| PCIe Network Cards - PCIe Version | 3.0 |
| PCIe Network Cards - PCIe Lanes | x8 |
| PCIe Network Cards - Low-Profile Bracket | Included |
| PCIe Network Cards - OS Compatibility | Multi-OS |
Intel X710DA2BLK. Internal. Connectivity technology: Wired. Host interface: PCI Express. Interface: Fiber. Maximum data transfer rate: 10000 Mbit/s. Product colour: Black. Green. Stainless steel
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Ethernet LAN (RJ-45) ports | 2 |
| Fiber ports quantity | 2 |
| Fiber optic connector | SFP+ |
| PCI version | 3.0 |
| Maximum data transfer rate | 10000 Mbit/s |
| Ethernet LAN data rates | 10.1000 Mbit/s |
| Fiber ethernet cabling technology | 10GBASE-LR. 10GBASE-SR |
| Feature | Conflict-Free |
| Maximum operating distance | 10 m |
| LAN controller | Intel® X710 |
| Product colour | Black. Green. Stainless steel |
| Certification | FCC A. UL. CE. VCCI. BSMI. CTICK. KCC |
| Compatible operating systems | https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Width | 167 mm |
| Depth | 69 mm |
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Data transfer rate | 8 GT/s |
| Cable type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Market segment | Server |
| Target market | Artificial Intelligence. High Performance Computing |
| Speed & slot width | 8.0 GT/s. x8 Lane |
| Interface type | PCIe v3.0 (8.0 GT/s) |
| Product type | Network Interface Card |
| Processor family | 700 Network Adapters (up to 40GbE)-700 Network Adapters (up to 40GbE) |
| Launch date | Q4'14 |
| Ethernet adapter ARK ID | 83964 |
| Export Control Classification Number (ECCN) | 5A991 |
| Storage Over Ethernet | iSCSI. NFS |
| Network interface card cable medium | Copper |
| Network interface card type | Server |
| Product brief URL | http://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/ethernet-x710-brief.pdf |
| Status | Launched |
| Last change | 64826824 |
| Commodity Classification Automated Tracking System (CCATS) | NA |
| Controller type | Intel® Ethernet Controller X710 |
| Cabling type | SFP+ Direct Attached Twinaxial Cabling up to 10m |
| Bracket height | Low-Profile (LP) / Full-Height (FH) |
| Product family | Intel 10 Gigabit server adapter |
| Product series | 700 Series Network Adapters (up to 40GbE) |
| Product codename | Fortville |
