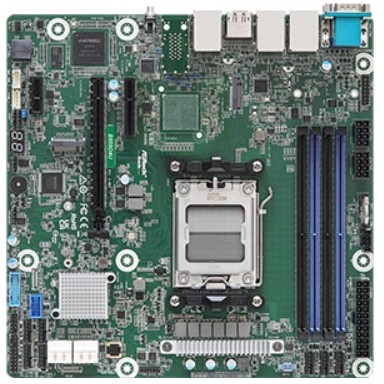

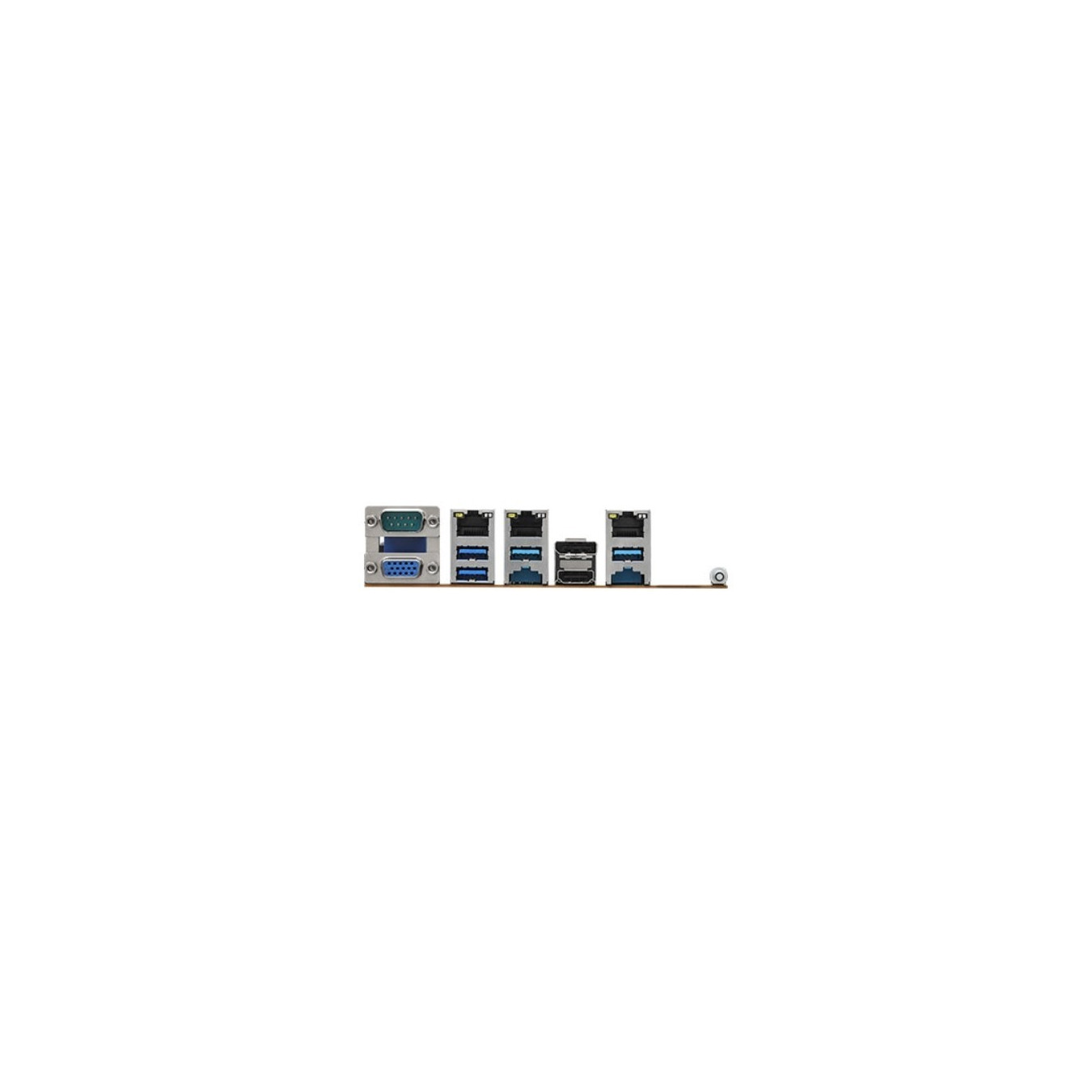

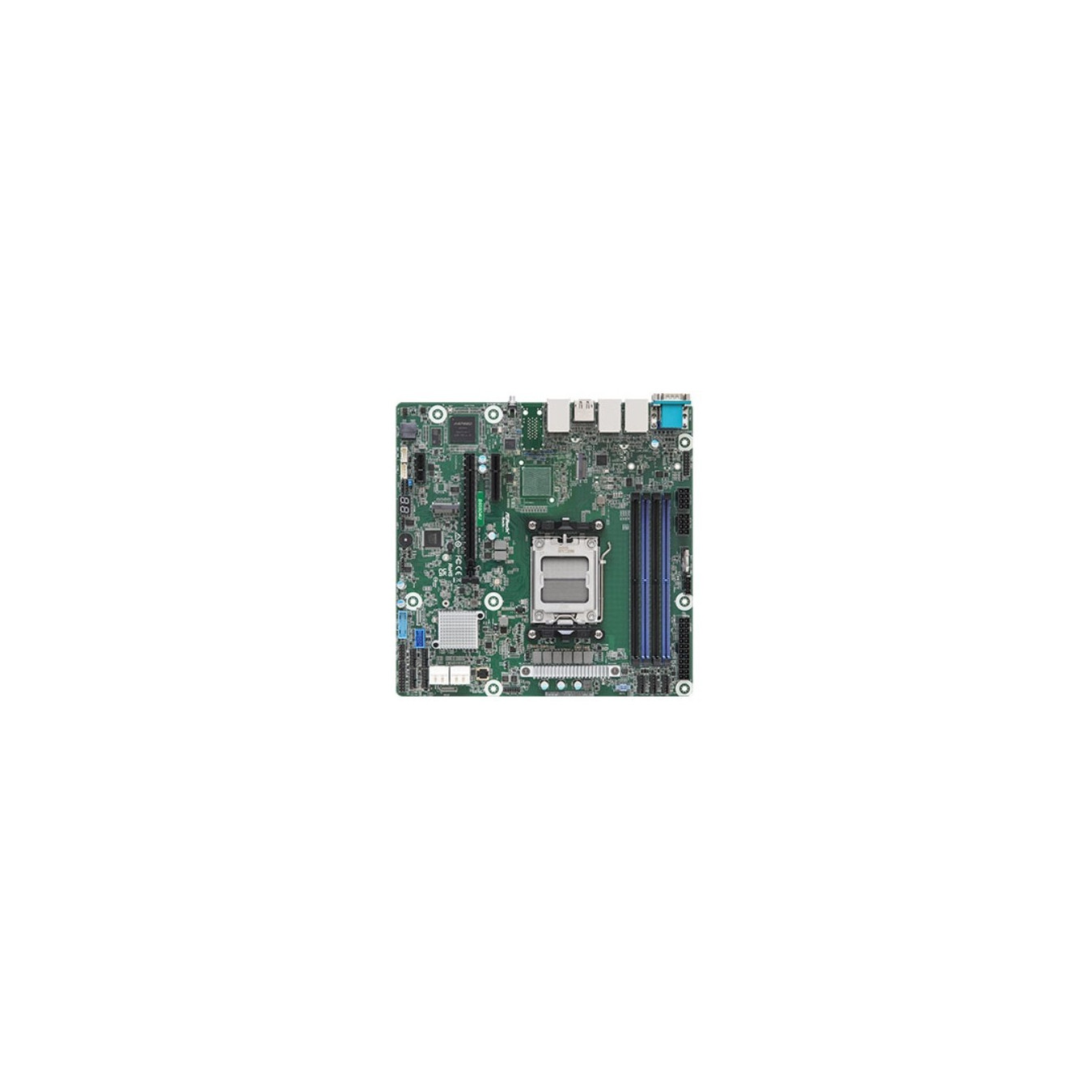

ASRock B650D4U - micro-ATX AM5 Server Motherboard - DDR5, 4x DIMM, up to 32GB, PCIe4 x4, 4x SATA, 2x LAN, M.2
ASRock B650D4U micro-ATX AM5 server motherboard. Supports AMD Ryzen 3/5, DDR5 (4 DIMM, up to 32GB), PCIe 4.0 x4, 1x M.2, 4x SATA III, 2x RJ45, Aspeed AST2600 BMC.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | AM5 |
|---|---|
| Motherboards - Chipset | AMD B650 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 4 |
Asrock B650D4U. Processor manufacturer: AMD. Processor socket: Socket AM5. Compatible processor series: AMD Ryzen™ 3. AMD Ryzen™ 5. Supported memory types: DDR5-SDRAM. Maximum internal memory: 32 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. RAID levels: 0. 1. 10. On-board graphics card model: Aspeed AST2600. Component for: Server. Motherboard form factor: micro ATX. Motherboard chipset family: AMD
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Compatible processor series | AMD Ryzen™ 3. AMD Ryzen™ 5 |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 3600.5200 MHz |
| Supported memory clock speed (max) | 5200 MHz |
| Maximum internal memory | 32 GB |
| Supported storage drive interfaces | M.2. SATA III |
| Feature | Ethernet LAN |
| RAID levels | 0. 1. 10 |
| On-board graphics card model | Aspeed AST2600 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Serial ports quantity | 1 |
| Motherboard chipset | AMD B650 Express |
| PC health monitoring | CPU. Fan. Voltage |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | AMD |
| PCI Express x4 (Gen 4.x) slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 243.8 mm |
| Depth | 243.8 mm |
