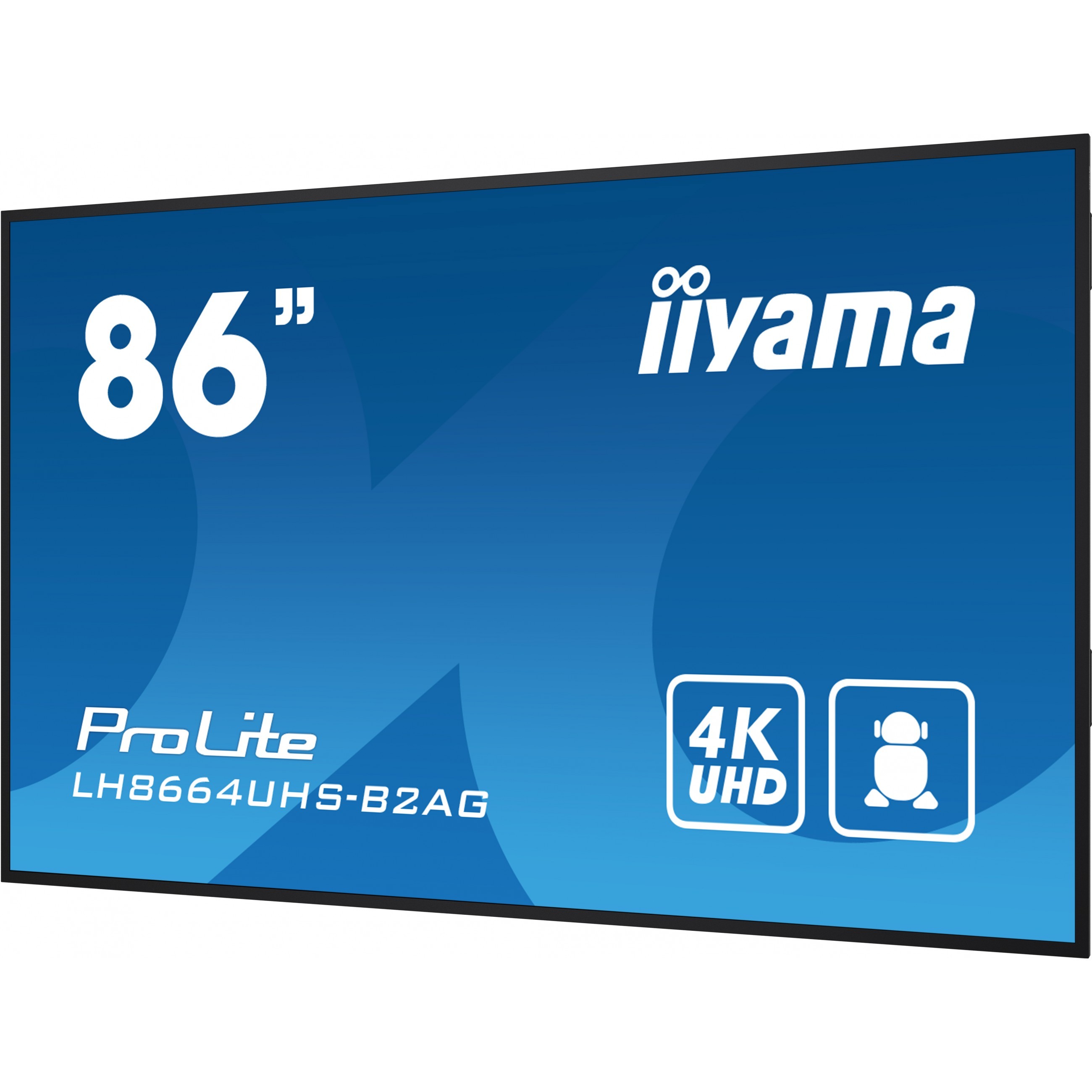

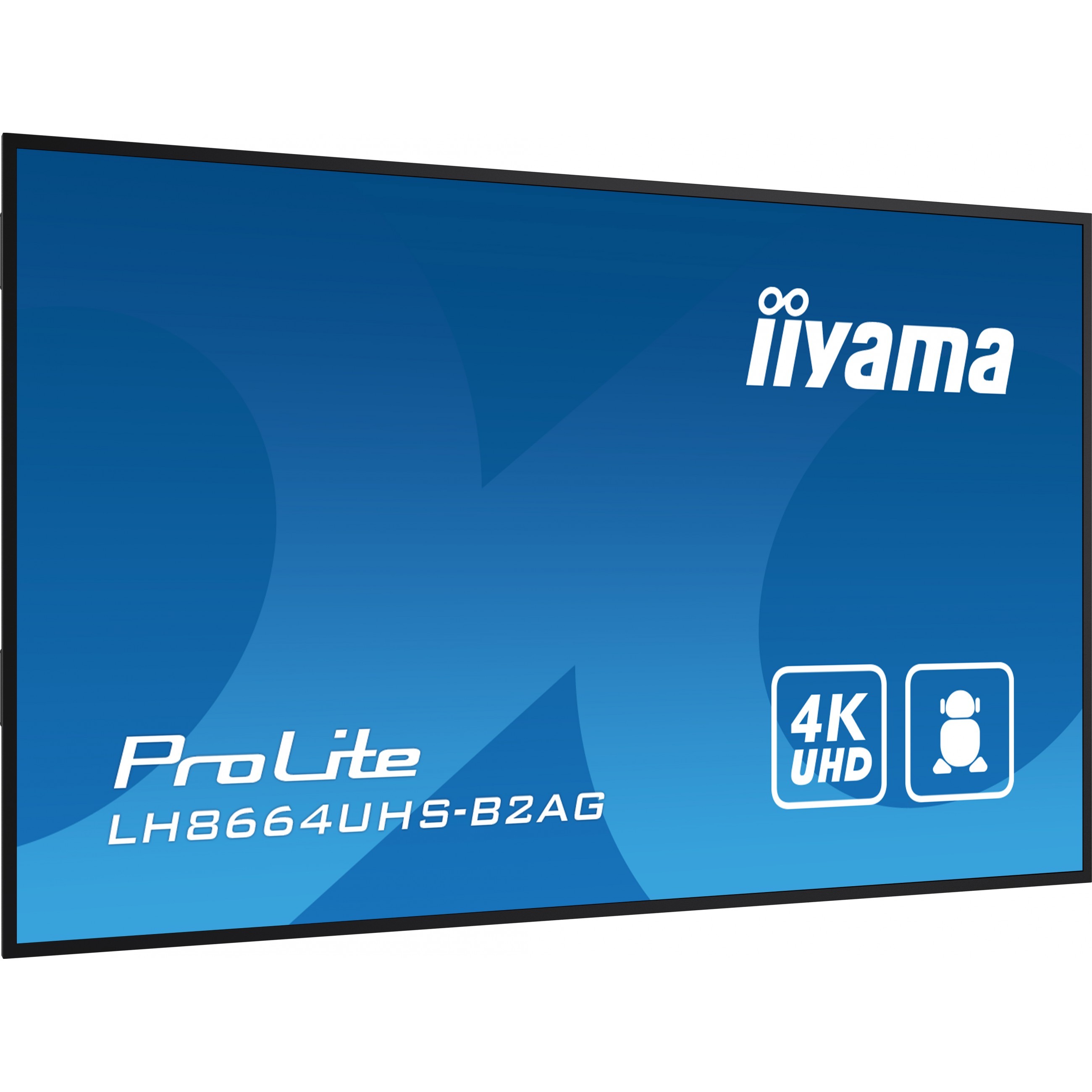

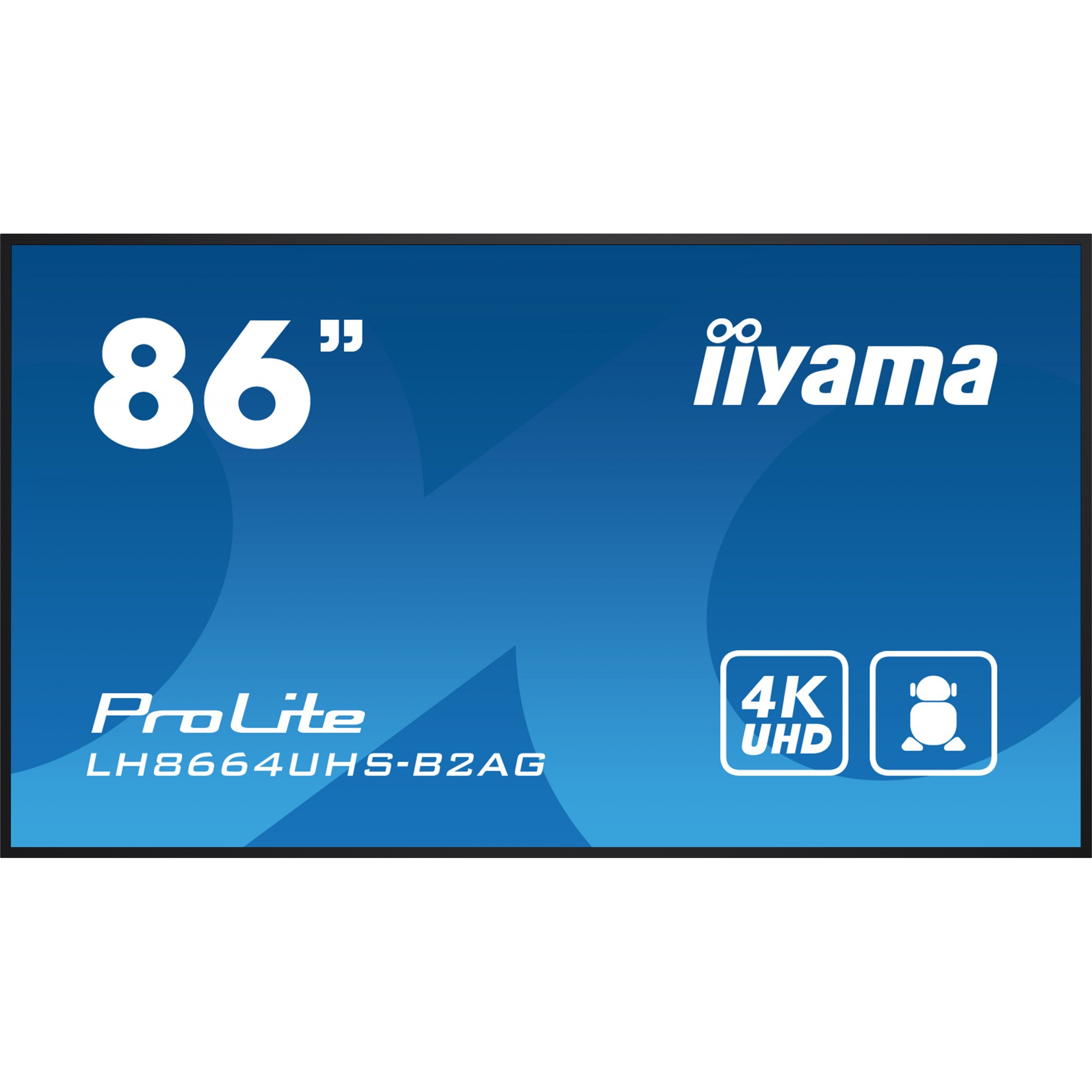

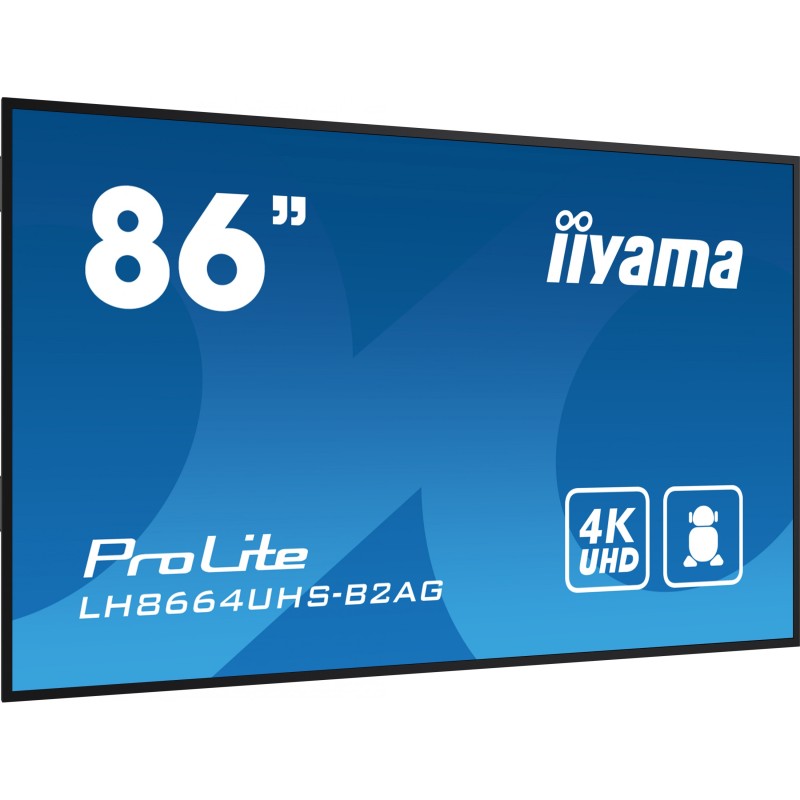

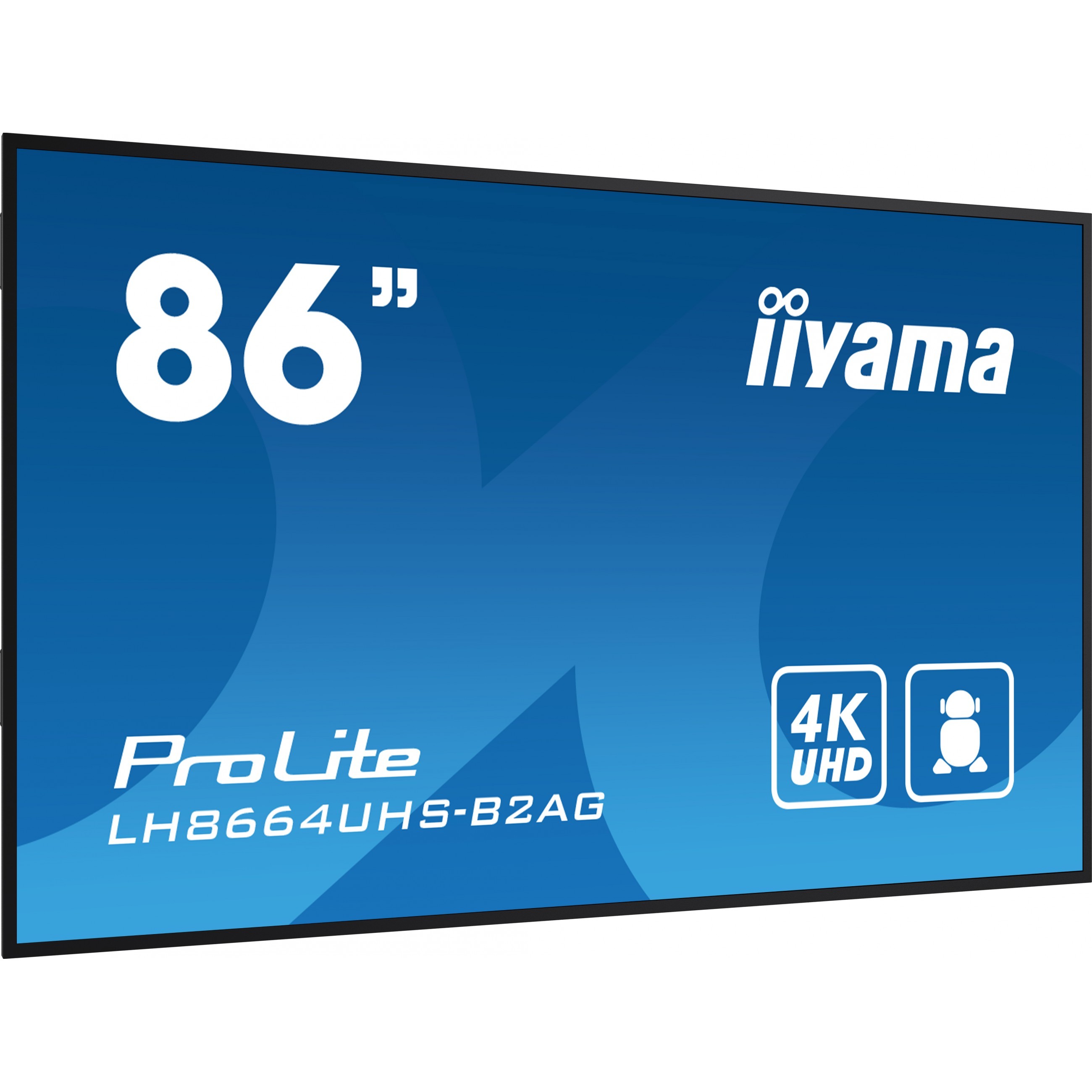

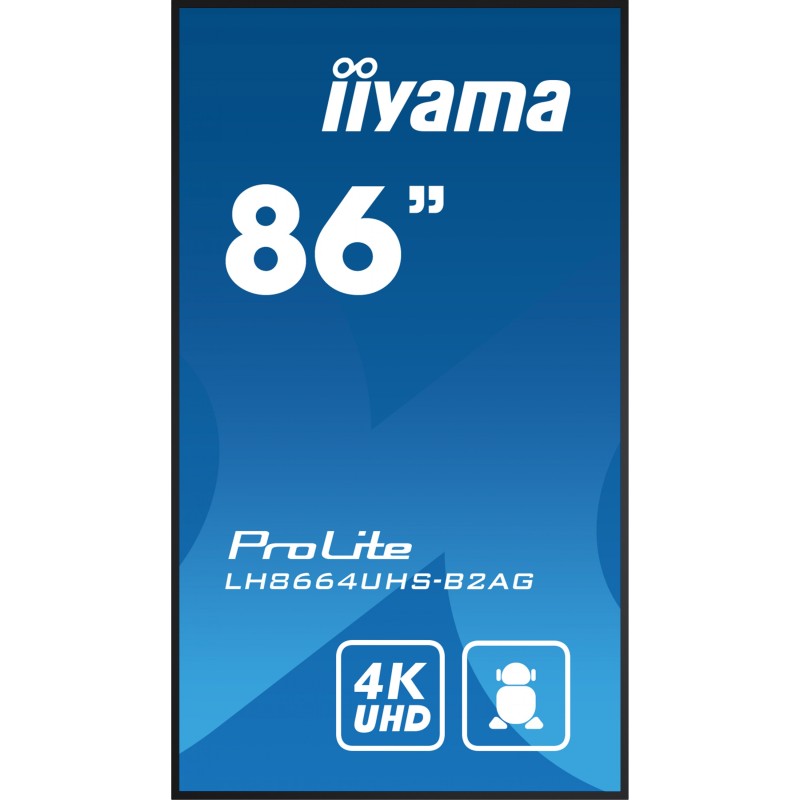

iiyama LH8664UHS-B2AG - 86-inch 4K IPS Digital Signage Panel, Android 11, A53 4-core, 2GB/16GB, Wi-Fi, Black
86-inch 4K UHD IPS digital signage panel (3840x2160, 500 cd/m²) with Android 11 (A53 quad-core), 2GB/16GB, Wi‑Fi, 3xHDMI, 2xUSB, dual speakers, 24/7 operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Monitors - Resolution | 3840x2160 (4K) |
|---|---|
| Monitors - Panel Type | IPS |
| Monitors - Refresh Rate | 60 Hz |
| Monitors - Curvature | Flat |
| Monitors - Video Inputs | HDMI 2.0 |
| Monitors - USB Hub | 2xUSB-A |
iiyama 86" 4K UHD professional digital signage display with advanced control and connectivity options. Product design: Digital signage flat panel. Display diagonal: 2.18 m (86"). Display resolution: 3840 x 2160 pixels. Display brightness: 500 cd/m². HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Android. Product colour: Black
| Panel type | IPS |
| Display diagonal | 2.18 m (86") |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 500 cd/m² |
| HD type | 4K Ultra HD |
| Native aspect ratio | 16:9 |
| Response time | 8 ms |
| Contrast ratio (typical) | 1200:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.493 x 0.493 mm |
| Active display area (W x H) | 1895 x 1066 mm |
| Display diagonal (metric) | 217.4 cm |
| Horizontal scan range | 28 - 160 kHz |
| Native refresh rate | 60 Hz |

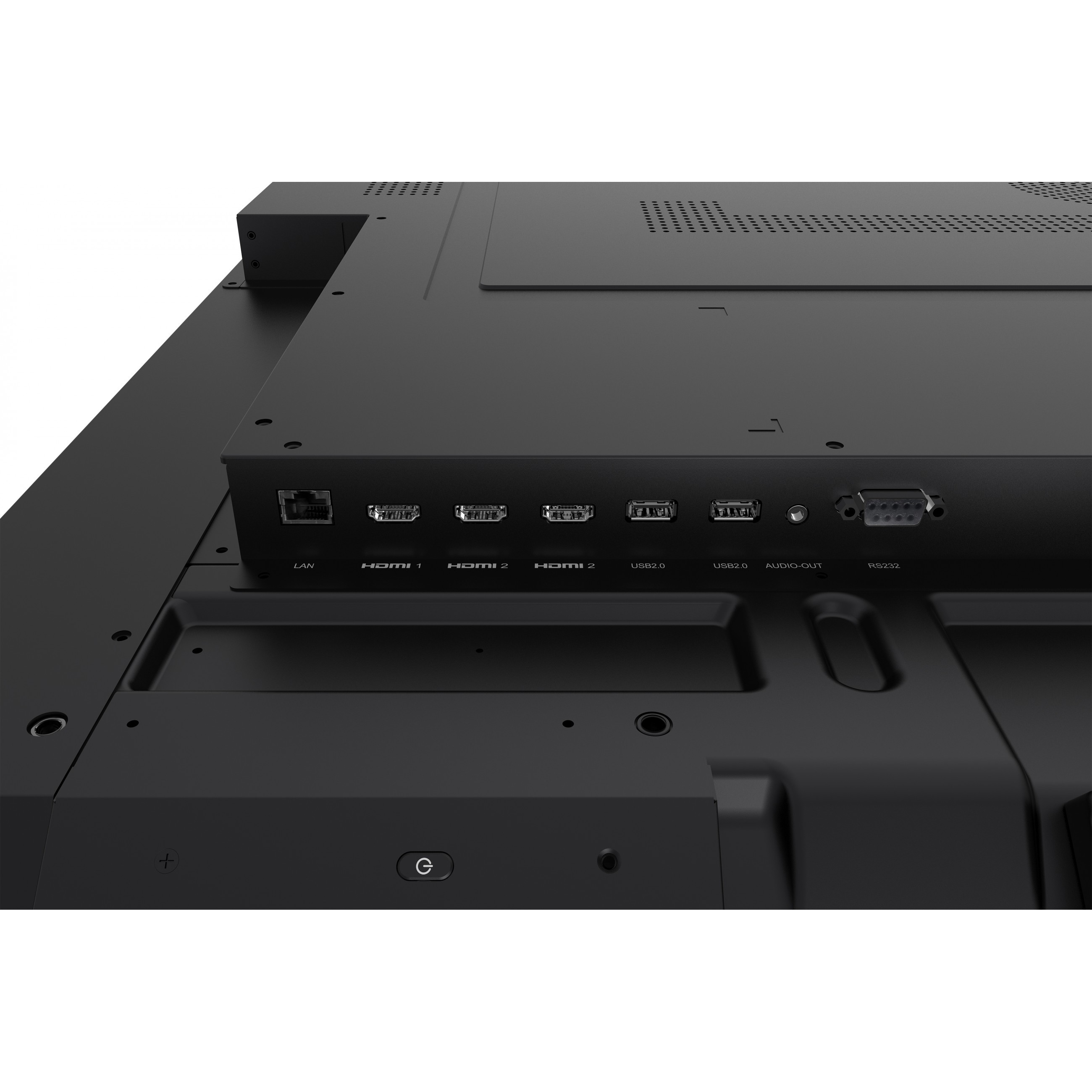

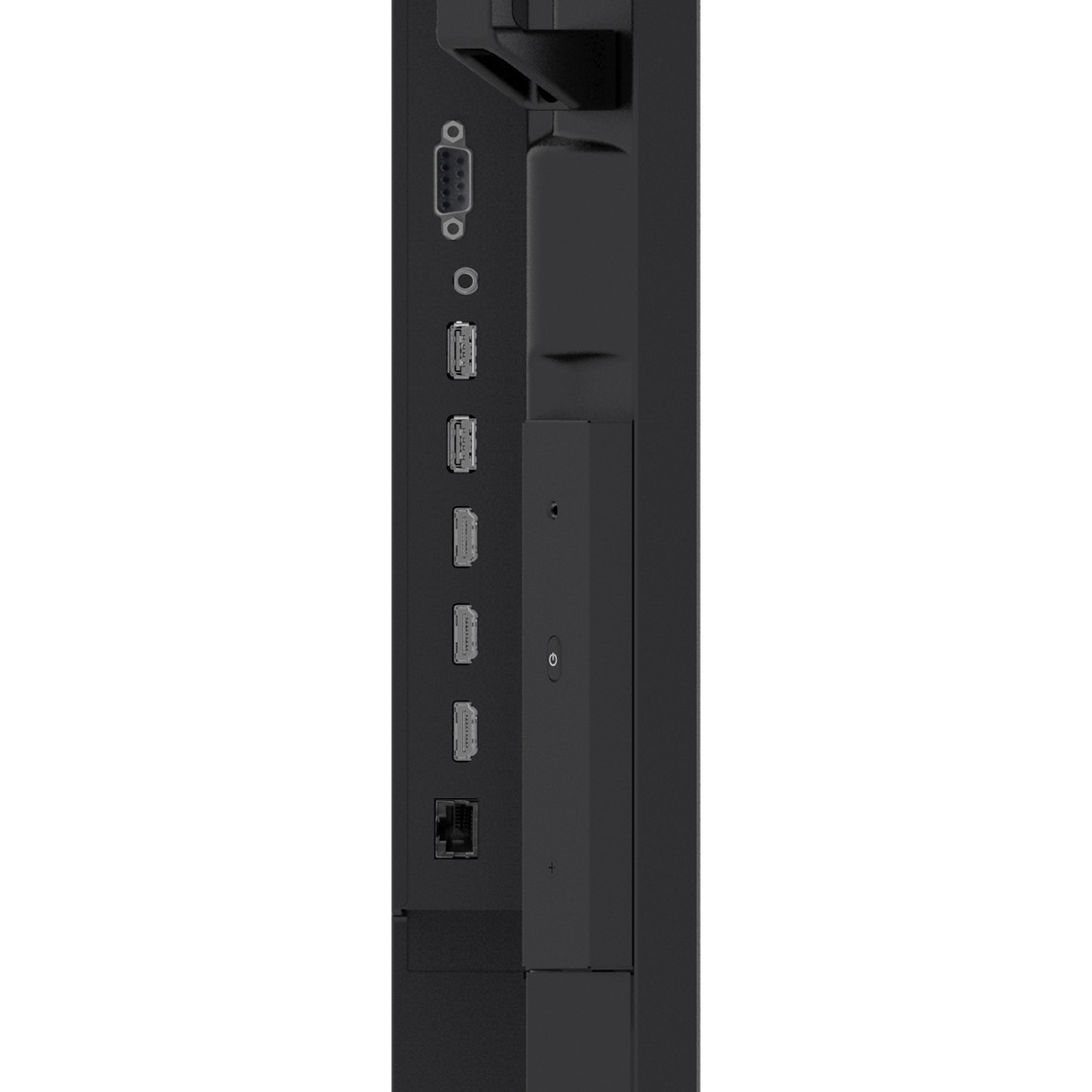

| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| Feature | Audio in (mini jack) |
| USB ports quantity | 2 |
| USB version | 2.0 |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac) |
| Remote (IR) input | 1 |
| Number of built-in speakers | 2 |
| RMS rated power | 32 W |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |

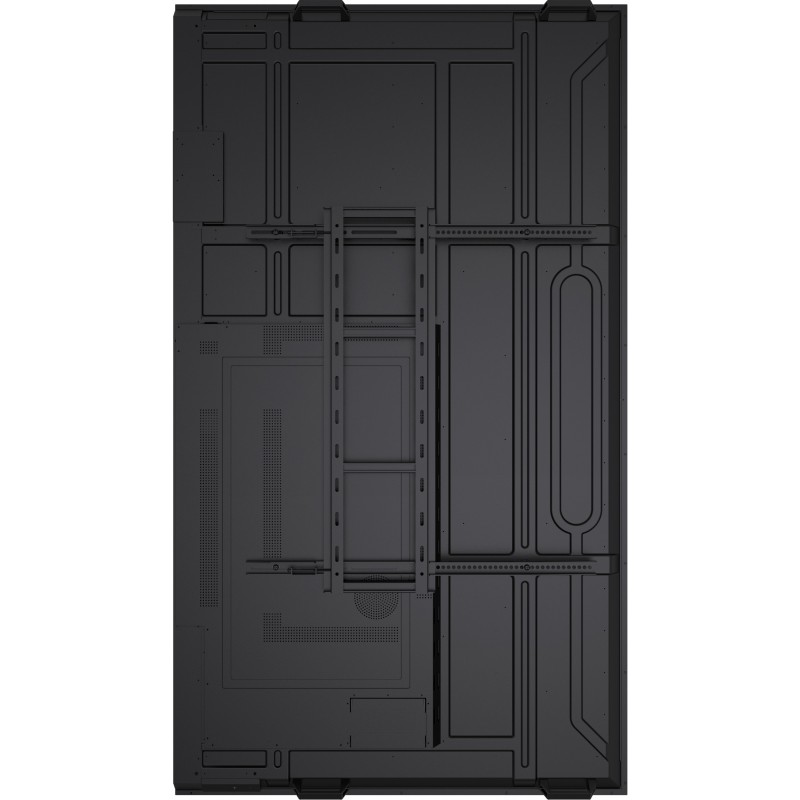

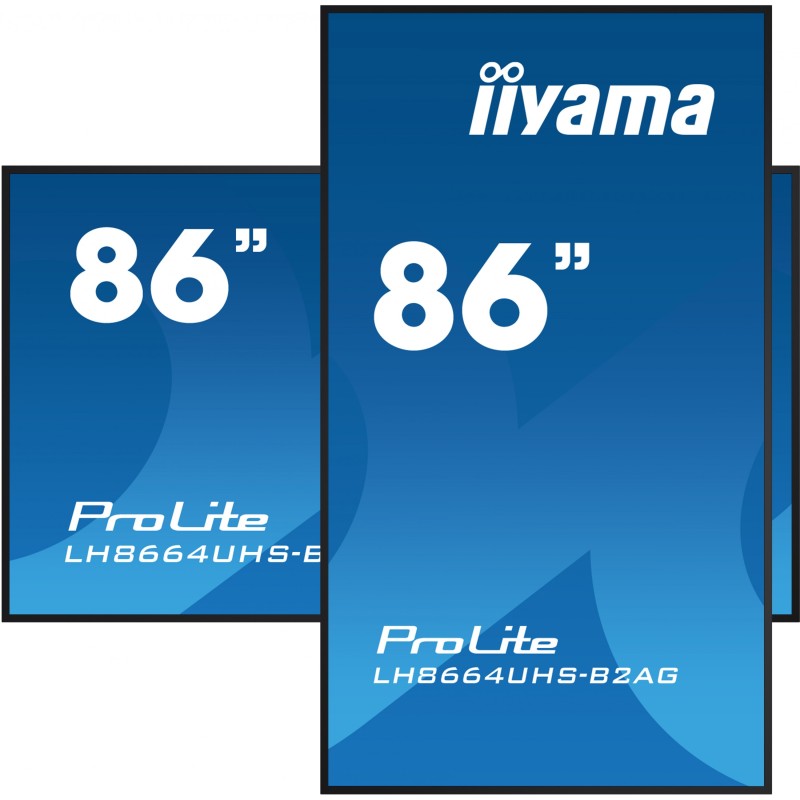

| Orientation | Horizontal/Vertical |
| Product colour | Black |

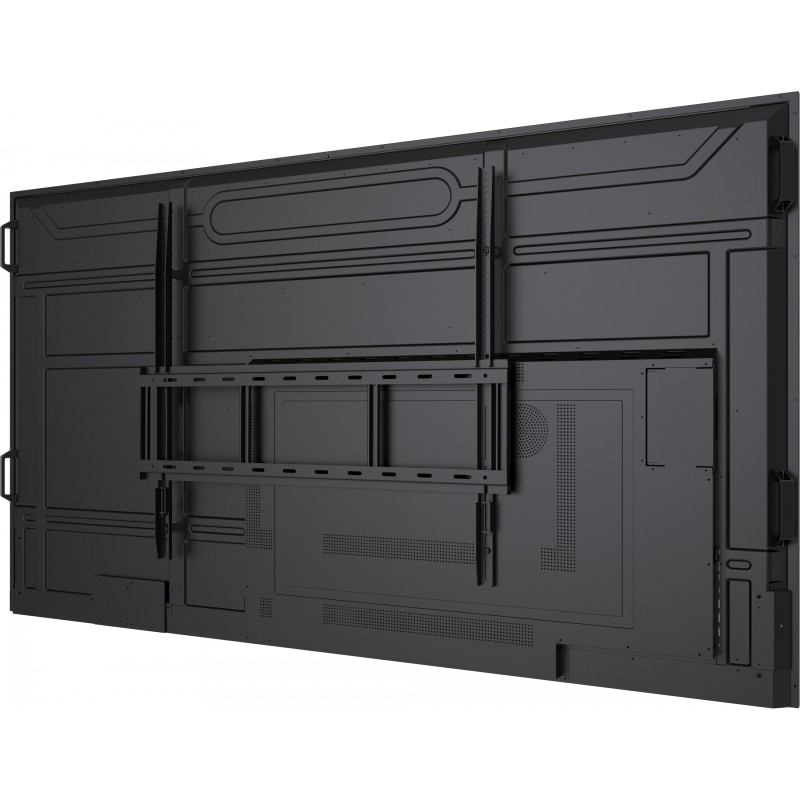

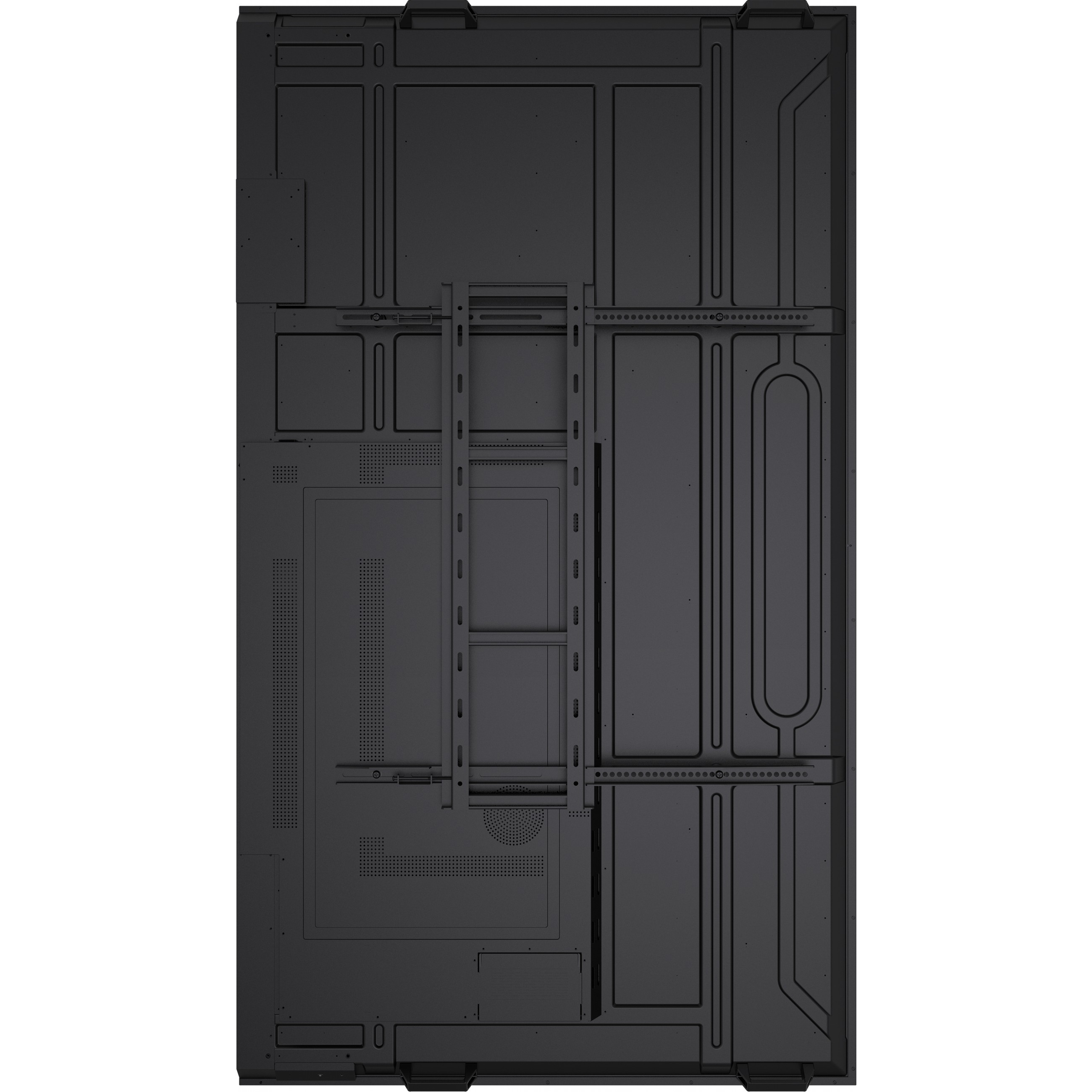

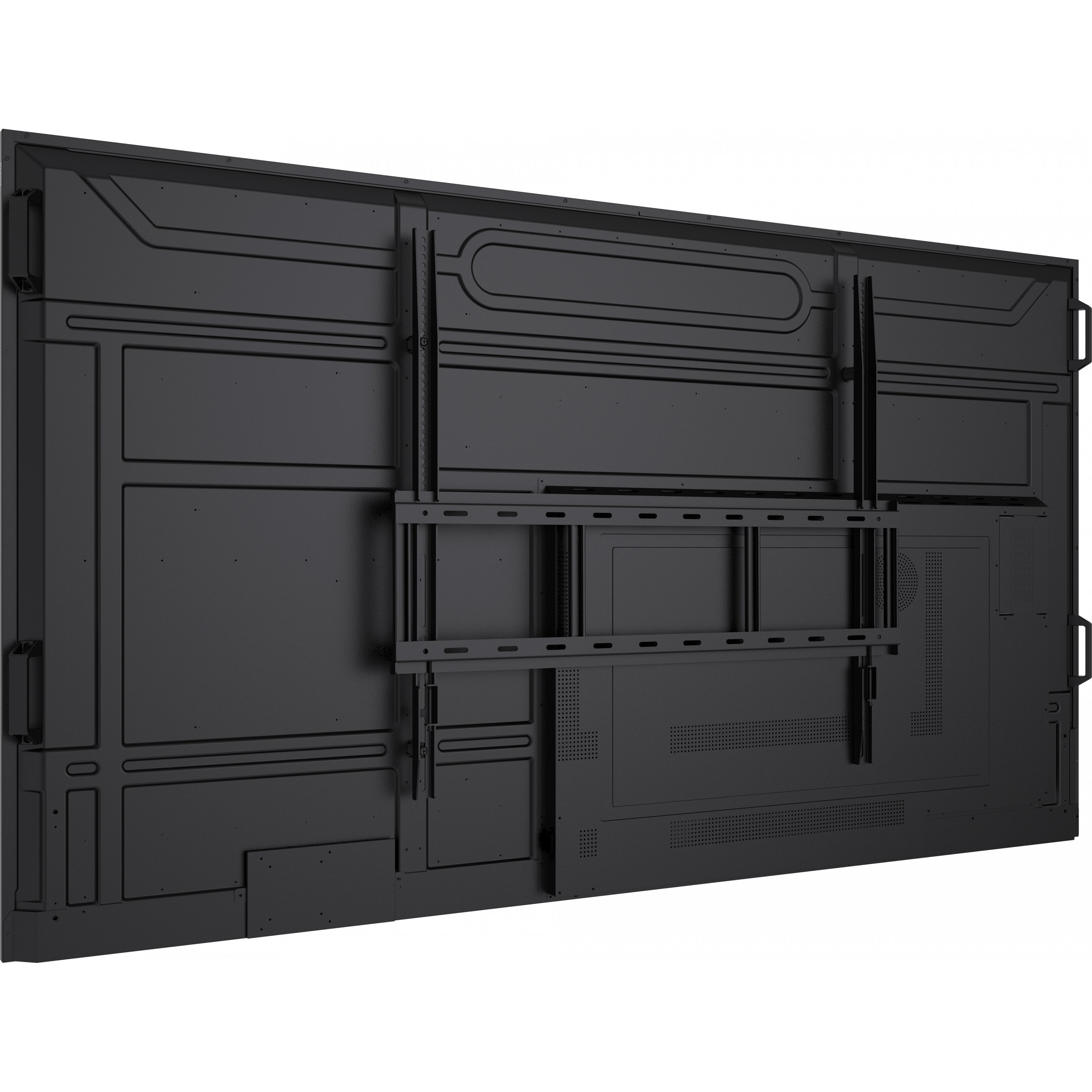

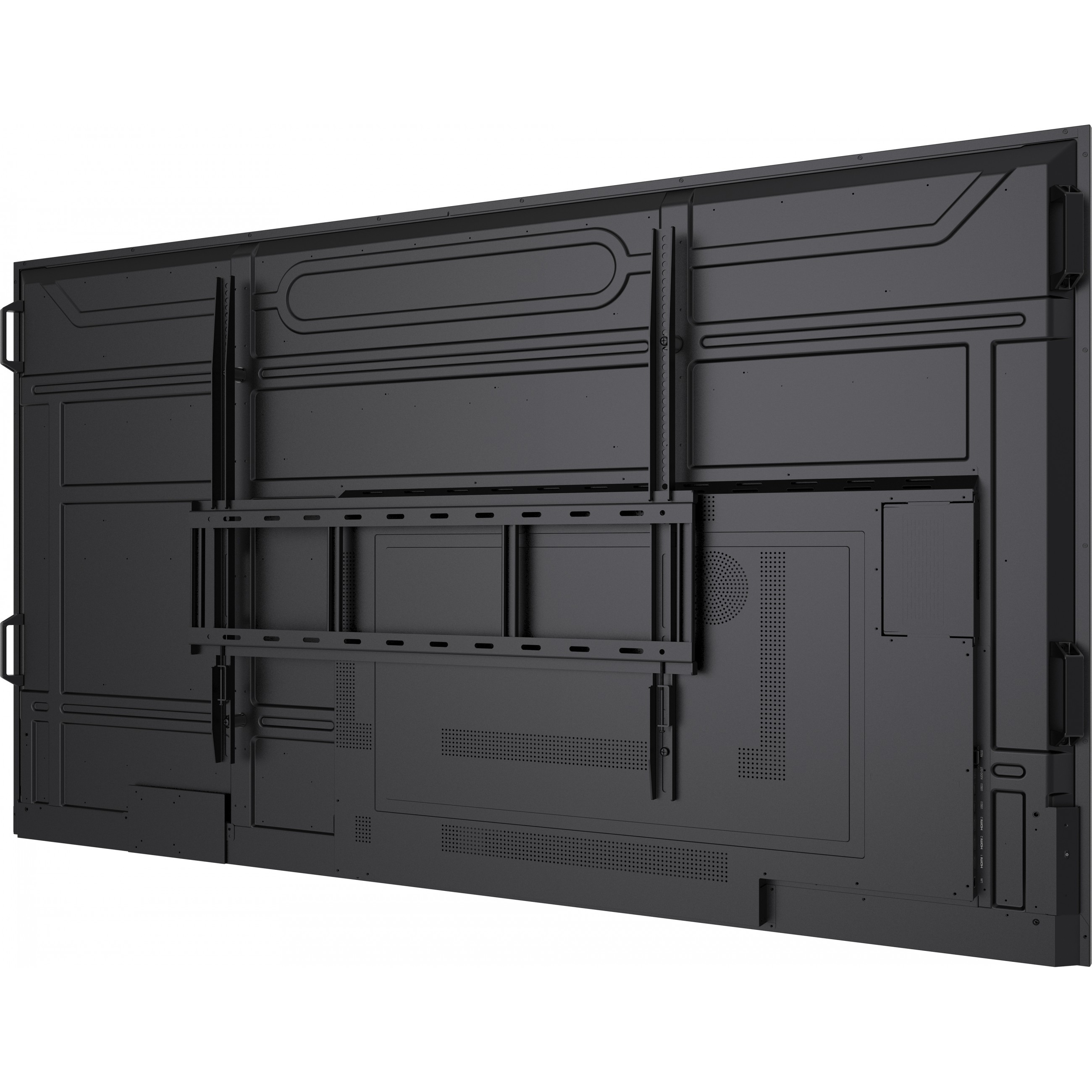

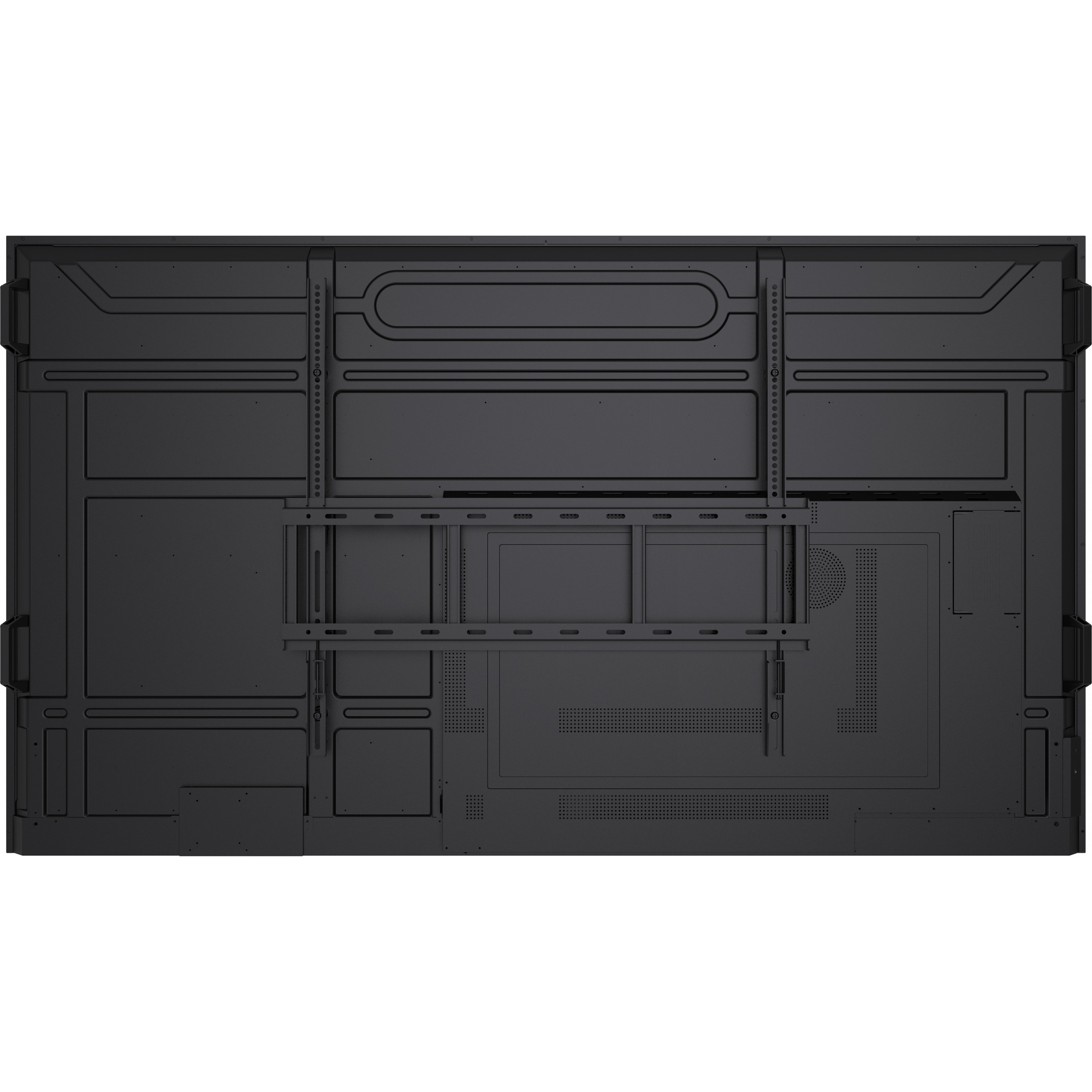

| Panel mounting interface | 800 x 600 mm |
| Bezel width (bottom) | 1.6 cm |
| Bezel width (side) | 1.4 cm |
| Bezel width (top) | 1.4 cm |
| Purpose | Universal |
| Number of OSD languages | 15 |
| On Screen Display (OSD) languages | Simplified Chinese. Traditional Chinese. Czech. Danish. German. Dutch. English. Spanish. Finnish. French. Italian. Japanese. Polish. Russian. Swedish |
| Operating hours (hours/days) | 24/7 |
| HDCP version | 1.4/2.2 |
| Mean time between failures (MTBF) | 50000 h |
| Power consumption (typical) | 145 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | F |
| Energy consumption (SDR) per 1000 hours | 145 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Processor model | A53 |
| Processor cores | 4 |
| Internal memory | 2 GB |
| On-board graphics card model | ARM Mali-G52 |
| Internal storage capacity | 16 GB |
| Operating system installed | Android |
| Operating system version | 11 |
| Display width | 1937.8 mm |
| Display depth | 79.6 mm |
| Display height | 1108.8 mm |
| Display weight | 55.2 kg |
| Package width | 2125 mm |
| Package depth | 275 mm |
| Package height | 1275 mm |
| Package volume | 73700 cm³ |

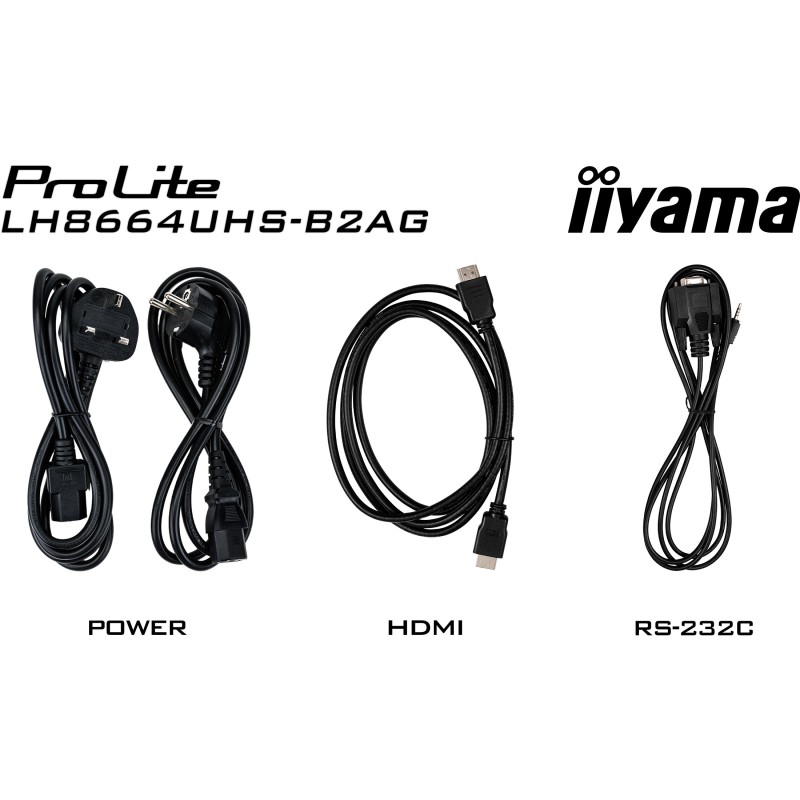

| Cables included | AC. HDMI |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Certification | CB. CE. TÜV-Bauart. EAC. RoHS support. ErP. WEEE. REACH |
| Audio output | Mini Jack |
