TP-Link Omada EAP615-Wall - AX3000 Wi-Fi 6 Wall Plate Access Point, White (5-pack)
Wall-mounted Omada EAP615-Wall AX3000 Wi-Fi 6 dual-band AP (2.4/5 GHz, up to 1774 Mbps), internal antennas, 4×RJ45 ports, WPA3 support. Pack of 5.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Mounting | Wall |
| Access Points - Outdoor Rating | None |
TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point. 2.4 GHz. 5 GHz. Maximum data transfer rate: 1774 Mbit/s. Security algorithms: HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA-Personal. WPA2-Enterprise. WPA2-Personal..... Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Quick start guide |
| Maximum data transfer rate | 1774 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1x. IEEE 802.3af. IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO type | Multi User MIMO |
| Transmitting power (CE) | 23 dBm |
| Transmitting power (FCC) | 21 dBm |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA-Enterprise. WPA-Personal. WPA2-Enterprise. WPA2-Personal. WPA3-Enterprise. WPA3-Personal |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |

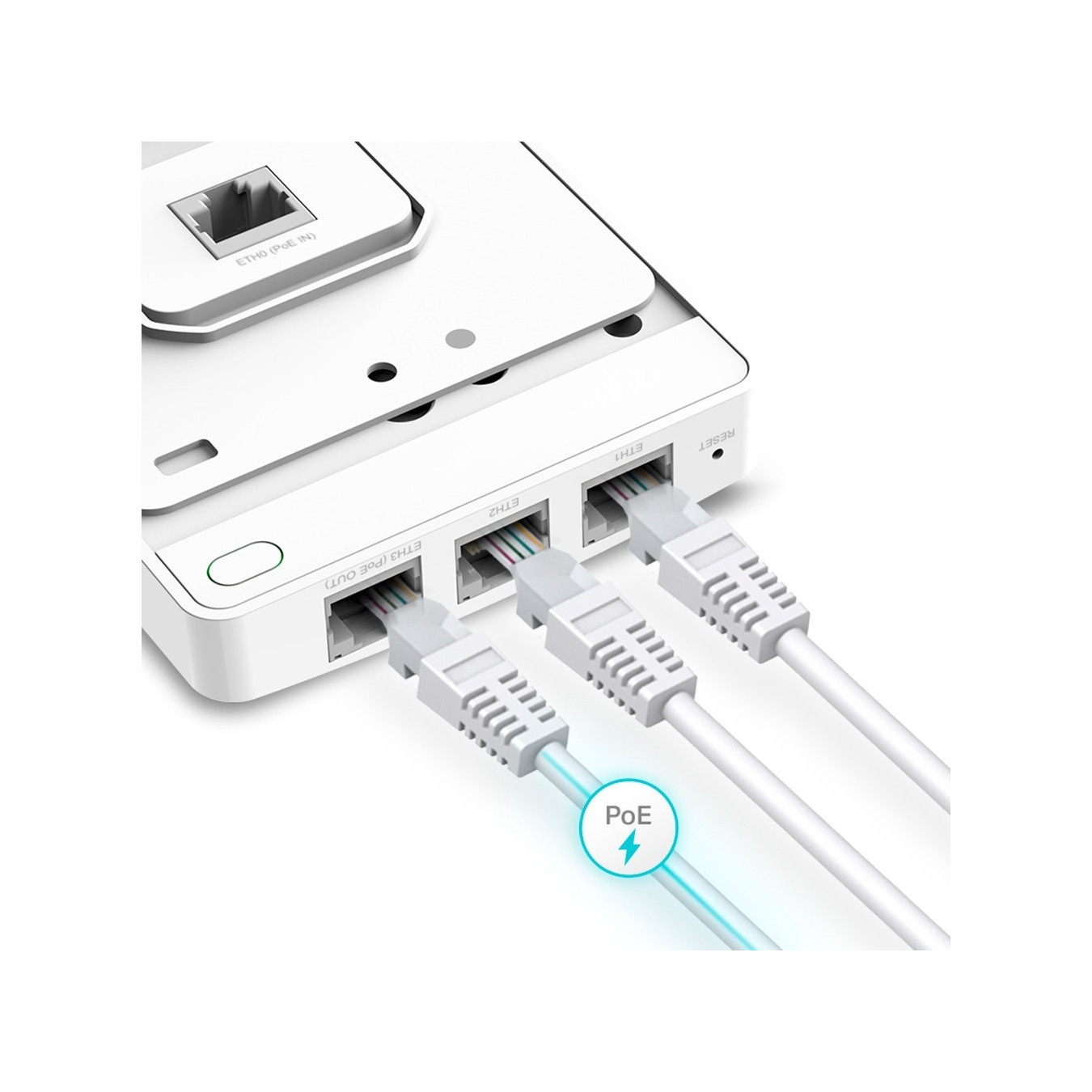

| Ethernet LAN (RJ-45) ports | 4 |
| Power consumption (typical) | 10 W |
| Placement | Wall |
| Product colour | White |
| LED indicators | Power |
| Antenna type | Internal |
| Antennas quantity | 4 |
| Antenna gain level (max) | 4 dBi |
| Compatible operating systems | Microsoft Windows XP. Vista. Windows 7. Windows 8. Windows 10. Windows 11. Linux |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
| Width | 143 mm |
| Depth | 86 mm |

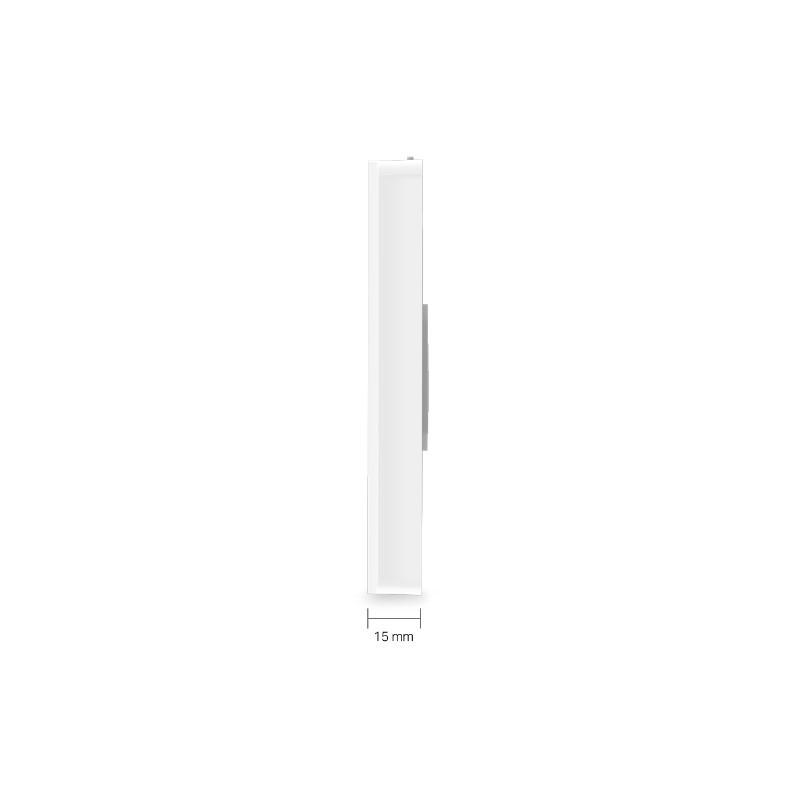

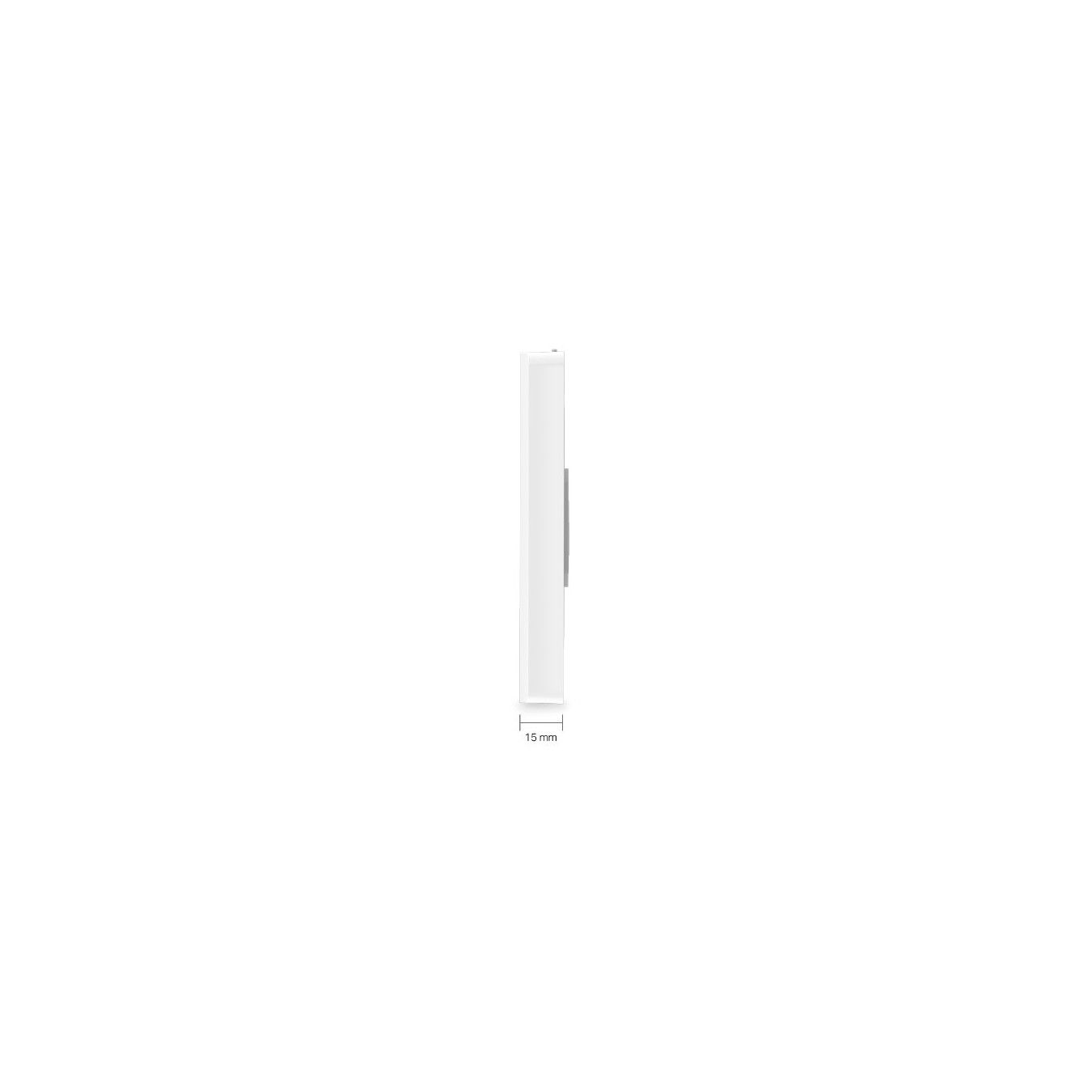

| Height | 20 mm |
| Package width | 385 mm |
| Package depth | 495 mm |
| Package height | 210 mm |
| Package weight | 330 g |
| Quantity per pack | 5 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
