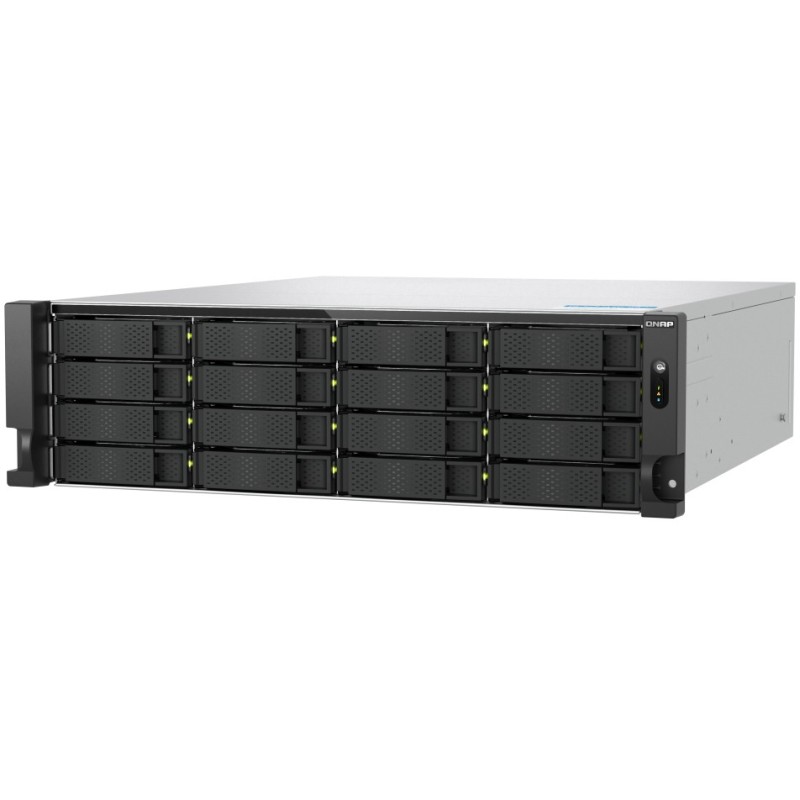

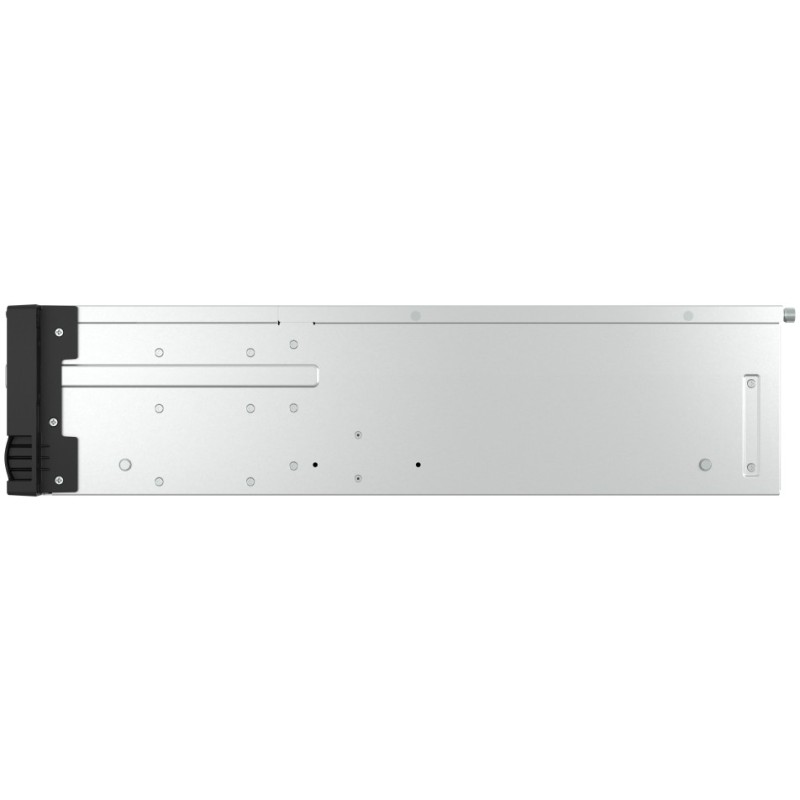

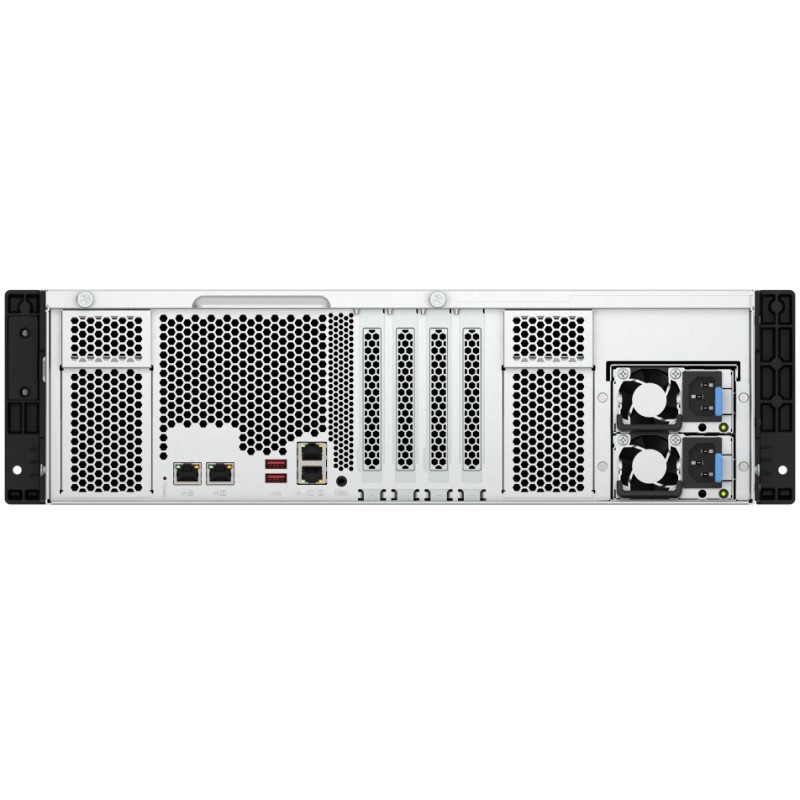

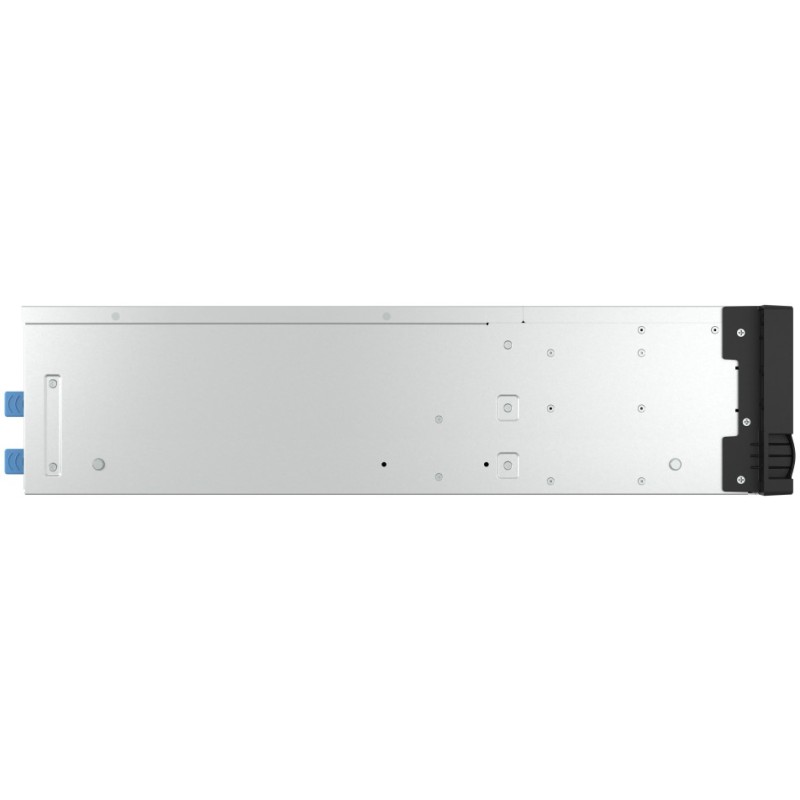

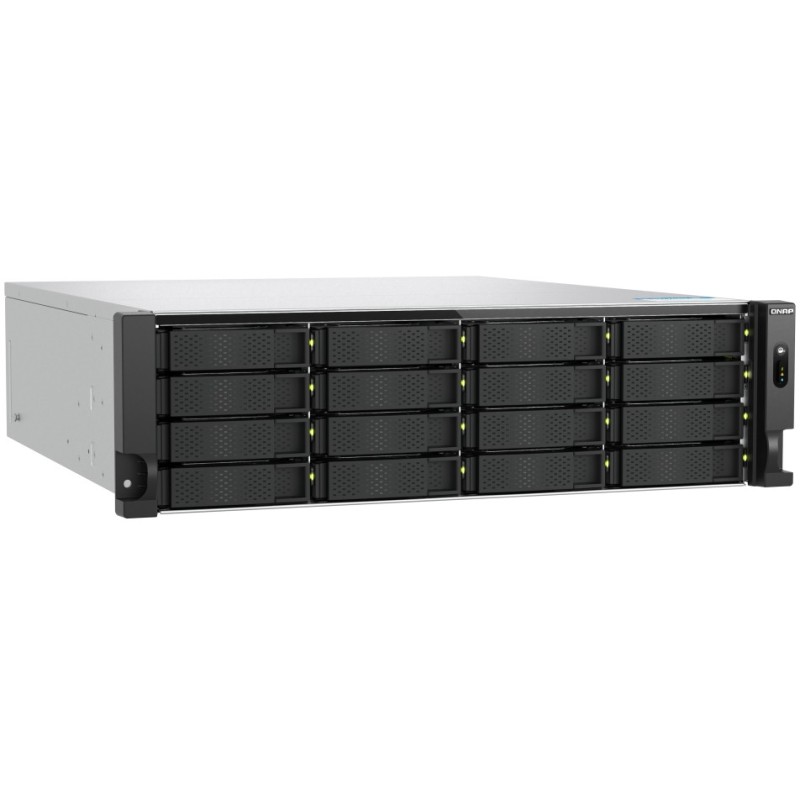

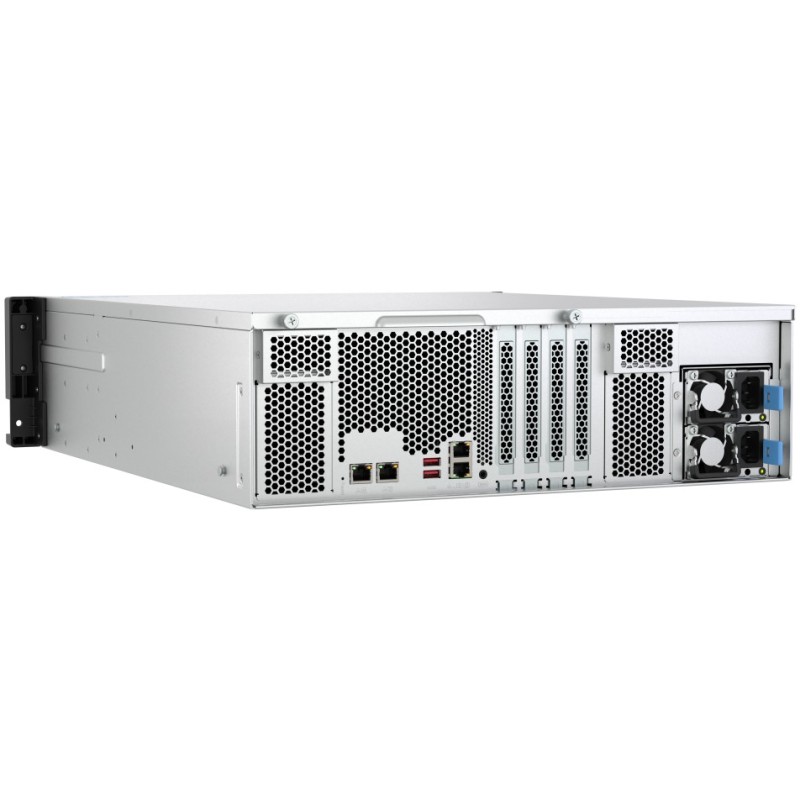

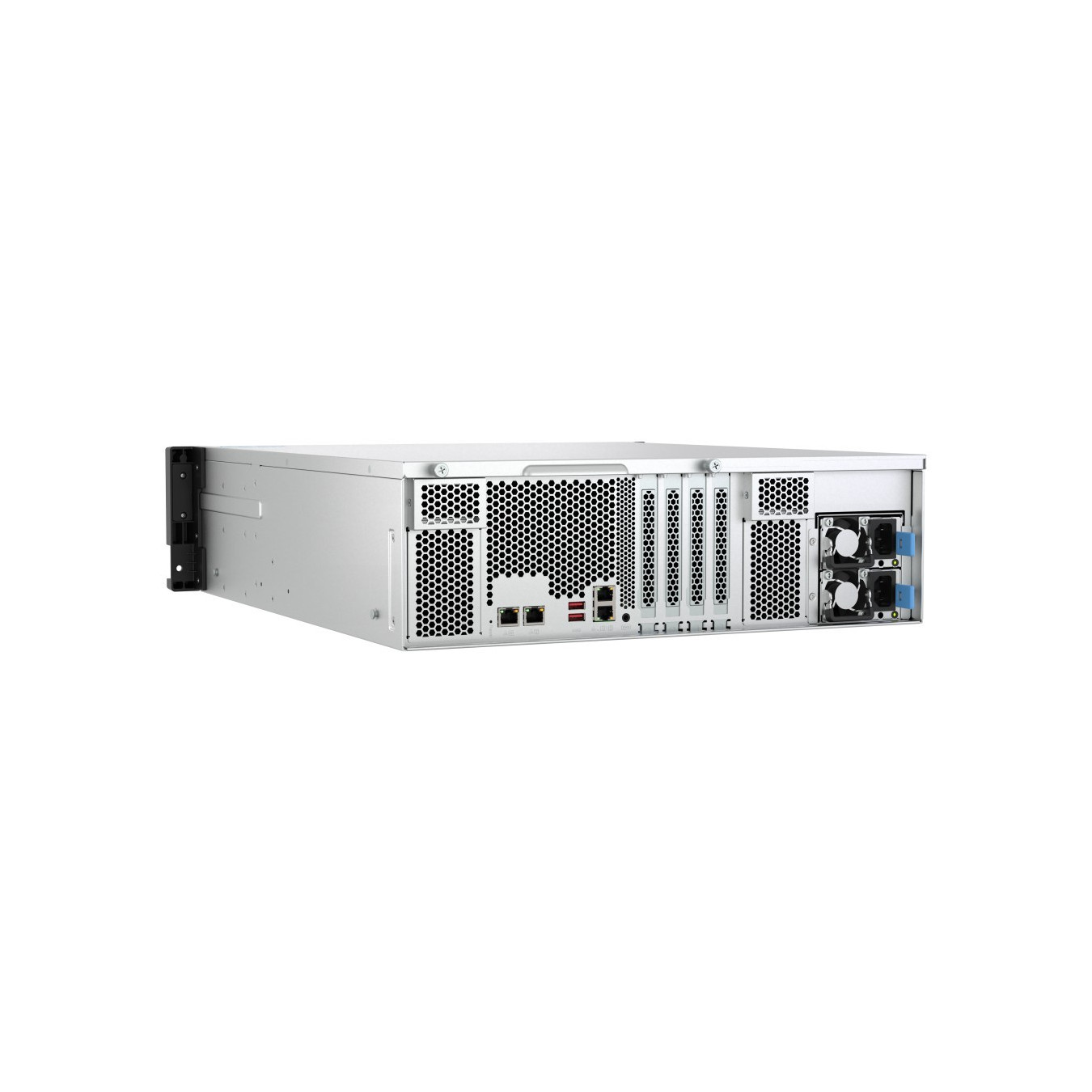

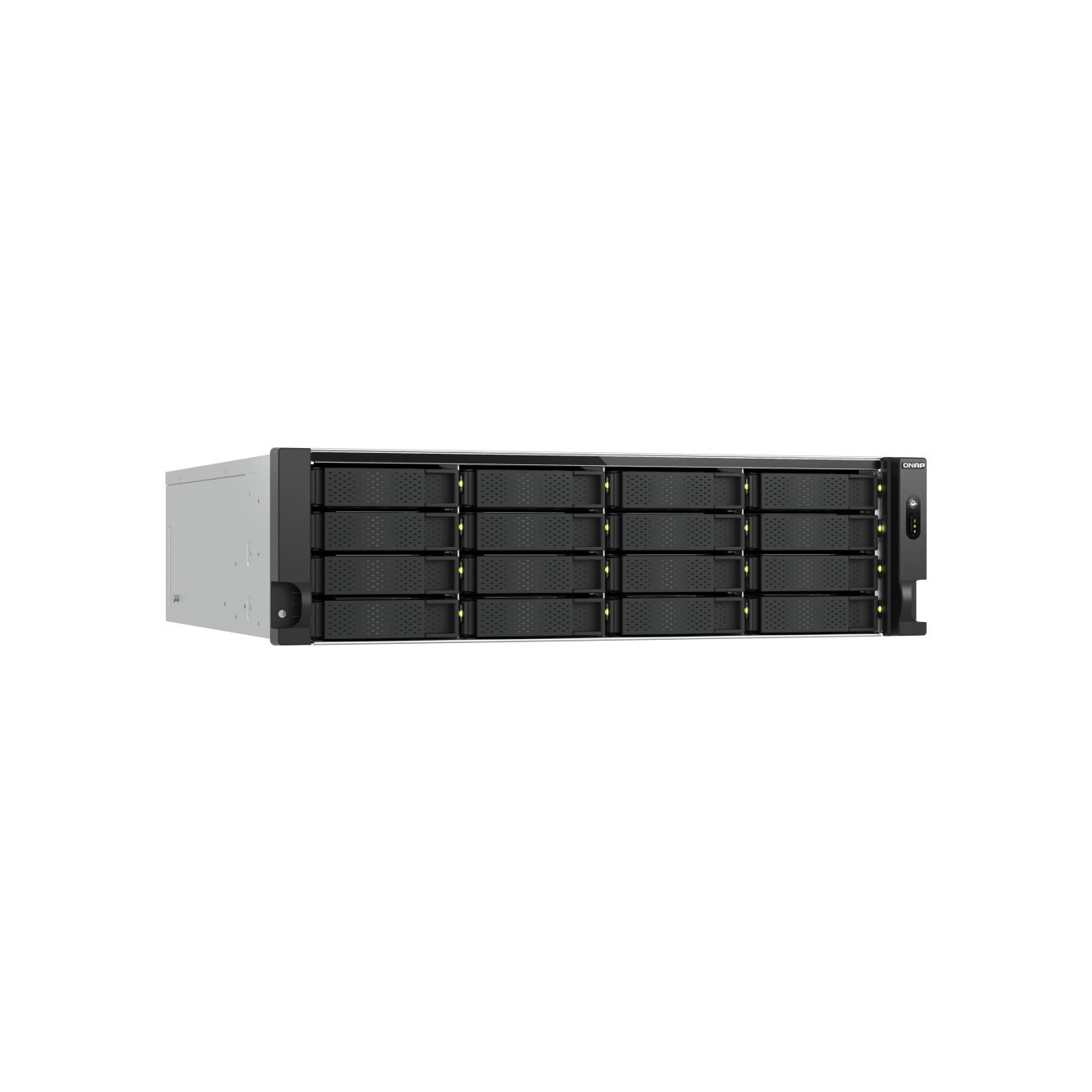

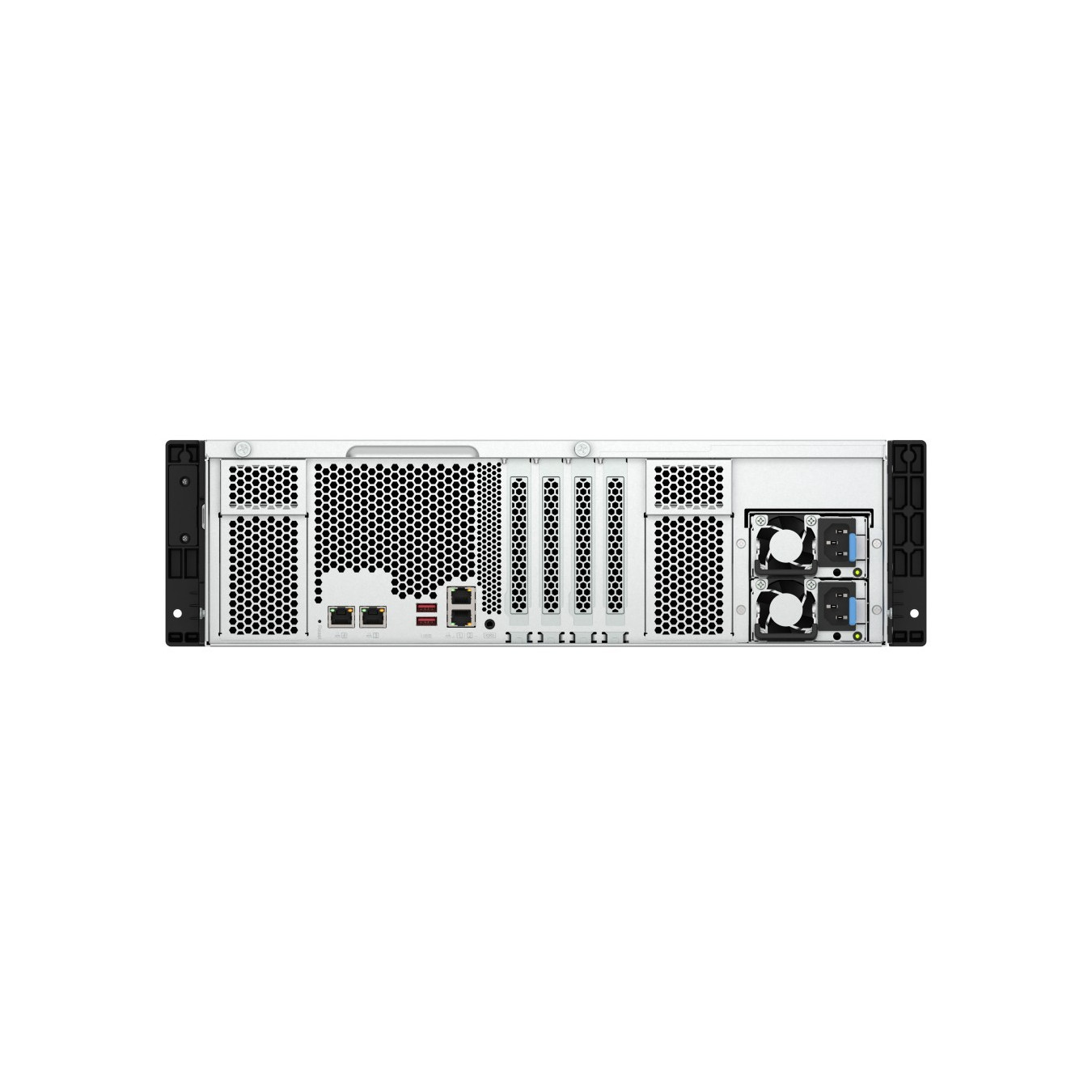

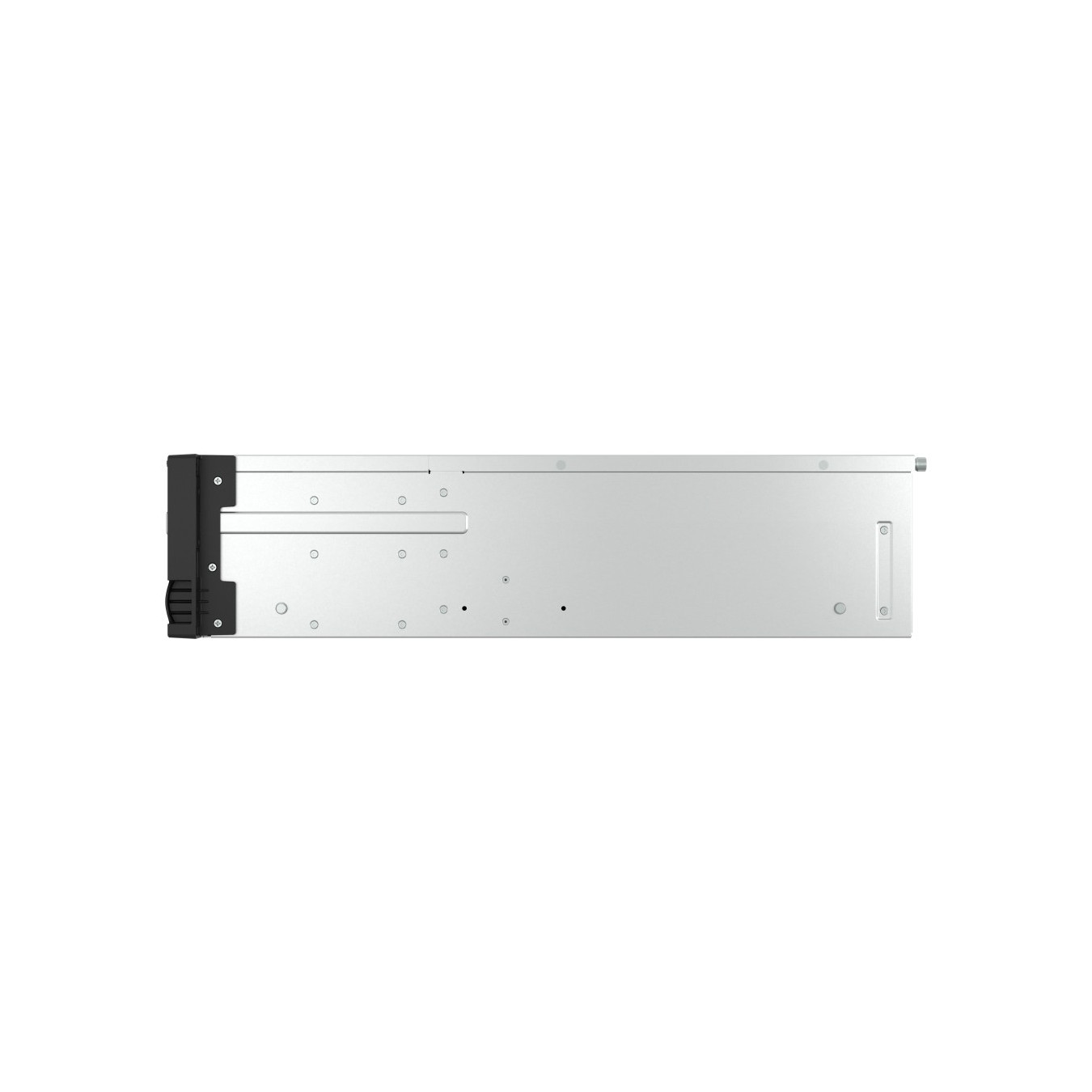

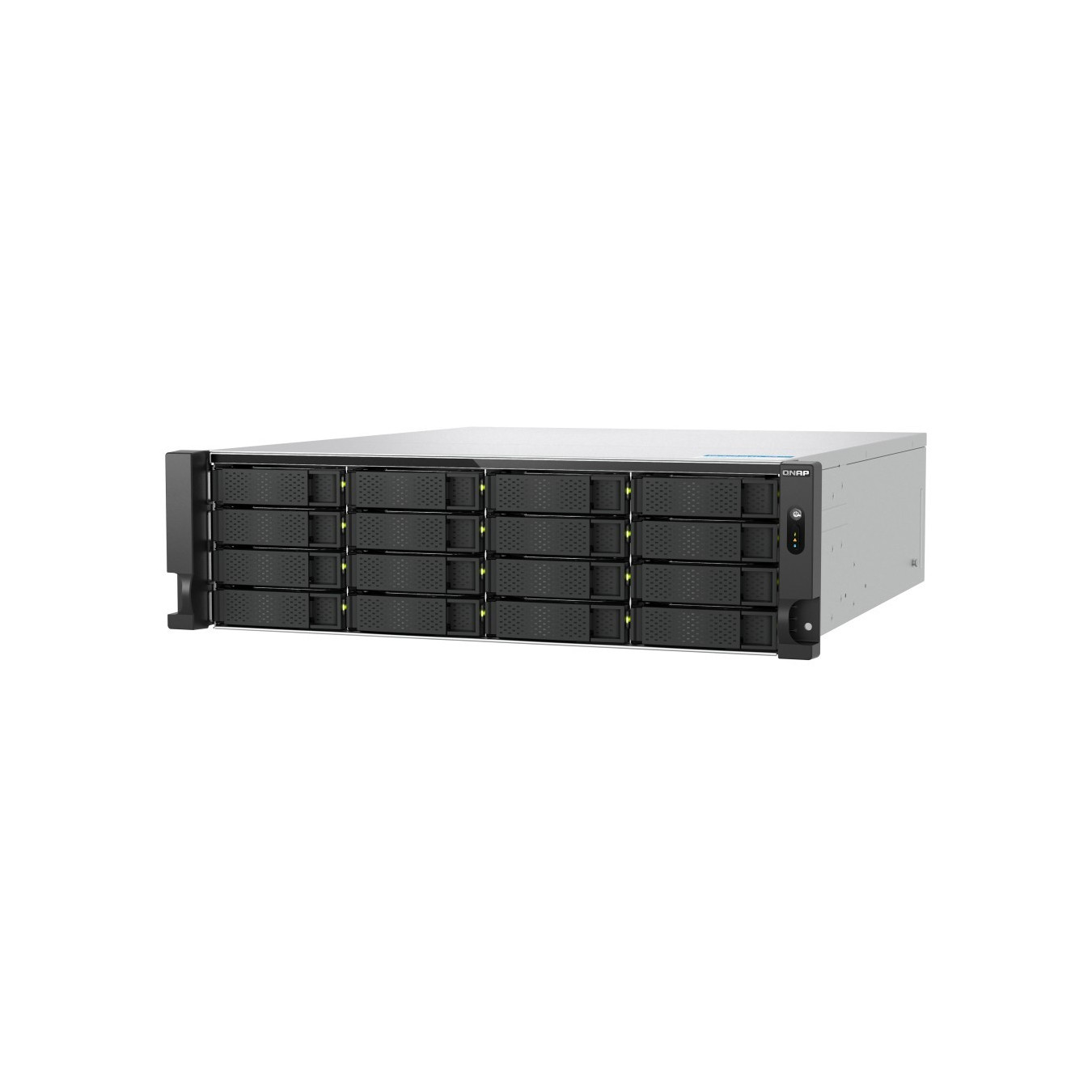

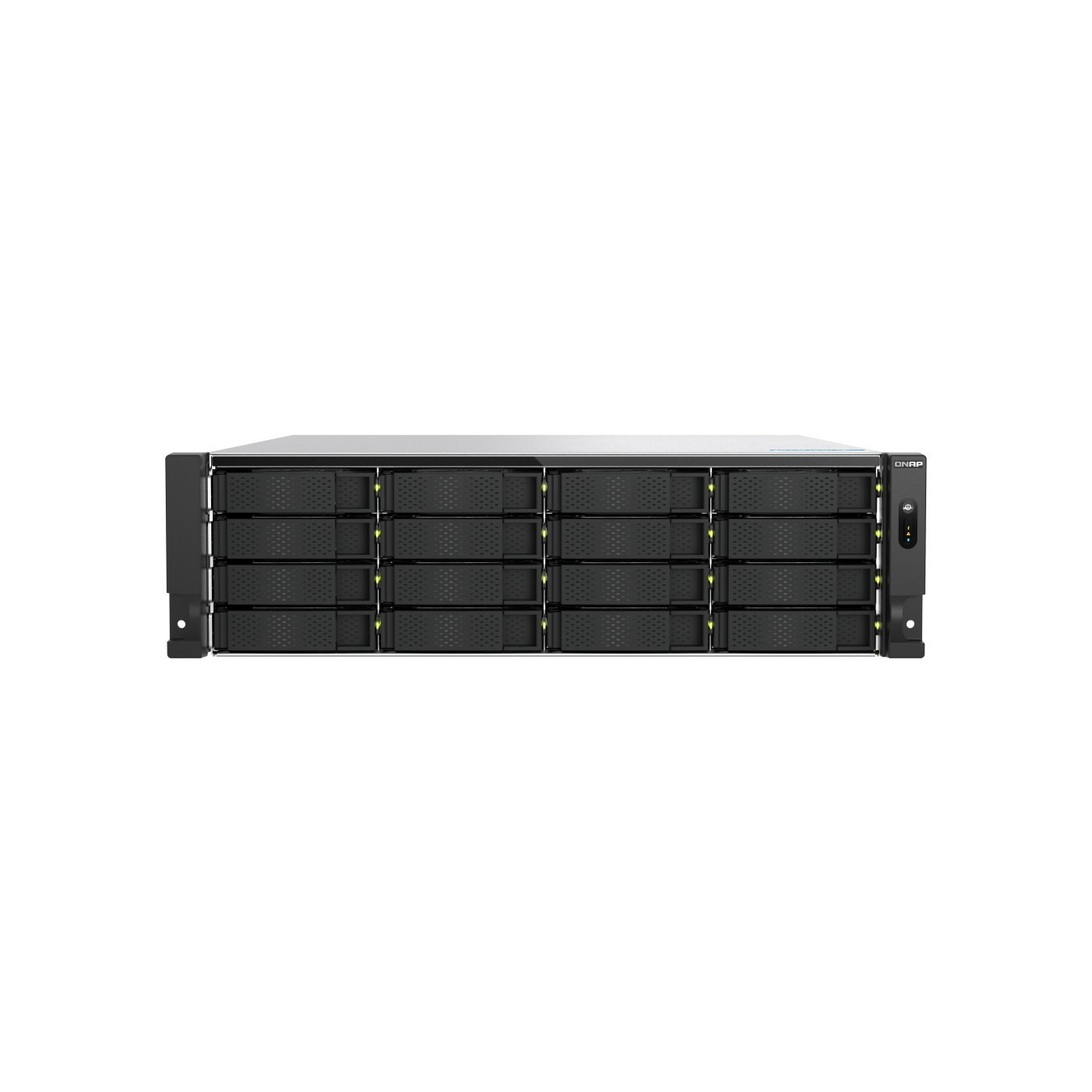

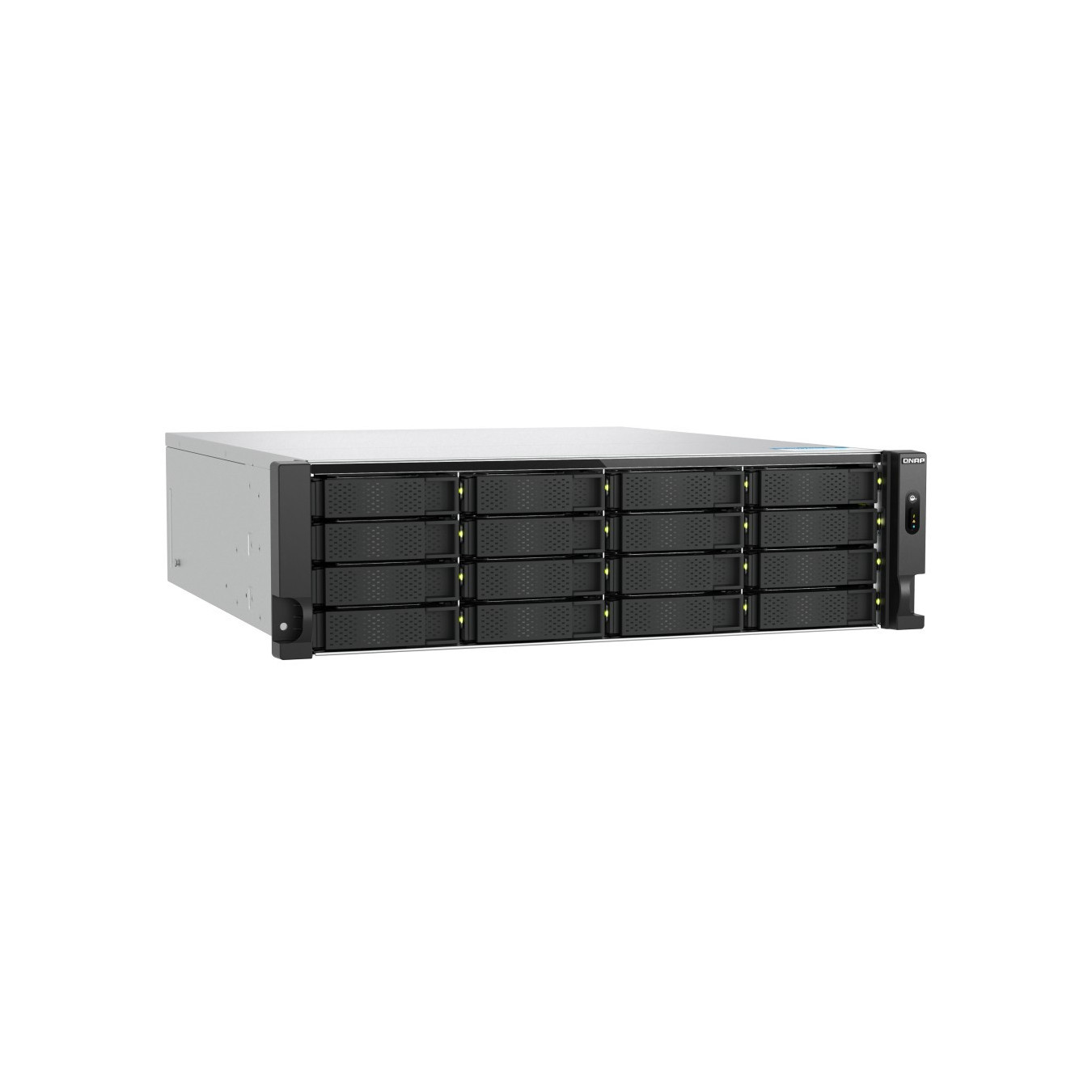

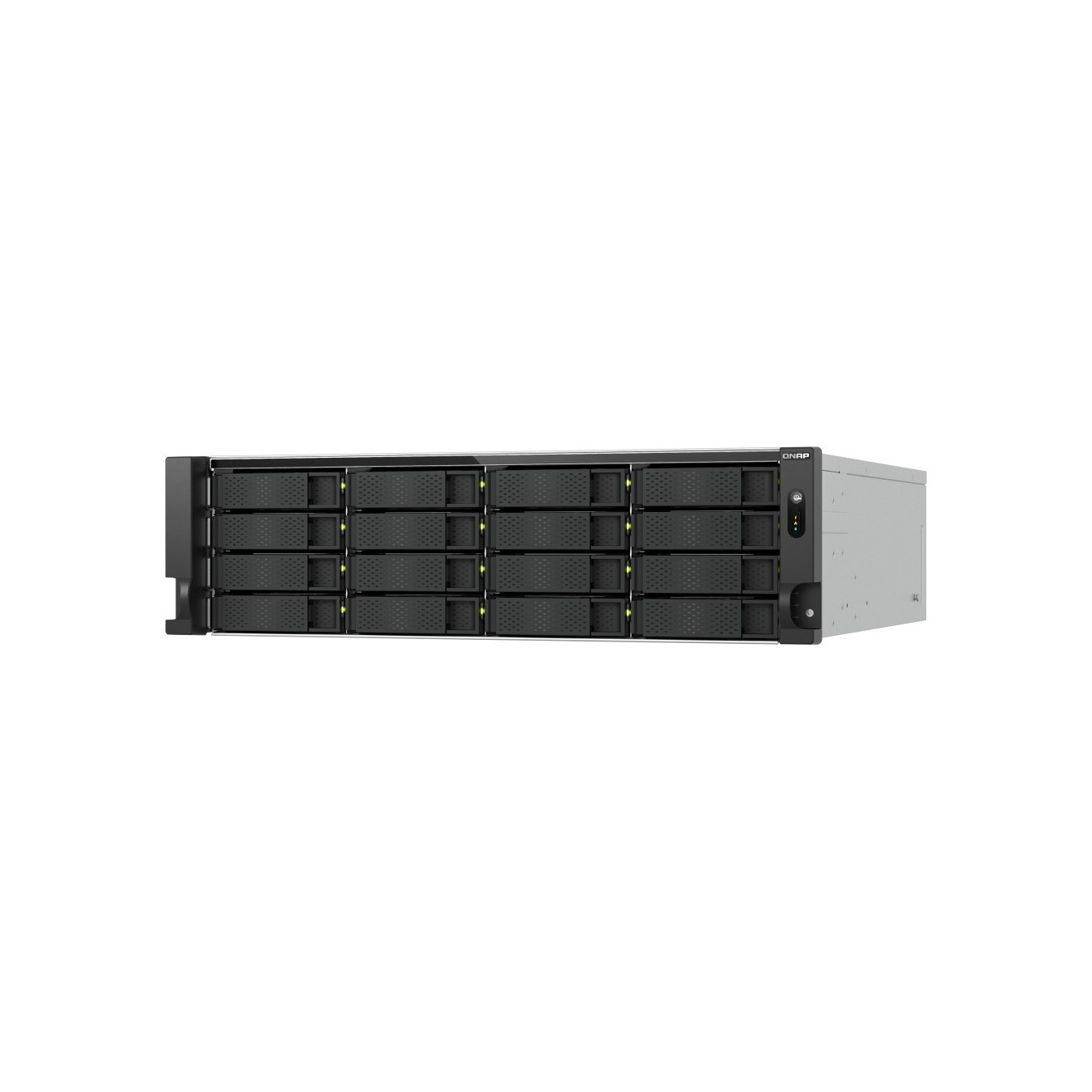

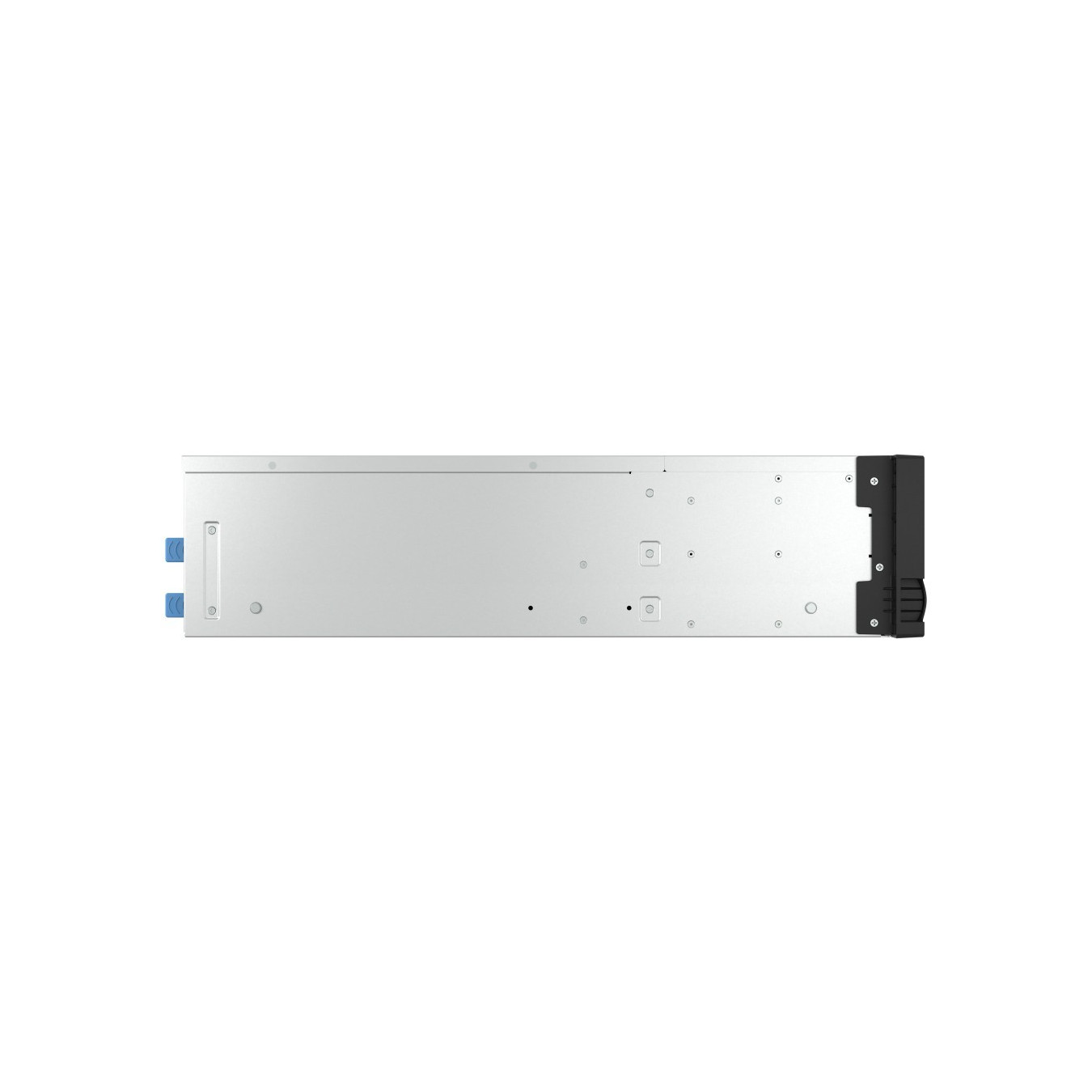

QNAP TS-h1677AXU-RP-R7-32G - 16-bay 3U Rack NAS, AMD Ryzen 7 Pro 7745 (8C/16T up to 5.3GHz), 32GB DDR5
3U rack NAS, 16 hot-swappable bays, AMD Ryzen 7 Pro 7745 (8 cores/16 threads, up to 5.3GHz), 32GB DDR5 UDIMM (expandable to 128GB), dual PSU, HDD/SSD support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NAS (Network Attached Storage) - RAID Levels | JBOD |
|---|---|
| NAS (Network Attached Storage) - USB | USB 3.0 |
| NAS (Network Attached Storage) - Hot-swap | Yes |
QNAP TS-H1677AXU-RP-R7-32G. Type: NAS. Chassis type: Rack (3U). Device class: Small & Medium Business. Processor family: AMD Ryzen™ 7. Internal memory: 32 GB. Internal memory type: DDR5. Total installed storage capacity: 0 TB
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial ATA II. Serial ATA III |
| Supported storage drive interfaces | M.2. Serial ATA III. Serial ATA II |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Redundant power supply (RPS) support |
| RAID levels | 0. 1. 5. 6. 10. 50. 60. JBOD |
| Total installed storage capacity | 0 TB |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor family | AMD Ryzen™ 7 |
| Processor boost frequency | 5.3 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Internal memory | 32 GB |
| Internal memory type | DDR5 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500.10000 Mbit/s |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Fan diameter | 6 cm |
| LED indicators | HDD. LAN. SSD. Status. USB |
| Type | NAS |
| Device class | Small & Medium Business |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| Width | 482.2 mm |
| Depth | 550.8 mm |
| Height | 131.3 mm |
| Weight | 15.6 kg |
| Package weight | 22.1 kg |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Warranty period | 5 year(s) |
