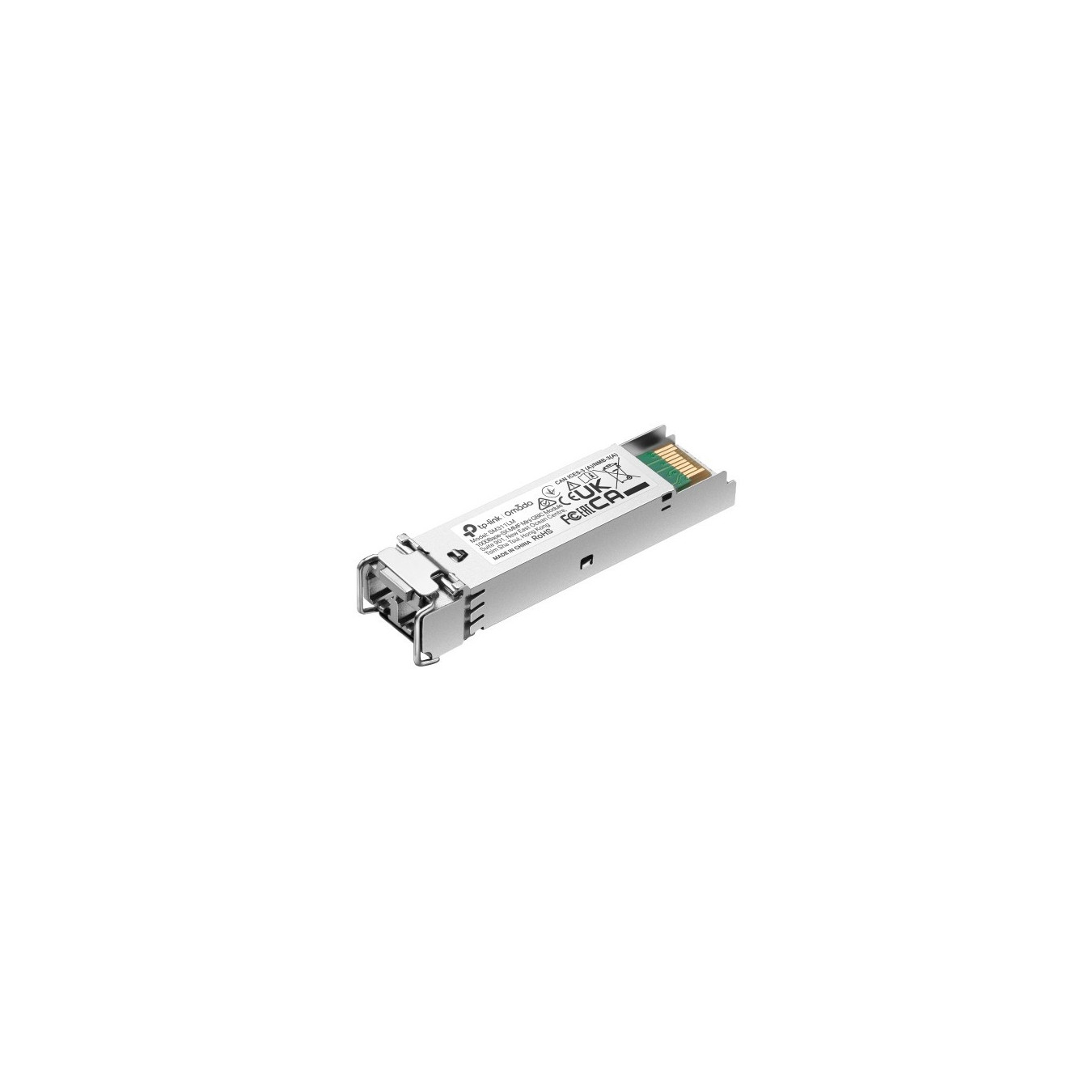

TP-Link SM311LM - Gigabit Multimode SFP Module, LC Duplex, 850 nm, 550 m (8-Pack)
TP-Link SM311LM 1.25 Gbps multimode mini-GBIC/SFP, LC (UPC) duplex, 850 nm, supports 50/125 & 62.5/125 µm fiber up to 550 m. Pack of 8.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| SFP/SFP+ Modules - Interface | LC Duplex |
|---|---|
| SFP/SFP+ Modules - Fiber Type | Multimode (MMF) |
| SFP/SFP+ Modules - Coding/Brand | Generic |
TP-Link Omada 1000-Base-SX MMF Mini GBIC Module (8-Pack). SFP transceiver type: Fiber optic. Maximum data transfer rate: 1250 Mbit/s. Interface type: mini-GBIC/SFP. Product colour: Metallic. Input voltage: 3.3 V. Compliance certificates: RoHS. Certification: FCC. CE. Width: 55.4 mm. Depth: 13.7 mm. Height: 12.9 mm
| SFP transceiver type | Fiber optic |
| Maximum data transfer rate | 1250 Mbit/s |
| Interface type | mini-GBIC/SFP |
| Feature | User guide |
| Fiber optic connector | LC (UPC) |
| Fiber cable diameters supported (core/cladding) | 50/125.62.5/125 µm |
| Maximum transfer distance | 550 m |
| Wavelength | 850 nm |
| Networking standards | IEEE 802.3z |
| Product colour | Metallic |
| Input voltage | 3.3 V |
| Compliance certificates | RoHS |
| Certification | FCC. CE |
| Minimum operating temperature | 0 °C |
| Maximum operating temperature | 70 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 55.4 mm |
| Depth | 13.7 mm |
| Height | 12.9 mm |
| Quantity per pack | 8 pc(s) |
| Package width | 148 mm |
| Package depth | 207 mm |
| Package height | 38 mm |
| Package weight | 110 g |
| Harmonized System (HS) code | 85369010 |
