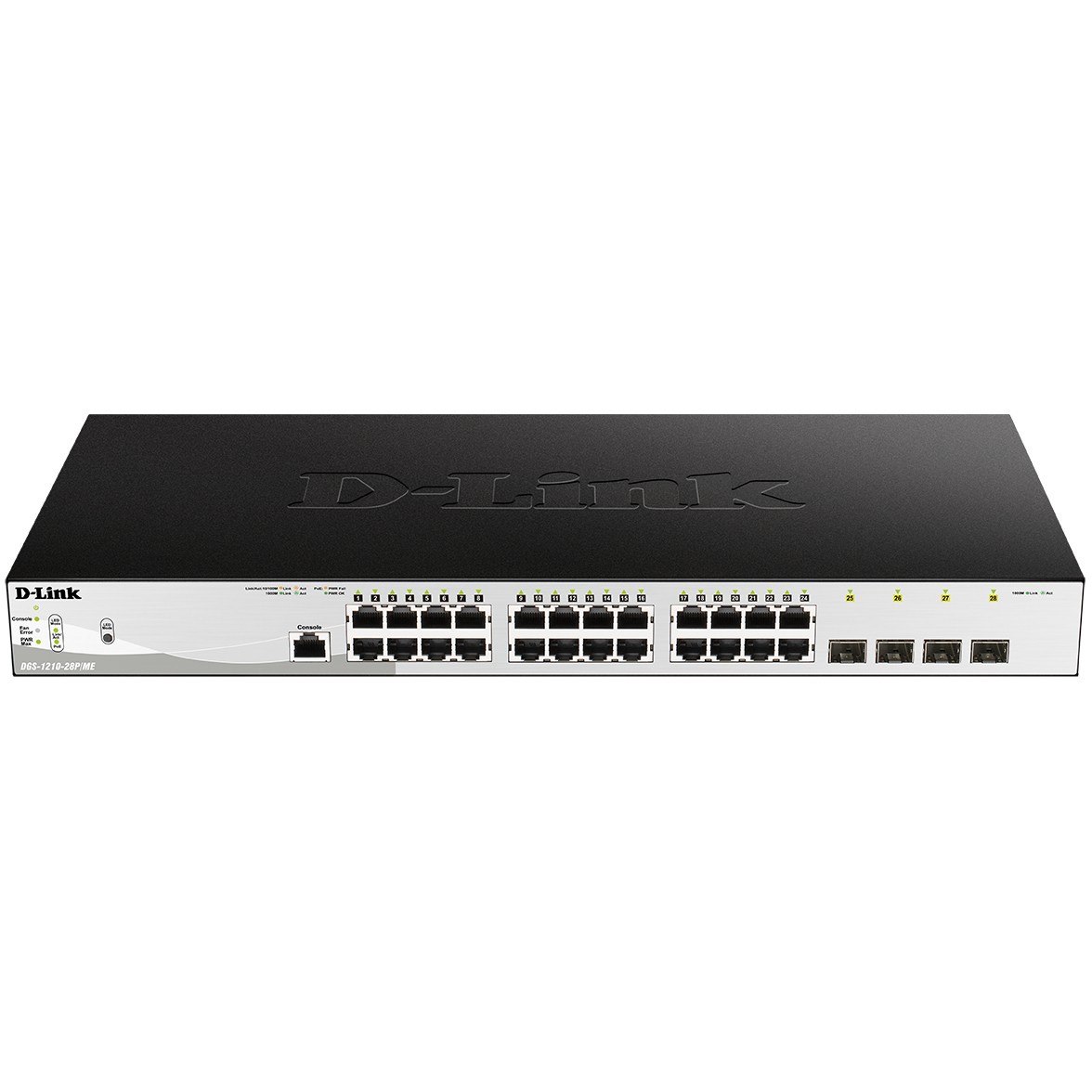

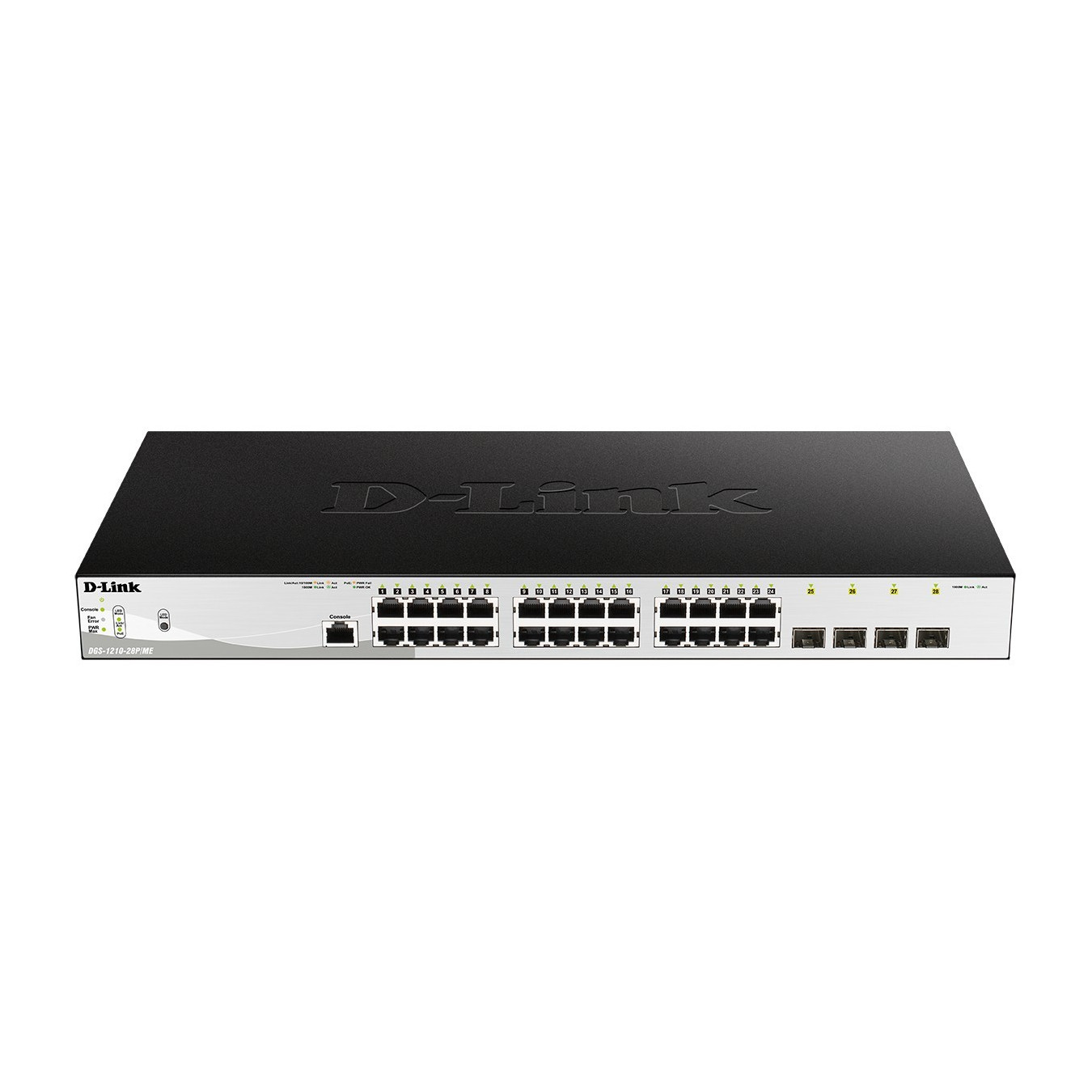

D-Link DGS-1210-28P ME/E - 28-Port Gigabit Smart Managed L2/L3 Switch with 24 PoE Ports (193W)
28-port D-Link DGS-1210-28P Smart Managed switch: 24x Gigabit PoE ports + 4 SFP, 193 W PoE budget, L2/L3 features, 56 Gbps switching, 1U rackmount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Smart (Web-managed) |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
D-Link DGS-1210-28P/ME/E. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 24. Installed SFP modules quantity: 4. Console port: RJ-45. Full duplex. MAC address table: 16000 entries. Switching capacity: 56 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ab. IEEE.... Power over Ethernet (PoE). Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 4 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T. 100BASE-TX. 1000BASE-T |
| Cable types supported | Cat5. Cat5e |
| Ethernet LAN data rates | 1000 Mbit/s |
| IPv4 routes | 64 |
| IPv6 routes | 32 |
| Virtual LAN features | MAC address-based VLAN. Port-based VLAN. Private VLAN. Protocol-based VLAN |
| Number of VLANs | 4094 |
| Fiber ethernet cabling technology | 1000BASE-X |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.7 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 96 |
| Number of IP interfaces | 4 |
| Packet buffer memory | 1.5 MB |
| DHCP features | DHCP client. DHCP relay. DHCP server. DHCP snooping |
| Access Control List (ACL) rules | 256 |
| Access Control List (ACL) ingress | 256 |
| Security algorithms | EAP. SNMP. SNMPv2. SNMPv3 |
| Authentication type | AAA. RADIUS. TACACS+ |
| Queue scheduling algorithms | Strict Priority Queue (SPQ). Weighted Round Robin (WRR) |
| Multicast features | Controllable multicast |
| Number of multicast groups filtered | 256 |
| Multicast Listener Discovery (MLD) snooping | MLD v1. MLD v2 |
| IPv4 & IPv6 features | Dual stack IPv4/IPv6. ICMPv6. IPv4/IPv6 access-control list (ACL). IPv6 Path MTU Discovery. IPv6 Telnet |
| Form factor | 1U |
| LED indicators | Activity. Fan fail. Link. Power. Speed |
| Number of fans | 2 fan(s) |
| Memory type | DDR3-SDRAM |
| Internal memory | 256 MB |
| Flash memory | 32 MB |
| Noise level | 52.9 dB |
| Mean time between failures (MTBF) | 331669 h |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 251.5 W |
| Power protection features | Surge protection |
| Power over Ethernet (PoE) ports quantity | 24 |
| Total Power over Ethernet (PoE) budget | 193 W |
| Operating temperature (T-T) | -5 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Heat dissipation | 857.98 BTU/h |
| Width | 440 mm |
| Depth | 210 mm |
| Height | 44 mm |
| Weight | 3.34 kg |
| Sustainability certificates | UL ECOLOGO |
| Compliance certificates | BSMI. CB. CCC. CE. Federal Communications Commission (FCC). Low Voltage Directive (LVD). VCCI |
