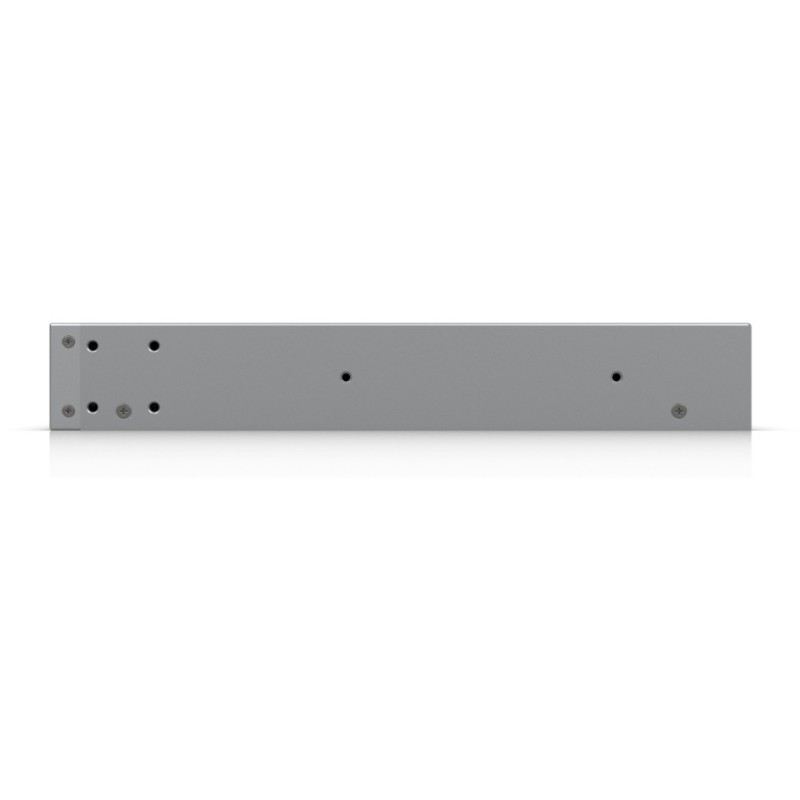

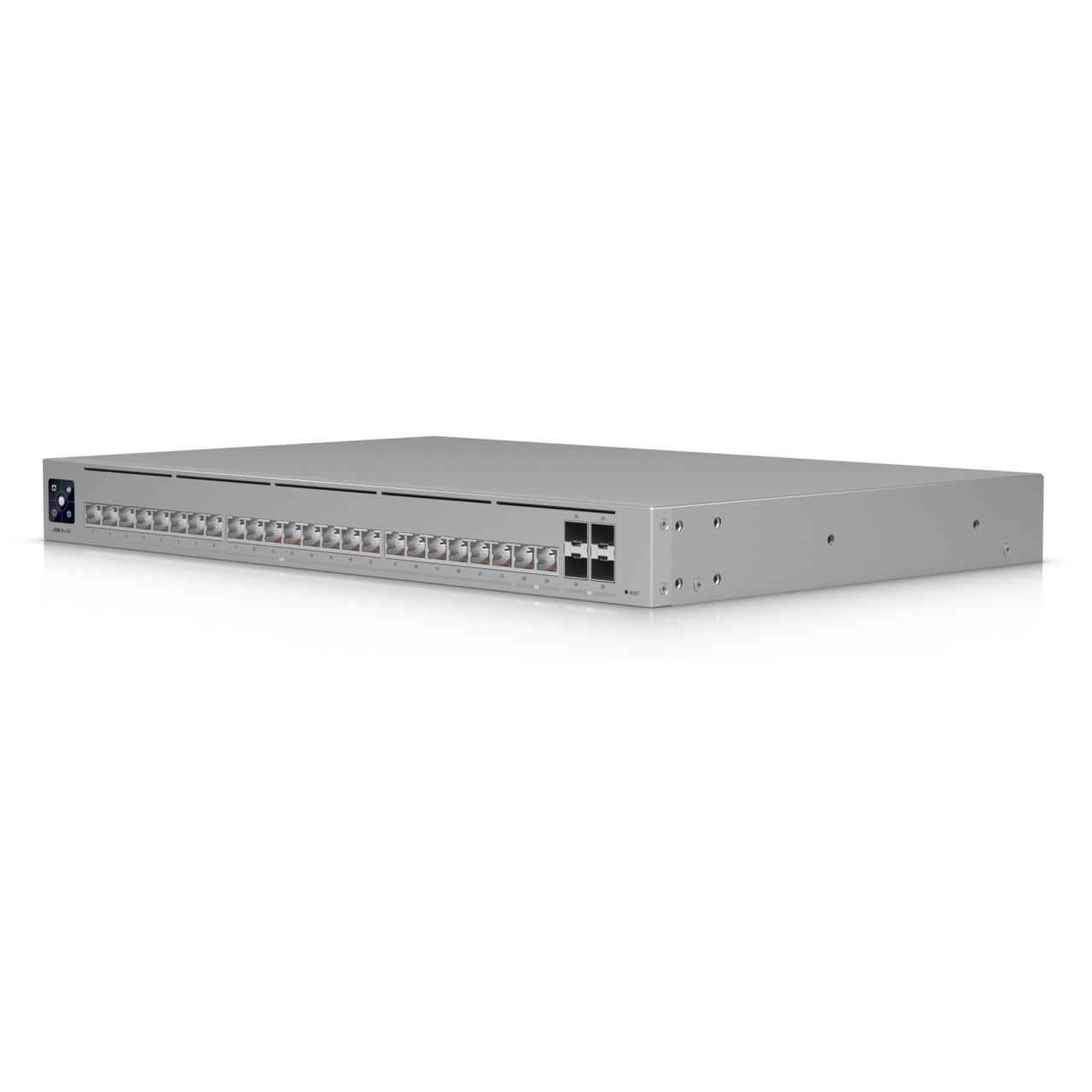

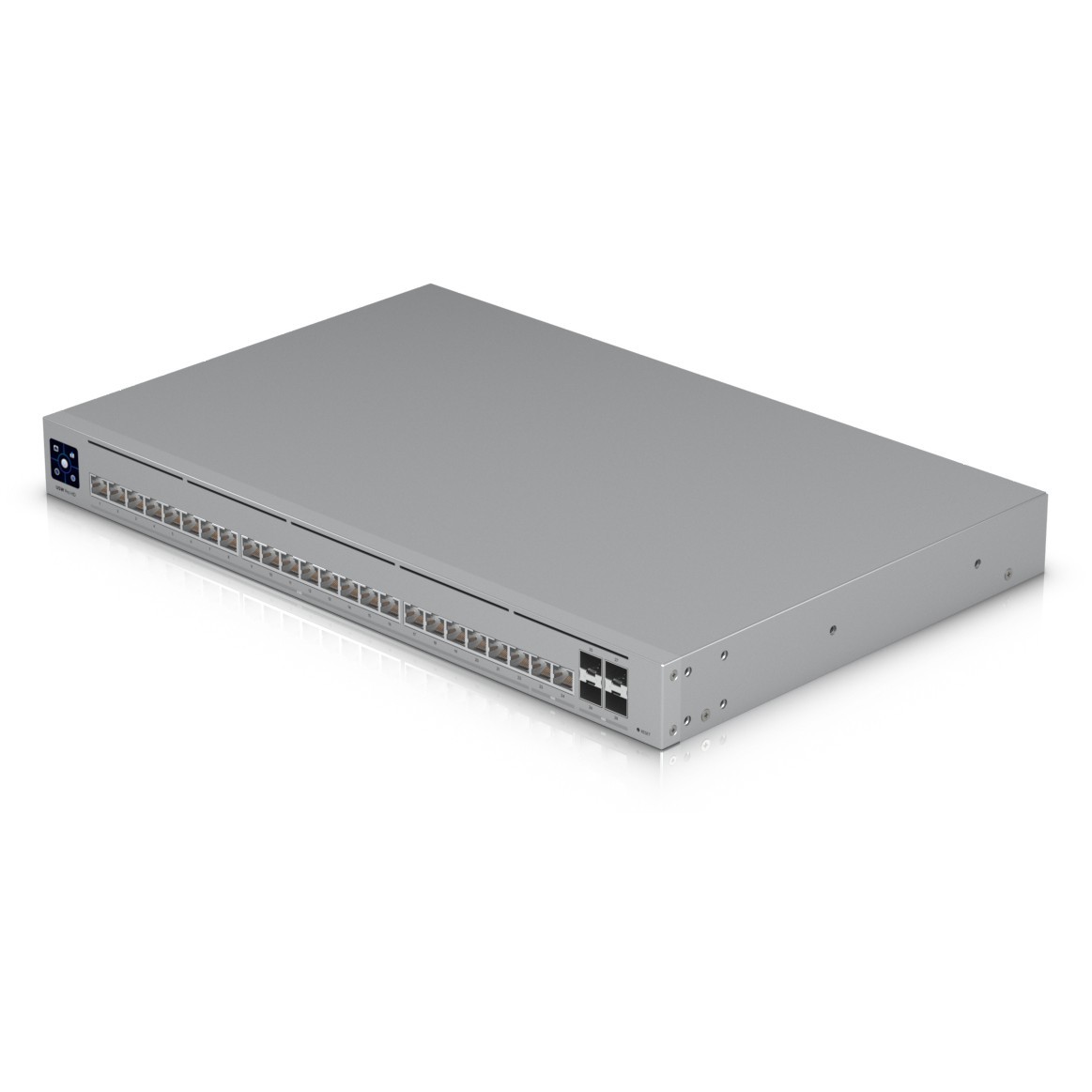

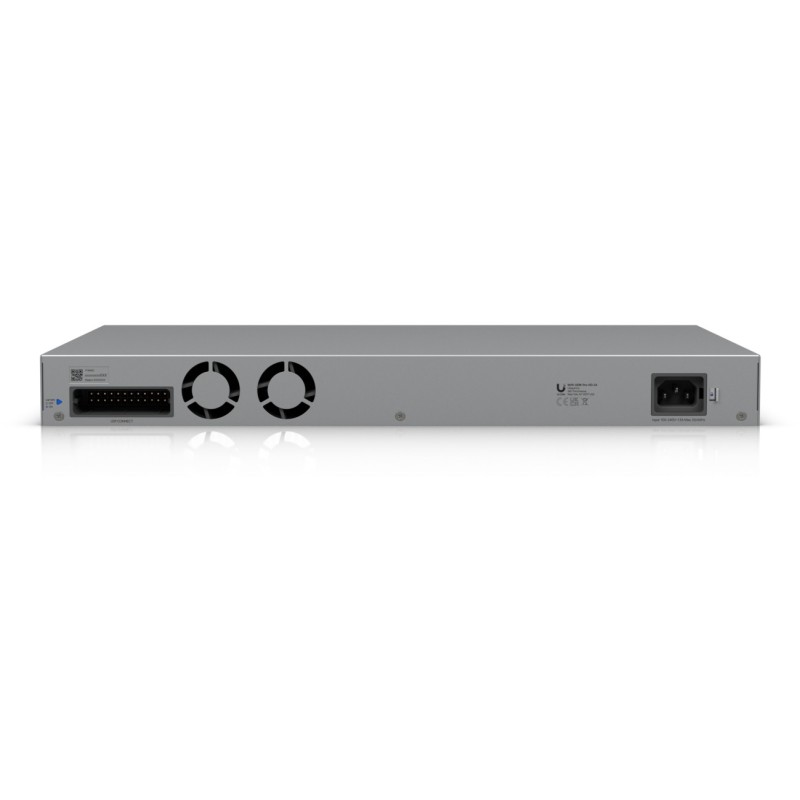

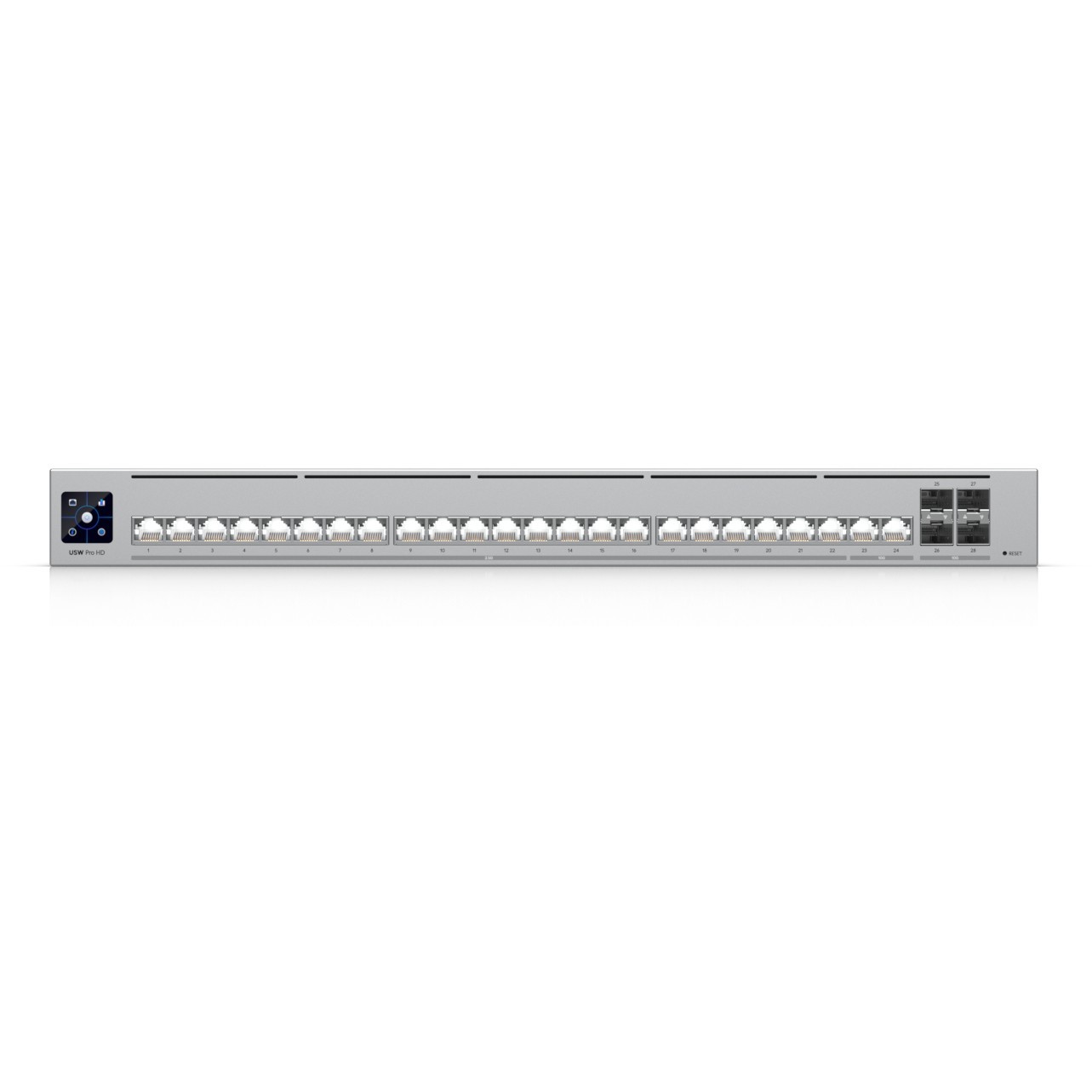

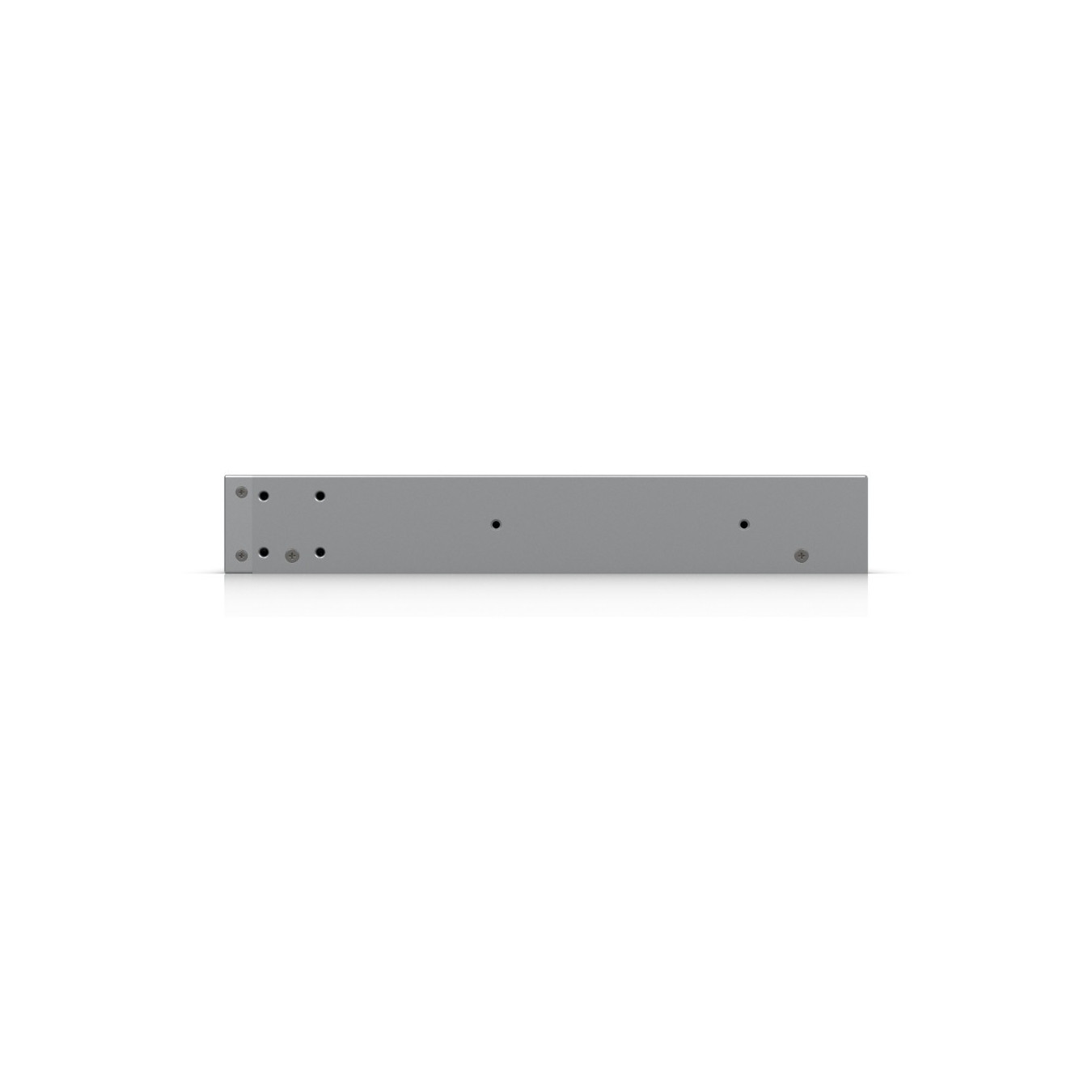

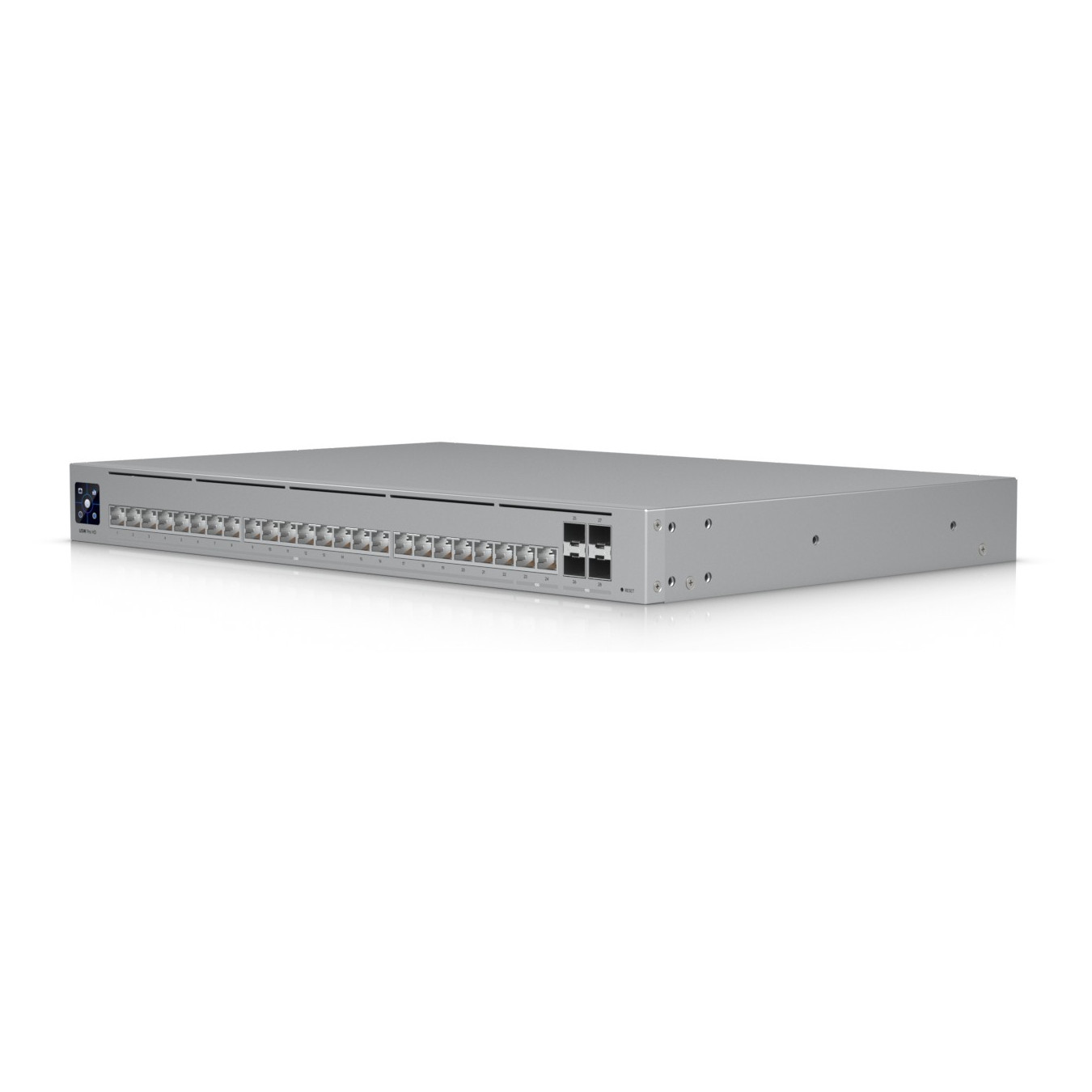

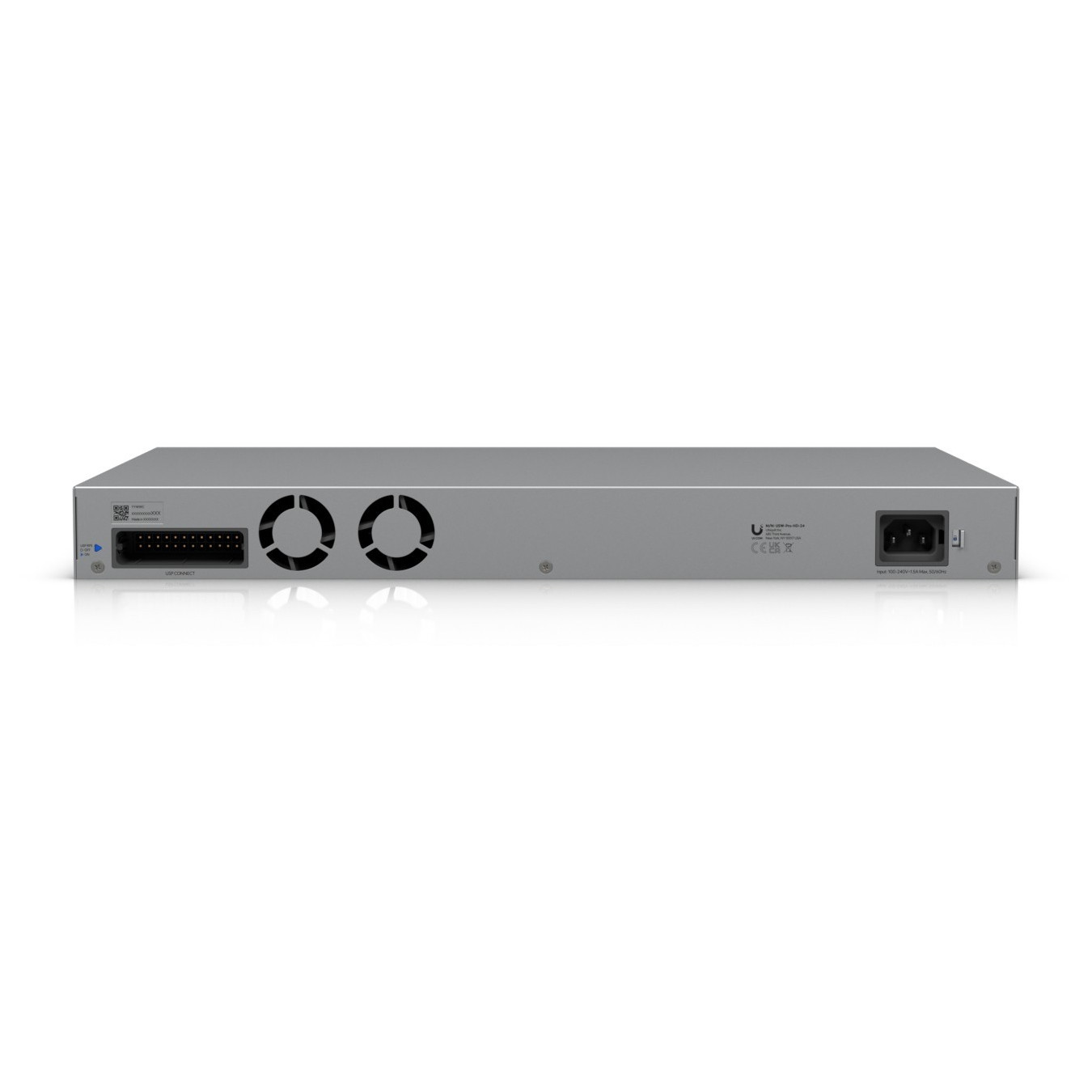

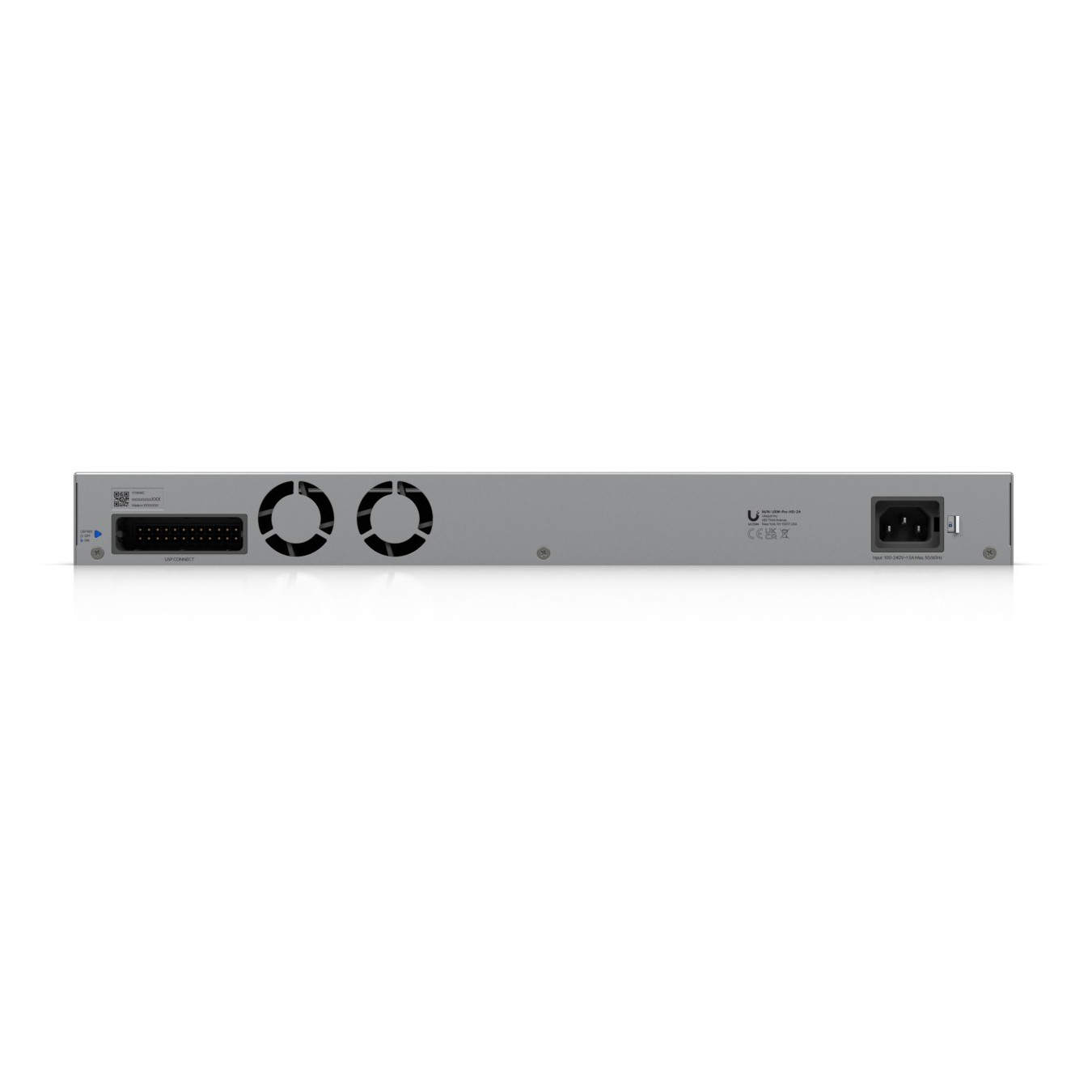

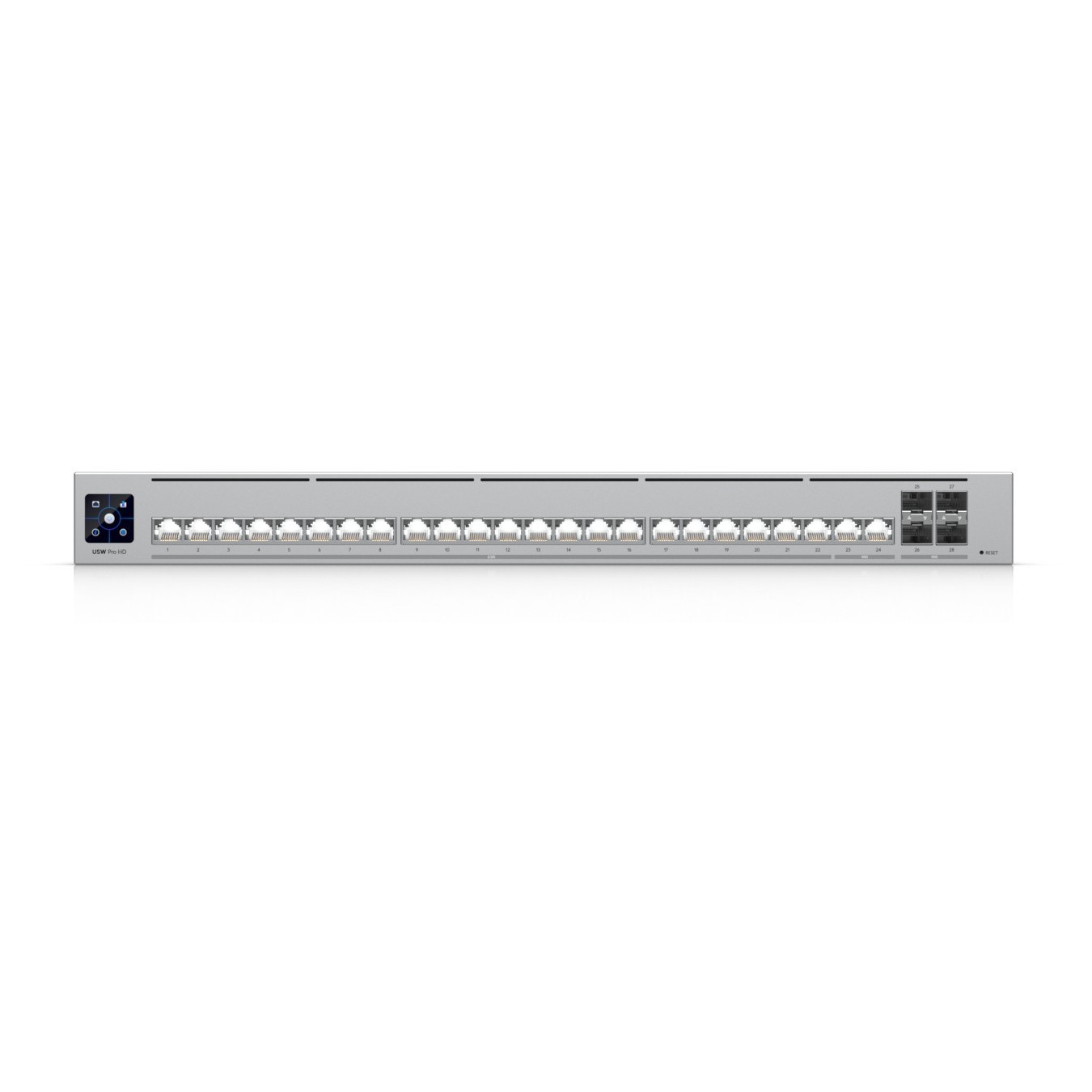

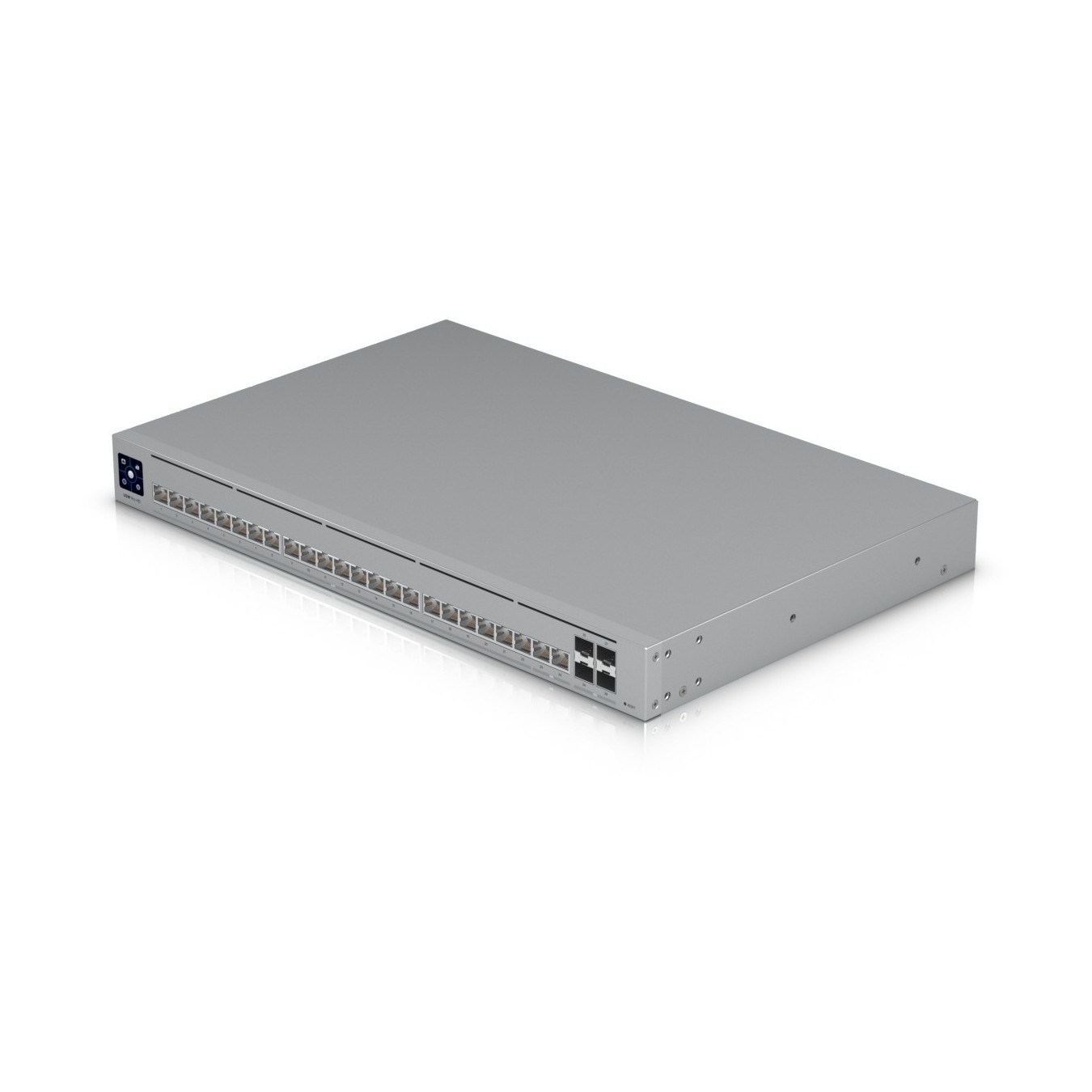

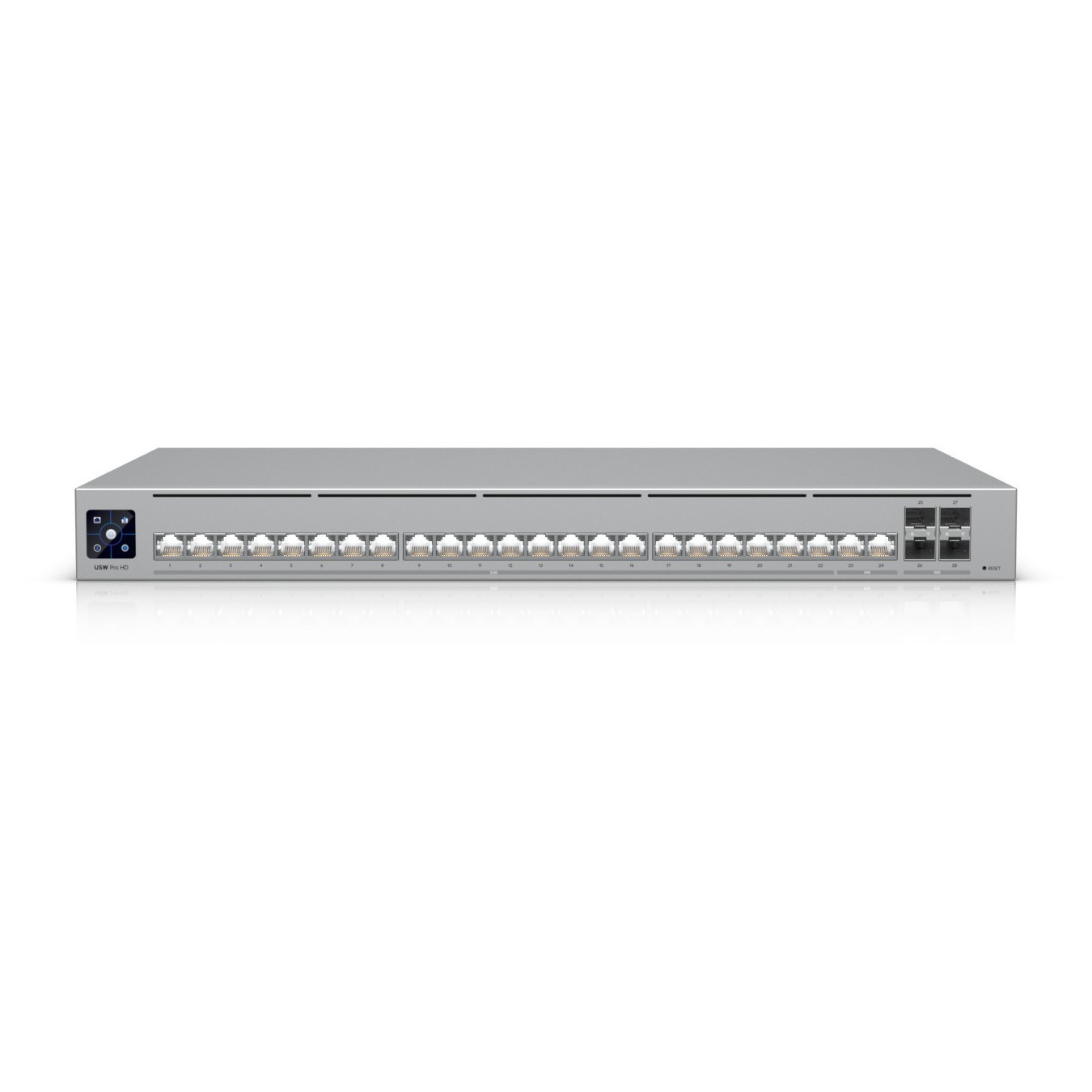

Ubiquiti UniFi Switch Pro HD 24 - USW-PRO-HD-24 - 24-Port Multi-Gig (22x2.5G, 2x10G) Rackmount 1U, Grey
Managed L2/L3 24-port switch (22x 2.5G RJ45, 2x 10G RJ45), 4 SFP+ slots, rackmount 1U, AC/DC 100-240V, max 60W, 230 Gbit/s switching
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 24 |
| Network Switches - Port Speed | Multi-Gig (2.5G) |
| Network Switches - Rackmount | Yes |
Ubiquiti UniFi Pro HD 24. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 22. MAC address table: 32000 entries. Switching capacity: 230 Gbit/s. Networking standards: IEEE 802.1x. Power connector: AC/DC. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 22 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| 2.5G Ethernet (copper) ports quantity | 22 |
| 10G Ethernet (copper) ports quantity | 2 |
| SFP+ module slots quantity | 4 |
| Power connector | AC/DC |
| Networking standards | IEEE 802.1x |
| IPv4 routes | 12000 |
| Virtual LAN features | Voice VLAN |
| Number of VLANs | 1000 |
| Switching capacity | 230 Gbit/s |
| Throughput | 115 Gbit/s |
| Forwarding rate | 171.12 Mpps |
| MAC address table | 32000 entries |
| Packet buffer memory | 2 MB |
| DHCP features | DHCP guarding. DHCP relay. DHCP server. DHCP snooping |
| Form factor | 1U |
| Product colour | Grey |
| Housing material | SGCC |
| LED indicators | Link. Speed. Status |
| Display type | LCM |
| Power source | AC/DC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 60 W |
| Operating temperature (T-T) | -5 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 102.36 BTU/h |
| Width | 442.4 mm |
| Depth | 285 mm |
| Height | 44 mm |
| Weight | 4.2 kg |

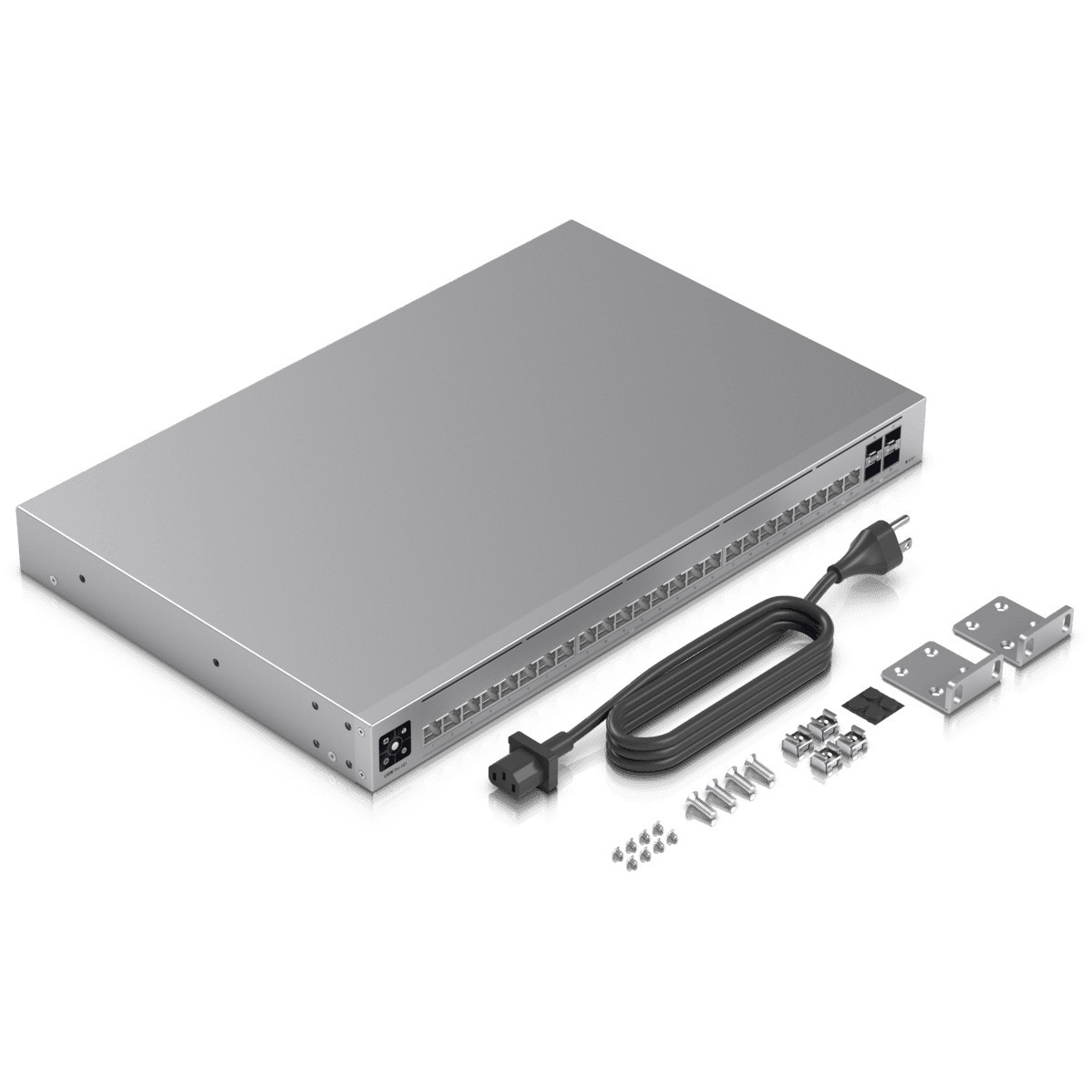

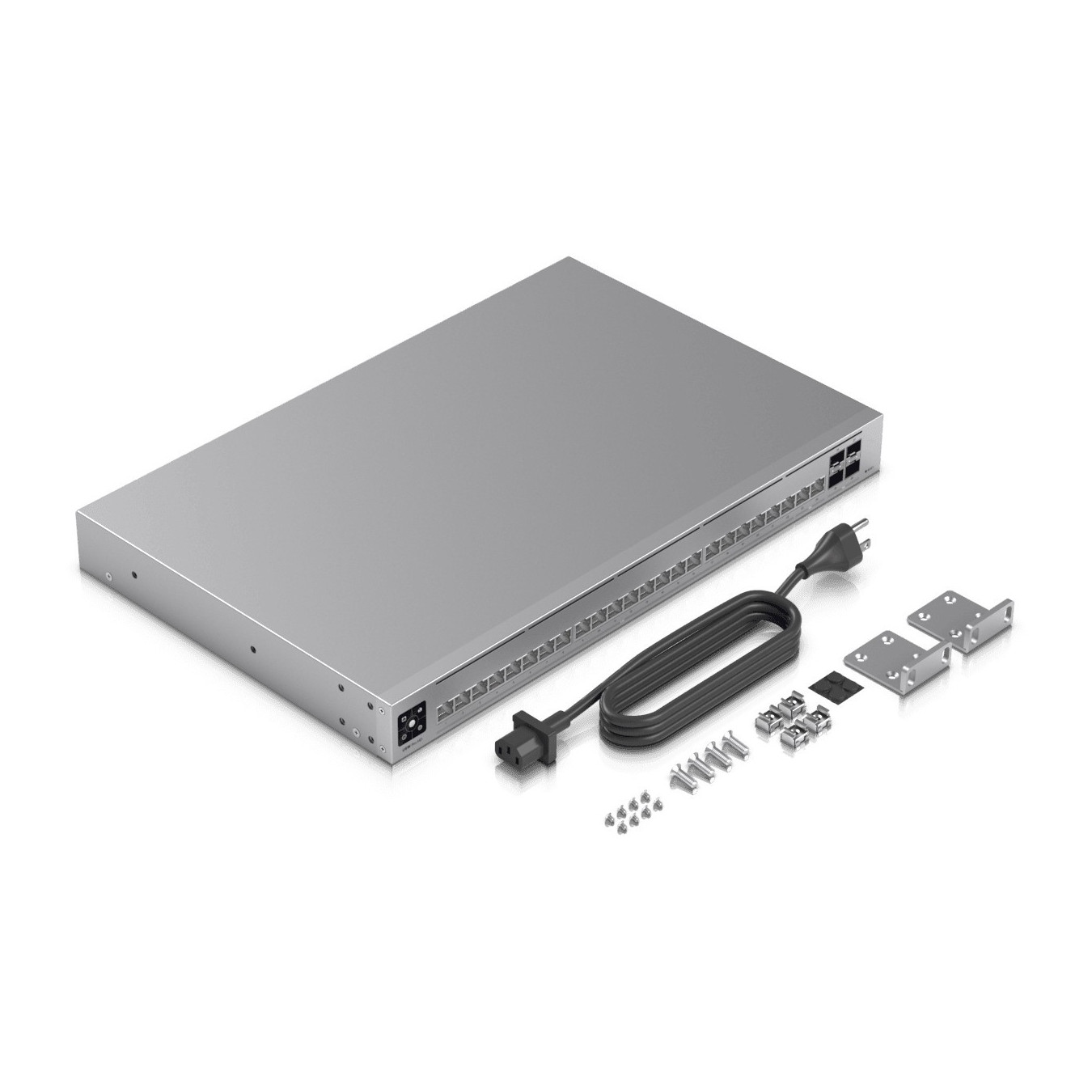

| Cables included | Power |
| Compliance certificates | CE. Federal Communications Commission (FCC). Industry Canada (IC) |
