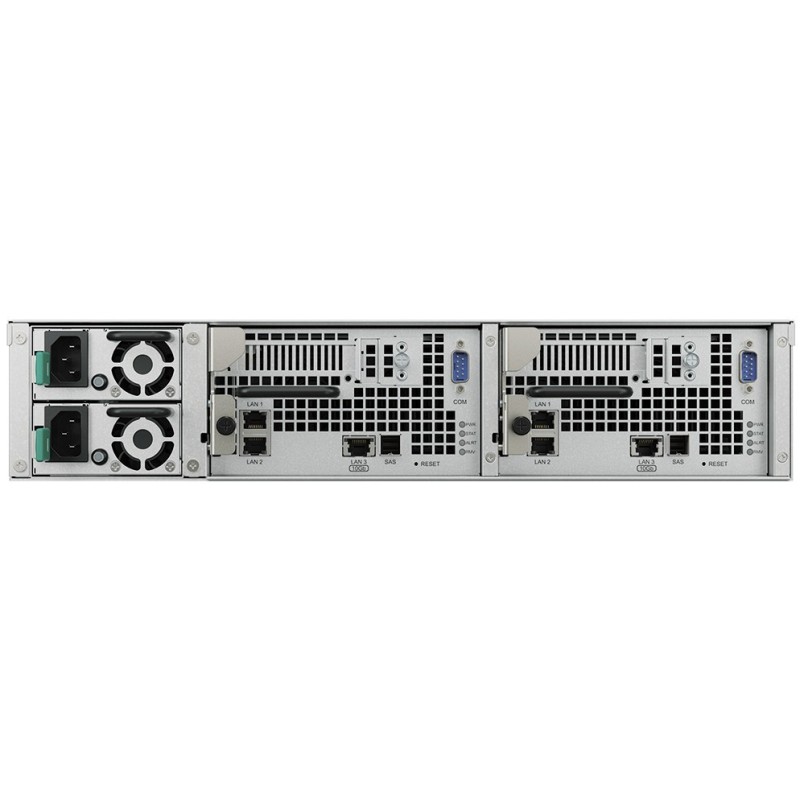

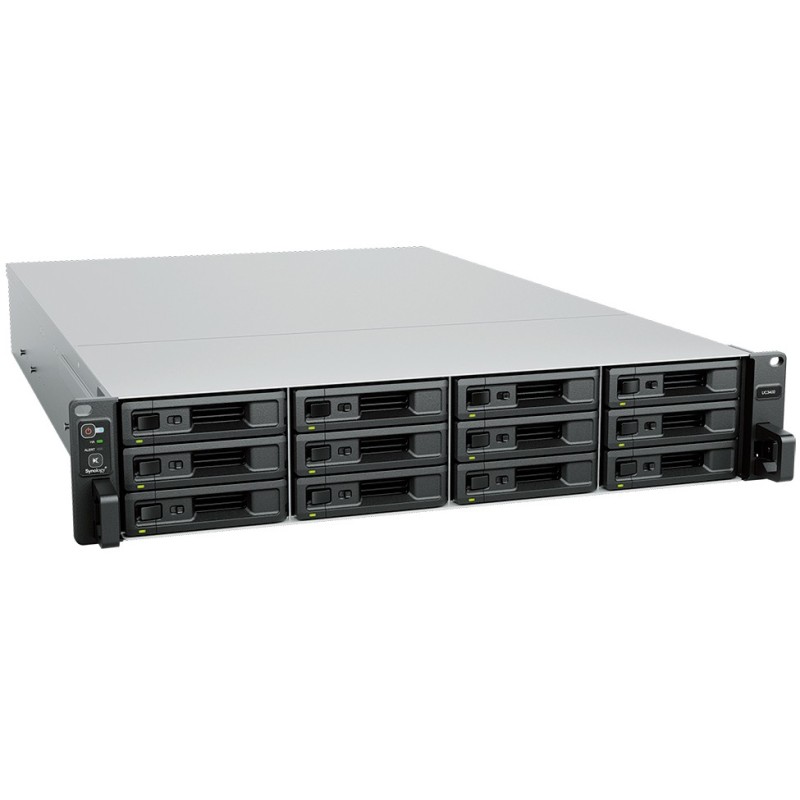

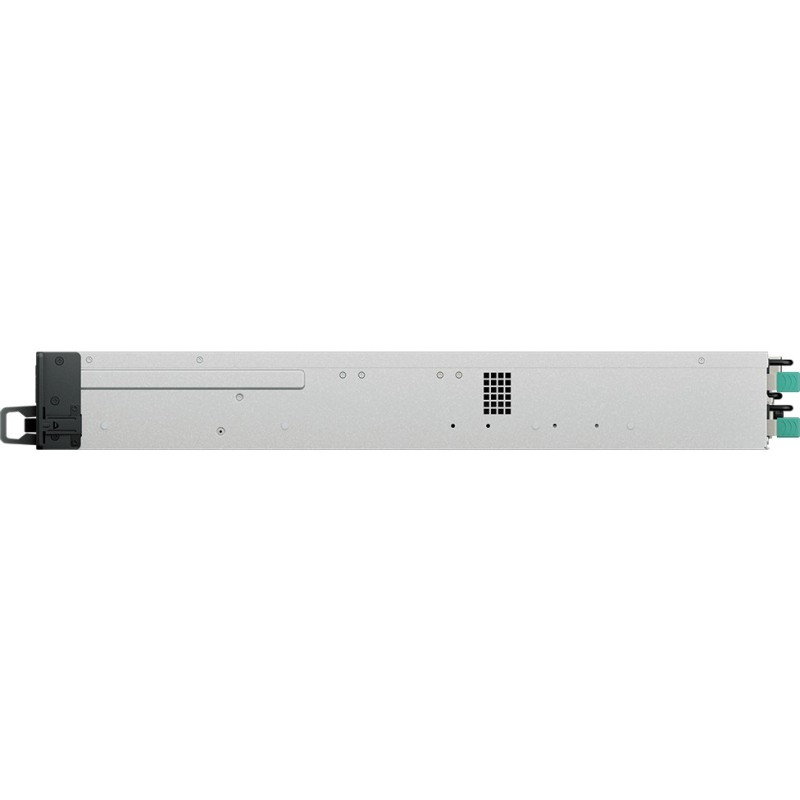

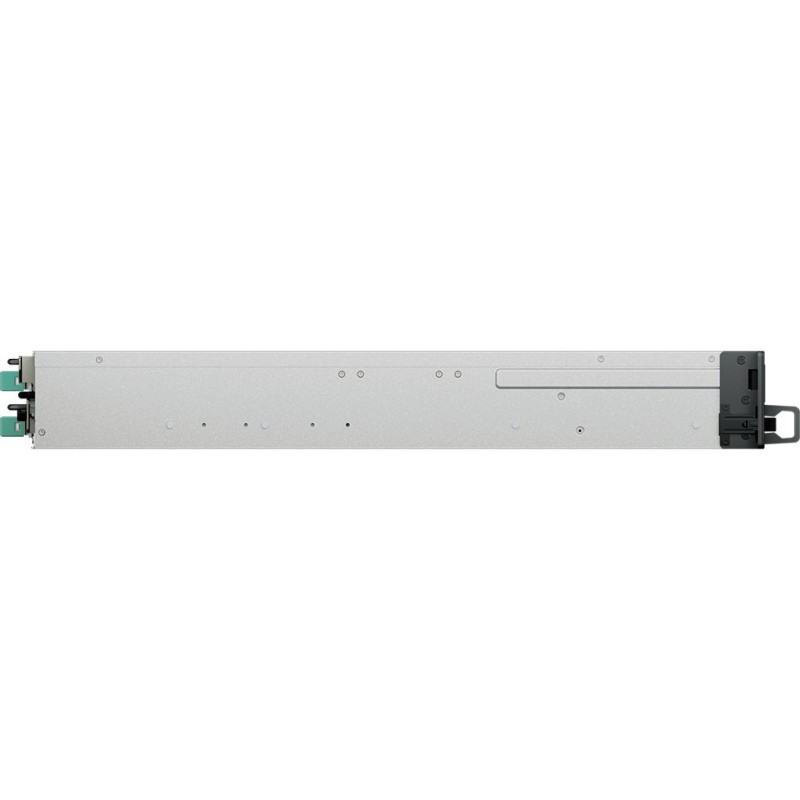

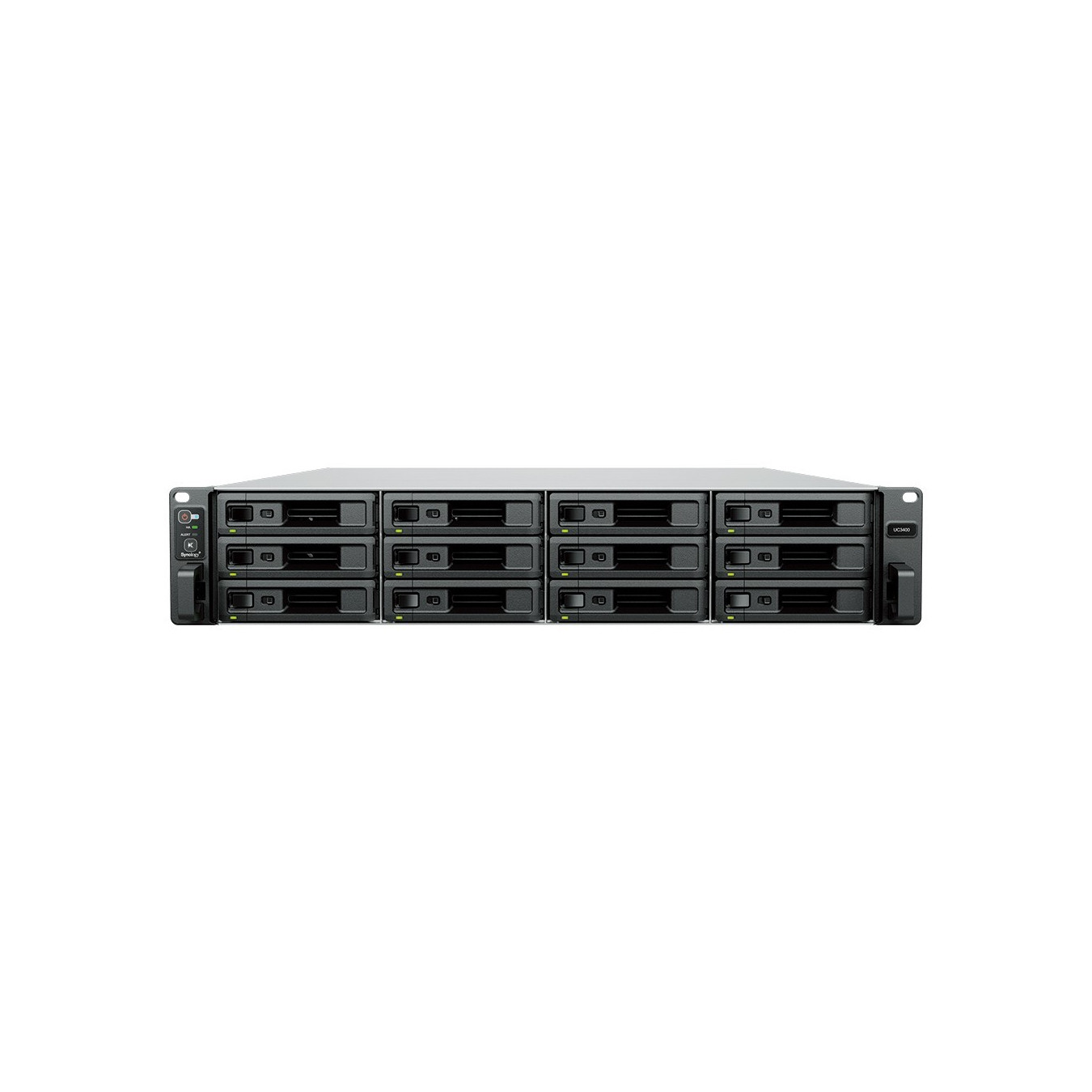

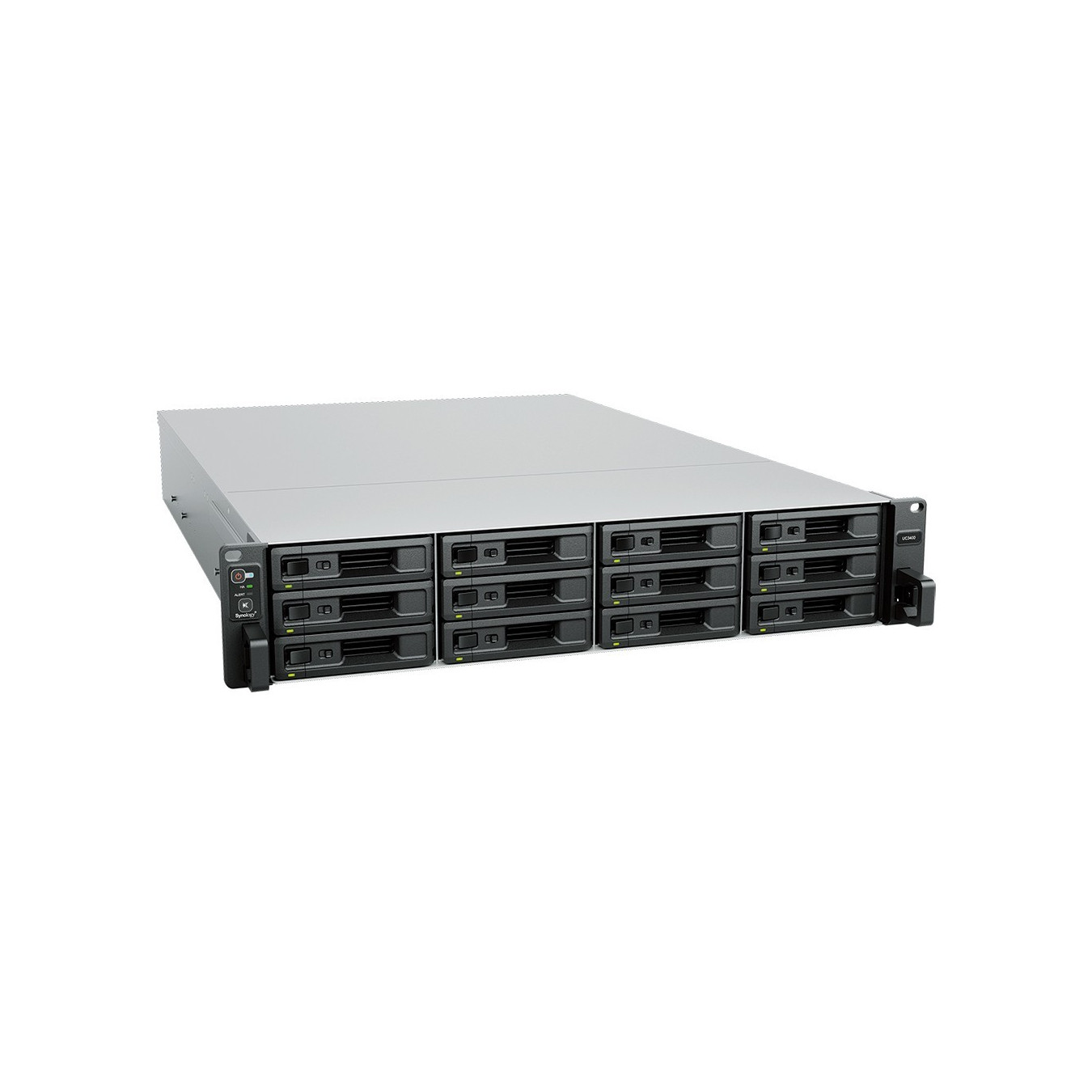

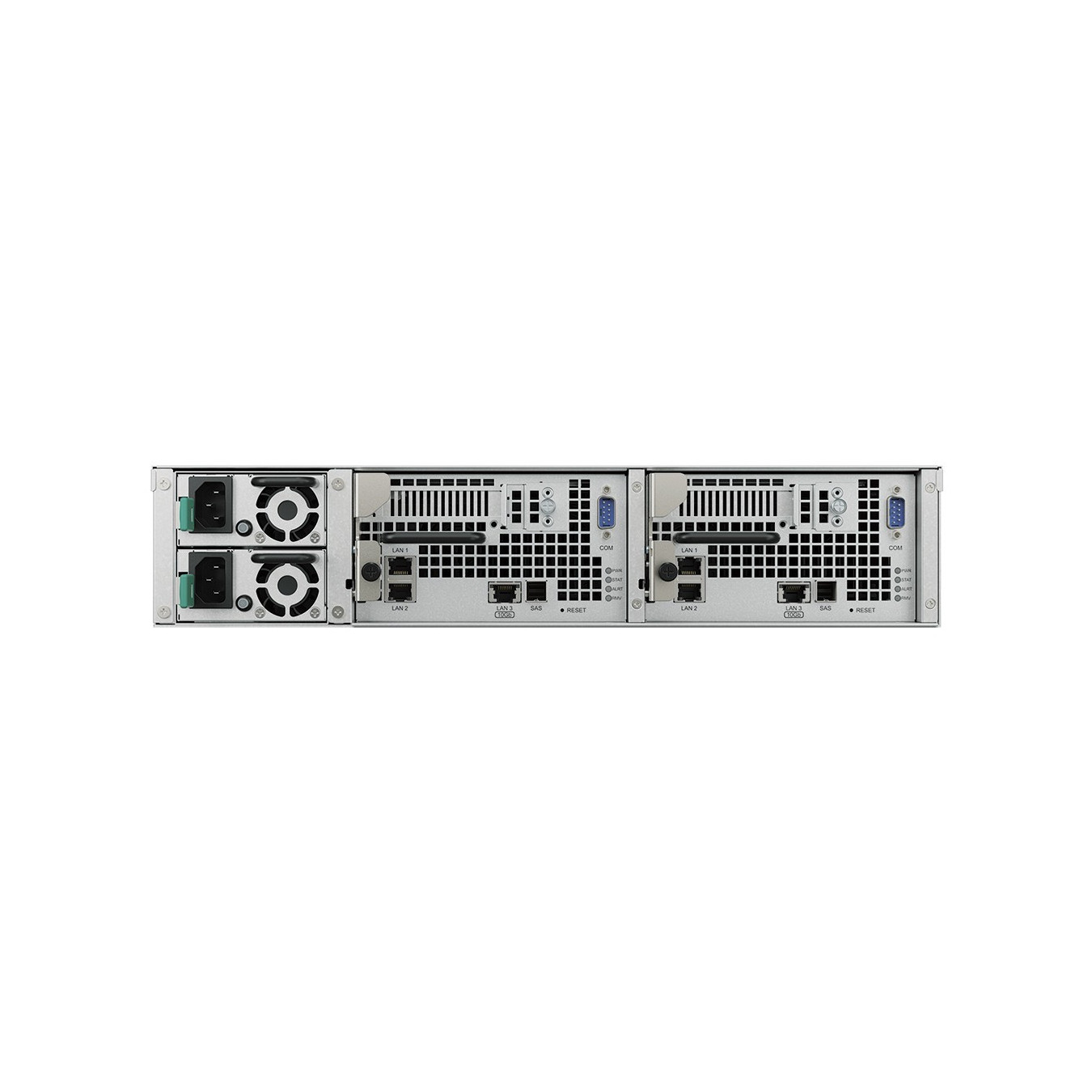

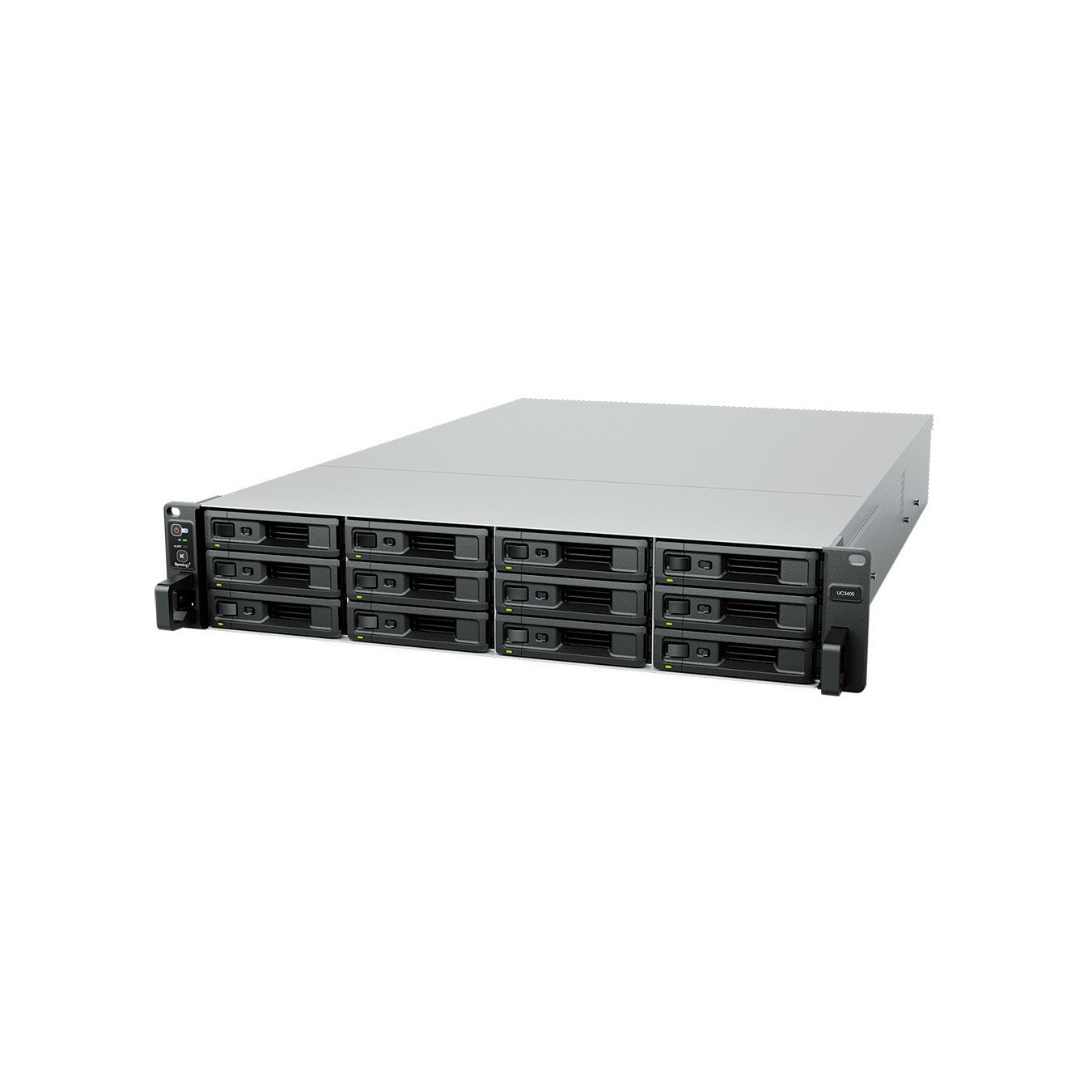

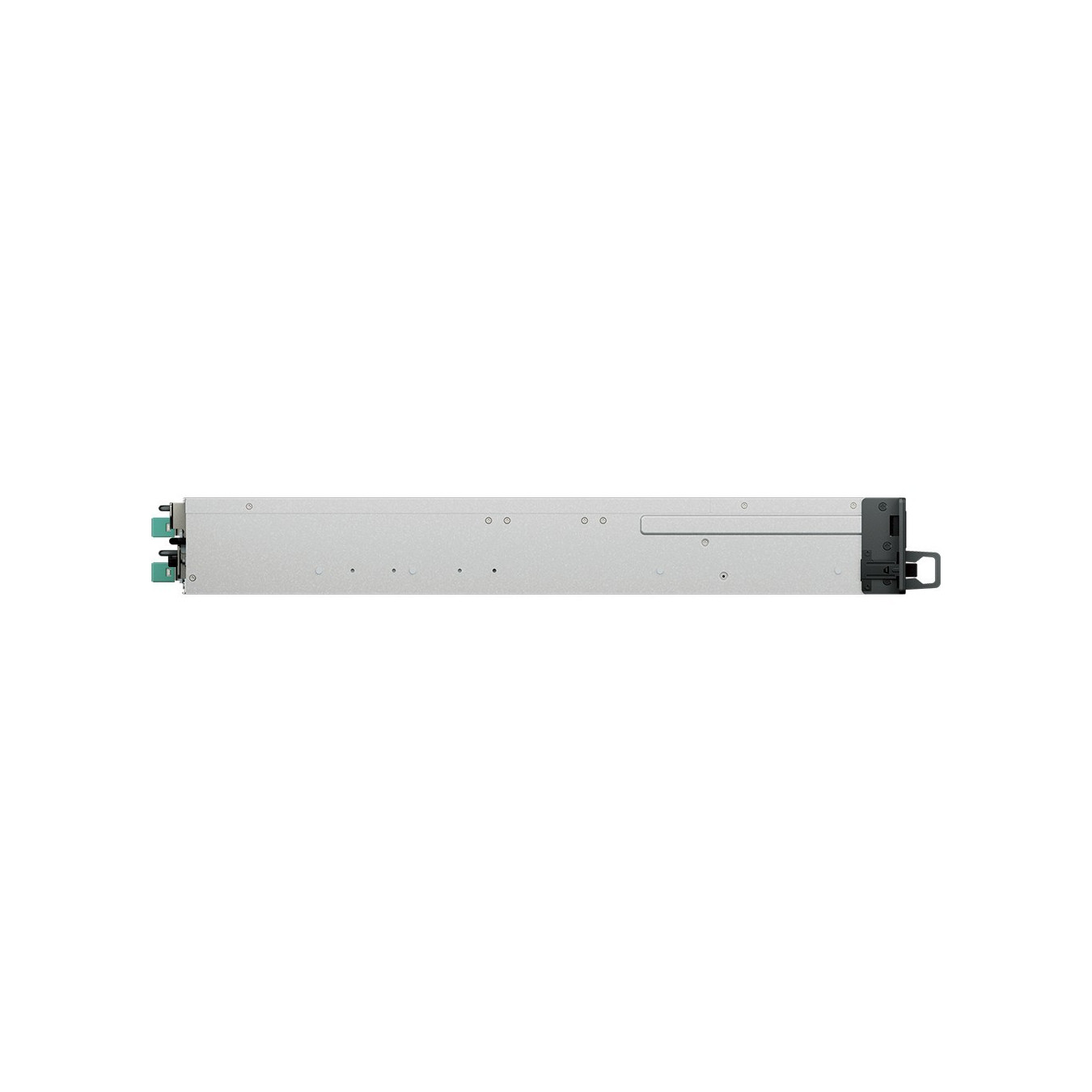

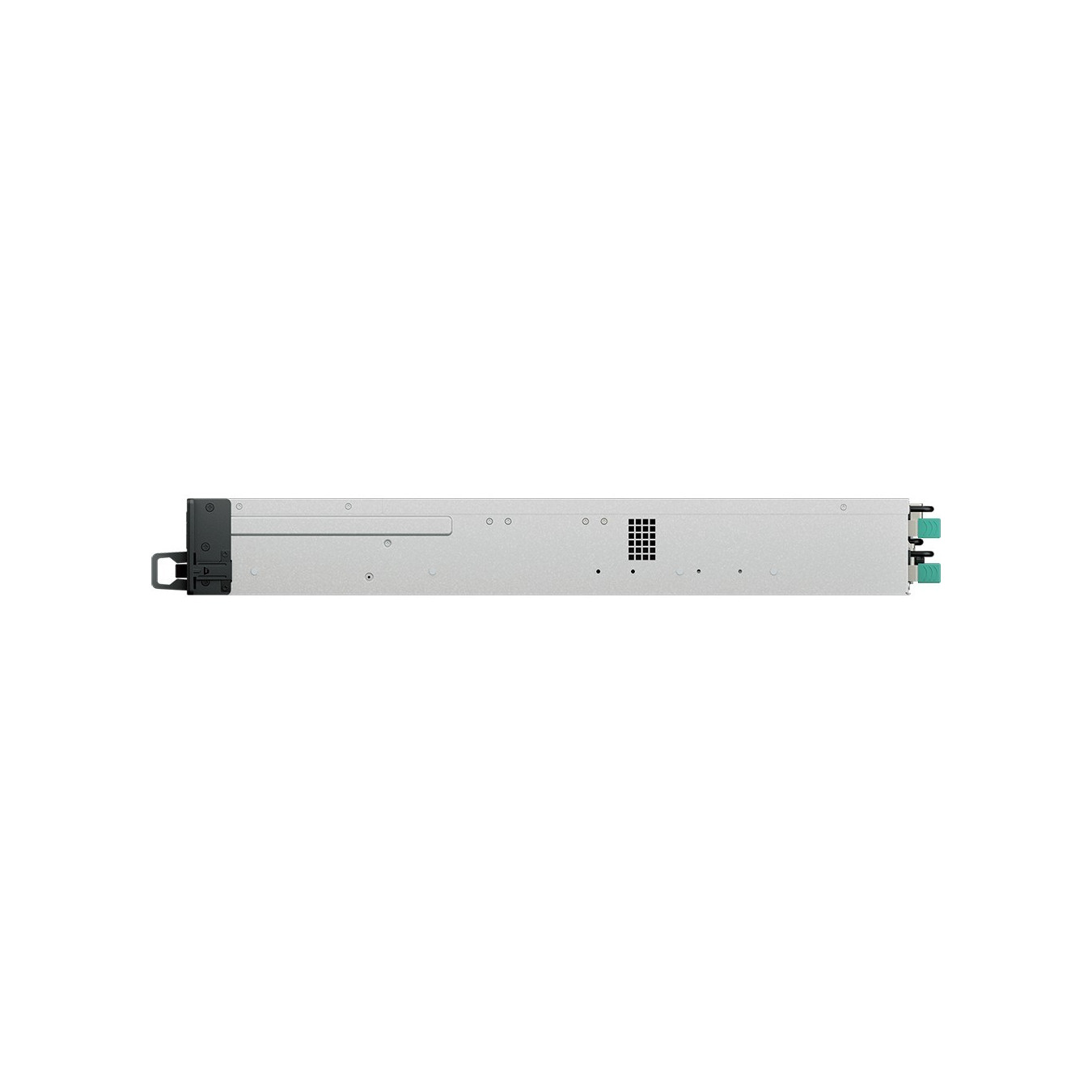

Synology UC3400 - 12-Bay 2U NAS Unified Controller - Intel Xeon D-1541 2.1/2.7GHz, 8GB DDR4, SAS, Redundant PSUs
Enterprise 12-bay 2U Synology UC3400 NAS controller: Intel Xeon D-1541 (2.1/2.7GHz), 8GB DDR4 (up to 64GB), SAS support, redundant 500W PSUs, Btrfs/ext4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Synology UC3400. Type: NAS. Chassis type: Rack (2U). Processor family: Intel® Xeon® D. Processor model: D-1541. Processor frequency: 2.1 GHz. Internal memory: 8 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB
| Storage drive capacity | 0 GB |
| Storage drive interface | Serial Attached SCSI (SAS) |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Redundant power supply (RPS) support |
| RAID levels | 0. 1. 5. 10. JBOD |
| Supported file systems | BTRFS. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 12 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel® Xeon® D |
| Processor model | D-1541 |
| Processor frequency | 2.1 GHz |
| Processor boost frequency | 2.7 GHz |
| Processor cores | 8 |
| Processor cache | 12 MB |
| CPU configuration (max) | 1 |
| Internal memory | 8 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 64 GB |
| Ethernet LAN data rates | 10.100.1000.10000 Mbit/s |
| Supported network protocols | SMB1 (CIFS). SMB2. SMB3. NFSv3. NFSv4. NFSv4.1. NFS Kerberized sessions. iSCSI. Fibre Channel. HTTP. HTTPs. FTP. SNMP. LDAP. CalDAV |
| Ethernet LAN (RJ-45) ports | 3 |
| Chassis type | Rack (2U) |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Fan diameter | 6 cm |
| Type | NAS |
| Power supply unit (PSU) capacity | 500 W |
| Number of power supply units | 2 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Width | 482 mm |
| Depth | 724 mm |
| Height | 88 mm |
| Weight | 19.7 kg |
| Intel Secure Key Technology version | 1.00 |
| Intel TSX-NI version | 1.00 |
| Operating temperature (T-T) | 0 - 35 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 60 °C |
