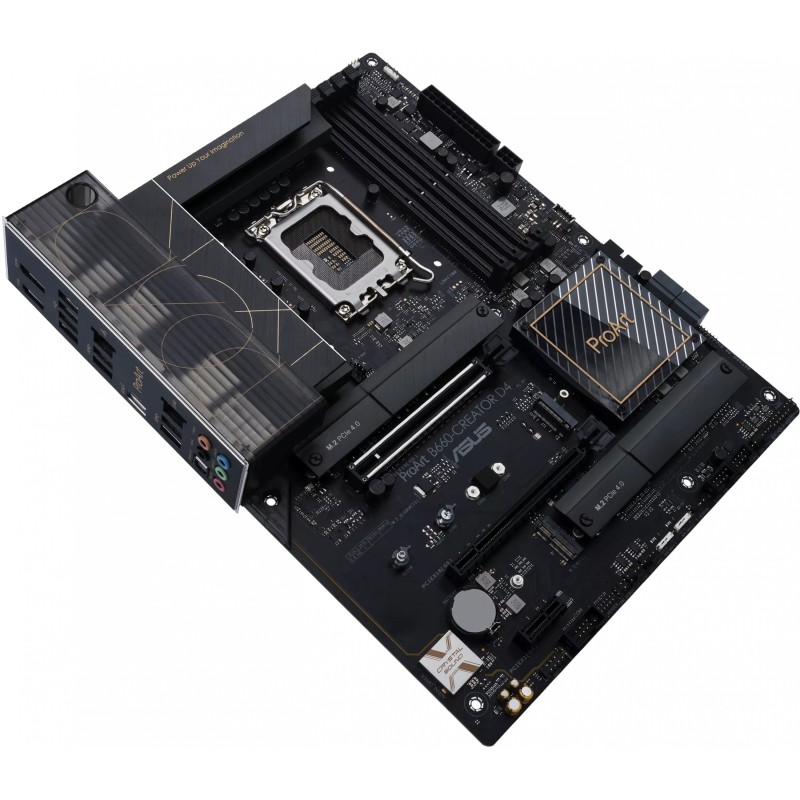

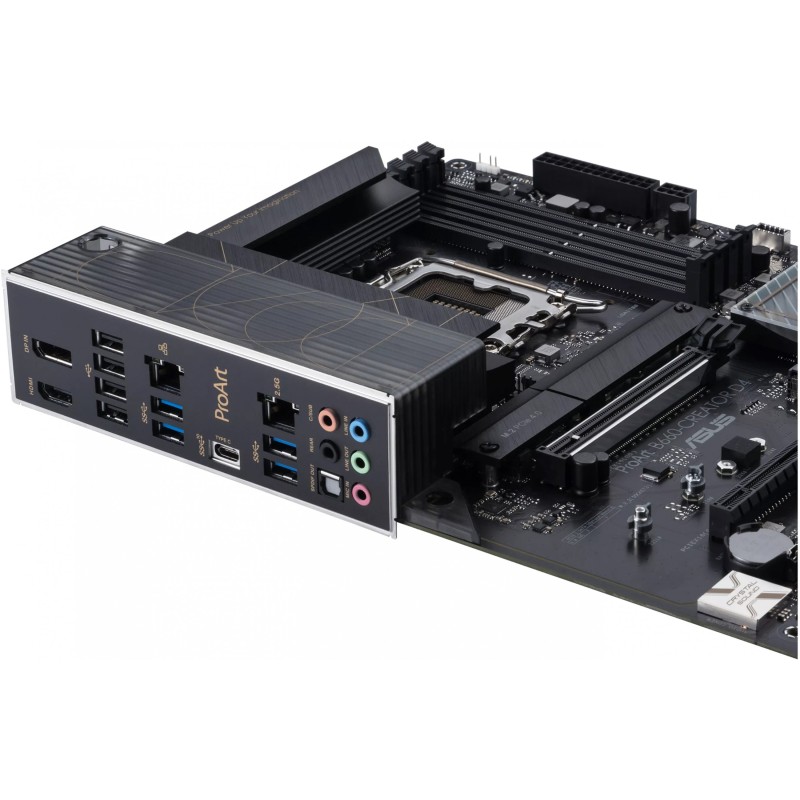

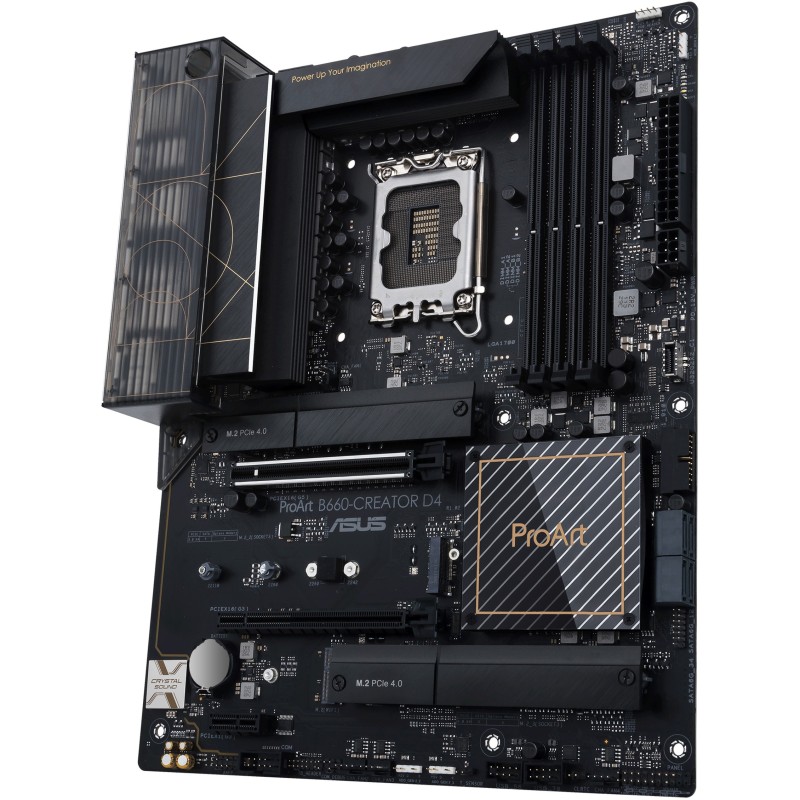

ASUS ProArt B660-CREATOR D4 - LGA1700 ATX Motherboard - DDR4, 128GB, PCIe 5.0, 2.5Gb LAN, Thunderbolt Header
ASUS ProArt B660-CREATOR D4 ATX motherboard for LGA1700 Intel CPUs. Supports DDR4 up to 128GB, PCIe 5.0, 3x M.2, 4x SATA, HDMI 2.1, DP1.4, 2.5Gb + Gigabit LAN.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B660 |
| Motherboards - Form Factor | ATX |
| Motherboards - Memory Type | DDR4 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 5.0 |
| Motherboards - M.2 Slots | 3 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C | Rear Type-C |
ASUS PROART B660-CREATOR D4. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9..... Supported memory types: DDR4-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. PCI Express 3.0. PCI Express 4.0. SATA III. Supported storage drive types: HDD & SSD. RAID levels: 0. 1. 5. 10. USB connector type: USB Type-A. USB Type-C. Ethernet interface type: 2.5 Gigabit Ethernet. Gigabit Ethernet
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9. Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 2133.2400.2666.2800.2933.3000.3200.3333.3400.3466.3600.3733.3866.4000.4266.4400.4600.4800.5000.5333 MHz |
| Maximum internal memory | 128 GB |
| Feature | Clear CMOS jumper |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. PCI Express 3.0. PCI Express 4.0. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID levels | 0. 1. 5. 10 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Number of COM connectors | 1 |
| Thunderbolt headers | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 5 |
| Digital audio optical out | 1 |
| USB connector type | USB Type-A. USB Type-C |
| Ethernet interface type | 2.5 Gigabit Ethernet. Gigabit Ethernet |
| Motherboard chipset | Intel B660 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Power source type | ATX |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 3 |
| BIOS memory size | 128 Mbit |
| Harmonized System (HS) code | 84733020 |
| Width | 305 mm |
| Depth | 244 mm |
| Height | 68 mm |
| Cables included | SATA |
| Weight | 1.42 kg |
