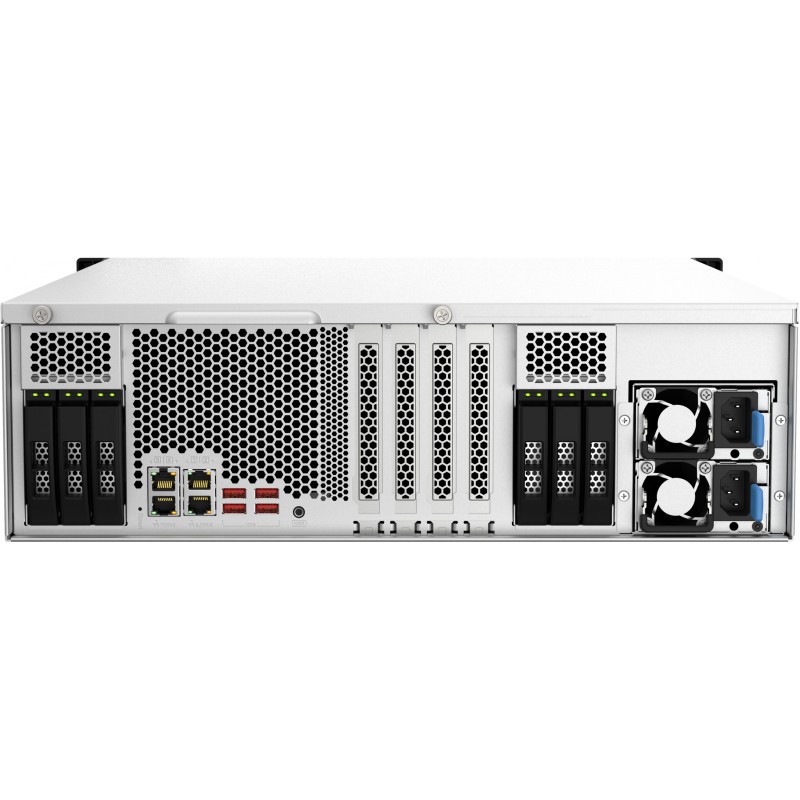

QNAP TS-h2287XU-RP - E-2378 Xeon 8C/16T 2.6–4.8GHz - 64GB ECC DDR4, 22-bay 3U Rack NAS (Black/White)
Enterprise 22-bay QNAP TS-h2287XU-RP NAS — Intel Xeon E-2378 (8C/16T 2.6–4.8GHz), 64GB ECC DDR4, QuTS hero, dual 550W PSUs, 10GBASE-T, 4x USB 3.2 Gen2, 3U rack.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Bays | 12+ |
|---|---|
| NAS (Network Attached Storage) - Drive Type | 3.5inch HDD |
| NAS (Network Attached Storage) - RAID Levels | JBOD |
| NAS (Network Attached Storage) - USB | USB 3.0 |
QNAP TS-H2287XU-RP. Type: NAS. Chassis type: Rack (3U). Device class: Large Enterprise Business. Processor family: Intel Xeon E. Processor model: E-2378. Processor frequency: 2.6 GHz. Internal memory: 64 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QuTS hero
| Storage drive interface | Serial ATA III |
| Supported storage drive interfaces | Serial ATA III |
| Storage drive sizes supported | 2.5.3.5" |
| System drive sizes supported | 3.5" |
| Feature | Fibre Channel |
| RAID levels | 0. 1. 5. 6. 10. 50. 60. JBOD |
| Supported file systems | FAT32. HFS+. NTFS. ZFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 22 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon E |
| Processor model | E-2378 |
| Processor frequency | 2.6 GHz |
| Processor boost frequency | 4.8 GHz |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor cache | 16 MB |
| CPU configuration (max) | 1 |
| Internal memory | 64 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 128 GB |
| Memory slots | 4 |
| Memory form factor | UDIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| Supported network protocols | IPv4. IPv6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 4 |
| Number of SATA III connectors | 22 |
| PCI Express x8 (Gen 4.x) slots | 1 |
| Chassis type | Rack (3U) |
| Cooling type | Active |
| Product colour | Black. White |
| Number of fans | 4 fan(s) |
| Fan diameter | 6 cm |
| Fan diameter 2 | 8 cm |
| LED indicators | HDD. LAN. Status. USB |
| Type | NAS |
| Device class | Large Enterprise Business |
| Backup features | Cloud. iSCSI LUN |
| Number of users | 16000 user(s) |
| Management protocols | SMB/CIFS. AFP. NFS |
| Security algorithms | HTTPS. SNMPv2. SNMPv3. SSH |
| Browser supported | Apple Safari (latest version). Google Chrome (latest version). Microsoft Edge (latest version). Mozilla Firefox (latest version) |
| Share folder | Thick. Thin |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Linux operating systems supported | CentOS 7.0. Ubuntu 14.04. openSUSE 12.1. openSUSE 12.2 |
| Server operating systems supported | Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1. Solaris 10 |
| Power supply location | Built-in |
| Power supply unit (PSU) capacity | 550 W |
| Number of power supply units | 2 |
| Power consumption (typical) | 228 W |
| Power consumption (HDD standby) | 165.39 W |
| Width | 432 mm |
| Depth | 511.5 mm |
| Height | 133 mm |
| Weight | 15.6 kg |
| Package weight | 22.1 kg |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 2 |
| Number of screws | 128 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
