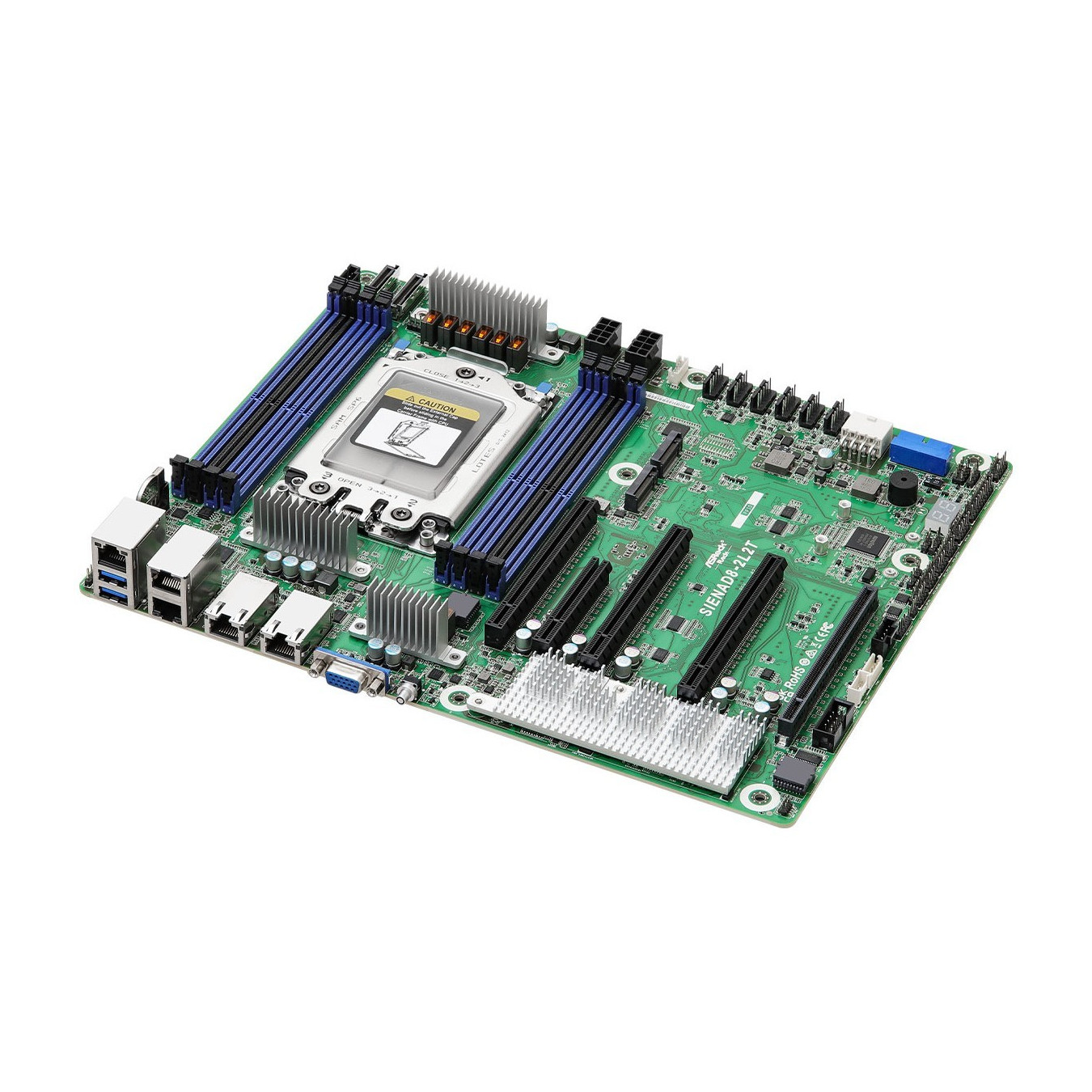

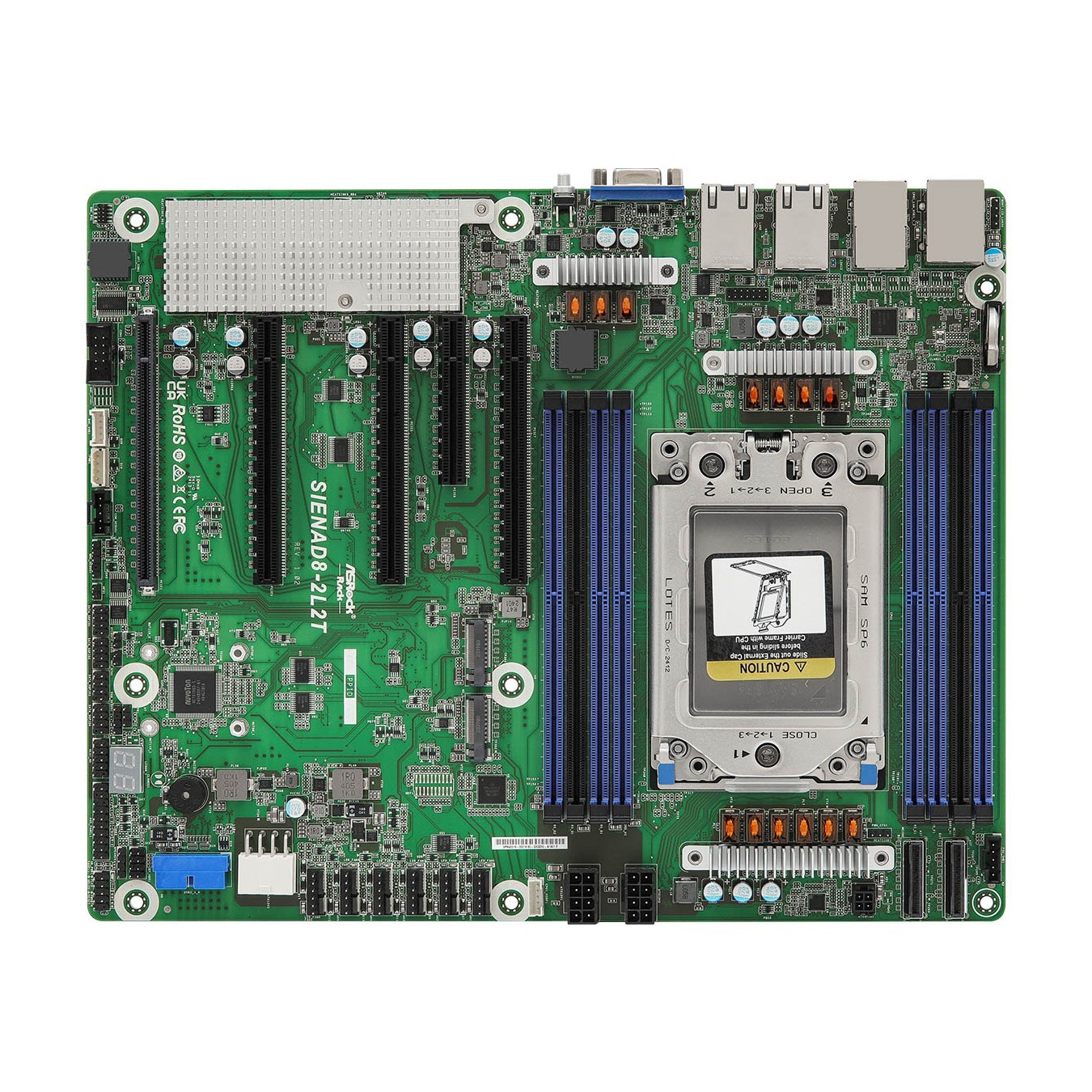

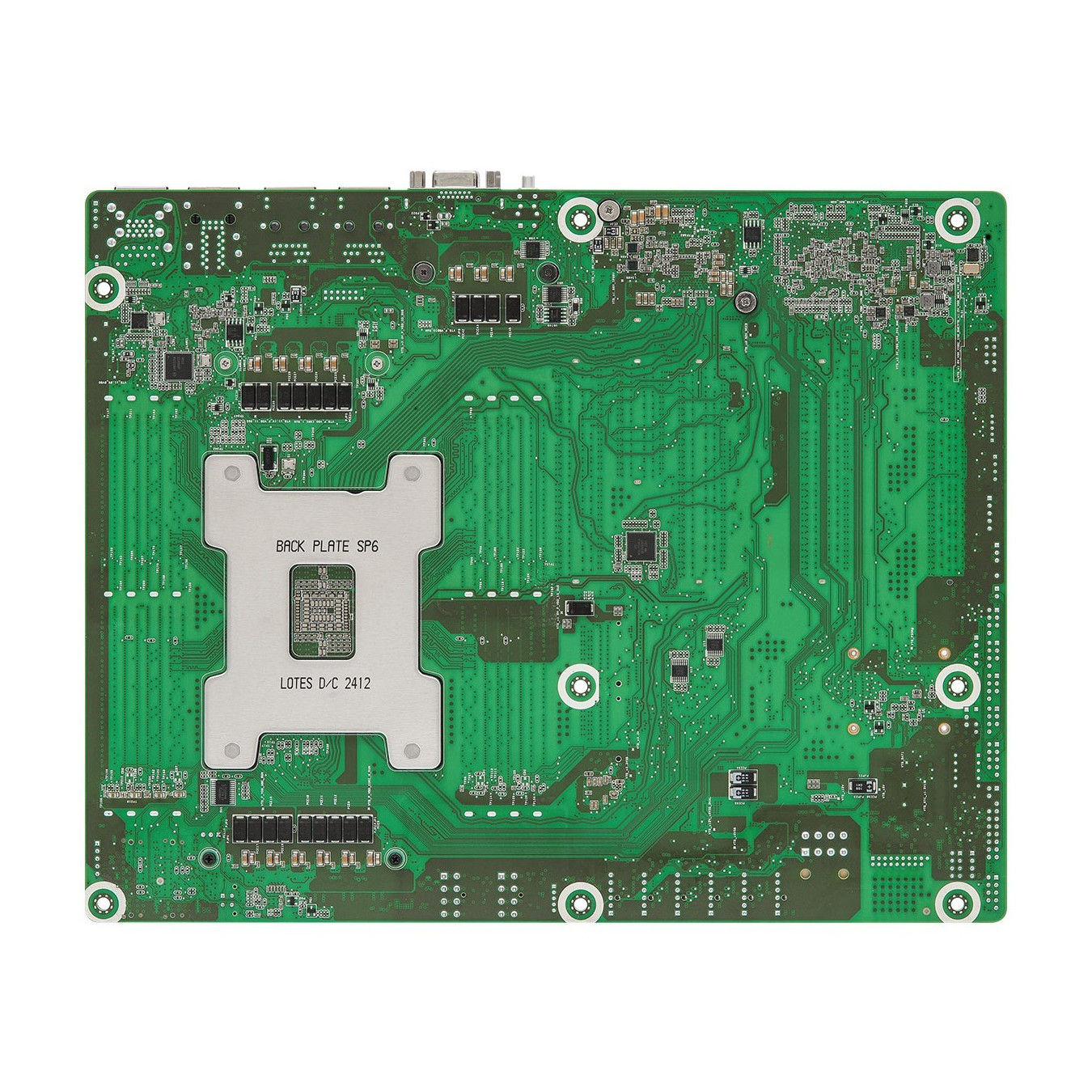

ASRock SIENAD8-2L2T - ATX SP6 Server Motherboard, AMD EPYC, DDR5 8×DIMM 4800MHz, PCIe 5.0, Dual 10GbE
Server ATX motherboard for AMD EPYC (Socket SP6). DDR5 4800MHz across 8 DIMMs, multiple PCIe 5.0 x16/x8 slots, 2x M.2 (PCIe 5.0), Dual 10GbE + 2x1GbE.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 8 (HEDT) |
|---|---|
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - M.2 Slots | 2 |
Asrock SIENAD8-2L2T. Processor manufacturer: AMD. Processor socket: Socket SP6. Compatible processor series: AMD EPYC. Supported memory types: DDR5-SDRAM. Memory slots type: DIMM. Memory voltage: 1.1 V. Supported storage drive interfaces: M.2. PCI Express 5.0. Supported storage drive types: SSD. Graphics card family: ASPEED. Graphics card: AST2600. Ethernet interface type: 10 Gigabit Ethernet. Gigabit Ethernet. LAN controller: Intel I210. Intel X710-AT2
| Processor manufacturer | AMD |
| Processor socket | Socket SP6 |
| Compatible processor series | AMD EPYC |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 8 |
| Memory slots type | DIMM |
| Memory voltage | 1.1 V |
| Supported memory clock speeds | 4800 MHz |
| Supported memory clock speed (max) | 4800 MHz |
| Supported memory module capacities | 96GB |
| Supported storage drive types | SSD |
| Supported storage drive interfaces | M.2. PCI Express 5.0 |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Feature | Ethernet LAN |
| Number of COM connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet interface type | 10 Gigabit Ethernet. Gigabit Ethernet |
| LAN controller | Intel I210. Intel X710-AT2 |
| Component for | Server |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| PCI Express x8 (Gen 5.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 4 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 3.5 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Storage relative humidity (H-H) | 20 - 90% |
| Width | 304.8 mm |
| Depth | 243.8 mm |
