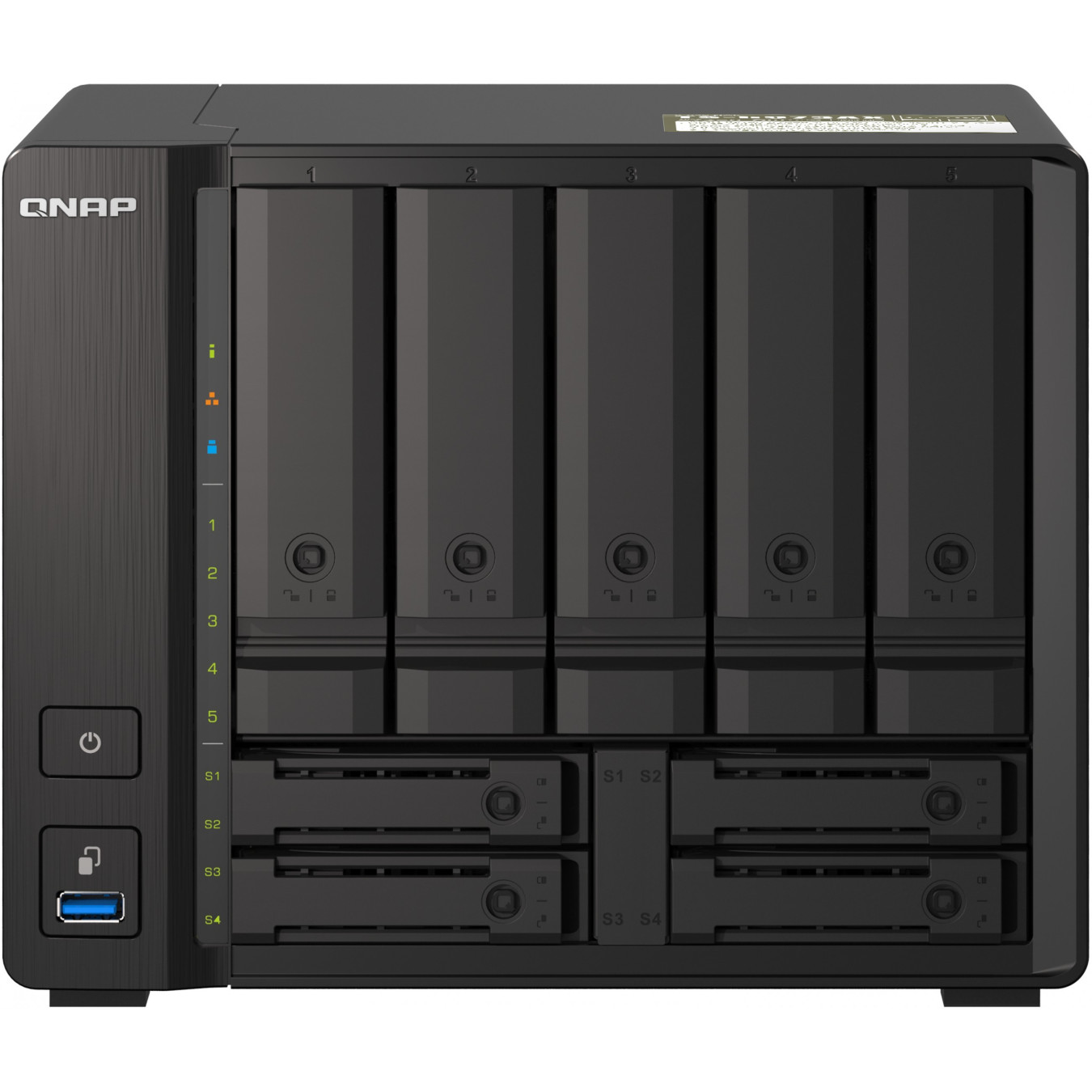

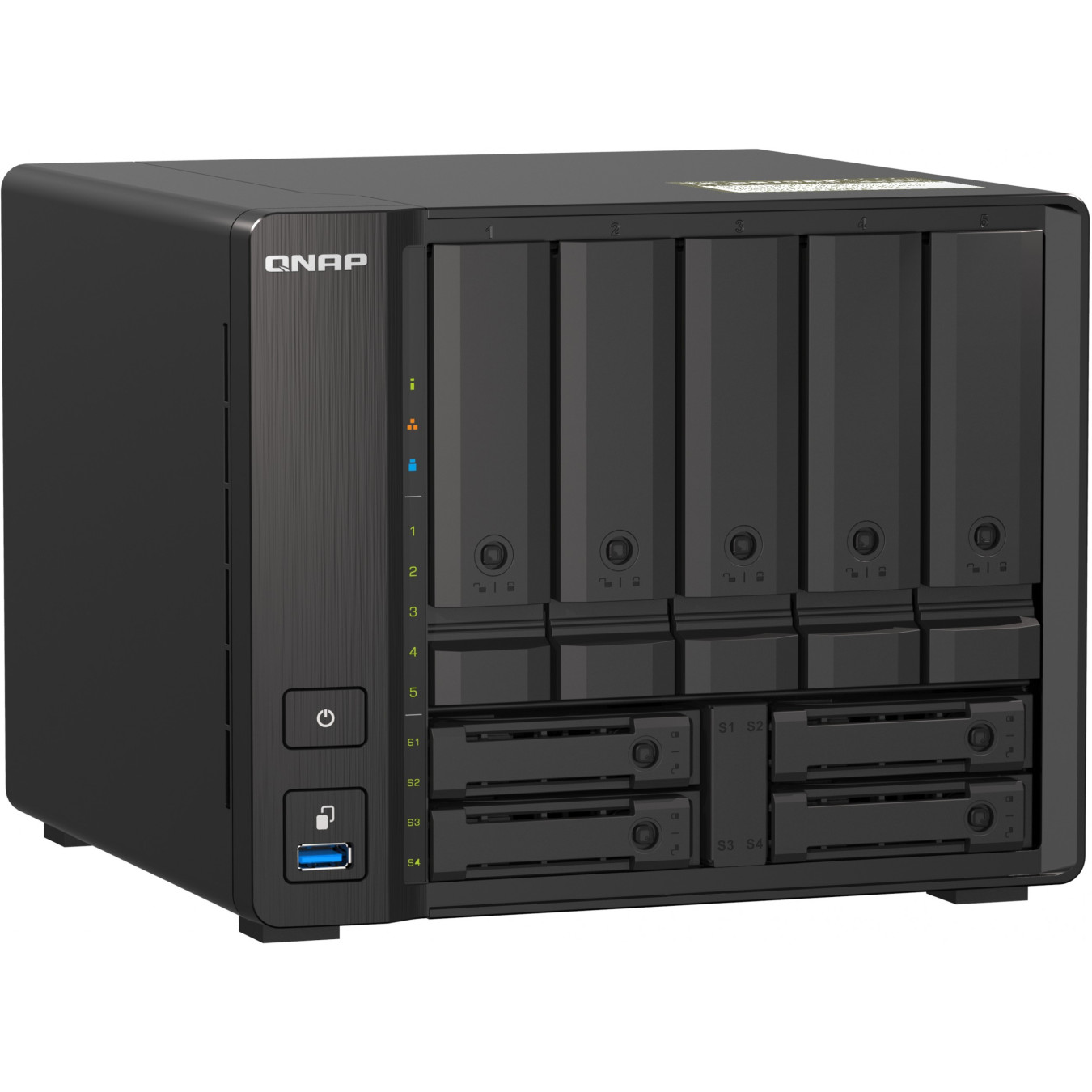

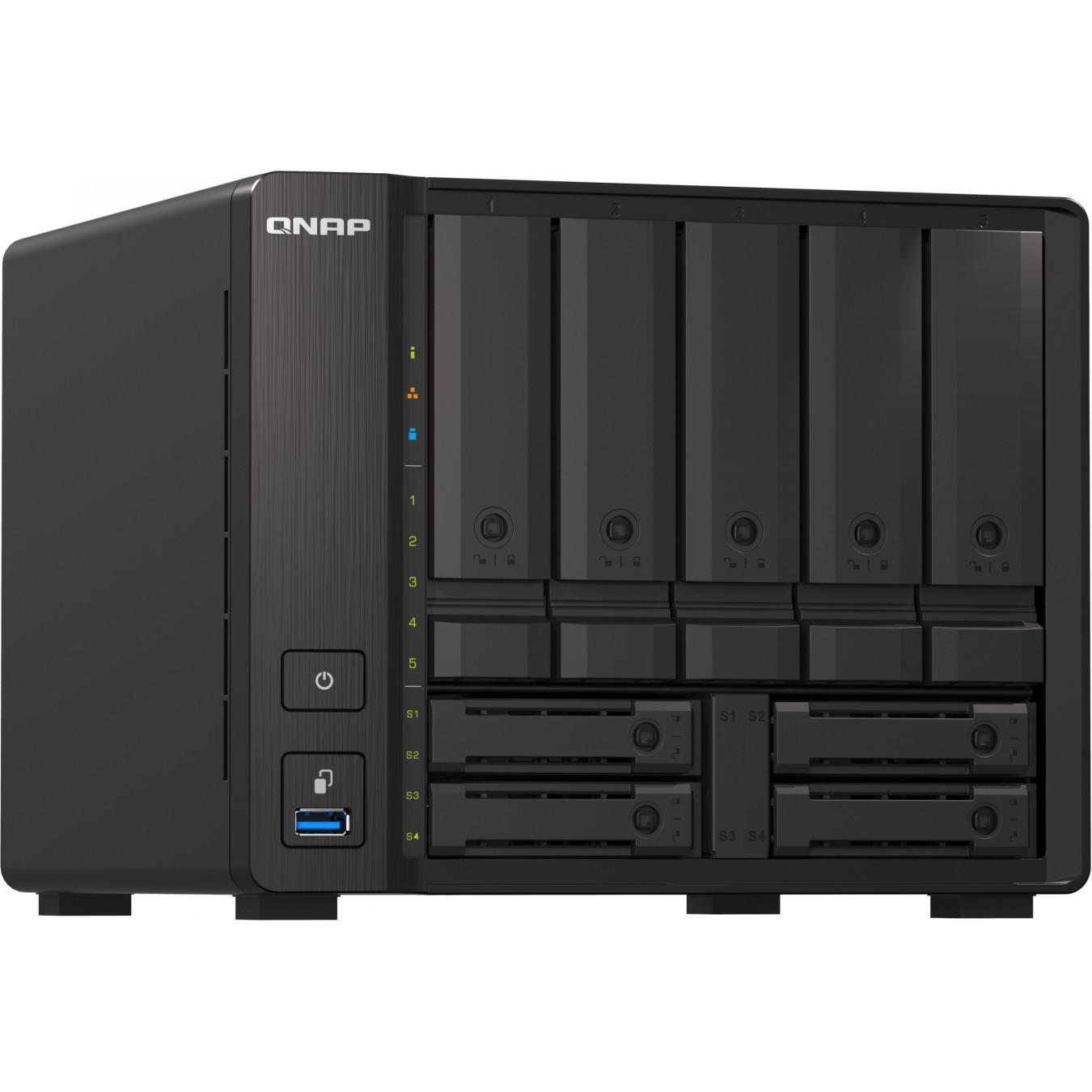

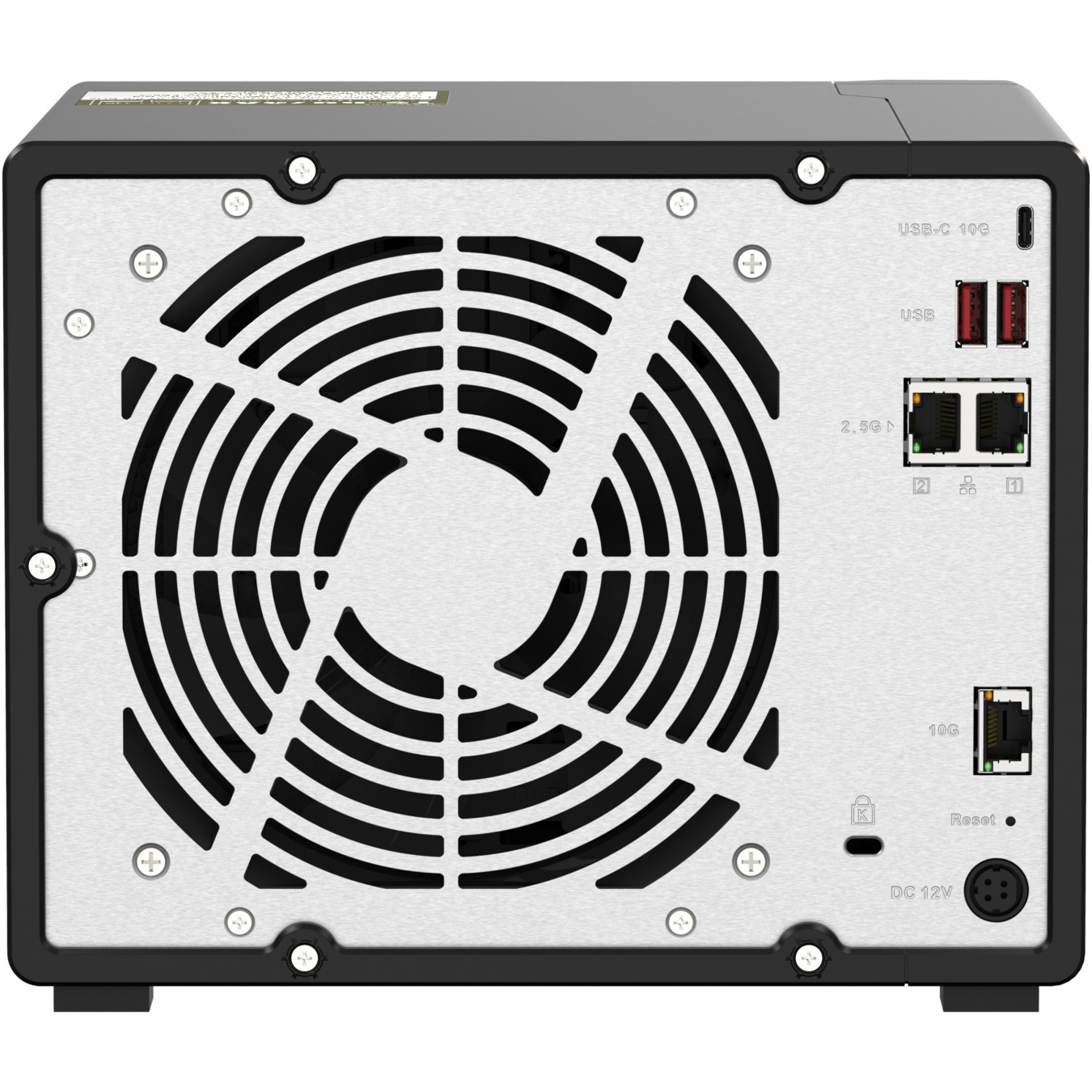

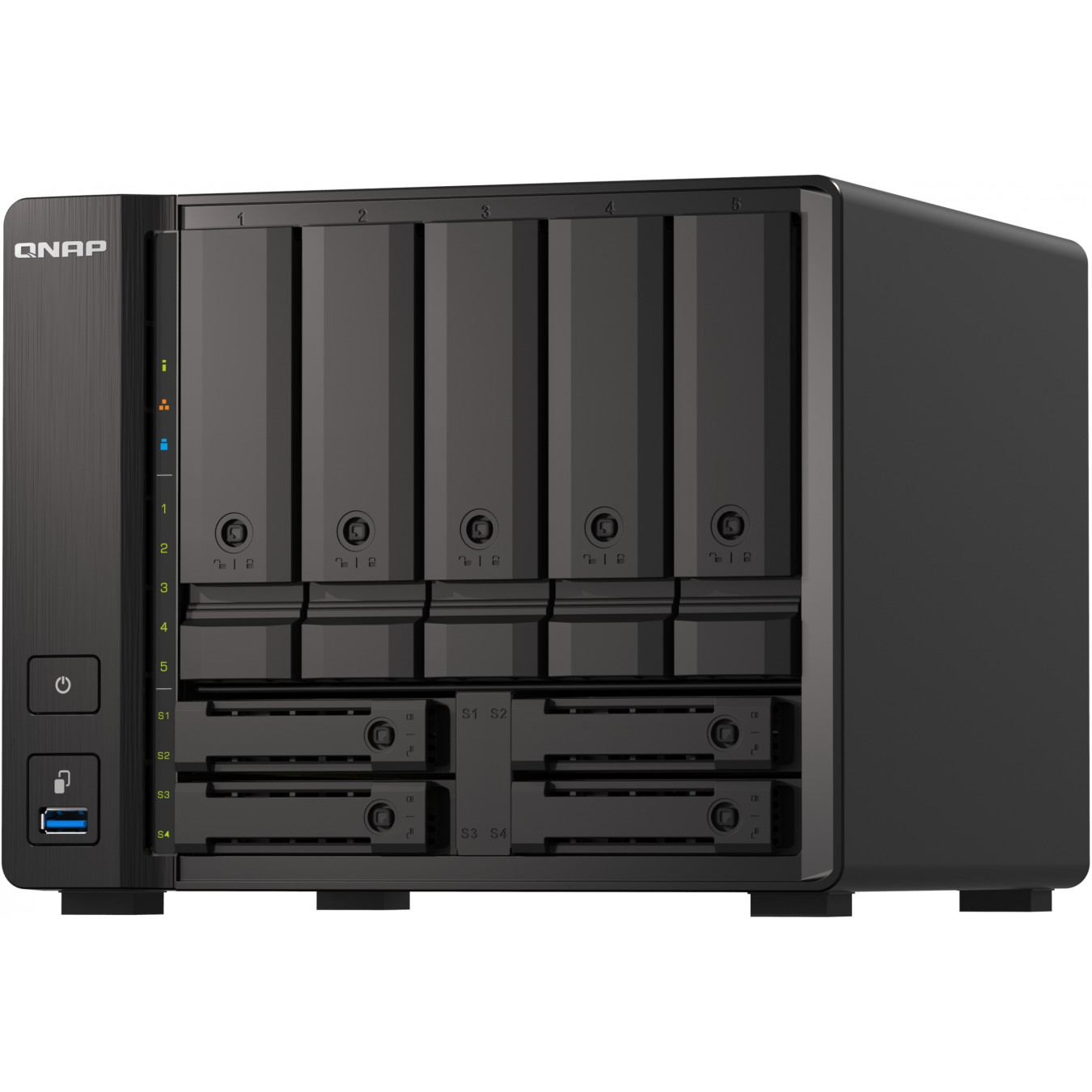

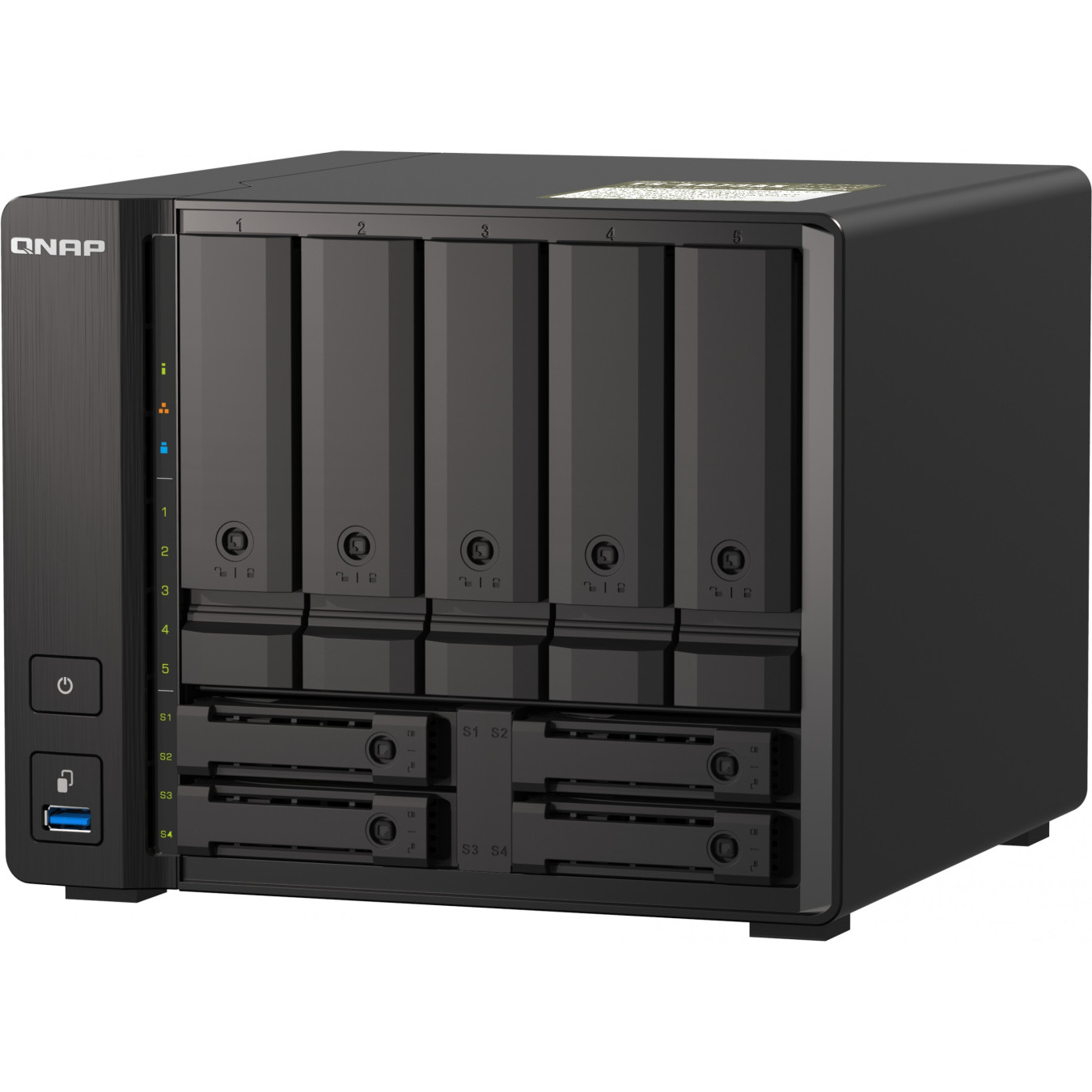

QNAP 9-Bay NAS - TS-H973AX - AMD Ryzen V1500B 2.2GHz, 32GB DDR4, SATA & U.2 NVMe, Black
TS-H973AX 9-bay tower NAS with AMD Ryzen V1500B 2.2GHz, 32GB DDR4, SATA and U.2 NVMe support, QuTS hero OS, up to 10GbE networking.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| NAS (Network Attached Storage) - Memory (Installed) | 32 GB |
|---|---|
| NAS (Network Attached Storage) - USB | USB 3.0 + USB-C |
QNAP TS-H973AX. Type: NAS. Chassis type: Tower. Device class: Small & Medium Business. Processor family: Ryzen Embedded. Processor model: V1500B. Processor frequency: 2.2 GHz. Internal memory: 32 GB. Internal memory type: DDR4. Total installed storage capacity: 0 TB. Operating system installed: QuTS hero
| Storage drive capacity | 0 GB |
| Supported storage drive interfaces | Serial ATA II. Serial ATA III. U.2 |
| Storage drive sizes supported | 2.5.3.5" |
| Feature | Drive tray key included |
| RAID levels | 0. 1. 5. 6. 10. 50. 60. JBOD |
| Supported file systems | FAT32. HFS+. NTFS. ZFS. exFAT. ext3. ext4 |
| Total installed storage capacity | 0 TB |
| Number of storage drives supported | 9 |
| Supported storage drive types | HDD & SSD |
| Processor manufacturer | AMD |
| Processor generation | AMD Ryzen Embedded V1000 Series |
| Processor family | Ryzen Embedded |
| Processor model | V1500B |
| Processor frequency | 2.2 GHz |
| Processor cores | 4 |
| Processor threads | 8 |
| Internal memory | 32 GB |
| Internal memory type | DDR4 |
| Maximum RAM supported | 32 GB |
| Memory slots | 2 |
| Memory form factor | SO-DIMM |
| Flash memory | 5000 MB |
| Ethernet LAN data rates | 100.1000.2500.5000.10000 Mbit/s |
| Ethernet LAN data rate supported (max) | 10000 Mbit/s |
| Copper ethernet cabling technology | 10GBASE-T |
| Supported network protocols | IPv4. IPv6 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 3 |
| Concurrent connections | 2000 |
| Chassis type | Tower |
| Cooling type | Active |
| Product colour | Black |
| Number of fans | 1 fan(s) |
| Fan diameter | 14 cm |
| LED indicators | HDD. LAN. Power. SSD. Status. USB |
| Cable lock slot type | Kensington |
| Type | NAS |
| Device class | Small & Medium Business |
| Backup features | Cloud. iSCSI LUN |
| Noise level | 22.9 dB |
| Security algorithms | 256-bit AES. HTTPS. SSH |
| Browser supported | Apple Safari. Google Chrome. Microsoft Internet Explorer. Mozilla Firefox |
| Share folder | AFP. CIFS/SMB. FTP. WebDAV |
| Operating system installed | QuTS hero |
| Operating system version | h5.0.0 |
| Server operating systems supported | Windows Server 2003. Windows Server 2008 R2. Windows Server 2012. Windows Server 2012 R2. Windows Server 2016. Windows Server 2019 |
| Other operating systems supported | IBM AIX 7.1. IBM AIX 7.2. Solaris 10. Solaris 11 |
| Power supply location | External |
| Power supply unit (PSU) capacity | 120 W |
| Number of power supply units | 1 |
| Power consumption (typical) | 55.41 W |
| Power consumption (HDD standby) | 41.2 W |
| AC input voltage | 100 - 240 V |
| Fan voltage | 12 V |
| Width | 224.6 mm |
| Depth | 224.1 mm |
| Height | 182.7 mm |
| Weight | 3.52 kg |
| Package weight | 5.12 kg |
| Cables included | AC. LAN (RJ-45) |
| Power cables quantity | 1 |
| Number of screws | 56 |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -20 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Harmonized System (HS) code | 84714100 |
