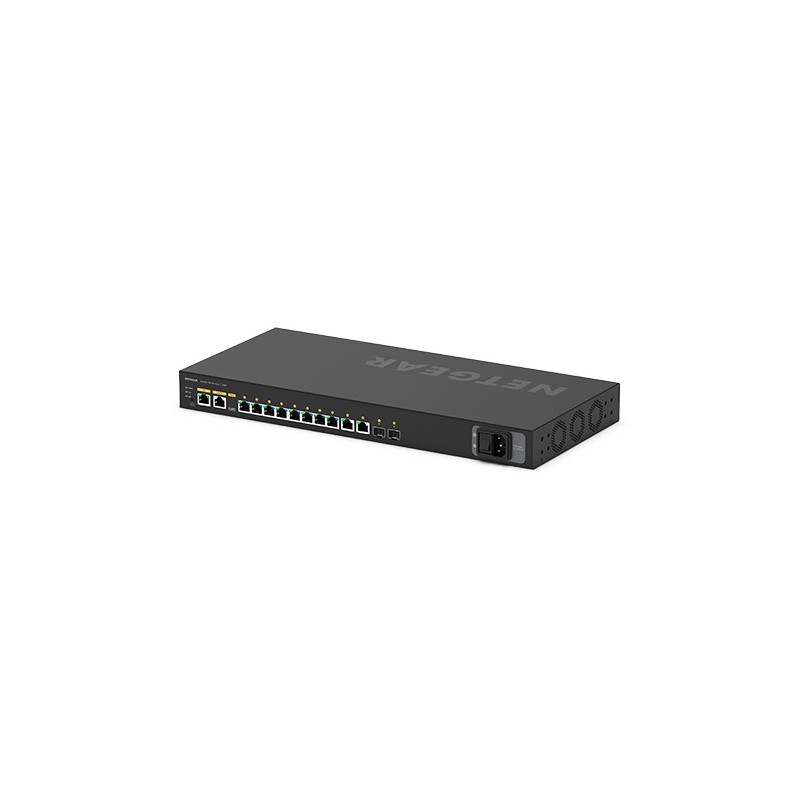

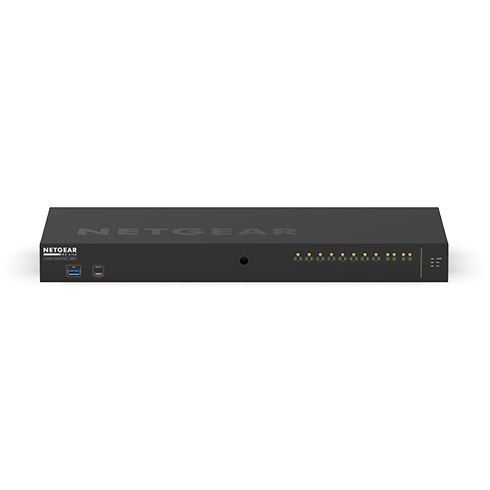

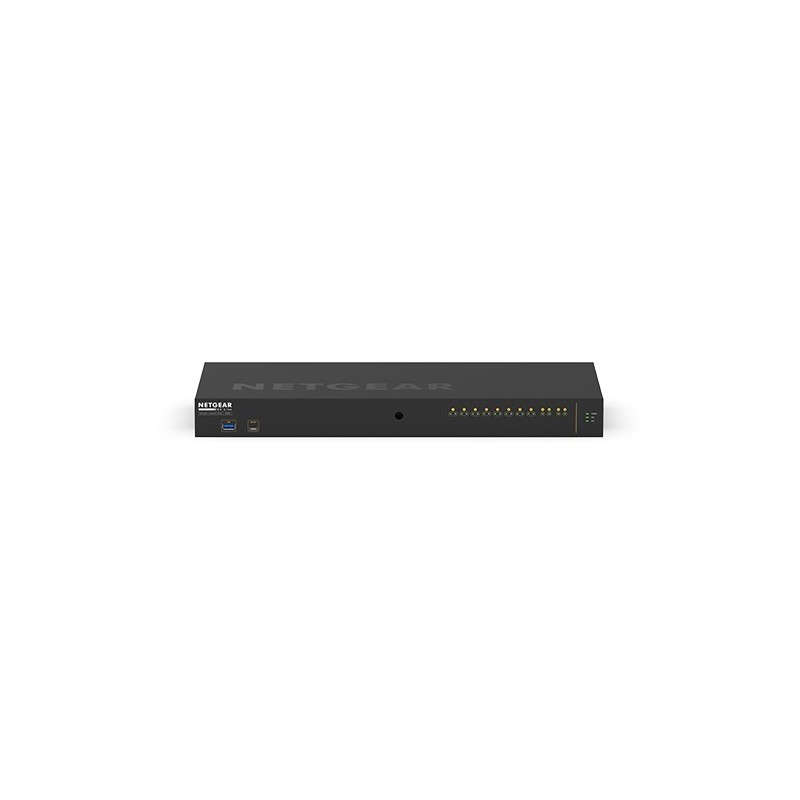

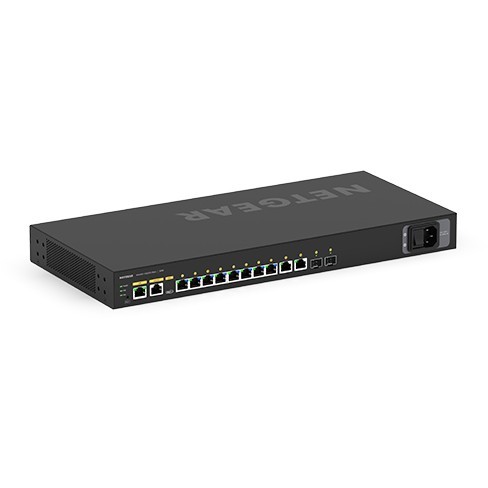

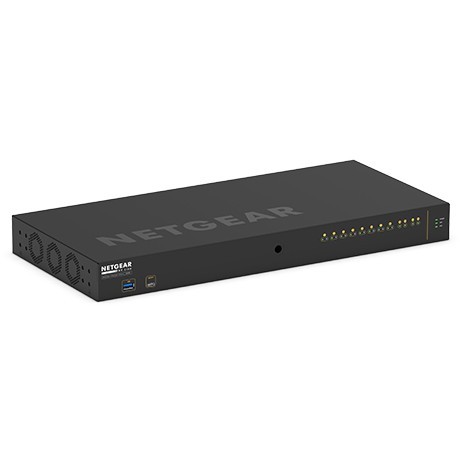

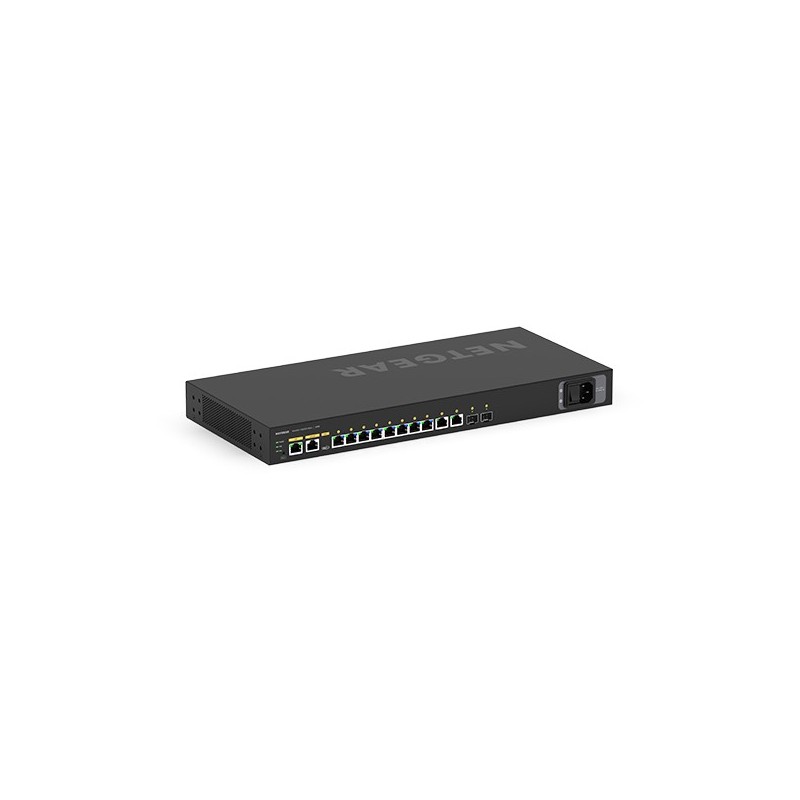

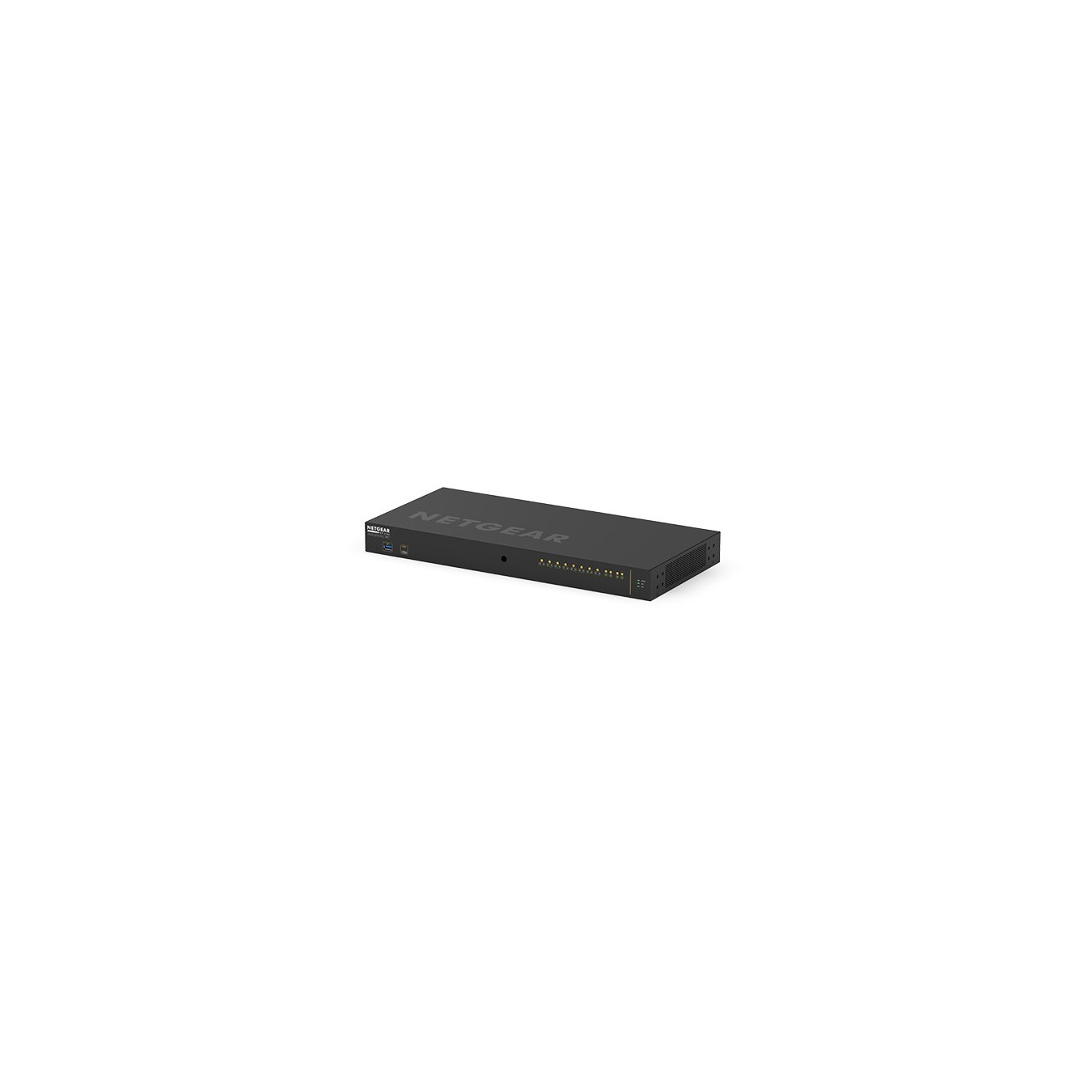

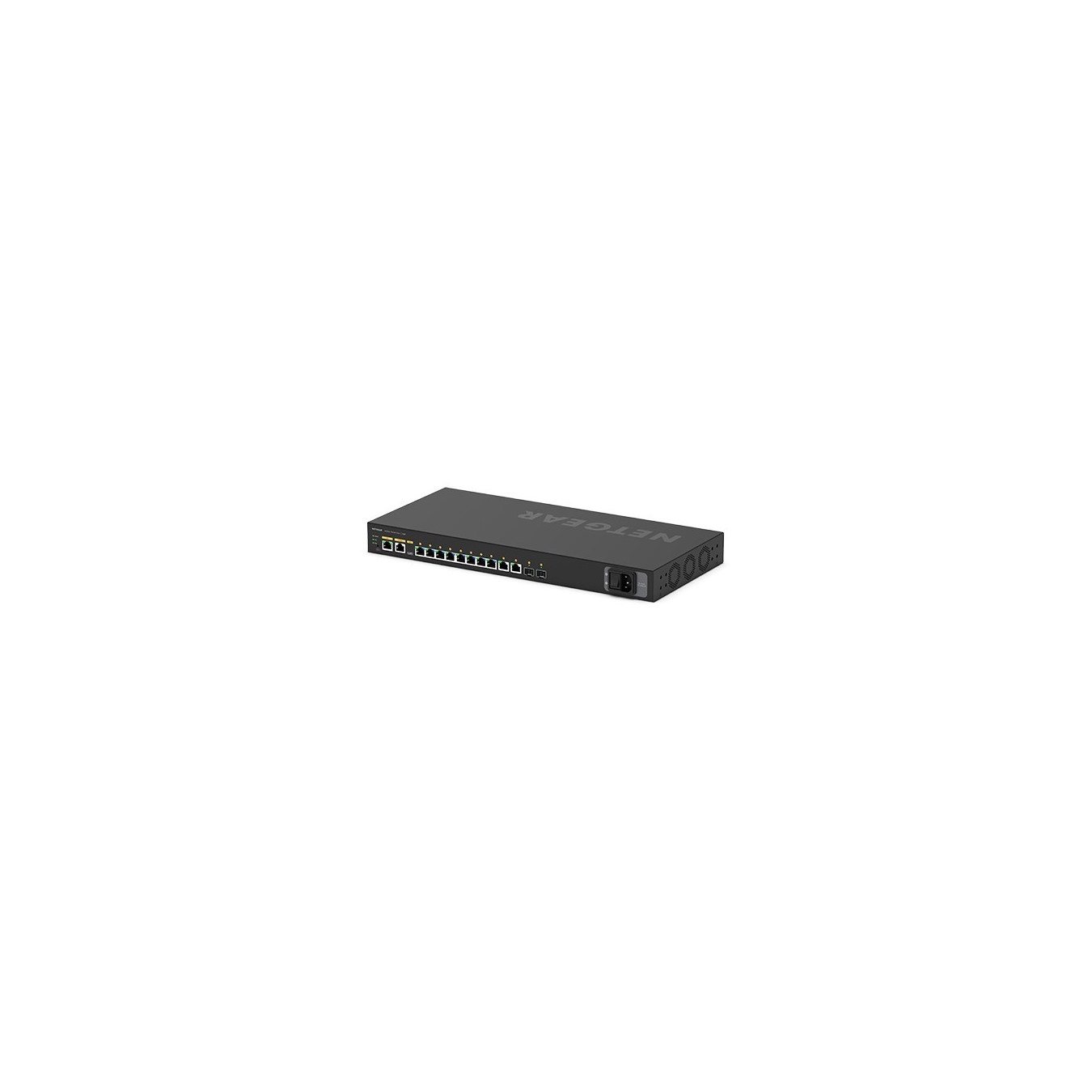

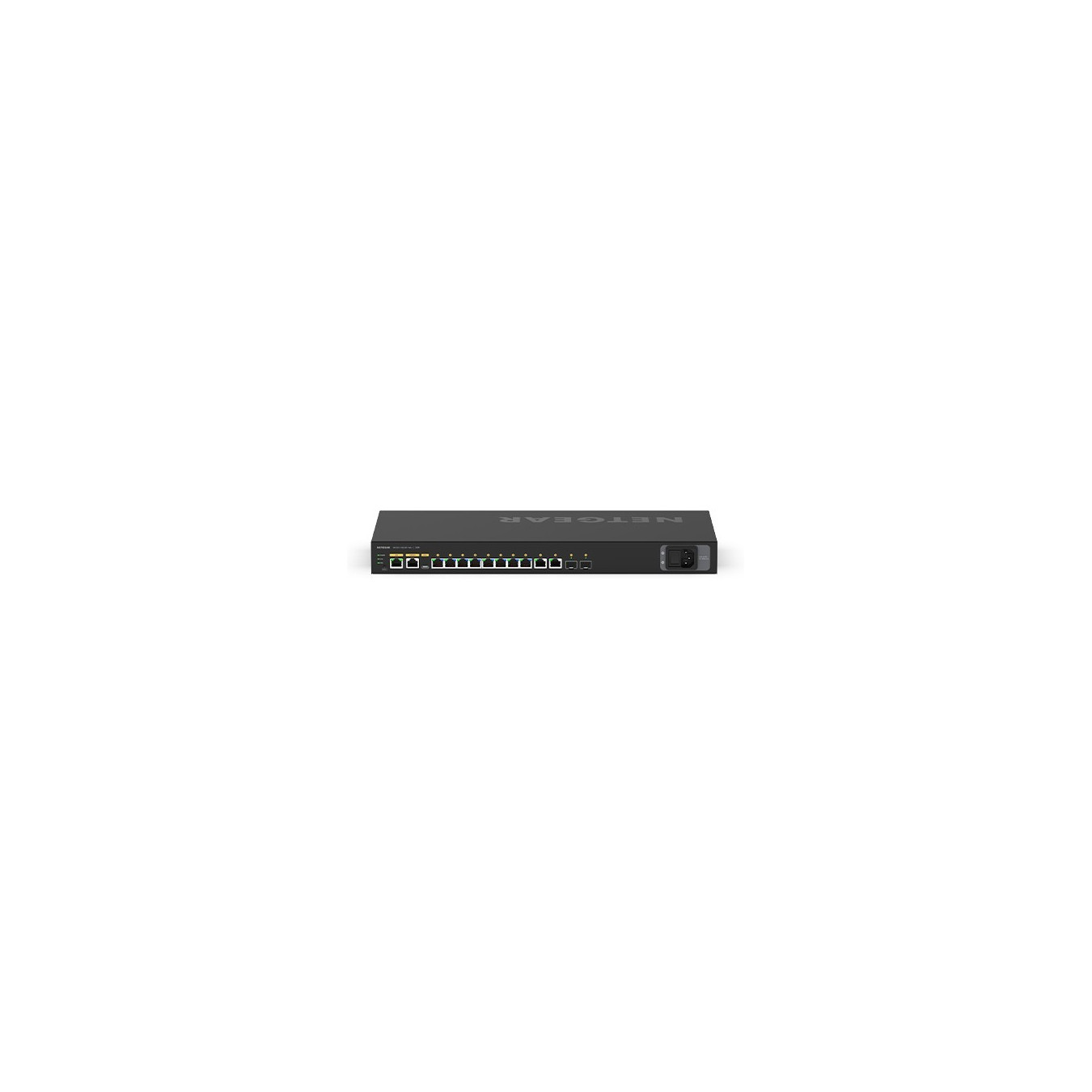

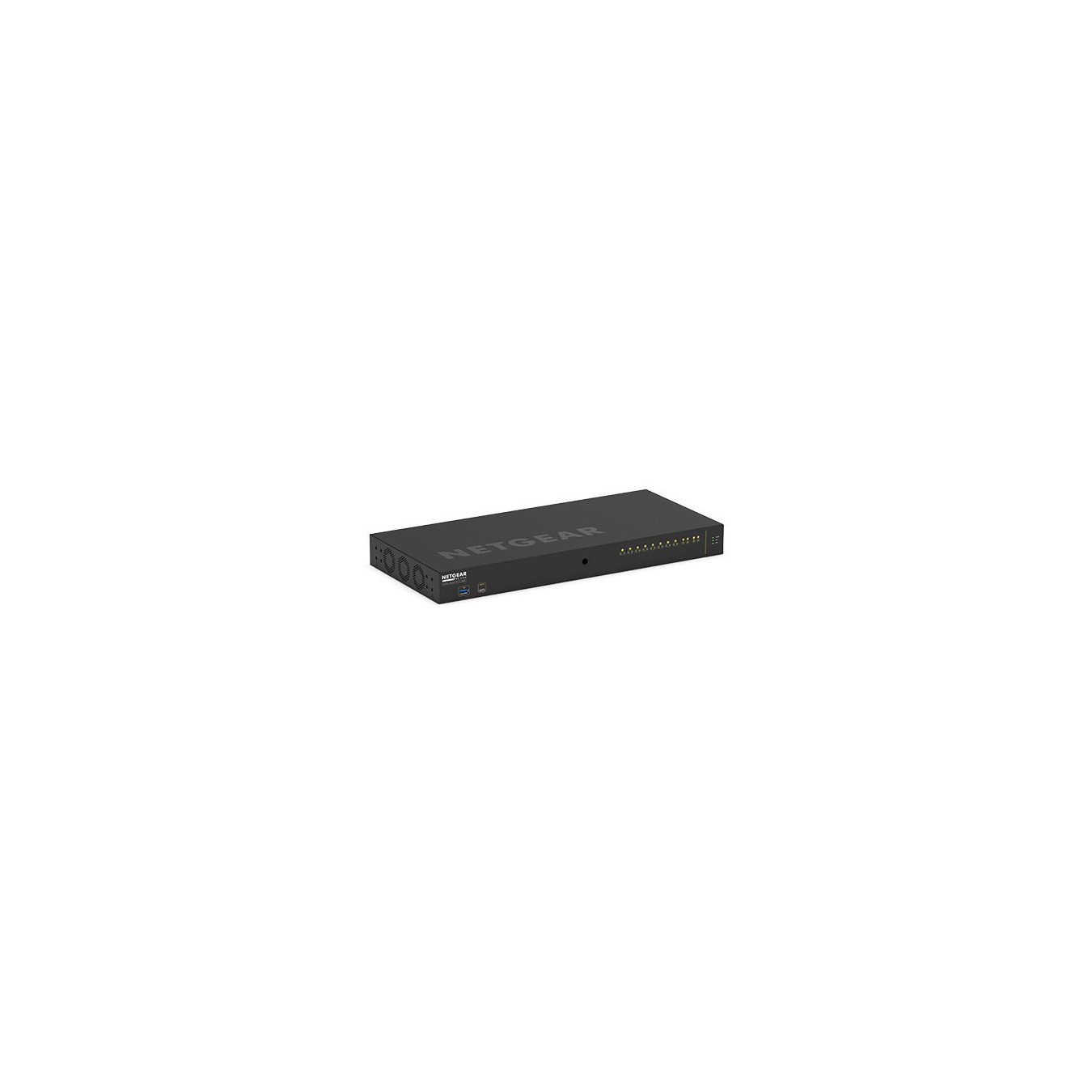

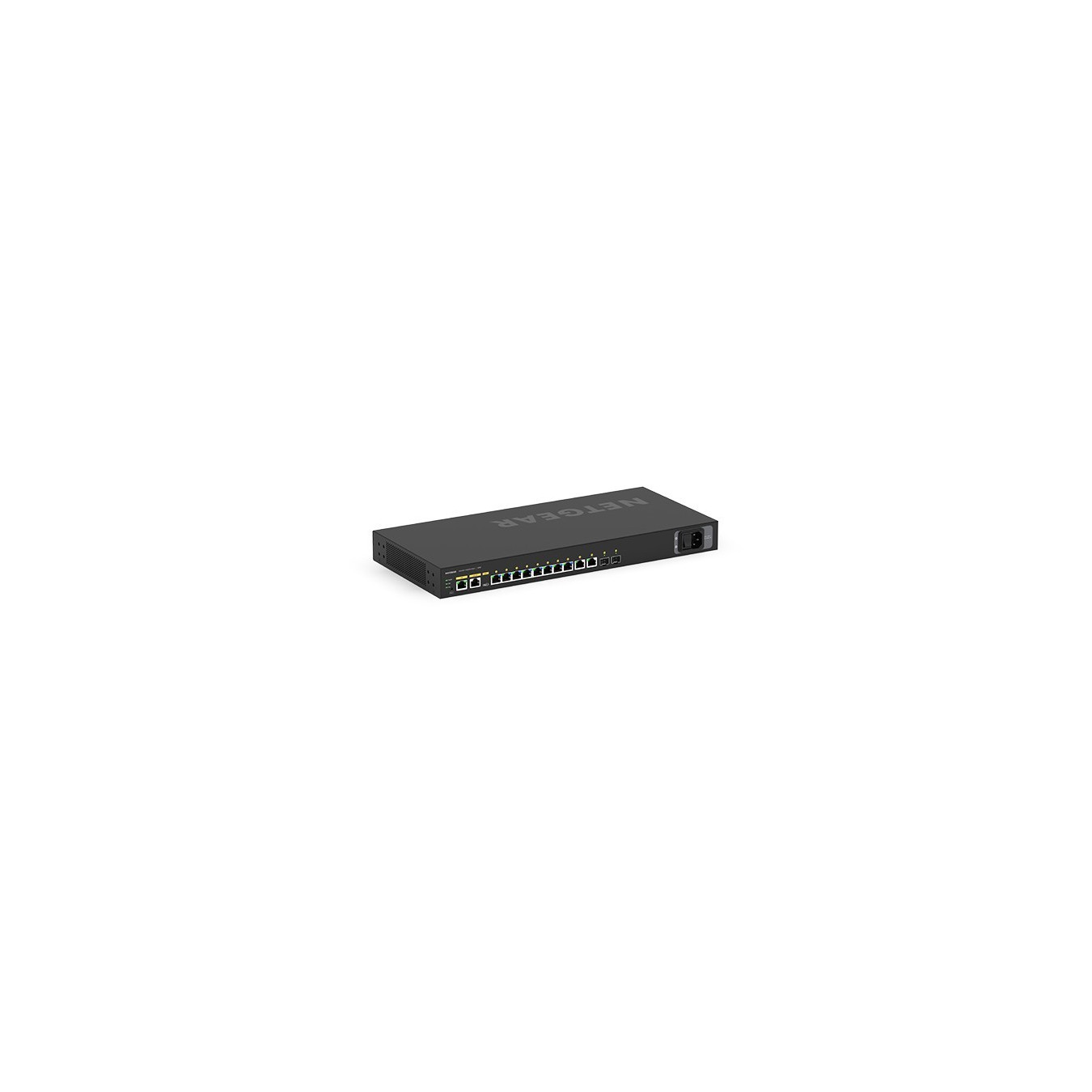

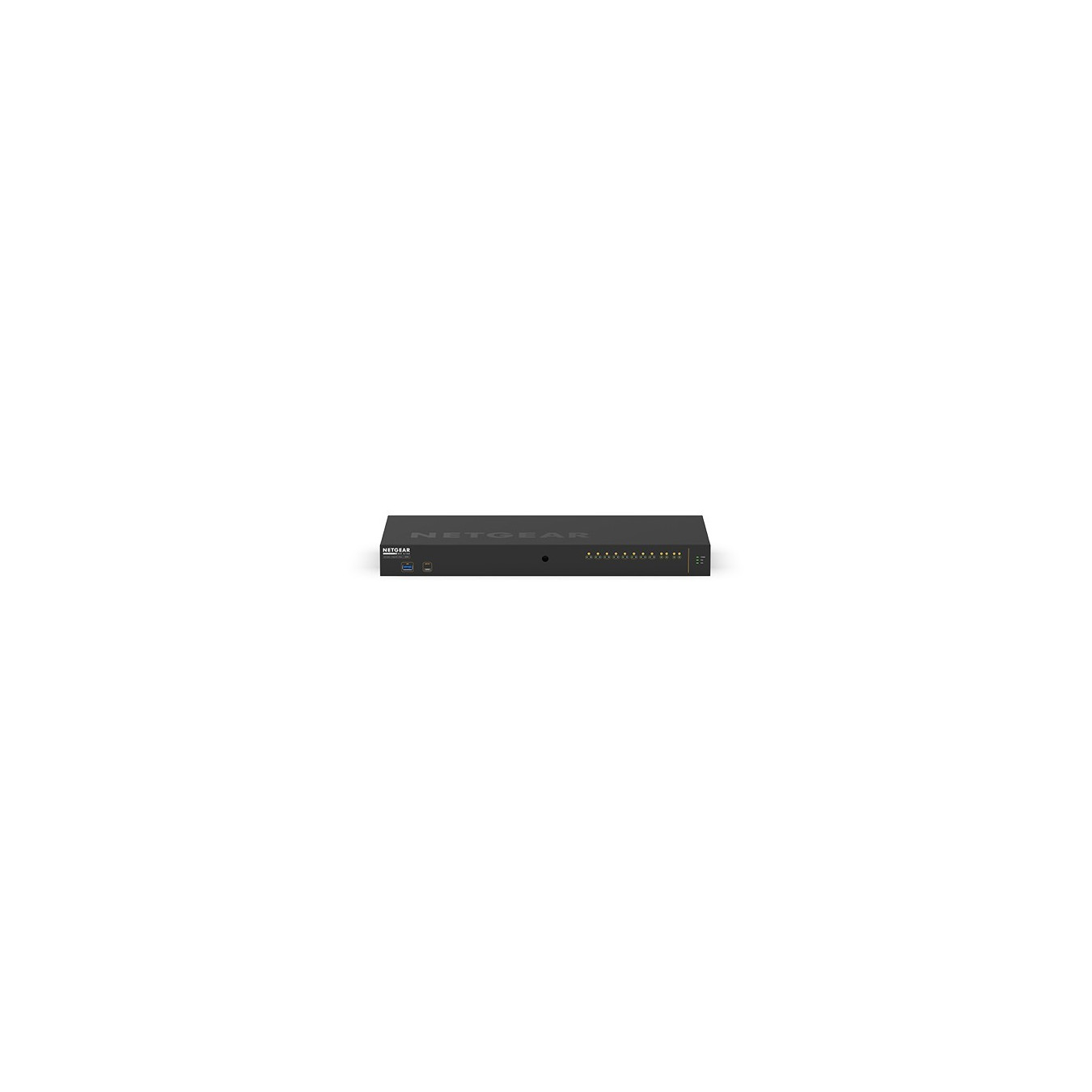

NETGEAR M4250-10G2XF-PoE+ - 10-Port Gigabit L2/L3 Managed PoE+ Switch, 2x SFP+ 10G, 2GB RAM, 1.25GHz CPU, Black
NETGEAR M4250-10G2XF-PoE+: 10x Gigabit RJ45, 2x SFP+ 10G, 8 PoE+ ports (240W budget), L2/L3 managed, 2GB RAM, 1.25GHz ARM CPU, 1U rackmount
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 10 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
NETGEAR M4250-10G2XF-PoE+. Switch type: Managed. Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 10. Full duplex. MAC address table: 16000 entries. Switching capacity: 60 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2/L3 |
| Feature | Power over Ethernet (PoE) |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 2 |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3ad. IEEE 802.3af. IEEE 802.3at. IEEE 802.3bt. IEEE 802.3x |
| Virtual LAN features | MAC address-based VLAN. Private VLAN. Protocol-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 60 Gbit/s |
| Throughput | 44.64 Mpps |
| MAC address table | 16000 entries |
| Latency (1 Gbps) | 2.14 µs |
| Number of queues | 8 |
| Jumbo frames | 12000 |
| Packet buffer memory | 16 MB |
| DHCP features | DHCP Option 82. DHCP relay. DHCP server. DHCP snooping. DHCPv6 client. DHCPv6 relay. DHCPv6 server. DHCPv6 snooping |
| Authentication | MAC-based authentication |
| Authentication type | RADIUS |
| IPv4 multicast entries | 2000 |
| IPv6 multicast entries | 2000 |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | PoE. Power. Status |
| Processor model | ARM Cortex-A9 |
| Processor frequency | 1250 MHz |
| Internal memory | 2048 MB |
| Noise level | 39.22 dB |
| Mean time between failures (MTBF) | 947871 h |
| Power consumption (typical) | 306.4 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 240 W |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 3000 m |
| Heat dissipation | 1046.05 BTU/h |
| Width | 440 mm |
| Depth | 200 mm |
| Height | 43.2 mm |
| Weight | 2.96 kg |
| Harmonized System (HS) code | 85176990 |
