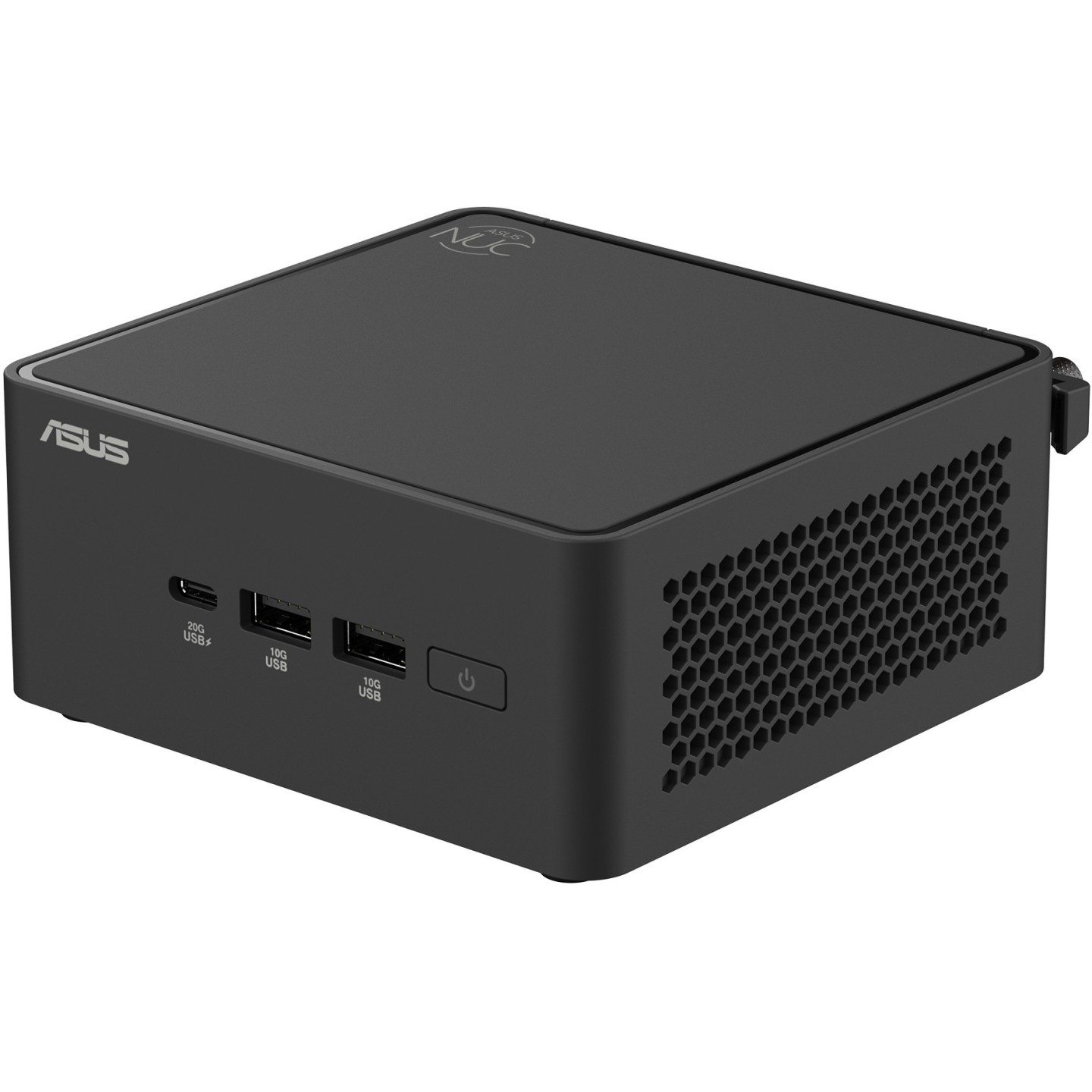

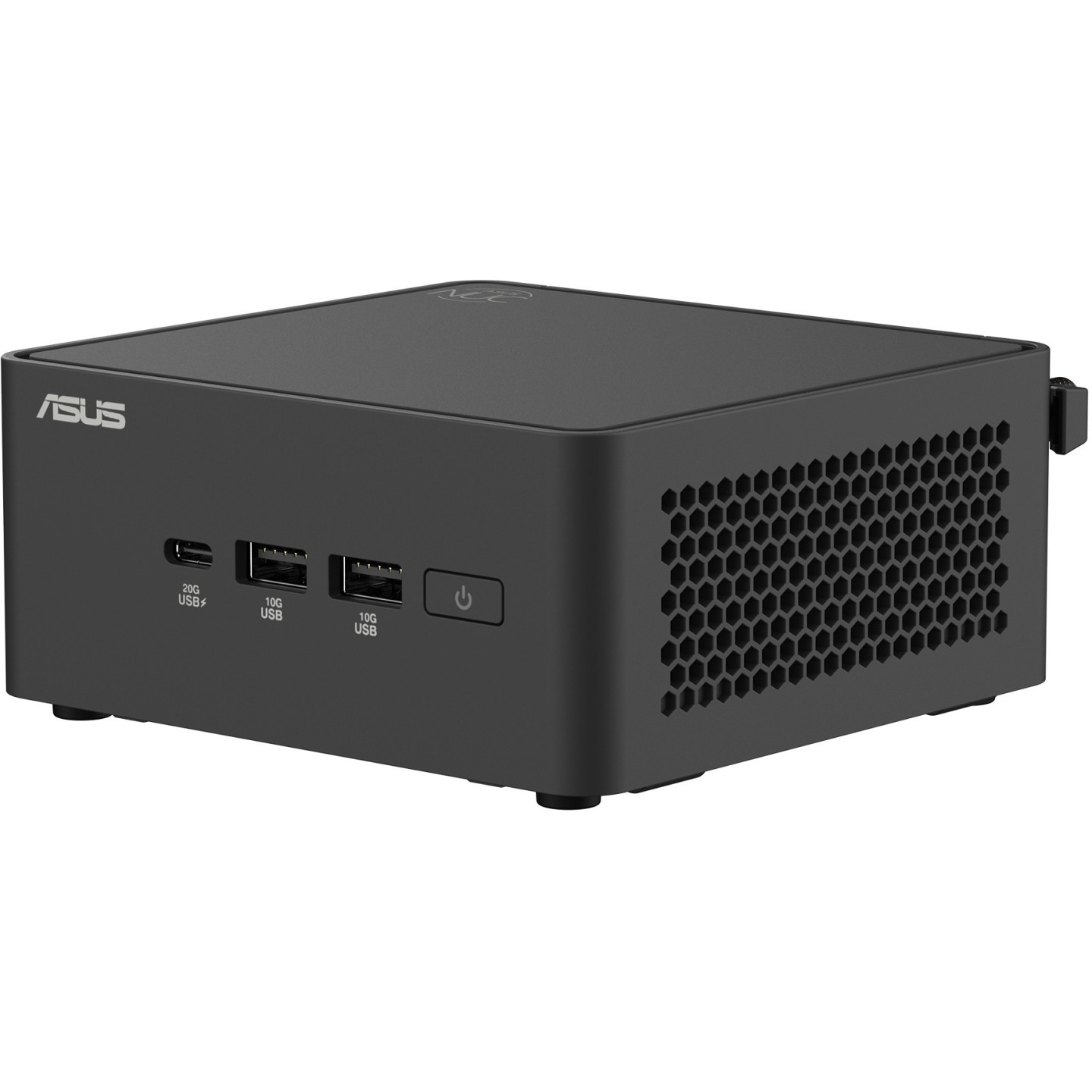

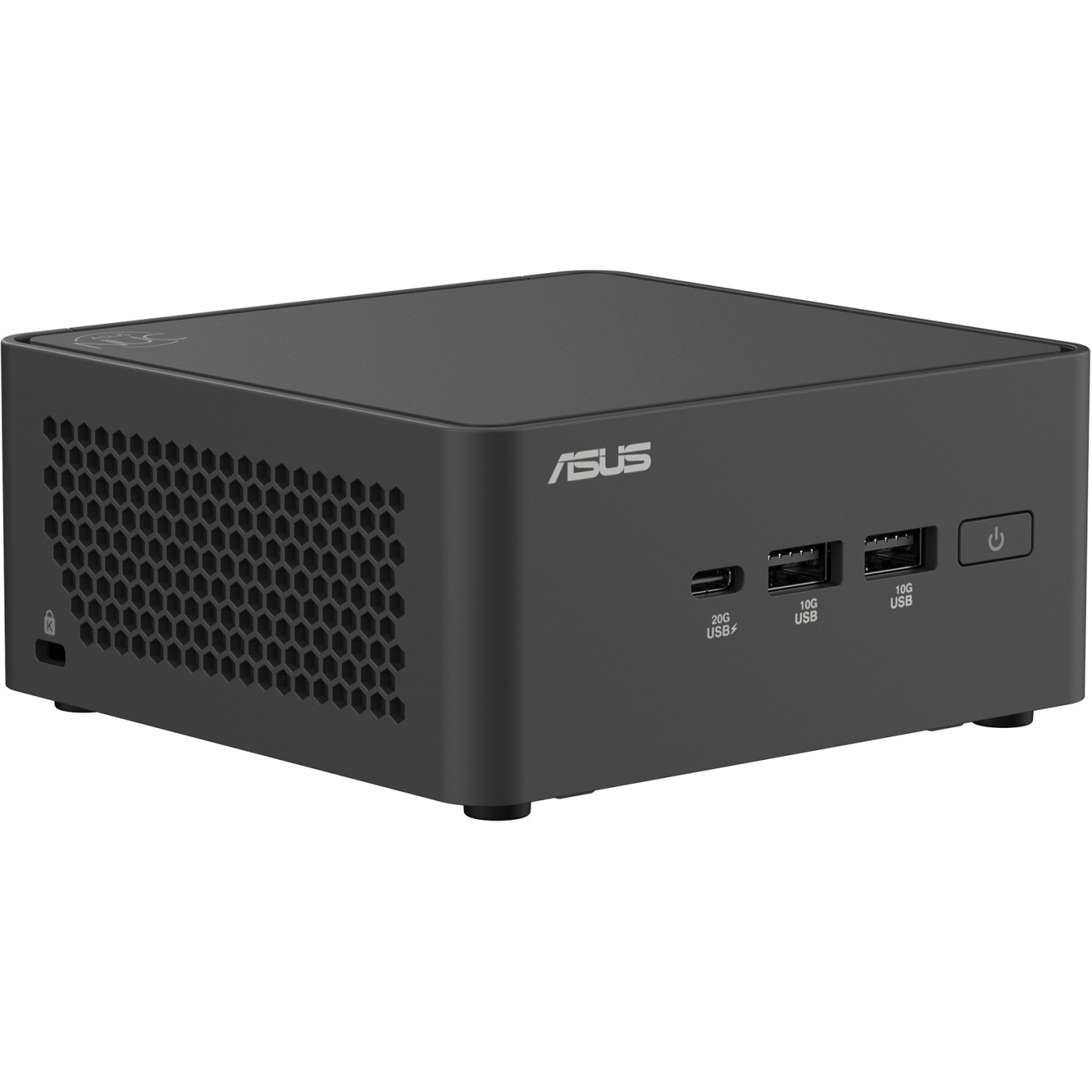

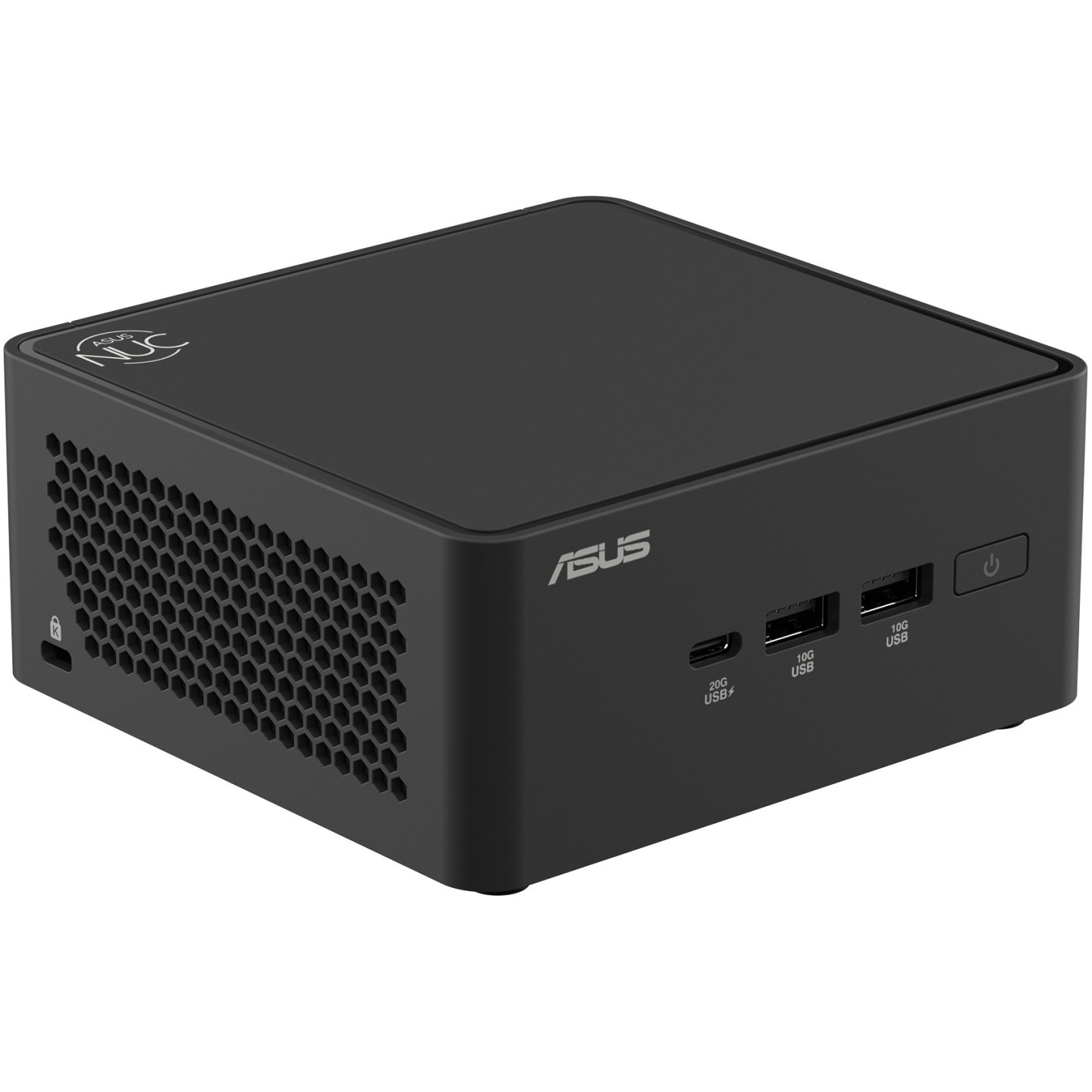

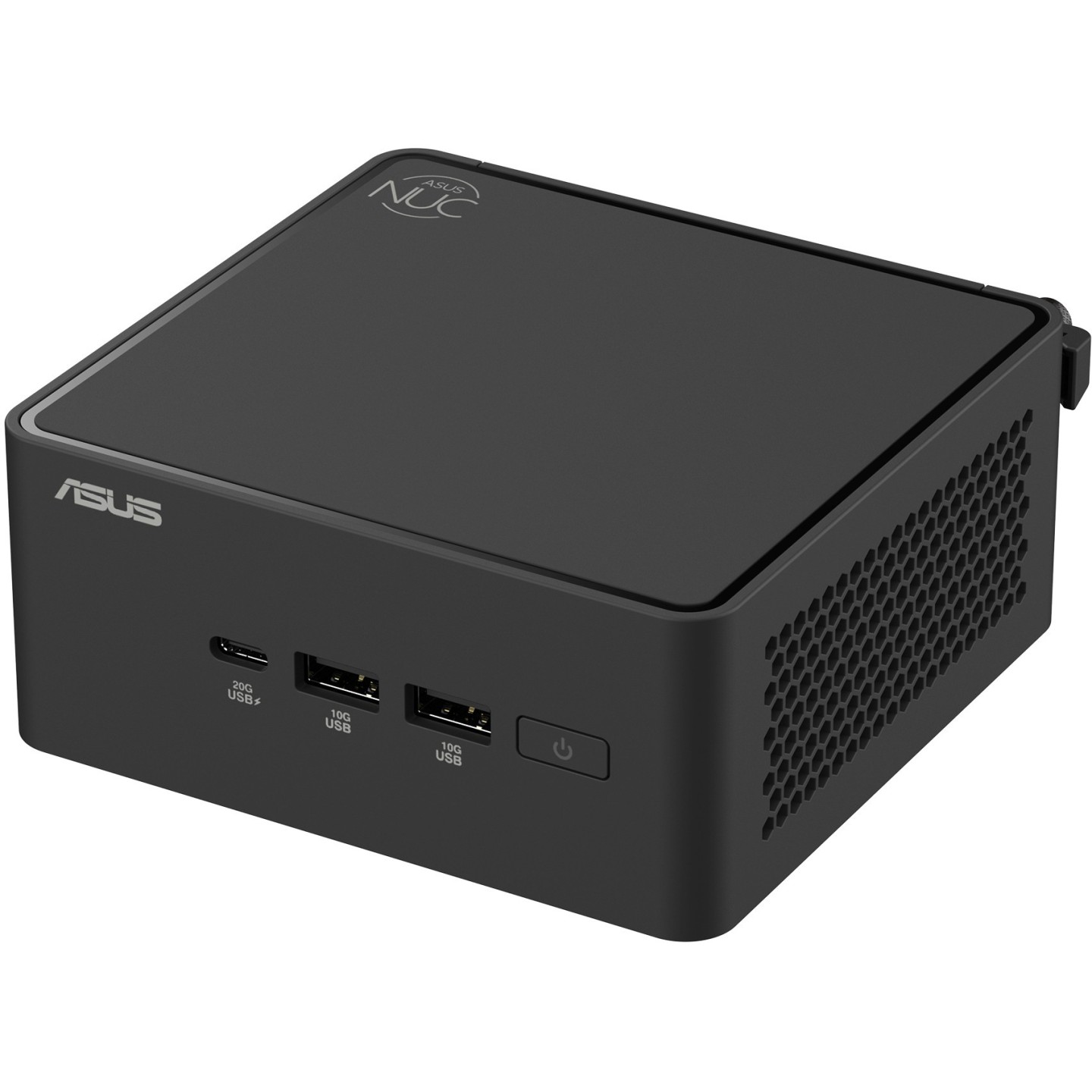

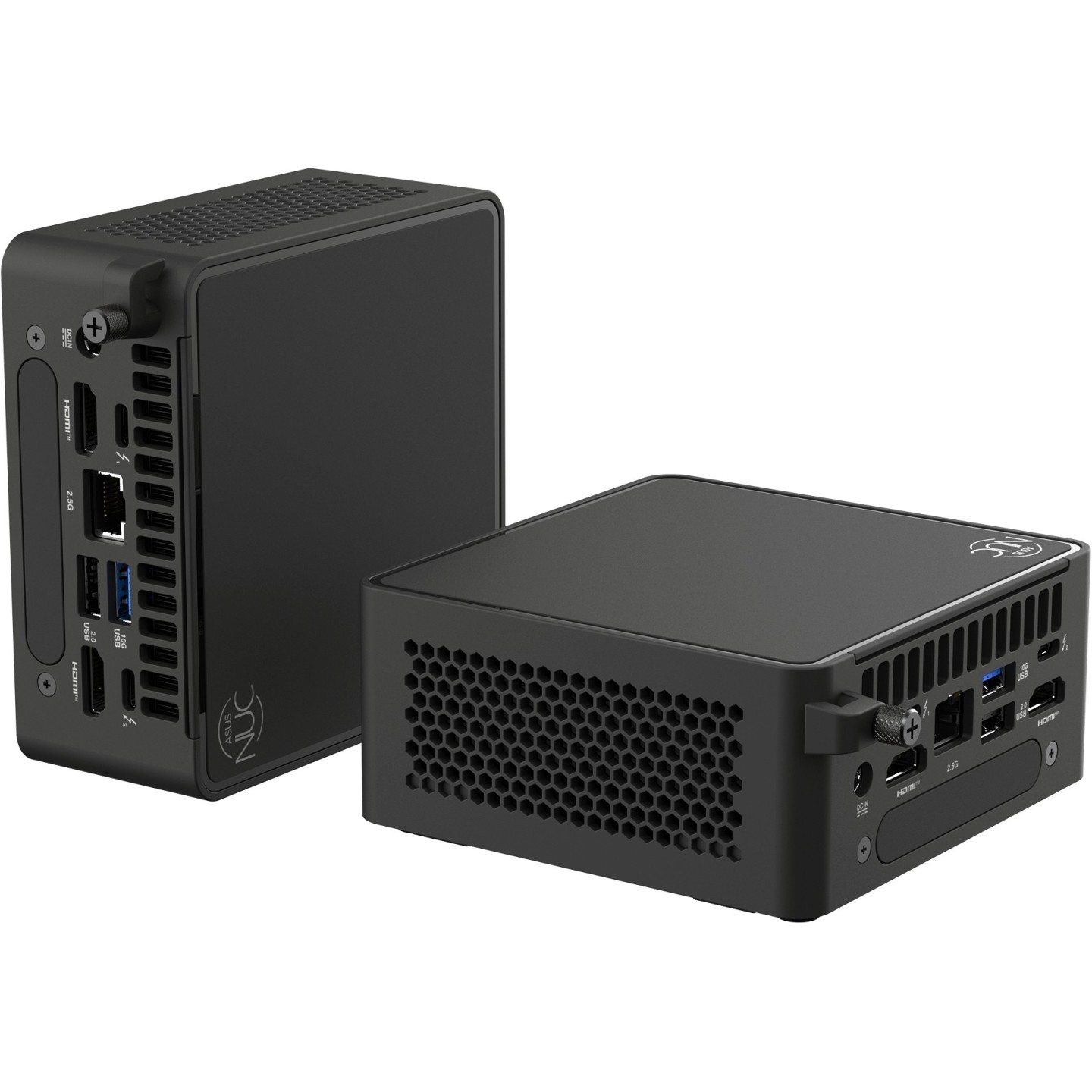

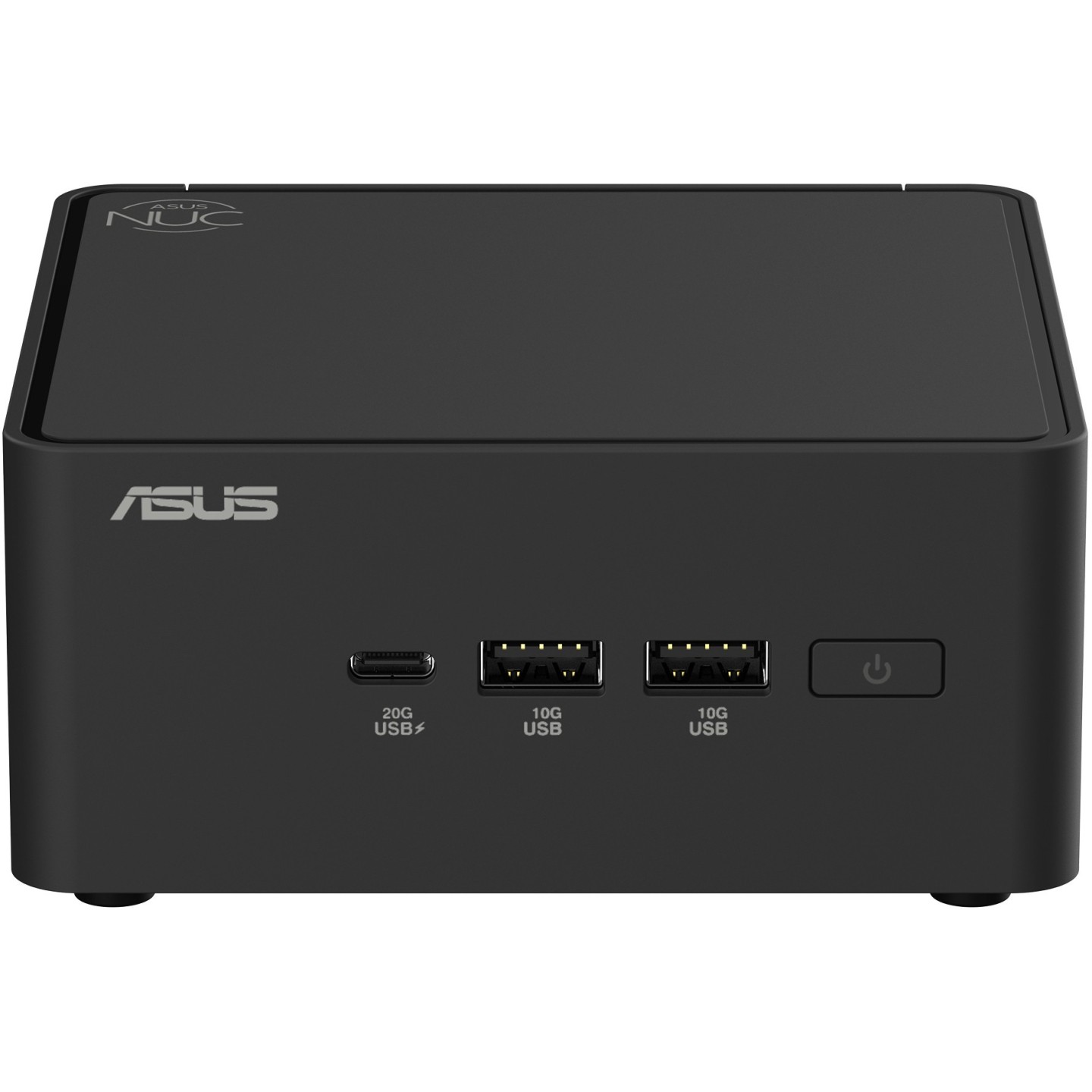

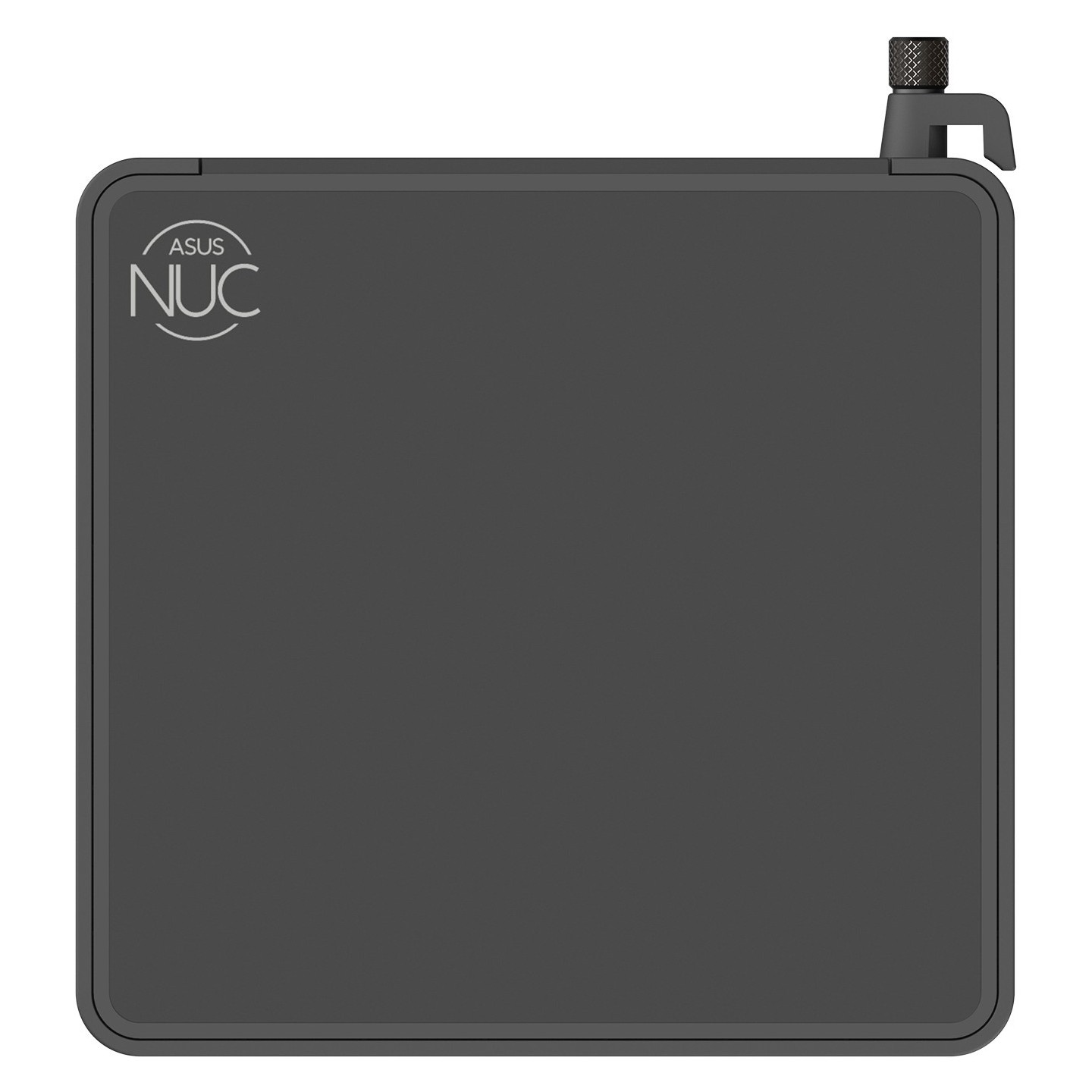

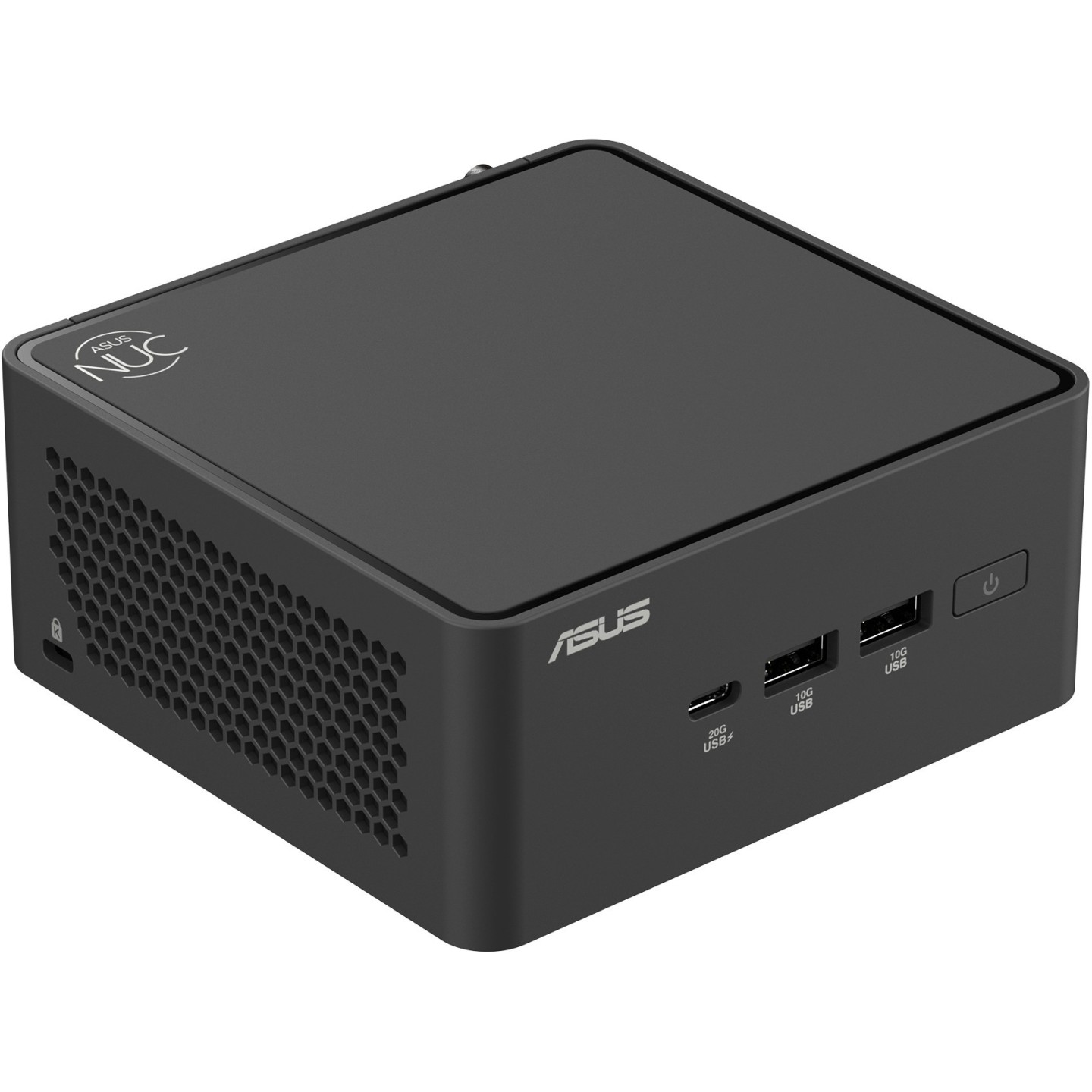

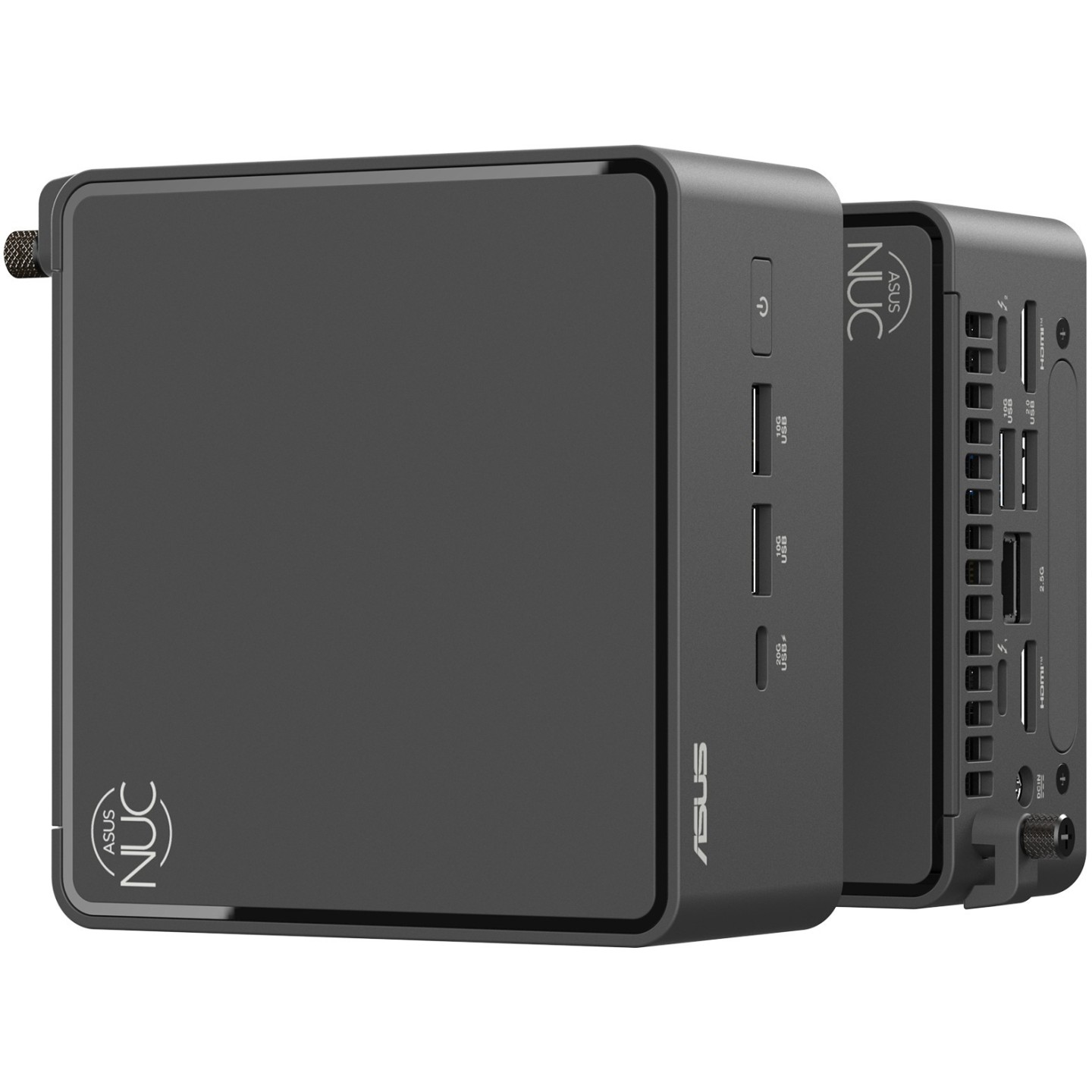

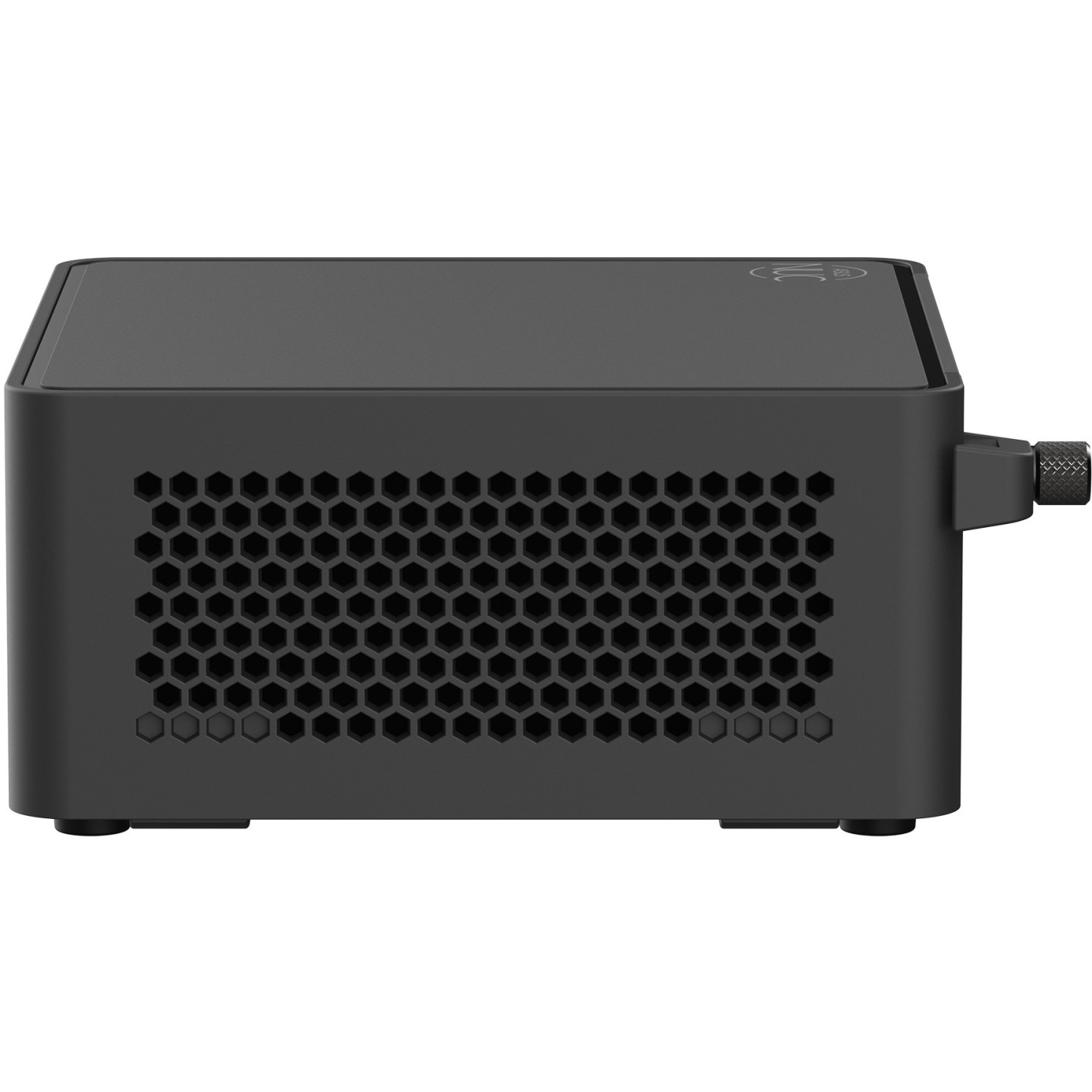

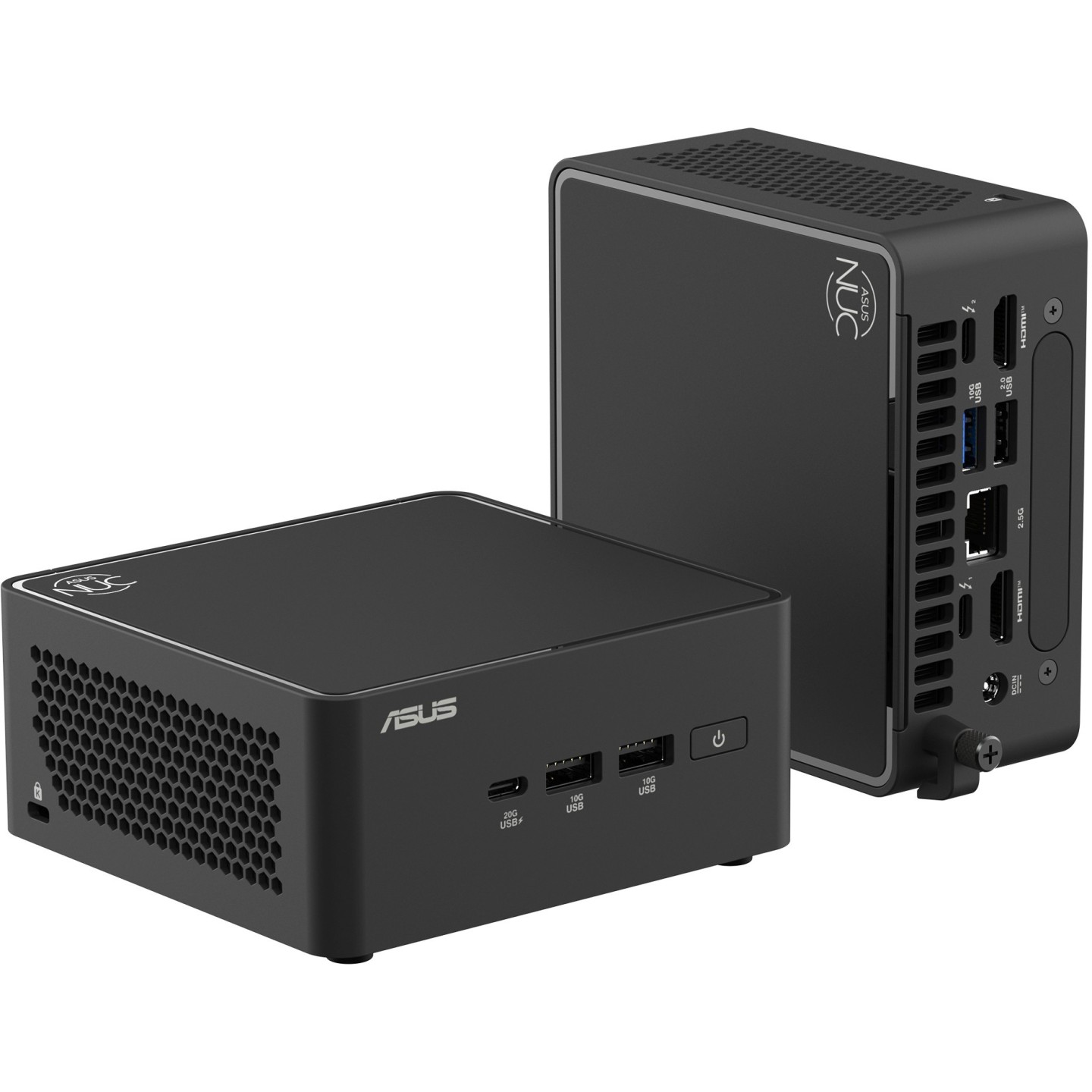

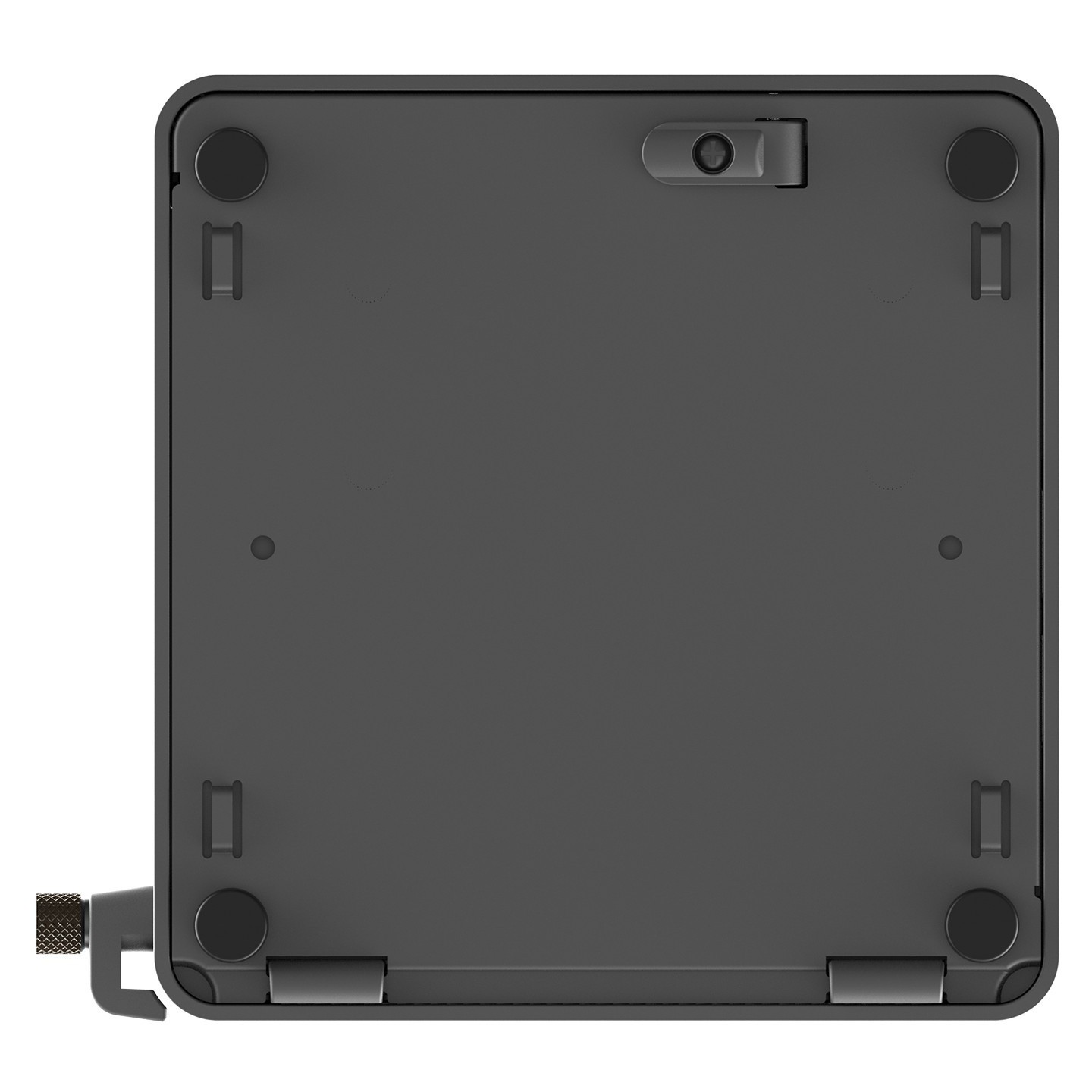

ASUS NUC 15 Pro Cyber Canyon RNUC15CRHU700002 Ultra 7 255H - Barebone (Boxed)
ASUS NUC 15 Pro Cyber Canyon barebone mini PC with Intel Core Ultra 7 255H (16-core, 5.1GHz), Intel Arc 140T GPU, up to 96GB DDR5, Wi-Fi 7, 2x Thunderbolt 4, dual HDMI 2.1, 2.5GbE, 120W PSU. Tall chassis for expandability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Barebone & Mini PC - System Type | Barebone Kit (No RAM/Storage) |
|---|---|
| Barebone & Mini PC - Processor Family | Intel Core Ultra 7 |
| Barebone & Mini PC - Graphics Chipset | Intel Arc Graphics |
| Barebone & Mini PC - Operating System | No OS |
| Barebone & Mini PC - Installed Storage | None (Barebone) |
| Barebone & Mini PC - Installed Memory (RAM) | None (Barebone) |
The ASUS NUC 15 Pro Cyber Canyon - RNUC15CRHU700002 is a high-performance barebone mini PC in the Tall (H) chassis, designed for professionals, edge computing, and AI workloads. Powered by the Intel Core Ultra 7 255H processor with up to 5.1GHz boost, 24MB cache, and integrated Intel Arc 140T graphics, it delivers desktop-class performance in a compact 117x112x54mm form factor.

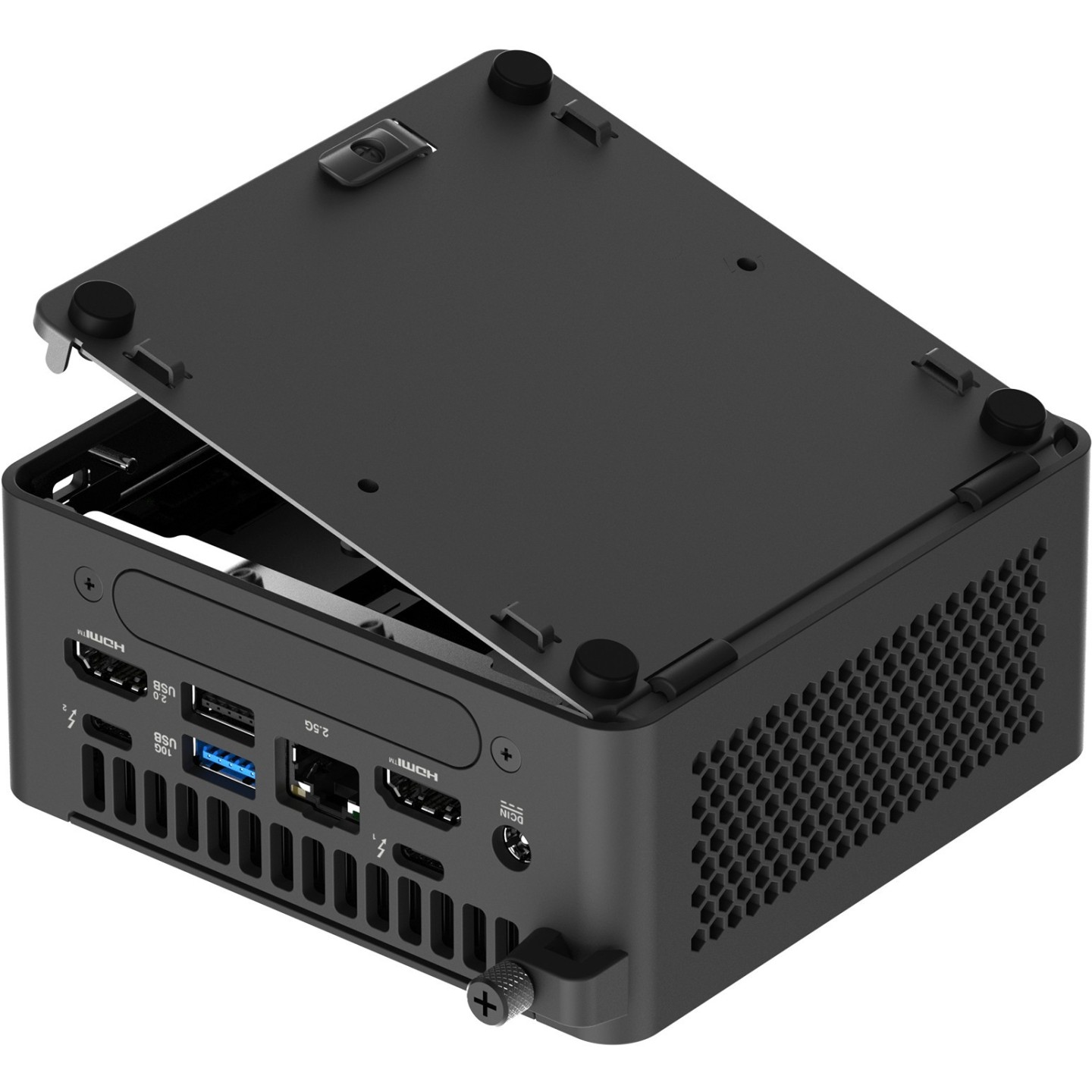

This system supports up to 96GB DDR5-6400 SO-DIMM RAM across 2 slots, M.2 SSDs (2280/2242 with PCIe 5.0 on primary), Wi-Fi 7, Bluetooth 5.4, 2.5G Ethernet, dual HDMI 2.1, and 2x Thunderbolt 4 ports for versatile connectivity. The 120W internal PSU and toolless design make upgrades easy, ideal for enterprise vPro configurations and multi-monitor setups.
- Intel Core Ultra 7 255H: 6P+8E+2LP-E cores, NPU for AI acceleration up to 99 TOPS
- Graphics: Intel Arc 140T iGPU for gaming and creative tasks

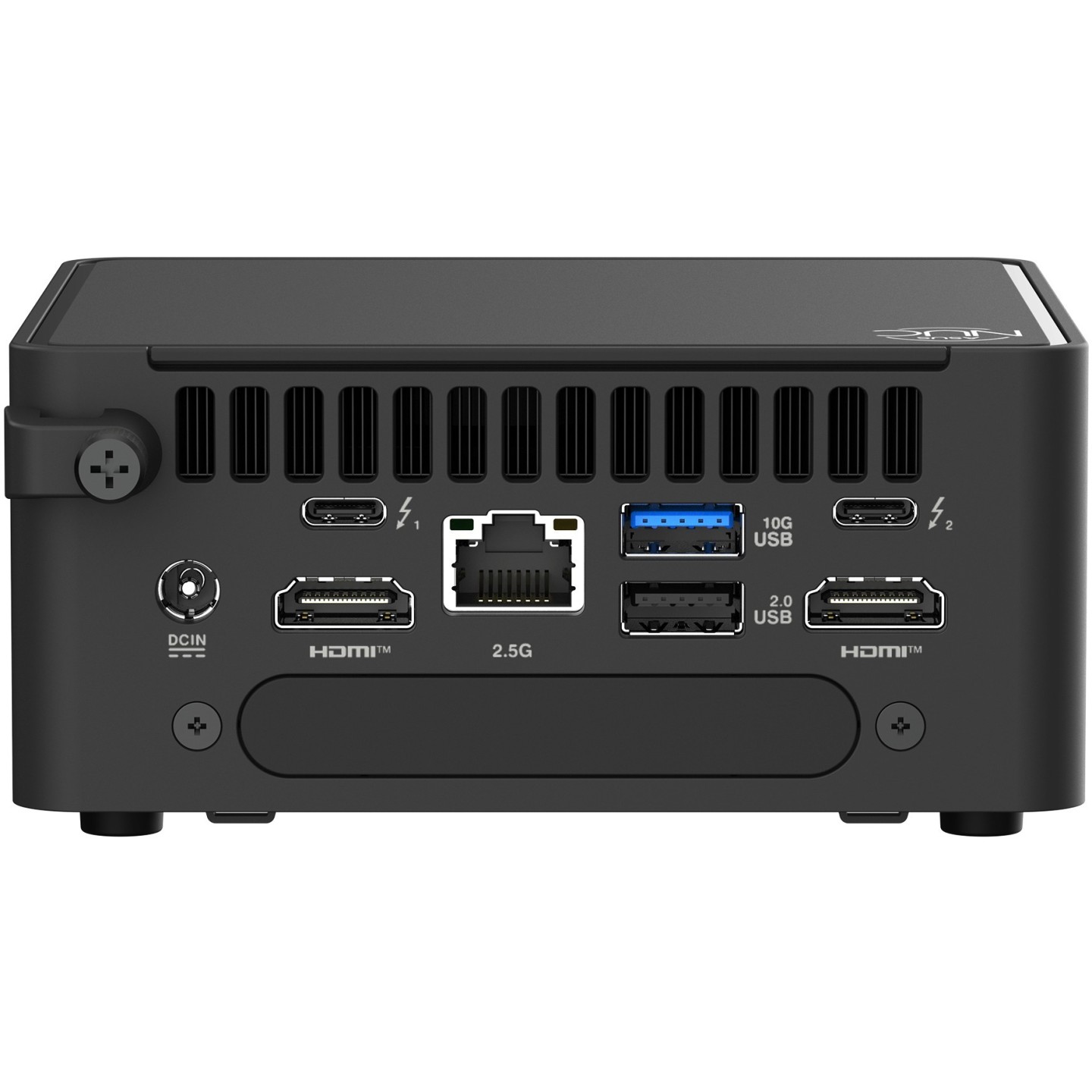

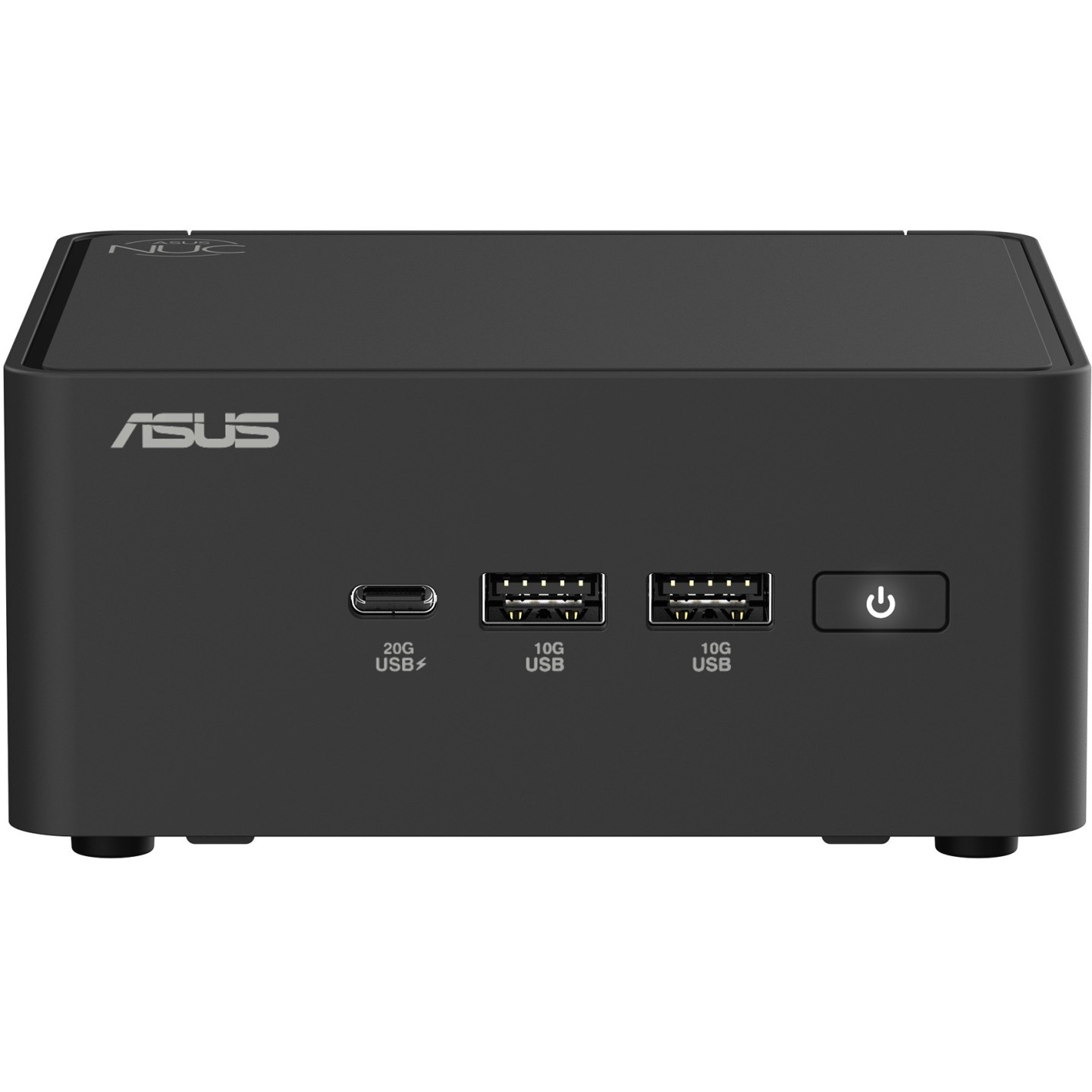

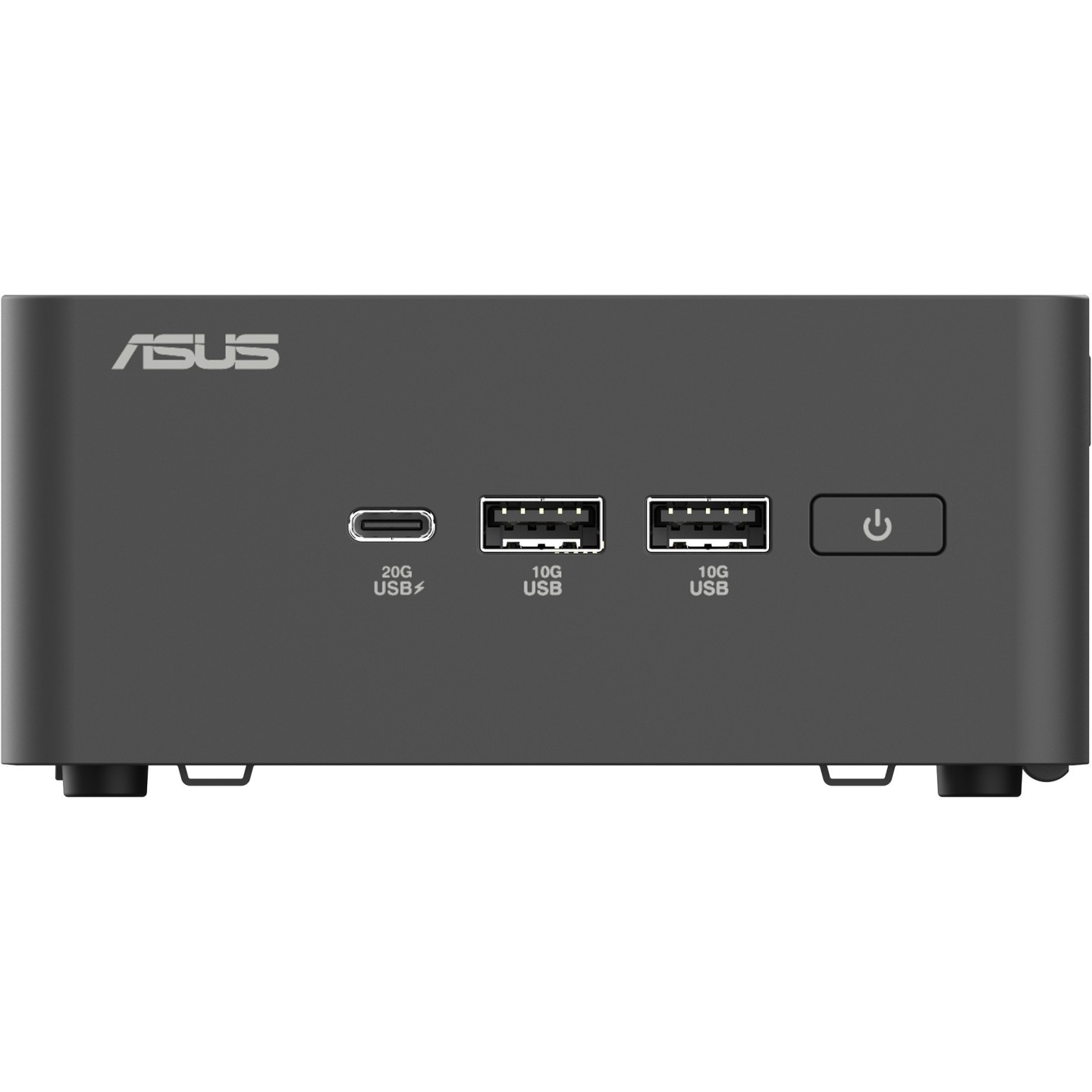

- Ports: 1x USB 2.0, 3x USB 3.2 Gen2 Type-A, 1x USB4 Gen2x2, 2x TB4, 2x HDMI 2.1, 1x 2.5GbE
- Barebone: No RAM, storage, or OS included - customize as needed
- Military-grade chassis: Durable, quiet cooling for 24/7 operation
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 7 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 255H |
| Processor cores | 16 |
| Processor threads | 22 |
| Processor boost frequency | 5.1 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Low Power Efficient-cores | 2 |
| Performance-core Max Turbo Frequency | 5.1 GHz |
| Efficient-core Max Turbo Frequency | 4.4 GHz |
| Processor cache | 24 MB |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 96 GB |
| Supported memory clock speeds | 6400 MHz |
| Supported memory types | DDR5-SDRAM |
| Graphics card family | Intel |
| On-board graphics card model | Intel Arc 140T |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Bluetooth version | 5.4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB4 Gen 2x2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2.5 Gbps |
| Thunderbolt 4 ports quantity | 2 |
| Product colour | Black |
| Product type | Mini PC barebone |
| Power supply | 120 W |
| Width | 117 mm |
| Depth | 112 mm |
| Height | 54 mm |
| Weight | 600 g |
| Chassis type | Tall (H Chassis) |
