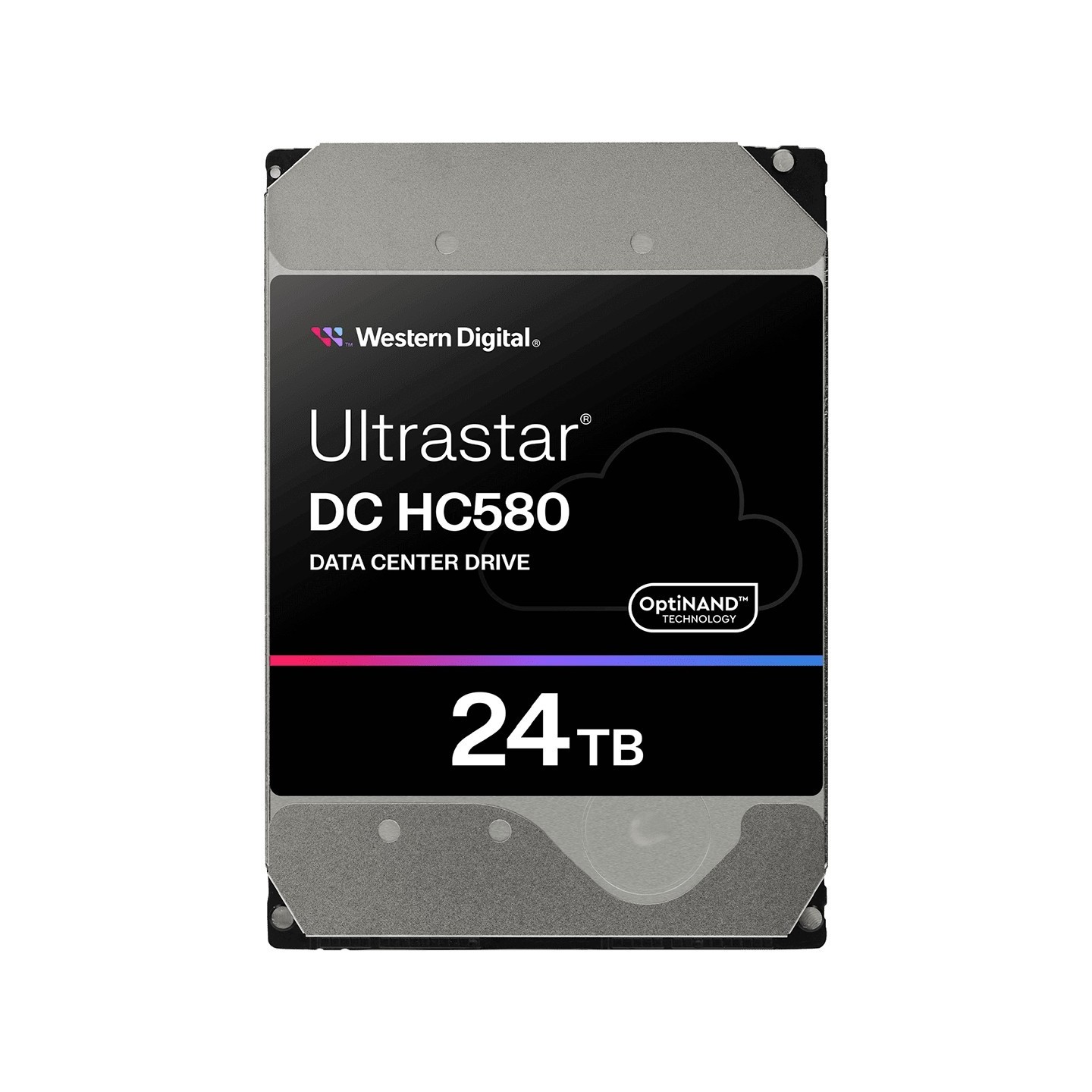

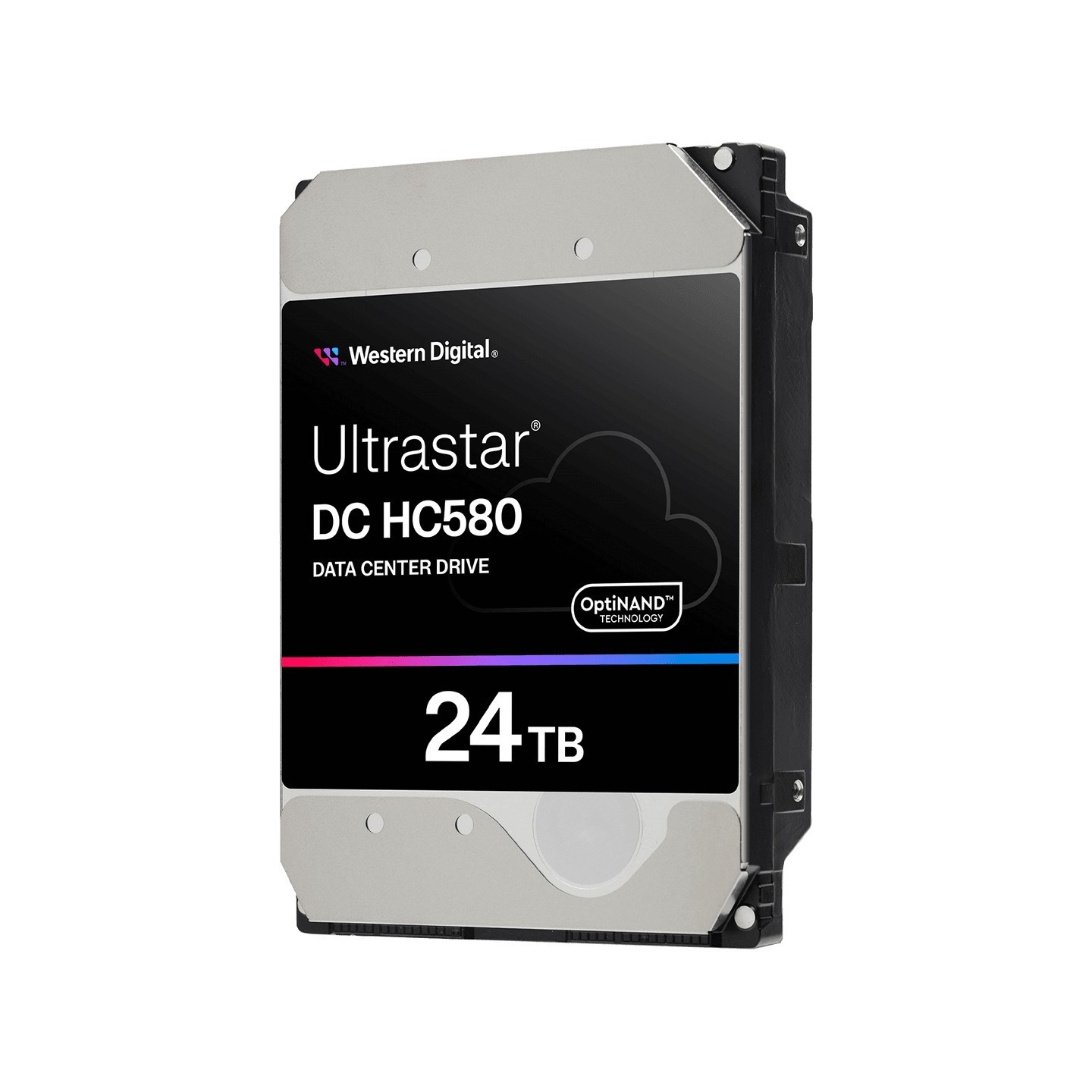

Western Digital Ultrastar DC HC580 24TB - 7200 RPM 512MB SATA III HDD - WUH722424ALE6L4 (Bulk)
Western Digital Ultrastar DC HC580 (WUH722424ALE6L4) 24TB 3.5" SATA III HDD: 7200 RPM, 512MB cache, 298 MB/s sustained. OptiNAND/CMR for data centers, 550TB/yr workload, 2.5M hr MTBF, 5-yr warranty. Helium-sealed enterprise drive.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal HDD |
|---|---|
| Storage (SSD & HDD) - Capacity | 24TB+ |
| Storage (SSD & HDD) - RPM (HDD) | 7200 RPM |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Cache (HDD) | 512MB |
| Storage (SSD & HDD) - Form Factor | 3.5 inch |
The Western Digital Ultrastar DC HC580 WUH722424ALE6L4 is a high-capacity 24TB 3.5-inch SATA III HDD designed for demanding data center and enterprise environments. Featuring 7200 RPM spindle speed, 512MB cache, and sustained transfer rates up to 298 MB/s, it delivers reliable performance for 24x7 operations. Advanced technologies like OptiNAND, Energy-Assisted Magnetic Recording (EAMR), HelioSeal helium sealing, and Triple-Stage Actuator (TSA) enable massive storage in a power-efficient 10-disk CMR design.
Built for cloud/hyperscale storage, massive scale-out data centers, Big Data analytics, and hybrid cloud setups, this drive supports workloads up to 550 TB/year with an MTBF of 2.5 million hours and annualized failure rate of 0.35%. ArmorCache provides enterprise-grade power loss protection, ensuring data integrity even in write-cache enabled mode. Compatible with Windows, Windows Server, and Linux.
- ✅ 24TB capacity on 10-disk CMR platters
- ✅ SATA 6Gb/s interface, 512e/4Kn sector formats
- ✅ Low power: 8.5W read/write, 5.5W idle
- ✅ 5-year limited warranty
- ✅ Helium-sealed for reduced weight and power
| HDD capacity | 24 TB |
| HDD speed | 7200 RPM |
| Storage drive buffer size | 512 MB |
| HDD size | 3.5 |
| Interface | Serial ATA |
| Type | HDD |
| Component for | Server/workstation |
| HDD sustained transfer rate | 298 MiB/s |
| Average latency | 4.16 ms |
| Workload rate limit | 550 TB/year |
| Mean time between failures (MTBF) | 2500000 h |
| Power consumption (read) | 8.5 W |
| Power consumption (write) | 8.5 W |
| Power consumption (idle) | 5.5 W |
| Operating voltage | 5 / 12 V |
| Operating temperature (T-T) | 5 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating vibration | 0.7 G |
| Non-operating vibration | 1.04 G |
| Operating shock | 40 G |
| Non-operating shock | 200 G |
| Width | 101.6 mm |
| Height | 26.1 mm |
| Depth | 147 mm |
| Weight | 670 g |
| Quantity per pack | 1 pc(s) |
| Warranty period | 5 year(s) |
| Feature | Linux operating systems supported |
| Recording Technology | CMR |
| Areal density | 1210 Gbits/sq. in. |
| Sector Size | 512e / 4Kn |
