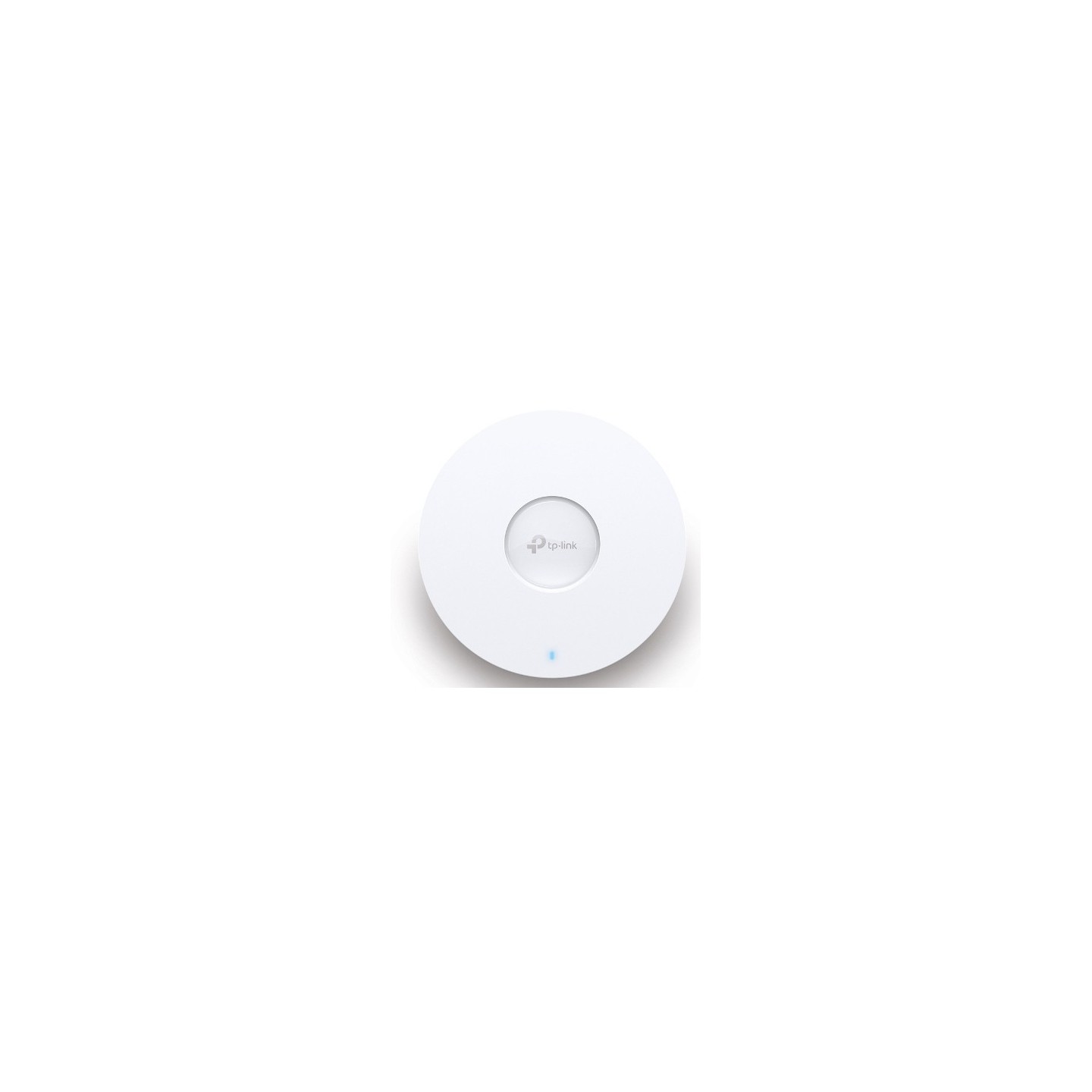

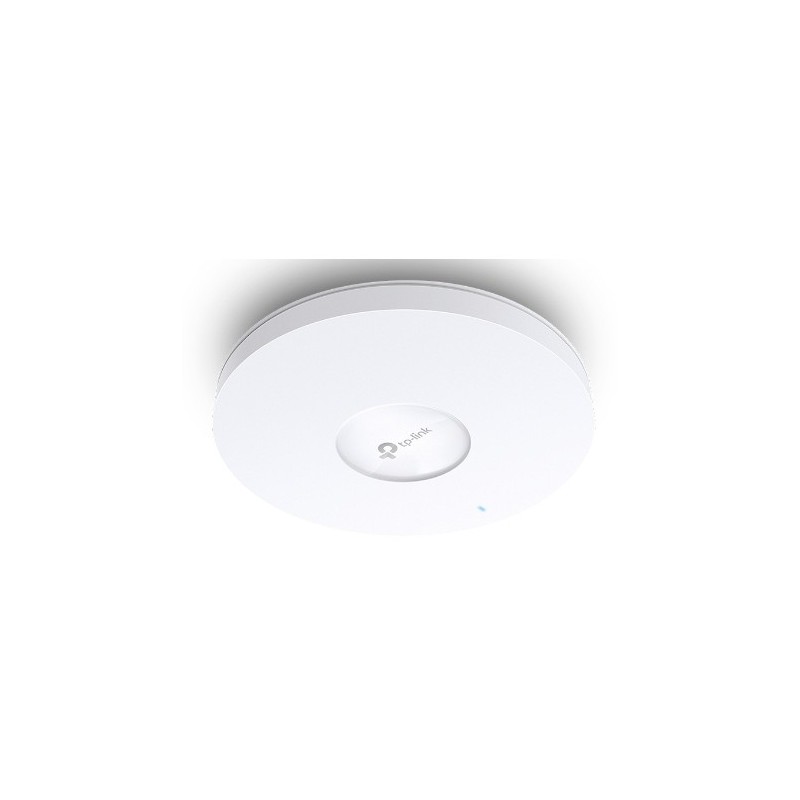

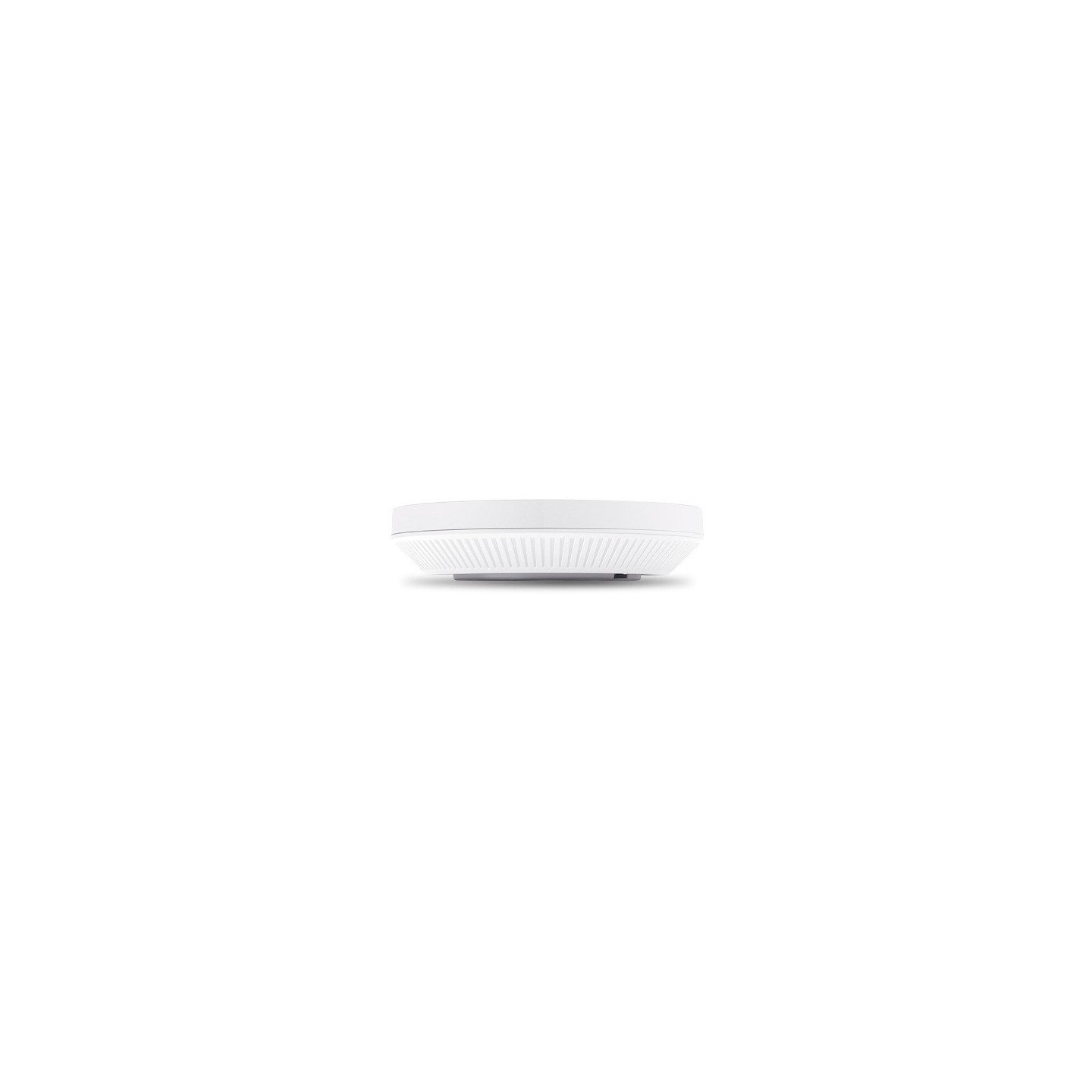

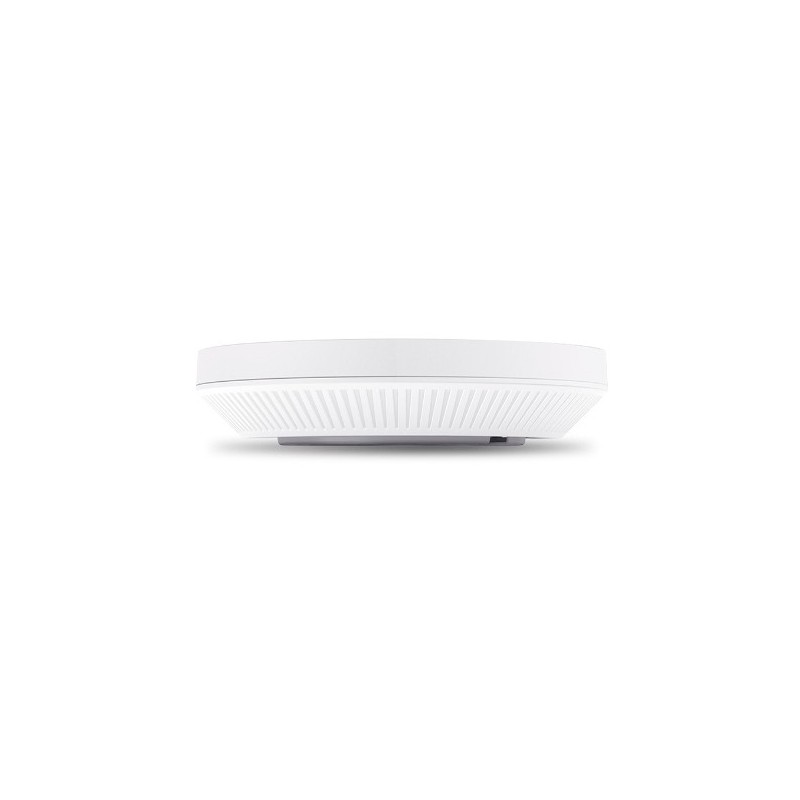

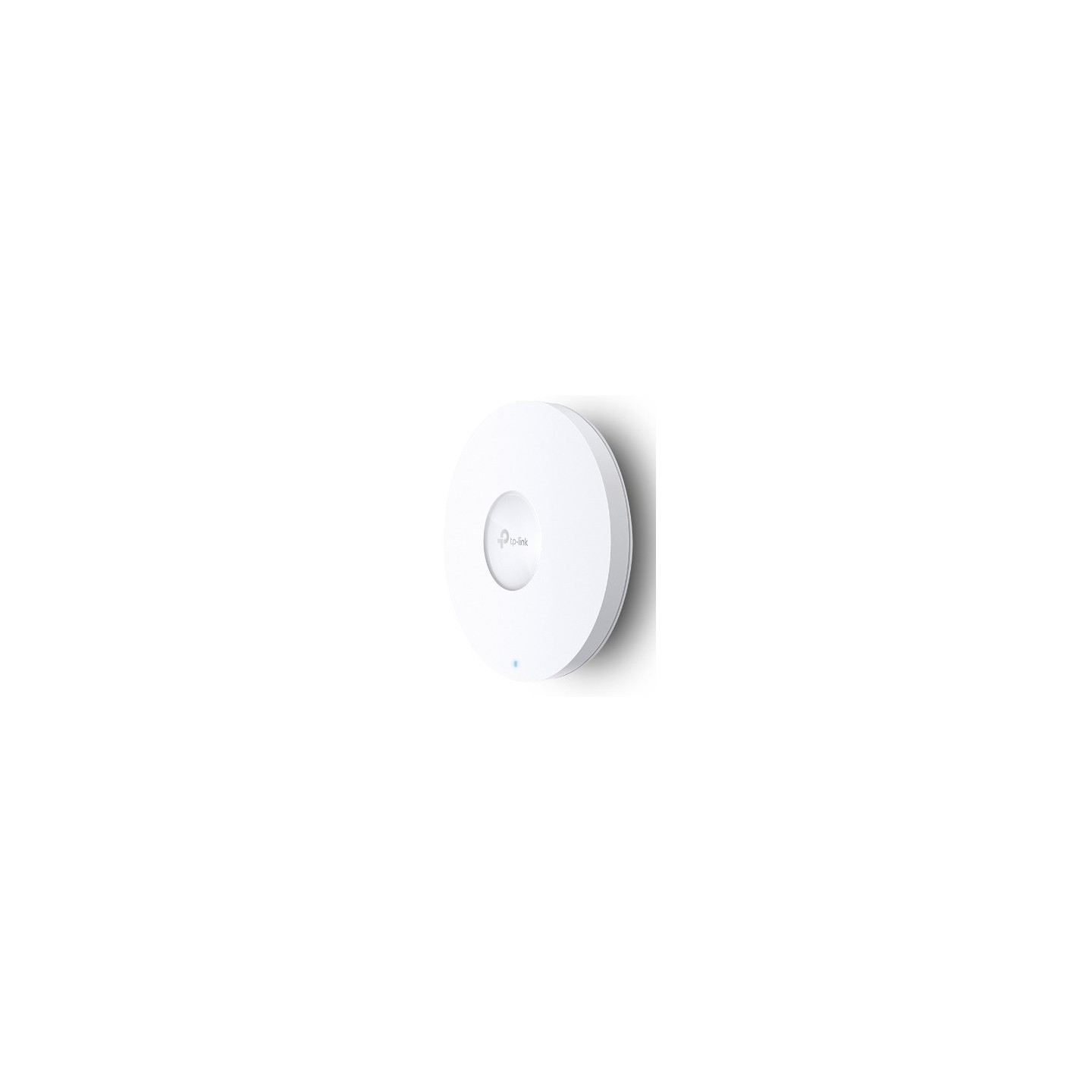

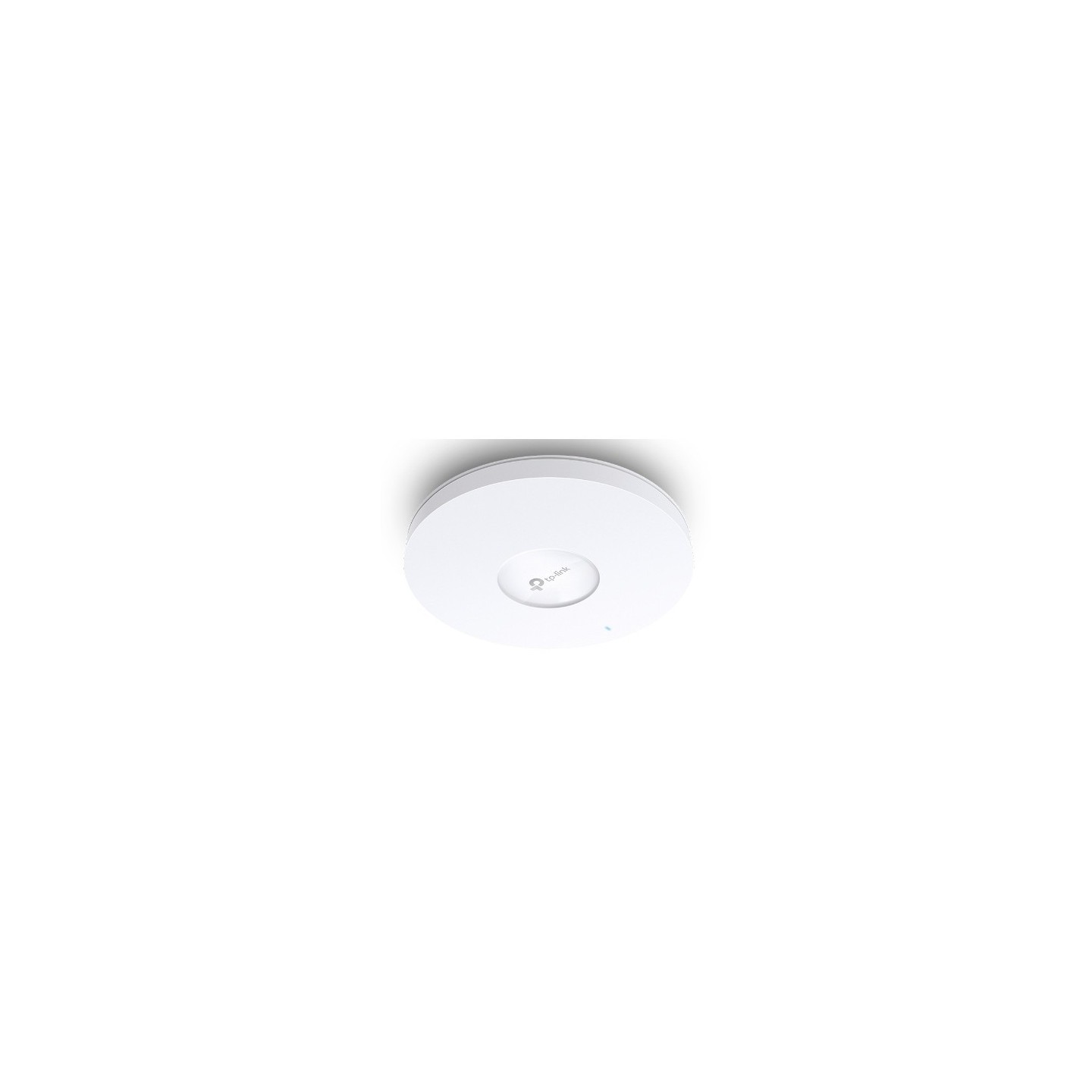

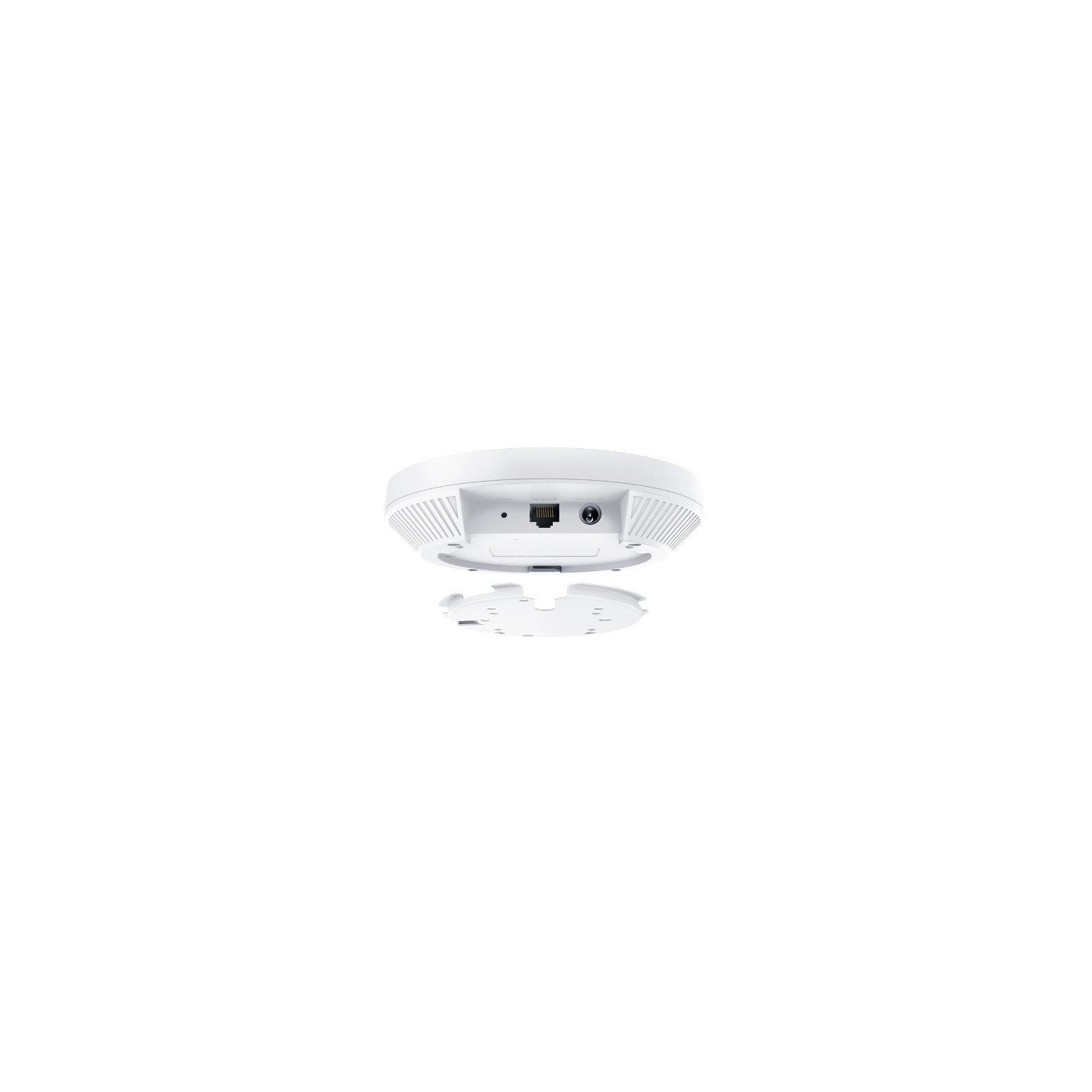

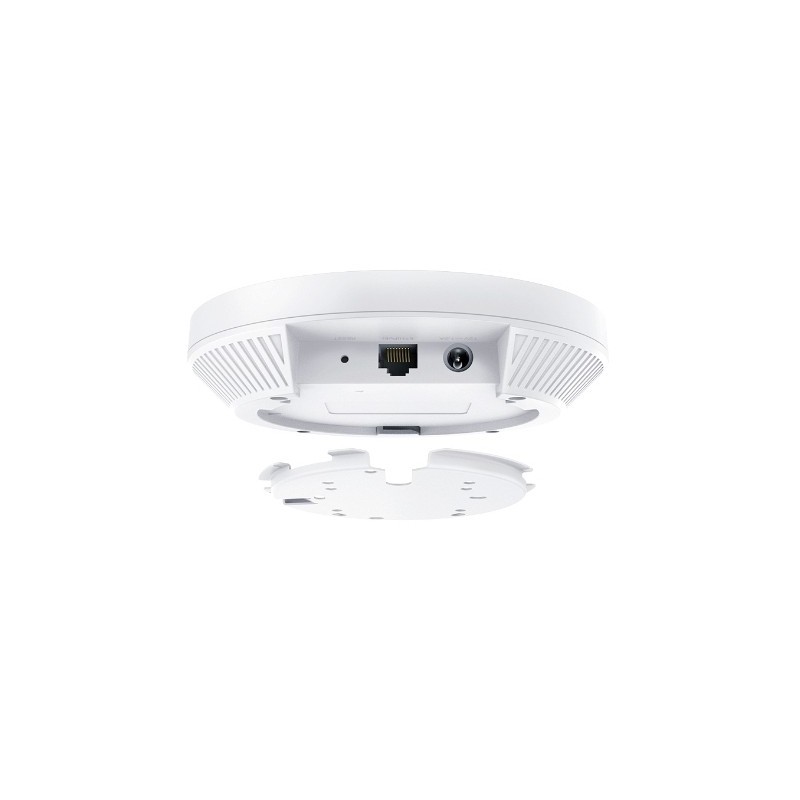

TP-Link Omada EAP653 - Wi‑Fi 6 AX3000 Ceiling Access Point - White, Dual‑Band, MU‑MIMO, Mesh
AX3000 dual-band (up to 2976 Mbps) Wi‑Fi 6 ceiling AP, supports 250 users, MU‑MIMO & OFDMA, mesh capable, WPA/WPA2/WPA3 security, 1x Gigabit RJ45, white.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Mounting | Ceiling |
| Access Points - Mesh | Yes |
| Access Points - Outdoor Rating | None |
TP-Link Omada AX3000 Ceiling Mount WiFi 6 Access Point. 2.4 GHz. 5 GHz. Maximum data transfer rate: 2976 Mbit/s. Security algorithms: HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA. WPA2. WPA3. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Quick start guide |
| Maximum data transfer rate | 2976 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11h |
| Cabling technology | 10/100/1000Base-T(X) |
| Number of users | 250 user(s) |
| MIMO type | Multi User MIMO |
| Spread spectrum method | OFDMA |
| Fit AP mode features | Mesh networking |
| Transmitting power (CE) | 27 dBm |
| Transmitting power (FCC) | 22 dBm |
| Security algorithms | HTTPS. SNMP. SNMPv2. SNMPv3. SSH. WPA. WPA2. WPA3 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC voltage range | 12 V |
| Placement | Ceiling. Wall |
| Product colour | White |
| Antenna type | Internal |
| Width | 160 mm |
| Depth | 160 mm |
| Height | 33.6 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
