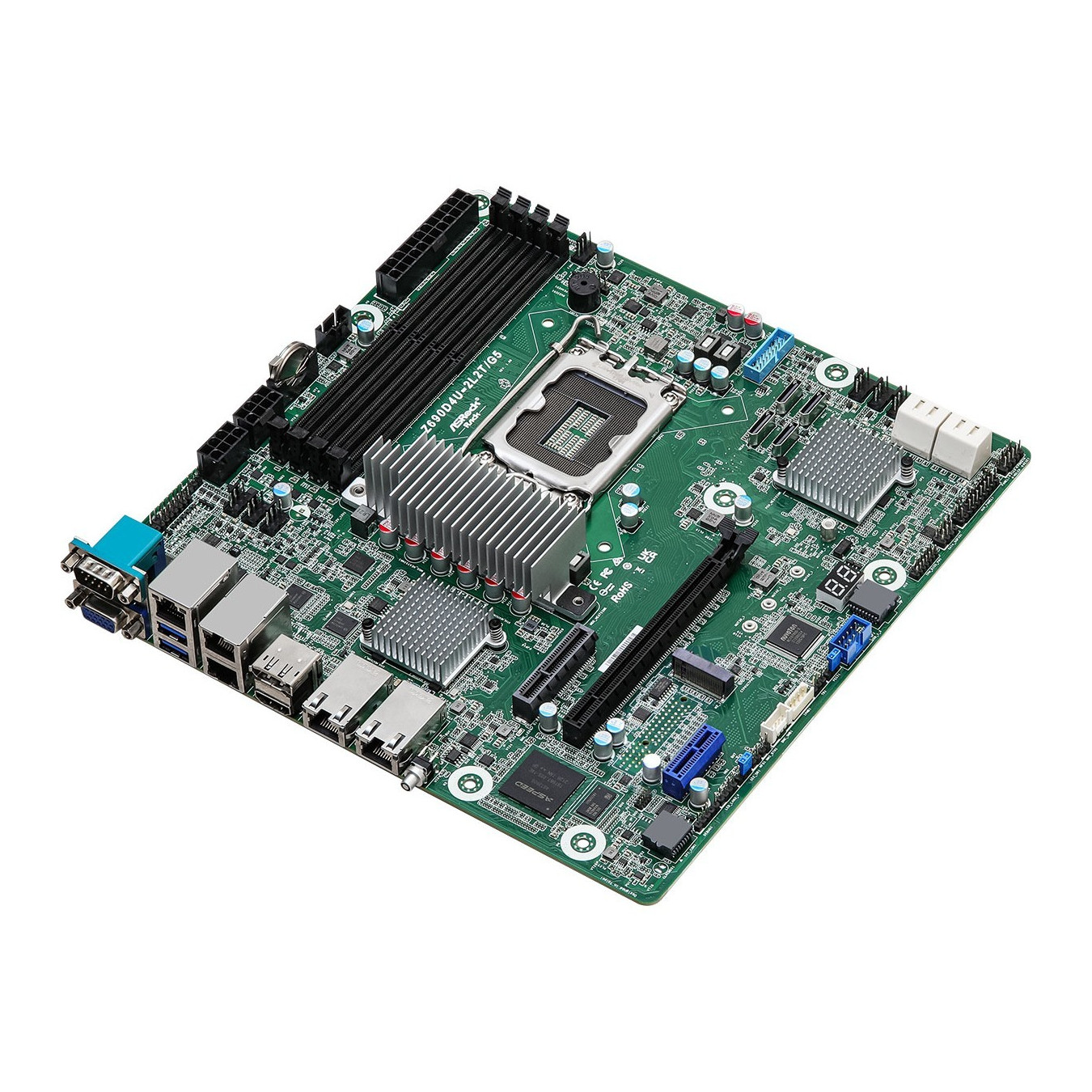

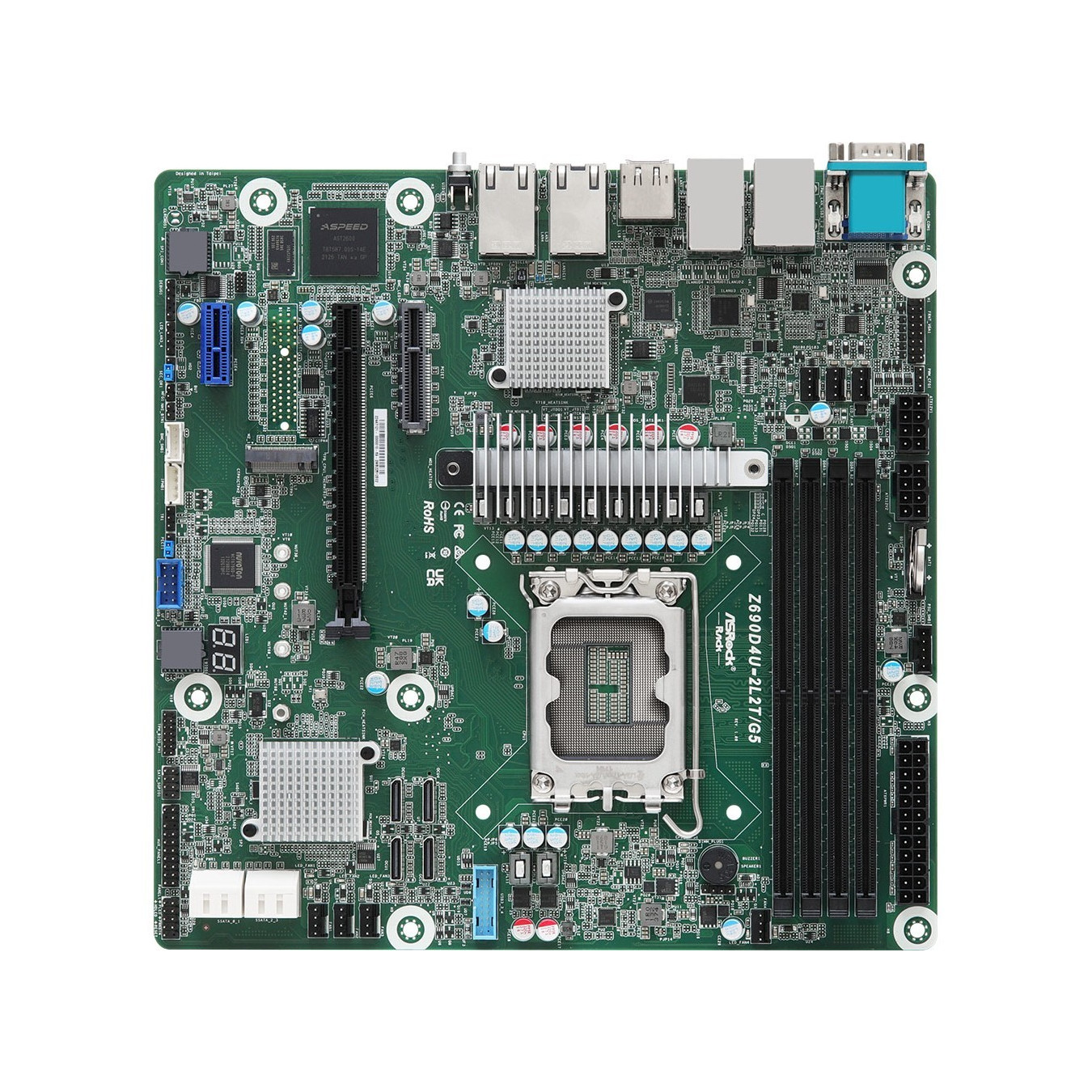

ASRock Z690D4U-2L2T/G5 - Micro-ATX LGA1700 Server Motherboard, Z690, DDR5, 4x DIMM, 8x SATA, Quad Intel LAN
Micro-ATX Z690 server board LGA1700 for Intel Celeron/Pentium. DDR5 (4 DIMM), 1x M.2, 8x SATA, 4x Intel LAN (I210/X710), AST2600 BMC (IPMI-ready).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - Memory Slots | 4 |
|---|---|
| Motherboards - Main Slot PCIe Version | PCIe 5.0 |
| Motherboards - M.2 Slots | 1 |
| Motherboards - SATA Ports | 8 |
| Motherboards - USB-C Support | None |
Asrock Z690D4U-2L2T/G5. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Pentium®. Supported memory types: DDR5-SDRAM. Memory slots type: DIMM. ECC сompatibility: Non-ECC. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Graphics card family: ASPEED. Graphics card: AST2600. LAN controller: Intel I210. Intel® X710
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Pentium® |
| Maximum number of SMP processors | 1 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Graphics card family | ASPEED |
| Graphics card | AST2600 |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 8 |

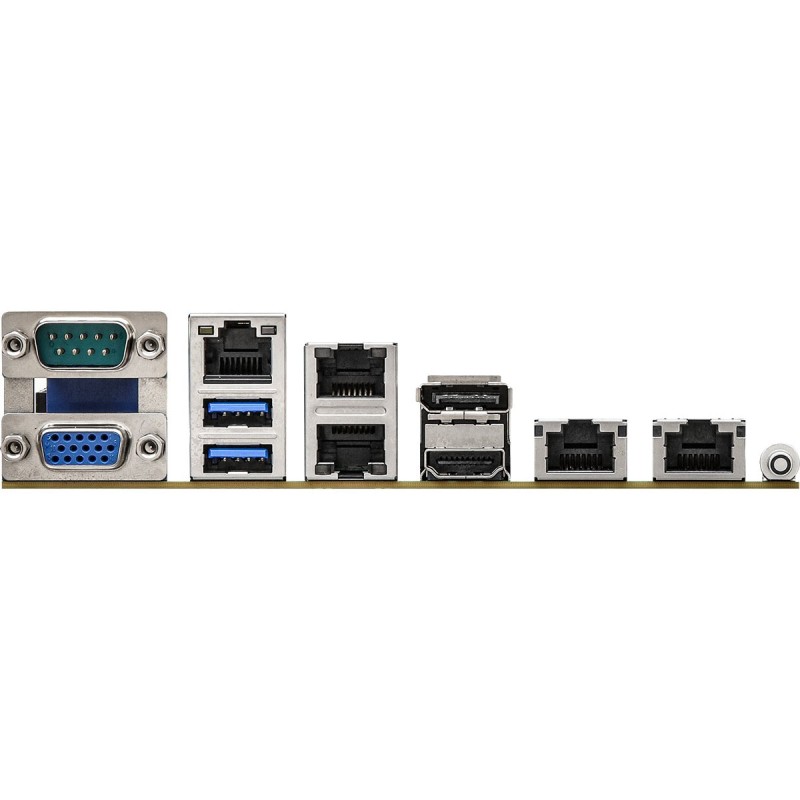

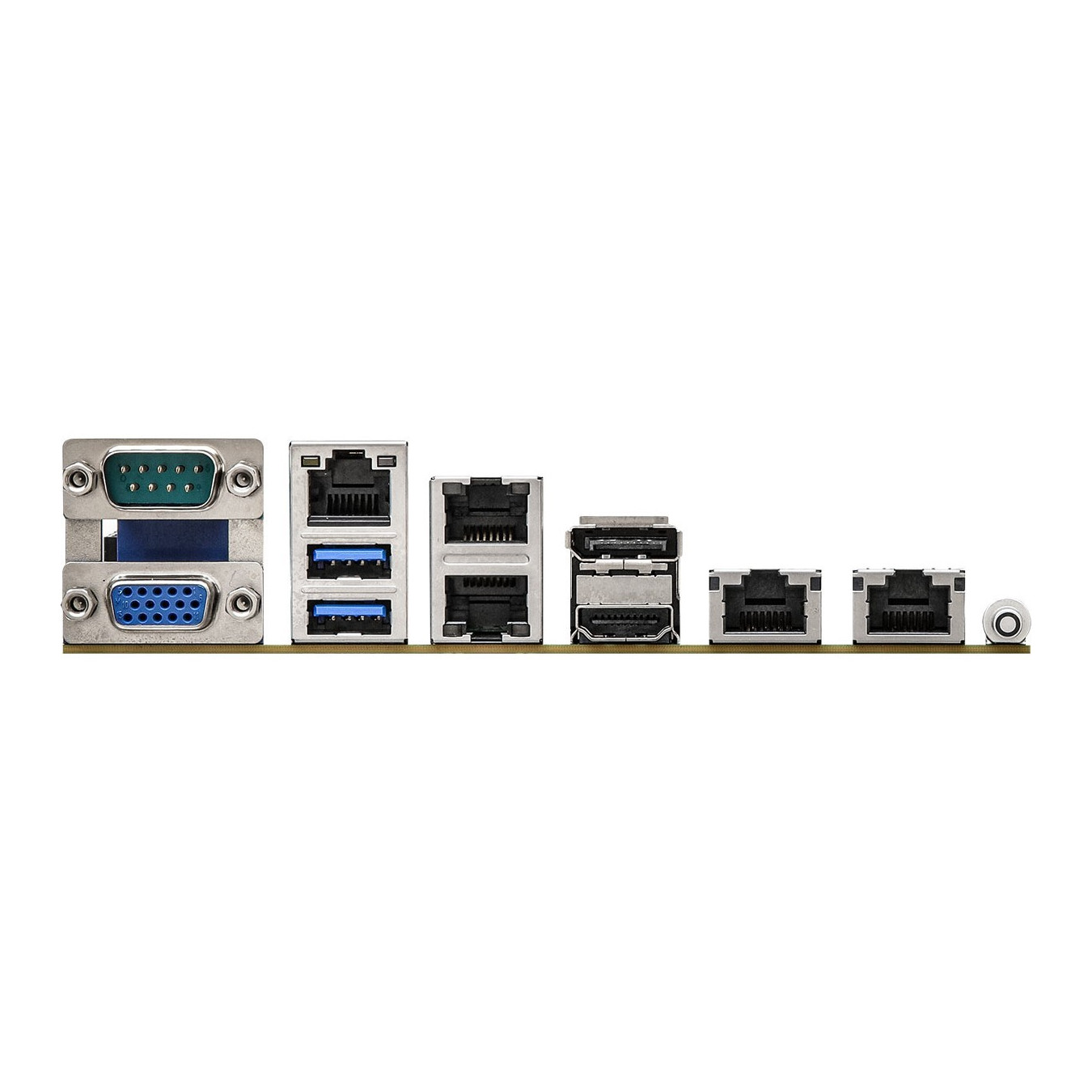

| Feature | Ethernet LAN |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 4 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Serial ports quantity | 1 |
| LAN controller | Intel I210. Intel® X710 |
| Motherboard chipset | Intel Z690 |
| PC health monitoring | Fan. Temperature |
| Component for | Server |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 x64 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 1 |
| BIOS type | AMI |
| ACPI version | 6.4 |
| System Management BIOS (SMBIOS) version | 2.8 |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 90% |
| Width | 244 mm |
| Depth | 244 mm |
