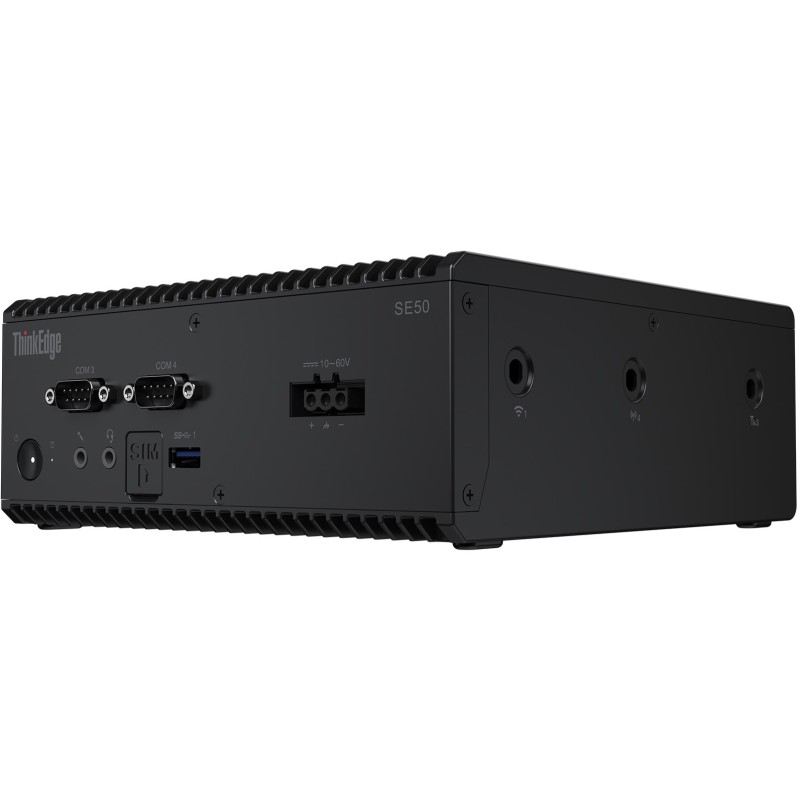

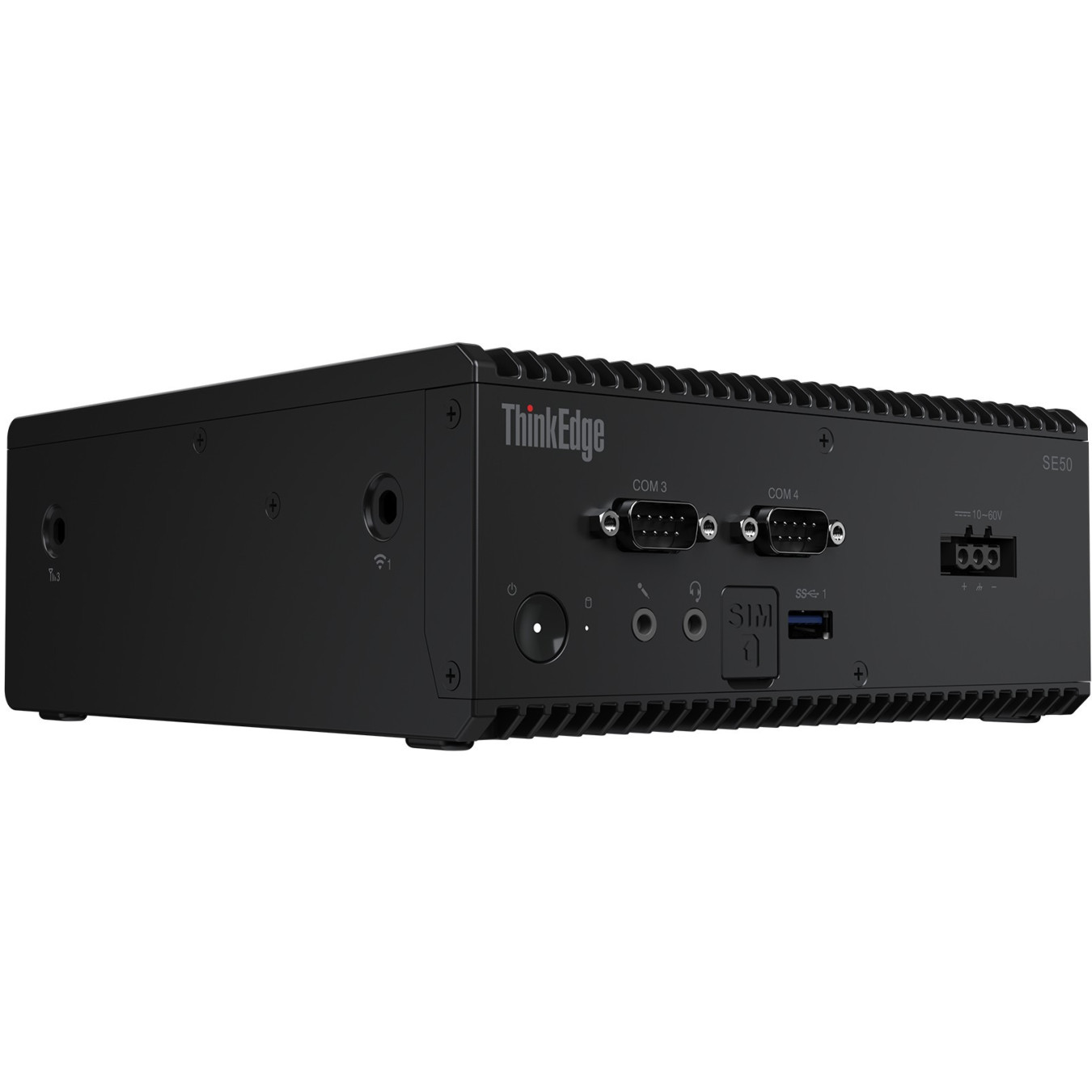

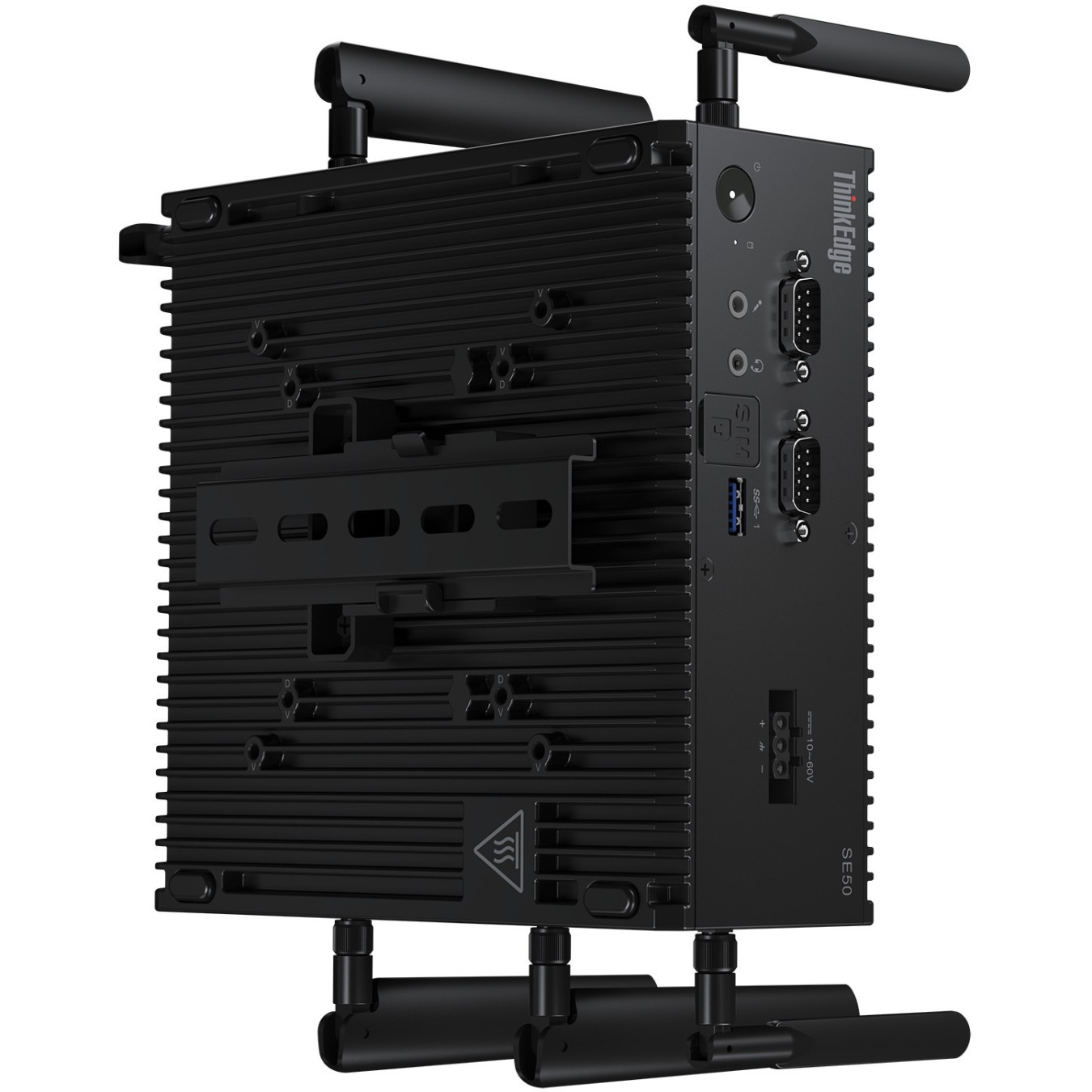

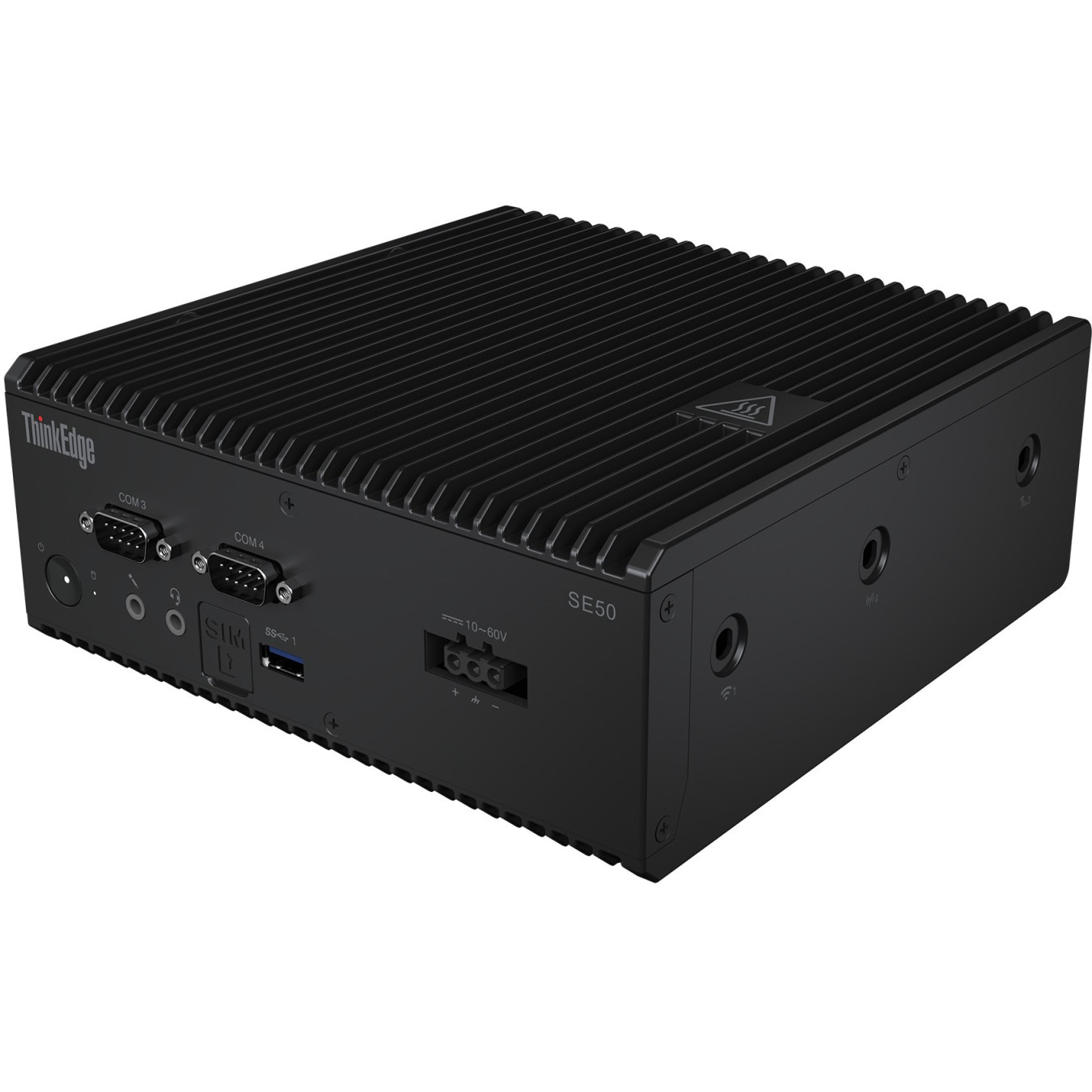

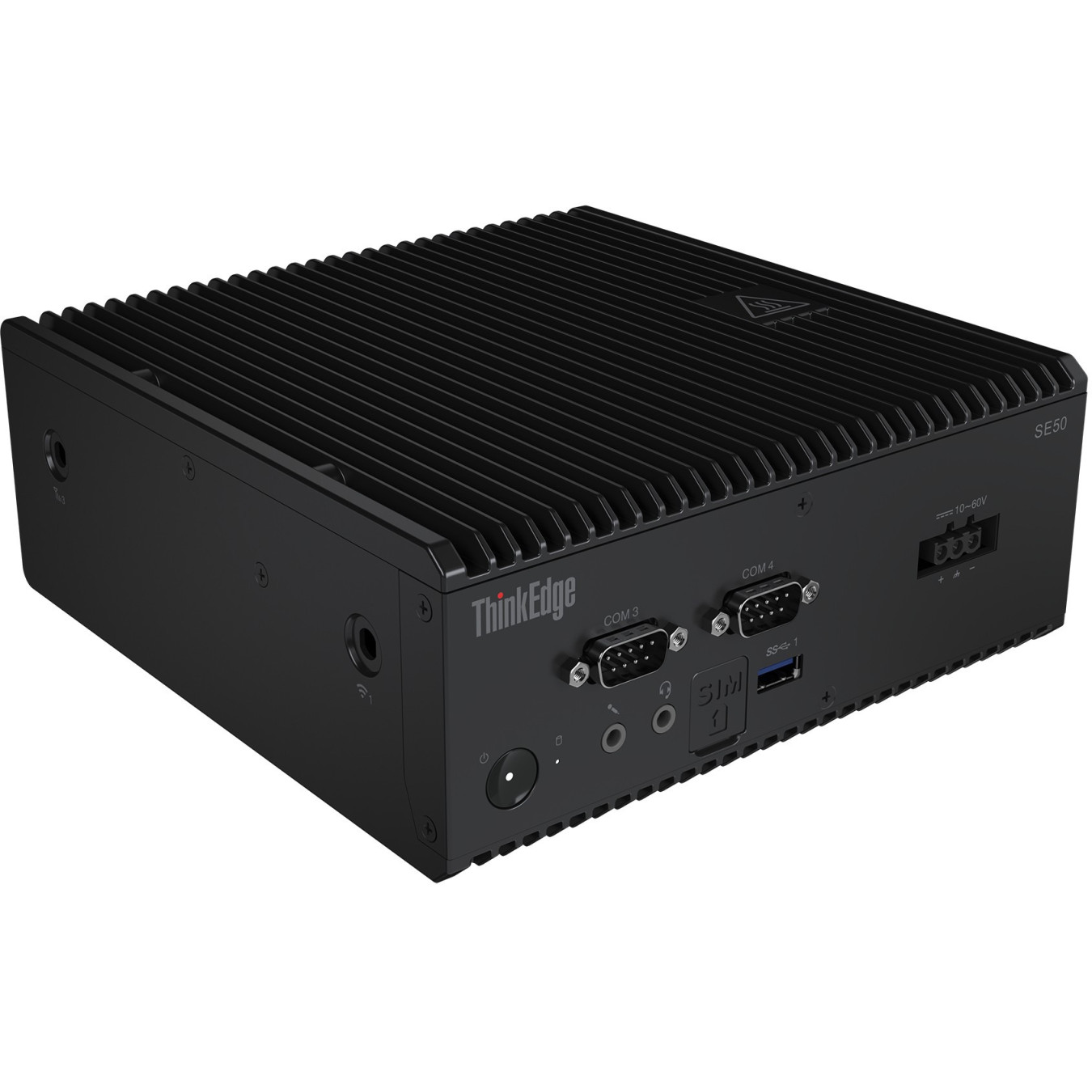

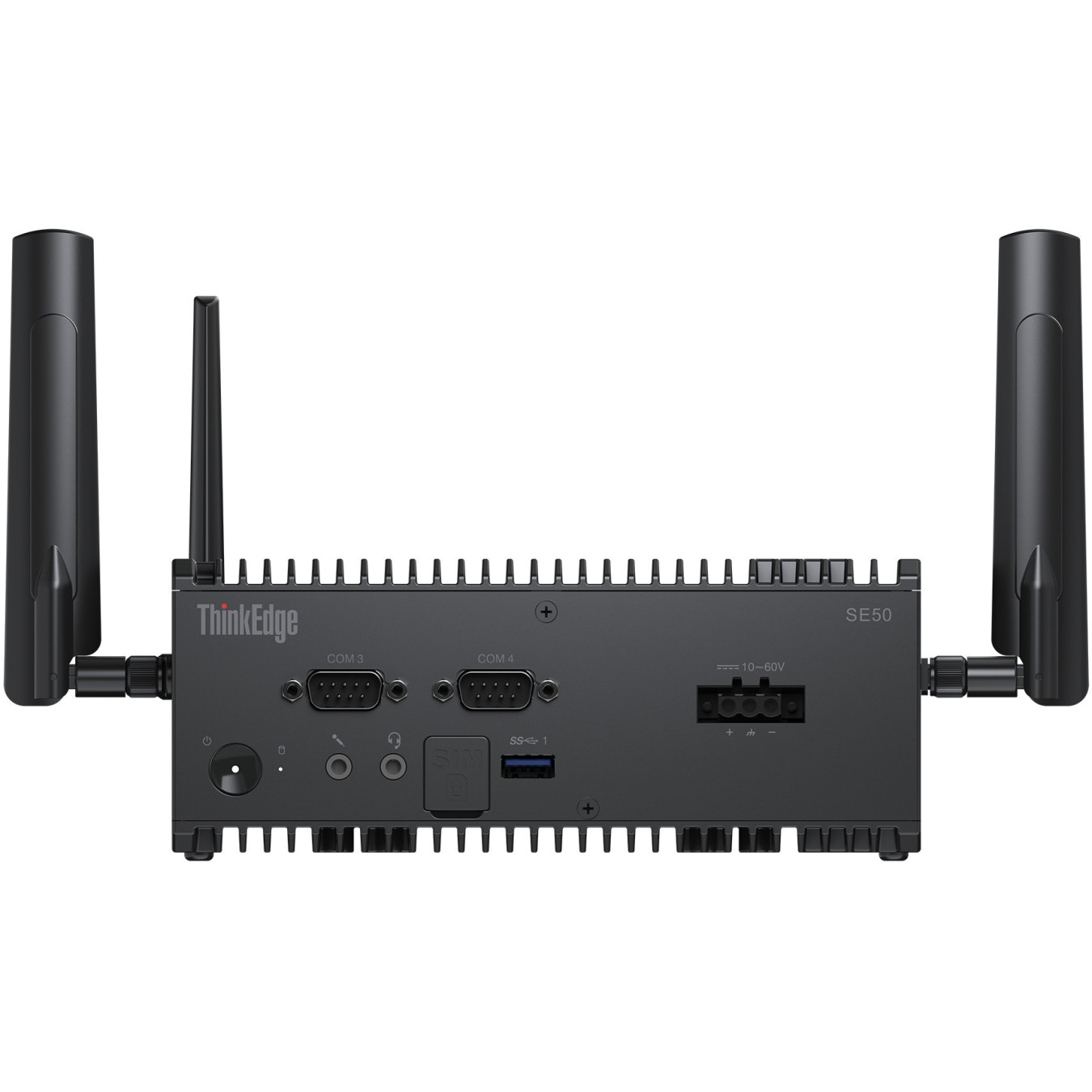

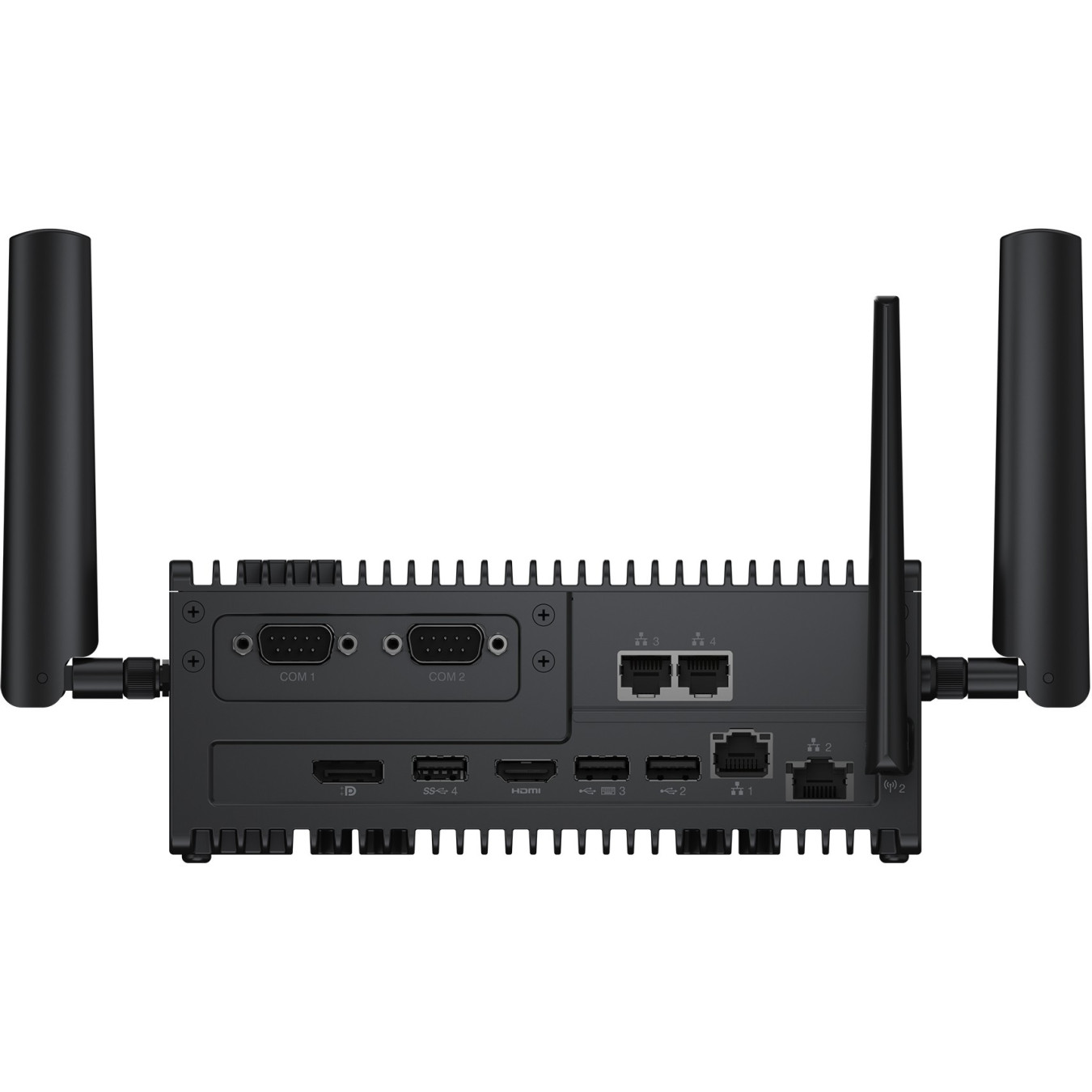

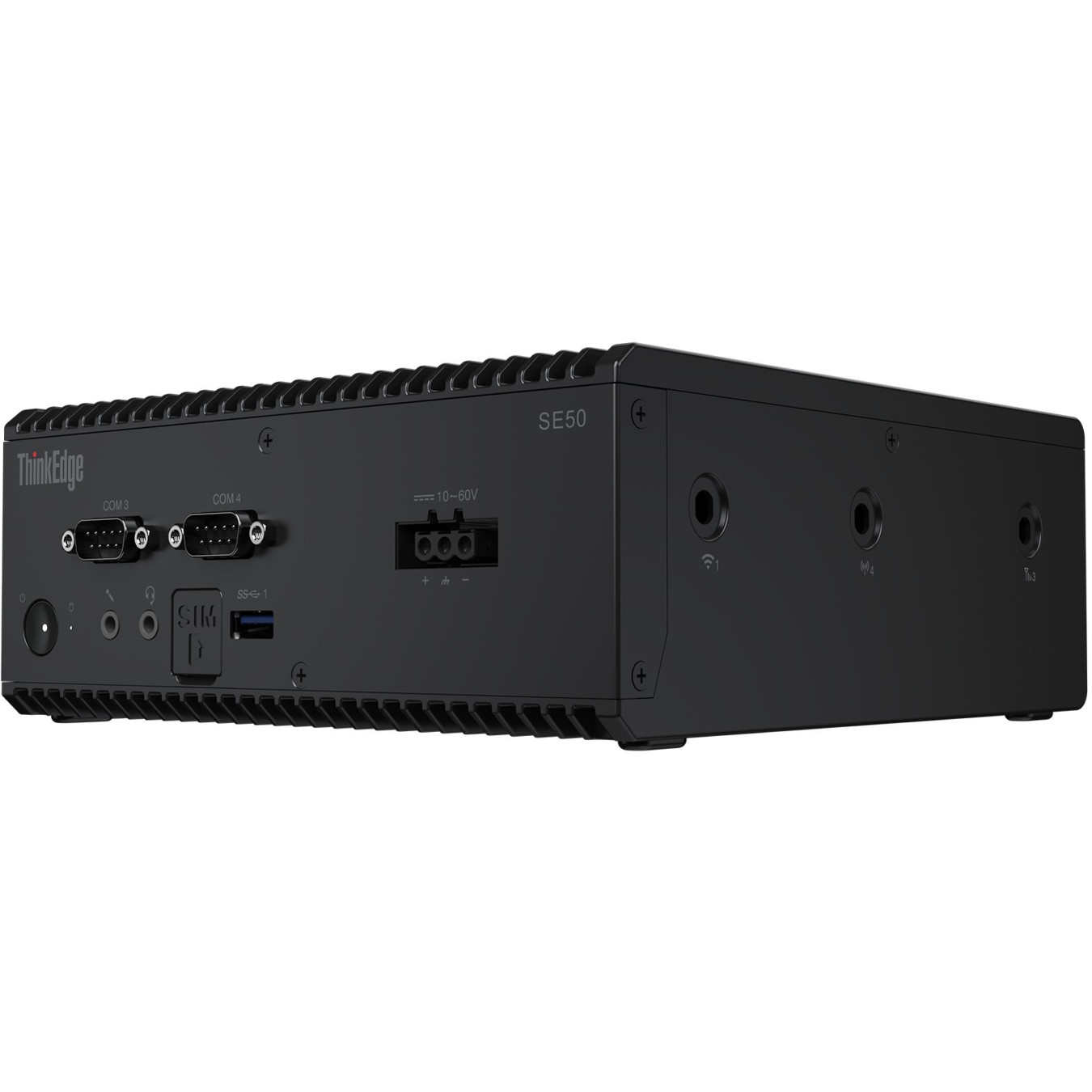

Lenovo ThinkEdge SE50 - i5-8365UE - 1.6GHz (4.1GHz boost), 16GB DDR4, 512GB NVMe, Black, Windows 11 IoT
Compact Lenovo ThinkEdge SE50 mini PC with Intel Core i5-8365UE (1.6–4.1GHz), 16GB DDR4, 512GB PCIe NVMe M.2, Intel UHD 620, Dual Gigabit LAN, Wi‑Fi 5, Windows 11 IoT
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Barebone & Mini PCs - Type | Mini PC (Ready-to-Use) |
|---|---|
| Barebone & Mini PCs - CPU Series | Intel Core i5 |
| Barebone & Mini PCs - Memory Type | DDR4 SO-DIMM |
| Barebone & Mini PCs - Memory Slots | 2 |
| Barebone & Mini PCs - Max Memory | 64 GB |
| Barebone & Mini PCs - Storage Support | M.2 NVMe |
| Barebone & Mini PCs - Graphics | Integrated |
| Barebone & Mini PCs - Video Outputs | HDMI |
| Barebone & Mini PCs - Ethernet | 1GbE |
| Barebone & Mini PCs - Bluetooth | 5.1 |
Lenovo ThinkEdge SE50. Processor frequency: 1.6 GHz. Processor family: Intel® Core™ i5. Processor model: i5-8365UE. Internal memory: 16 GB. Internal memory type: DDR4-SDRAM. Memory clock speed: 2400 MHz. Total storage capacity: 512 GB. Storage media: SSD. On-board graphics card model: Intel® UHD Graphics 620. Operating system installed: Windows 11 IoT Enterprise. Operating system architecture: 64-bit. Power supply: 65 W. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 8th gen Intel® Core™ i5 |
| Processor model | i5-8365UE |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor boost frequency | 4.1 GHz |
| Processor frequency | 1.6 GHz |
| Processor cache | 6 MB |
| Processor cache type | Smart Cache |
| Number of processors installed | 1 |
| Internal memory | 16 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory layout (slots x size) | 1 x 16 GB |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2400 MHz |
| Memory channels | Dual-channel |
| Total storage capacity | 512 GB |
| Storage media | SSD |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| Feature | Keyboard included |
| SSD form factor | M.2 |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® UHD Graphics |
| On-board graphics card model | Intel® UHD Graphics 620 |
| Ethernet LAN data rates | 100.1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | Wi-Fi 5 (802.11ac) |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Dual Band Wireless-AC 9560 |
| Antenna type | 2x2 |
| Bluetooth version | 5.1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Serial ports quantity | 6 |
| Chassis type | Mini PC |
| Colour name | Black |
| Placement supported | Horizontal |
| Product colour | Black |
| Motherboard chipset | Intel SoC |
| Product type | Mini PC |
| Trusted Platform Module (TPM) version | 2.0 |
| Operating system architecture | 64-bit |
| Operating system language | German |
| Operating system installed | Windows 11 IoT Enterprise |
| Power supply | 65 W |
| Power supply input voltage | 100 - 240 V |
| Power supply input frequency | 50/60 Hz |
| Operating temperature (T-T) | 5 - 35 °C |
| Storage temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 12192 m |
| Compliance certificates | RoHS. WEEE |
| Certification | Low HalogenREACHRoHS compliantTED (ECO-declaration)WEEE |
| Width | 179 mm |
| Depth | 182.9 mm |
| Height | 72 mm |
| Weight | 2.98 kg |
| Mouse connectivity | Wired |
| Keyboard connectivity | Wired |
