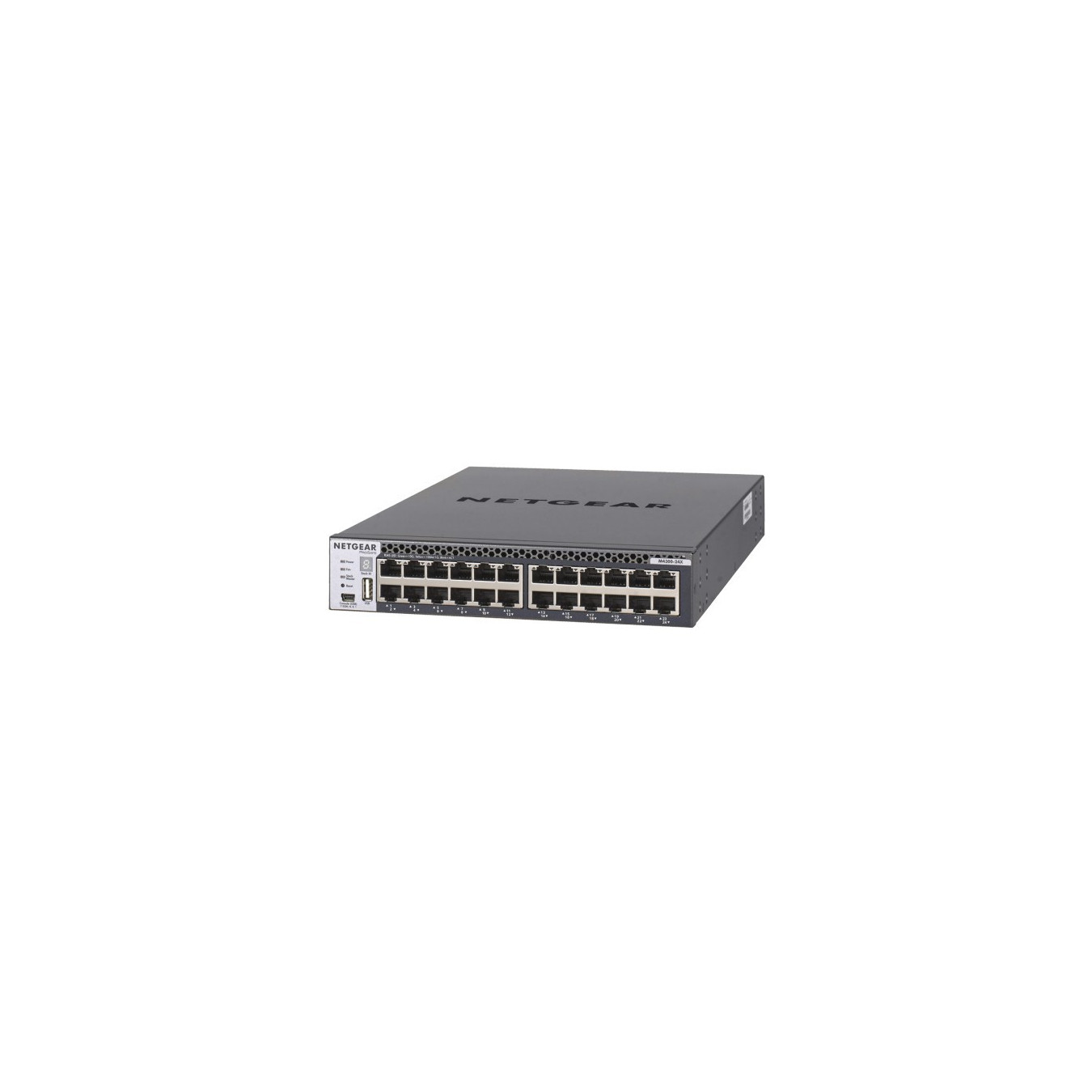

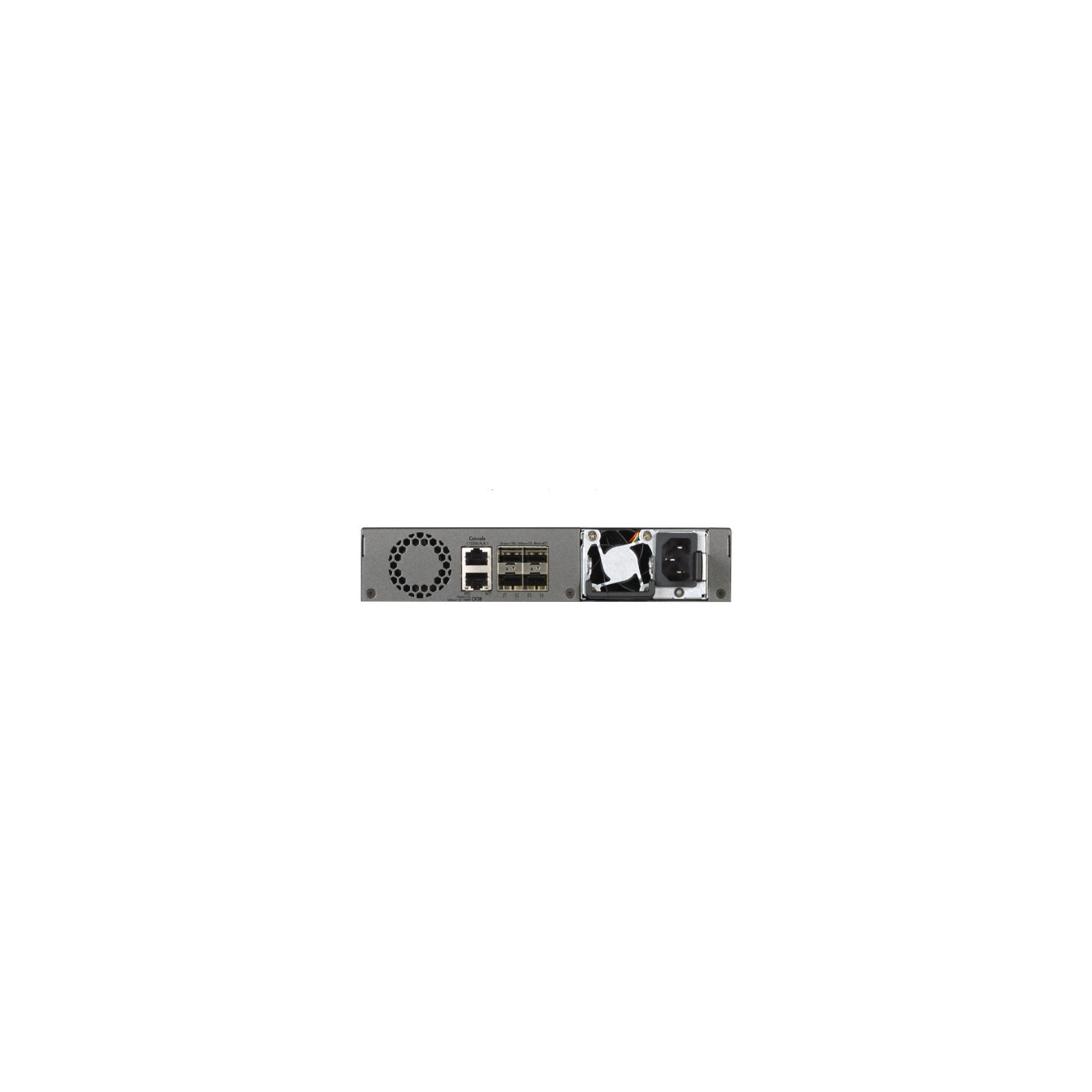

NETGEAR M4300-24X (XSM4324CS-100NES) - 24x10G RJ45/SFP+ L3 Managed Switch, Black, 1GB RAM, 800MHz CPU
24x10G RJ45/SFP+ L3 managed switch with 4 SFP+ slots, 1U rackmount, 1GB RAM, 800MHz CPU, 480 Gbit/s capacity, 357 Mpps, typical 250W power consumption.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Fanless | No |
|---|
NETGEAR M4300-24X. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 24. USB 2.0 ports quantity: 2. Console port: RJ-45. MAC address table: 16000 entries. Switching capacity: 480 Gbit/s. Networking standards: IEEE 802.1AX. IEEE 802.3ad. IEEE 802.3aq. IEEE 802.3az. Power connector: DC-in jack. Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Built-in processor |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45 |
| USB 2.0 ports quantity | 2 |
| Power connector | DC-in jack |
| Networking standards | IEEE 802.1AX. IEEE 802.3ad. IEEE 802.3aq. IEEE 802.3az |
| Virtual LAN features | Private VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 480 Gbit/s |
| Throughput | 357 Mpps |
| MAC address table | 16000 entries |
| Packet buffer memory | 16 MB |
| DHCP features | DHCP server |
| Management protocols | Web GUI. HTTPs. CLI. Telnet. SSH. SNMP. MIBs RSPAN. Radius Users. TACACS+ |
| Form factor | 1U |
| Product colour | Black |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Flash memory | 256 MB |
| Noise level | 37 dB |
| AC input voltage | 110 - 220 V |
| Power consumption (typical) | 250 W |
| Weight | 4.14 kg |
| Harmonized System (HS) code | 85176990 |
