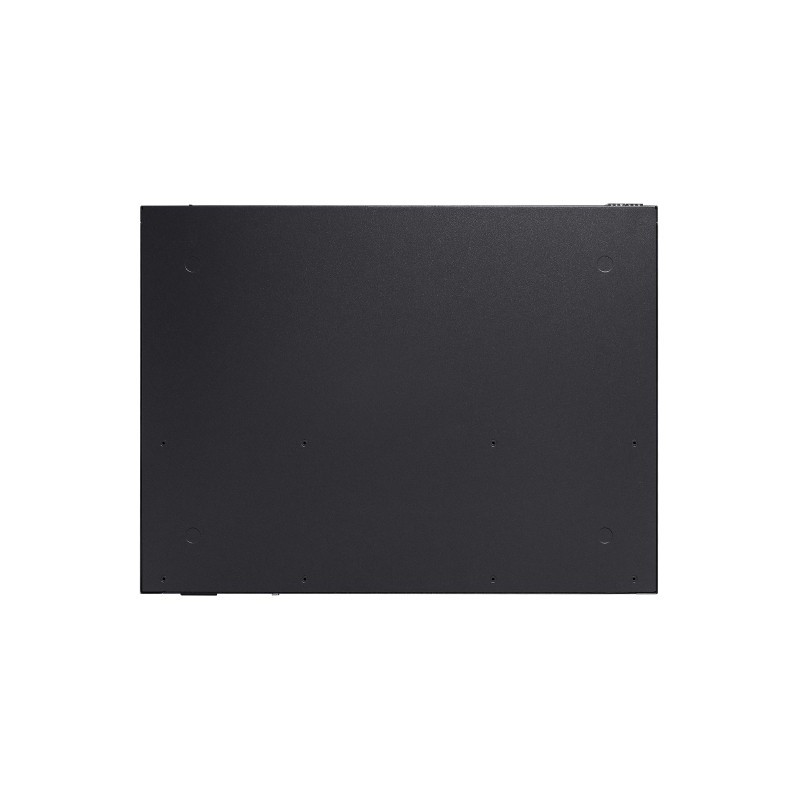

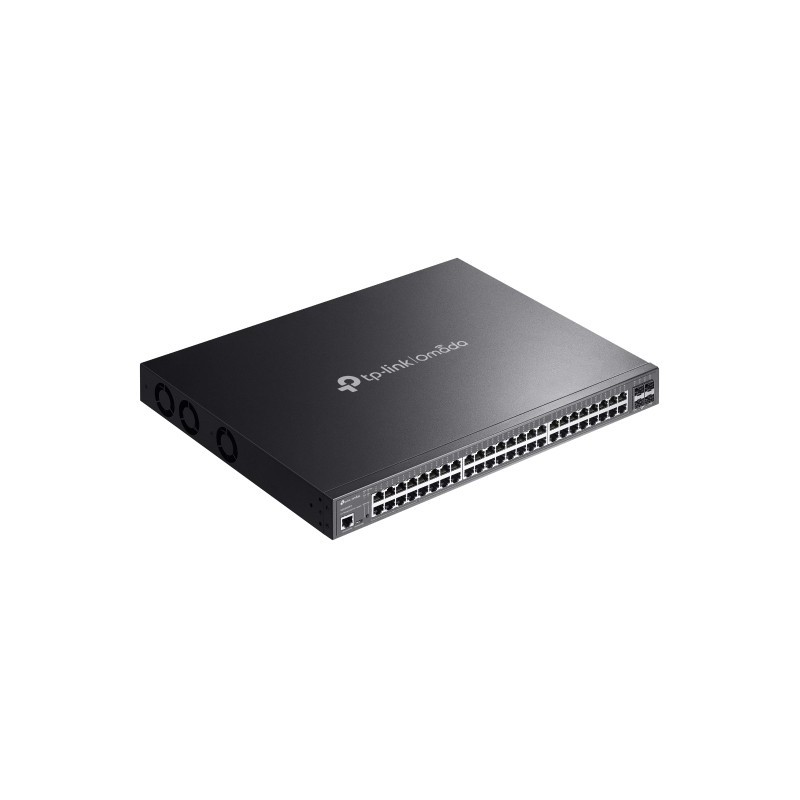

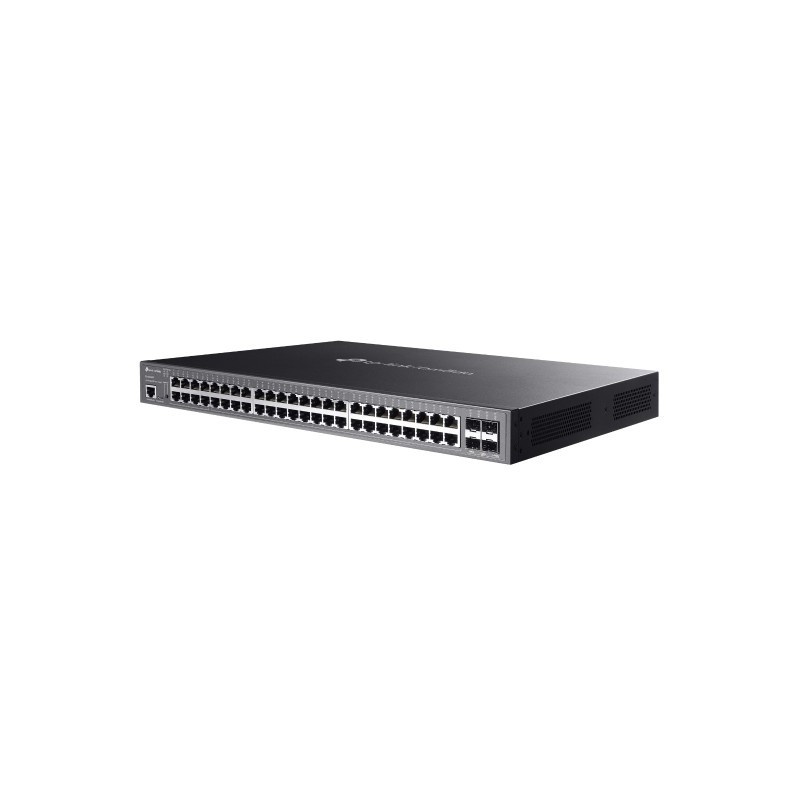

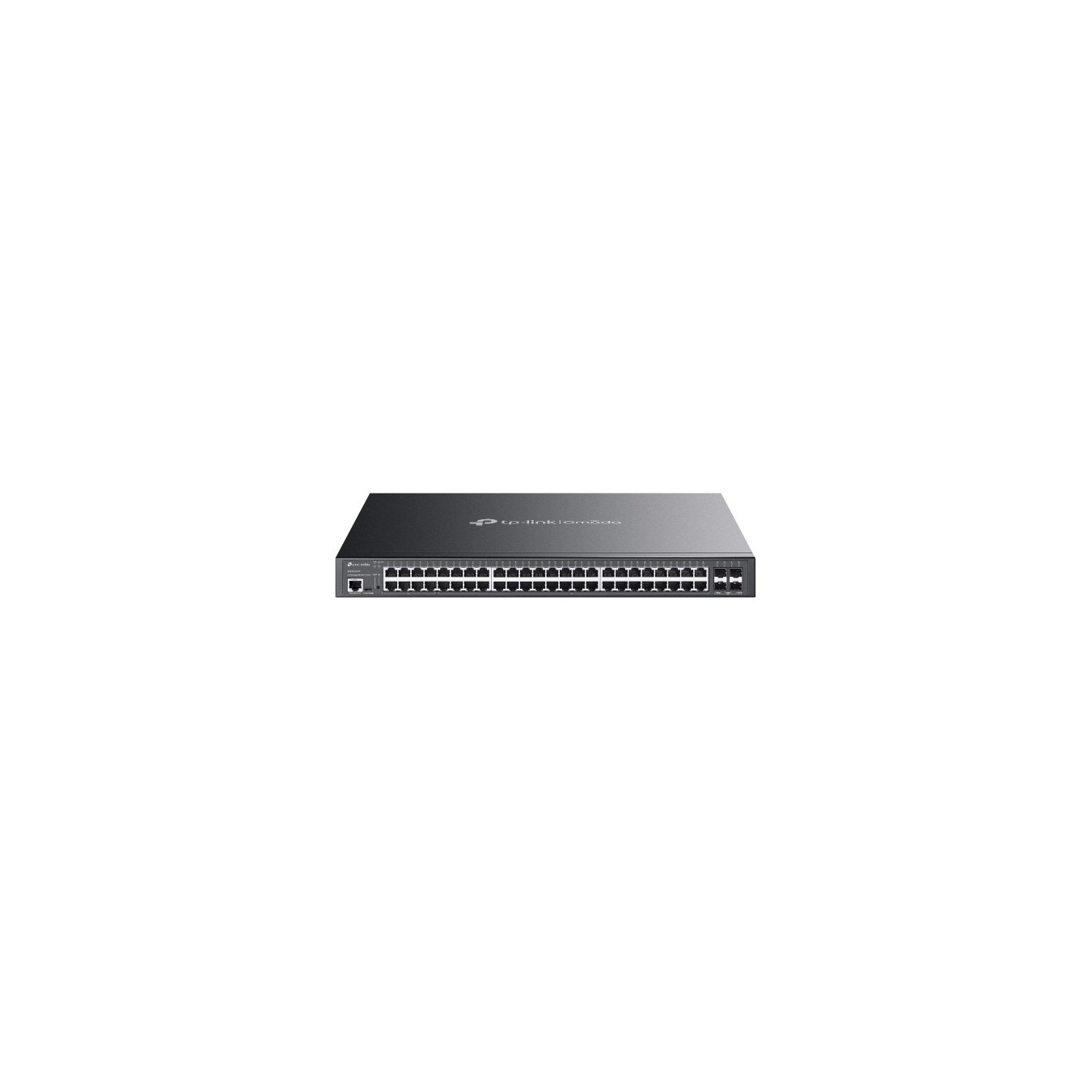

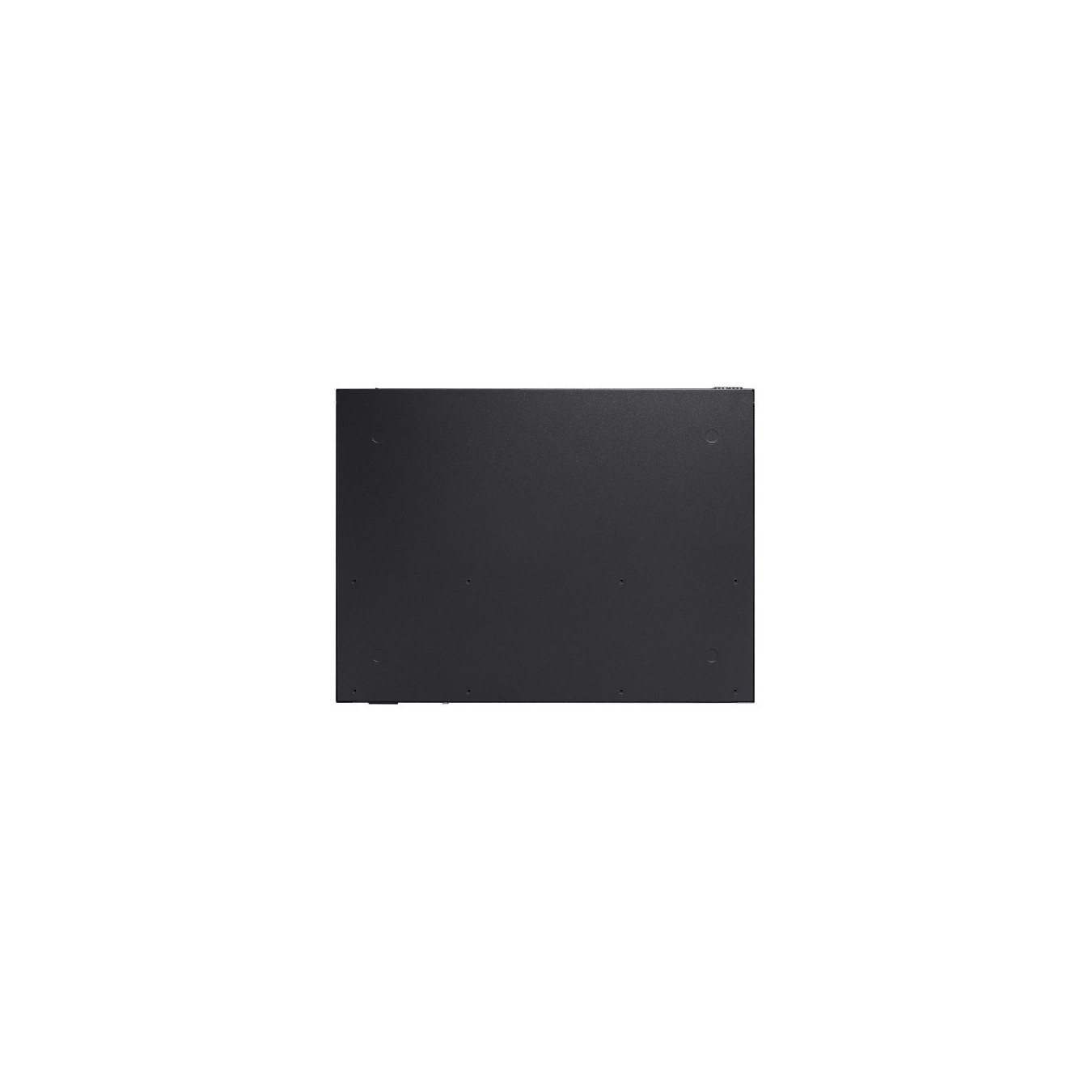

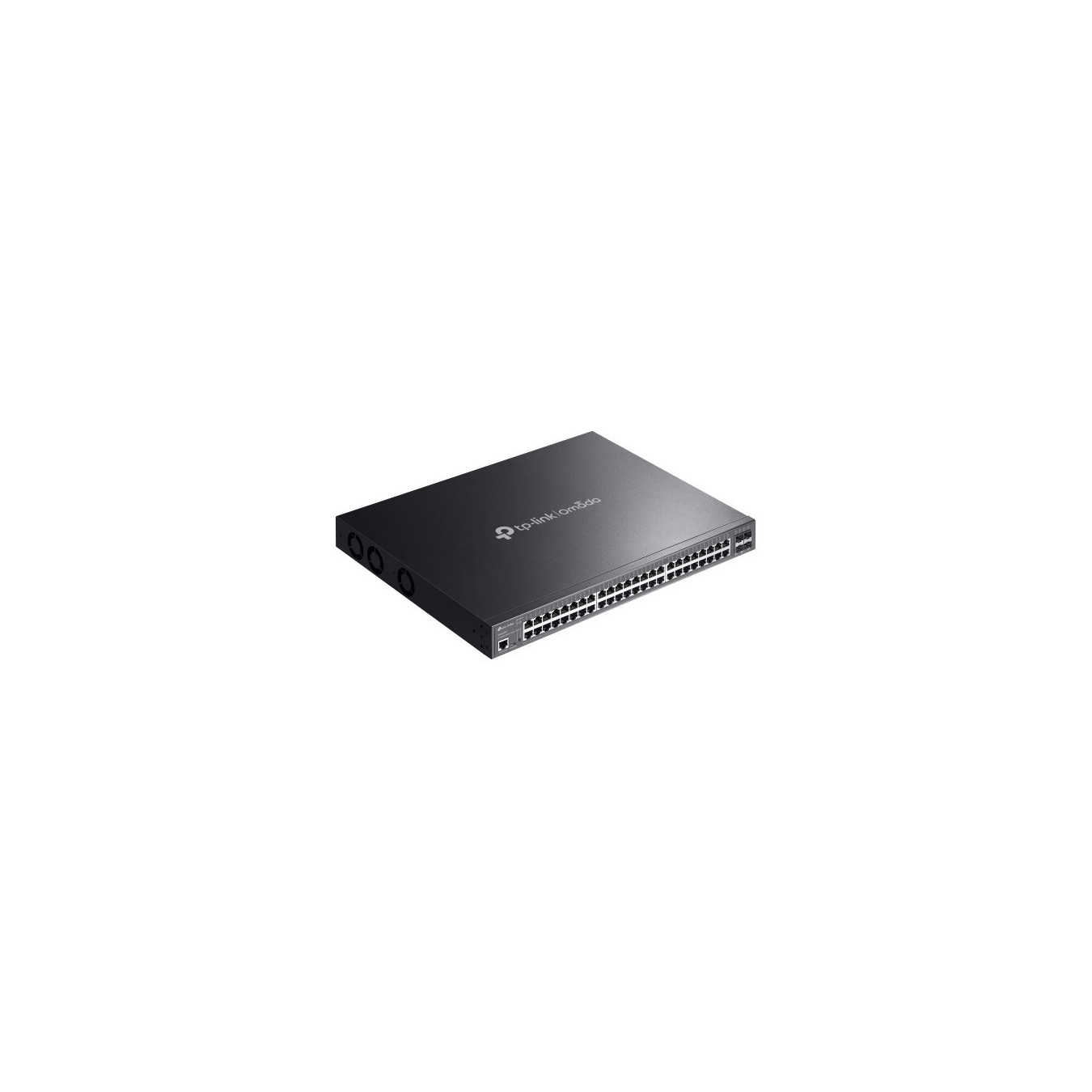

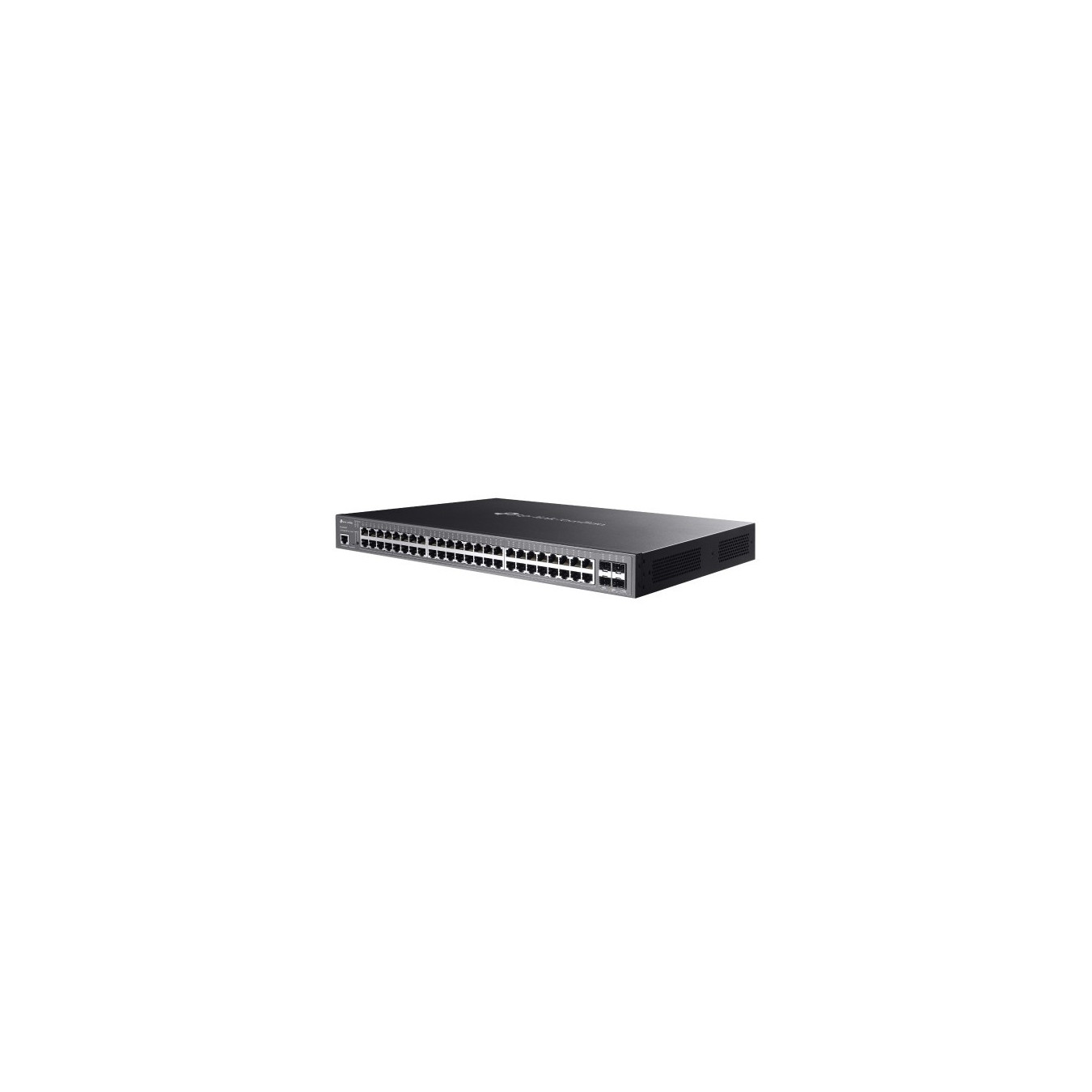

TP-Link Omada SG3452XMPP - 48x Gigabit PoE (40 PoE+/8 4PPoE) + 4x 10G SFP+, 750W, Black, 1U L2+ Managed
Managed L2+ 48-port Gigabit switch with 4x 10G SFP+ uplinks, 40 PoE+ ports + 8x 4PPoE, 750W PoE budget, 1U rackmount, 3 fans, AC 100-240V
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L2 |
|---|---|
| Network Switches - Ports | 48 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - PoE Budget | greater than250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
TP-Link Omada SG3452XMPP. Switch type: Managed. Switch layer: L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 48. Console port: RJ-45/Micro-USB. MAC address table: 16000 entries. Switching capacity: 176 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3af. IEEE.... Power connector: AC-in jack. Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L2+ |
| Feature | Quick start guide |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| SFP+ module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Networking standards | IEEE 802.1D. IEEE 802.1Q. IEEE 802.1s. IEEE 802.1w. IEEE 802.3ab. IEEE 802.3ae. IEEE 802.3af. IEEE 802.3at. IEEE 802.3i. IEEE 802.3u. IEEE 802.3z |
| Switching capacity | 176 Gbit/s |
| Forwarding rate | 130.9 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| DHCP features | DHCP client. DHCP relay. DHCP server |
| Authentication | Auto VLAN. Guest VLAN |
| Form factor | 1U |
| Product colour | Black |
| Number of fans | 3 fan(s) |
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 635.7 W |
| Power over Ethernet plus (PoE+) ports quantity | 40 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 750 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 2169.2 BTU/h |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Cables included | AC |
| Certification | CE. FCC. RoHS |
