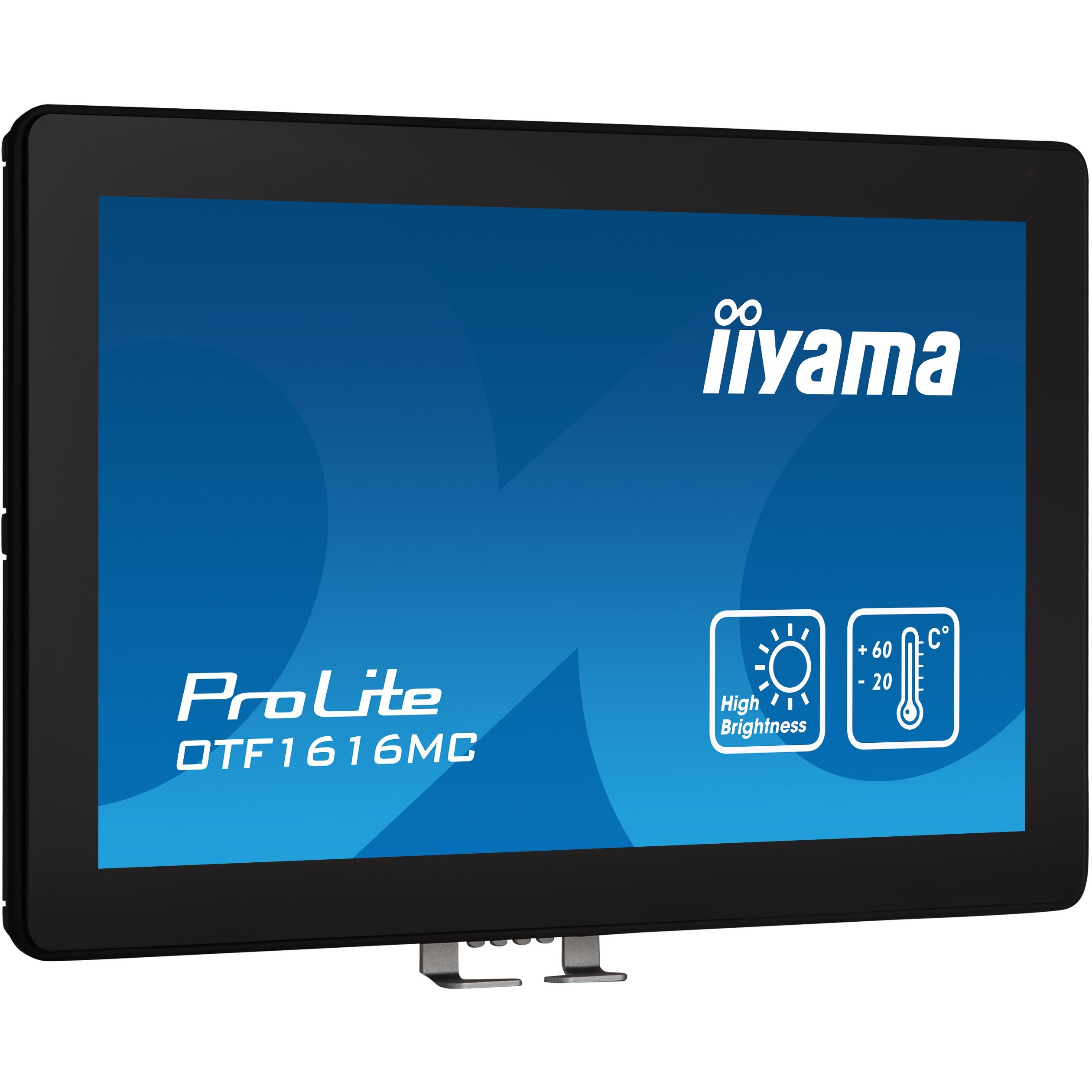

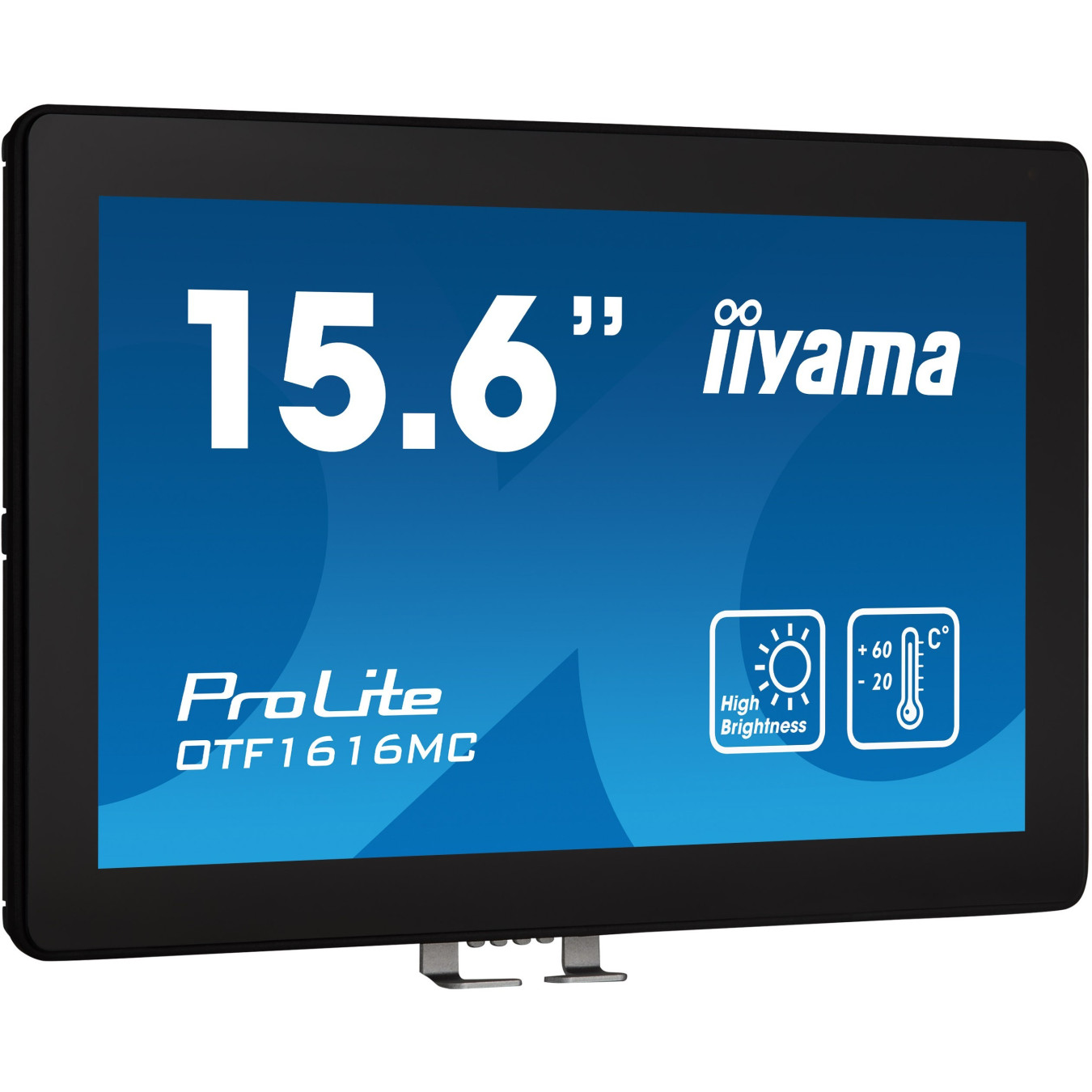

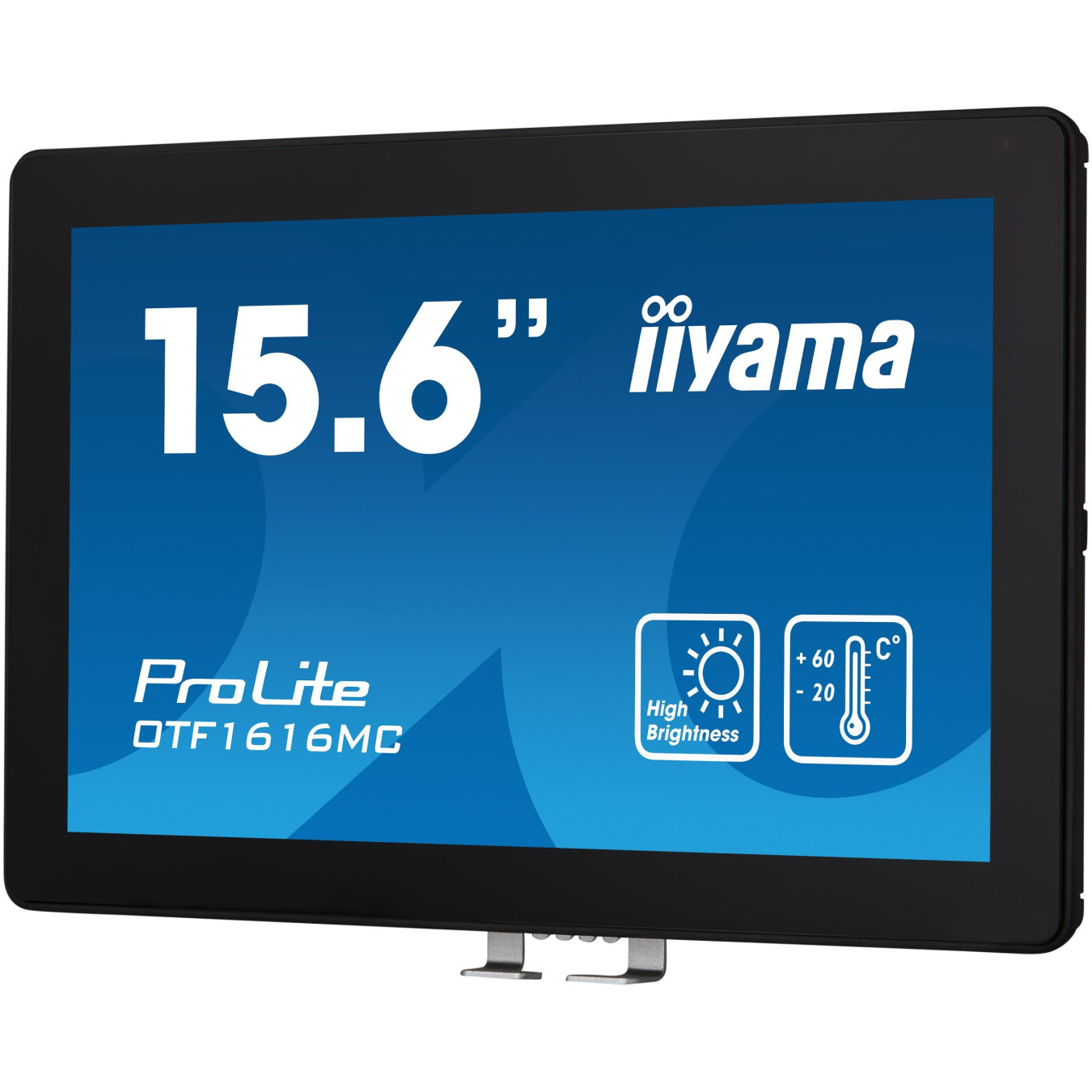

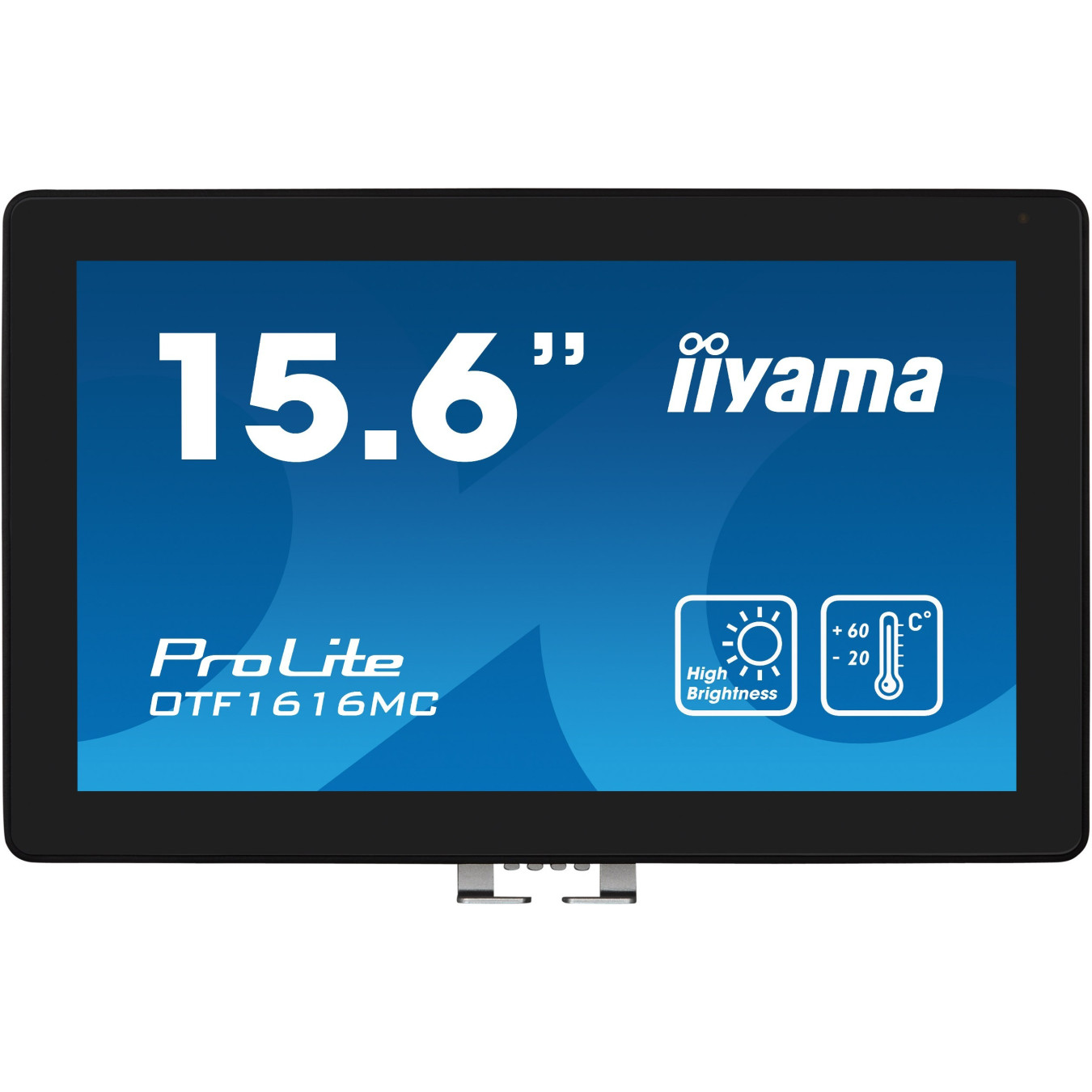

IIYAMA OTF1616MC-B1 - 15.6in PCAP 10-touch Touchscreen, Full HD, 1100 cd/m2, IP65, HDMI/DP/USB, Black
15.6in high-brightness (1100 cd/m2) VA LCD PCAP touchscreen with 10 touch points, Full HD 1920x1080, IP65-rated, HDMI/DP/USB — ideal for digital signage and kiosks.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Monitors - Panel Type | VA |
|---|---|
| Monitors - Curvature | Flat |
iiyama 15.6" high-brightness touchscreen with 10 touch points PCAP touch technology for outdoor applications. Product design: Digital signage flat panel. Display diagonal: 39.6 cm (15.6"). Display technology: LCD. Display resolution: 1920 x 1080 pixels. Display brightness: 1100 cd/m². HD type: Full HD. Touchscreen. Product colour: Black
| Panel type | VA |
| Display diagonal | 39.6 cm (15.6") |
| Display technology | LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 1100 cd/m² |
| HD type | Full HD |

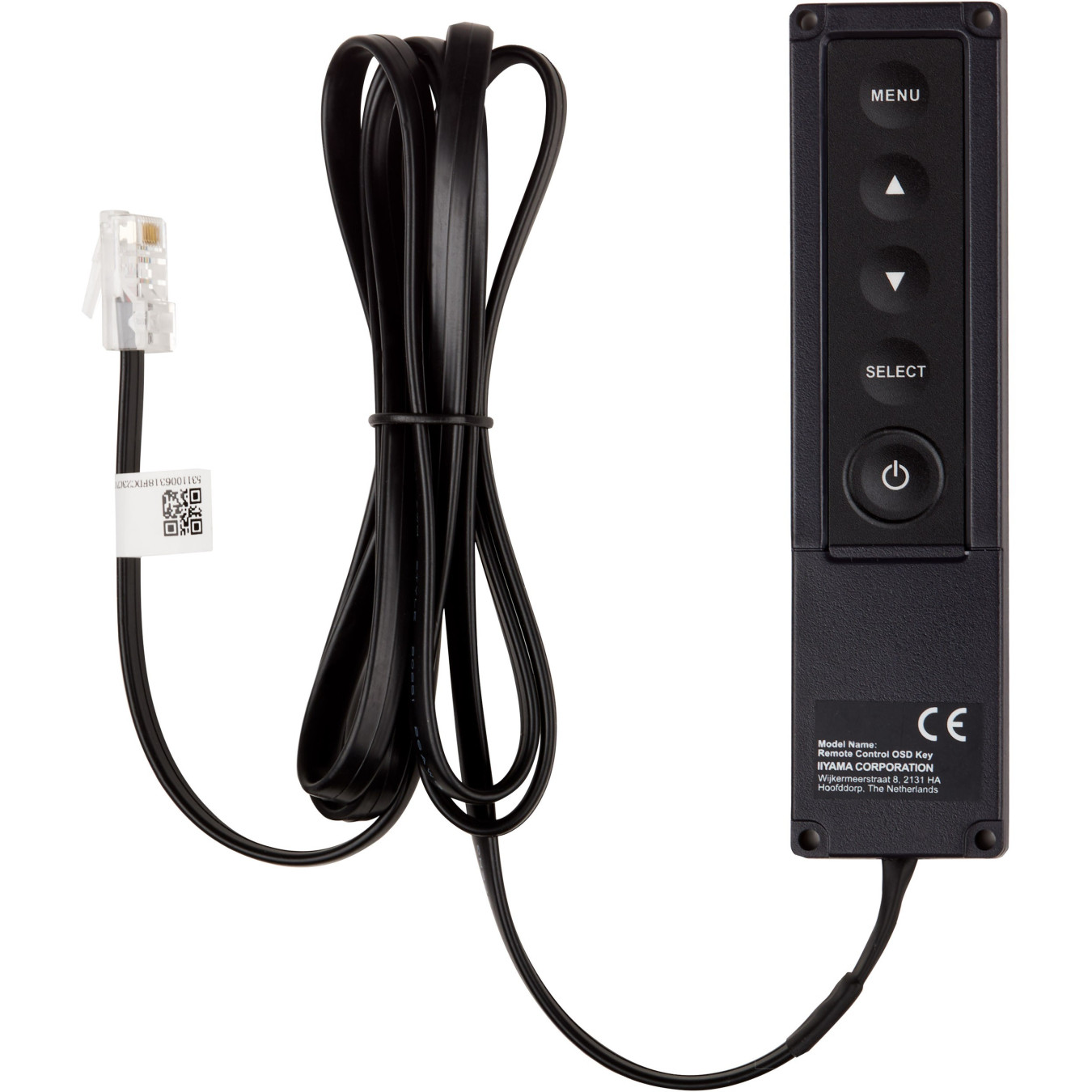

| Feature | Remote control included |
| Touchscreen technology | Projected capacitive system |
| Number of simultaneous touchpoints | 10 |
| Native aspect ratio | 16:9 |
| Response time | 25 ms |
| Contrast ratio (typical) | 800:1 |
| Viewing angle. horizontal | 178° |
| Viewing angle. vertical | 178° |
| Display number of colours | 16.2 million colours |
| Pixel pitch | 0.179 x 0.179 mm |
| Active display area (W x H) | 345.2 x 194.6 mm |
| Display diagonal (metric) | 39.5 cm |
| Horizontal scan range | 31.5 - 67.5 kHz |
| Native refresh rate | 60 Hz |
| Surface hardness | 7H |
| Glass thickness | 3.5 mm |

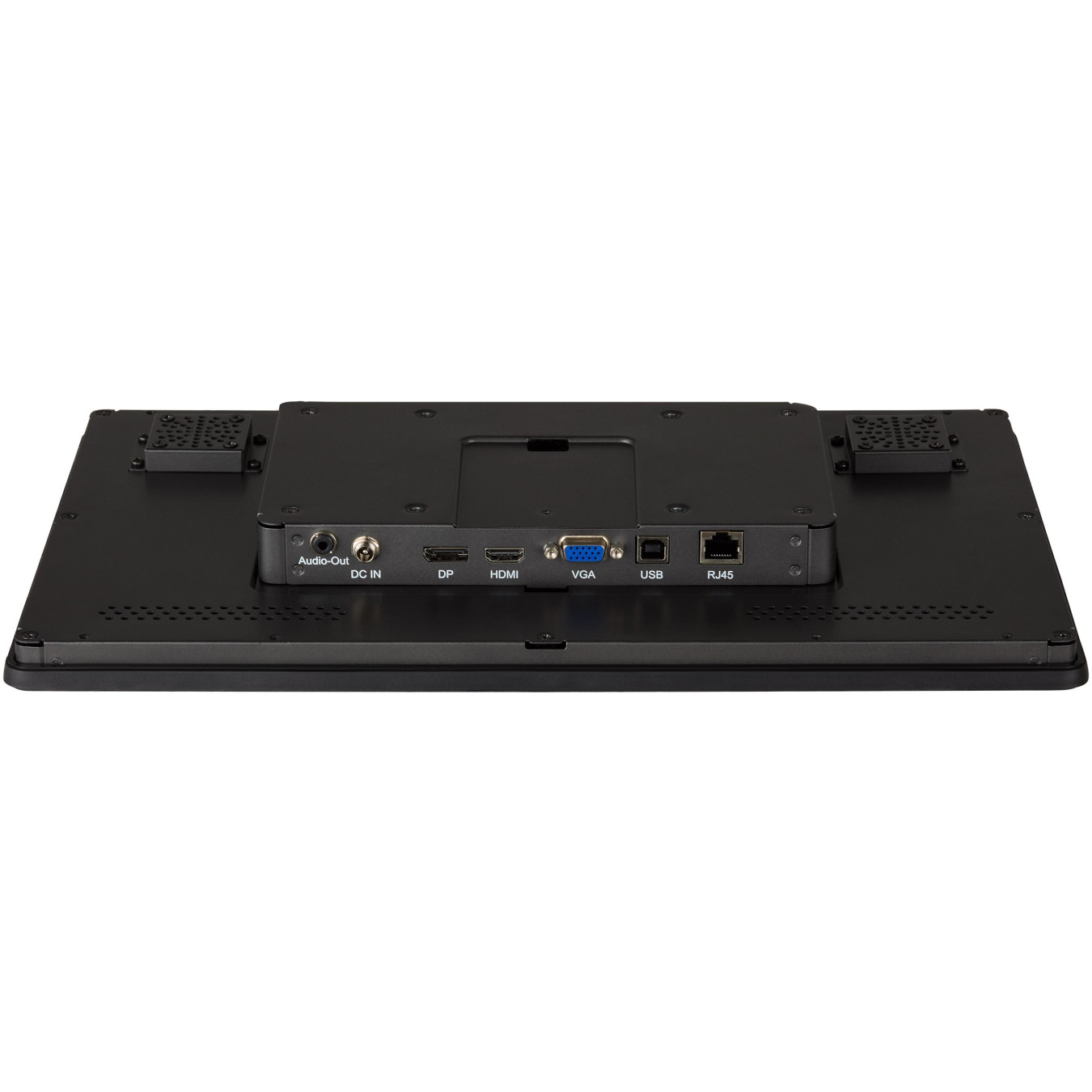

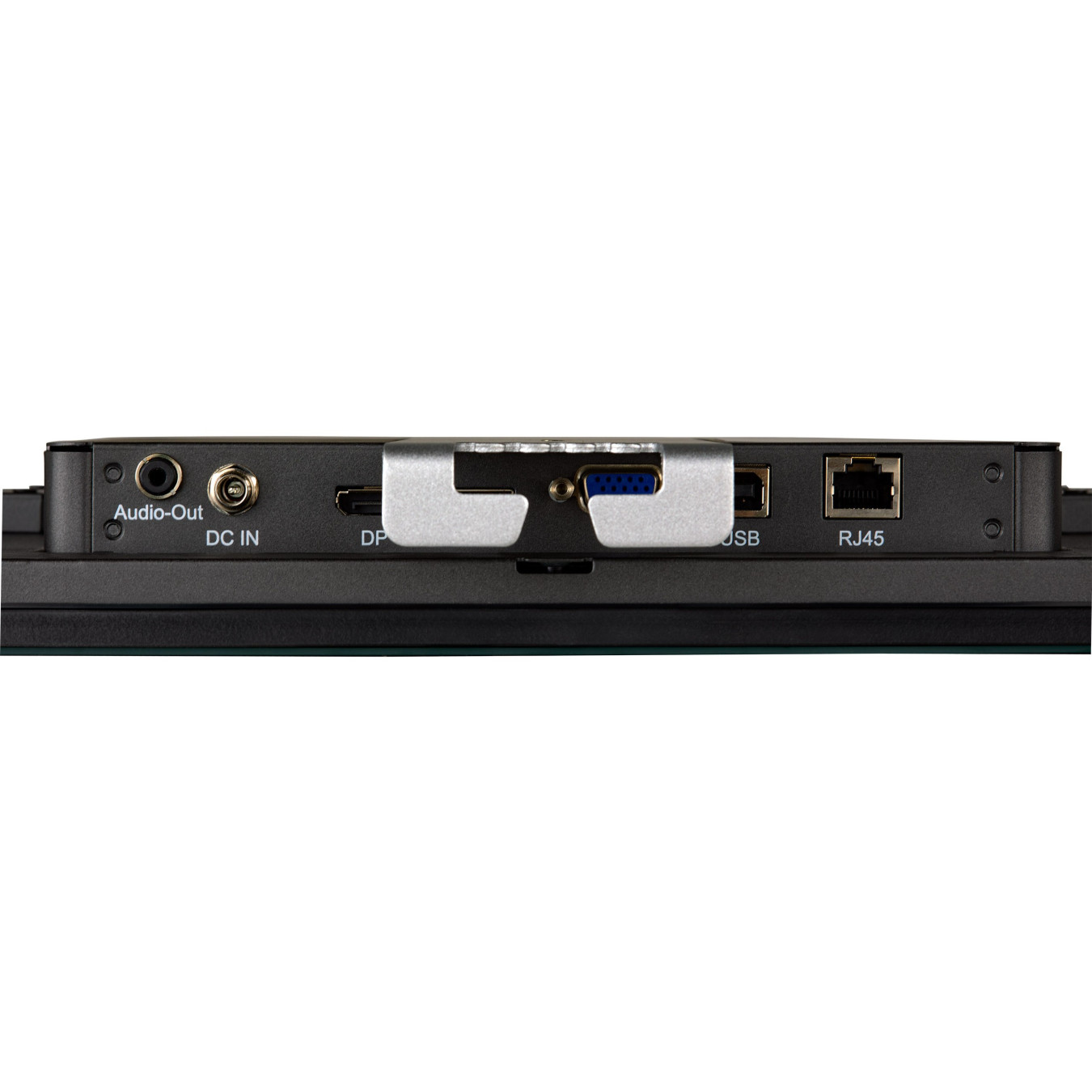

| HDMI ports quantity | 1 |
| HDMI input ports quantity | 1 |
| VGA (D-Sub) input ports | 1 |
| DisplayPorts quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Product design | Digital signage flat panel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Product colour | Black |
| Screen shape | Flat |

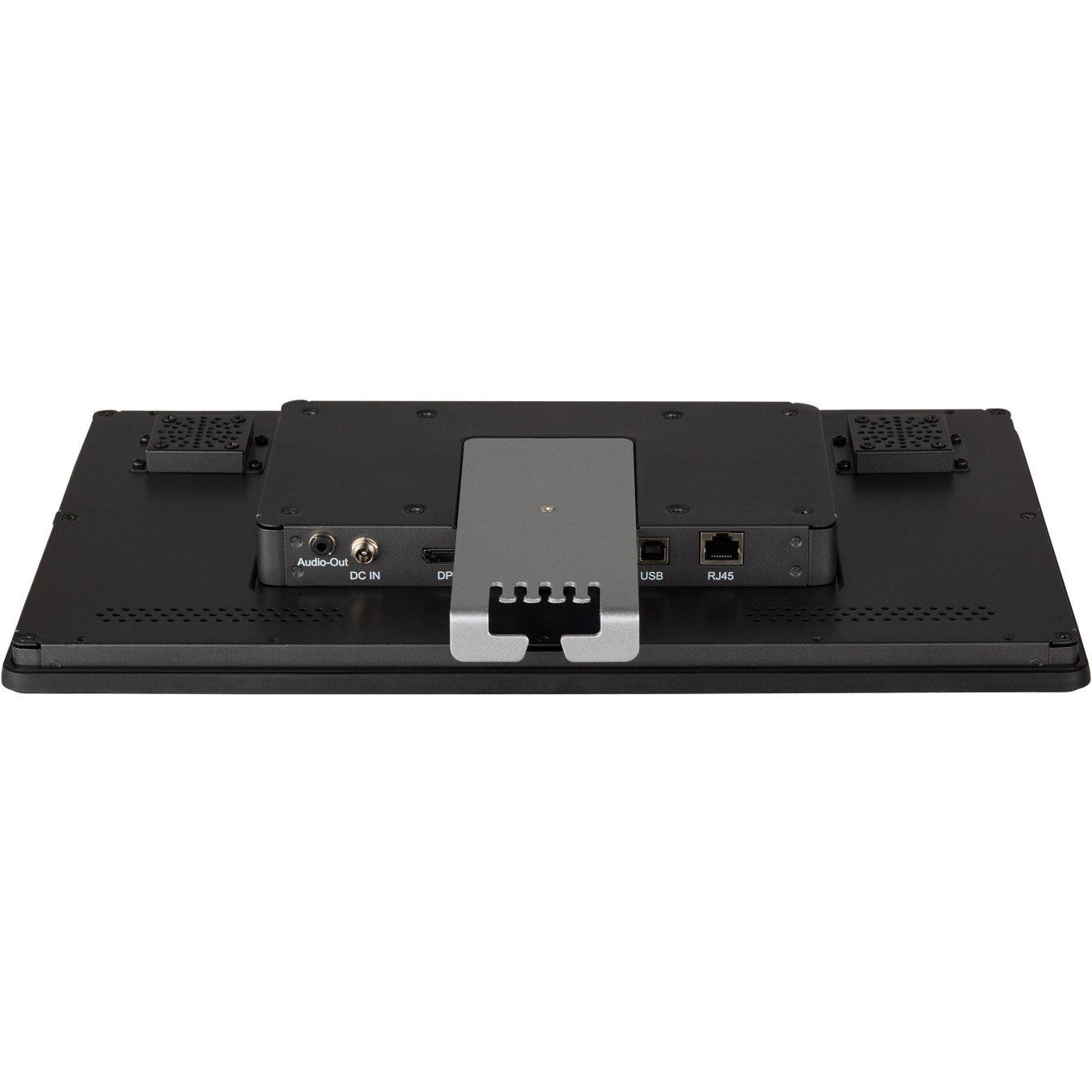

| Panel mounting interface | 100 x 100 mm |
| Purpose | Universal |
| Number of OSD languages | 7 |
| On Screen Display (OSD) languages | Simplified Chinese. Traditional Chinese. German. English. Spanish. French. Italian. Japanese |
| International Protection (IP) code | IP65 |
| Mean time between failures (MTBF) | 60000 h |
| Power consumption (typical) | 24 W |
| Power consumption (standby) | 1.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | E |
| Energy consumption (SDR) per 1000 hours | 11 kWh |
| Energy efficiency scale | A to G |
| Display width | 398.5 mm |

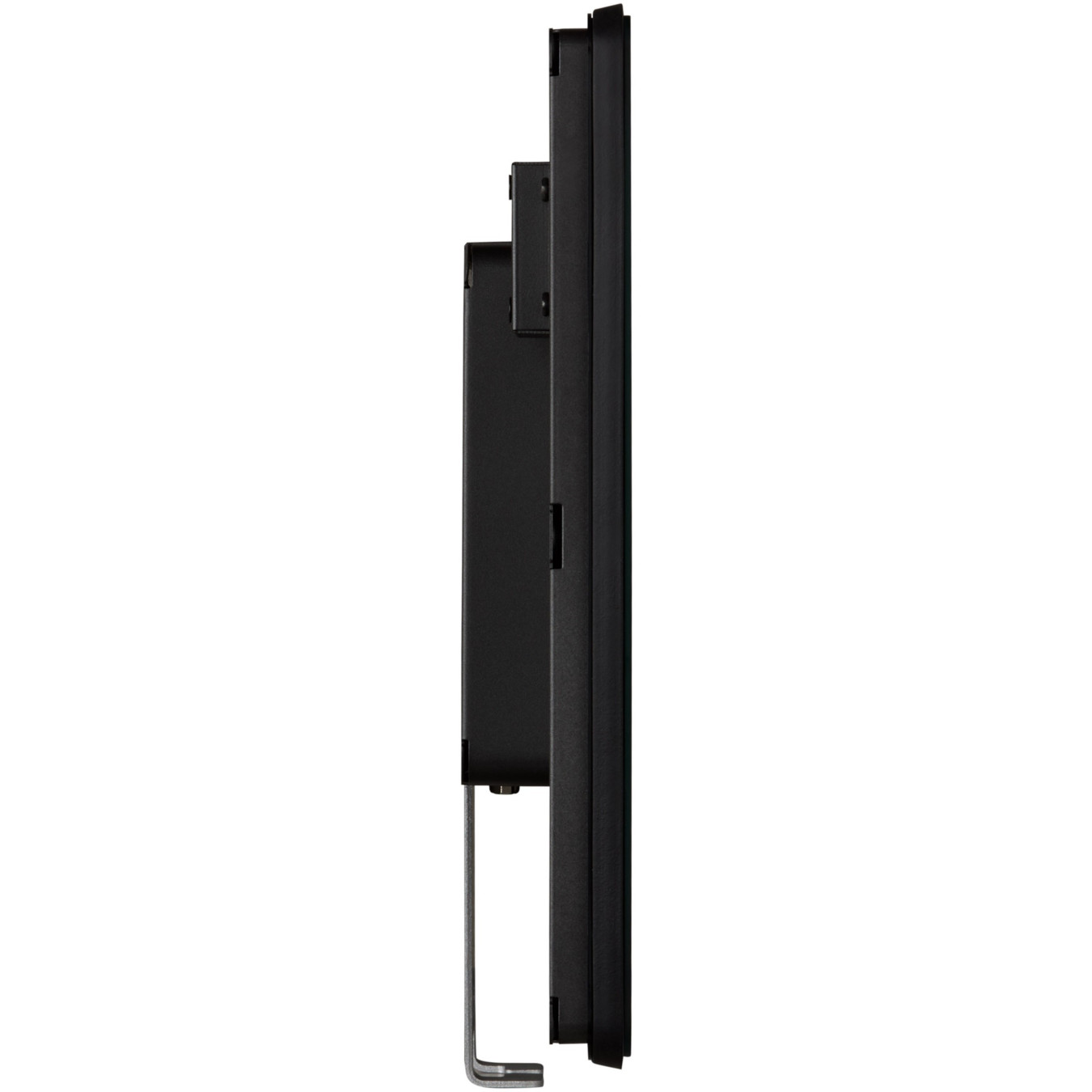

| Display depth | 42 mm |
| Display height | 246 mm |
| Display weight | 3 kg |
| Package width | 485 mm |
| Package depth | 150 mm |
| Package height | 370 mm |
| Package weight | 4.62 kg |
| Cables included | AC. DisplayPort. HDMI. USB |
| Operating temperature (T-T) | -20 - 60 °C |
| Certification | CE. EAC. RoHS support. ErP. WEEE. cULus. REACH. UKCA |
