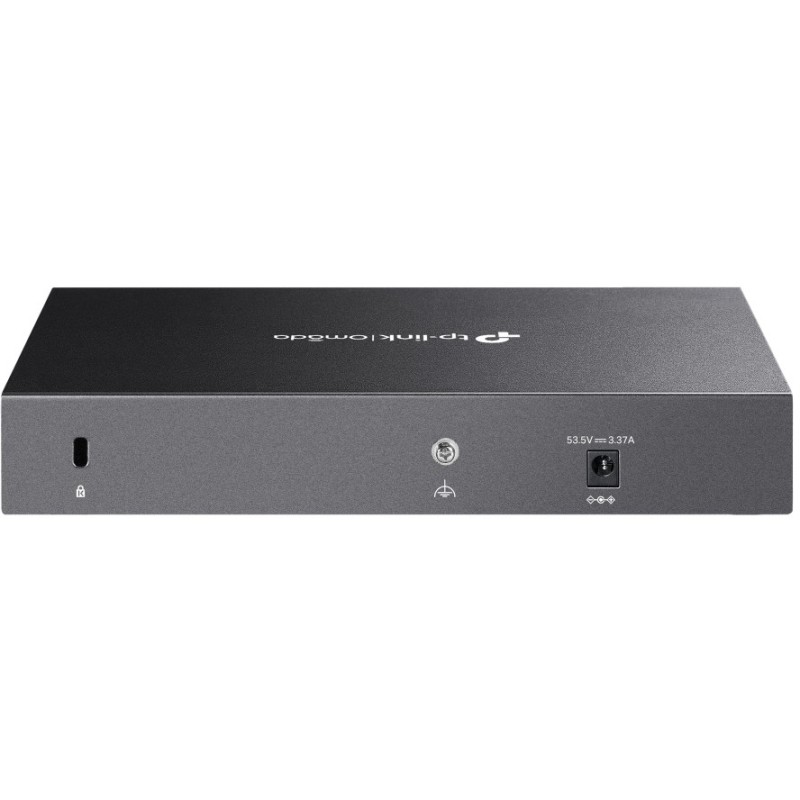

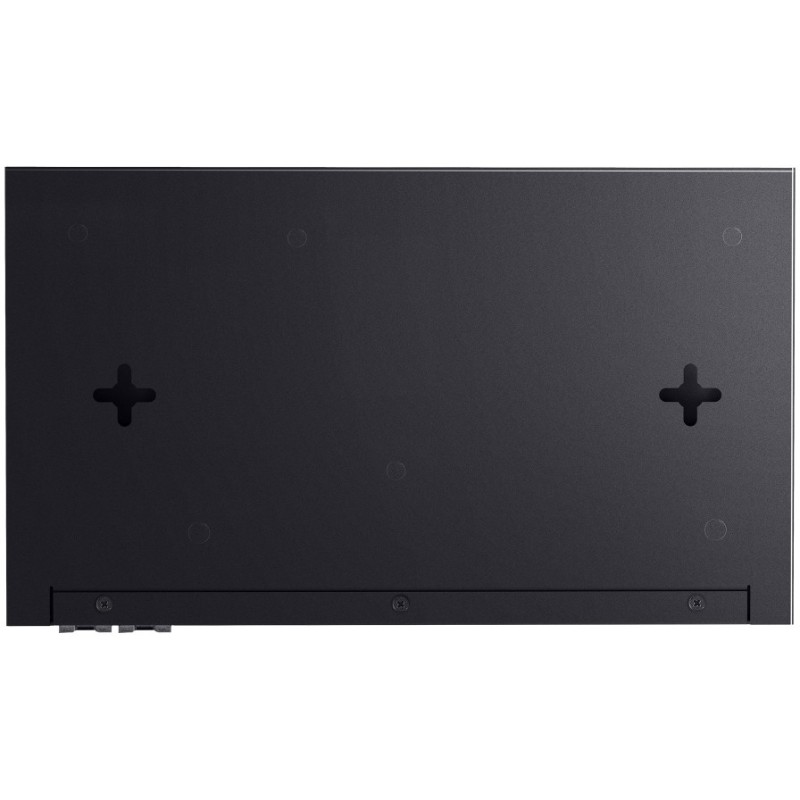

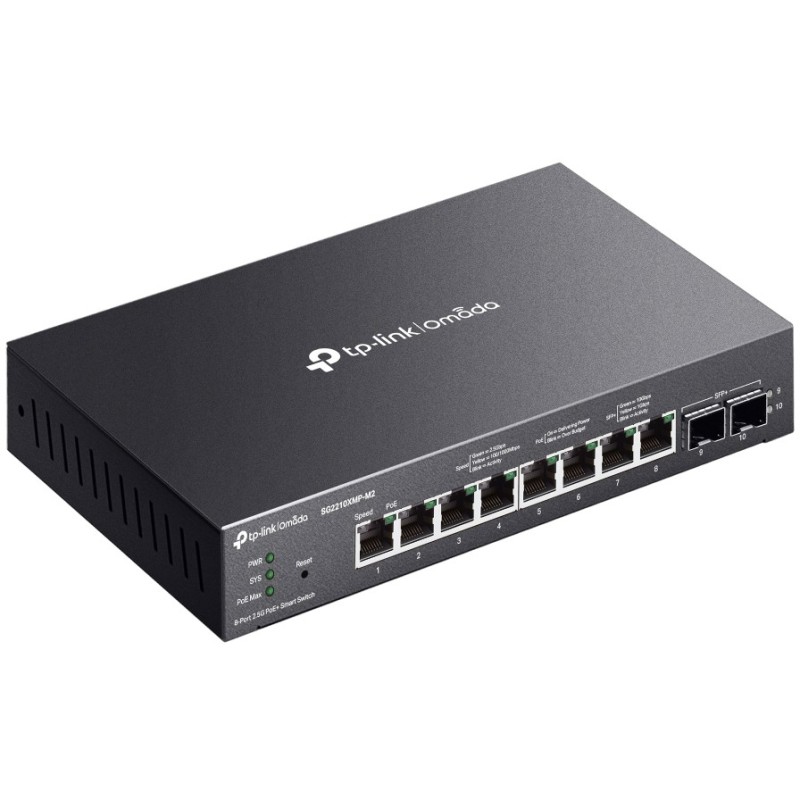

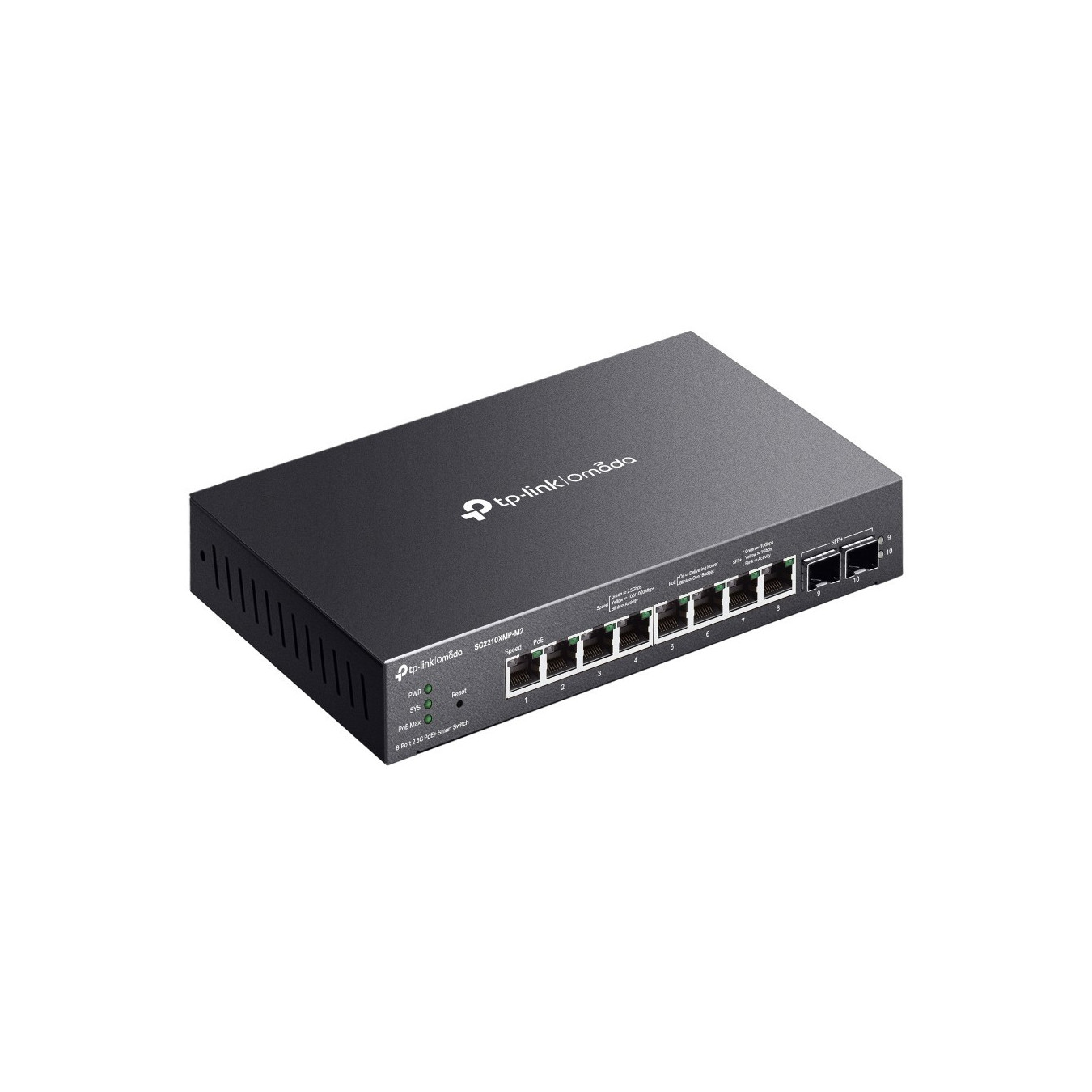

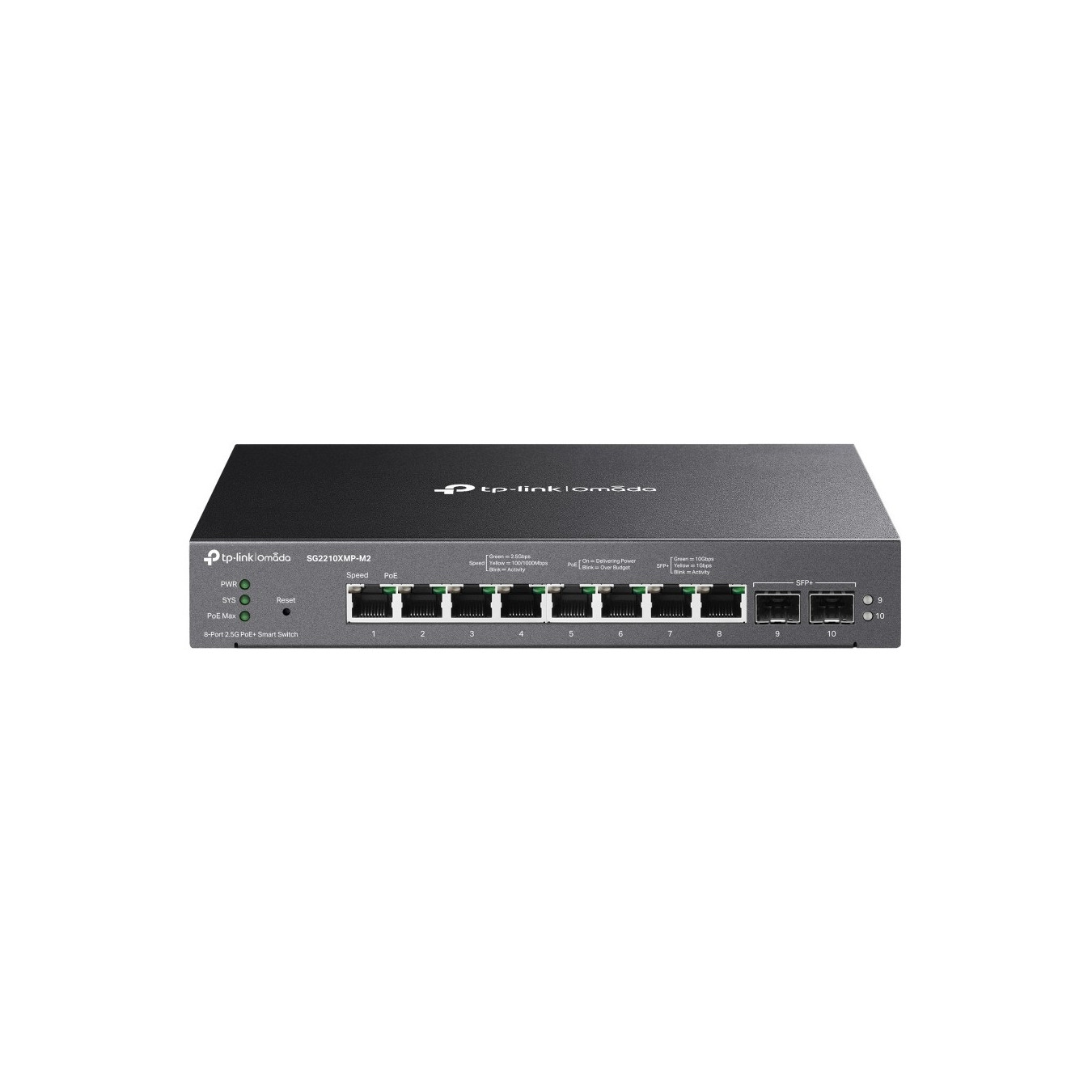

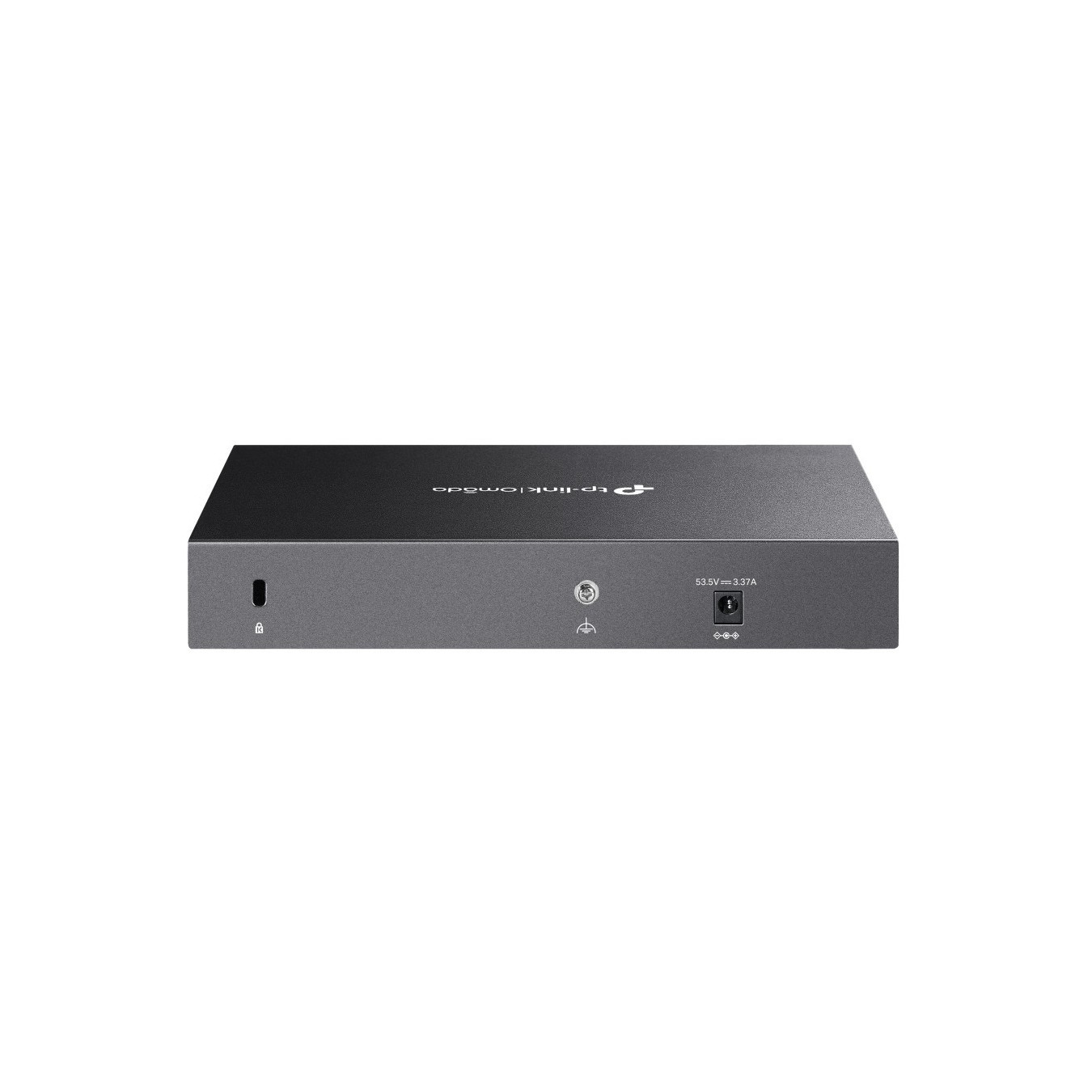

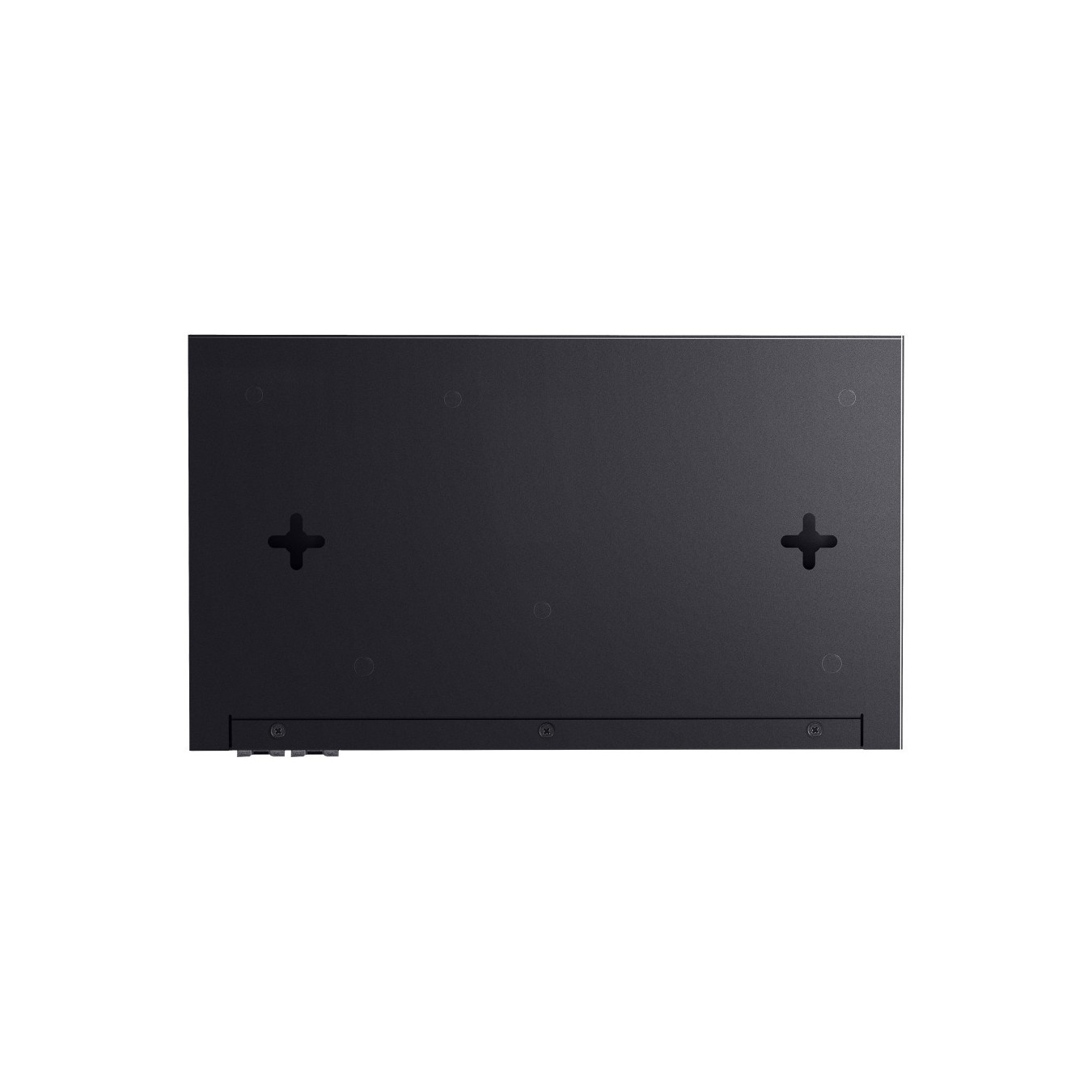

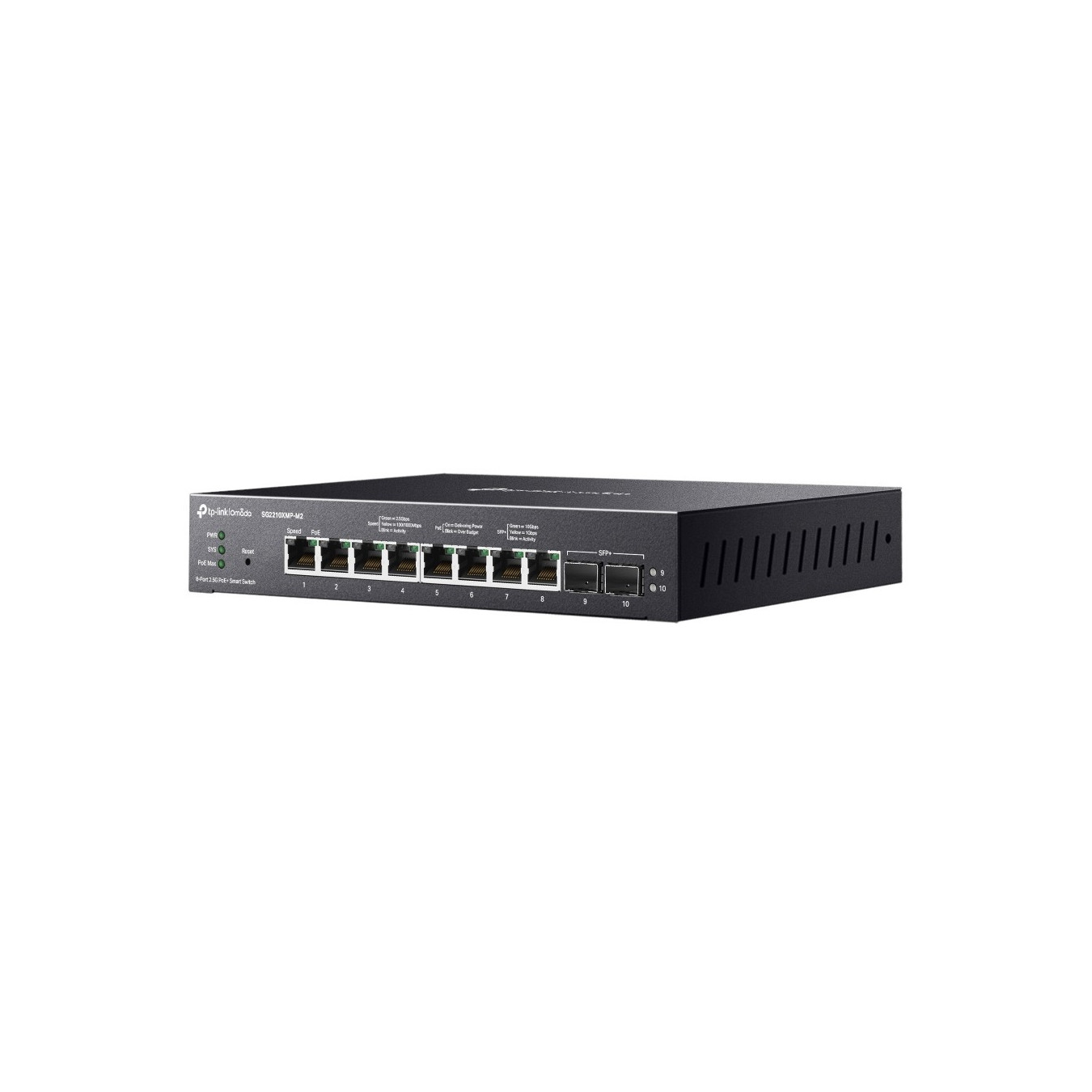

TP-Link Omada SG2210XMP-M2 - 8x 2.5G PoE+ & 2x 10G SFP+, 160W PoE Budget, Managed L2, Black
Managed L2 switch with 8x 2.5G PoE+ RJ45 ports, 2x 10G SFP+ uplinks, 160W total PoE budget, 80 Gbps switching capacity; desktop/wall-mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
TP-Link Omada 8-Port 2.5GBASE-T and 2-Port 10GE SFP+ Smart Switch with 8-Port PoE+. Switch type: Managed. Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500). Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 16000 entries. Switching capacity: 80 Gbit/s. Networking standards: IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3x. Power connector: AC/DC. Power over Ethernet (PoE). Wall mountable. Rack mounting. Form factor: Desktop/Wall-Mounting
| Switch type | Managed |
| Switch layer | L2/L2+ |
| Feature | Sustainability compliance |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| SFP+ module slots quantity | 2 |
| Power connector | AC/DC |
| Networking standards | IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.3x |
| Ethernet LAN data rates | 10.100.1000.2500 Mbit/s |
| Virtual LAN features | Protocol-based VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4000 |
| Switching capacity | 80 Gbit/s |
| Forwarding rate | 59.52 Mpps |
| MAC address table | 16000 entries |
| Jumbo frames | 9000 |
| Packet buffer memory | 9 MB |
| DHCP features | DHCP relay. DHCP server. DHCPv6 client. DHCPv6 snooping |
| Security algorithms | SNMP. SNMPv2. SNMPv3 |
| Authentication | MAC-based authentication. Port-based authentication |
| Authentication type | RADIUS |
| Form factor | Desktop/Wall-Mounting |
| Product colour | Black |
| Power source | AC |
| Power consumption (max) | 180.1 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 160 W |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Heat dissipation | 614.58 BTU/h |
| Width | 226 mm |
| Depth | 131 mm |
| Height | 35 mm |
| Compliance certificates | CE. Federal Communications Commission (FCC). RoHS |
