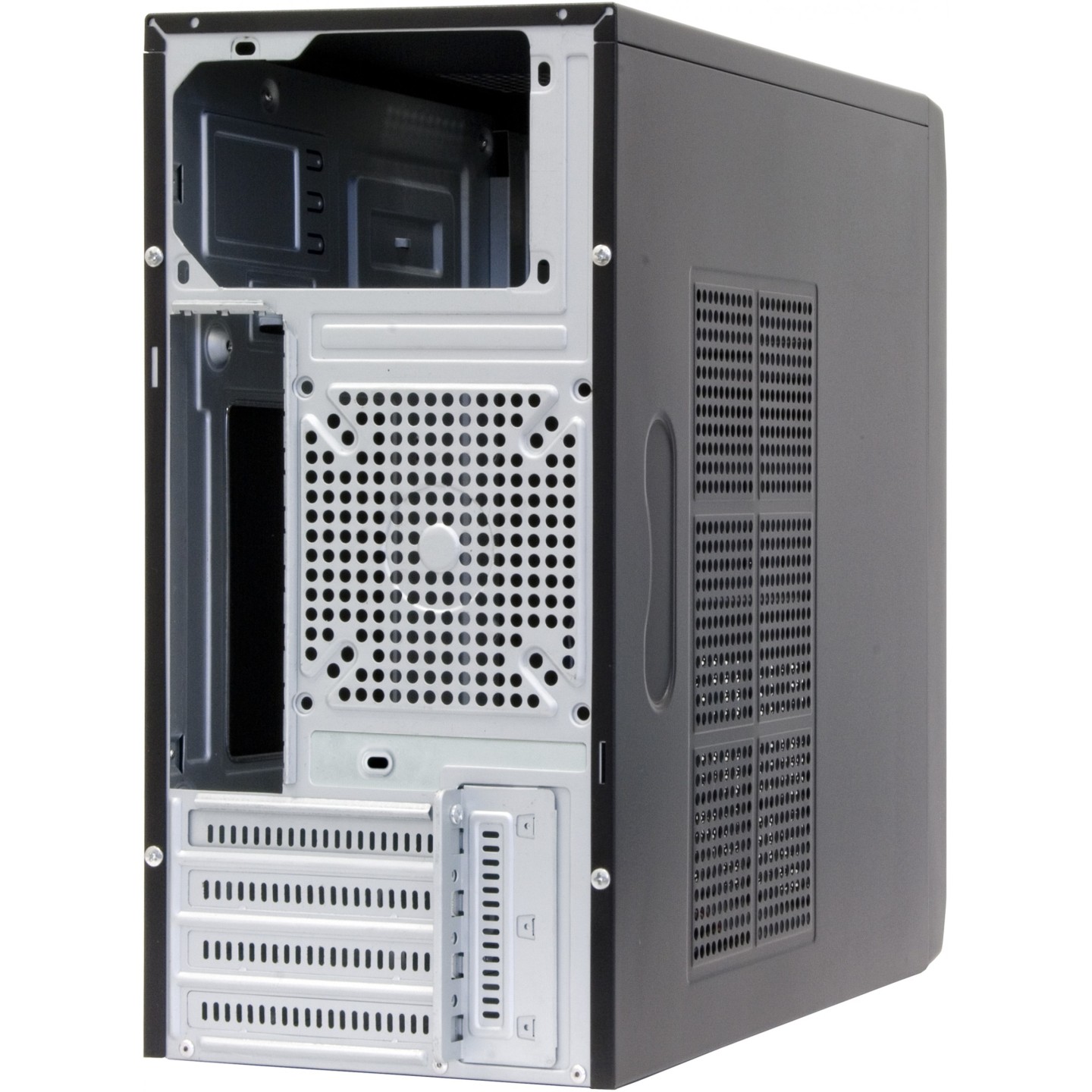

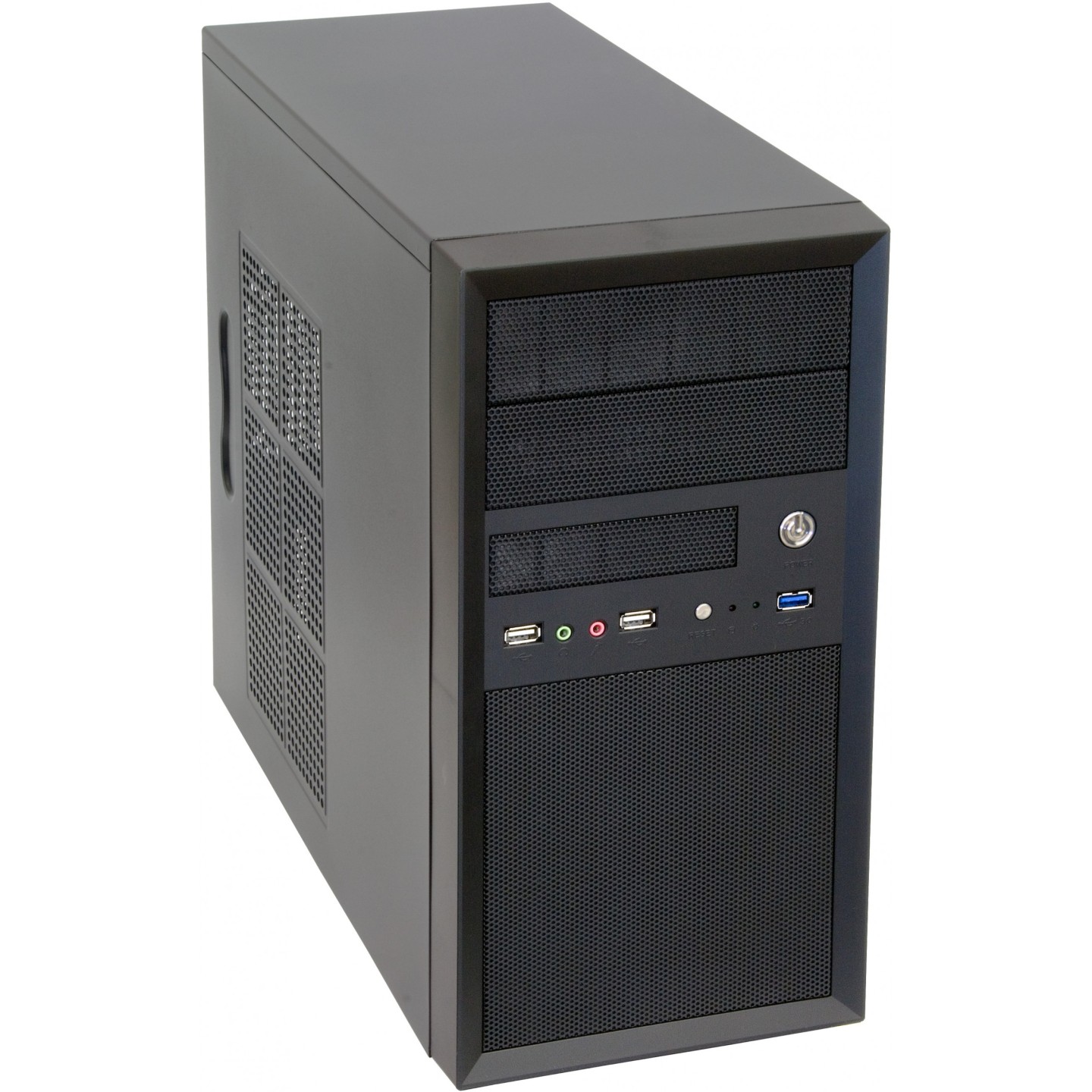

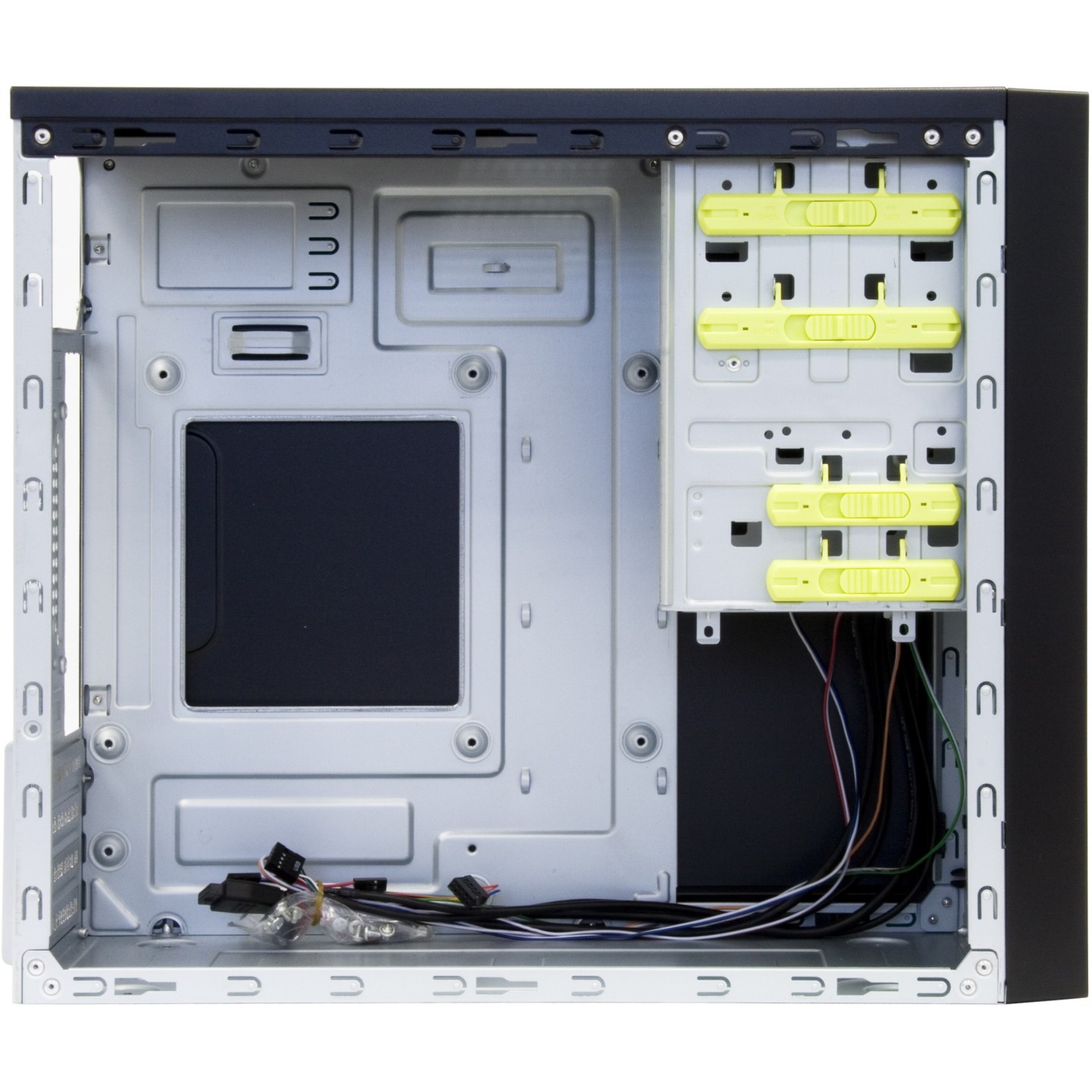

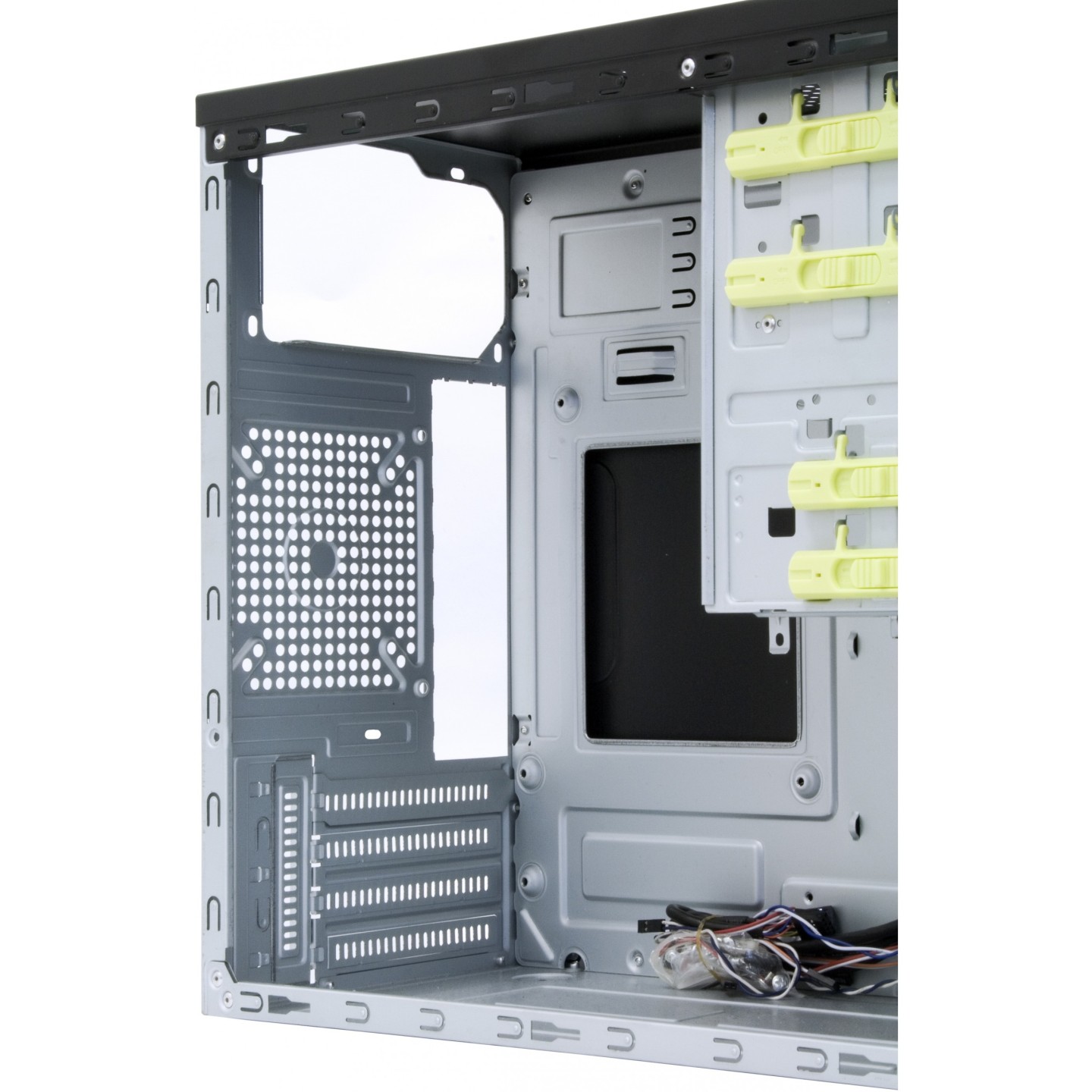

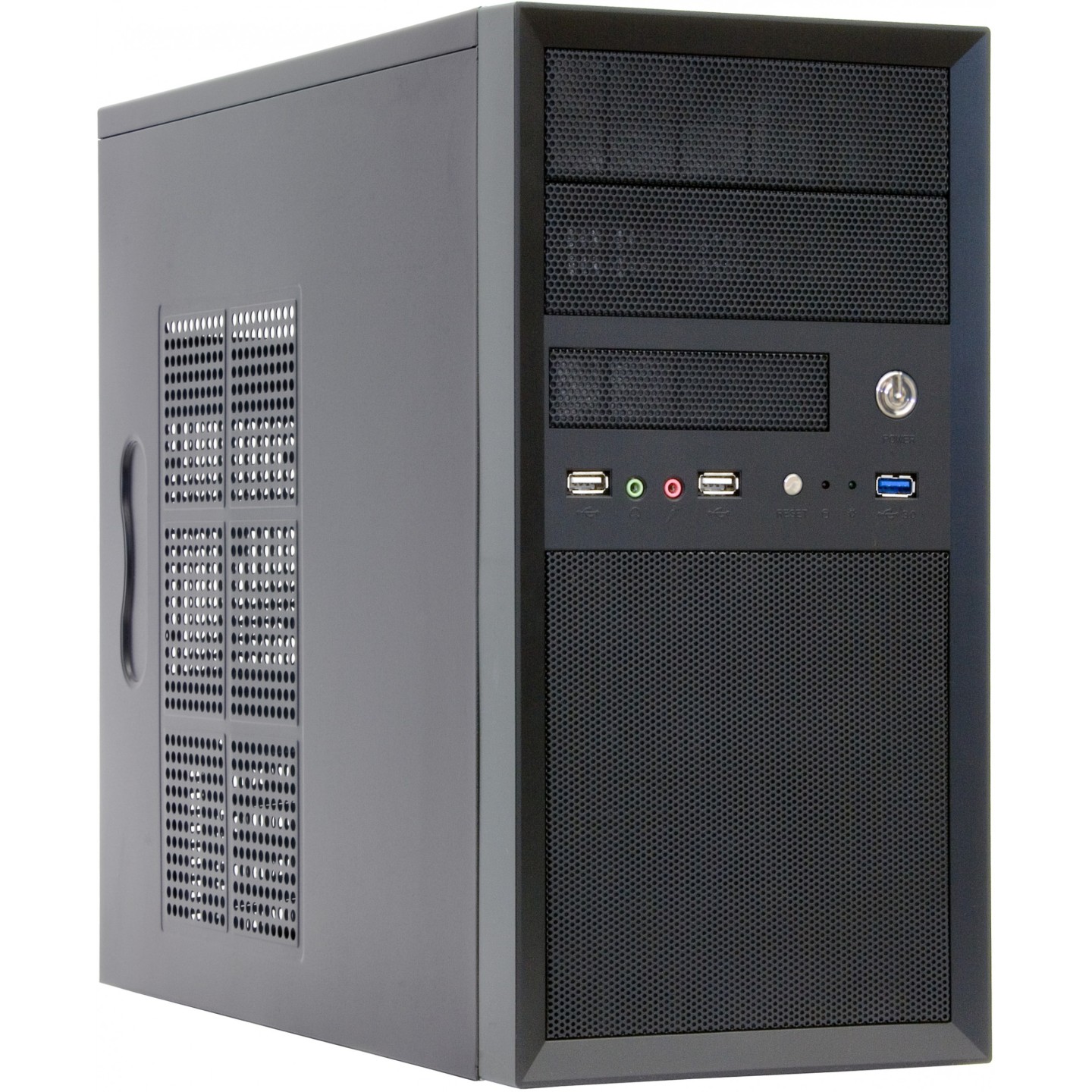

Chieftec CT-01B-OP Mini Tower Micro-ATX Case - Black Mesh (Retail)
Chieftec CT-01B-OP mini tower case with mesh front panel, supports Micro-ATX motherboards, 27L capacity, 0.6mm SECC steel, maximum CPU cooler height 140mm, 120mm radiator support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | Micro ATX |
|---|---|
| PC Cases - Radiator Support | 120 mm |
| PC Cases - Included Fans | 0 |
| PC Cases - Front I/O | USB A |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mini Tower |
| PC Cases - Max GPU Length | Up to 250 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | Up to 150 mm |
The Chieftec CT-01B-OP is a compact mini tower PC case designed for budget-conscious builders seeking quality construction and practical features. Built from 0.6mm SECC steel with a distinctive mesh front panel, this case delivers excellent airflow while maintaining a professional appearance. With a 27-liter capacity, it supports Micro-ATX motherboards and accommodates up to 4 expansion slots, making it suitable for home and office builds.
The case features ergonomically placed front I/O with 2x USB 2.0 and 1x USB 3.2 Gen1 Type-A ports, along with power and reset buttons. The mesh front design promotes optimal ventilation and noise reduction. Internal layout includes space for 3x 3.5" and 1x 2.5" drives, with support for 120mm radiators for liquid cooling. Maximum CPU cooler height is 140mm, and the case supports 80/90/120mm fans on both front and rear positions. The top-mounted PSU location provides clean cable management and allows the power supply to cool itself properly.
- Compact 27L mini tower form factor (18cm W x 35.5cm H x 42.5cm D)
- Supports Micro-ATX motherboards with 4 expansion slots
- Mesh front panel for superior airflow and noise reduction
- 0.6mm SECC steel construction with high-quality finish
- Maximum CPU cooler height: 140mm; supports 120mm radiators
- Storage: 3x 3.5" + 1x 2.5" drive bays
- Front I/O: 2x USB 2.0, 1x USB 3.2 Gen1 Type-A, power/reset buttons
- Fan support: 80/90/120mm front and rear positions
- Top-mounted PSU location for optimal cooling and cable management
| Type | PC Case |
| Form Factor | Mini Tower |
| Motherboard Support | Micro-ATX |
| Material | 0.6mm SECC Steel |
| Color | Black |
| Dimensions (Unboxed) | 180mm (W) x 352mm (H) x 425mm (D) |
| Weight (Unboxed) | 4.5 kg |
| Volume | 27 liters |
| Front Panel Design | Mesh |
| Front I/O Ports | 2x USB 2.0, 1x USB 3.2 Gen1 Type-A |
| Front I/O Controls | Power button, Reset button, 2x LED indicators |
| 3.5 | 3 (2 internal, 1 external) |
| 2.5 | 1 |
| 5.25 | 2 (external) |
| Expansion Slots | 4 |
| PSU Location | Top-mounted |
| PSU Form Factor | ATX |
| Maximum CPU Cooler Height | 140 mm |
| Front Fan Support | 1x (80/90/120mm) |
| Rear Fan Support | 1x (80/90/120mm) |
| Radiator Support | 1x 120mm |
| Water Cooling Compatible | Yes |
| Included Fans | 0 |
| Side Panel Ventilation | Yes (ventilation holes) |
| Motherboard Tray Opening | Yes |
| Rear PSU Opening | Yes (clean opening for PSU cooling) |
| Accessories Included | Screw set |
| EAN Code | 4710713239401 |
| Model Number | CT-01B-OP |
