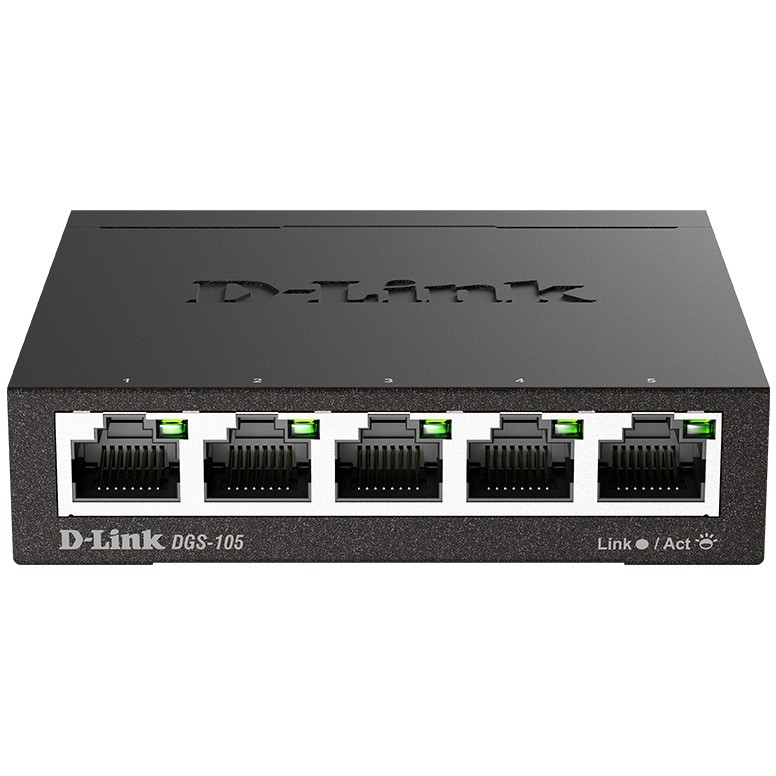

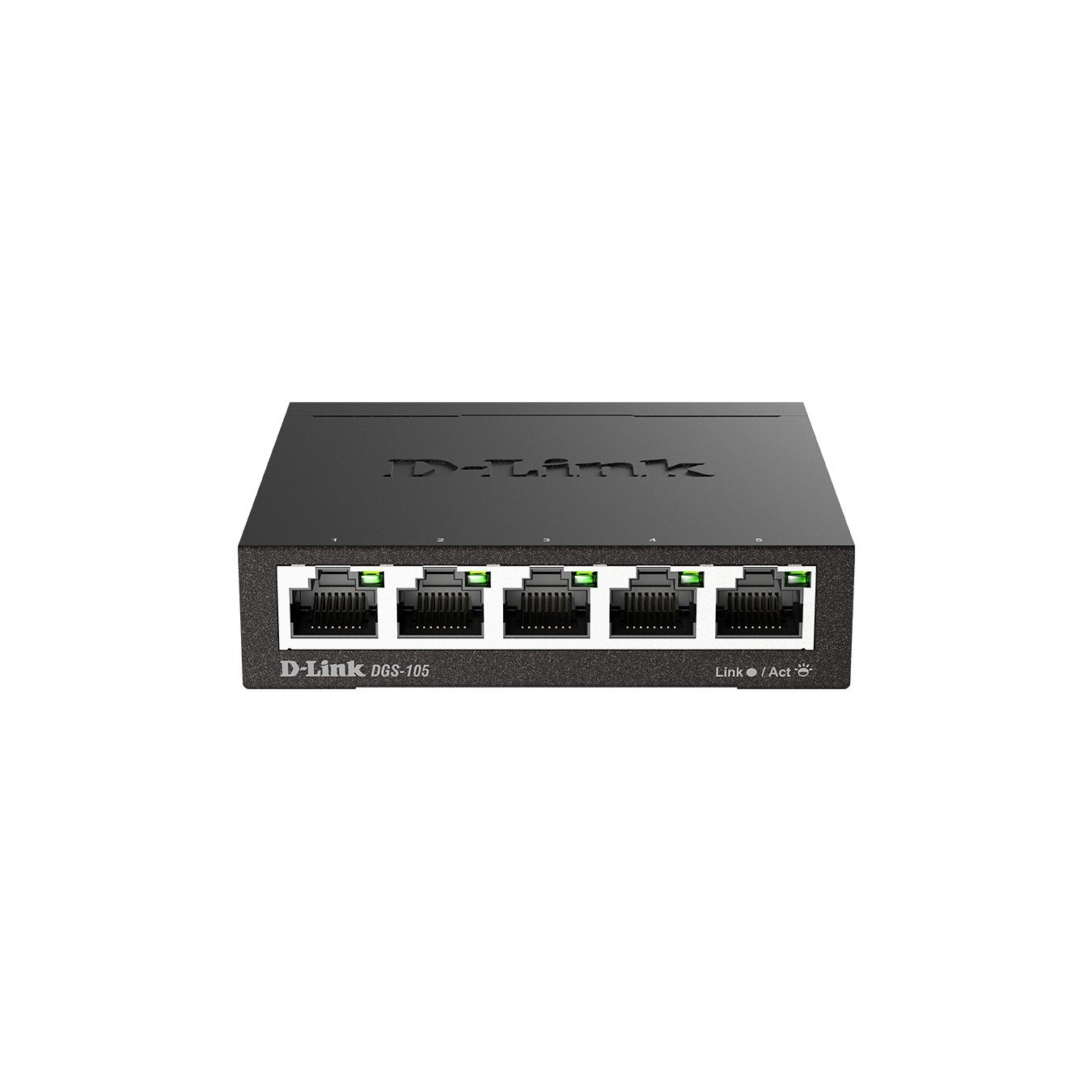

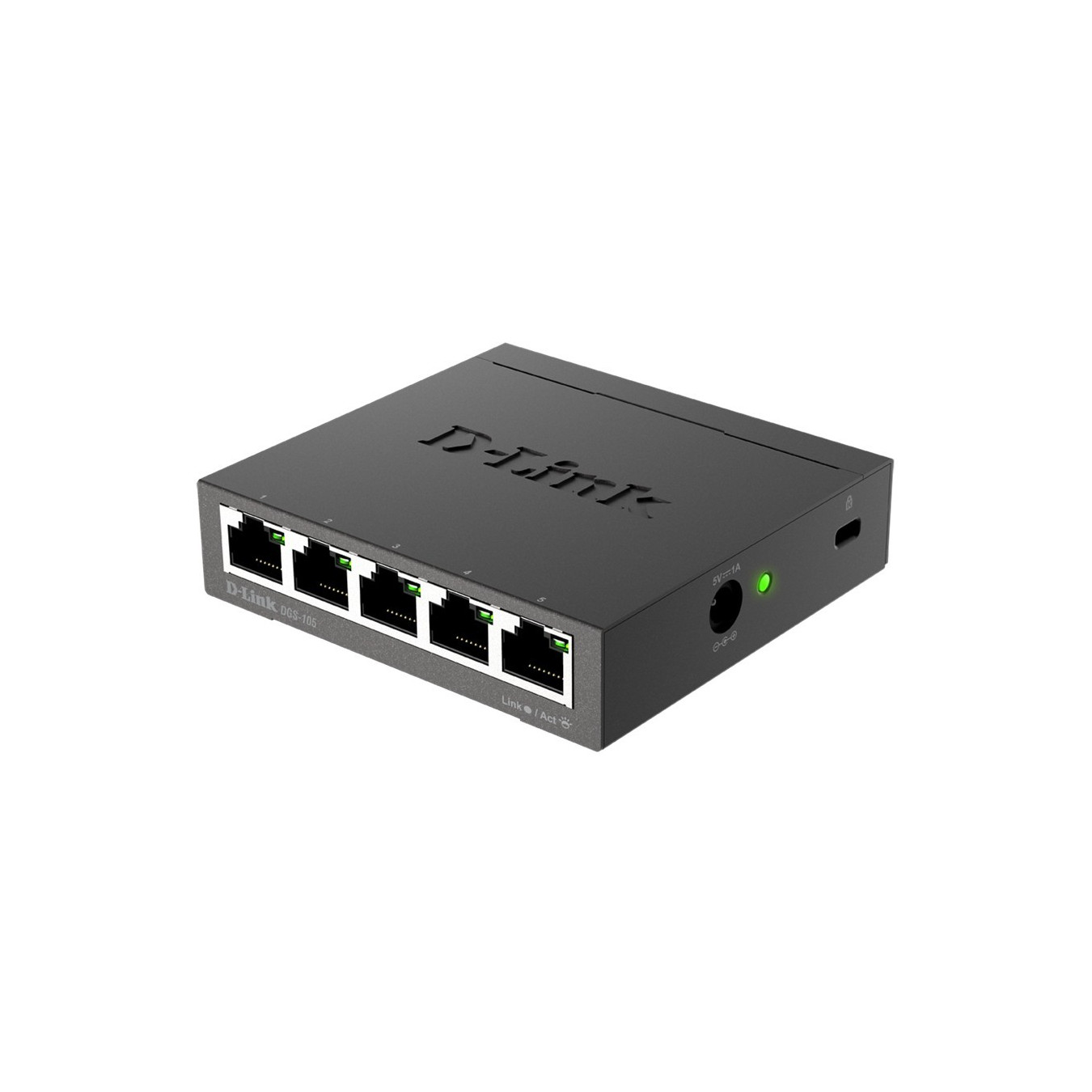

D-Link DGS-105 - 5-Port Gigabit Unmanaged L2 Switch - Black Metal, Fanless, 10/100/1000 Mbps
Compact 5-port Gigabit unmanaged L2 switch (DGS-105). Metal housing, fanless, 10/100/1000 Mbps, energy-efficient (IEEE 802.3az), DC-in, ideal for home and small office.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Network Switches - Type | Unmanaged |
|---|---|
| Network Switches - Ports | 5 |
| Network Switches - Port Speed | Gigabit (10/100/1000) |
| Network Switches - Rackmount | No |
| Network Switches - Fanless | Yes |
D-Link DGS-105. Switch type: Unmanaged. Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000). Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2000 entries. Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x. Power connector: DC-in jack
| Switch type | Unmanaged |
| Switch layer | L2 |
| Feature | MAC address filtering |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |

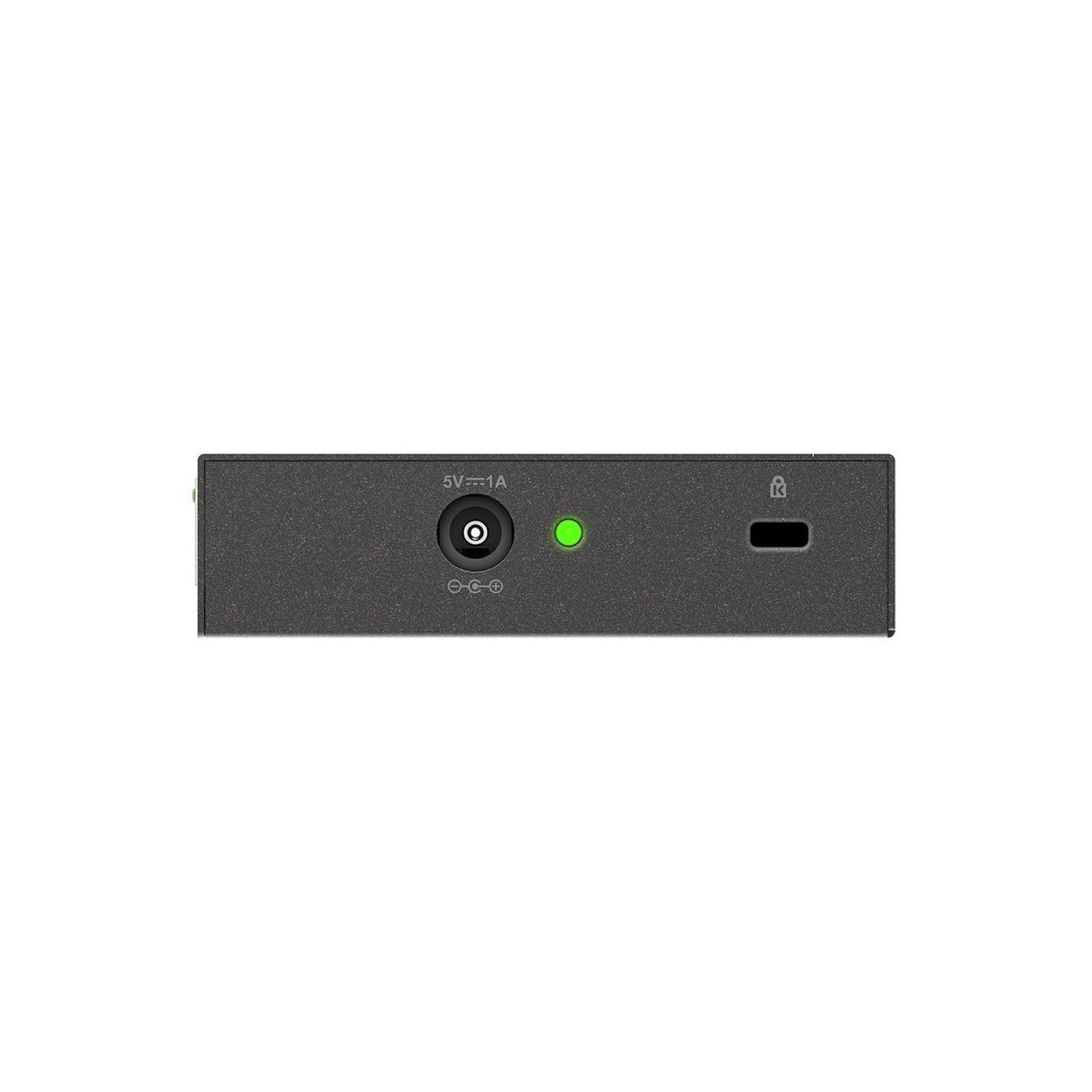

| Power connector | DC-in jack |
| Networking standards | IEEE 802.1p. IEEE 802.3. IEEE 802.3ab. IEEE 802.3az. IEEE 802.3u. IEEE 802.3x |
| Copper ethernet cabling technology | 1000BASE-T. 100BASE-TX. 10BASE-T |
| Supported data transfer rates | 10/100/1000 Mbps |
| Switching capacity | 10 Gbit/s |
| MAC address table | 2000 entries |
| Maximum data transfer rate | 1 Gbit/s |
| Packet buffer memory | 0.128 MB |
| Product colour | Black |
| Housing material | Metal |
| Mean time between failures (MTBF) | 1688338 h |
| Input current | 1 A |
| Input voltage | 5 V |
| Power consumption (typical) | 2.1 W |
| Data transfer rate | 2000 Mbit/s |
| Dimensions (WxDxH) | 100 x 98 x 28 mm |
| Connectivity technology | Wired |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 100 mm |
| Depth | 98 mm |
| Height | 28 mm |
| Weight | 267 g |
| Package width | 170 mm |
| Package depth | 220 mm |
| Package height | 62 mm |
| Package weight | 450 g |
| Shipping (inner) case height | 36.6 cm |
| Shipping (inner) case width | 23 cm |
| Shipping (inner) case length | 33.5 cm |
| Shipping (inner) case net weight | 5 kg |
| Products per shipping (inner) case | 10 pc(s) |
| Pallet gross weight (air) | 439.8 kg |
| Master (outer) cases per pallet (air) | 75 pc(s) |
| Products per pallet (air) | 750 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 2.04 m |
| Pallet gross weight (sea) | 439.8 kg |
| Master (outer) cases per pallet (sea) | 75 pc(s) |
| Products per pallet (sea) | 750 pc(s) |
| Pallet height (sea) | 2.04 m |
| Shipping (inner) case gross weight | 5.53 kg |
| Certification | FCC Class B. ICES-003 Class B. CE Class B. C-Tick Class B. VCCI Class B. cUL. CB. RoHS |
| Harmonized System (HS) code | 85176990 |
