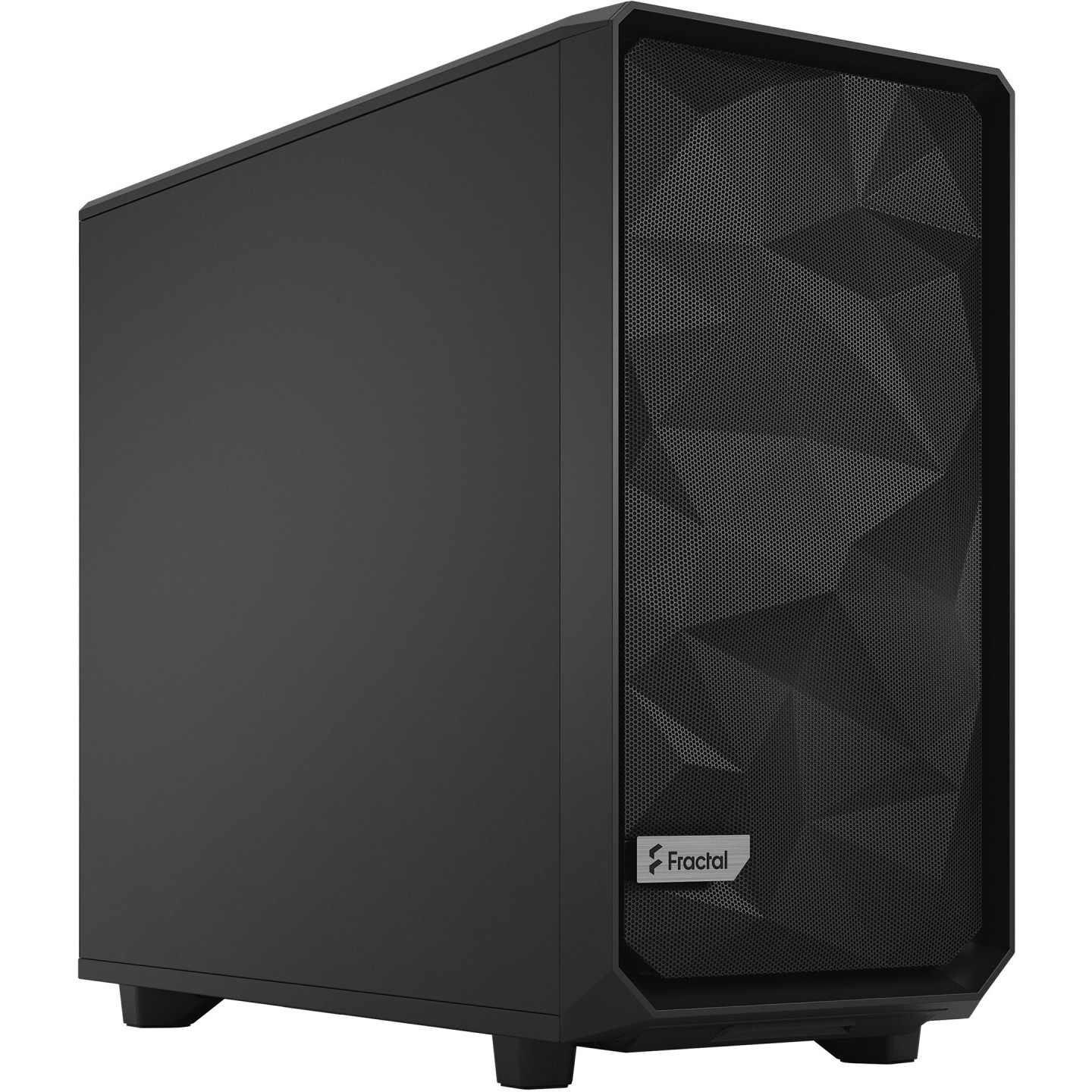

Fractal Design Meshify 2 Mid Tower ATX/E-ATX Case Black 3xFans USB-C 315mmGPU 185mmCPU (Boxed)
Mid-tower E-ATX/ATX PC case in black. Supports 315mm GPUs, 185mm CPU coolers. Includes 3x140mm fans (2 front, 1 rear). Front I/O: 2x USB-A, 1x USB-C. Dual-layout for storage/gaming. Steel frame, mesh front.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 120 mm 240 mm 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | Audio Jacks USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 301–330 mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
The Fractal Design Meshify 2 is a versatile mid-tower PC case designed for high airflow and flexible builds. Its iconic angular mesh front panel ensures excellent cooling for gaming rigs or storage servers. The dual-layout design allows switching between gaming and storage configurations easily.
Built with a steel chassis, tempered glass side panel, and premium features like removable dust filters and velcro cable ties. Supports E-ATX motherboards, up to 6x 3.5" + 2x 2.5" drives in storage layout (up to 23 total positions). Includes three 140mm fans for immediate performance.
- Max GPU Length: 315mm (storage layout)
- Max CPU Cooler Height: 185mm
- Front I/O: 2x USB 3.0 Type-A, 1x USB 3.1 Type-C, audio jacks
- Radiator Support: Up to 360mm front/top, 120mm rear
- Dimensions (case): 240 x 474 x 542 mm
- Weight (net): 10.1 kg
| Material | Steel |
| Form factor | Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, micro ATX, Mini-ITX |
| Number of 3.5 | 6 |
| Number of 2.5 | 2 |
| Number of storage drives supported | 23 |
| Number of expansion slots | 9 |
| Suitable for | Gaming |
| Feature | HDD/SSD combo cage |
| Maximum CPU cooler height | 18.5 cm |
| Maximum graphics card length | 31.5 cm |
| Maximum PSU length | 25 cm |
| Supported power supply form factors | ATX |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 280,360 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 360,420 mm |
| Number of HDDs supported | 18 |
| Width | 240 mm |
| Depth | 542 mm |
| Height | 474 mm |
| Weight | 10.1 kg |
| Package width | 542 mm |
| Package depth | 634 mm |
| Package height | 324 mm |
| Package weight | 12.8 kg |
| Harmonized System (HS) code | 84733080 |
| Manufacturer Part Number | FD-C-MES2A-03 |
| Side Panel | Tempered Glass |
| Dust Filters | Yes (nylon) |
