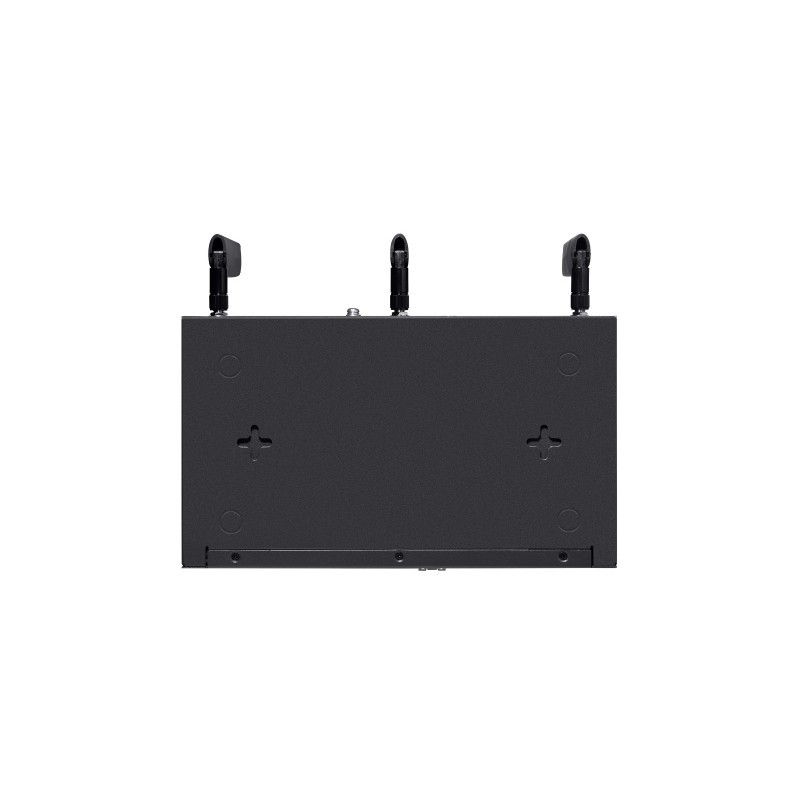

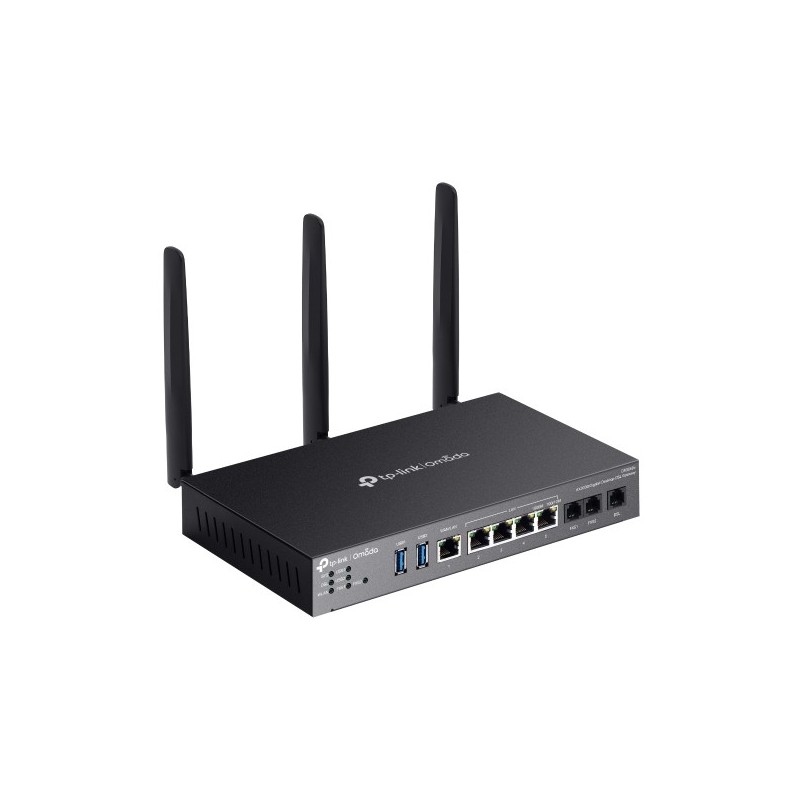

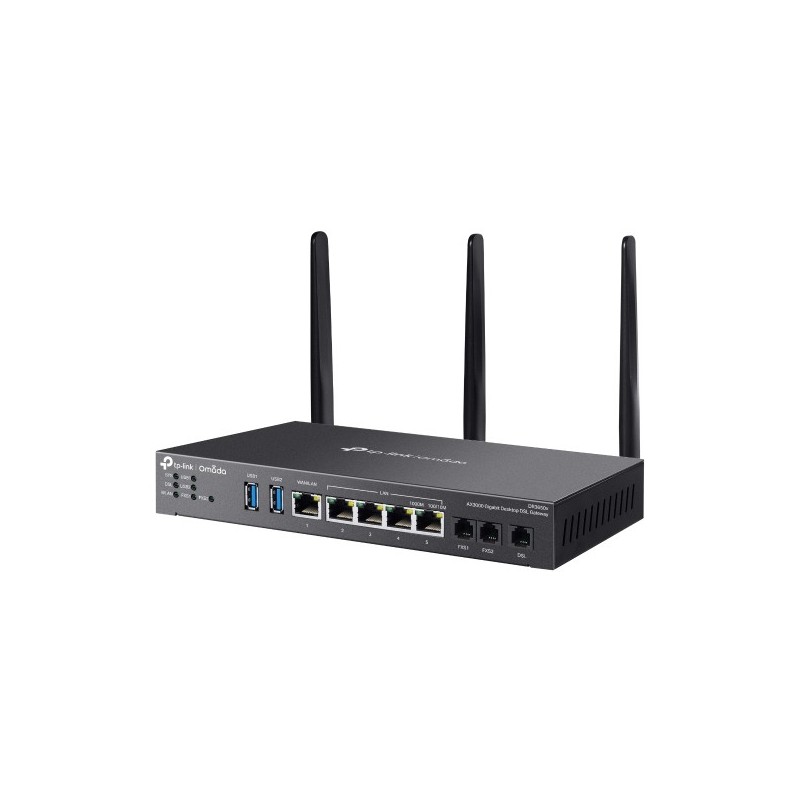

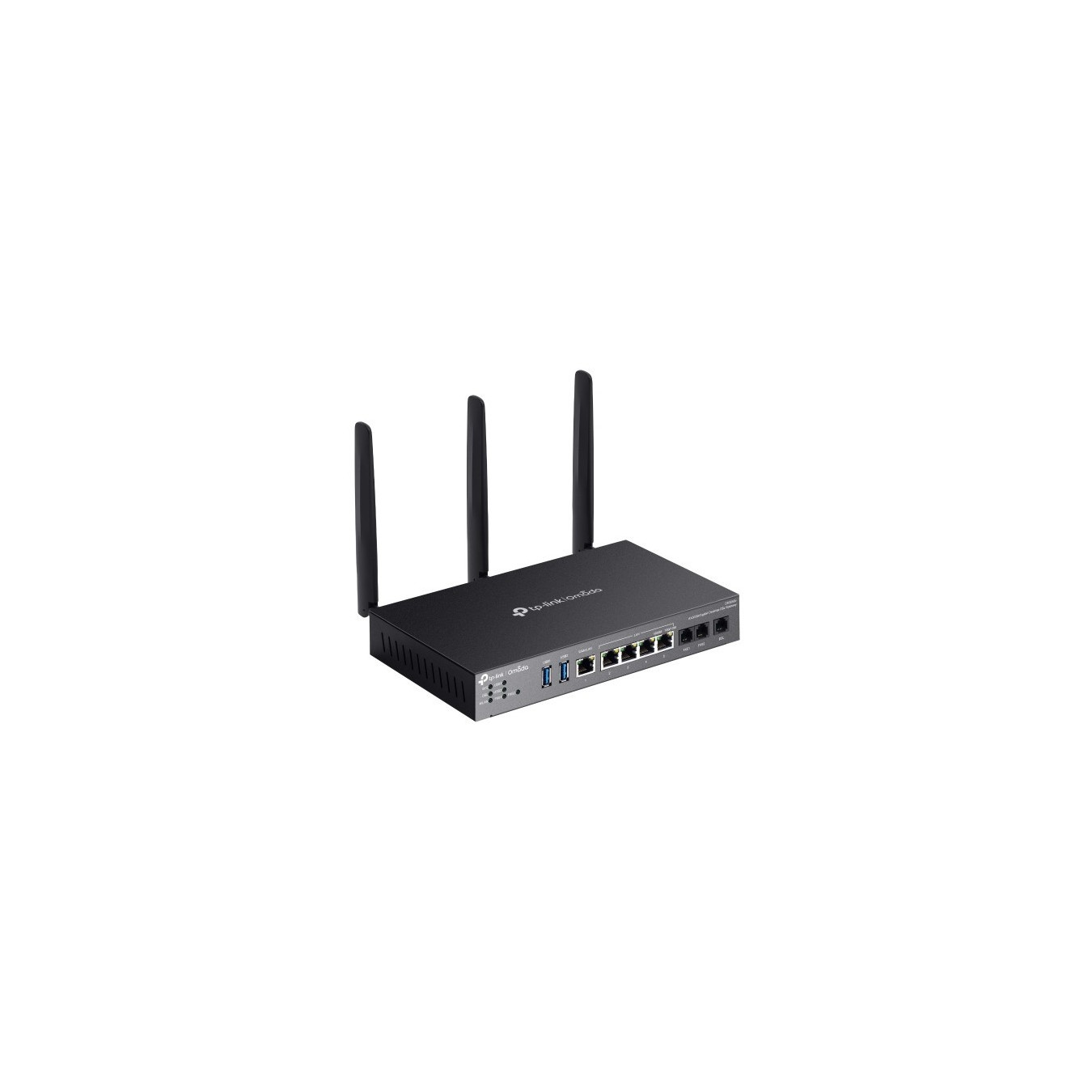

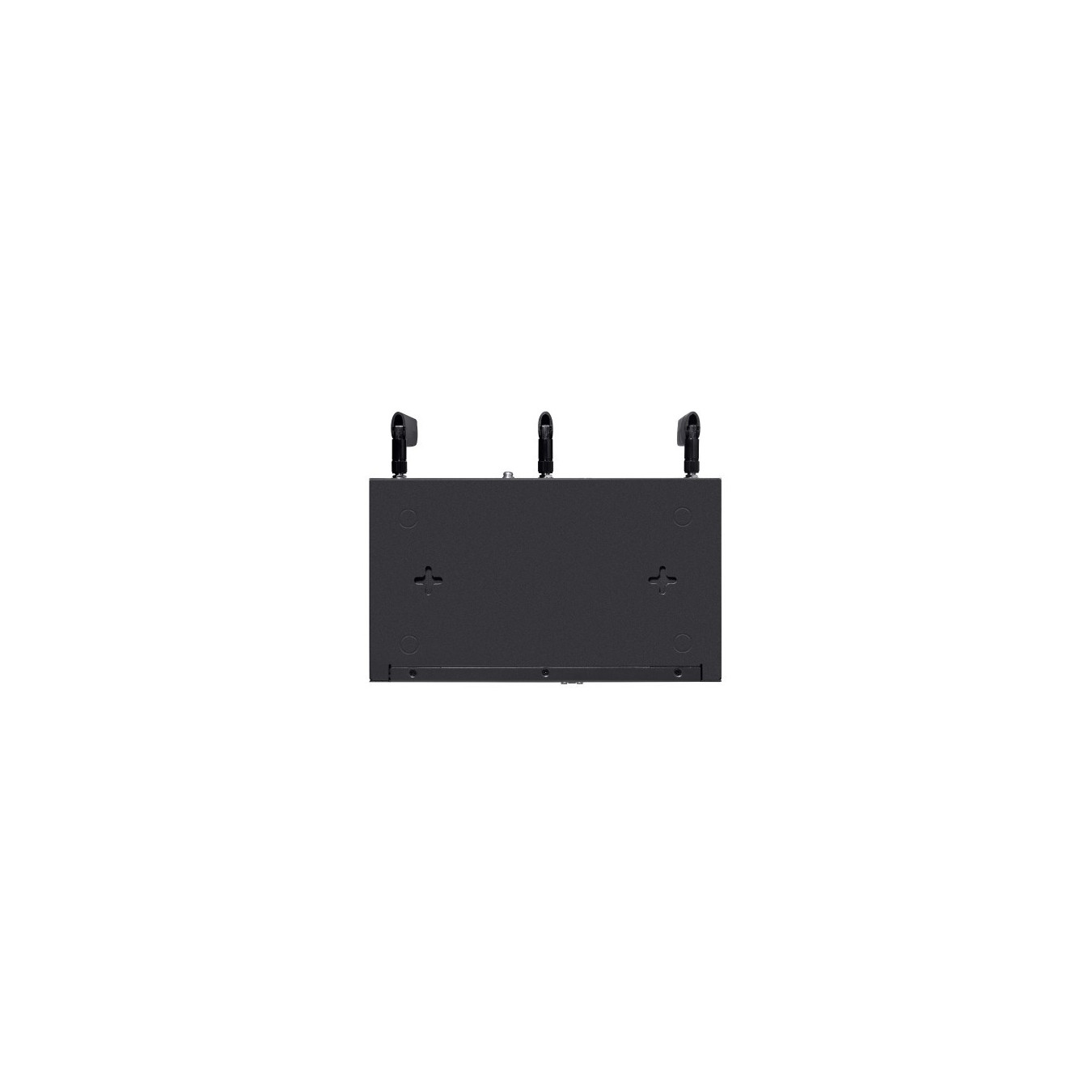

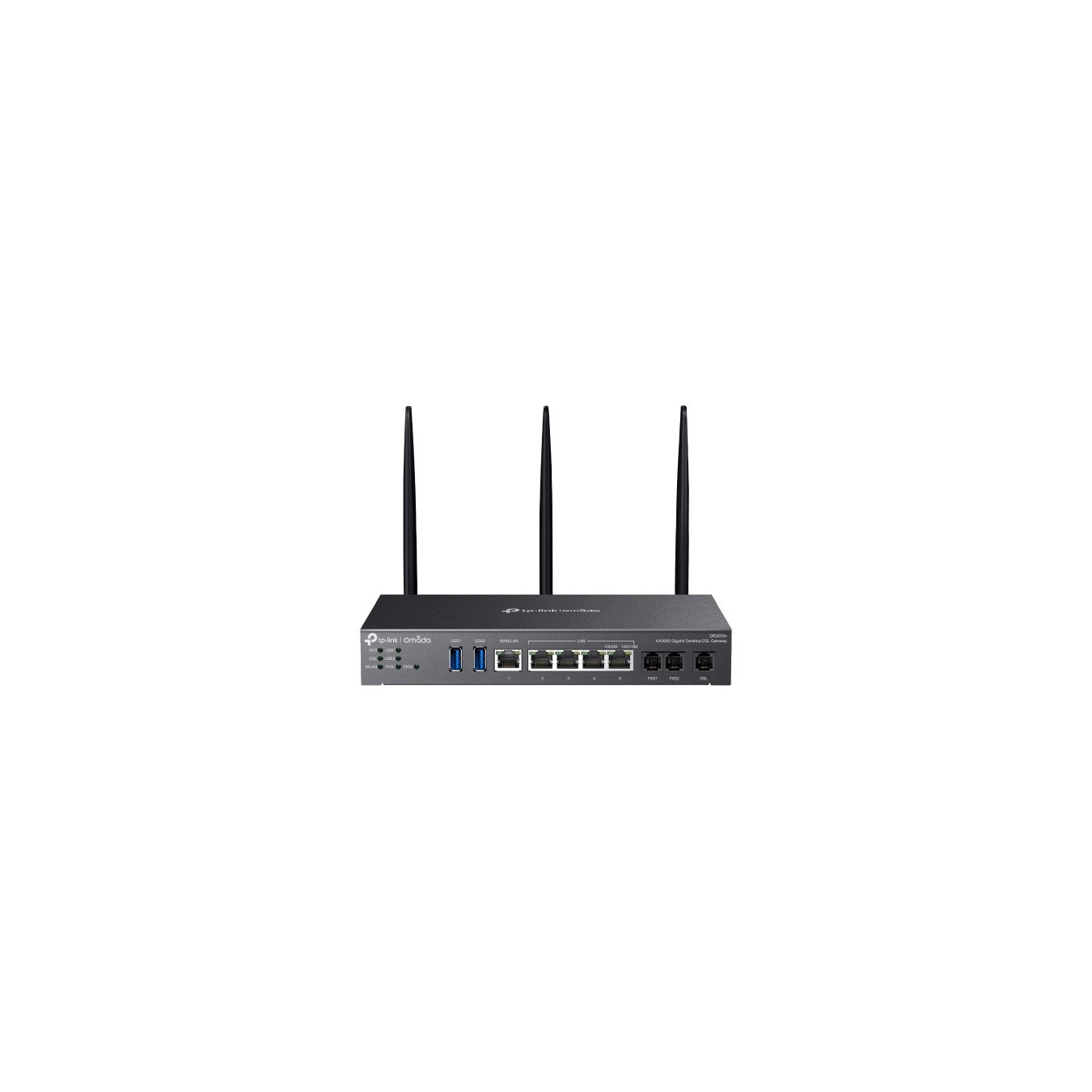

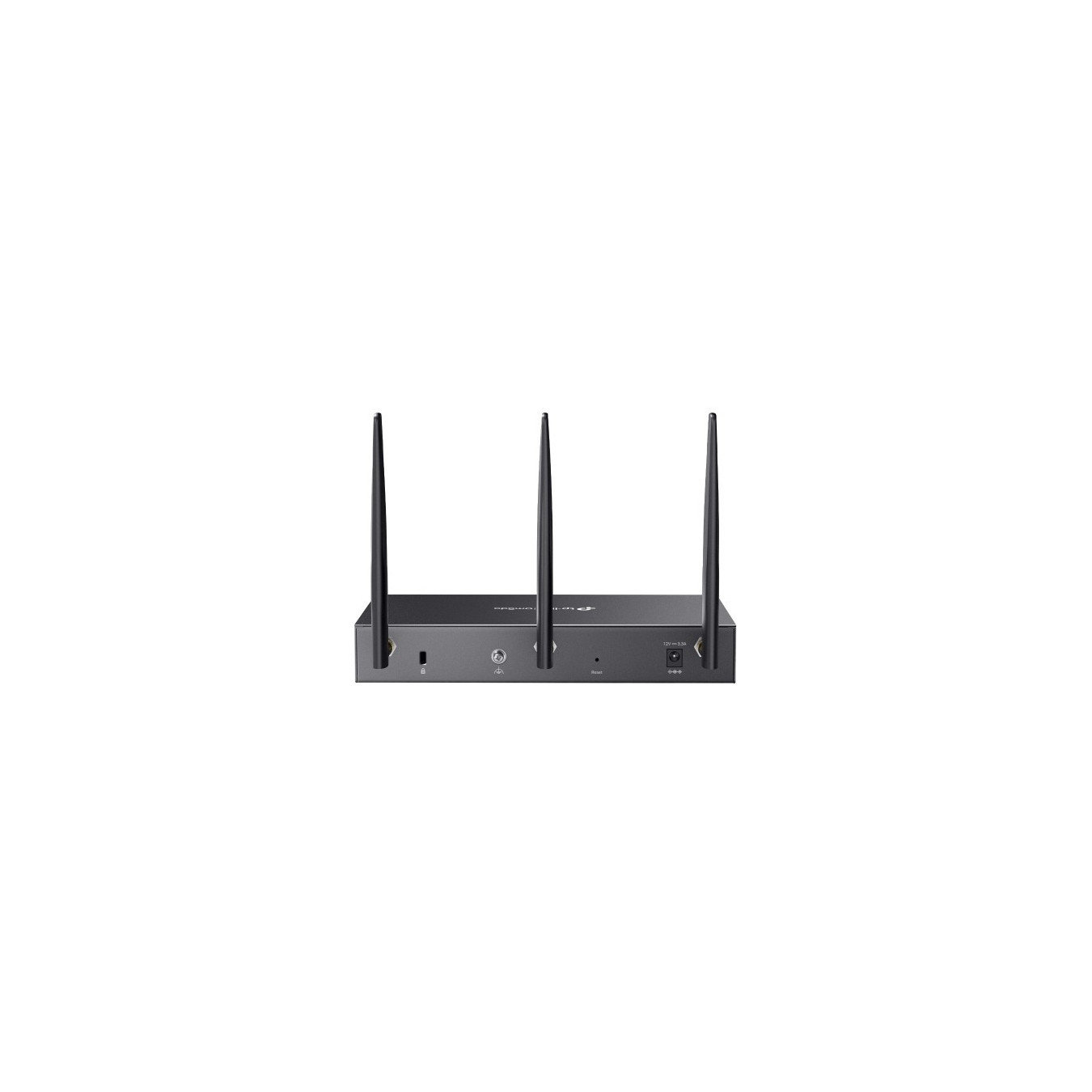

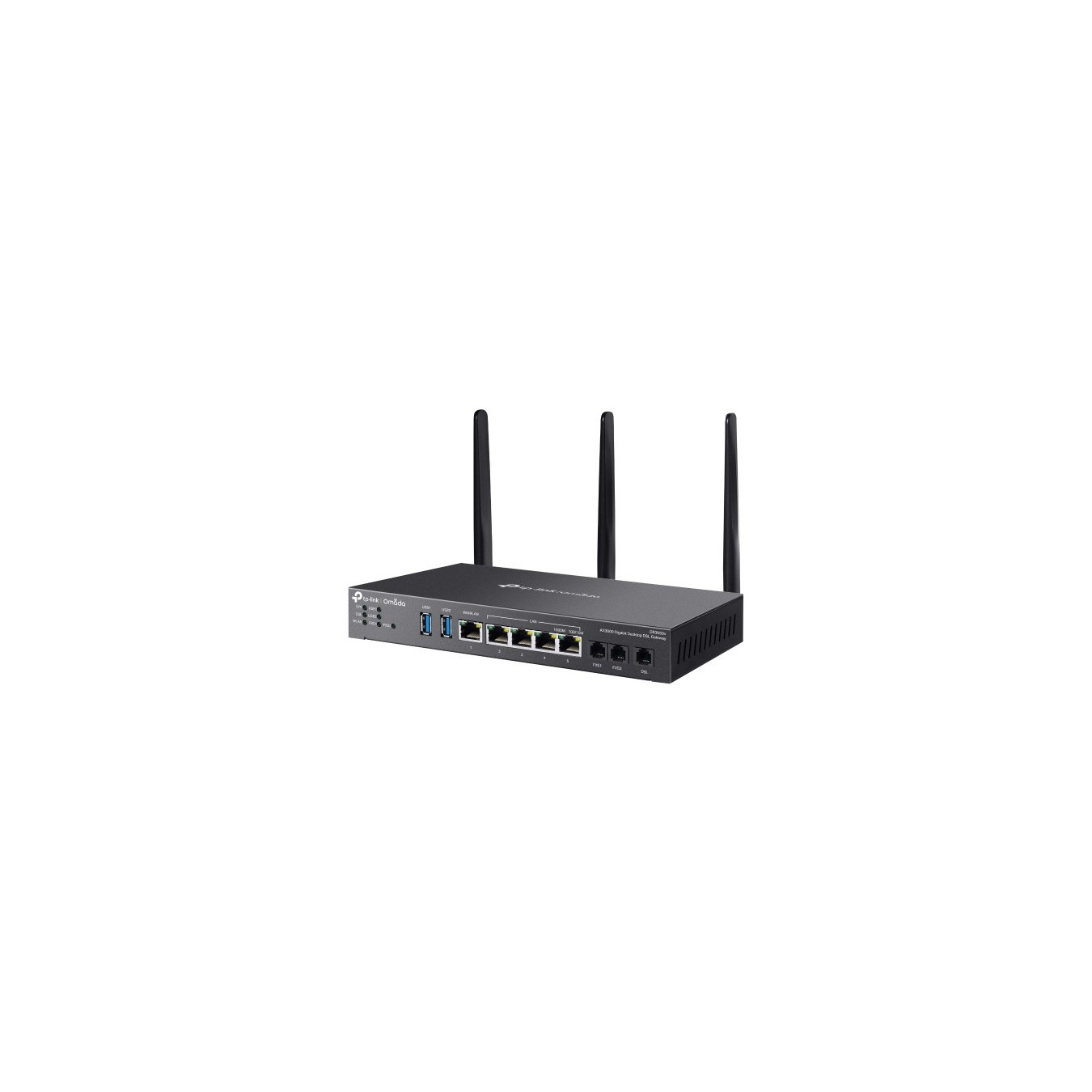

TP-Link Omada DR3650v(EU) - AX3000 Dual-Band DSL Gigabit Desktop Gateway, Black, 512MB DDR4
AX3000 Dual-Band (2.4/5 GHz) Omada DSL gateway with ADSL/ADSL2, 4x Gigabit LAN, 3x external antennas, 2x USB 3.0 Type-A, advanced VPN (OpenVPN/WireGuard), black.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Routers - Wi-Fi Standard | Wi-Fi 6 |
|---|---|
| Routers - Bands | Dual-band (2.4+5 GHz) |
| Routers - VPN | Server (OpenVPN/WireGuard/PPTP/L2TP) |
| Routers - LAN Ports | 4 |
| Routers - USB Ports | USB 3.0 (Type-A) |
| Routers - Antennas | 3x External |
| Routers - 3G/4G/5G Failover | No |
TP-Link Omada AX3000. WAN connection type: RJ-45. Wi-Fi band: Dual-band (2.4 GHz / 5 GHz). WLAN data transfer rate (max): 2402 Mbit/s. Wi-Fi standards: 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax). Ethernet LAN interface type: Gigabit Ethernet. Ethernet LAN data rates: 10.100.1000 Mbit/s. Cabling technology: 10/100/1000Base-T(X). Security algorithms: WPA-Enterprise. WPA-Personal. WPA2-Enterprise. WPA2-Personal. WPA3-Enterprise. WPA3-Personal. NAT functionality: One-to-One NAT Multi-Net NAT Virtual Server Port Triggering1 NAT-DMZ FTP/H.323/SIP/IPSec/PPTP ALG.... Voice codecs: G.711a. G.711ulaw. G.722. G.726. G.729ab
| Feature | Detachable antenna(s) |
| WAN connection type | RJ-45 |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| WLAN data transfer rate (max) | 2402 Mbit/s |
| Wi-Fi standards | 802.11a. 802.11b. 802.11g. Wi-Fi 4 (802.11n). Wi-Fi 5 (802.11ac). Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (first band) | 574 Mbit/s |
| WLAN data transfer rate (second band) | 2402 Mbit/s |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11ax. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1Q. IEEE 802.3. IEEE 802.3ab. IEEE 802.3u. IEEE 802.3x |
| VPN support | IPSec/PPTP/L2TP/OpenVPN/WireGuard/GRE/SSL |
| Ethernet LAN (RJ-45) ports | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| RJ-11 ports quantity | 3 |
| Security algorithms | WPA-Enterprise. WPA-Personal. WPA2-Enterprise. WPA2-Personal. WPA3-Enterprise. WPA3-Personal |
| NAT functionality | One-to-One NATMulti-Net NATVirtual ServerPort Triggering1NAT-DMZFTP/H.323/SIP/IPSec/PPTP ALGUPnP |
| Voice codecs | G.711a. G.711ulaw. G.722. G.726. G.729ab |
| Product colour | Black |
| LED indicators | DSL. LAN. USB. WLAN |
| Product type | Tabletop router |
| Cables included | LAN (RJ-45). Phone |
| Antenna design | External |
| Antenna gain level (max) | 4.5 dBi |
| Antennas quantity | 3 |
| Internal memory | 512 MB |
| Internal memory type | DDR4 |
| Mean time between failures (MTBF) | 671034 h |
| Power source type | AC |
| Output voltage | 12 V |
| Output current | 3.3 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Width | 226 mm |
| Depth | 131.2 mm |
| Height | 35 mm |
