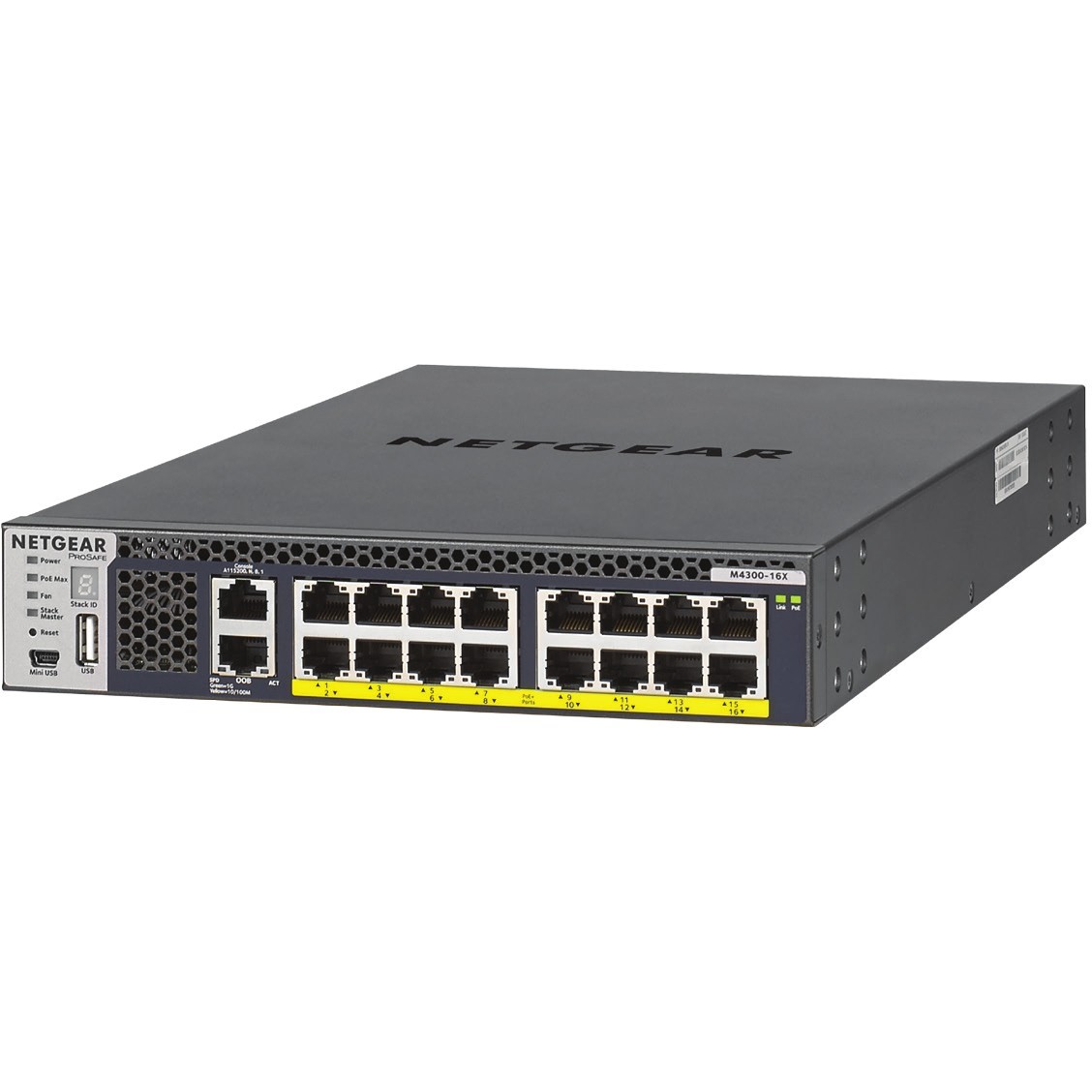

NETGEAR M4300-16X XSM4316PA-100NES - 16x 10G PoE+ Ports, 199W Budget, 1U Rack, L3 Managed, 1GB RAM, 800MHz CPU, Black
16x 10G RJ45 PoE+ ports (30W/port, 199W total), L3 managed switch, 1U rackmount, 1GB RAM, 800MHz CPU, front-to-back airflow, 9000 jumbo frames.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Network Switches - Type | Managed L3 |
|---|---|
| Network Switches - Ports | 16 |
| Network Switches - Port Speed | 10G (RJ45/SFP+) |
| Network Switches - PoE Budget | 131-250 W |
| Network Switches - Rackmount | Yes |
| Network Switches - Fanless | No |
NETGEAR M4300-16X. Switch type: Managed. Switch layer: L3. Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000). Basic switching RJ-45 Ethernet ports quantity: 16. USB 2.0 ports quantity: 1. Console port: RJ-45/Mini-USB. MAC address table: 16000 entries. Switching capacity: 320 Gbit/s. Networking standards: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1ab. IEEE 802.1p. IEEE 802.1s. IEEE 802.1v. IEEE 802.1w. IEEE.... Power over Ethernet (PoE). Rack mounting. Form factor: 1U
| Switch type | Managed |
| Switch layer | L3 |
| Feature | Rack mount kit |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 10G Ethernet (100/1000/10000) |
| Console port | RJ-45/Mini-USB |
| USB 2.0 ports quantity | 1 |
| Virtual LAN features | Private VLAN. Tagged VLAN. Voice VLAN |
| Number of VLANs | 4093 |
| Switching capacity | 320 Gbit/s |
| Throughput | 238 Mpps |
| MAC address table | 16000 entries |
| Number of queues | 8 |
| Number of static routes | 64 |
| Jumbo frames | 9000 |
| DHCP features | DHCP client. DHCP snooping. DHCPv6 client. DHCPv6 relay. DHCPv6 server. DHCPv6 snooping |
| Authentication | Guest VLAN. MAC-based authentication |
| Number of multicast groups filtered | 4000 |
| Routing protocols | OSPF. OSPFv3. RIP. RIP-1. RIP-2 |
| Form factor | 1U |
| Product colour | Black |
| Airflow direction | Front-to-back airflow |
| Physical stacking (units) | 8 |
| Processor frequency | 800 MHz |
| Internal memory | 1024 MB |
| Noise level | 36 dB |
| Mean time between failures (MTBF) | 690301 h |
| Number of power supply units | 1 |
| Power consumption (max) | 49 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 199 W |
| Heat dissipation | 186 BTU/h |
| Width | 212 mm |
| Depth | 345 mm |
| Height | 44 mm |
| Weight | 3.22 kg |
| Harmonized System (HS) code | 85176990 |
