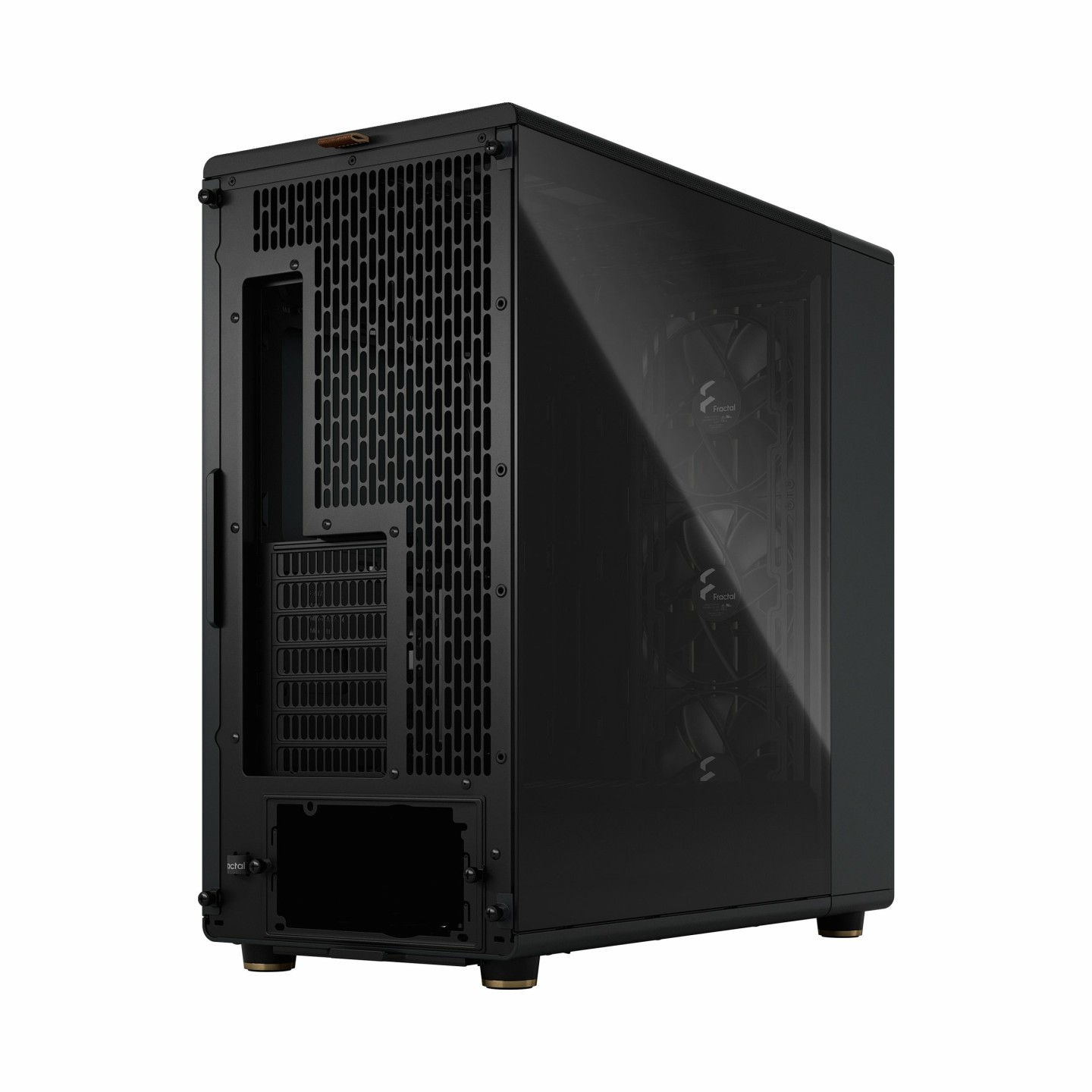

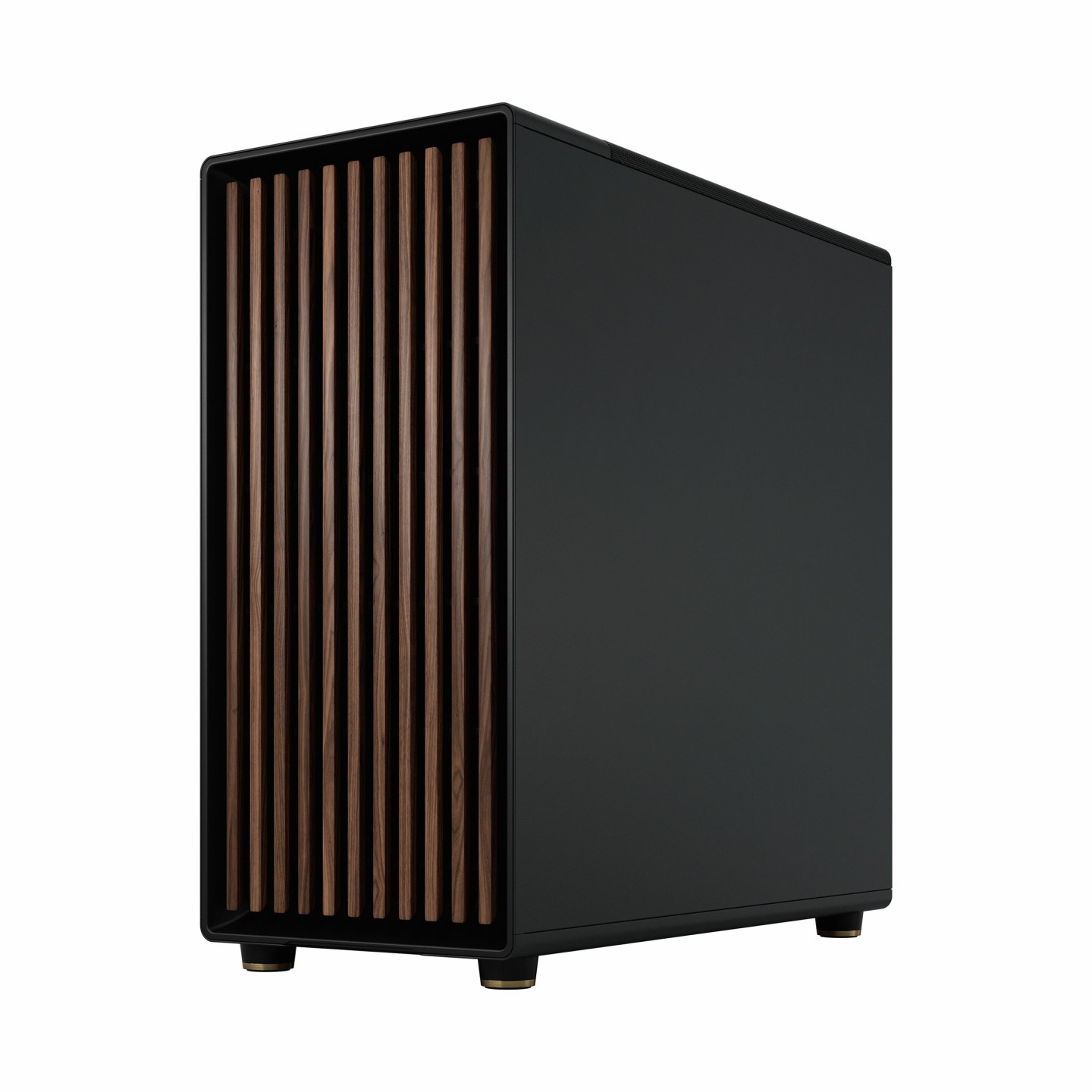

Fractal Design North XL Mid Tower PC Case - Charcoal Black, Tempered Glass & Wood, E-ATX/ATX Compatible
Premium mid-tower case with E-ATX support, 413mm GPU capacity, 185mm CPU cooler clearance, tempered glass side panel, wood front accents, and 420mm radiator support for high-performance builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX Micro ATX Mini ITX |
|---|---|
| PC Cases - Radiator Support | 280 mm 360 mm 420 mm |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | USB A USB C |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Mid Tower |
| PC Cases - Max GPU Length | 401–450 mm |
| PC Cases - Color | Black Wood Accent |
| PC Cases - CPU Cooler Clearance | 170+ mm |

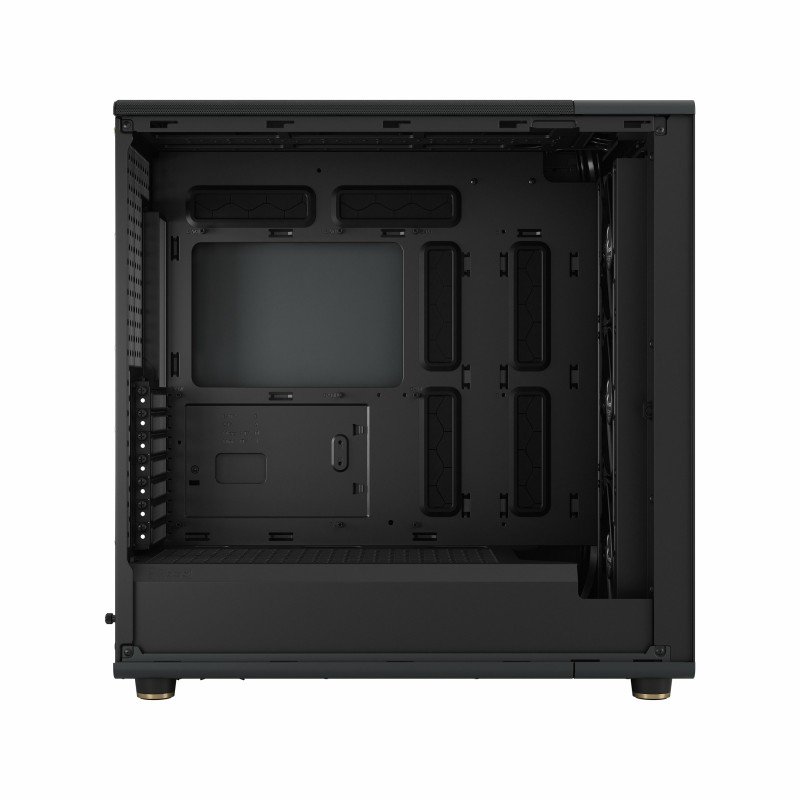

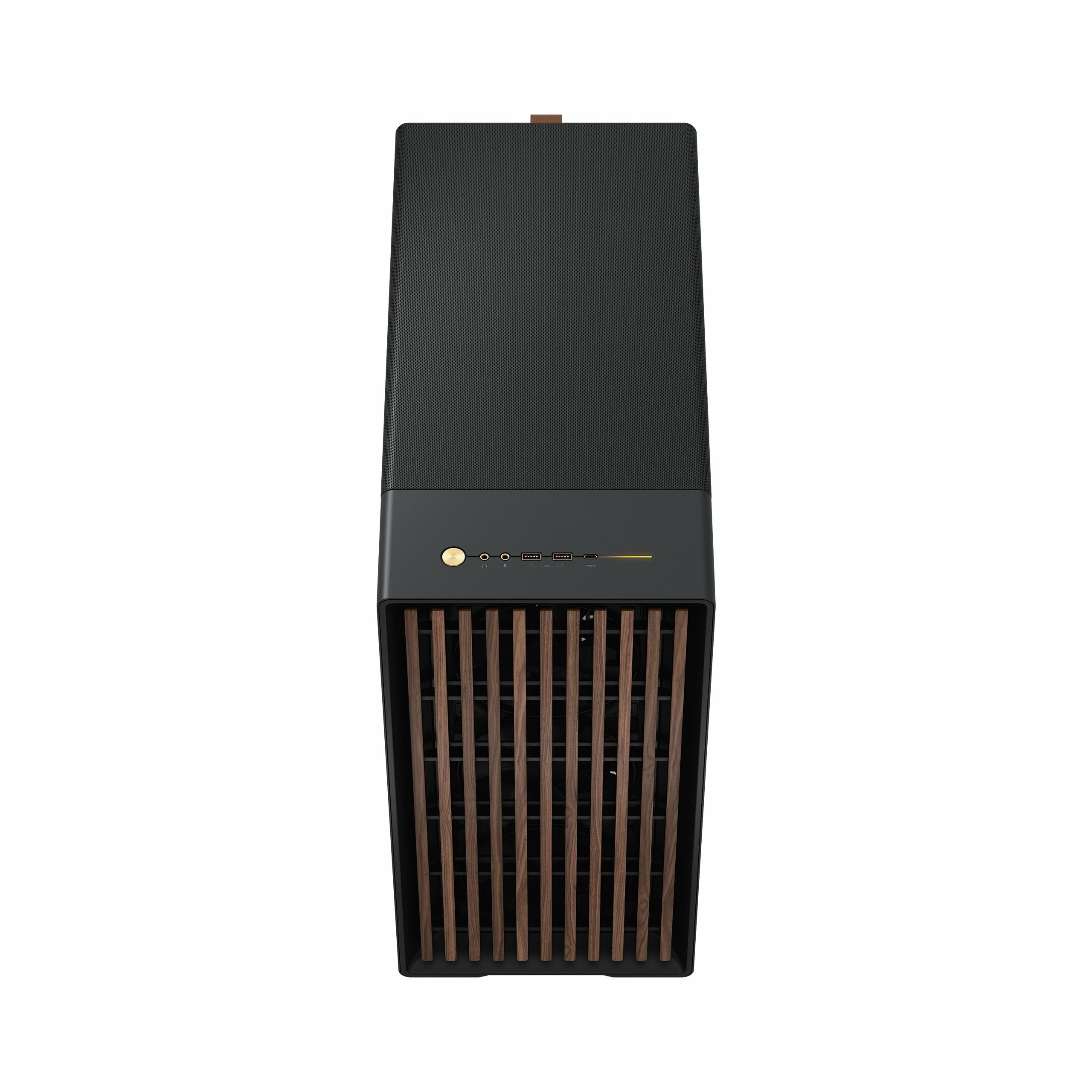

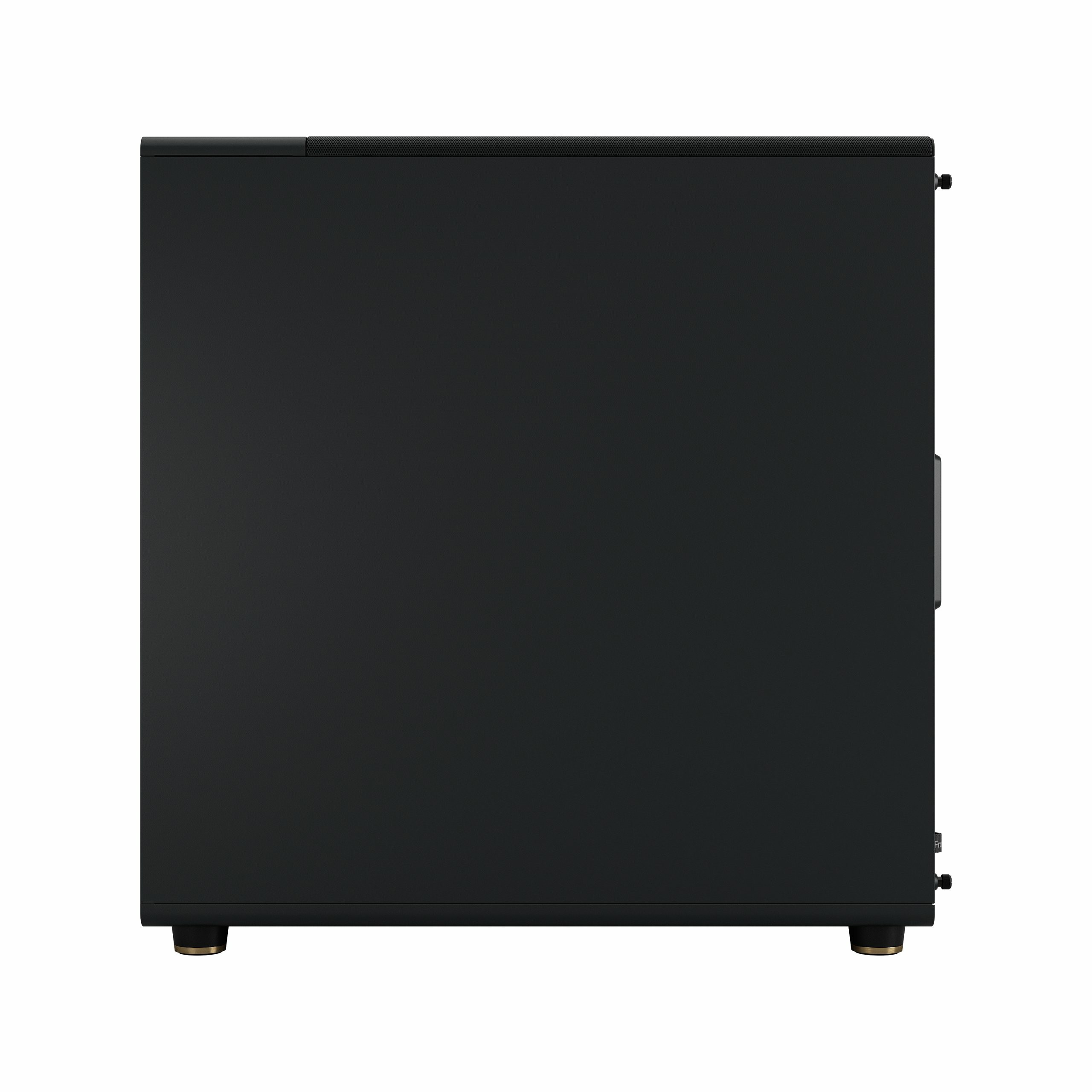

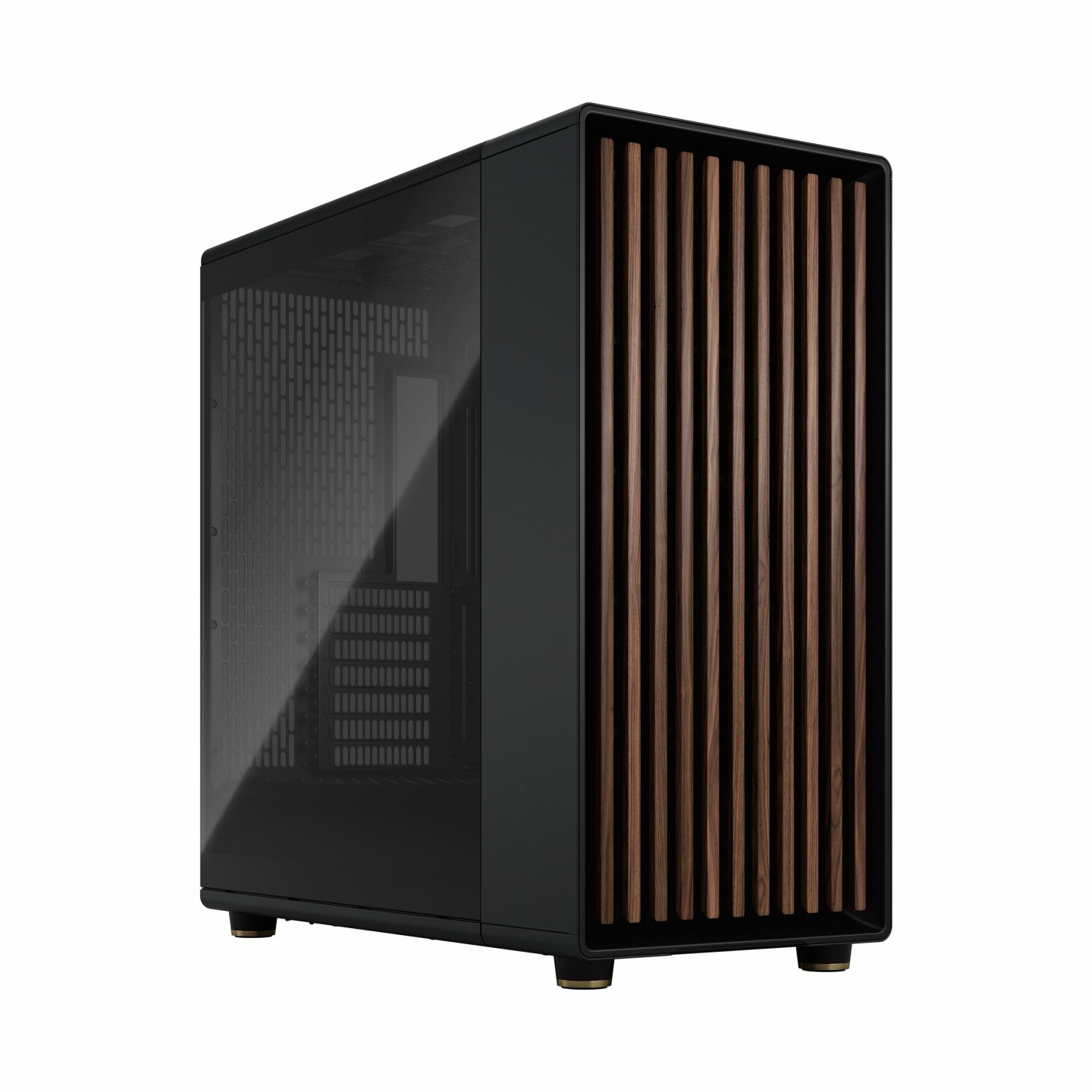

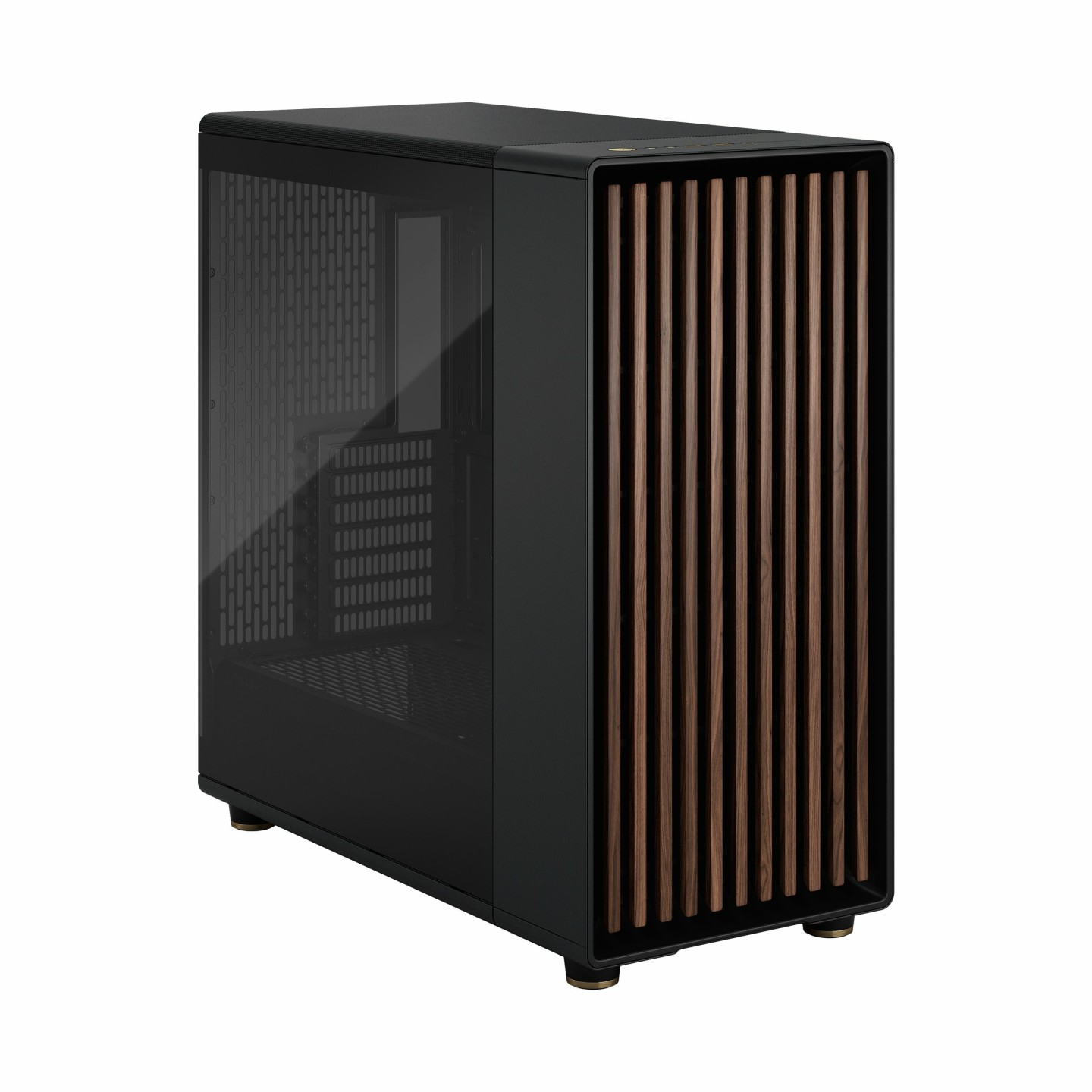

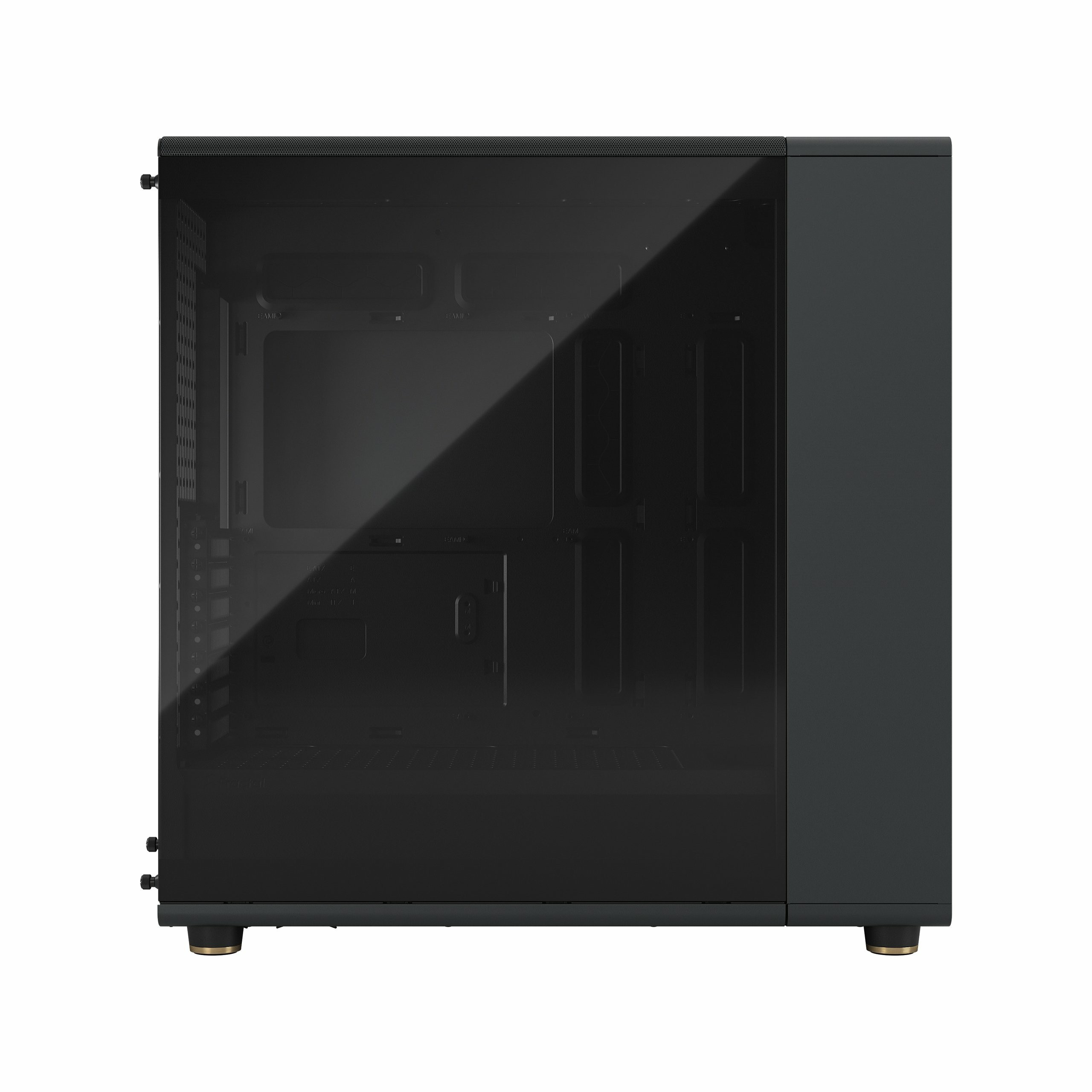

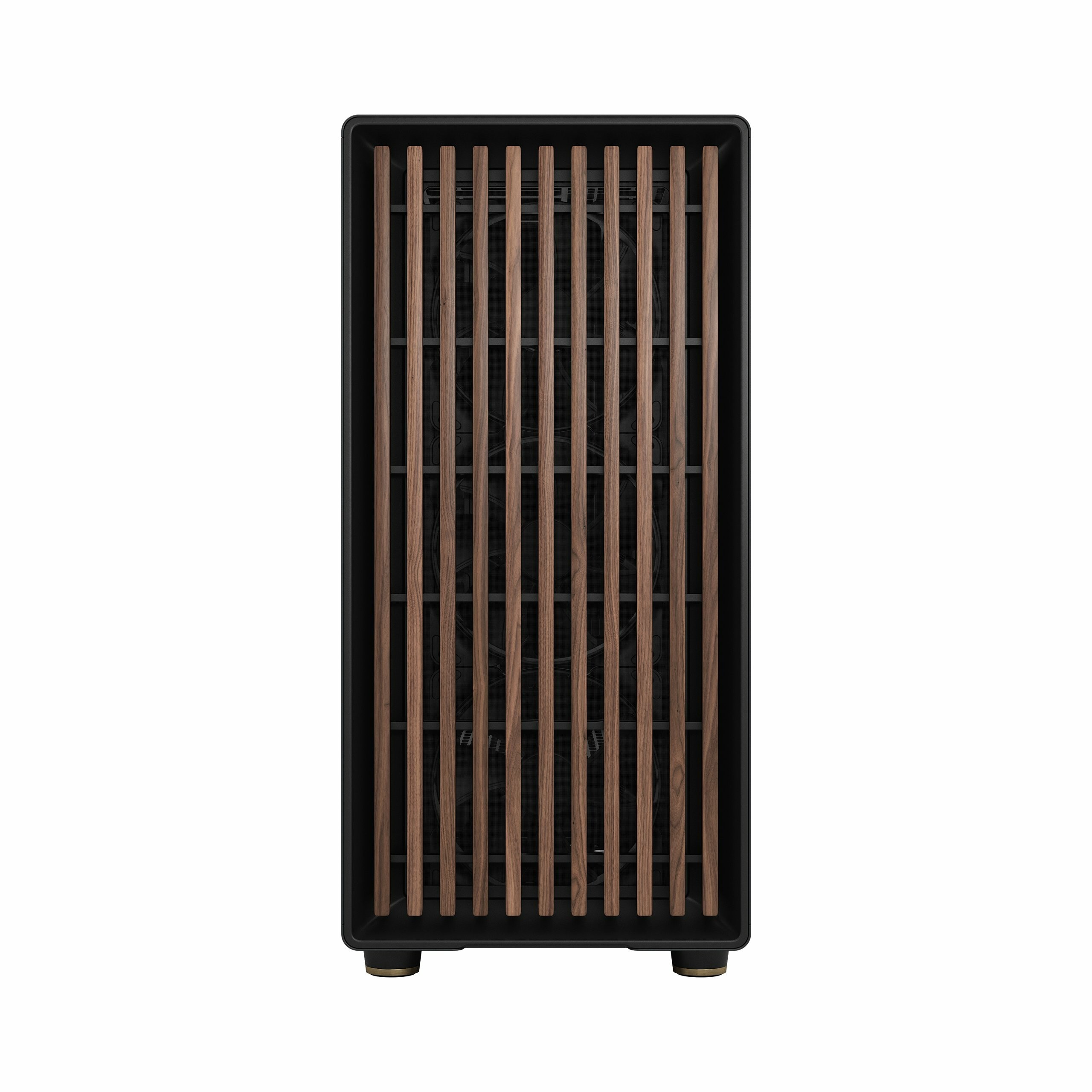

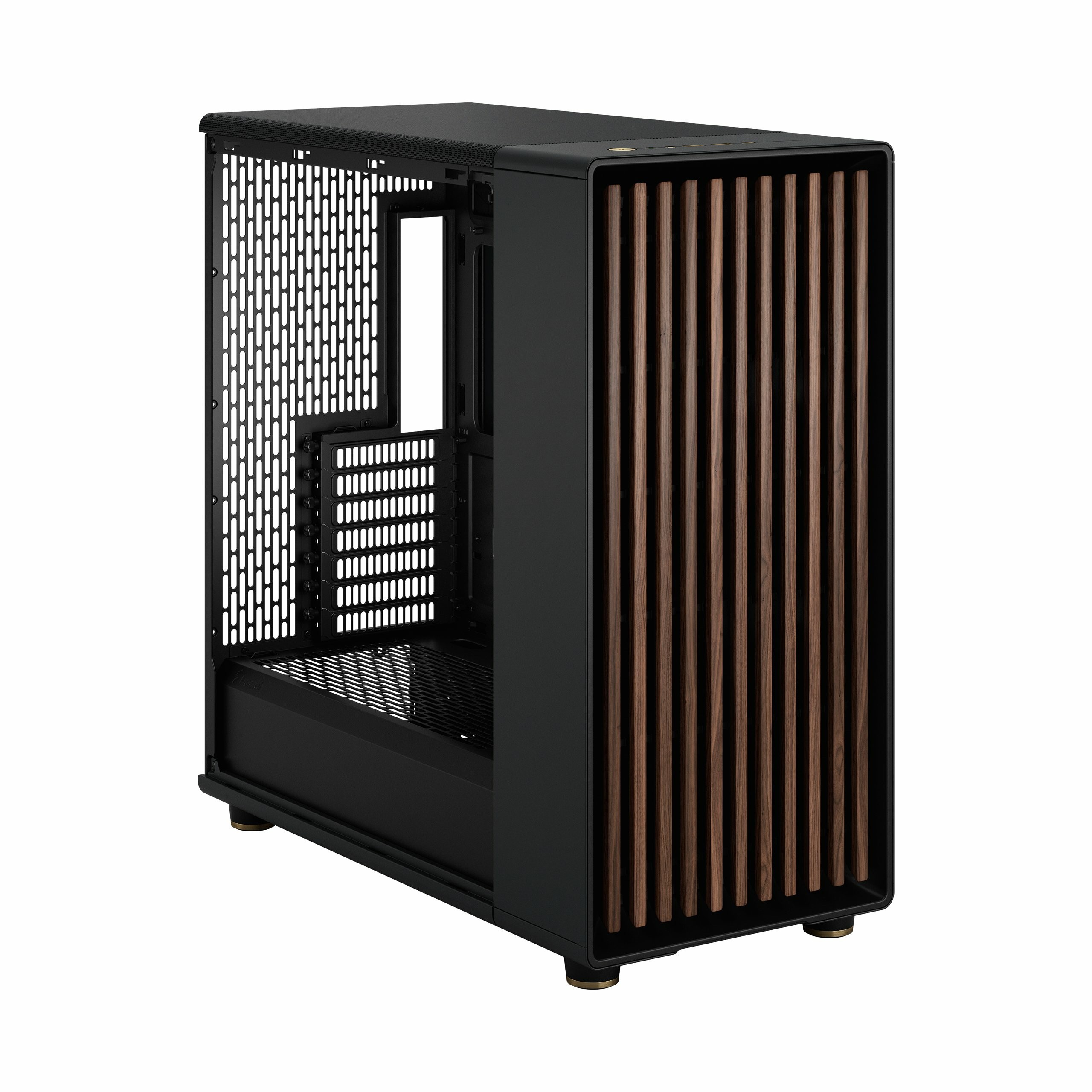

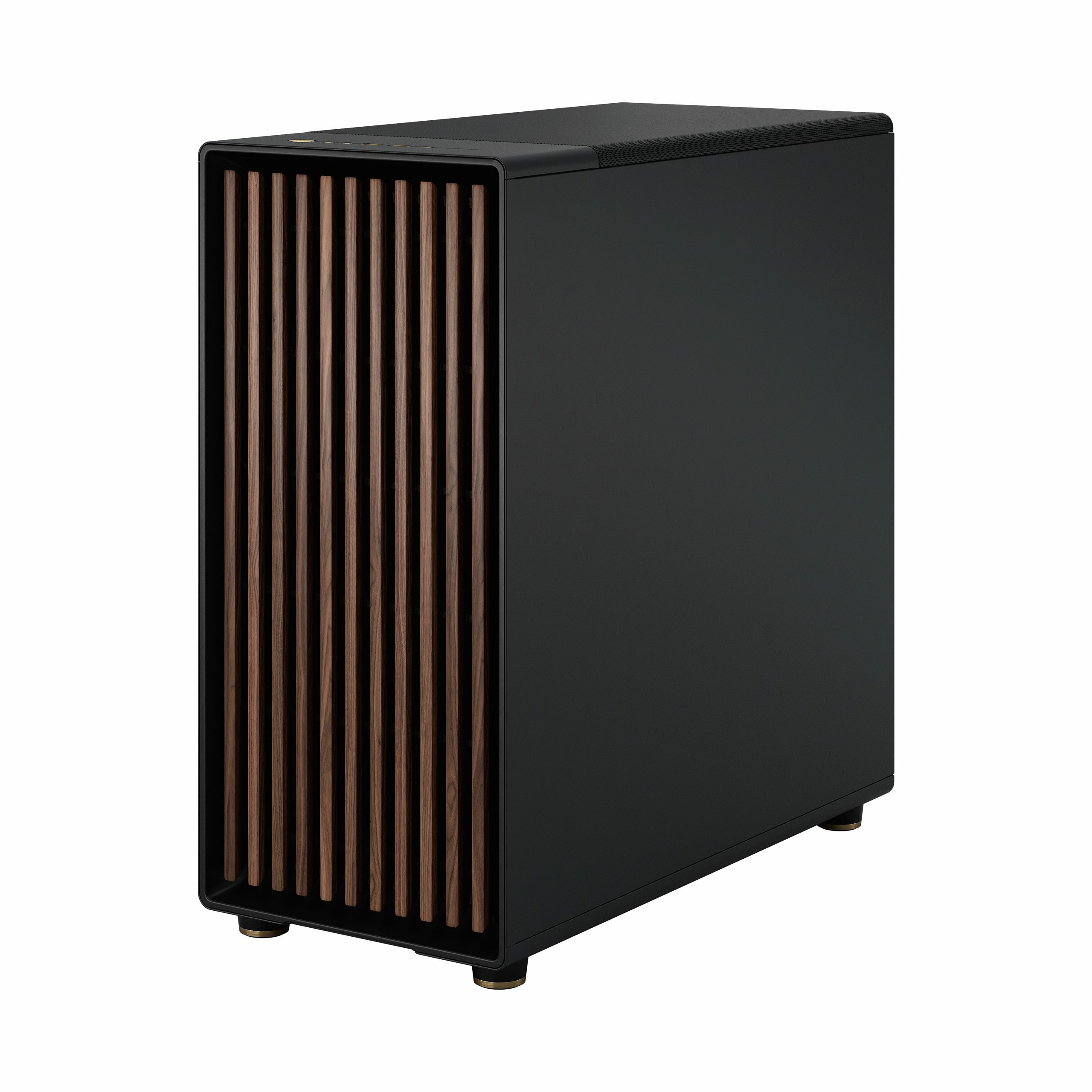

The Fractal Design North XL is a premium mid-tower PC case that combines Scandinavian design philosophy with exceptional engineering. Featuring a distinctive charcoal black steel chassis with a walnut wood front panel and tempered glass side panel, this case delivers both aesthetic appeal and functional performance. The North XL represents a 36% size increase over the original North, specifically designed to accommodate modern high-performance components including E-ATX motherboards, large graphics cards up to 413mm, and substantial CPU coolers up to 185mm in height.

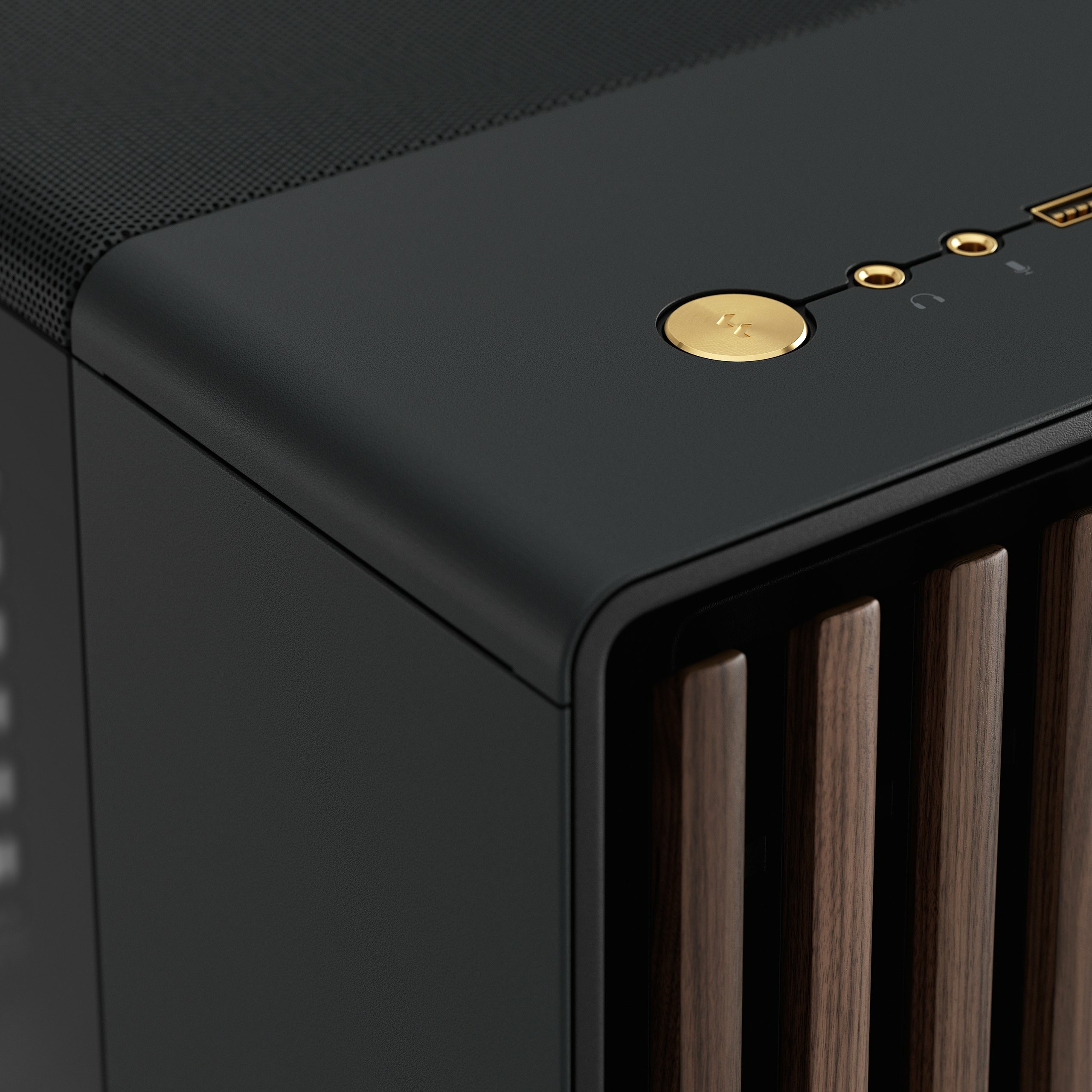

Built for enthusiast builders and high-end gaming systems, the North XL offers generous internal space with excellent component compatibility. The case supports advanced cooling solutions with front radiator capacity up to 420mm, top radiator support for 280-360mm units, and comprehensive fan mounting options. Pre-installed with three 140mm fans and featuring a dedicated fan hub, the case simplifies cable management and fan control. The intuitive interior layout provides ample working room with removable front, top, and side panels for easy access during building and maintenance. Connectivity includes 2x USB 3.2 Gen 1 Type-A ports and 1x USB 3.2 Gen 2 Type-C port on the front I/O panel.
Thermal testing by professional reviewers demonstrated measurably superior performance, with CPU temperatures running 6-8°C cooler under sustained load compared to mid-range alternatives. The case accommodates 2x 3.5-inch or 2x 2.5-inch storage drives with a dedicated HDD/SSD combo cage, and features 7 expansion slots for graphics cards and other components. At approximately 9.5kg unboxed, the North XL is a substantial but manageable chassis suitable for stationary desktop setups.
- E-ATX, ATX, Micro-ATX, and Mini-ITX motherboard support
- Maximum GPU length: 413mm (16.2 inches)
- Maximum CPU cooler height: 185mm (tempered glass version)
- Front radiator support: up to 420mm
- Top radiator support: 280mm or 360mm
- Pre-installed: 3x 140mm fans with dedicated fan hub
- Front I/O: 2x USB-A, 1x USB-C
- Storage: 2x 3.5-inch HDD bays, 2x 2.5-inch SSD bays

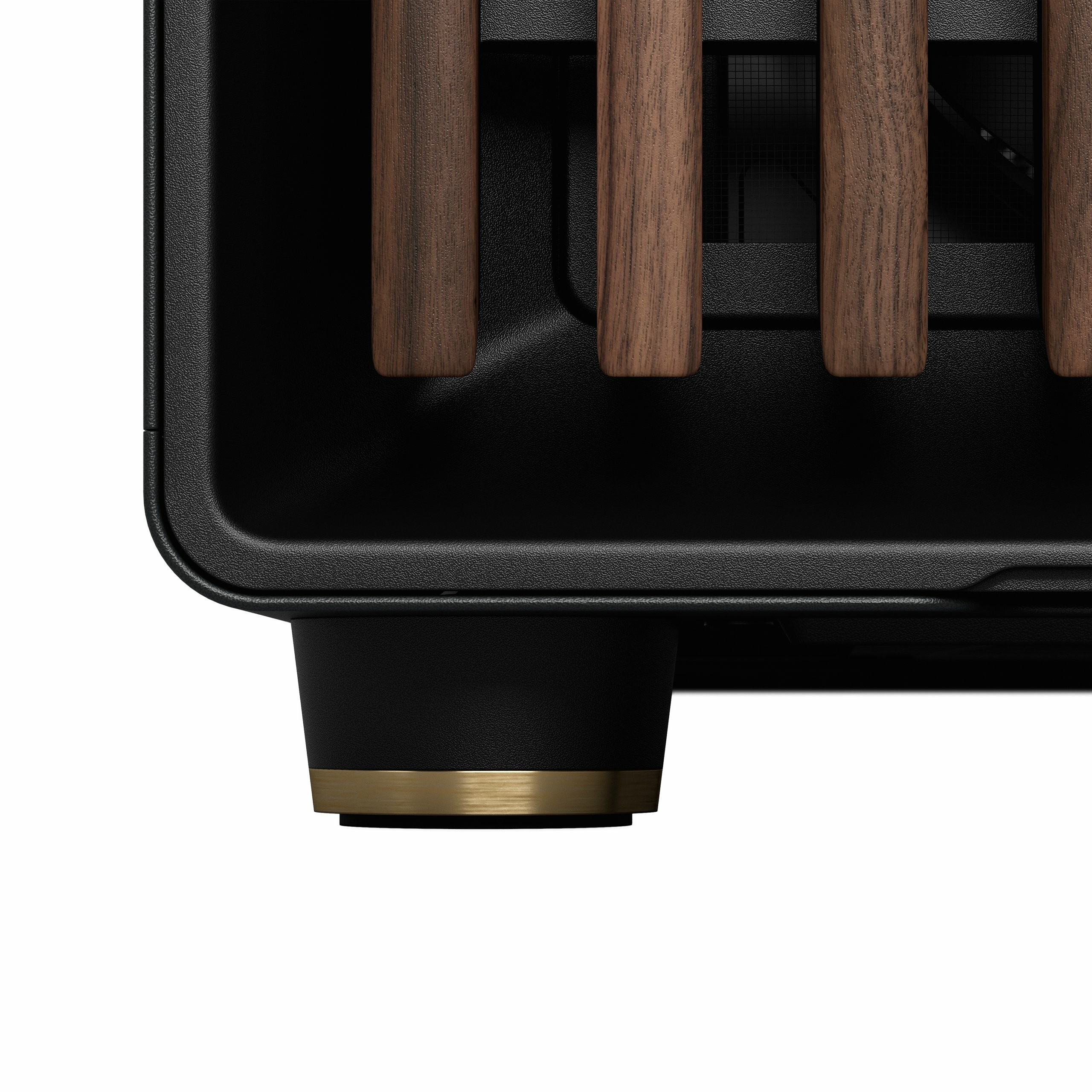

- Materials: Steel chassis, tempered glass side panel, wood front panel accents
| Form Factor | Mid Tower |
| Type | PC |
| Material | Steel chassis, tempered glass side panel, wood front panel |
| Product Color | Charcoal Black with Walnut Wood accents |
| Supported Motherboard Form Factors | E-ATX, ATX, Micro-ATX, Mini-ITX |
| Maximum GPU Length | 413 mm (16.2 inches) |
| Maximum CPU Cooler Height | 185 mm (7.2 inches) - Tempered Glass version; 155 mm - Mesh version |
| Width | 240 mm |
| Height | 509 mm |
| Depth | 503 mm |
| Weight (Unboxed) | 9.5 kg |
| Weight (Boxed) | 11.7 kg |
| Package Dimensions | 355 mm (W) × 608 mm (H) × 604 mm (D) |
| Front Fans Installed | 3x 140 mm |
| Front Fans Supported (Maximum) | 3x 140 mm |
| Rear Fans Supported (Maximum) | 1x 120/140 mm |
| Top Fans Supported | 2x 180 mm or 2x 140 mm or 2x 120 mm |
| Front Radiator Support | 360 mm, 420 mm |
| Top Radiator Support | 280 mm, 360 mm |
| Rear Radiator Support | 120 mm, 140 mm |
| HDD Bays (3.5-inch) | 2 |
| SSD Bays (2.5-inch) | 2 |

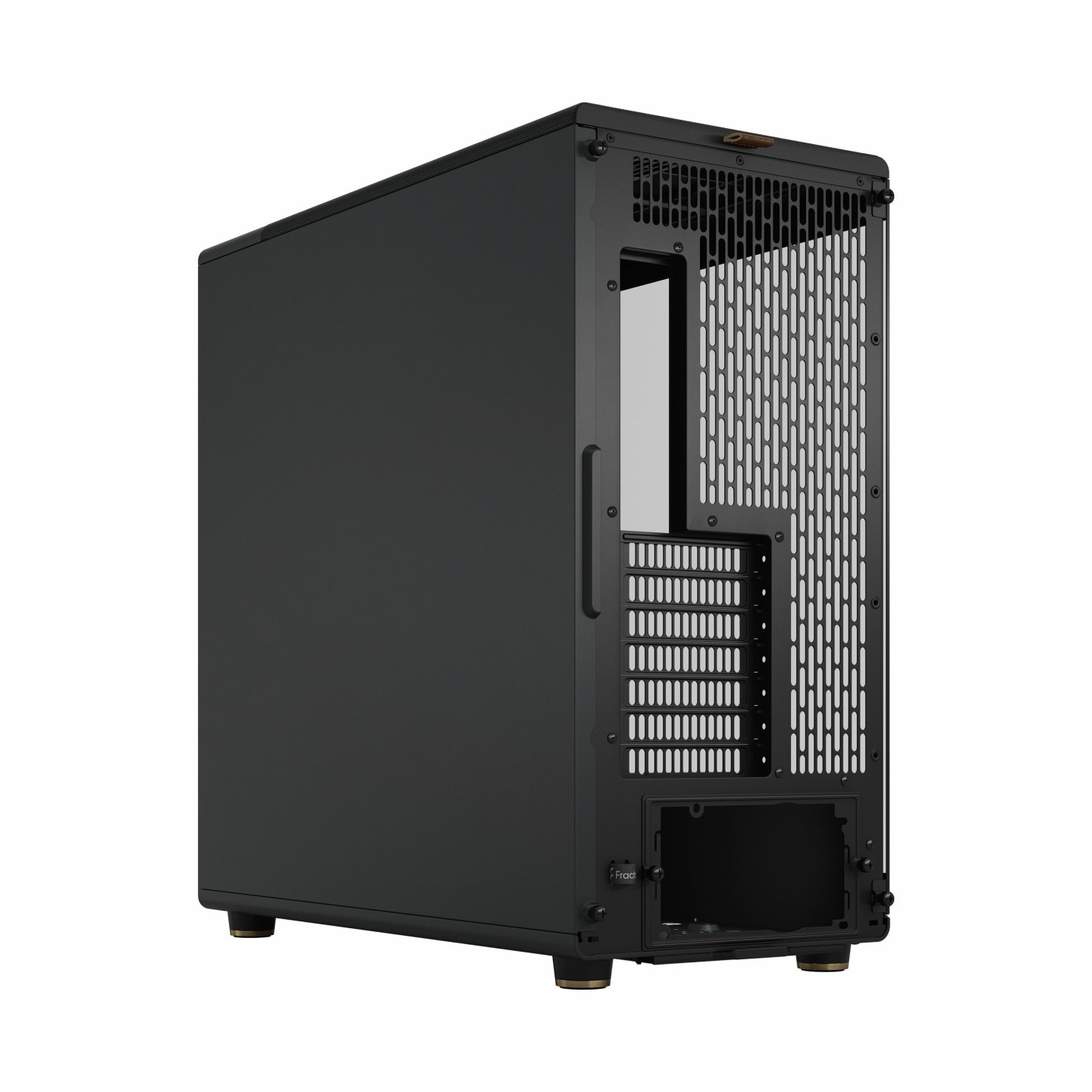

| Expansion Slots | 7 |
| Power Supply Location | Bottom |
| Supported Power Supply Form Factor | ATX |
| Maximum PSU Length | 290 mm |
| Front I/O - USB 3.2 Gen 1 Type-A | 2 ports |
| Front I/O - USB 3.2 Gen 2 Type-C | 1 port |
| Included Fan Controller | Yes, dedicated fan hub |

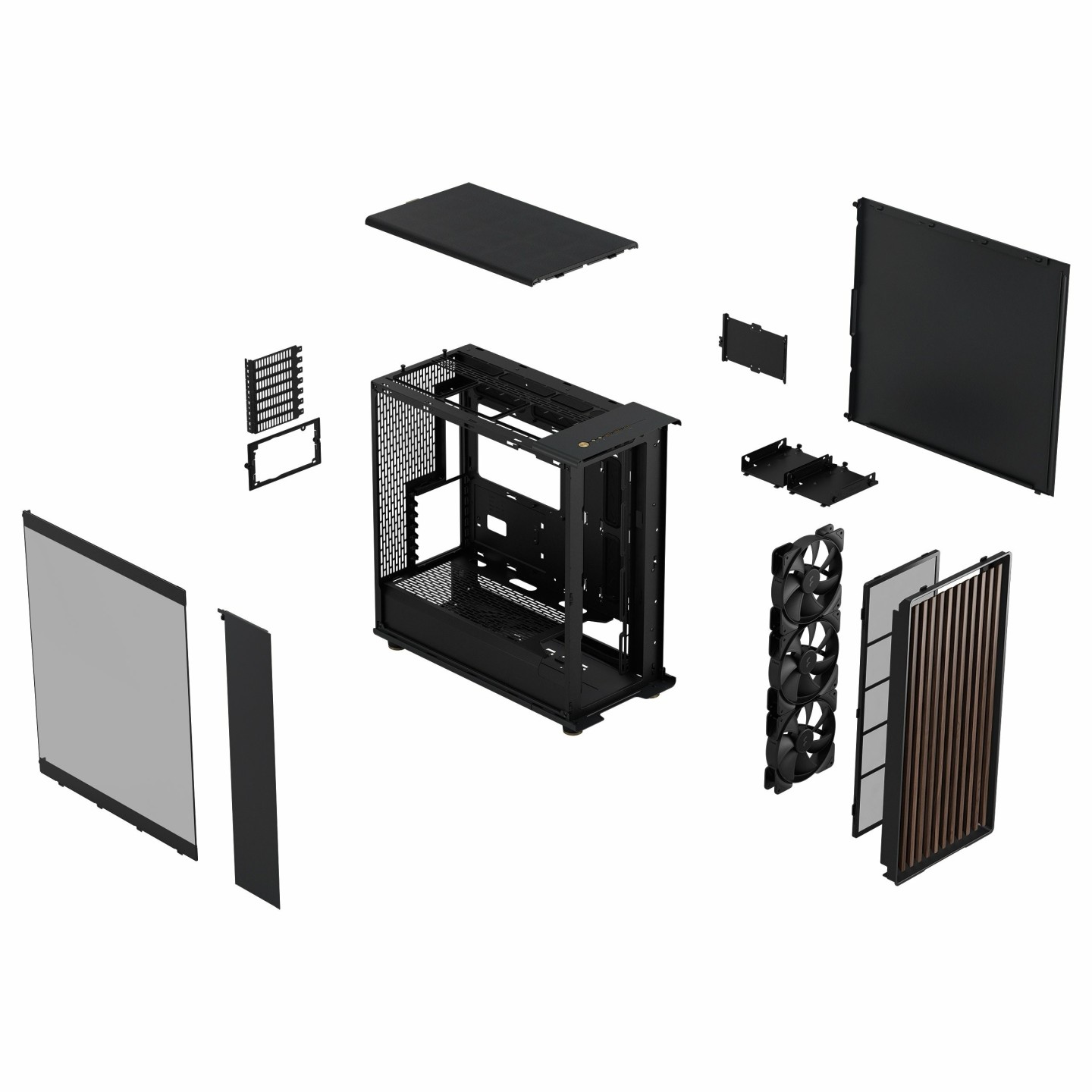

| Removable Panels | Front panel, top panel, both side panels |

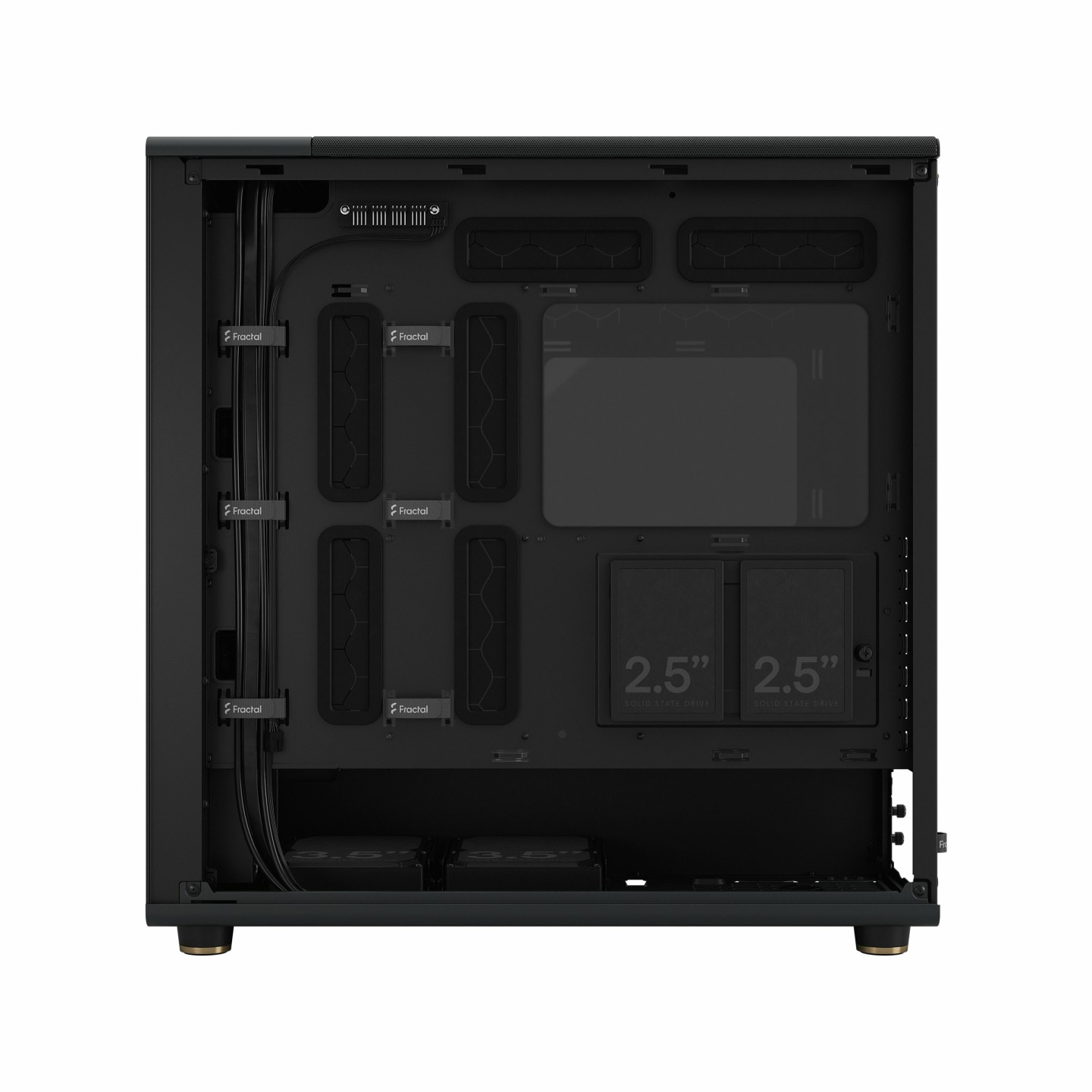

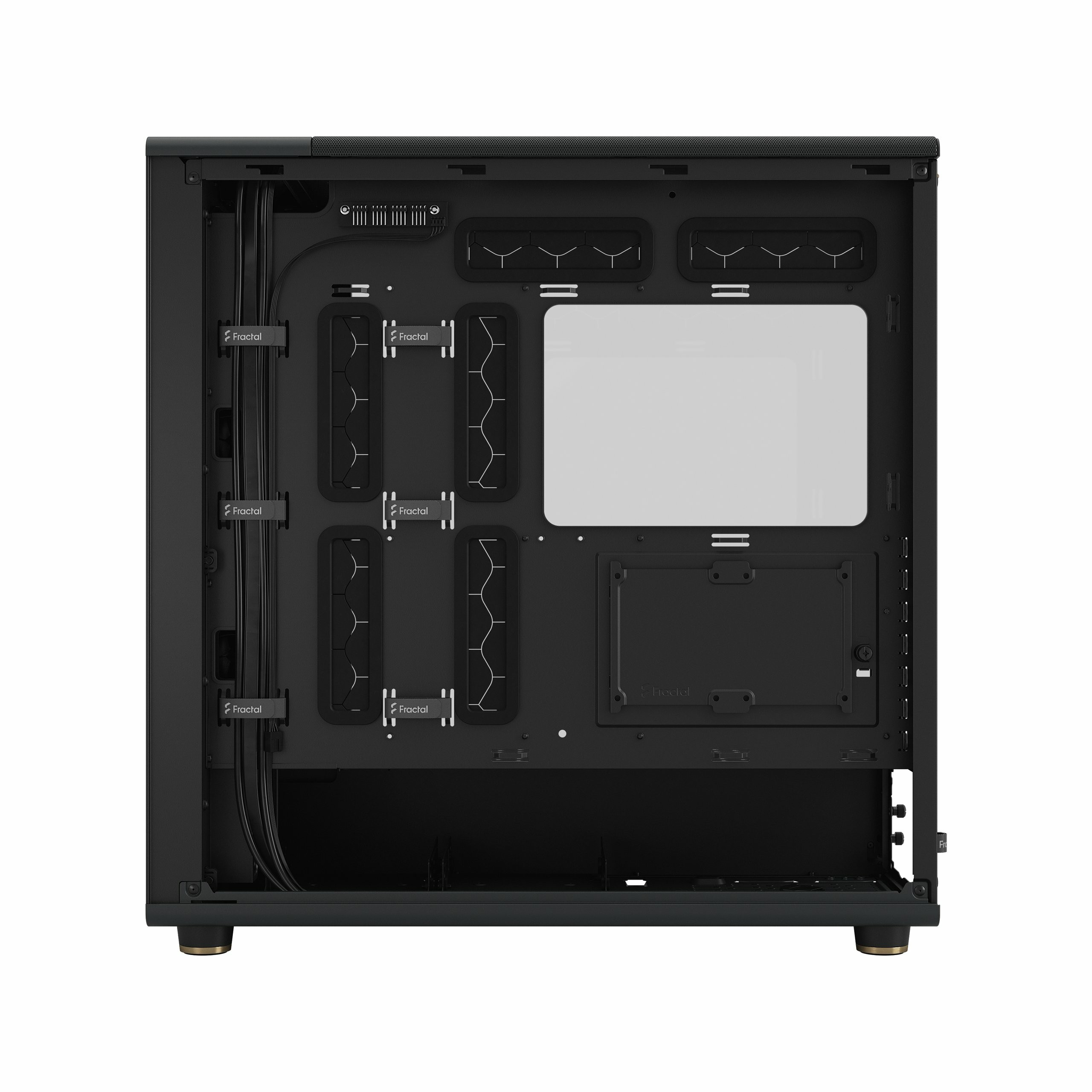

| Cable Management Features | Expanded cable routing space, additional tiedown points, multiple pass-through options |
| Thermal Performance | CPU temperatures 6-8°C cooler than mid-range alternatives under sustained load |
