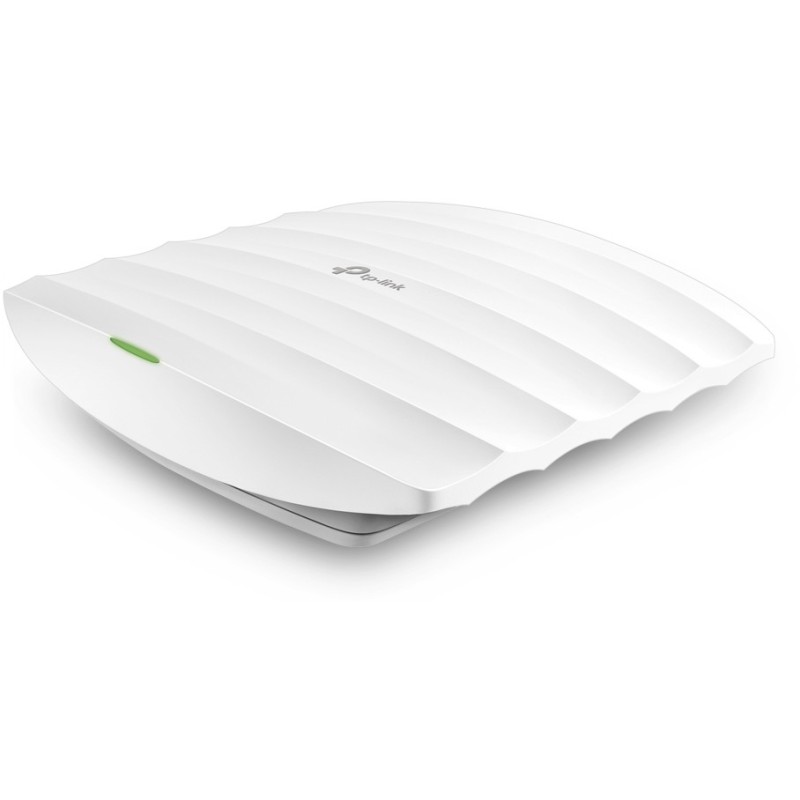

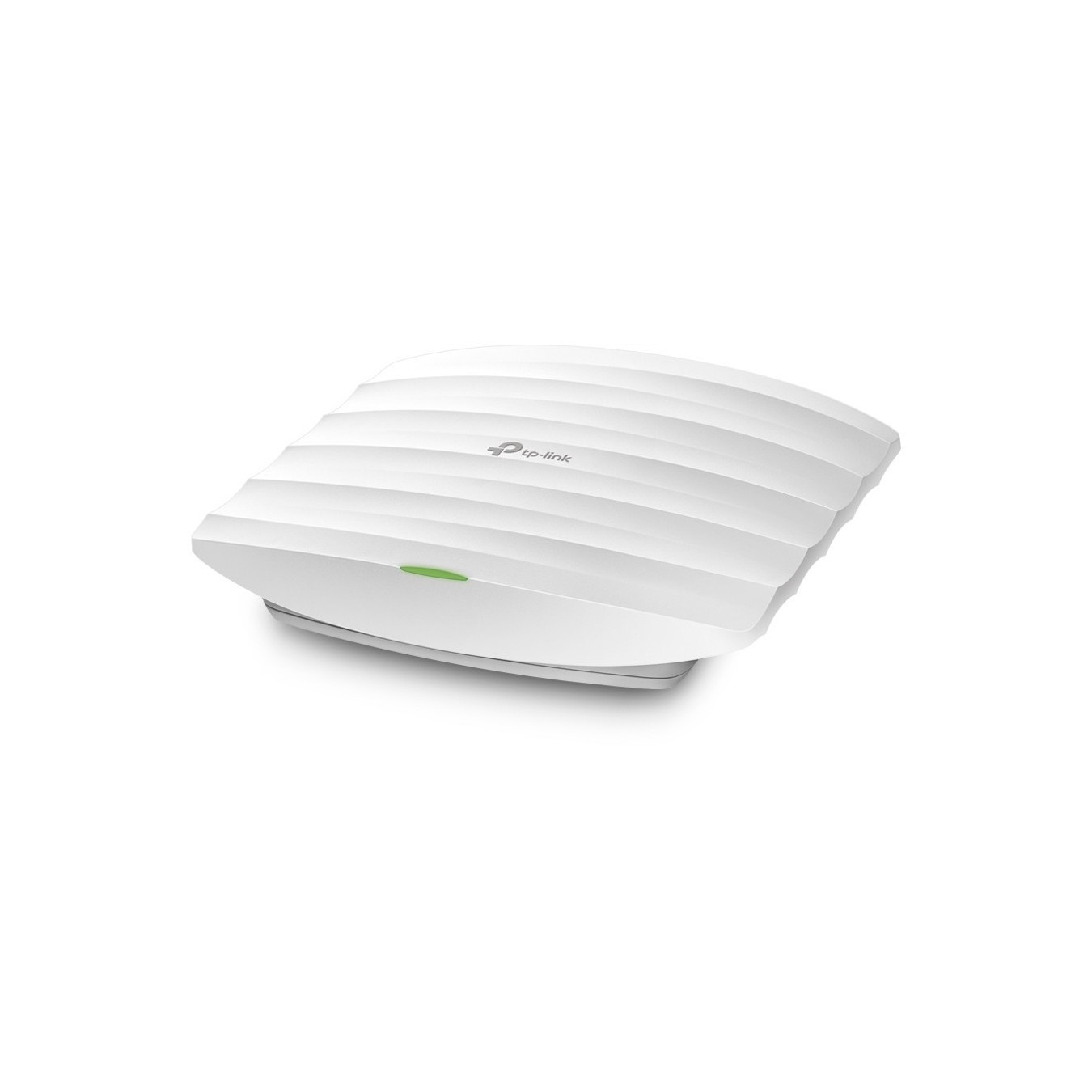

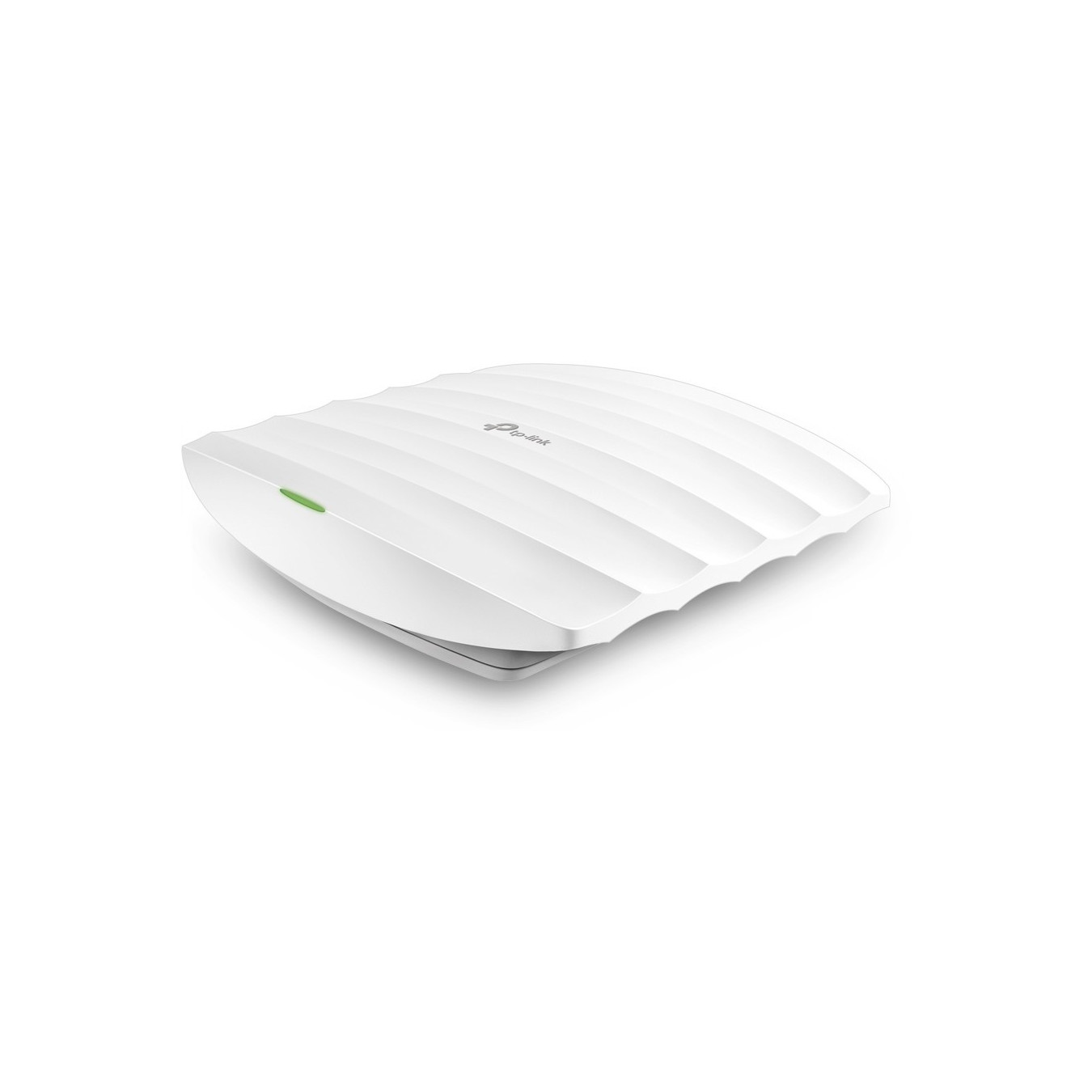

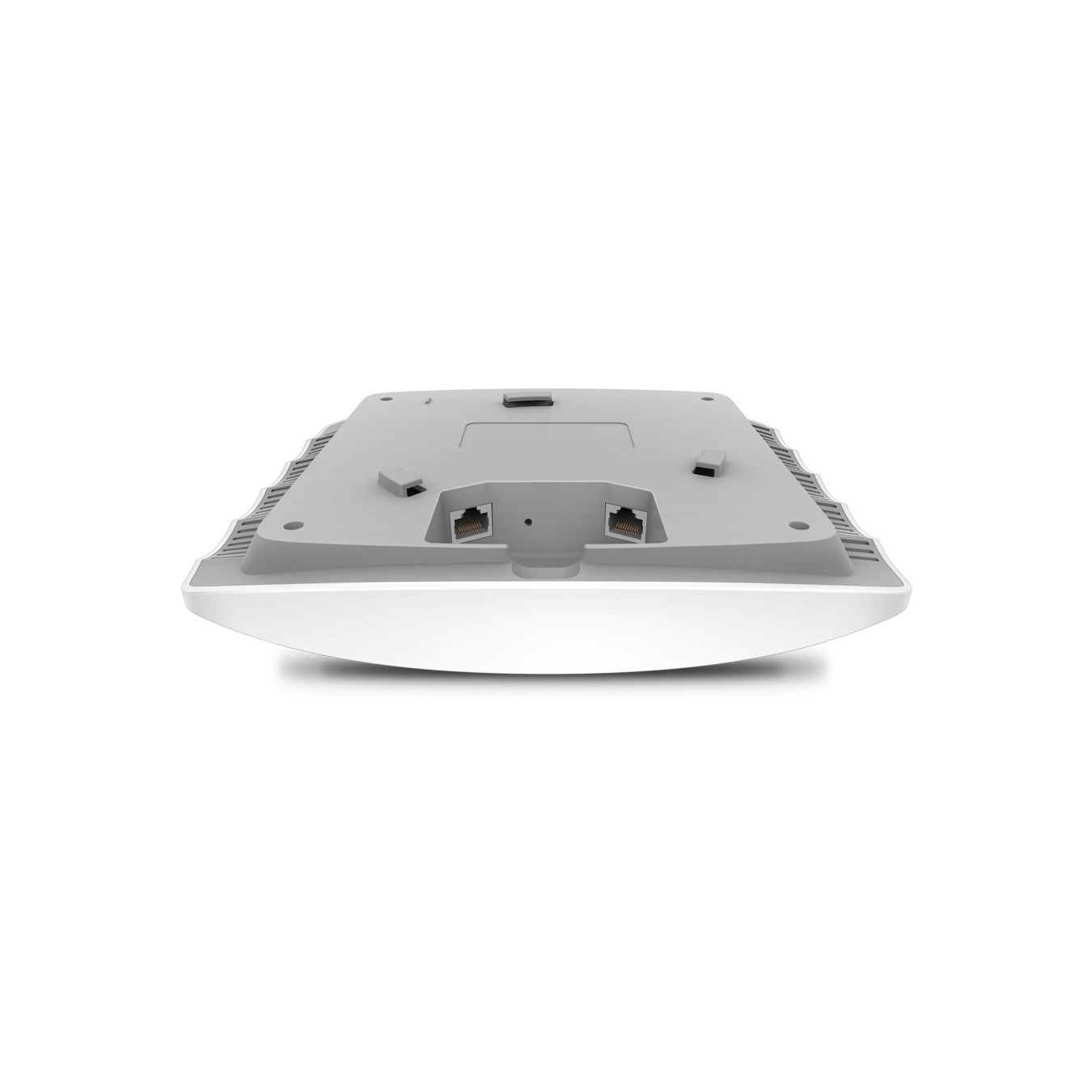

TP-Link Omada EAP245 V3 - Dual-Band Wi‑Fi 5 AC1750 Access Point, White, MU-MIMO, PoE

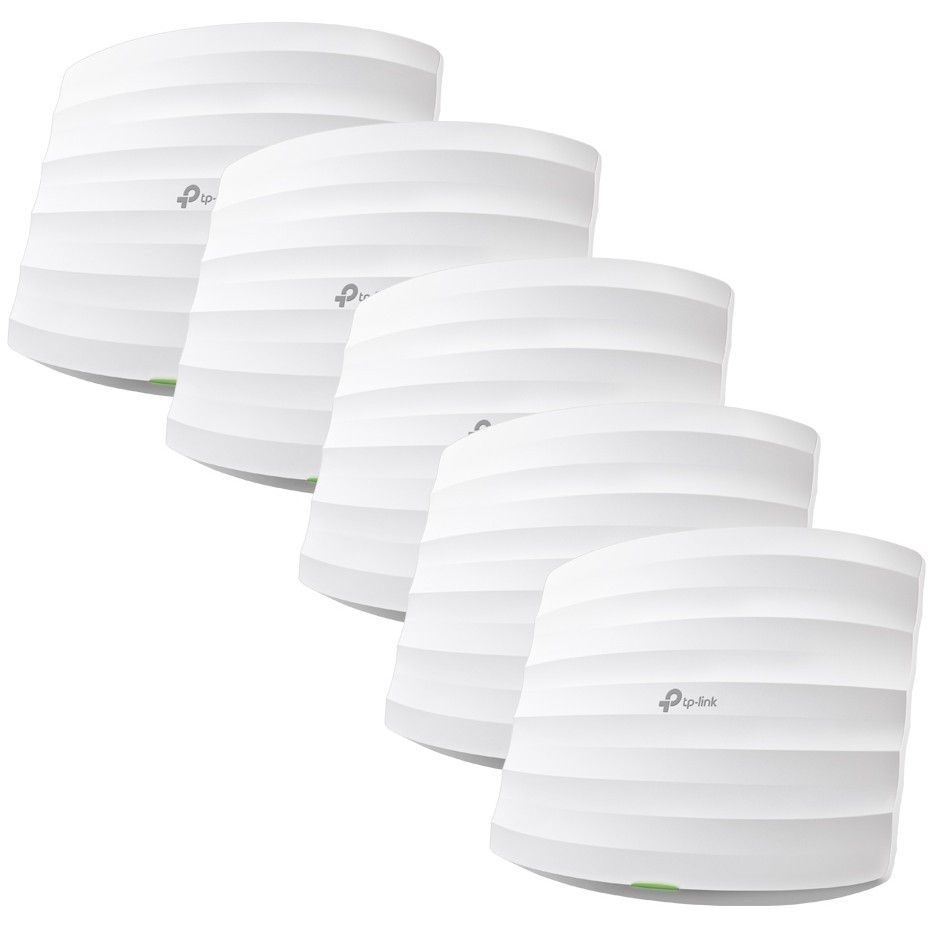

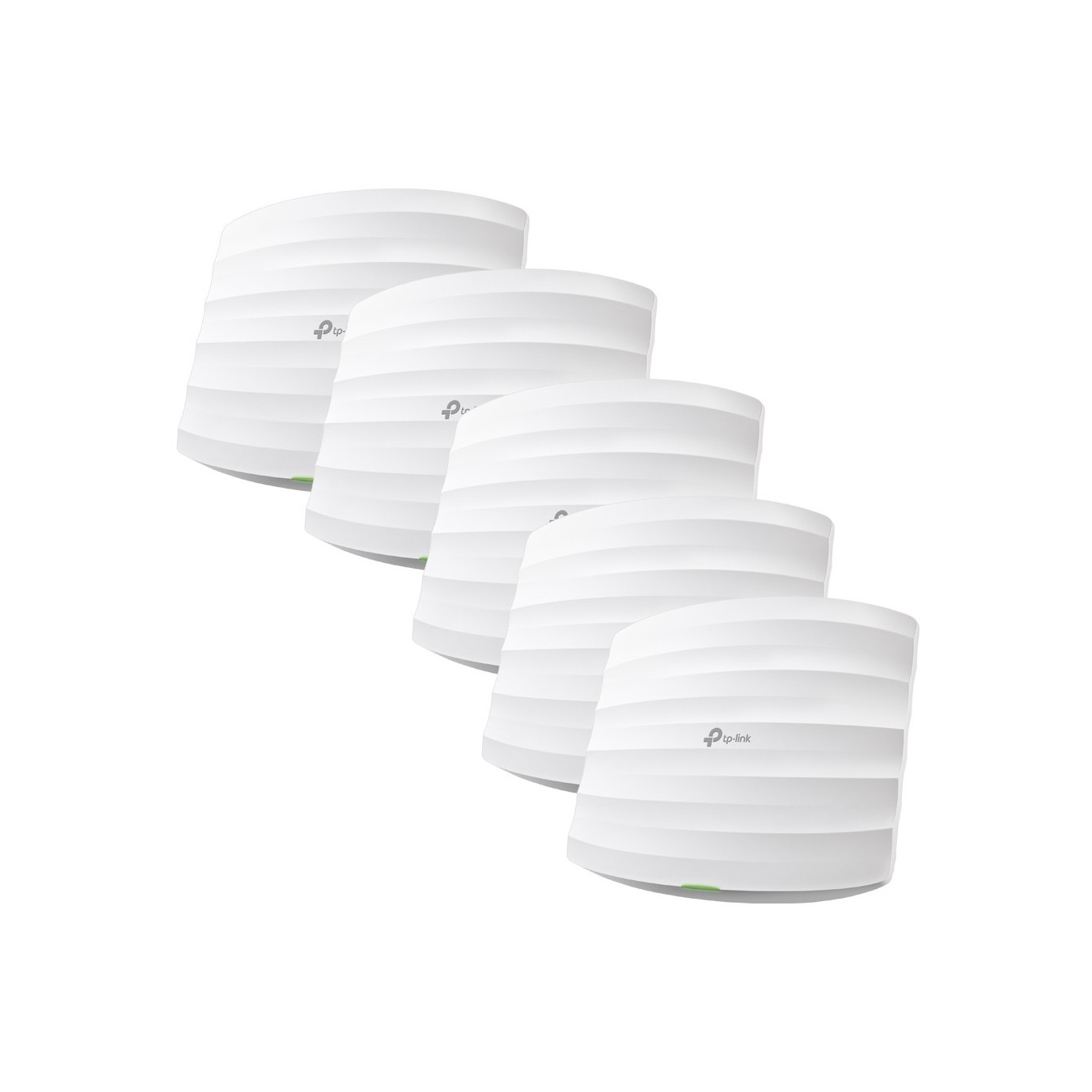

5-pack TP-Link Omada EAP245 V3 AC1750 dual-band (2.4/5 GHz) access points, MU-MIMO, 2x Gigabit Ethernet, Passive PoE, up to 16 SSIDs, ceiling/wall mountable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Access Points - Antennas | Internal |

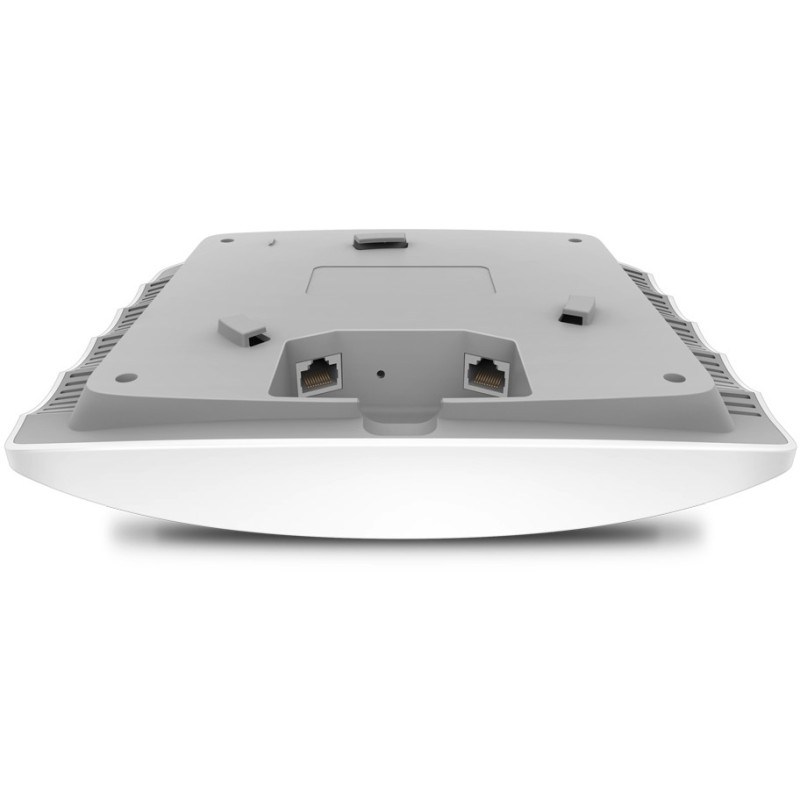

| Access Points - Ethernet Port | 2x1GbE |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | None |
TP-Link Omada EAP245(5-PACK). 2.4 GHz. 5 GHz. Maximum data transfer rate: 1750 Mbit/s. Security algorithms: 64-bit WEP. 128-bit WEP. 152-bit WEP. WPA. WPA-PSK. WPA2. WPA2-PSK. Ethernet LAN data rates: 10.100.1000 Mbit/s. Power over Ethernet (PoE). Product colour: White
| Feature | Sustainability compliance |
| Maximum data transfer rate | 1750 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 450 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| Frequency band | 2.4. 5 GHz |
| Networking standards | IEEE 802.11a. IEEE 802.11ac. IEEE 802.11b. IEEE 802.11g. IEEE 802.11n. IEEE 802.1x. IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| MIMO type | Multi User MIMO |
| Virtual LAN features | SSID-based VLAN assignment |
| Transmitting power (CE) | 20 - 23 dBm |
| Transmitting power (FCC) | 24 dBm |
| Transmitting power | 27 dBmW |
| Security algorithms | 64-bit WEP. 128-bit WEP. 152-bit WEP. WPA. WPA-PSK. WPA2. WPA2-PSK |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Management protocols | HTTP/HTTPS |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) type supported | Passive PoE |
| AC input voltage | 48 V |
| Input current | 1.5 A |
| Power consumption (typical) | 12.3 W |
| Placement | Ceiling. Wall |
| Product colour | White |
| Cable lock slot type | Kensington |
| Antenna type | Internal |
| Antenna direction type | Omni-directional |
| Antenna features | Integrated antenna |
| Antenna gain level (max) | 4 dBi |
| Compatible operating systems | Microsoft Windows XP. Windows Vista. Windows 7. Windows 8. Windows 10 |
| Compliance certificates | Federal Communications Commission (FCC). CE. RoHS |
| Width | 180 mm |
| Depth | 180 mm |
| Height | 47.5 mm |
| Package width | 257.5 mm |
| Package depth | 285.5 mm |
| Package height | 283.5 mm |
| Package weight | 3.54 kg |
| Quantity per pack | 5 pc(s) |
| Cables included | AC |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Harmonized System (HS) code | 85176990 |
