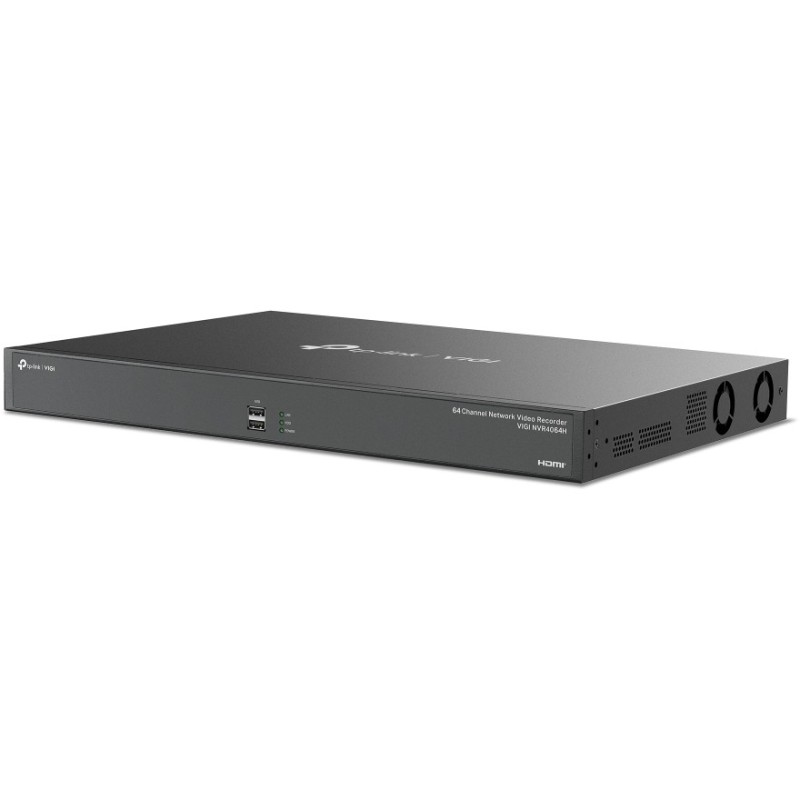

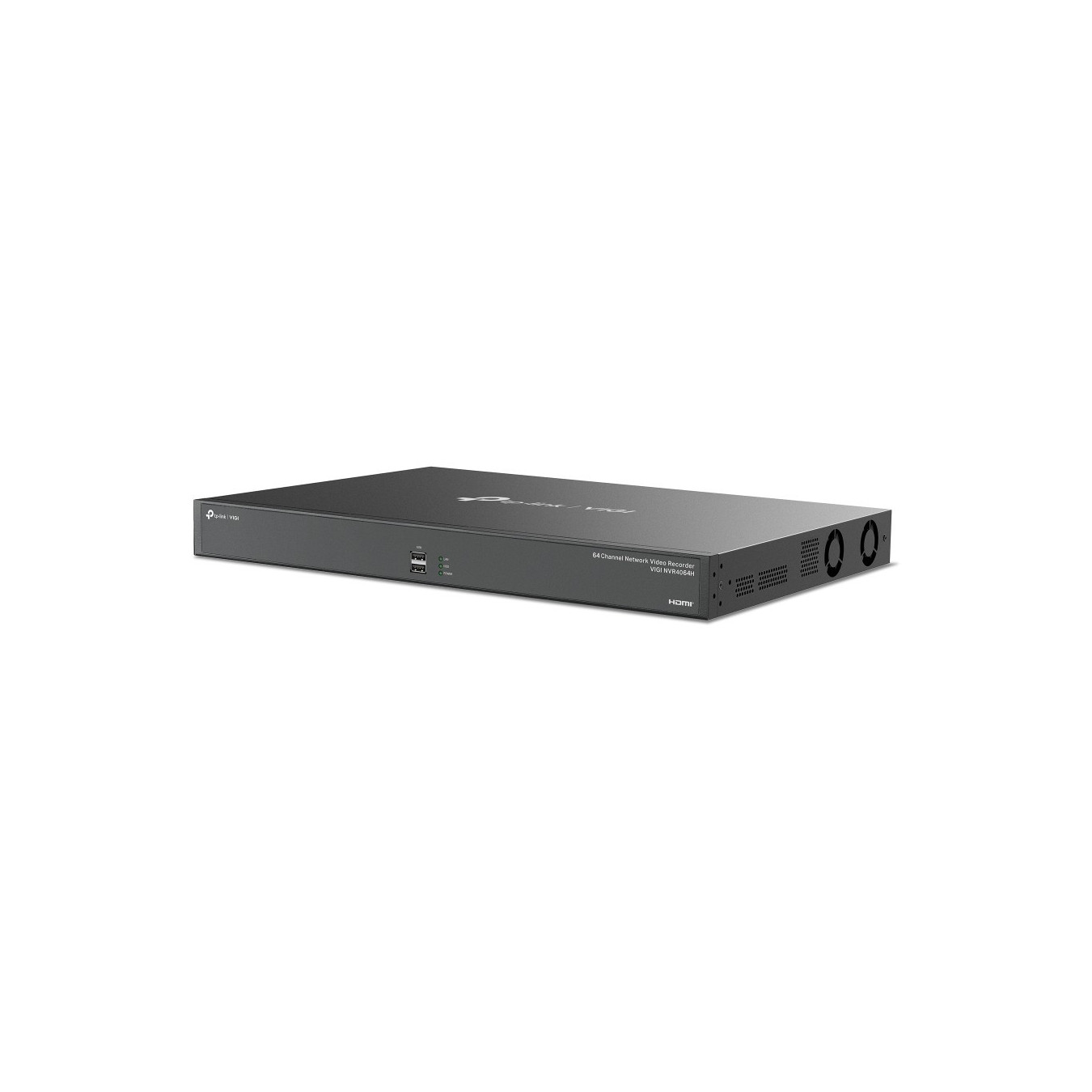

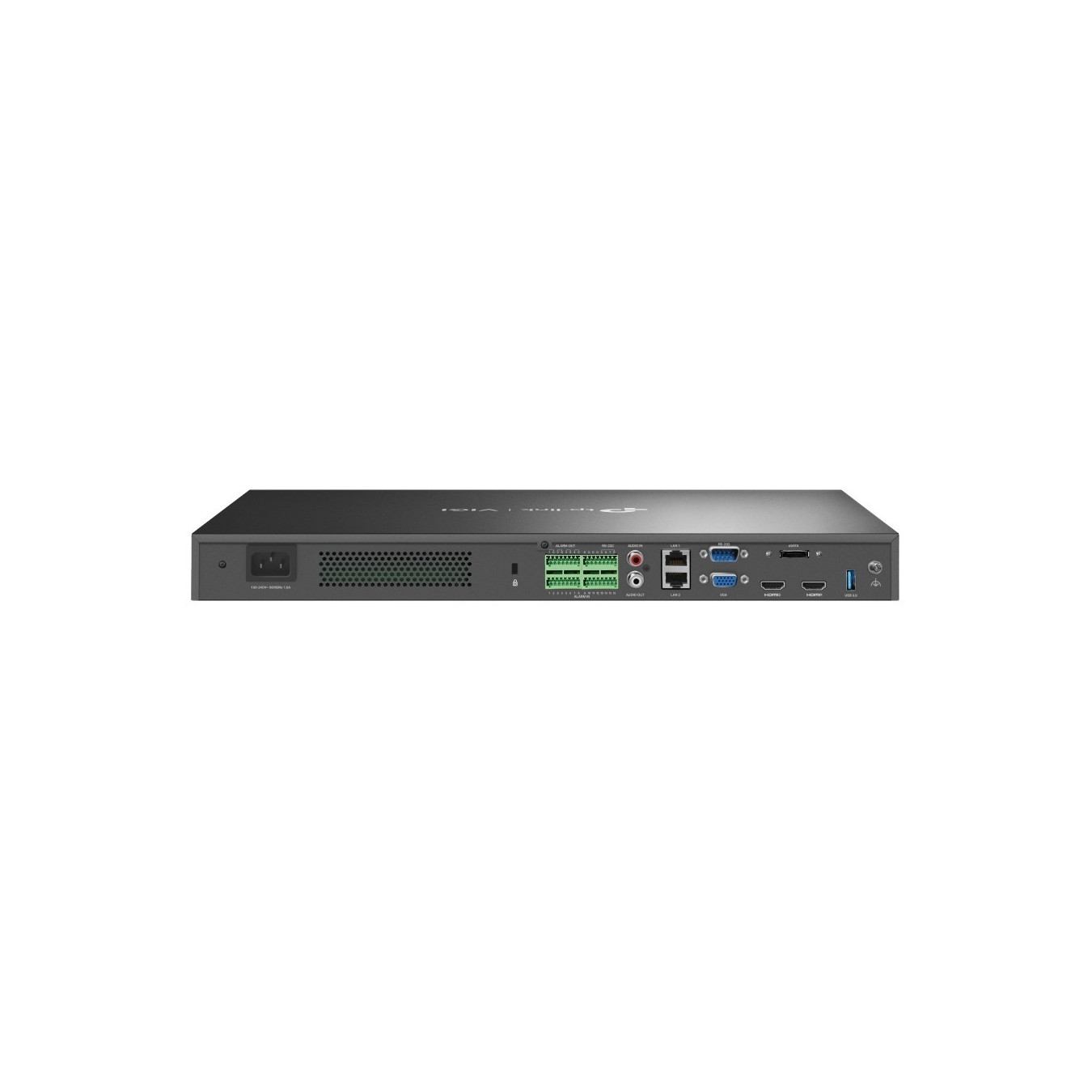

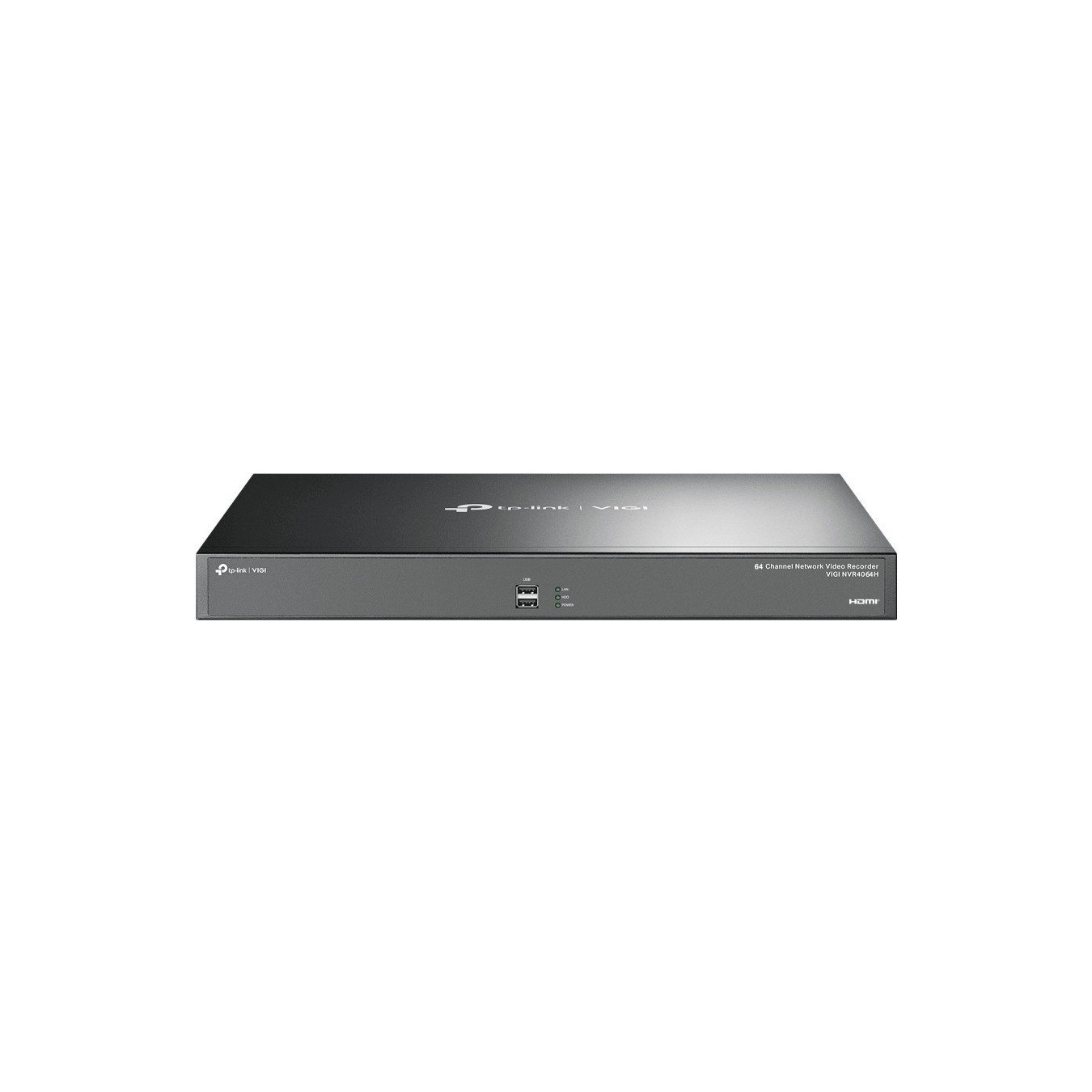

TP-Link Omada VIGI NVR4064H - 64-Channel 4-Bay 4K NVR - Black, up to 64TB, 2xHDMI+VGA
64-channel 4K NVR (3840x2160) with H.265/H.264, 4 HDD bays (up to 64TB), 320 Mbps I/O, 2x HDMI + VGA outputs, 2-way audio, Android/iOS support.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| NVRs - Video Outputs | HDMI + VGA |
|---|
TP-Link VIGI 64 Channel Network Video Recorder. Video input channels: 64 channels. Maximum resolution: 3840 x 2160 pixels. Number of simultaneously playbacked channels: 16 channels. Maximum storage capacity: 64 TB. HDD interface: SATA. Ethernet LAN data rates: 10.100.1000 Mbit/s. Supported network protocols: UPnP (Plug and Play). NTP (Network Timing). SMTP. DNS. TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. RTSP..... Product colour: Black. Power consumption (max): 48.38 W. AC input voltage: 100 - 240 V. AC input frequency: 50/60 Hz
| Video input channels | 64 channels |
| Alarm input channels | 16 |
| Alarm output channels | 4 |
| Number of simultaneously playbacked channels | 16 channels |
| Video recording modes | 720p. 1080p |
| Maximum resolution | 3840 x 2160 pixels |
| Supported resolutions | 3840x2160/30Hz. 1920x1080/60Hz. 1680x1050/60Hz. 1440x900/60Hz. 1280x1024/60Hz. 1280x720/60Hz |
| Feature | Buzzer off |
| Audio formats supported | G.711 A-law. G.711 μ-law. G.726 |
| Video formats supported | H.264. H.264+. H.265. H.265+ |
| Playback modes | Digital zoom. Fast play. Forward. Full screen. Pause. Play. Stop |
| Input bandwidth | 320 Mbit/s |
| Output bandwidth | 320 Mbit/s |
| Recording modes | Manual. Schedule |
| Audio system | 2-way |
| HDD capacity | 0 GB |
| Number of HDDs supported | 4 |
| Maximum storage capacity | 64 TB |
| HDD interface | SATA |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10.100.1000 Mbit/s |
| HDMI ports quantity | 2 |
| VGA (D-Sub) output ports | 1 |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 1 |
| eSATA ports quantity | 1 |
| RS-232 ports | 1 |
| Supported network protocols | UPnP (Plug and Play). NTP (Network Timing). SMTP. DNS. TCP/IP. UDP. ICMP. HTTP. HTTPS. DHCP. RTSP. SSL/TLS. RTP. IPv4. ARP |
| Product colour | Black |
| Power consumption (max) | 48.38 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Output current | 1.5 A |
| Mobile operating systems supported | Android. iOS |
| Browser supported | Chrome (57+). Firefox (52+). Edge (91+) |
| Operating temperature (T-T) | -10 - 55 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Compliance certificates | BSMI. CE. Federal Communications Commission (FCC). KC. UKCA. VCCI |
| Width | 440 mm |
| Depth | 330 mm |
| Height | 44 mm |
| Weight | 4 kg |
| Package width | 440 mm |
| Package depth | 528 mm |
| Package height | 100 mm |
| Package weight | 5 kg |
