APC Smart-UPS SMT750RMI2UC 750VA/500W Line-Interactive 2U Rackmount (Boxed)
APC Smart-UPS SMT750RMI2UC: 750VA/500W line-interactive 2U rackmount UPS with pure sine wave output, 4×C13 outlets, USB/SmartConnect, 5.5min full-load runtime, lead-acid battery.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| UPS & Power Backup - Product Type | UPS Unit |
|---|---|
| UPS & Power Backup - Power Capacity (VA) | 500 - 999 VA |
| UPS & Power Backup - Power Output (Watts) | 500 to 999 W |
| UPS & Power Backup - Topology | Line-Interactive |
| UPS & Power Backup - Form Factor | Rackmount |
| UPS & Power Backup - Input Plug | IEC C14 |
| UPS & Power Backup - Output Receptacles | IEC C13 |
| UPS & Power Backup - Outlets (Qty) | 4 |
| UPS & Power Backup - Special Features | Automatic Voltage Regulation LCD Display Pure Sine Wave Output |

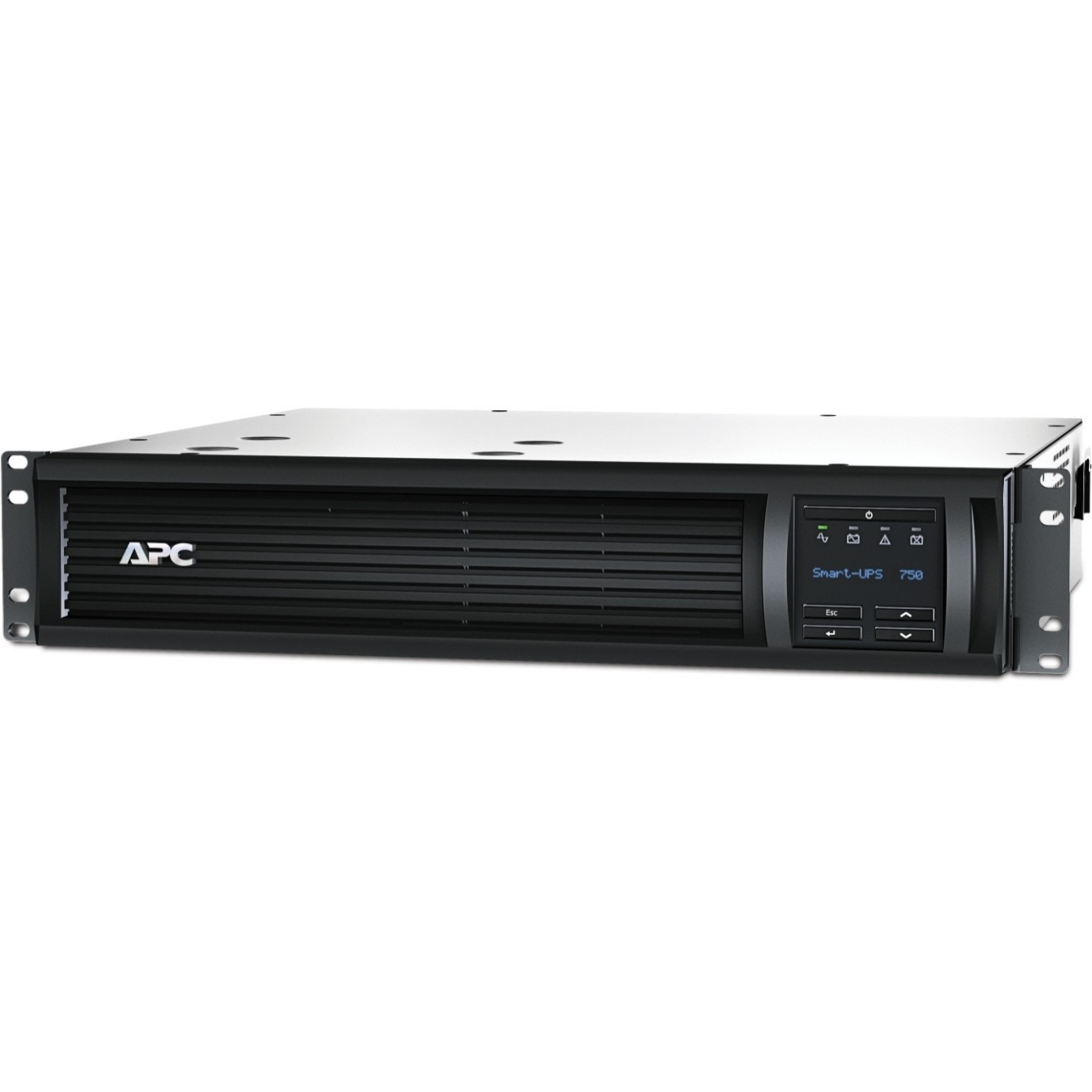

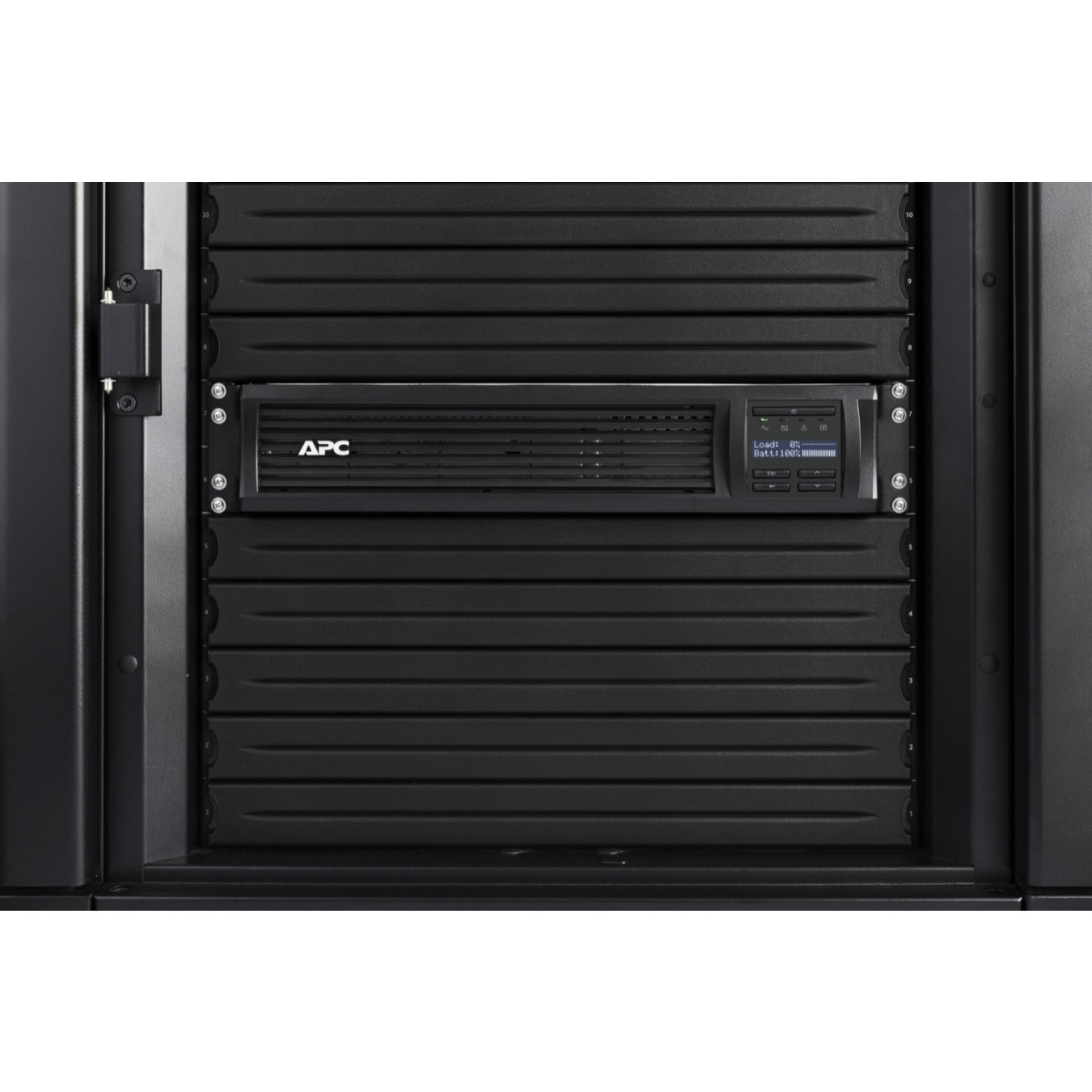

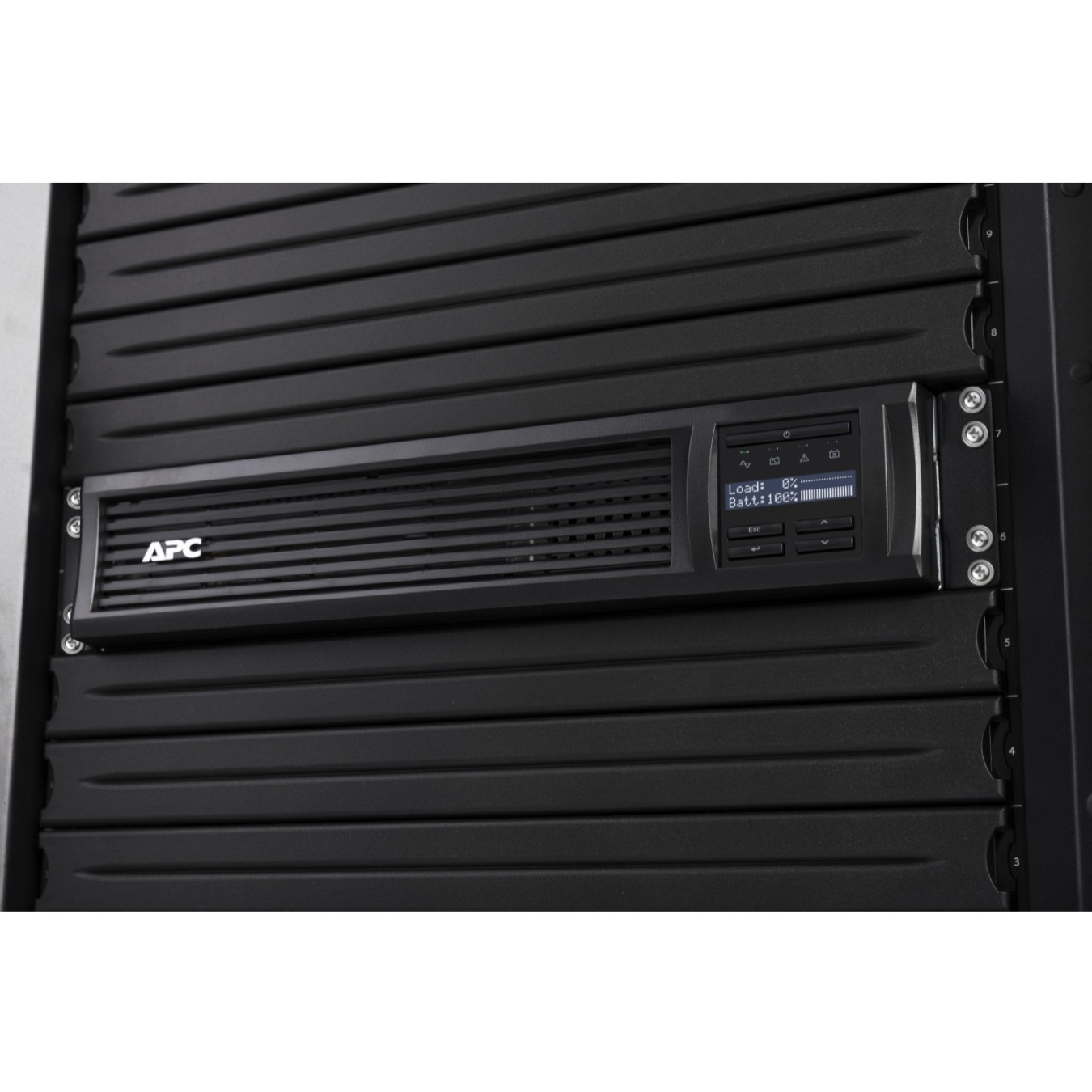

The APC Smart-UPS SMT750RMI2UC is a professional-grade 750VA/500W line-interactive uninterruptible power supply designed for rackmount deployment in network closets, server rooms, and business-critical environments. This 2U rackmount unit delivers pure sine wave output with automatic voltage regulation (AVR), ensuring clean, stable power to servers, storage systems, network switches, routers, and point-of-sale terminals during mains disruptions.

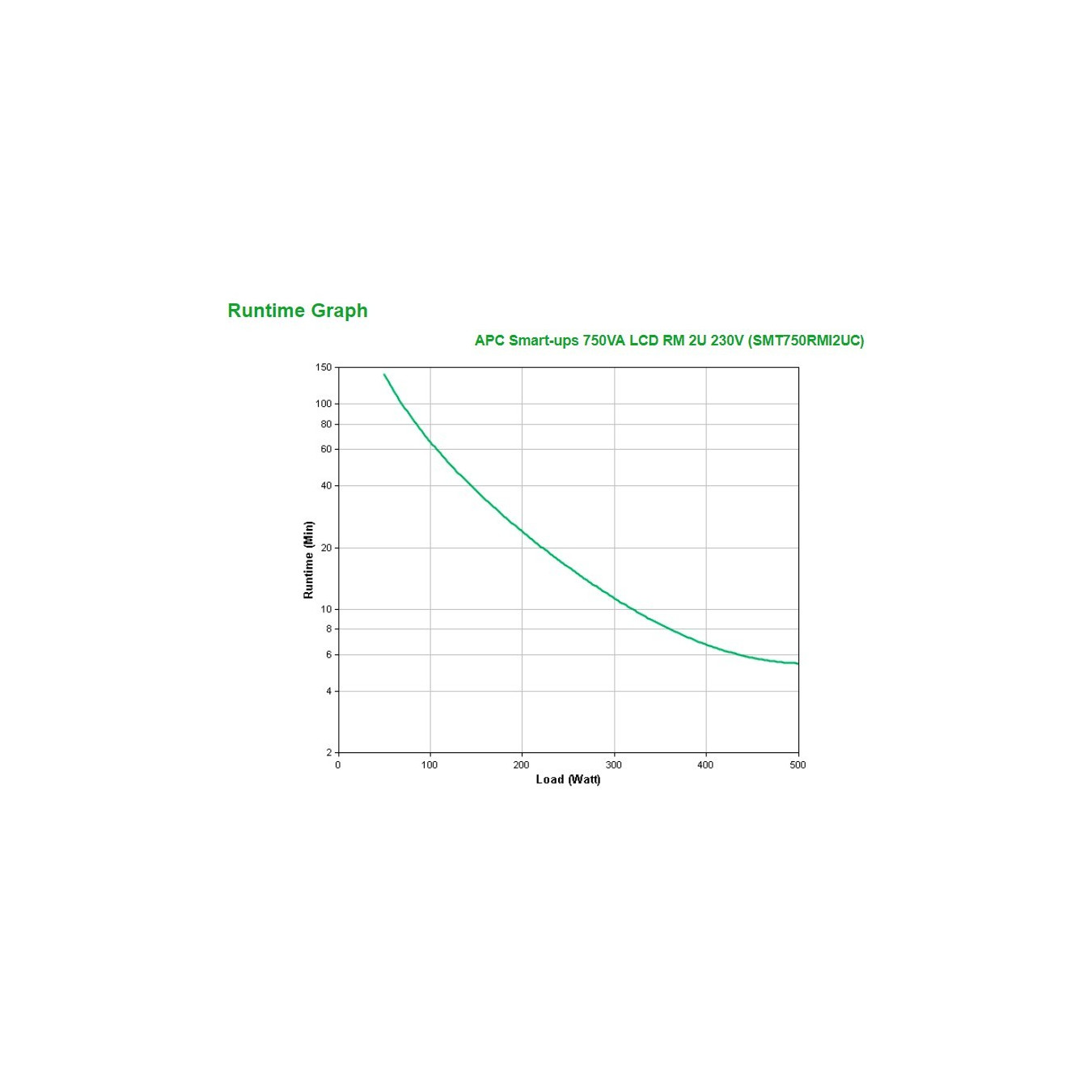

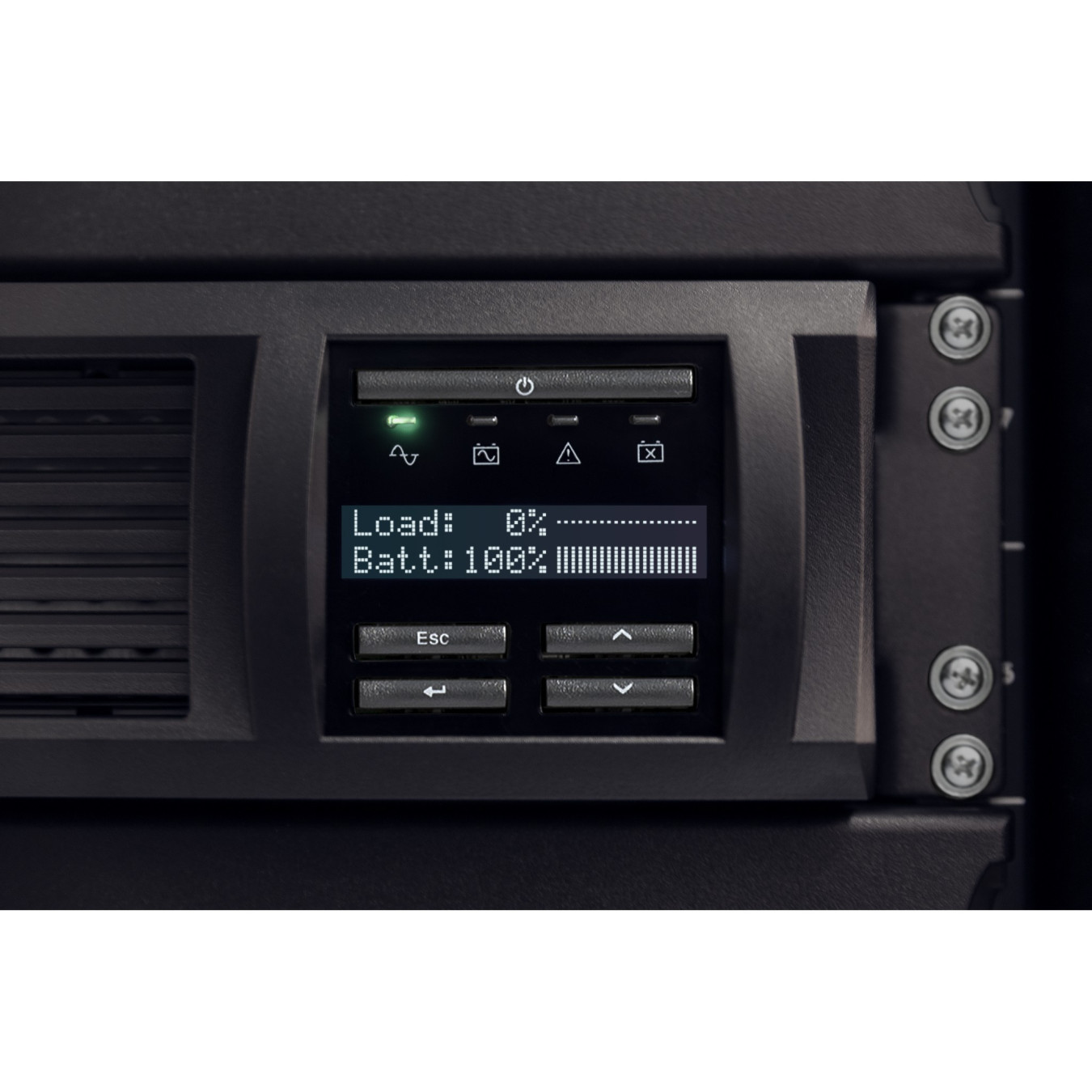

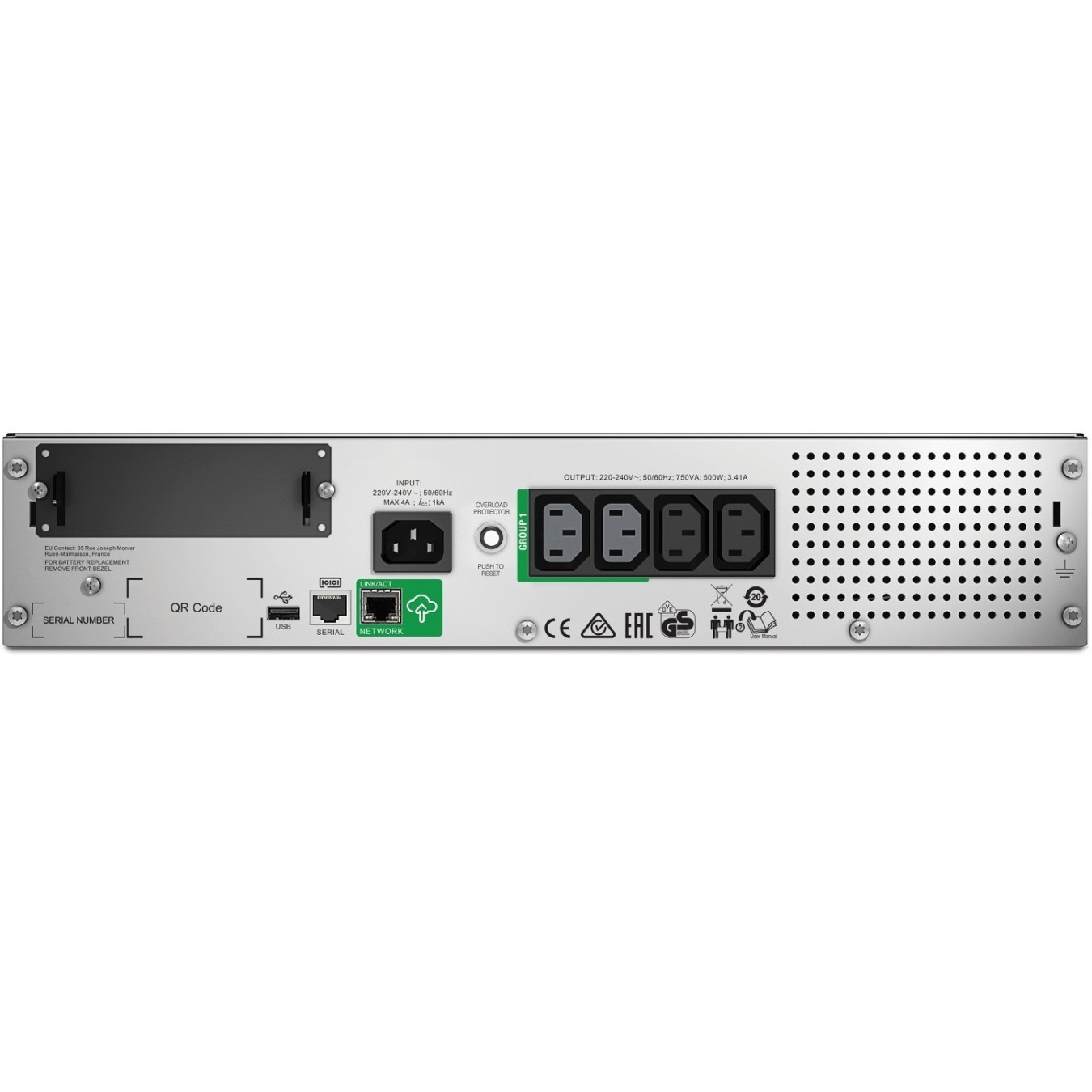

Featuring four IEC C13 outlets (all surge and UPS protected) plus two IEC jumpers, the SMT750RMI2UC provides flexible connectivity for multiple devices. The unit includes USB and RJ-45 SmartConnect ports for remote management and monitoring via APC's management software. With a sealed lead-acid battery rated at 168VAh, the UPS delivers approximately 5.5 minutes of runtime at full 500W load, or up to 16 minutes at half load. The intuitive LCD display provides real-time status information, while comprehensive surge protection (459J rating) and multi-pole noise filtering safeguard connected equipment. Operating temperature range of 0-40°C and low acoustic noise at 42dB make it suitable for office and server environments.
The unit meets stringent international safety and performance standards including CE, EAC, RCM, TÜV, and VDE certifications, with compliance to EN/IEC 62040 series standards. Input voltage range of 151-302V accommodates variable mains conditions, while configurable output voltage (220/230/240V) supports diverse regional requirements.
- 750VA/500W capacity with pure sine wave output

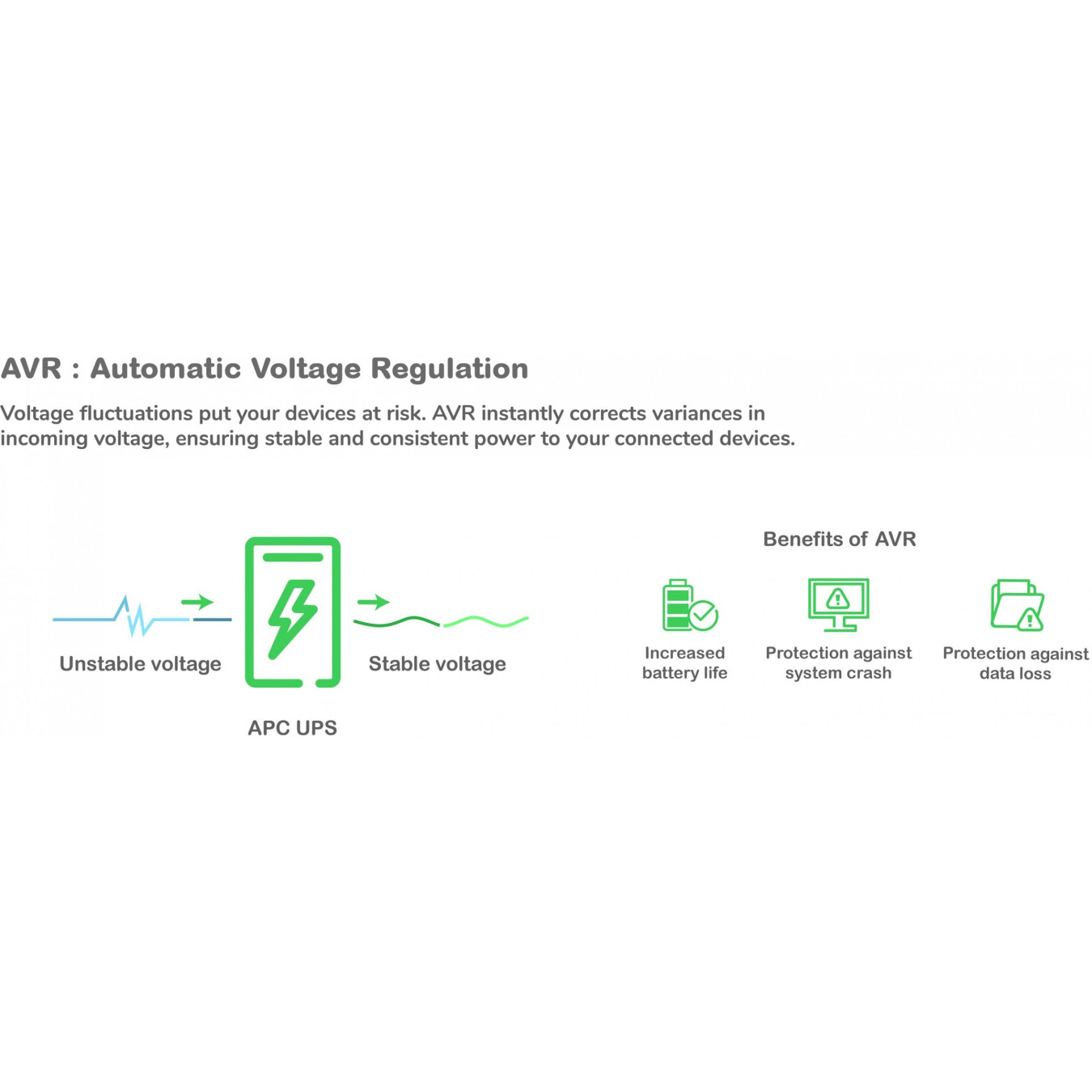

- Line-interactive topology with automatic voltage regulation
- 4×IEC C13 outlets plus 2×IEC jumpers

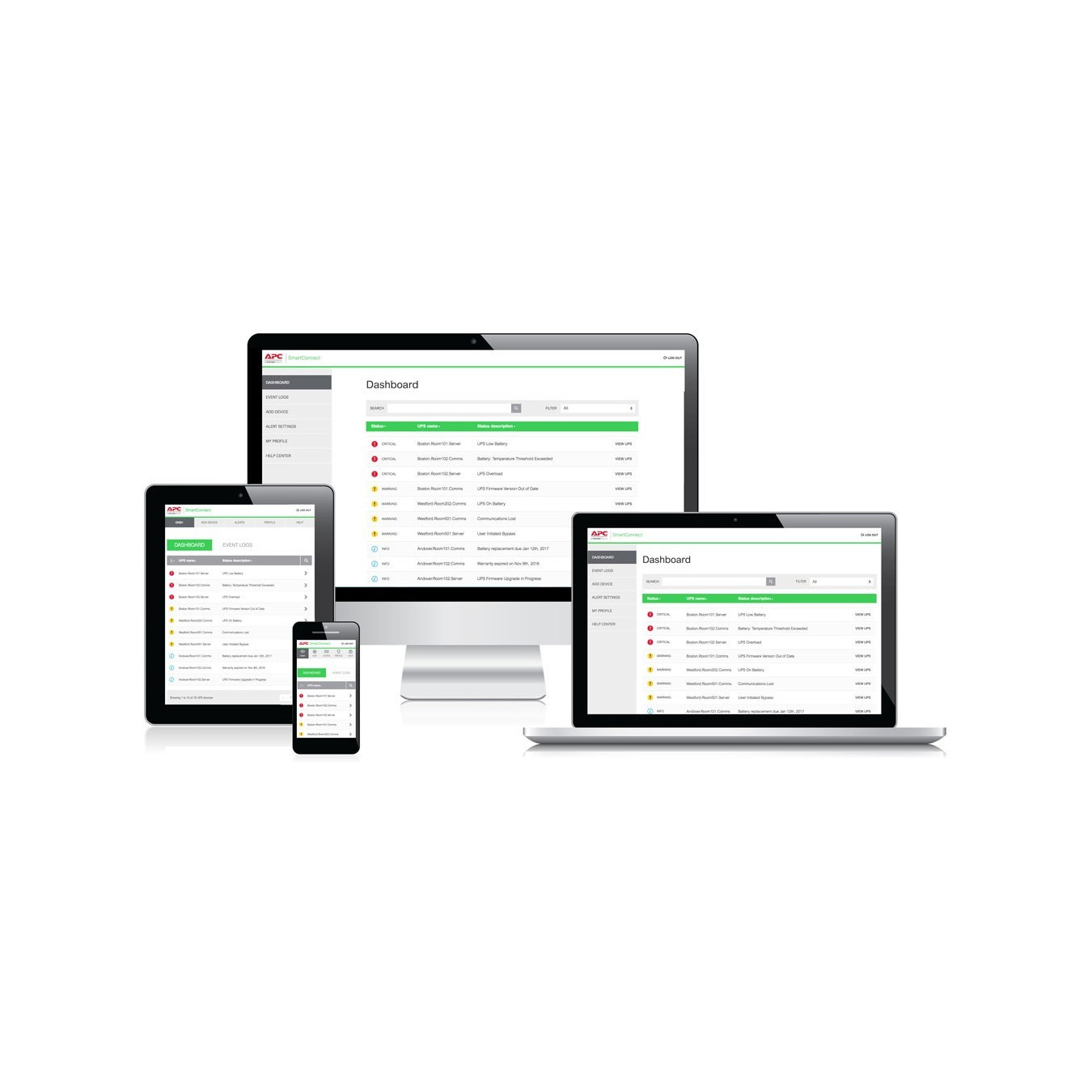

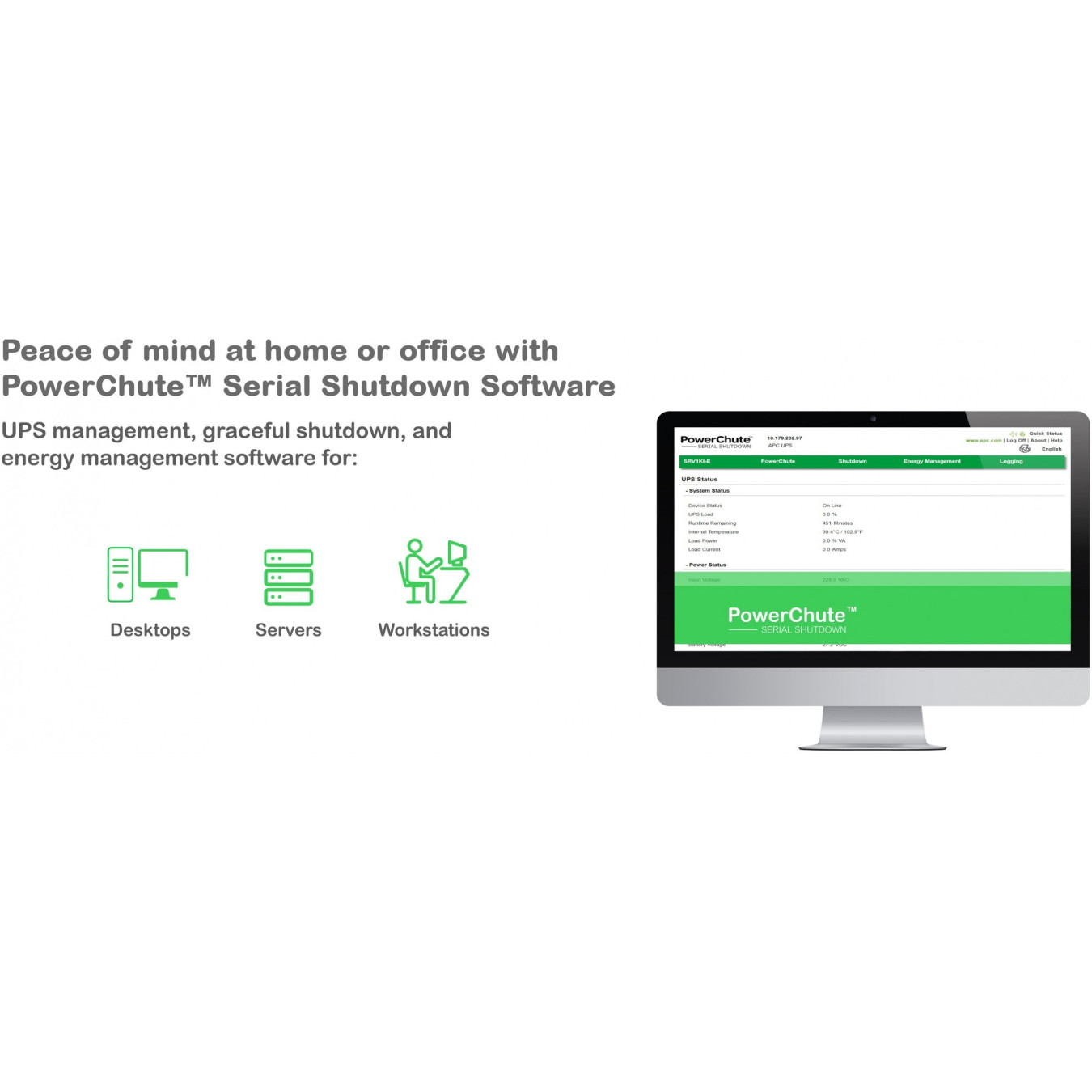

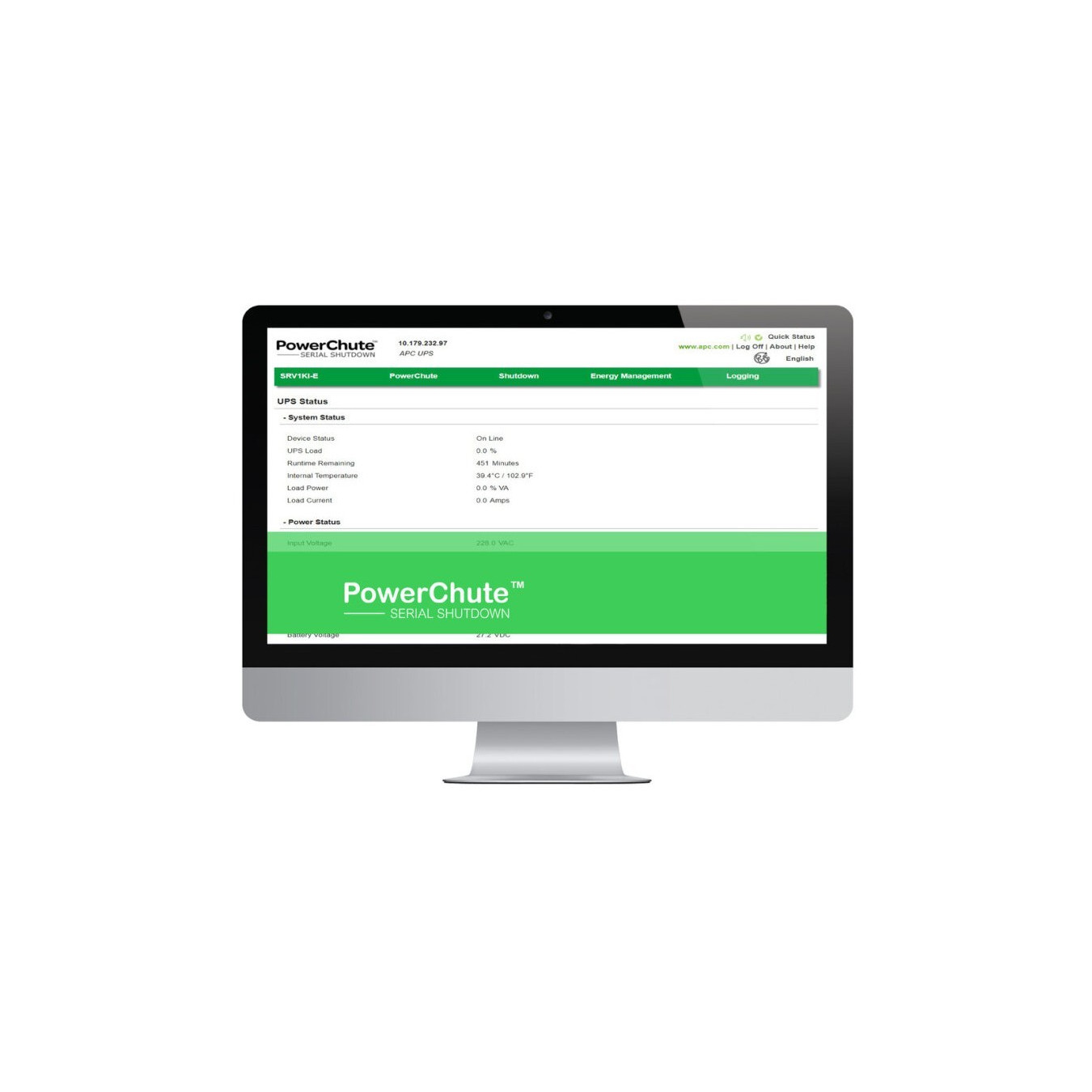

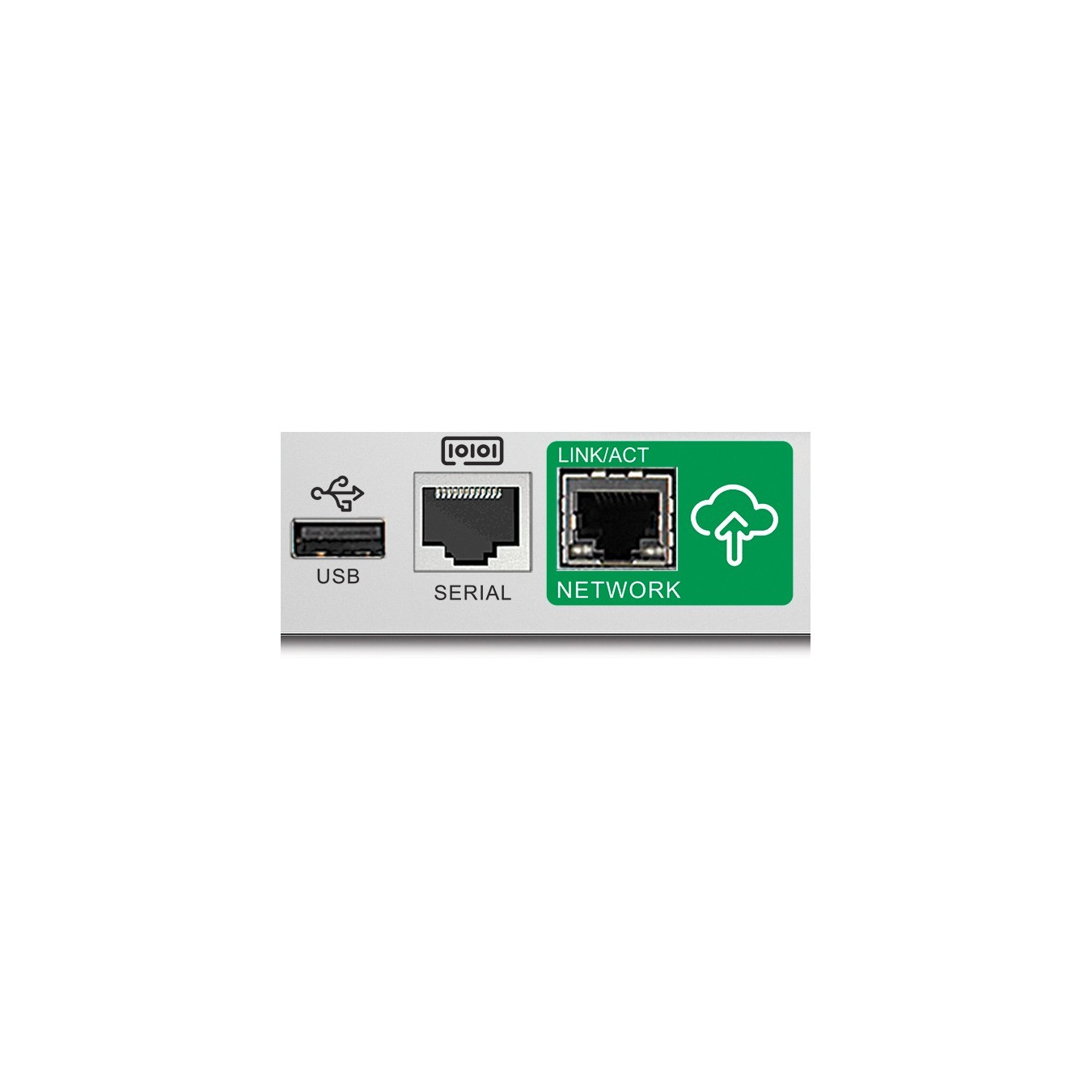

- USB and RJ-45 SmartConnect for remote management
- 5.5 minutes full-load / 16 minutes half-load runtime
- 168VAh sealed lead-acid battery
- 459J surge energy rating with multi-pole filtering
- 2U rackmount form factor (43.2cm W × 8.6cm H × 40.9cm D)
- Operating temperature: 0-40°C; Noise: 42dB
- International certifications: CE, EAC, RCM, TÜV, VDE
| UPS Topology | Line-Interactive |
| Power Capacity (VA) | 750 VA |
| Power Output (W) | 500 W |
| Waveform Type | Pure sine wave |
| Input Voltage (Nominal) | 230 V AC |
| Input Voltage Range (Operating) | 160 - 286 V |
| Input Voltage Range (Adjustable) | 151 - 302 V |
| Input Frequency | 50/60 Hz ±3 Hz (auto-sensing) |
| Input Connection Type | IEC 320 C14 |
| Output Voltage (Nominal) | 230 V |
| Output Voltage (Configurable) | 220 V, 230 V, 240 V |
| Output Voltage Distortion | Less than 5% at full load |
| Output Frequency | 50/60 Hz ±3 Hz (sync to mains) |
| Output Connection Type | 4×IEC 320 C13 + 2×IEC jumpers |
| Transfer Time | 6 ms typical; 10 ms maximum |
| Battery Type | Sealed Lead-Acid (VRLA) |
| Battery Capacity | 168 VAh |
| Backup Time (Full Load) | 5 minutes 27 seconds (500W load) |
| Backup Time (Half Load) | Approximately 16 minutes |
| Battery Recharge Time | 3 hours |
| Battery Life | 5 years |
| Surge Energy Rating | 459 Joules |
| Surge Protection | 0.3% IEEE surge let-through; zero clamping response time |
| Noise Filtering | Full-time multi-pole noise filtering |
| Efficiency | 97.7% |
| Acoustic Noise Level | 42 dBA at 1 meter |
| Thermal Dissipation | 46 BTU/hr |
| Communication Ports | USB port; RJ-45 serial port (SmartConnect); 1×SmartSlot interface |
| Management Features | Multi-function LCD status and control console; audible alarm (on battery, low battery); configurable delays; optional Emergency Power Off (EPO) |
| Form Factor | Rackmount |
| Rack Units | 2U |
| Dimensions (Unit) | Width: 43.2 cm; Height: 8.6 cm; Depth: 40.9 cm |
| Weight (Unit) | 16.6 kg |
| Dimensions (Packaged) | Width: 54.6 cm; Height: 24.1 cm; Depth: 58.4 cm |
| Weight (Packaged) | 21.2 kg |
| Operating Temperature | 0 - 40 °C |
| Operating Relative Humidity | 0 - 95% |
| Operating Altitude | 0 - 3000 meters |
| Storage Temperature | -15 - 45 °C |
| Storage Relative Humidity | 0 - 95% |
| Storage Altitude | 0 - 15000 meters |
| Color | Black |
| Included Accessories | Documentation CD; Installation guide; USB cable; RS-232 cable |
| Certifications | CE; EAC; RCM; TÜV; VDE; EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018; UL 1778; RoHS; REACH; PEP; EOLI |
| EAN/UPC | 0731304340324 |
| Manufacturer Part Number | SMT750RMI2UC |
| Carbon Footprint (Total Life Cycle) | 821 kg CO2e |
| Sustainability | Packaging made with recycled cardboard |
