ASUS PRIME B760M-A-CSM LGA1700 mATX DDR5 128GB 2xM.2 PCIe4.0 2.5Gb (Boxed)
ASUS PRIME B760M-A-CSM: Intel B760 mATX for LGA1700 (14/13/12th Gen). 4x DDR5 up to 128GB/7200+(OC), 2x M.2 PCIe4.0, 2.5Gb LAN, 2xHDMI+DP, front USB-C, comprehensive cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Motherboards - CPU Socket | LGA 1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Profile Support | XMP |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - Main Slot PCIe Version | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
| Motherboards - USB-C Support | Front Panel Type-C header |
| Motherboards - RGB Headers | 3-pin 5V ARGB |
| Motherboards - Wireless Connectivity | None |

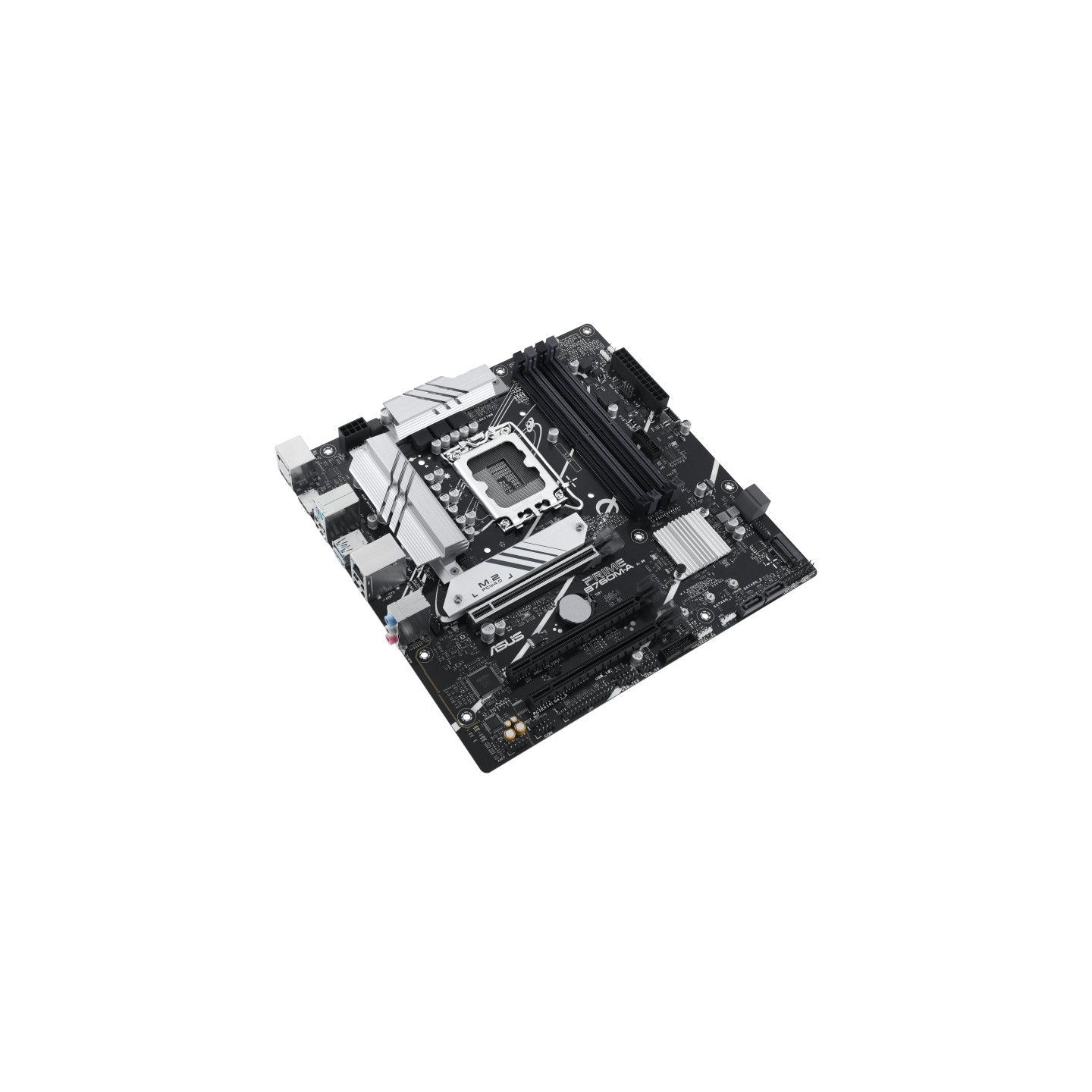

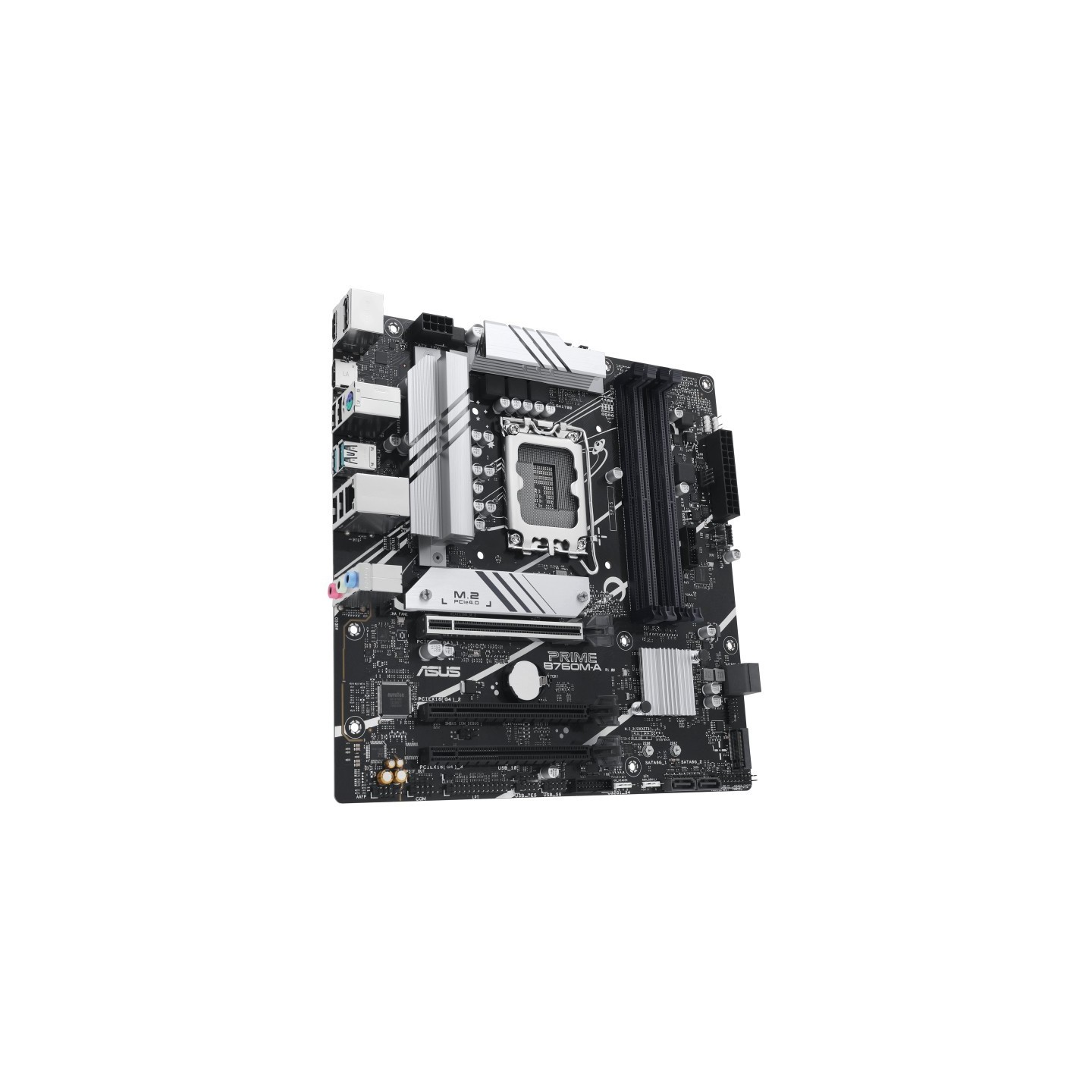

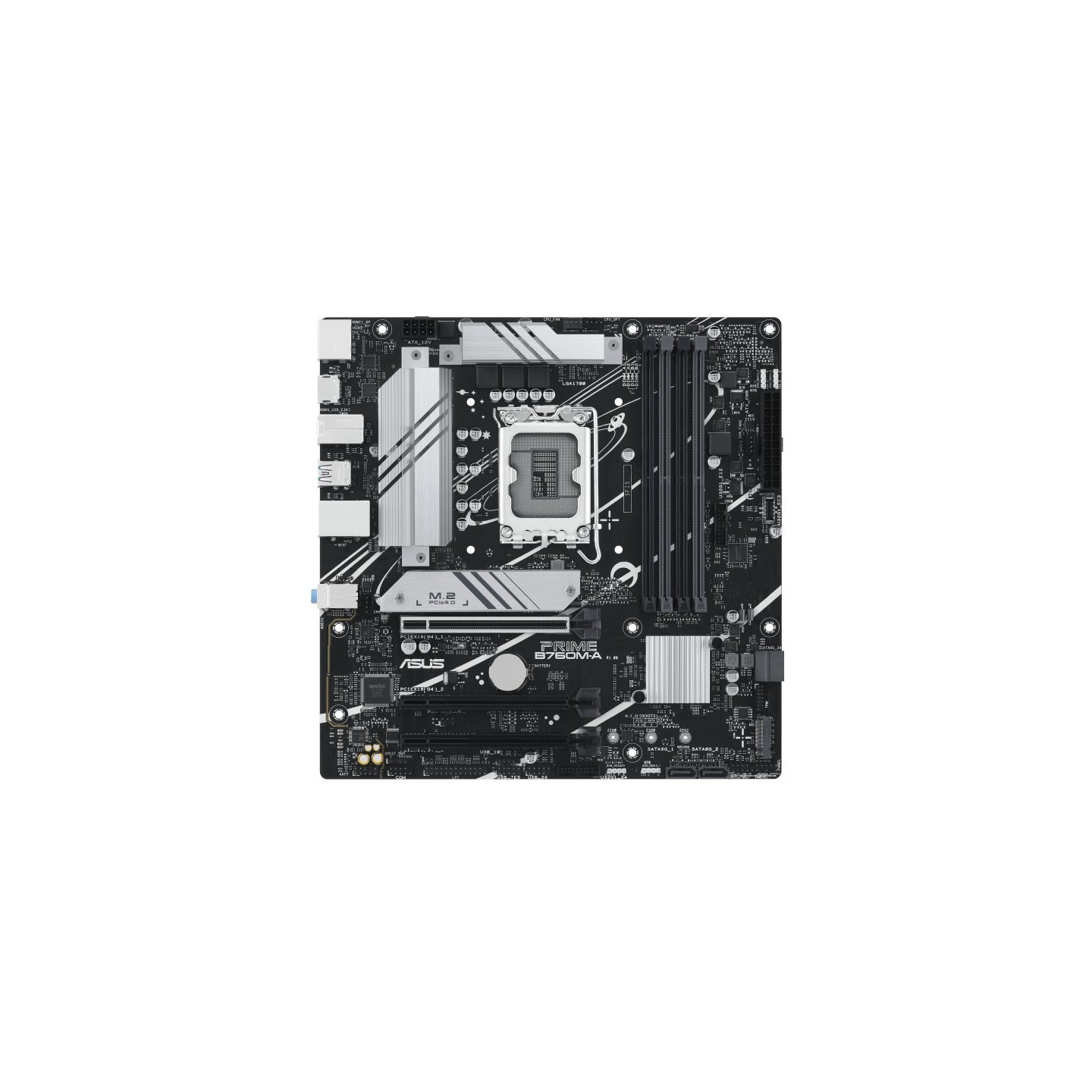

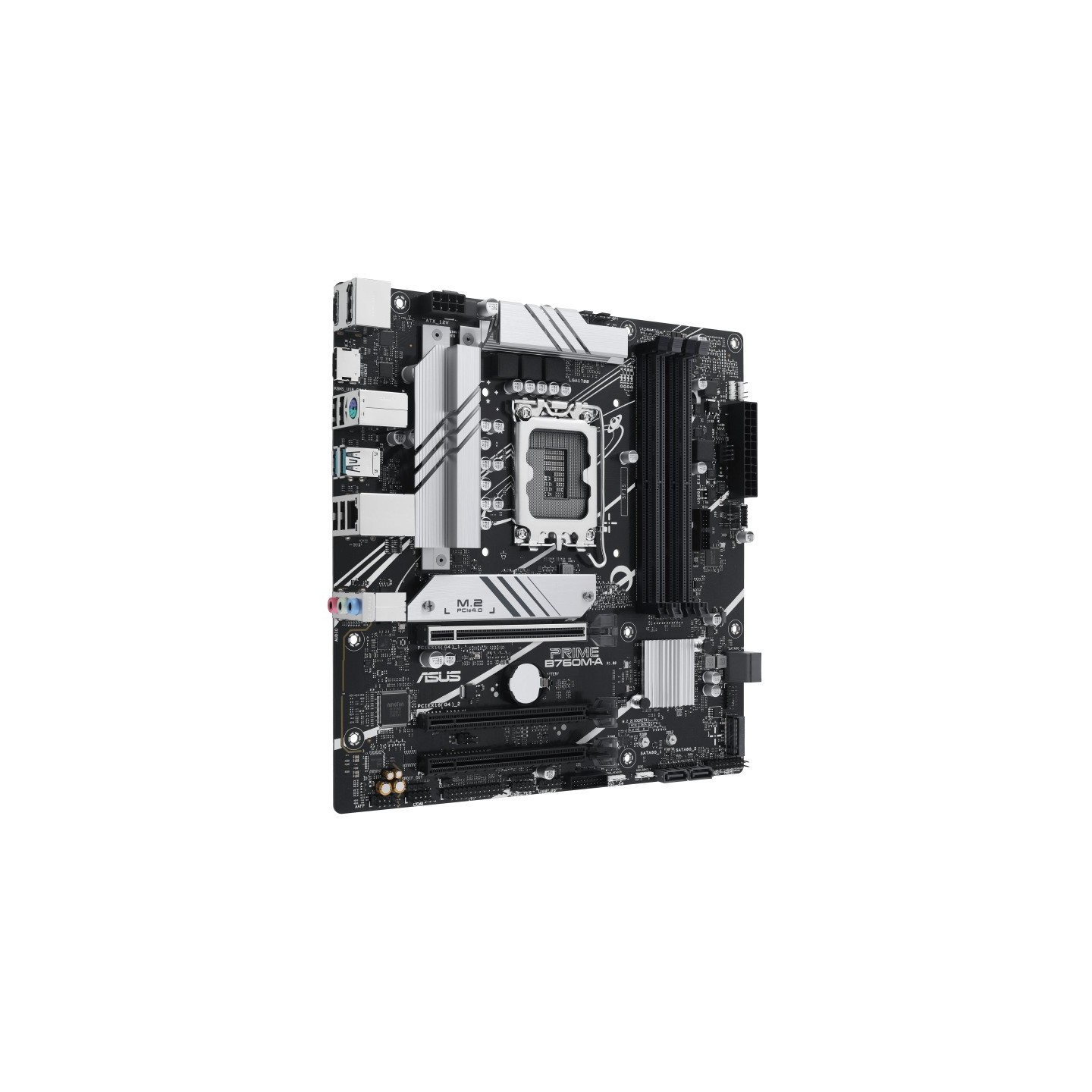

The ASUS PRIME B760M-A-CSM is a micro-ATX motherboard built on the Intel B760 chipset, designed for LGA1700 socket processors including 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs. It supports DDR5 memory with 4 DIMM slots up to 128GB at speeds reaching 7200+(OC) MHz, featuring Intel XMP and ASUS OptiMem II for optimal performance and stability.

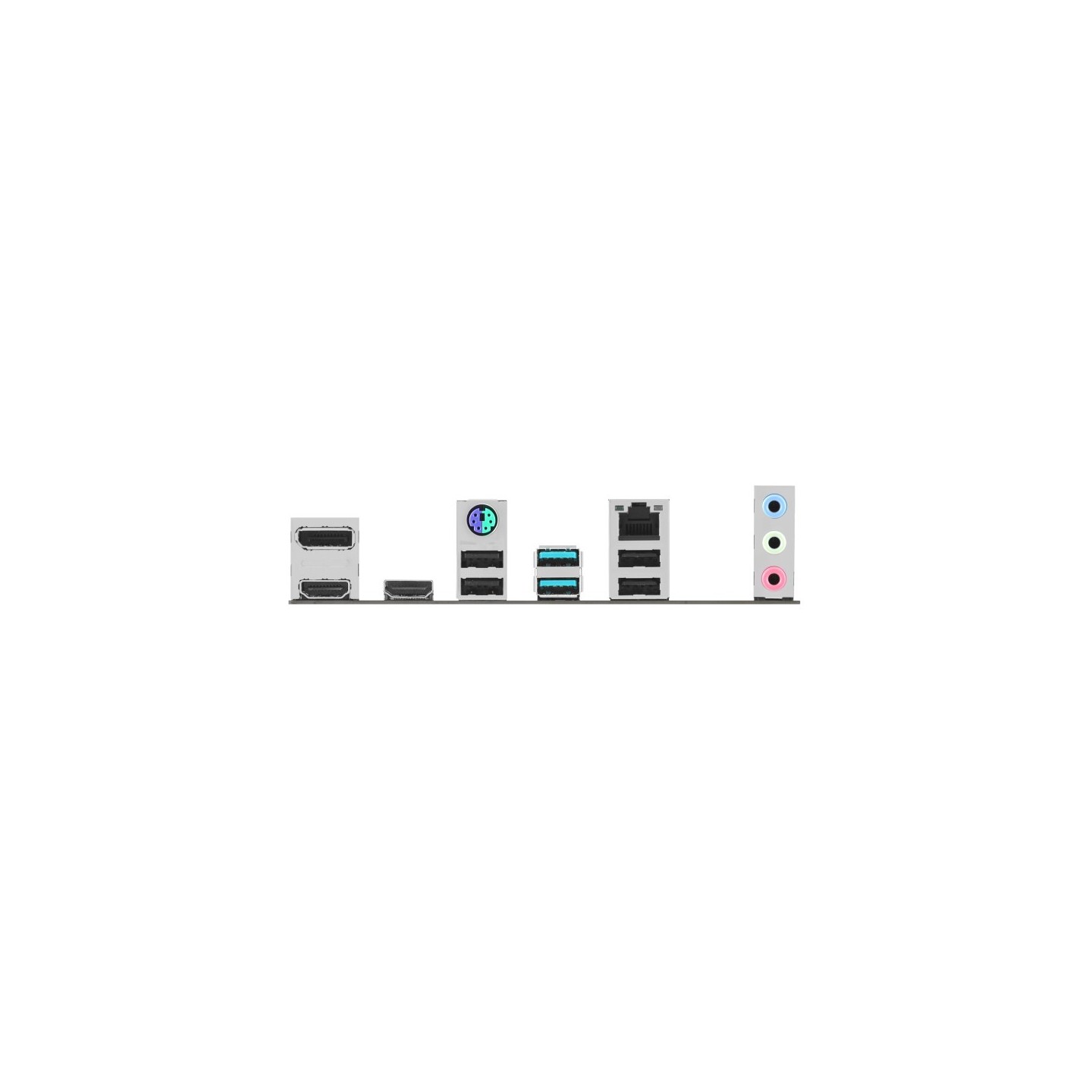

Connectivity is robust with two PCIe 4.0 M.2 slots (both x4), four SATA 6Gb/s ports, Realtek 2.5Gb Ethernet, rear USB 3.2 Gen 2 ports, front USB 3.2 Gen 1 Type-C header, dual HDMI, DisplayPort, and PS/2 combo port. Cooling solutions include VRM, M.2, and PCH heatsinks plus hybrid fan headers with Fan Xpert 2+. ASUS Aura Sync support via 2x Addressable Gen 2 RGB headers allows customizable lighting.
- ✅ PCIe 4.0 x16 slot (CPU) + additional x16(x4/x1) (chipset)
- ✅ 7.1-channel HD audio with shielding
- ✅ UEFI BIOS with 128Mbit memory, Q-Design features
- ✅ Supports Windows 11/10
- ✅ Comprehensive protection: DIGI+ VRM, LANGuard, SafeSlot
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron |
| Motherboard chipset | Intel B760 |
| Motherboard form factor | micro ATX |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Maximum internal memory | 128 GB |
| Supported memory clock speeds | 7200+(OC)/7000(OC)/6800+(OC)/6600+(OC)/6400+(OC)/6200+(OC)/6000+(OC)/5800+(OC)/5600/5400/5200/5000/4800 MHz |
| Number of M.2 (M) slots | 2 |
| Number of SATA III connectors | 4 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Audio output channels | 7.1 channels |
| PCI Express x16 (Gen 4.x) slots | 3 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 52 mm |
| Package weight | 1.14 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Front USB 3.2 Gen 1 Type-C | Yes (header) |
| Addressable Gen 2 headers | 2 |
| Memory Profile Support | Intel XMP |
