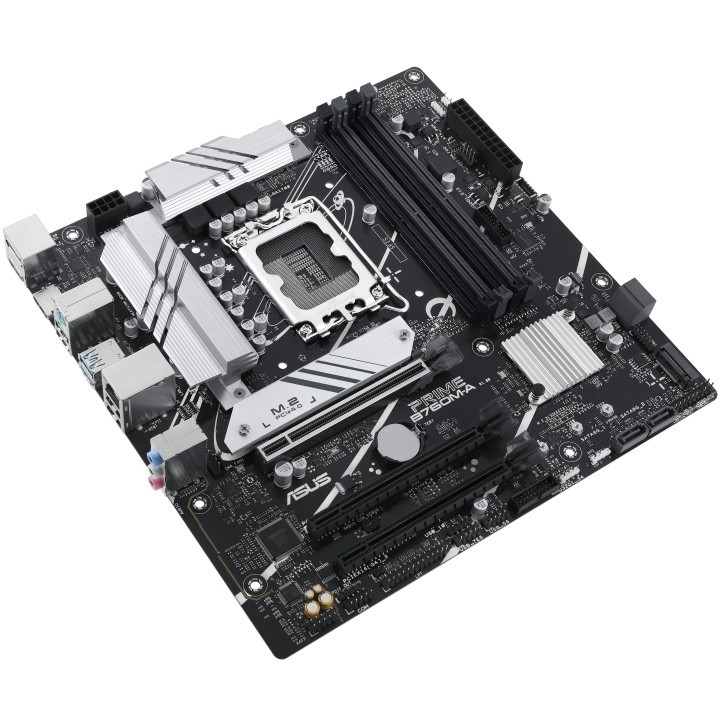

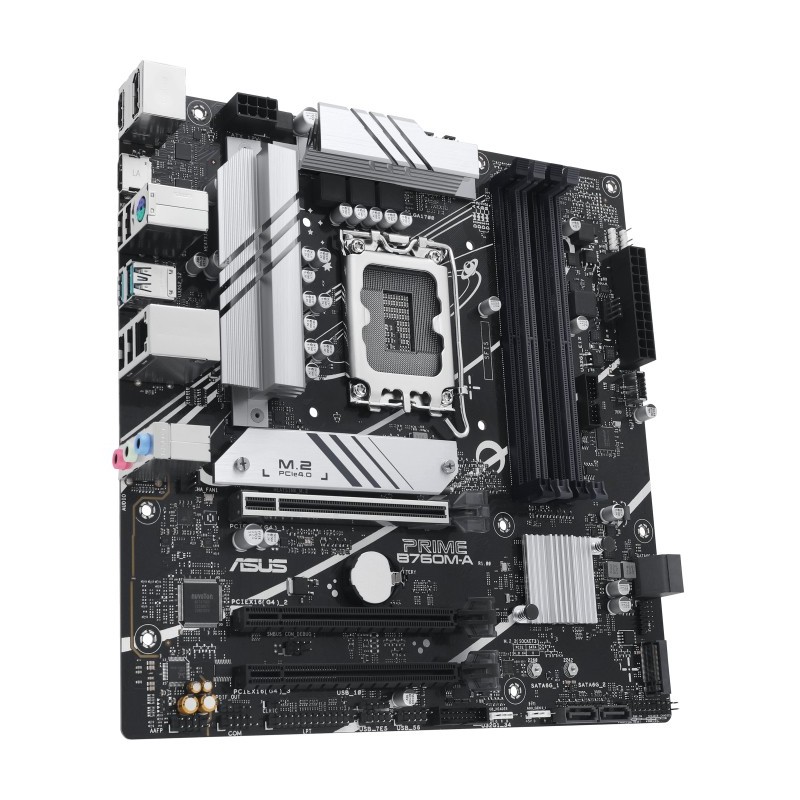

ASUS PRIME B760M-A-CSM - Micro-ATX LGA1700 - DDR5 4x DIMM, 128GB Max, 2x M.2, PCIe 4.0, 2.5Gb LAN
ASUS PRIME B760M-A-CSM micro-ATX motherboard for LGA1700. DDR5 (4 DIMM) up to 128GB, 2x M.2, 4x SATA III, PCIe 4.0, HDMI/DP, 2.5Gb Ethernet.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Motherboards - Socket | LGA1700 |
|---|---|
| Motherboards - Chipset | Intel B760 |
| Motherboards - Form Factor | Micro-ATX |
| Motherboards - Memory Type | DDR5 |
| Motherboards - Memory Slots | 4 |
| Motherboards - Max Memory Capacity | 128 GB |
| Motherboards - PCIe Version (primary GPU) | PCIe 4.0 |
| Motherboards - M.2 Slots | 2 |
| Motherboards - SATA Ports | 4 |
ASUS PRIME B760M-A-CSM. Processor manufacturer: Intel. Processor socket: LGA 1700. Compatible processor series: Intel® Celeron®. Intel® Pentium® Gold. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™.... Supported memory types: DDR5-SDRAM. Maximum internal memory: 128 GB. Memory slots type: DIMM. Supported storage drive interfaces: M.2. SATA III. Supported storage drive types: HDD & SSD. Ethernet interface type: 2.5 Gigabit Ethernet. Component for: PC. Motherboard form factor: micro ATX. Motherboard chipset family: Intel
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®. Intel® Pentium® Gold. Intel® Core™ i3. Intel® Core™ i5. Intel® Core™ i7. Intel® Core™ i9 |
| Supported processor sockets | LGA 1700 |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 7200.7000.6800.6600.6400.6200.6000.5800.5600.5400.5200.5000.4800 MHz |
| Supported memory clock speed (max) | 7200 MHz |
| Maximum internal memory | 128 GB |
| Feature | Clear CMOS button |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2. SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 6 |
| Parallel processing technology support | Not supported |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 3 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 2 |
| Number of COM connectors | 1 |
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 1 |
| WiFi-AP antenna jack | 1 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Motherboard chipset | Intel B760 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Windows operating systems supported | Windows 10 x64. Windows 11 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 2 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Package width | 270 mm |
| Package depth | 263 mm |
| Package height | 52 mm |
| Package weight | 1.14 kg |
| Width | 244 mm |
| Depth | 244 mm |
| Height | 40 mm |
| Cables included | SATA |
